  1. Company Profile Adel, this brand name comes from: : Advanced : Digital : Electronic : Lock

  2. Company Profile • Over 10 years experience in manufacturing electronic locks, hotel locks • The Leading • electronic locks supplier in China • hotel locks supplier in China • Business over 60 countries • e.g. USA, Europe, South-East Asia • Over 7000 hotels using our locking system

  3. Company Profile Some of our hotel groups clients:

  4. Company Profile • Other clients: • Government sector e.g. Zhongnanhai • University e.g. Zhejiang University in PRC • Land development company • e.g. Henderson Land Development Company Limited • Big Enterprise e.g. CCTV in PRC.

  5. US Office Adel Group China Office Hong Kong Office Company Profile

  6. Company Strengths • Expert in making hotel locks • Product design in US and the PRC. • Over 10 years experience • PVD technology is applied in our products • Hotel Locks pass the fire test of Hong Kong • BS476part22 • Good co-operation with some Well-known hotel group, e.g. ‘Accor’ from France

  7. Company Strengths • Co-operation with some large international firms • Philips: Special designed Mifare Cards • Texas Instrument (TI) : DSP processors for fingerprint technology

  8. Adel Hotel Lock System • Hotel locks system • Mifare card lock

  9. Mifare Management software Encoder Mifare Keycard Mifare Card Locks Query card Hotel lock: RF authentication Key hole Mifare Card Lock Mifare card system is made up of: RF Authentication: Contactless transmission of data

  10. Adel Products • Mifare Card locks • Mifare Card Encoder • Door lock keycards • Unlocking records retrieval

  11. 1. Mifare Card Locks • Model 1000: • Design: • British design. Design is simple, classic and highly privileged • Door handle: • U-shape handle is designed. Easy to open the door • Finish: • Stainless steel or polished gold with PVD coating. To avoid the rotten surface and can be keep over five years • Material: • Stainless steel UMFA1000-PP

  12. 1. Mifare Card Locks • Model 2000: • Design: • French design. Design is elegant, classic • Door handle: • U-shape handle is designed. Easy to open the door • Finish: • Stainless steel or polished gold with PVD coating. To avoid the rotten surface and can be keep over five years • Material: • Stainless steel UMFB2000-RR

  13. 1. Mifare Card Locks • Model 6000: • Design: • American design. Design is elegant, classic • Door handle: • G-shape handle is designed. Easy to open the door • Finish: • Satin Chrome or Polished gold with PVD coating. To avoid the rotten surface and can be keep over five years • Material: • Stainless steel DMFB6000-RR

  14. Door Lock Parameter Static power consumption • 12uA Operating voltage: • DC 6V (4 AA batteries) Life-span of batteries: • Open the door for around 15000 times or 1 to 1.5 years Dynamic power consumption: • 100-150uA Low voltage indication: • When the operating voltage is below around 4.8V, there will be red light on the lock to remind you that you can open the door for around 10 days

  15. Door Lock Parameter Lock open record: • “EEPROM” inside the lock can save 828 records • There will be door open records when you use the mechanical key to open the door Guaranteed condition: • After the lock socket is contacted with unrestricted card, the lock can also work normally Mechanical key: • Can be used independently and open the door in emergency Installation of door lock • Thickness of the door should be between 38~55mm

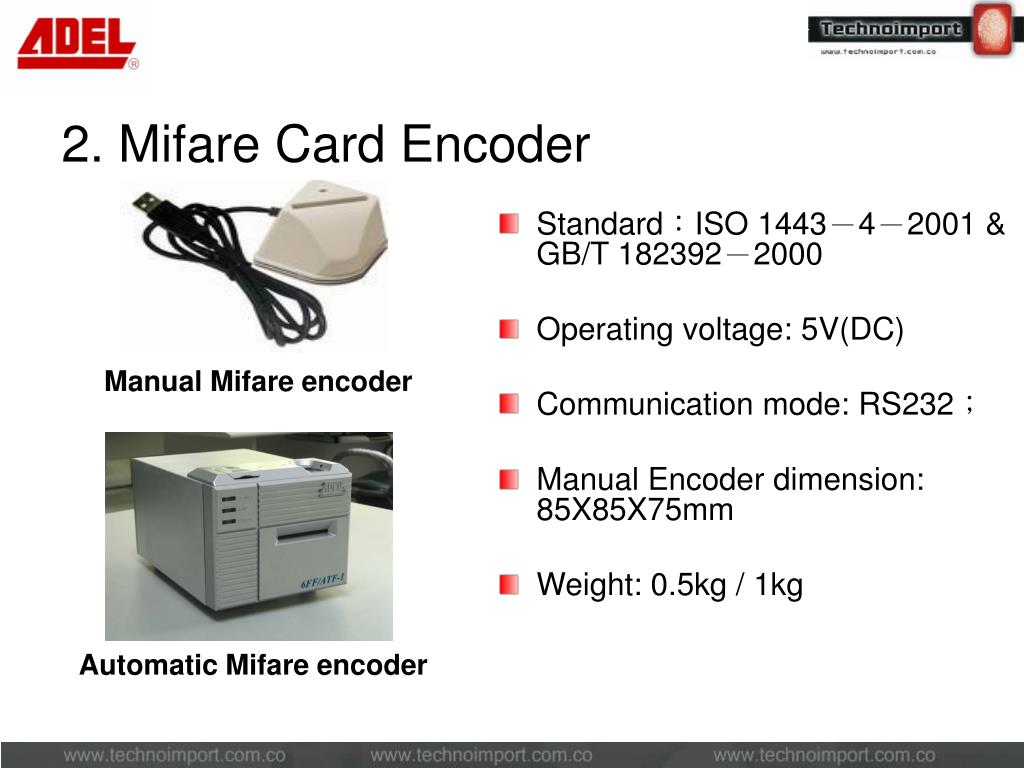

  16. Automatic Mifare encoder 2. Mifare Card Encoder • Standard:ISO 1443-4-2001 & GB/T 182392-2000 • Operating voltage: 5V(DC) • Communication mode: RS232; • Manual Encoder dimension: 85X85X75mm • Weight: 0.5kg / 1kg Manual Mifare encoder

  17. 3. Door lock keycards Mifare card • Contactless transmission of data and supply energy • Capacity- 8Kbyte EEPROM • Each card is divided into16 sectors with 4 blocks of 16 bytes each. Every sector has its own unique query password. • Unique 32 digits serial number for each card • Data can be read with no limit and retain for ten years • Write endurance 100,000 cycles

  18. Door lock Query card Software 4. Unlocking Records Retrieval Mifare card unlocking data record retrieval process: • Mifare card collects the unlocking data from the door lock directly and retrieves the data through the software.

  19. Unique Benefits of Using Adel Hotel Locks • Easy to clean the hotel locks because PVD coating for Adel hotel locks • Large capacity of opening records saved in the locks (828 records) • Able to record the mechanical key opening lock record • Emergency keycard is available

  20. Unique Benefits of Using Adel Hotel Locks • ‘No disturbing’ function is provided • Anticollision design for PCB • Door clock automatic time auditing • Multi-application card benefits - good management for hotel

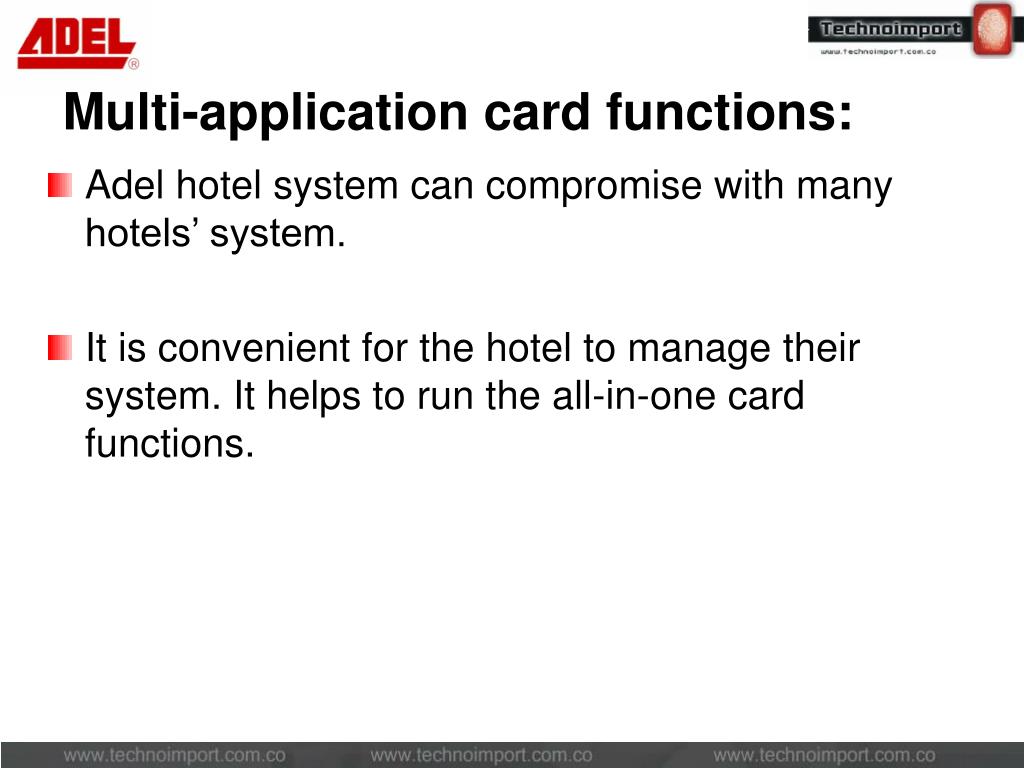

  21. Multi-application card functions: • Adel hotel system can compromise with many hotels’ system. • It is convenient for the hotel to manage their system. It helps to run the all-in-one card functions.

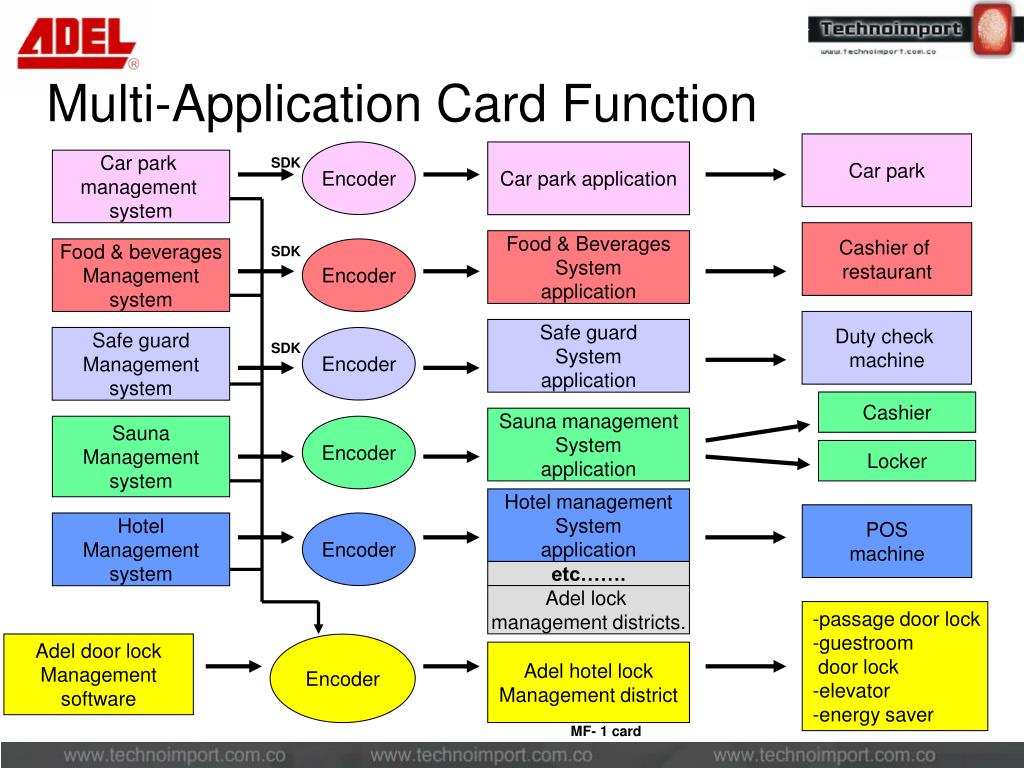

  22. Multi-Application Card Function Car park Encoder Car park application Car park management system SDK Cashier of restaurant Food & Beverages System application Food & beverages Management system SDK Encoder Duty check machine Safe guard System application Safe guard Management system Encoder SDK Cashier Sauna management System application Sauna Management system Encoder Locker Hotel management System application POS machine Hotel Management system Encoder etc……. Adel lock management districts. -passage door lock -guestroom door lock -elevator -energy saver Adel door lock Management software Encoder Adel hotel lock Management district MF- 1 card

  23. Adel Hotel Lock Management Software • Use SQL Server to manage door lock software • More stable, safe and convenient • English and Chinese version for the system

  24. Adel Hotel Lock Management Software System preservation • System parameter set up, encoder set up etc.

  25. Adel Hotel Lock Management Software Detailed instructions in the software is provided • Easier to learn the operation of the system

  26. Adel Hotel Lock Management Software Control on system operator • System operators are set by the hotel management

  27. Adel Hotel Lock Management Software • Date record for system users

  28. Adel Hotel Lock Management Software • Room type management

  29. Adel Hotel Lock Management Software • Separation of hierarchy of hotel rooms

  30. Adel Hotel Lock Management Software • Check rooms status function

  31. Adel Hotel Lock Management Software • Locking system for assigned rooms

  32. Adel Hotel Lock Management Software • Perfect enquiry function

  33. Adel Hotel Lock Management Software • Gate management function

  34. Adel Hotel Lock Management Software • Spare cards function

  35. Adel Hotel Lock System Accessories • Elevator controller • Energy saver • Office entrance guard • Passage lock • Bathroom lock • Safe

  36. After Sales Services • Service is provided online. • If necessary, our company will send our technicians to hotel as soon as possible. • One year free of charge maintenance (start from the shipping day ) • Within one year, all the mechanical parts for the locks will be repaired except man-made cases (free of charge) • Provided continuous maintenance for the locks after one year and all the maintenance cost is just based on cost of repairing
