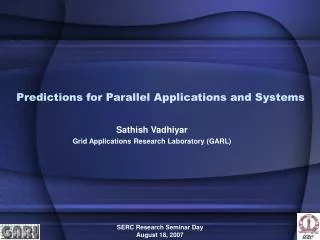

Predictions for parallel applications and systems

Predictions for Parallel Applications and Systems

Sathish Vadhiyar

Grid Applications Research Laboratory (GARL)


Garl research

GARL Research

  • Grid Applications

    • Climate Modeling

    • Gene Mutations

  • Performance Modeling

  • Rescheduling

  • Others

    • Prediction of queue wait times


Garl research1

GARL Research

  • Grid Applications

    • Climate Modeling

    • Gene Mutations

  • Performance Modeling

  • Rescheduling

  • Others

    • Prediction of queue wait times


Rescheduling

Rescheduling

  • The base is a parallel checkpointing library called SRS

  • Checkpointing? – storing application’s state so as to continue from the previous state after interruption

  • Interruption either by a scheduler or system faults

  • SRS allows processor reconfiguration


Application progress

Application Progress

System 1

System 2

Storage


Optimal checkpoint interval

Optimal Checkpoint Interval

  • Storing checkpoints periodically will help in fault-tolerance

  • How periodic?

  • What is the optimal checkpoint interval?

    • More checkpointing will lead to increased checkpoint overhead

    • Less checkpointing frequency will lead to increase times for recovery from failures


Illustration

Illustration


Dynamic determination of optimal checkpointing intervals

Dynamic Determination of Optimal Checkpointing Intervals

  • Start the application on a set of resources

  • Predict the next failure on the set of resources

  • Checkpoint “just before” the next failure

  • The prediction has to be really accurate

  • But no prediction can be 100% accurate


Probability distribution of failures

Probability Distribution of Failures

  • Use a probability distribution of failures on the resources

  • Need to know: The next time of failure with x% certainty

  • But more certainty is also not good


Markov chains

Markov Chains

For parallel M-M checkpointing

In SRS, there is almost no system down phase

For sequential applications

In SRS, transition from state 0 can lead to many states


Garl research2

GARL Research

  • Grid Applications

    • Climate Modeling

    • Gene Mutations

  • Performance Modeling

  • Rescheduling

  • Others

    • Prediction of queue wait times


Motivation for queue wait times

Motivation for Queue Wait Times

  • A Grid consisting of number of batch queues

  • A meta system that will:

    • predict the wait times and execution times of jobs

    • Decide which queue is “most suitable” for the job


What is a good predictor

What is a good predictor?

  • There are number of prediction strategies

  • Evaluating a predictor’s goodness:

    • Mean Absolute Percentage Error (MAPE)

    • Upper bound for actual/predicted

    • Average of (actual-predicted) [absolute error]

    • Absolute error/actual wait time [relative error]

    • Average error/average queue wait time

    • Coefficient of correlation

  • Each of these metrics has flaws


Illustration1

Illustration

Method 1

Method 2

Metric 3 value of Method 1 < Metric 3 value of Method 2

i.e. Method 1 is better


Our goals

Our goals

  • To define useful metrics that can clearly say whether a method is “good” or “bad”

  • Goodness of predictors

    • In terms of absolute wait times

    • In terms of execution times

    • In terms of resource demand


Illustration prediction errors versus absolute wait times

Illustration:Prediction errors versus absolute wait times

y1

x1, y1

(A-P)/A%

f(x)

x2, y2

Wait times


Reality

Reality??


What we want to do

What we want to do…

  • Define metrics that can evaluate a method in the “absolute” sense, not “comparative” sense

    • Stare at a single graph and ask “Is this graph good” as much as possible

  • In some cases, it may just not be possible

    • Use comparisons

  • Evaluate the existing methods on these sets of metrics

  • Come up with a method that performs the best in terms of all of the defined metrics


Garl research3

GARL Research

  • Grid Applications

    • Climate Modeling

    • Gene Mutations

  • Performance Modeling

  • Rescheduling

  • Others

    • Prediction of queue wait times


Motivation

Motivation

  • Certain large computational phases of climate modeling (CCSM) are done only by some processors

  • Load balancing – offload work from these processors to other processors

    • Increased processor utilization

    • Decreased execution time

  • How much offloading?

    • Need to predict workload based on previous computations


What is happening

What is happening…

Proc 0

Proc 1

Proc 2

Proc 3

Proc 4

Phase 1

Phase 2


What should happen

What should happen…

Proc 0

Proc 1

Proc 2

Proc 3

Proc 4

Phase 1

Phase 2

For this, we need to know the workload in phase 1

We predict the workload based on previous time steps


Advantages

Advantages


Garlians

GARLians

  • Yadnyesh Joshi (M.Sc)

  • Karthikeyan Raman (M.Tech, jointly with Prof. Govindarajan)

  • H.A. Sanjay (Ph.D, jointly with Prof. Ravi Nanjundiah, CAOS)

  • Sivagama Sundari (Ph.D)

  • Ashish Srivatsava (Project Assistant)

  • Alumni

    • 1 student intern from INSA, Lyon, France

    • Summer interns

    • Project assistants

    • 2 M.Scs


Questions

Questions ????

Thank U

http://garl.serc.iisc.ernet.in
