Presentation Transcript

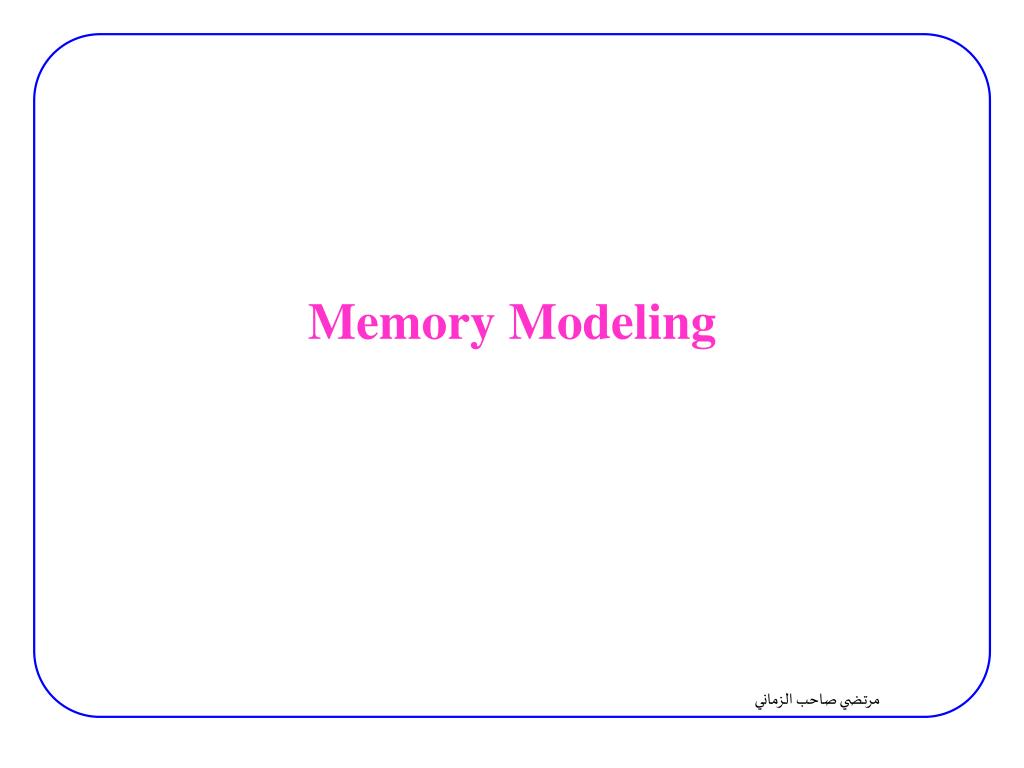

memory modeling

Memory Modeling

مرتضي صاحب الزماني

slide2
مدل ساده

package body Mem_Pkg is

constant DataWidth_c : Natural := 8;

constant AddrWidth_c : Natural := 16;

constant MaxDepth_c : Natural := 2 ** AddrWidth_c; -- 64K

end Mem_Pkg;

entity Memory_Nty is

generic (FileName_g : String(1 to 12):= "memdata_.txt");

port(

MemAddr : in Natural;

MemData : inout Std_Logic_Vector(Mem_Pkg.DataWidth_c - 1 downto 0);

RdWrF : in Std_Logic;

CeF : in Std_Logic); -- Chip Select

end Memory_Nty;

مرتضي صاحب الزماني

slide3
مدل ساده

architecture Memory_a of Memory_Nty is

begin -- Memory_a

Memory_Lbl : process(MemAddr, MemData, RdWrF, CeF)

subtype Data_Typ is Std_Logic_Vector(Mem_Pkg.DataWidth_c - 1 downto 0);

subtype MemSize_Typ is integer range 0 to Mem_Pkg.MaxDepth_c - 1;

type Mem_Typ is array(MemSize_Typ) of Data_Typ;

variable Memory_v : Mem_Typ;

begin

end;

  • اشکالات: حافظه ي زياد و زمان شبيه سازي بالا.

مرتضي صاحب الزماني

slide4
مدل کارآ تر
  • فقط براي I/O از std_logic_vector استفاده شود و براي داخل حافظه آرايه ي INTEGERبه کاررود.

( براي std_logic معمولا به ازاي هر عنصر، يک بايت گرفته مي شود).

  • به توابع تبديل type نياز داريم.
  • مقادير metalogical از دست مي روند.
  • عناصر حافظه را مي توان VARIABLE گرفت چون SIGNAL زمان و حافظه ي زيادي مصرف مي کند.

( فقط interfaceهاي حافظه از نوع سيگنال باشند).

مرتضي صاحب الزماني

fixed array caching

Addr

(0)

data

Addr

(1)

data

Addr

(255)

data

مدل Fixed Array Caching
  • معمولا براي شبيه سازي به تعداد محدودي از عناصر حافظه دسترسي مي يابيم (نه مثلا کل 4GB).
  •  از يک آرايه به سايز مثلا 256 استفاده مي کنيم ( به طولي که انتظار داريم کاربر به آن تعداد دسترسي خواهد يافت).
  • به يک متغير نياز داريم که نشان دهد تا کجا نوشته ايم (max).
  •  با هر دسترسي به حافظه در فيلد آدرسها جستجو مي کنيم.
  • براي نوشتن: به محض يافتن آدرس مورد تقاضا، داده را در آن انديس مي نويسيم. اگر اين آدرس قبلا موجود نبود آن را در آدرس ++max مي نويسيم.
  • براي خواندن: اگر اين آدرس قبلا موجود نبود “XXX..X” را روي خط data قرار مي دهيم.

مرتضي صاحب الزماني

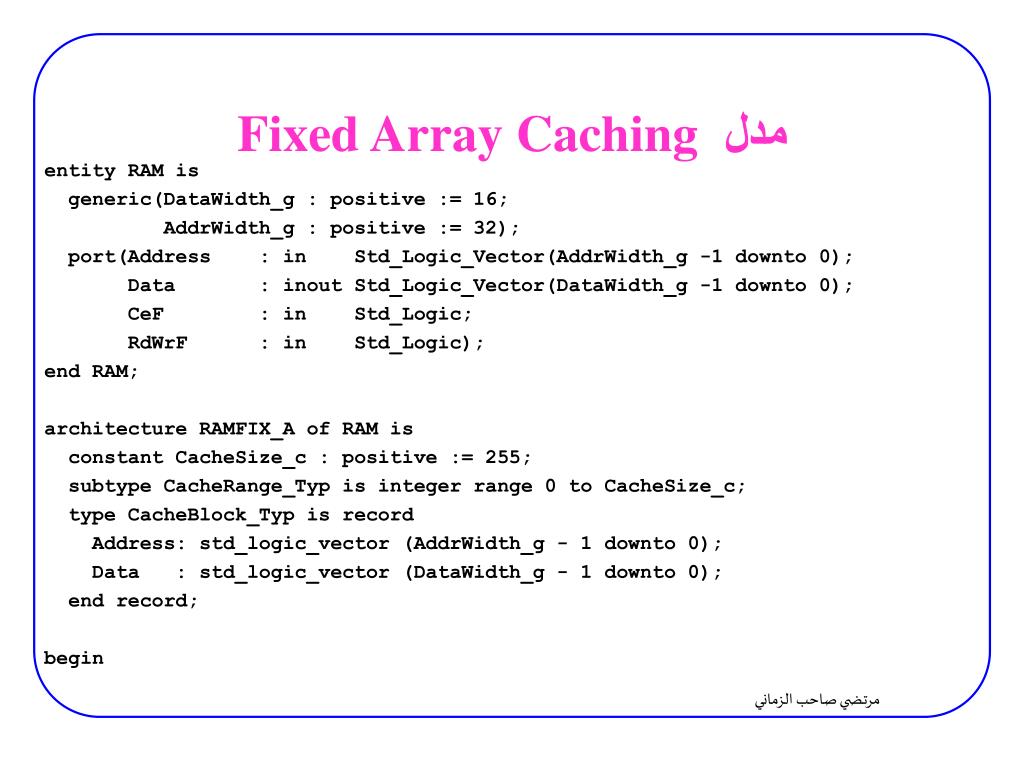

fixed array caching1
مدل Fixed Array Caching

entity RAM is

generic(DataWidth_g : positive := 16;

AddrWidth_g : positive := 32);

port(Address : in Std_Logic_Vector(AddrWidth_g -1 downto 0);

Data : inout Std_Logic_Vector(DataWidth_g -1 downto 0);

CeF : in Std_Logic;

RdWrF : in Std_Logic);

end RAM;

architecture RAMFIX_A of RAM is

constant CacheSize_c : positive := 255;

subtype CacheRange_Typ is integer range 0 to CacheSize_c;

type CacheBlock_Typ is record

Address: std_logic_vector (AddrWidth_g - 1 downto 0);

Data : std_logic_vector (DataWidth_g - 1 downto 0);

end record;

begin

مرتضي صاحب الزماني

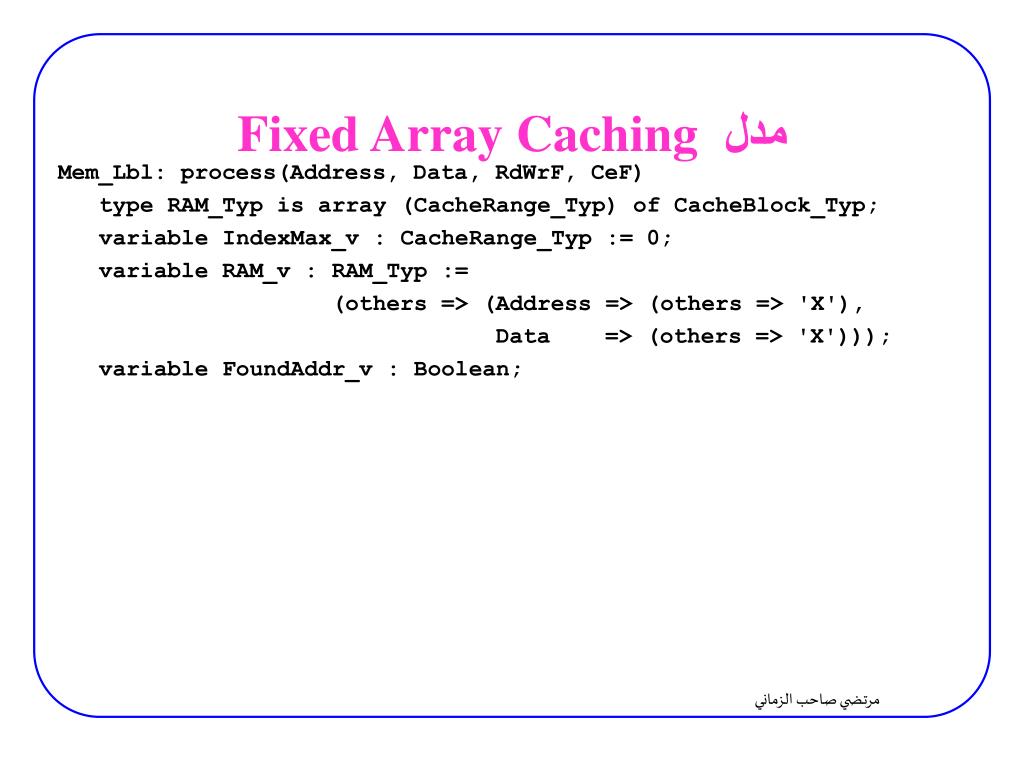

fixed array caching2
مدل Fixed Array Caching

Mem_Lbl: process(Address, Data, RdWrF, CeF)

type RAM_Typ is array (CacheRange_Typ) of CacheBlock_Typ;

variable IndexMax_v : CacheRange_Typ := 0;

variable RAM_v : RAM_Typ :=

(others => (Address => (others => \'X\'),

Data => (others => \'X\')));

variable FoundAddr_v : Boolean;

مرتضي صاحب الزماني

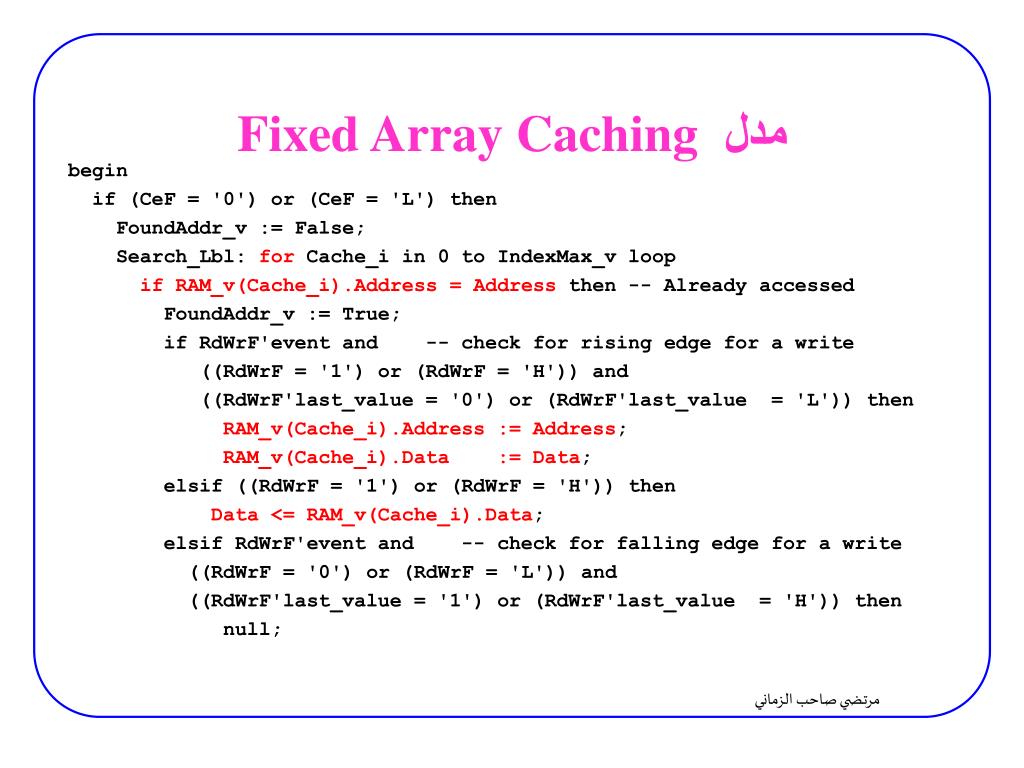

fixed array caching3
مدل Fixed Array Caching

begin

if (CeF = \'0\') or (CeF = \'L\') then

FoundAddr_v := False;

Search_Lbl: for Cache_i in 0 to IndexMax_v loop

if RAM_v(Cache_i).Address = Address then -- Already accessed

FoundAddr_v := True;

if RdWrF\'event and -- check for rising edge for a write

((RdWrF = \'1\') or (RdWrF = \'H\')) and

((RdWrF\'last_value = \'0\') or (RdWrF\'last_value = \'L\')) then

RAM_v(Cache_i).Address := Address;

RAM_v(Cache_i).Data := Data;

elsif ((RdWrF = \'1\') or (RdWrF = \'H\')) then

Data <= RAM_v(Cache_i).Data;

elsif RdWrF\'event and -- check for falling edge for a write

((RdWrF = \'0\') or (RdWrF = \'L\')) and

((RdWrF\'last_value = \'1\') or (RdWrF\'last_value = \'H\')) then

null;

مرتضي صاحب الزماني

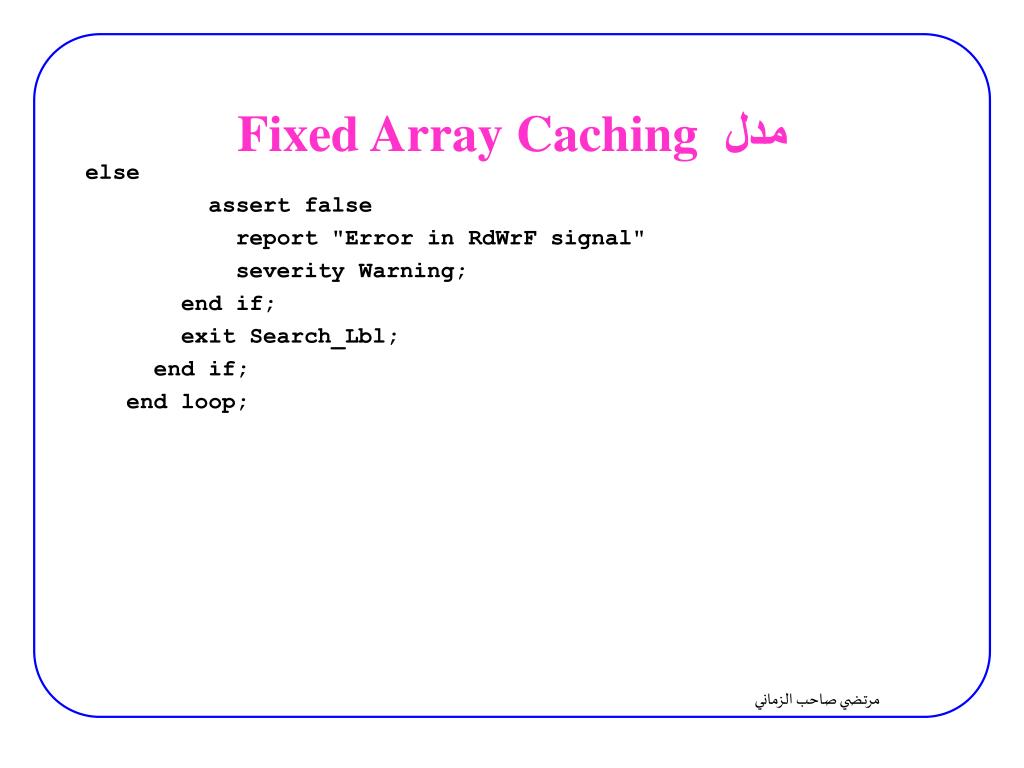

fixed array caching4
مدل Fixed Array Caching

else

assert false

report "Error in RdWrF signal"

severity Warning;

end if;

exit Search_Lbl;

end if;

end loop;

مرتضي صاحب الزماني

fixed array caching5
مدل Fixed Array Caching

if not FoundAddr_v then

if RdWrF\'event and -- check for rising edge for a write

((RdWrF = \'1\') or (RdWrF = \'H\')) and

((RdWrF\'last_value = \'0\') or (RdWrF\'last_value = \'L\')) then

RAM_v(IndexMax_v).Address := Address;

RAM_v(IndexMax_v).Data := Data;

if IndexMax_v /= CacheSize_c then

IndexMax_v := IndexMax_v + 1;

else

assert false

report "Maximum limit for cache entry is reached"

severity note;

end if;

مرتضي صاحب الزماني

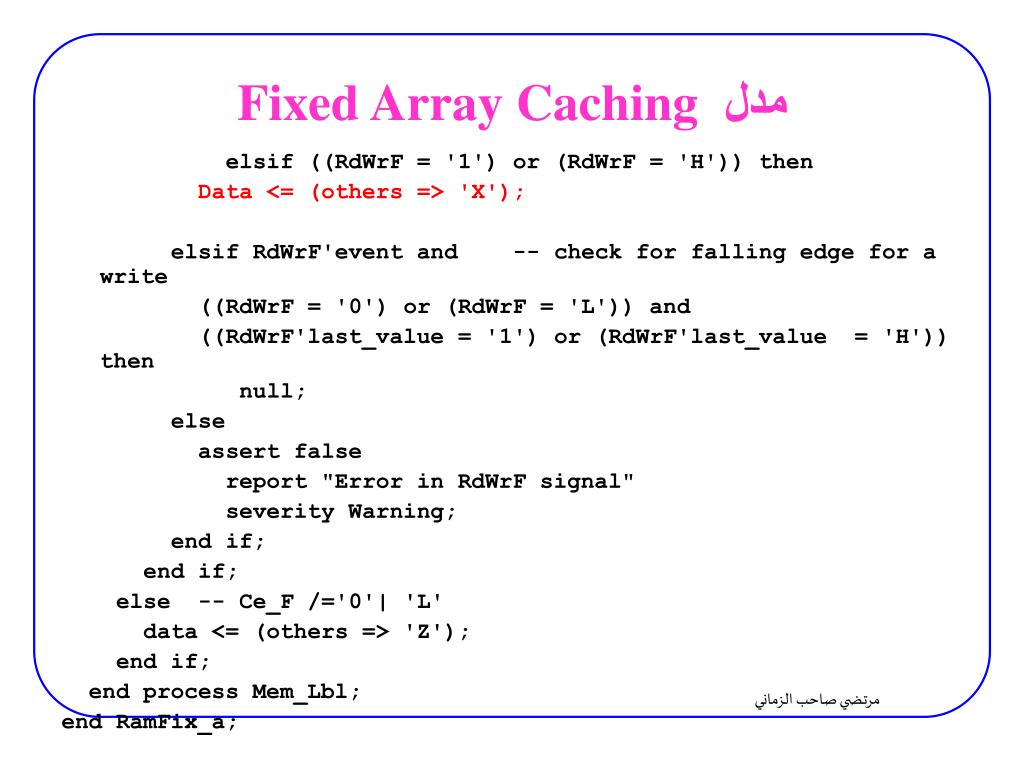

fixed array caching6
مدل Fixed Array Caching

elsif ((RdWrF = \'1\') or (RdWrF = \'H\')) then

Data <= (others => \'X\');

elsif RdWrF\'event and -- check for falling edge for a write

((RdWrF = \'0\') or (RdWrF = \'L\')) and

((RdWrF\'last_value = \'1\') or (RdWrF\'last_value = \'H\')) then

null;

else

assert false

report "Error in RdWrF signal"

severity Warning;

end if;

end if;

else -- Ce_F /=\'0\'| \'L\'

data <= (others => \'Z\');

end if;

end process Mem_Lbl;

end RamFix_a;

مرتضي صاحب الزماني

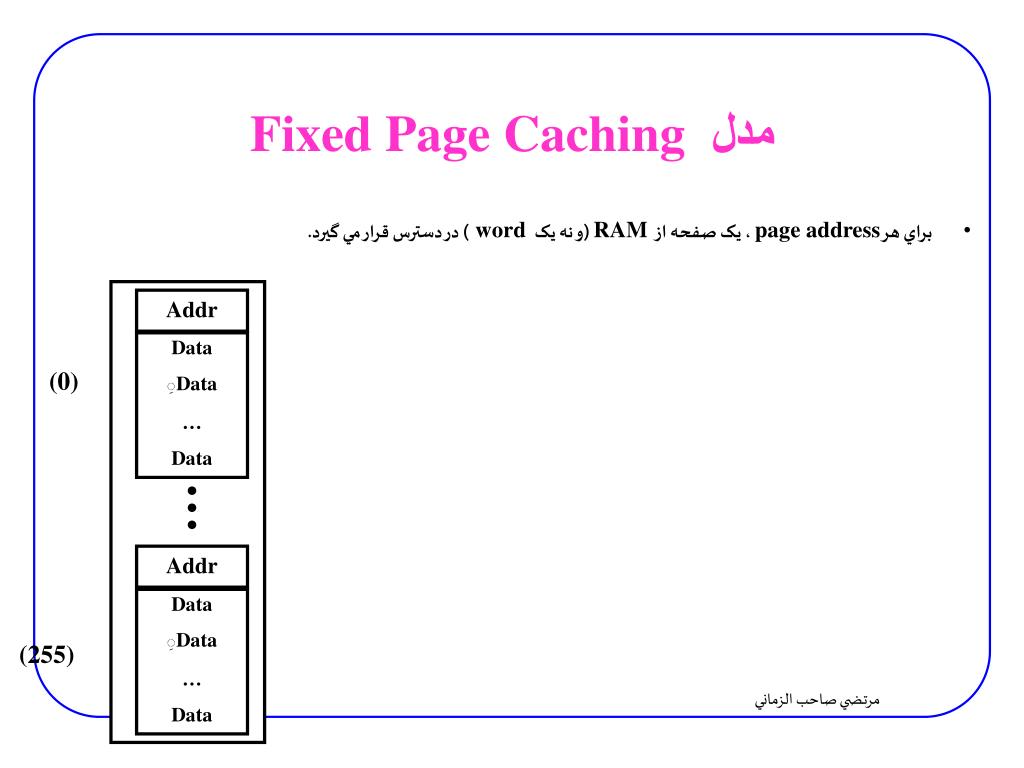

fixed page caching
مدل Fixed Page Caching
  • براي هر page address ، يک صفحه از RAM (و نه يک word ) در دسترس قرار مي گيرد.

Addr

Data

ِData

Data

(0)

Addr

Data

ِData

Data

(255)

مرتضي صاحب الزماني

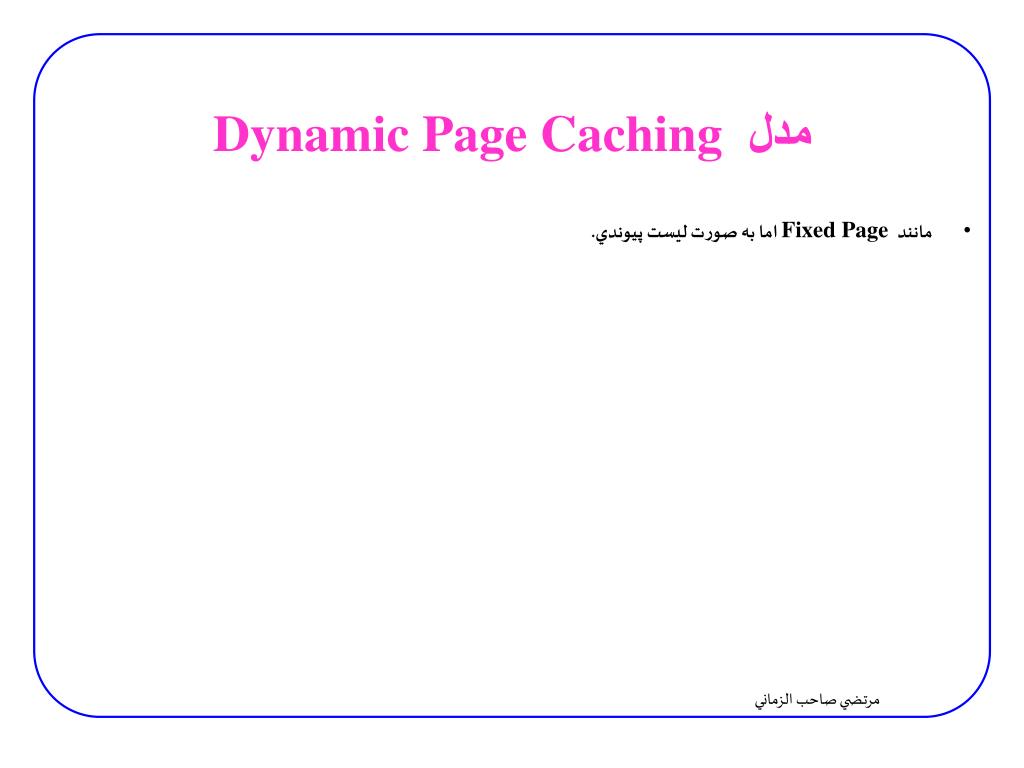

dynamic page caching
مدل Dynamic Page Caching
  • مانند Fixed Page اما به صورت ليست پيوندي.

مرتضي صاحب الزماني
