Death by bananas

Death by Bananas

The Management of Hyperkalaemia

Dr. Kiaran Flanagan, Clinical Lead Acute Medicine UHCW

June 2012


Case 1

Case 1

  • Patient comes into ED referred by GP for high potassium of 6.7

  • You see the notes in the SIFT tray

  • What do you do? ...


How to manage

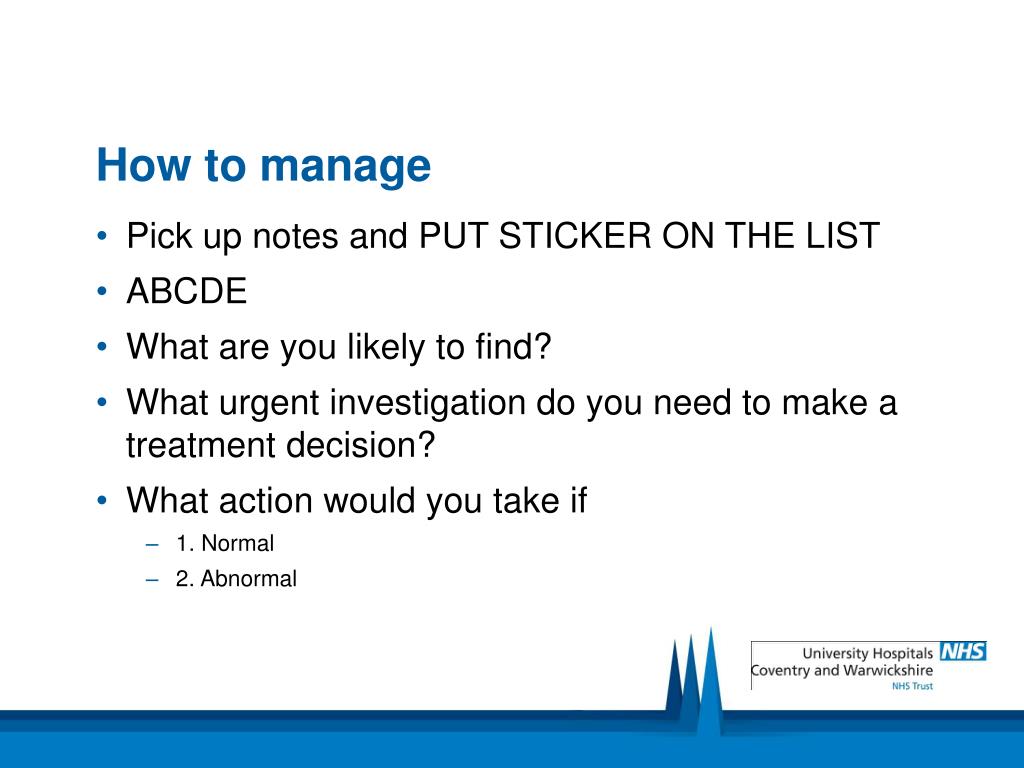

How to manage

  • Pick up notes and PUT STICKER ON THE LIST

  • ABCDE

  • What are you likely to find?

  • What urgent investigation do you need to make a treatment decision?

  • What action would you take if

    • 1. Normal

    • 2. Abnormal


What next

What next?

  • History...

  • Examination...

  • Further tests

  • What are you looking for?


What next1

What next...

  • Senior review?

  • Actions you should recommend...

    • Drugs

    • Monitoring

    • Admit/ Discharge

    • Further checks

    • Anticipated future actions

    • How will you make this happen?


Case 2

Case 2

  • Patient on the ward

  • ATSP – unwell, vomiting

  • Day 2 of admission – post op R hemicolectomy

  • What do you do?


What do you do

What do you do?

  • ABCDE

  • Investigations?

  • Monitoring...


Patient hyperkalaemic

Patient hyperkalaemic

  • What else do you look for?

  • What test needs to have been done?

  • What treatment do you need to give?


Recheck k at 3 hours

Recheck K at 3 hours

  • Still high...

  • What next?

    • Treatment

    • Advice

    • Monitoring


Recheck k at 6 hours

Recheck K at 6 hours

  • Still high...

  • What do you do?

    • Treatment

    • Monitoring

    • Ask for help

      • Who

      • What will you tell them and how?

      • What for


Case 3

Case 3

  • Patient – Medical ALERT to Resus

  • Drowsy

  • High glucose

  • What do you do????


What do you do1

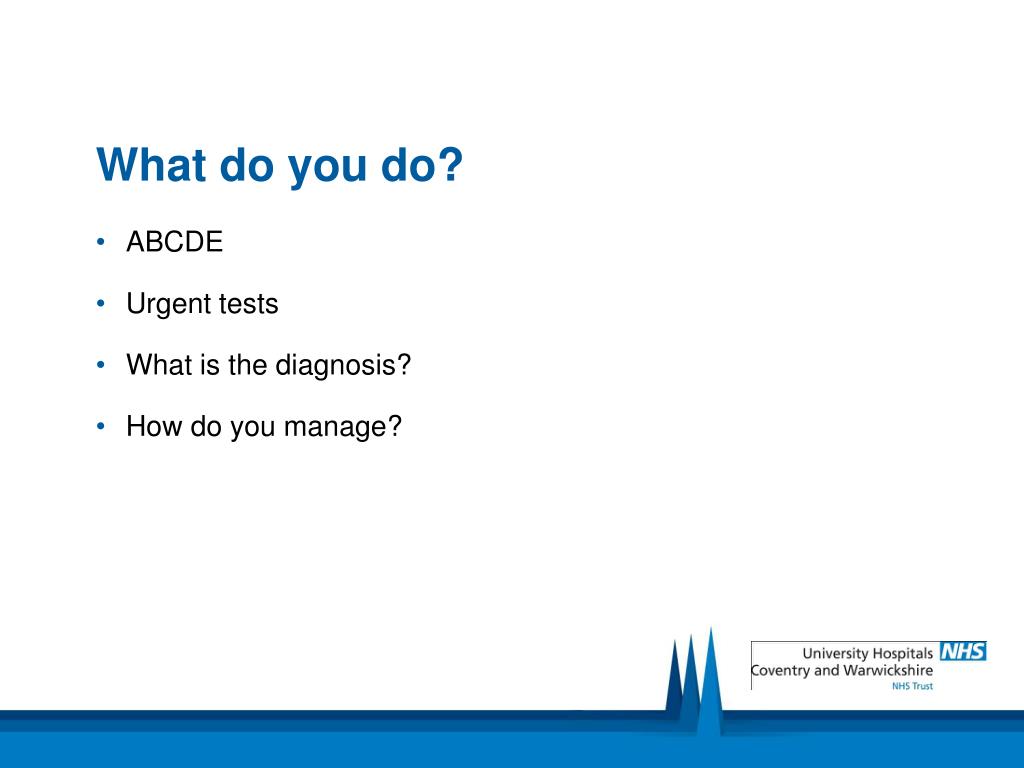

What do you do?

  • ABCDE

  • Urgent tests

  • What is the diagnosis?

  • How do you manage?


Case 4

Case 4

  • Cardiac Arrest Call

  • PEA

  • What do you think about?


Hyperkalaemia in cardiac arrest

Hyperkalaemia in cardiac arrest

  • What do you give?


Case 5

Case 5

  • Called to ward 1, pt unwell

  • Low BP, low glucose, high potassium

  • What do you do?

    • Assessment

    • Further tests?

    • Working diagnosis

    • Treatment?


Causes of hyperkalaemia

Causes of Hyperkalaemia

  • Decreased or impaired potassium excretion – renal failure, potassium-sparing diuretics, urinary obstruction, sickle cell disease, Addison disease, and systemic lupus erythematosus (SLE)

  • Additions of potassium into extracellular space - potassium supplements (eg, PO/IV potassium, salt substitutes), rhabdomyolysis, and hemolysis (eg, blood transfusions, burns, tumor lysis)

  • Transmembrane shifts (ie, shifting potassium from the intracellular to extracellular space) - acidosis and medication effects (eg, acute digitalis toxicity, beta-blockers, succinylcholine)

  • Factitious or pseudohyperkalemia - improper blood collection (eg, ischemic blood draw from venipuncture technique), laboratory error, leukocytosis, and thrombocytosis


Causes

Causes

  • Ineffective elimination

    • Kidneys

    • Drugs

    • Endocrine

  • Excessive release from cells

    • Injury

    • Metabolic

  • Excessive intake

    • Lethal Injection

  • Pseudo


Ecg changes

ECG Changes


How does it affect the heart

How does it affect the heart?

  • Hyperkalemia results in:

  • Inhibition of atrial myocardial depolarization.

  • Slowing of heart rate.

  • Prolonging QRS duration; complexes may become bizarre.

  • Also known as atrial standstill.

  • Rhythm called sinoventricular rhythm.

  • The ECG is a poor substitute for serum potassium levels to determine the degree of abnormality


Ecg changes1

ECG Changes

  • From reduction of P wave amplitude and prolongation of PR interval to absence of P waves altogether.

  • Increase of QRS duration.

  • Increase of QT duration.

  • Slowing of heart rate.

  • T waves become tall and spiked.

  • Decreased R wave amplitude


Ecg changes2

ECG Changes


3 principles of treatment

3 Principles of Treatment

  • Stabilise myocardium

  • Move it into cells

  • Increase elimination


Dextrose insulin

Dextrose - Insulin

  • How does it work?

  • How long for?

  • How do you give it?

  • What is the dose?

  • Other considerations...


Calcium gluconate

Calcium Gluconate

  • How does it work?

  • How long for?

  • How do you give it?

  • What is the dose?

  • Other considerations...


Sodium bicarbonate

Sodium Bicarbonate

  • How does it work?

  • How long for?

  • How do you give it?

  • What is the dose?

  • Other considerations...


Calcium resonium

Calcium Resonium

  • Hmmm....


More controversial

More controversial

  • Salbutamol

  • Furosemide


Protocols

Protocols

  • If K > 6 mmol

    • Calcium Resonium

    • Unless – Rising fast/ patient septic then treat as below

  • If K > 6.5 – normal ECG

    • Dextrose Insulin

    • Calcium Resonium


Protocols1

Protocols

  • If K > 6.5 – abnormal ECG or

  • If K > 7

    • Calcium Gluconate

    • Dex Insulin

    • Salbutamol

    • Sodium Bicarbonate

    • RRT


Important bits

Important Bits...

  • POTENTIAL LIFE THREATENING EMERGENCY

  • TREAT IF INDICATED

  • TRUST BUT VERIFY

  • RECHECK

  • CARDIAC MONITORING

  • EXPERT HELP

  • PREVENTION
