Papers by helbing presented by thiago ize

Simulating CrowdsSimulating Dynamical Features of Escape Panic & Self-Organization Phenomena in Pedestrian Crowds

Papers by Helbing

Presented by Thiago Ize


Why do we care

Why do we care?

  • Easy to use when doing crowds

    • For the layman animator

    • For the sleep deprived programmer

  • Lots of goodies come for free 

    • Escape panic features

      • Faster-is-slower effect

      • Crowding around doorway

      • Mass behavior

    • Normal pedestrian traffic features

      • Lanes

      • Waiting at doors

      • Braking rules


The model

The model

Missing the !

pushes αaway from all pedestrians, β

closest part of static things, Β, thatαshould avoid

gets α to desired velocity,

pushes αtowards certain pedestrians, i

These use potential force fields


What are potential force fields

What are potential force fields?

  • Field around an object that exerts a force on other objects

  • Used by roboticists

exponential

square

directional


The model normal condition

The model – normal condition

  • Lots of room for choice of potential function

  • Helbing uses an elliptical directional potential

directional

Directional potential:

Gradient:

α

β

α

α

Force applied on αby β:


What does that do

What does that do?

  • Lane formation

    • Potential force behind leader is low

    • Leader is moving away (force is not increasing)

  • Turn taking at doorways (it’s a polite model)

    • Easy to follow someone through the door.

    • Eventually pressure from other side builds up and direction changes

  • Rudimentary collision avoidance


Panic

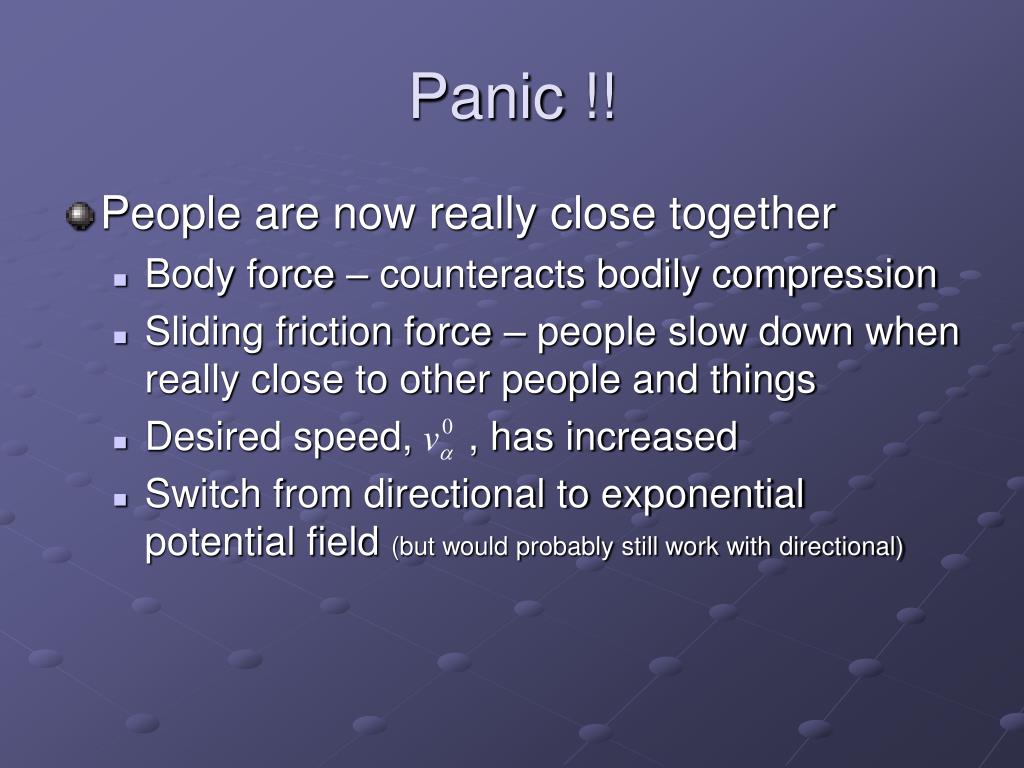

Panic !!

  • People are now really close together

    • Body force – counteracts bodily compression

    • Sliding friction force – people slow down when really close to other people and things

    • Desired speed, , has increased

    • Switch from directional to exponential potential field (but would probably still work with directional)


The model panic condition

The model - panic condition

Exponential potential field

body force

sliding friction force

g() = 0 if α and βare not touching, otherwise =

distance from α to β

tangential velocity difference

normal from βto α


What does that do1

What does that do?

  • Faster-is-slower effect

    • Sliding friction term

    • High desired velocity (panic)

      • Squishes people together

      • Gaps quickly fill up

  • Exits get an arch-like blockage


Integrating panic with normality

Integrating panic with normality

  • Sliding friction and body term can safely be used in all situations

  • Would probably make all scenes look better

  • Panic occurs when everyone’s desired velocity is high and points to same location


Mass behavior

Mass behavior

  • Confused people will follow everyone else

average direction of neighbors j in a certain radius Ri

individual direction

panic probability


Problems

Problems

  • Possible to go through boundaries

    • Can be fixed by increasing force of boundary

    • Sometimes good

  • Excels at crowds, not individual pedestrian movement

    • When focus is on big crowds and not on individuals, this is good.


Questions

Questions?
