Presentation Transcript


Edwin shin fedora commons http www fedora commons org

Edwin Shin

Fedora Commons

http://www.fedora-commons.org/

Fedora + Atom


Acknowledgements

Acknowledgements

  • University of London

  • MediaShelf


Serialization vs protocol

Publishing Protocol

RFC5023

HTTP-based, RESTful publishing protocol

e.g. GData

Serialization vs. Protocol

  • Syndication Format

    • RFC4287

    • XML-based document format

    • e.g. BBC headlines


Why atom

Why Atom?

  • Simple, but flexible & extensible

  • Widespread adoption

    • From news & blogs to OAI-ORE

  • Tool support

    • Libraries for Java, Ruby, .NET, etc.

    • Feed readers

  • == lightweight recipe for enabling interoperability


Fedora atom serialization

Fedora Atom Serialization

  • Alternative serialization to FOXML & METS

  • Atom ORE serialization

  • ZARCHIVE Context

    • A ZIP archive of a Fedora object, with an Atom manifest

  • Messaging Format


Fedora atom

<feed>

<id>info:fedora/demo:SmileyBeerGlass</id>

<entry>

<id>info:fedora/demo:SmileyBeerGlass/FULL_SIZE</id>

<title type="text">FULL_SIZE</title>

<updated>2008-04-03T10:47:21.162Z</updated>

<link href="info:fedora/demo:SmileyBeerGlass/FULL_SIZE/2008-04-03T10:47:21.162Z" rel="alternate"/>

<category term="E" scheme="info:fedora/fedora-system:def/model#controlGroup"/>

</entry>

<entry xmlns:thr="http://purl.org/syndication/thread/1.0">

<id>info:fedora/demo:SmileyBeerGlass/FULL_SIZE/2008-04-03T10:47:21.162Z</id>

<title type="text">FullSize.jpg.0</title>

<updated>2008-04-03T10:47:21.162Z</updated>

<thr:in-reply-to ref="info:fedora/demo:SmileyBeerGlass/FULL_SIZE"/>

<summary type="text">FullSize.jpg.0</summary>

<content type="image/jpeg" src="http://.../SmileyBeerGlass-FullSize.jpg"/>

</entry>

</feed>

Atom


Oreatom

<feed>

<id>info:fedora/demo:SmileyBeerGlass</id>

<link href="http://localhost:8080/fedora/get/demo:SmileyBeerGlass" rel="self" type="application/atom+xml"/>

<title type="text">Resource Map http://localhost:8080/fedora/get/demo:SmileyBeerGlass</title>

<author><name>Fedora Repository Service</name></author>

<link href="http://localhost:8080/fedora/get/demo:SmileyBeerGlass#aggregation" rel="describes"/>

<category term="http://www.openarchives.org/ore/terms/ResourceMap" scheme="http://www.openarchives.org/ore/terms/" label="ResourceMap"/>

<fedora-model:hasContentModel>info:fedora/demo:CmodelForBMech_DualResImageImpl</fedora-model:hasContentModel>

<dc:title>Smiley Beer Glass</dc:title>

<rel:isMemberOf>info:fedora/demo:SmileyStuff</rel:isMemberOf>

<entry>

<id>info:fedora/demo:SmileyBeerGlass/FULL_SIZE</id>

<updated>2008-04-03T10:39:23.473Z</updated>

<title type="text">Aggregated Resource http://localhost:8080/fedora/get/demo:SmileyBeerGlass/FULL_SIZE</title>

<link href="http://localhost:8080/fedora/get/demo:SmileyBeerGlass/FULL_SIZE" rel="alternate"/>

<fedora-model:versionable>true</fedora-model:versionable>

</entry>

<entry>

<id>info:fedora/demo:SmileyBeerGlass/MEDIUM_SIZE</id>

<updated>2008-04-03T10:39:23.473Z</updated>

<title type="text">Aggregated Resource http://localhost:8080/fedora/get/demo:SmileyBeerGlass/MEDIUM_SIZE</title>

<link href="http://localhost:8080/fedora/get/demo:SmileyBeerGlass/MEDIUM_SIZE" rel="alternate"/>

</entry>

</feed>

OREAtom


Zip archive context

<feed>

<entry>

<id>info:fedora/demo:SmileyBeerGlass/TEST/2008-04-03T11:19:40.440Z</id>

<title type="text">TEST.0</title>

<updated>2008-04-03T11:19:40.440Z</updated>

<thr:in-reply-to ref="info:fedora/demo:SmileyBeerGlass/TEST"/>

<category term="Managed Image" scheme="info:fedora/fedora-system:def/model#label"/>

<summary type="text">TEST.0</summary>

<content type="image/jpeg" src="TEST.0.jpg"/>

</entry>

</feed>

Zip Archive Context

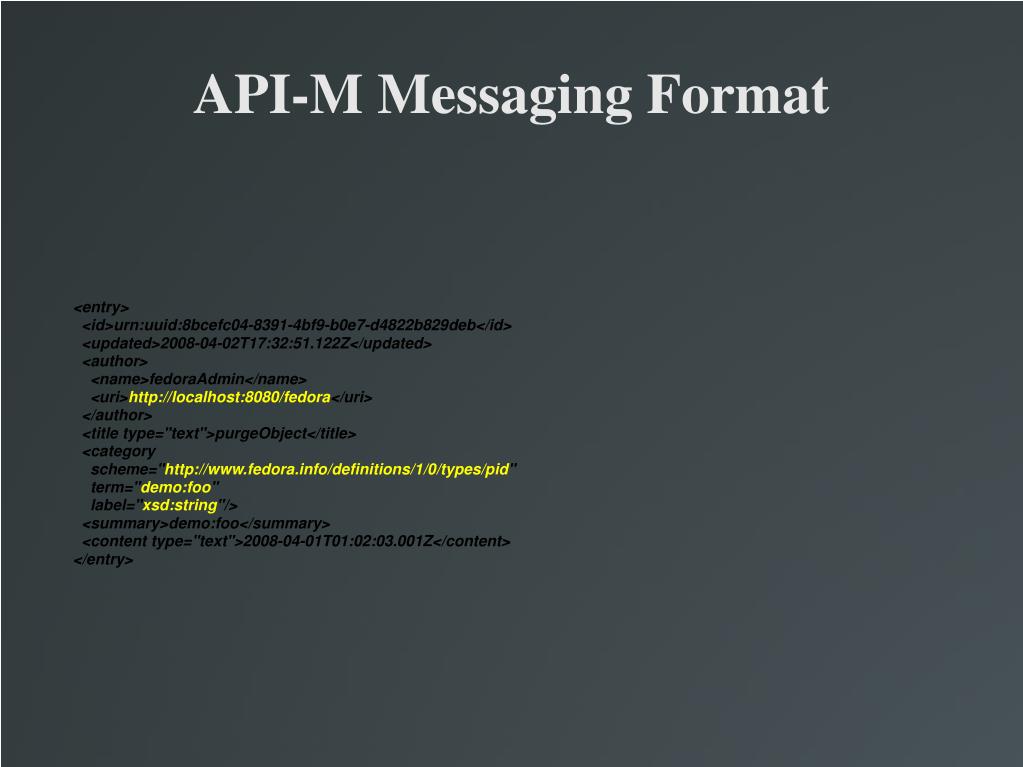

Api m messaging format

<entry>

<id>urn:uuid:8bcefc04-8391-4bf9-b0e7-d4822b829deb</id>

<updated>2008-04-02T17:32:51.122Z</updated>

<author>

<name>fedoraAdmin</name>

<uri>http://localhost:8080/fedora</uri>

</author>

<title type="text">purgeObject</title>

<category

scheme="http://www.fedora.info/definitions/1/0/types/pid"

term="demo:foo"

label="xsd:string"/>

<summary>demo:foo</summary>

<content type="text">2008-04-01T01:02:03.001Z</content>

</entry>

API-M Messaging Format


Deserialization

Deserialization

  • Atom as an ingest format

    • Fedora objects

    • ORE Resource Maps

    • Any Atom feed

  • Remote invocation


Fedora atom

Currently available in Subversion:

https://fedora-commons.svn.sourceforge.net/svnroot/fedora-commons/fedora/branches/dev-146791


Future exploration

Future exploration

  • Modeling atomistic objects

  • Atom Publishing Protocol

    • Implement over the REST-API

    • SWORD


  • Login
