  1. DNSSEC for the .edu Domain Becky Granger Director, Information Technology and Member Services EDUCAUSE April 29, 2010

  2. Agenda • Review DNS • How DNSSEC augments DNS • What DNSSEC doesn’t do • Why DNSSEC matters to you • DNSSEC Adoption • Getting started: Between now and July 2010 • Going live: Anticipated in July 2010

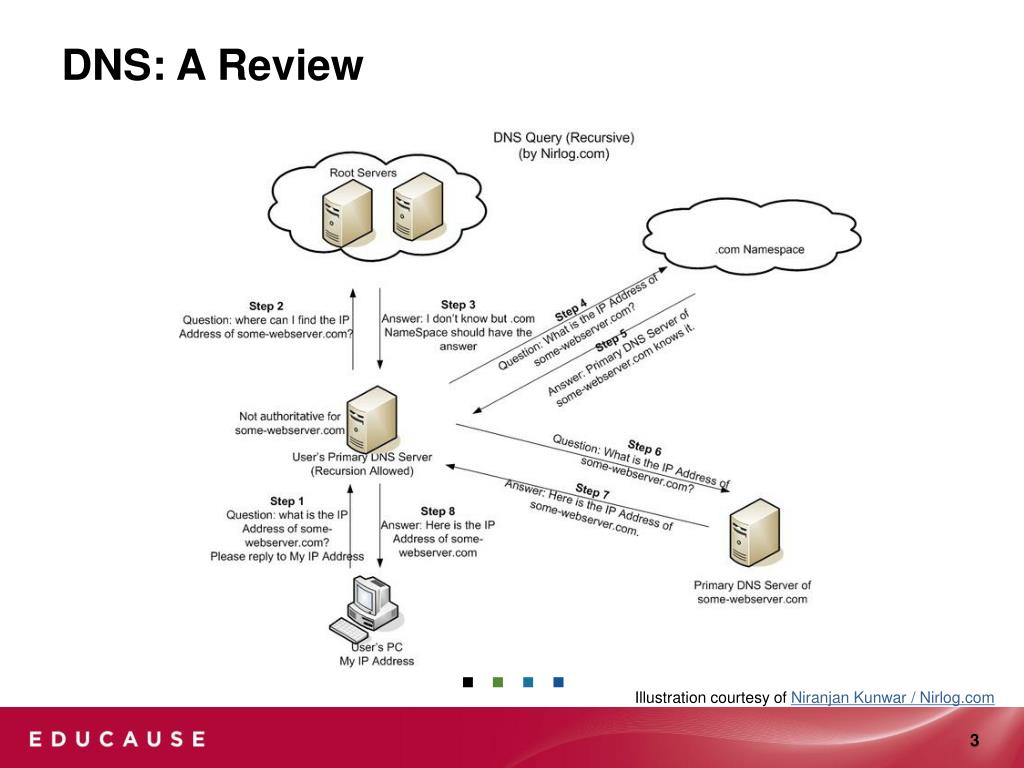

  3. DNS: A Review Illustration courtesy of Niranjan Kunwar / Nirlog.com

  4. DNS Caching • DNS Servers cache data to improve performance • But…what happens if the cached data is wrong?

  5. DNS is Fundamentally Flawed More detailed explanation: http://www.iana.org/about/presentations/davies-cairo-vulnerability-081103.pdf

  6. DNS Cache Poisoning Gets Easier Article explaining vulnerability: http://www.wired.com/techbiz/people/magazine/16-12/ff_kaminsky Photo by Dave Bullock / eecue

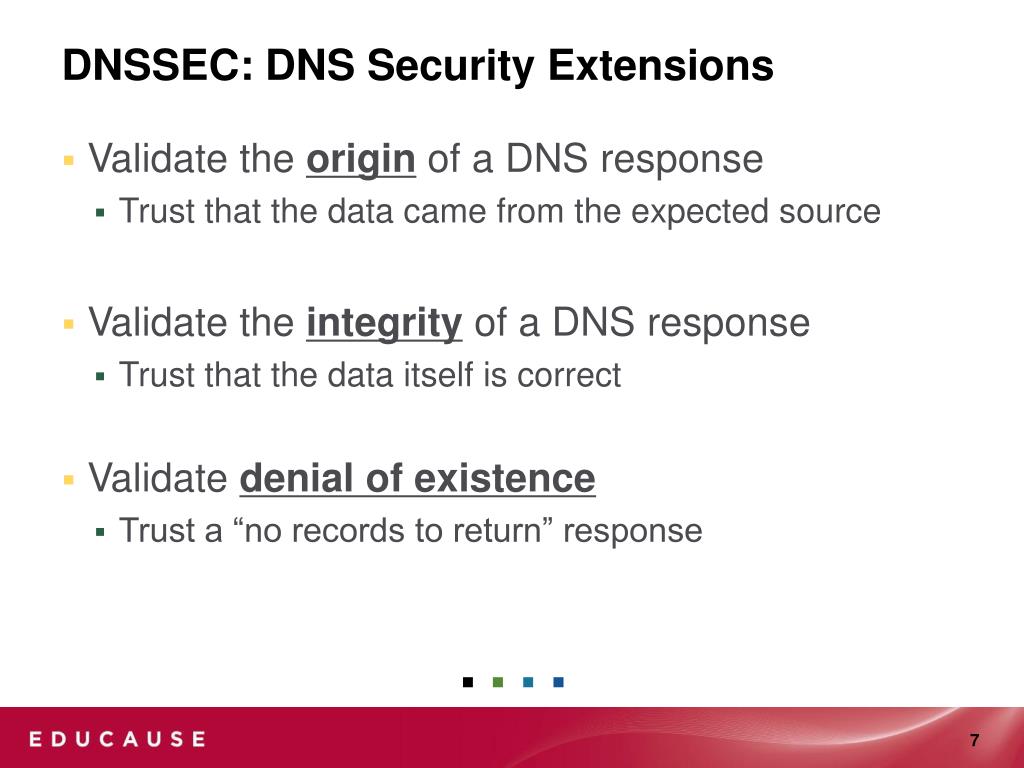

  7. DNSSEC: DNS Security Extensions • Validate the origin of a DNS response • Trust that the data came from the expected source • Validate the integrityof a DNS response • Trust that the data itself is correct • Validate denial of existence • Trust a “no records to return” response

  8. DNS with DNSSEC implemented Illustration courtesy of Niranjan Kunwar / Nirlog.com

  9. DNSSEC Augments DNS • Use public key cryptography to “sign” DNS data • New DNS resource records carry signatures • DNSKEY, RRSIG, NSEC, DS • Publish signatures to parent zone • Domain to namespace, namespace to root • DNS resolvers validate signature matches Good explanation: http://ispcolumn.isoc.org/2006-08/dnssec.html

  10. What DNSSEC Doesn’t Do • Encrypt data – that’s SSL • Protect your servers from denial of service attacks • Keep you from visiting phishing sites • DNSSEC protects you from forged DNS data

  11. Why You Care: Hypothetical Case Study Photo by Bart Everson

  12. DNSSEC Adoption

  13. Adoption is Critical • Can’t require validation yet – would reject most internet traffic • In the interim, will need a browser warning for non-validated lookups (like SSL “lock” today) • Validation will likely be required at some point

  14. Adoption is Increasing Quickly Data from SecSpider: http://secspider.cs.ucla.edu Graph courtesy of Eric Osterweil

  15. Many Top Level Domains are Signing • Signed TLDs • bg, br, ch, cz, li, lk, na, nu, pm, pr, pt, se, th, tm, uk, us • arpa, gov, museum, org • Coming soon • edu anticipated in July 2010 • net anticipated in late 2010 • com anticipated in early 2011 TLD data courtesy of Shinkuro, Inc.

  16. Current DNSSEC Adoption in .edu • 7 signed .edu domains • berkeley.edu, merit.edu, penn.edu, psc.edu, upenn.edu, internet2.edu, ucaid.edu • 64 signed .edu sub-domains • Many are computer science departments or DNS research projects Data from SecSpider: http://secspider.cs.ucla.edu Slide courtesy of Shumon Huque, University of Pennsylvania

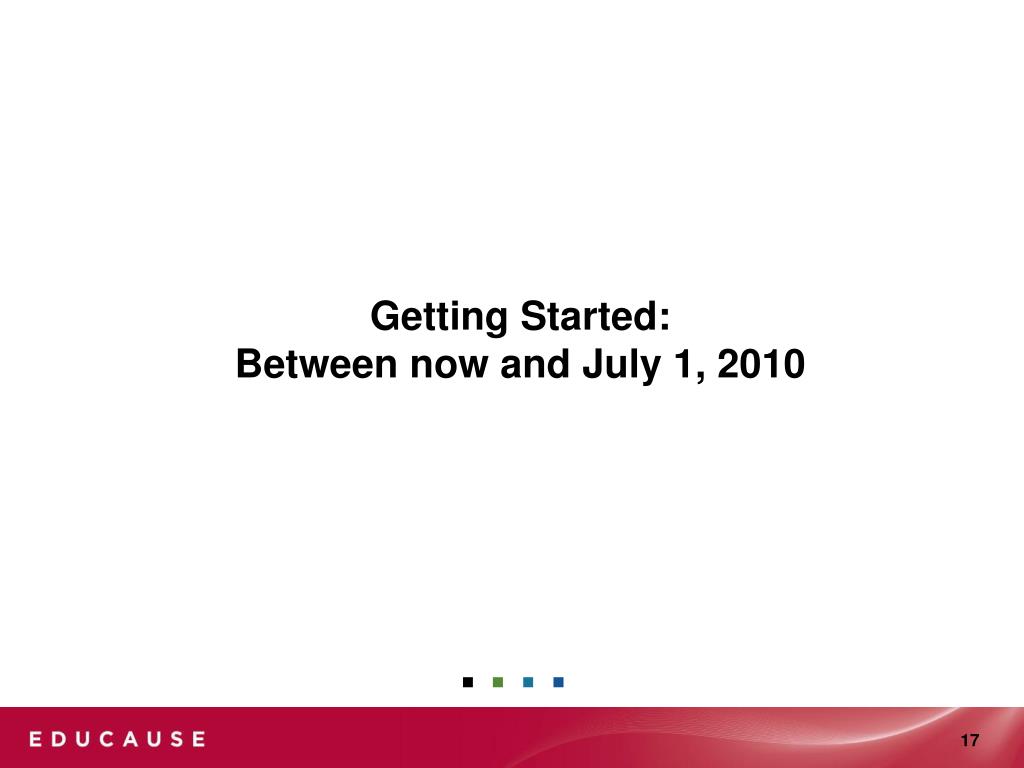

  17. Getting Started: Between now and July 1, 2010

  18. If you are… • CIO or IT leader • Get DNSSEC on your staff’s radar now • Add DNSSEC to your summer maintenance schedule • Technical staff • If an ISP hosts your DNS • Ask the ISP when they will support DNSSEC • If you host your DNS • Learn about signing • Get DNSSEC-aware DNS software • Sign your zone

  19. Learn About Signing • Study the RFCs • RFC 4033 – DNSSEC introduction and requirements • RFC 4034 – Resource records for DNSSEC • RFC 4641 – DNSSEC operational practices • NIST Secure DNS Deployment Guide

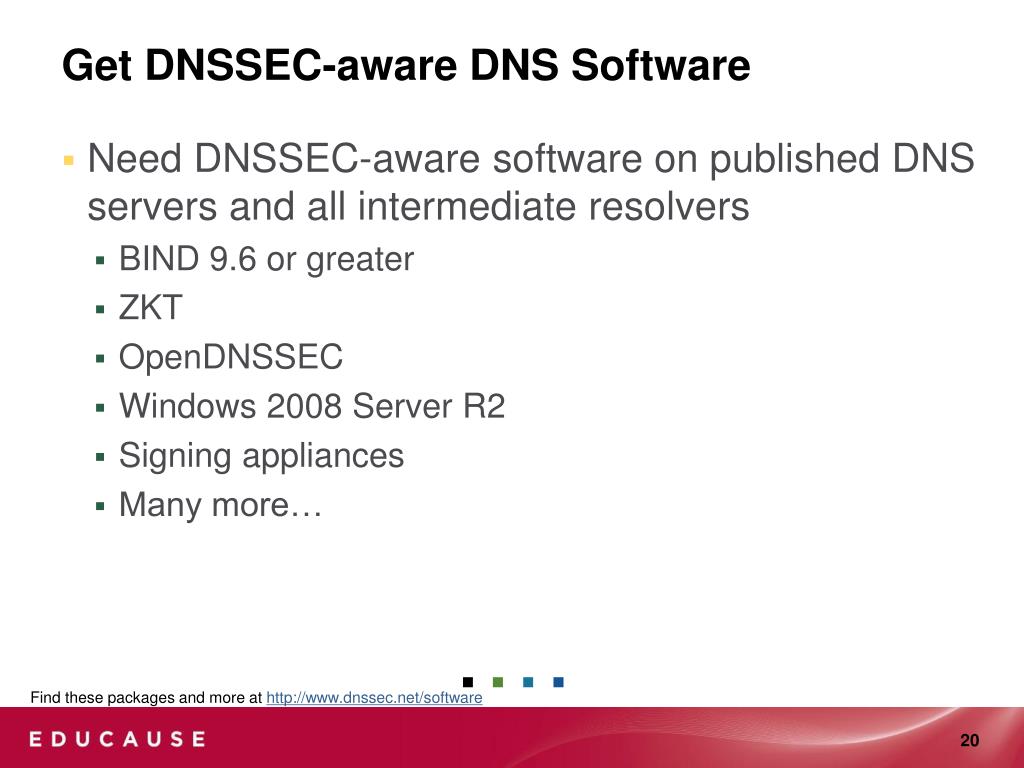

  20. Get DNSSEC-aware DNS Software • Need DNSSEC-aware software on published DNS servers and all intermediate resolvers • BIND 9.6 or greater • ZKT • OpenDNSSEC • Windows 2008 Server R2 • Signing appliances • Many more… Find these packages and more at http://www.dnssec.net/software

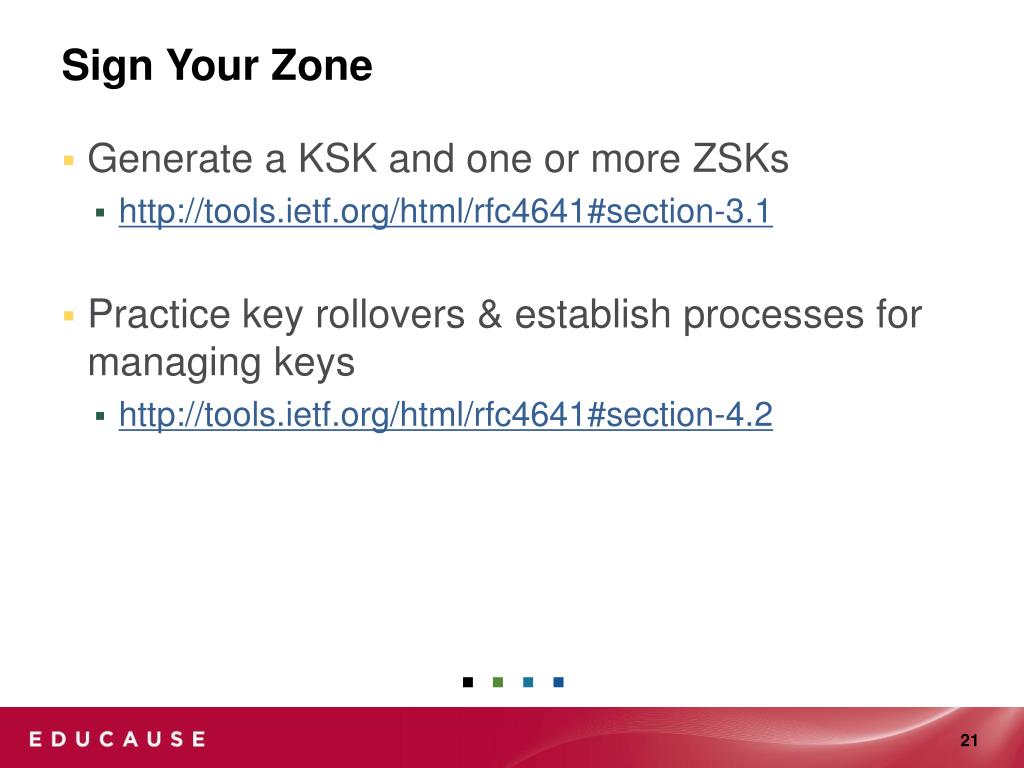

  21. Sign Your Zone • Generate a KSK and one or more ZSKs • http://tools.ietf.org/html/rfc4641#section-3.1 • Practice key rollovers & establish processes for managing keys • http://tools.ietf.org/html/rfc4641#section-4.2

  22. Going Live: July 2010 (anticipated)

  23. Chain of Trust Can Be Established Original illustration courtesy of Niranjan Kunwar / Nirlog.com

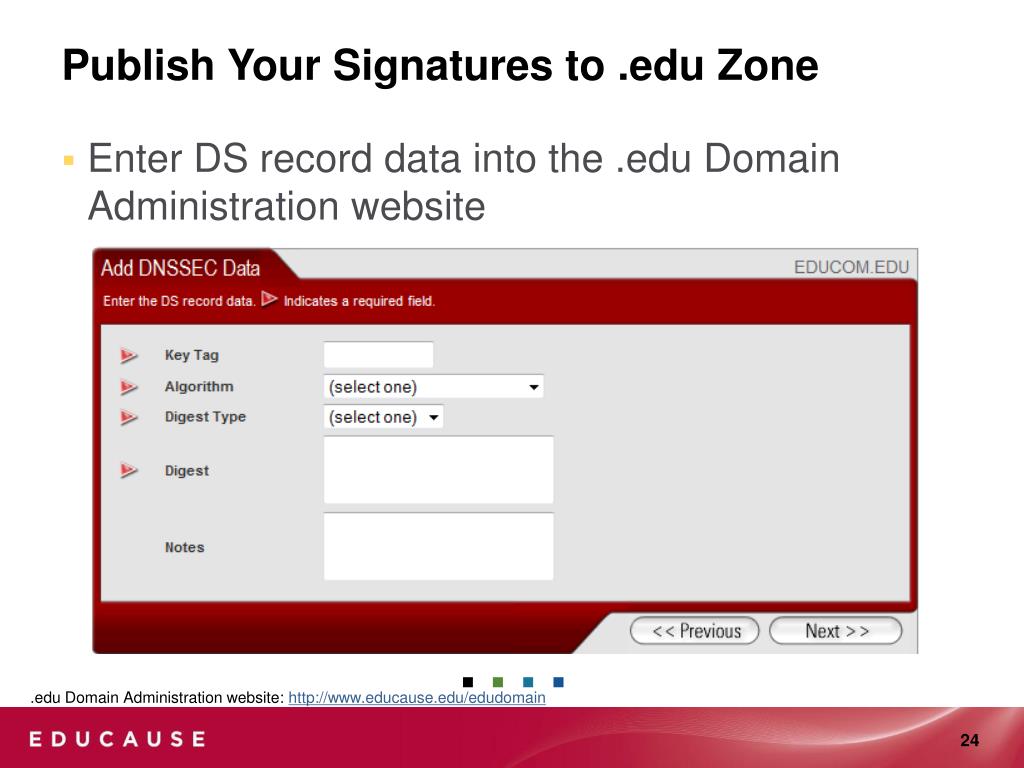

  24. Publish Your Signatures to .edu Zone • Enter DS record data into the .edu Domain Administration website .edu Domain Administration website: http://www.educause.edu/edudomain

  25. Many Resources Available to Help You • RFCs • http://tools.ietf.org/rfc/index • DNSSEC.NET website • http://www.dnssec.net/ • Your .edu colleagues – subscribe to EDUCAUSE DNSSEC deployment listserv • http://listserv.educause.edu/archives/dnssec.html

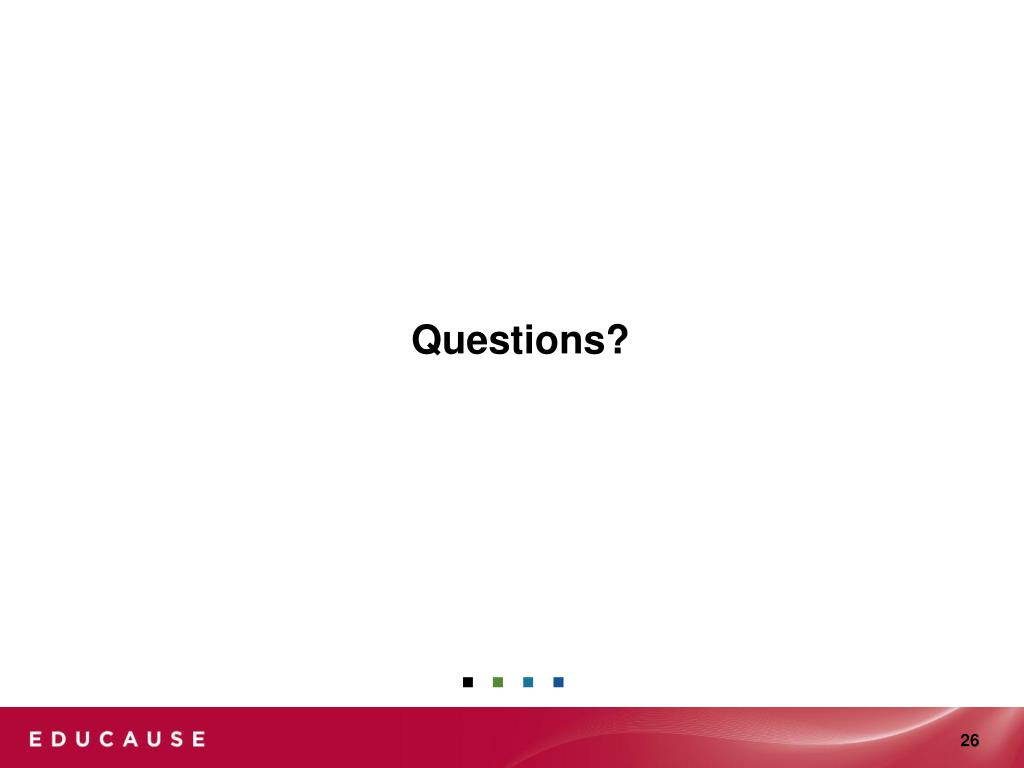

  26. Questions?
