High frequency dynamic magnetotransport properties of quantum wires

High-Frequency Dynamic Magnetotransport Properties of Quantum Wires

Y. W. Suen (孫允武),a W. H. Hsieh(謝文興),a,b S. Y. Chang (張紓語),b L. C. Lee (李良箴) ,b C. H. Kuan (管傑雄) , aB. C. Lee (李秉奇),cand C. P. Lee (李建平) c

bDepartment of Physics, National Chung Hsing University, Taichung, Taiwan, R.O.C.

aDepartment of Electrical Engineering, National Taiwan University, Taipei, Taiwan, R.O.C.

cDepartment of Electronics Engineering, National Chiao Tung University, Sinchu, Taiwan, R.O.C

1


High frequency dynamic magnetotransport properties of quantum wires

OUTLINES

  • Introduction-- What is edge magnetoplasmon (EMP)?-- Previous works about EMP of low-dimensional electron systems (LDES’s).

  • Experimental setup-- Development of high-sensitive microwave vector detection system at an extremely low-power level.

  • EMP excitations in quantum-wire array

  • Conclusions

2


High frequency dynamic magnetotransport properties of quantum wires

3D plasma

charge flow

t must be long enough!

restoring force field!!

dispersion:

3


High frequency dynamic magnetotransport properties of quantum wires

2D plasma

l

~p/|q|

When |q| decreases, the restoring force decreases too.

For 2DES in GaAs/AlGaAs, n2D=3x1011 cm-2, 2p/|q| =10um, fp=100GHz.

4


High frequency dynamic magnetotransport properties of quantum wires

2D magnetoplasma

~p/|q|

B

The restoring force is enhanced by the magnetic field.

5


High frequency dynamic magnetotransport properties of quantum wires

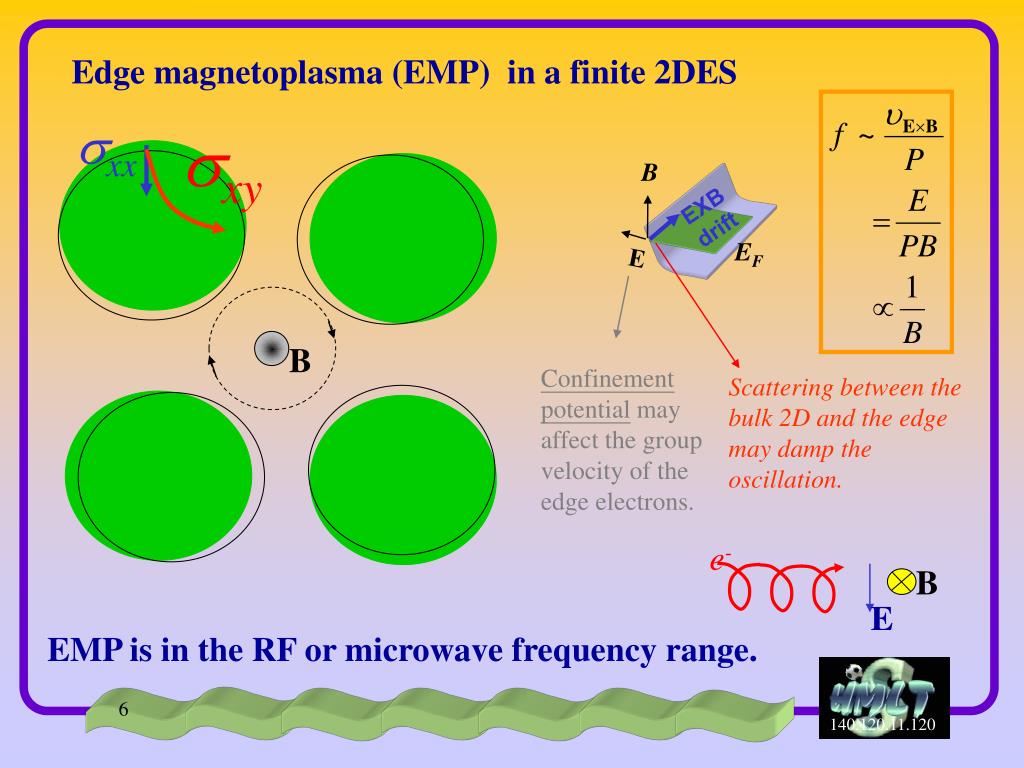

Edge magnetoplasma (EMP) in a finite 2DES

sxx

sxy

B

EXB drift

EF

E

B

Confinement potential may affect the group velocity of the edge electrons.

Scattering between the bulk 2D and the edge may damp the oscillation.

e-

B

E

EMP is in the RF or microwave frequency range.

6


High frequency dynamic magnetotransport properties of quantum wires

First Observation of EMP

Observation of Bulk and EMP in two dimensional electron fluid

D. B. Mast, A. J. Dahm, and A. L. Fetter, PRL 54, 1706-1709 (1985)

B = 0

B ≠ 0

A 2DES on the surface of

Liquid Helium placed in a

perpendicular B-field.

7


High frequency dynamic magnetotransport properties of quantum wires

JEPT Lett., 42, 557 (1985)

depend on the details of the confinement potential.

depend on the scattering and interactions.

8


High frequency dynamic magnetotransport properties of quantum wires

Quantum Hall Effect (QHE) provides a very unique platform to study EMPs. EMP is also a very unique tool for studying the edge states of QHEs.

EF

wc

Edge Channels

Landau level spacing

9


High frequency dynamic magnetotransport properties of quantum wires

JEPT Lett., 57, 587 (1993)

10


High frequency dynamic magnetotransport properties of quantum wires

For wt>>1, L>>W

For wt<<1, L>>W

11


High frequency dynamic magnetotransport properties of quantum wires

Edge-magnetoplasmon excitations in GaAs-AlxGa1-xAs QWs

I. Grodnensky, D. Heitmann, K. v. Klitzing, K. Ploog, A. Rudenko, and A. Kamaev

,PRB, 49, 10778-10781 (1994).

540nm×4.5mm

12


High frequency dynamic magnetotransport properties of quantum wires

Detection by Coplanar Waveguide (CPW) Sensors

The CPW is patterned by

photolithography.

There are about 60 alignment keys along the CPW.

Quantum wire array is patterned by e-beam lithography.

13


High frequency dynamic magnetotransport properties of quantum wires

T =0.3K

Detection by Phase-Locked Loops (PLL)

f0 =f1+ fs =b1l1+bs(B)ls

Df0 =0=Df1+Dfs(B) =Db1l1+Dbs(B)ls

fs=bsls

PLL system

phase=f1=b1l1

sample

known

Sample under detection

B: the parameter (magnetic field) sweeping in the experimentu: phase velocity of the signal in coaxial cable

Type-II PLL

14


High frequency dynamic magnetotransport properties of quantum wires

Pulsed Microwave PLL and Gated Average System

Schematicof a homemade PLL system for microwave signals up to 18 GHz.

The phase resolution is about 0.001 degree even at very low average input power level (~ -100dBm).

A special designed homodyne amplitude detection scheme allows us to detect very small microwave adsorption (smaller than 0.005%).

1.

2.

(mixers)

15


High frequency dynamic magnetotransport properties of quantum wires

A homemade PLL-MW system

(50M-21GHz)

16


High frequency dynamic magnetotransport properties of quantum wires

Comparing with commercial vector meters

  • Better than a commercial VNA at an extremely low-power level !!

  • The resolutions achieved here are better than 0.005% (0.0087dB) for amplitude variation and 0.001O for phase with a very low-average power (about -100dBm) into the sample.

T=0.3K

17


High frequency dynamic magnetotransport properties of quantum wires

Observation of EMP in a QW array

About 7000 QWs (0.7μm×20μm) in the gaps of CPW

2 1 2/3

(a)

2 1 2/3

(b)

Result for a 2DES

18


High frequency dynamic magnetotransport properties of quantum wires

Landau level

filling factor

2

1

3

4

4

2

1

3

1.91GHz

133MHz

19


High frequency dynamic magnetotransport properties of quantum wires

Landau Level

Filling Factor

1

2

3

4

The peak-positions

T=0.3K

SdH oscillation is screened by EMP!!!

No SdH peaks were detected

in this region.

20


High frequency dynamic magnetotransport properties of quantum wires

21


High frequency dynamic magnetotransport properties of quantum wires

adsorption

phase

22


High frequency dynamic magnetotransport properties of quantum wires

Polarizability or susceptibility

wj

w(f)

23


High frequency dynamic magnetotransport properties of quantum wires

24


High frequency dynamic magnetotransport properties of quantum wires

25


High frequency dynamic magnetotransport properties of quantum wires

Sample A

700nm

MW

B

20mm

26


High frequency dynamic magnetotransport properties of quantum wires

Sample B

B

MW

20mm

700nm

27


High frequency dynamic magnetotransport properties of quantum wires

  • We observed EMP excitations in a QW array with a homemade very-high-sensitivity vector detection system.

  • The low-frequency part of the data can be explained by Mikhailov’s theory, while the high-frequency part exhibits a 2DES-like behavior. We mapped out the transition in between, which is not included in the simple theory.

  • We measured the polarizability of a QW array.
