  1. Web to Database Connectivity Tools Frank Cervone Assistant Director for Systems DePaul University Libraries Access ‘98 October 3, 1998

  2. Introduction • Databases • Database APIs • Programming Languages • Access Models

  3. Databases • Flat files • Relational databases • Object-oriented databases

  4. Flat Files • Simple implementation • regular text • basic encoding • word, excel files

  5. dbm Files • UNIX/gnu • library of routines that manage data files containing key/data pairs • read, write, delete by key • nonsorted traversal of all keys

  6. dbm File Example There is no inherent mechanism for ensuring data consistency

  7. Relational Databases • Most common data management scheme • Data is organized into two-dimensional tables of rows and columns • Data is decomposed to its simplest form • Normalization reduces data inconsistency • Referential integrity

  8. Relational Database Example Course Table Enrollment Table Student Table

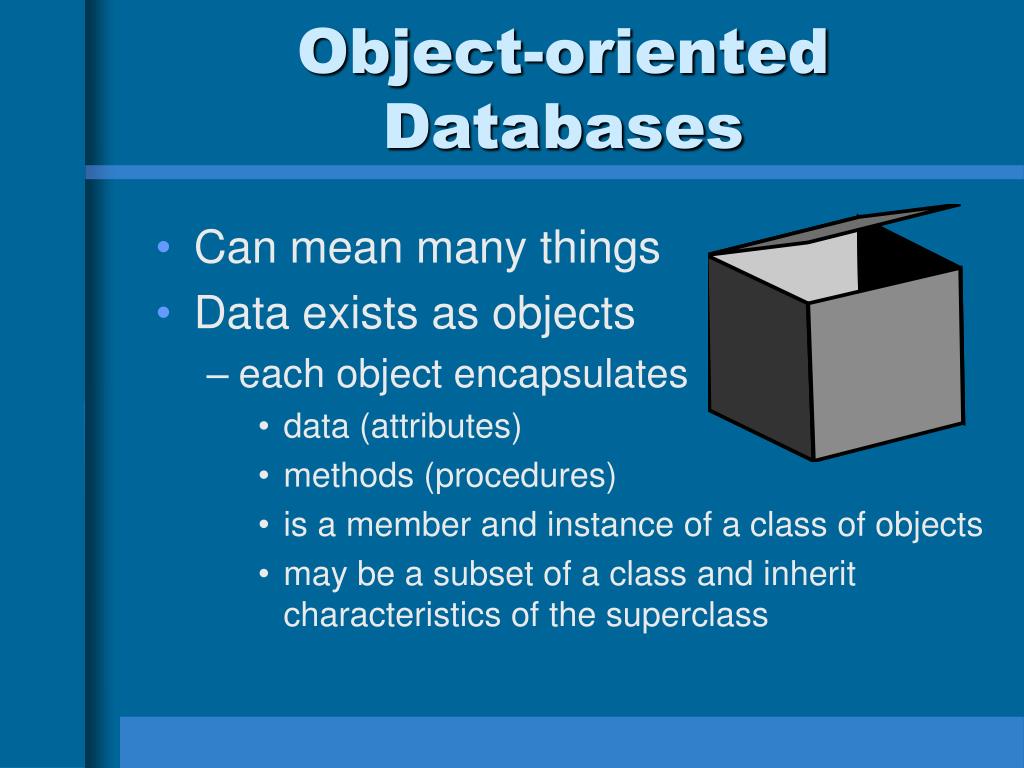

  9. Object-oriented Databases • Can mean many things • Data exists as objects • each object encapsulates • data (attributes) • methods (procedures) • is a member and instance of a class of objects • may be a subset of a class and inherit characteristics of the superclass

  10. Object-oriented Example Students Courses

  11. Database APIs • Native-interface • ODBC • JDBC • CORBA

  12. Native Interface • Low-level interface • Direct call from a program to an access method to retrieve data • Typically only used directly when accessing flat files • Often used from compiled programming languages

  13. ODBC • Open Database Connectivity • Standard method for applications to request database information from other applications (i.e., database servers) • Common interface and language (SQL) to disparate database systems • Examples: Oracle, MS-SQL Server, MS-Access, DB2

  14. ODBC Example Driver Manager Application MS-Access Driver Oracle Driver MS-SQL Driver MS-Access Database Oracle Database MS-SQL Database

  15. JDBC™ • Java Database Connectivity • Interface to ODBC for Java programs • Standard method for Java programs to request database information from other applications ( i.e., database servers) • Common interface and language (SQL) to ODBC-compliant database servers

  16. CORBA • Common Object Request Broker Architecture • Standard method for requesting objects from object-oriented database servers • Adoption has been slow, but is growing

  17. Programming Languages • Java • C and/or C++ • PERL/CGI • VBScript/ASP

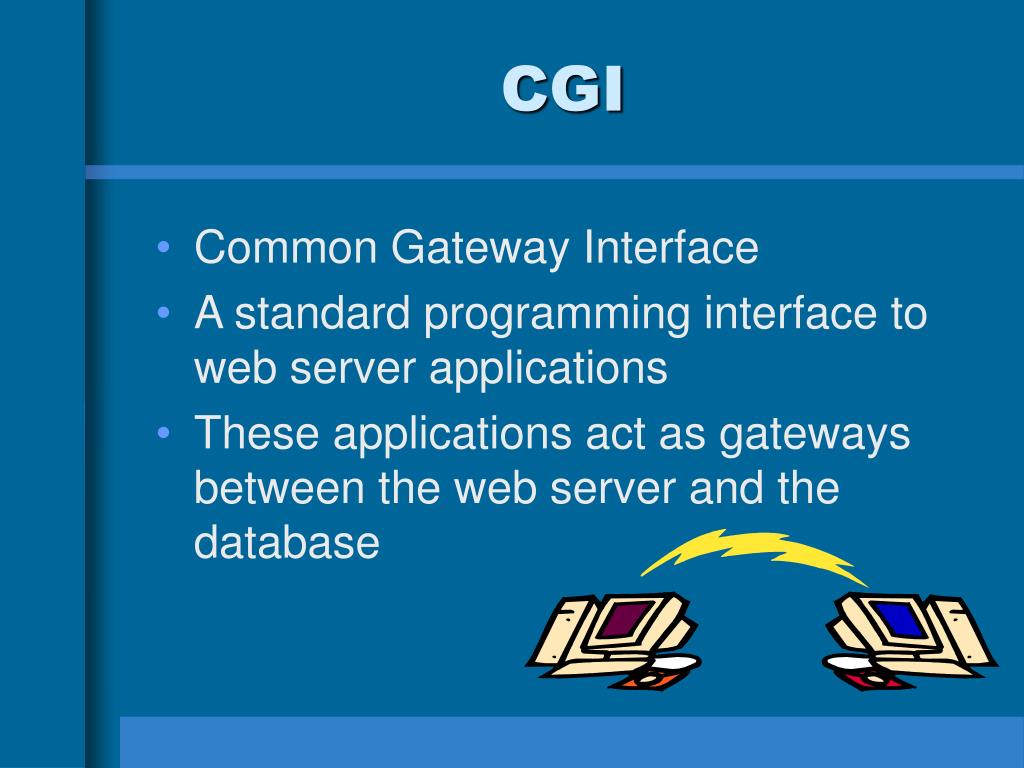

  18. CGI • Common Gateway Interface • A standard programming interface to web server applications • These applications act as gateways between the web server and the database

  19. CGI Overview Client Web Browser Web Server Program or Script Database

  20. CGI Details • Browser sends URL request with embedded CGI program name • Web server set environment variables, executes program, and passes form data via STDIN • Program examines environment variables, reads STDIN, performs requested functions, calls database • Database receives request from program and retrieves data

  21. CGI Details Continued • Database returns data to calling program • Program acts on returned data • HTML page, text page, redirect command • sends results to web server via STDOUT • Web server creates HTTP-formatted result • Browser displays web page

  22. CGI Interaction Client Web Browser HTTP Web Server CGI Program or Script ODBC Database

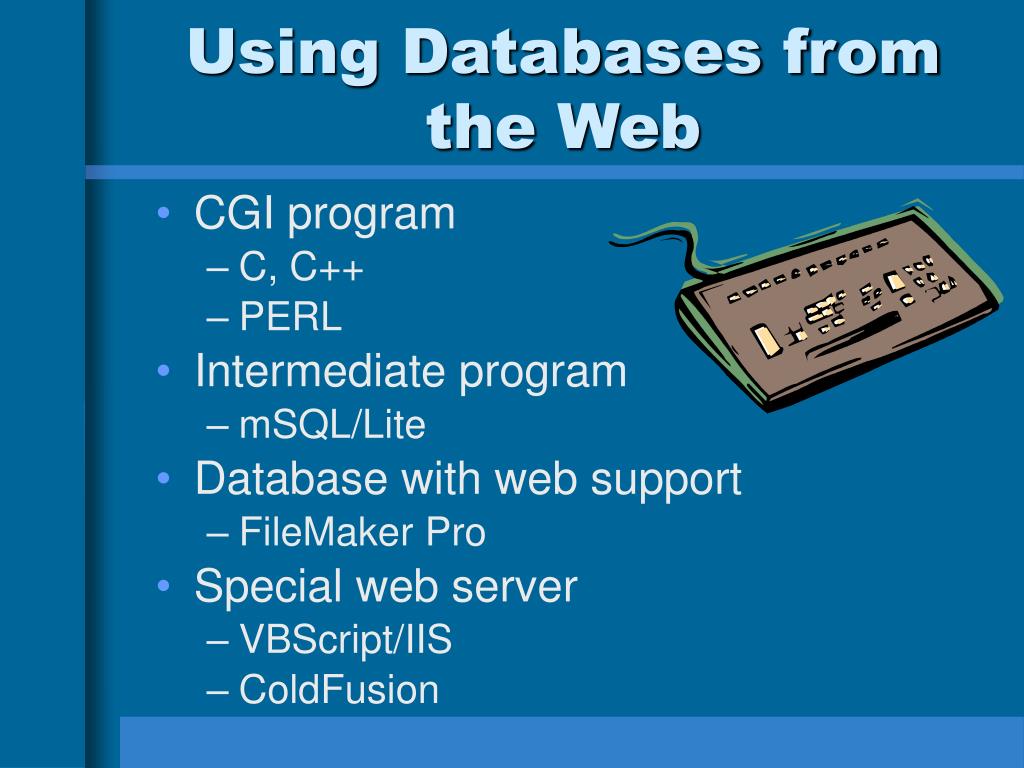

  23. Using Databases from the Web • CGI program • C, C++ • PERL • Intermediate program • mSQL/Lite • Database with web support • FileMaker Pro • Special web server • VBScript/IIS • ColdFusion

  24. Displaying the Data • CGI program - • generates the web page on the fly • Database with web support • page is generated by database program • Intermediate program/Special web server - • page is interpreted and a new one is generated in its place

  25. Interpreted Page Example <HTML> <BODY> <% set conn=server.createobject(“adodb.connection”) conn.open “DSN=Students;uid=master;pwd=test” set result=conn.execute(“select * fromenrollment”) response.write “<TABLE BORDER=1>” response.write “<TR>” for I=0 to howmanyfields response.write “<TD><B>” & result(i).name & “</B></TD>” next response.write “</TR>” . . . (etc.)

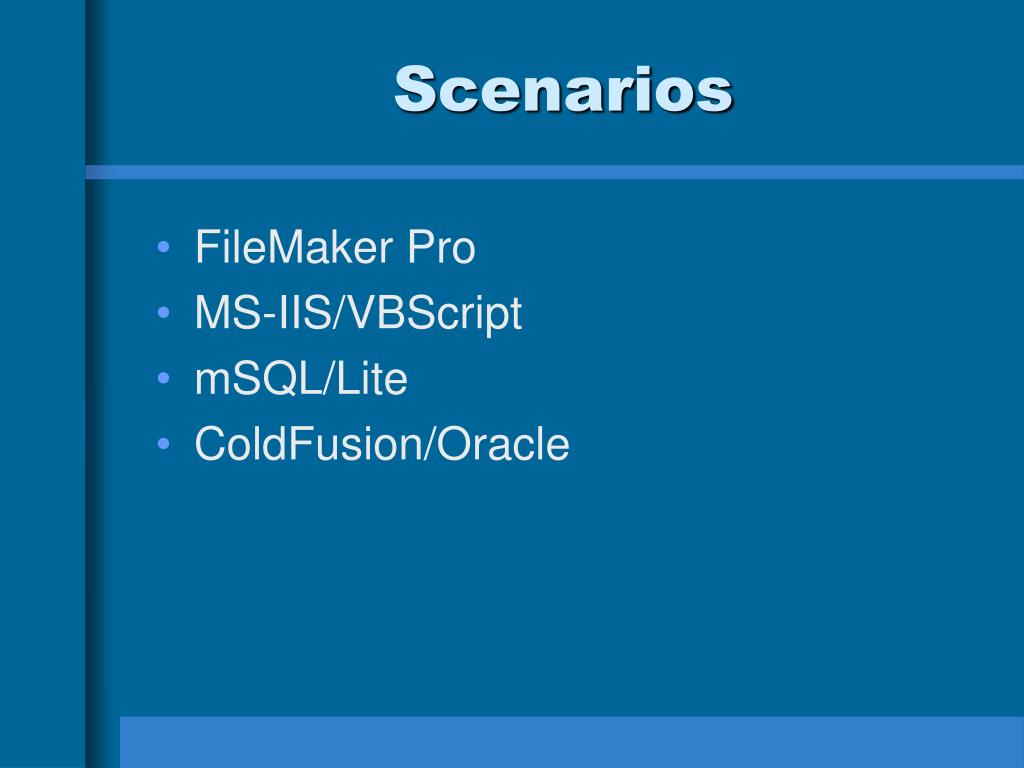

  26. Scenarios • FileMaker Pro • MS-IIS/VBScript • mSQL/Lite • ColdFusion/Oracle

  27. Suggestions • Understand your current needs • Project for your future plans • Keep server diversity to a minimum • Hire/train appropriate personnel
