  1. WEATHER…ALTIMETRY & E6B FGU 40 to 44 FGU 127 to128 FGU 199 to 200

  2. 7

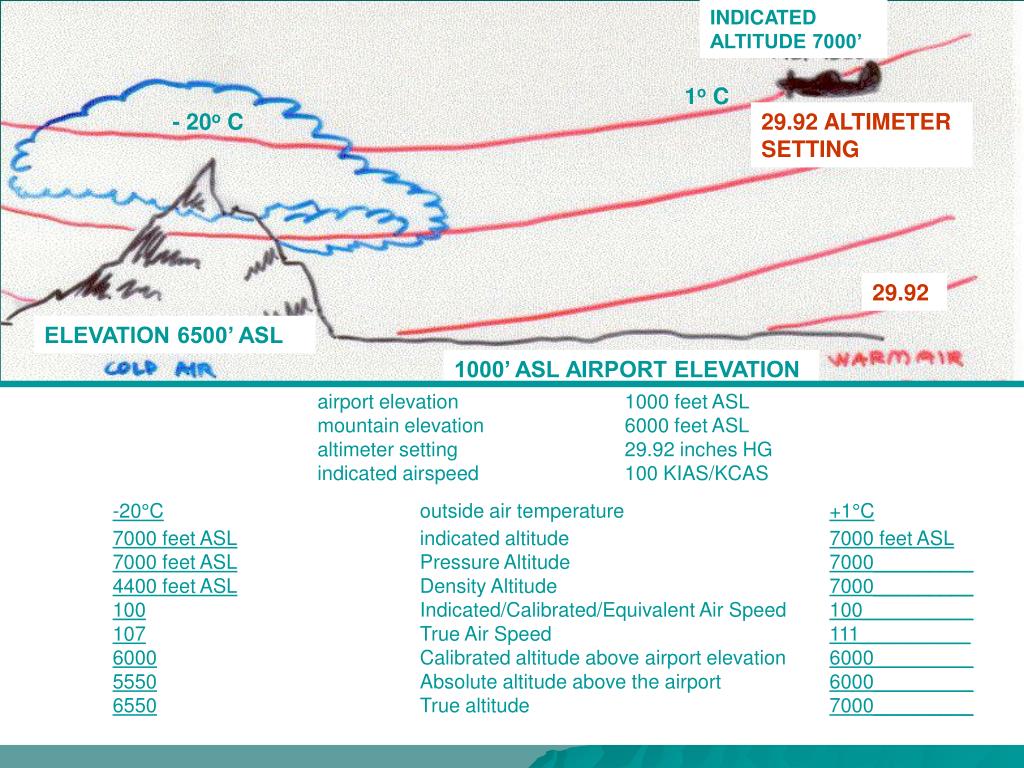

  3. INDICATED ALTITUDE 7000’ 1o C - 20o C 29.92 ALTIMETER SETTING 29.92 ELEVATION 6500’ ASL 1000’ ASL AIRPORT ELEVATION airport elevation 1000 feet ASL mountain elevation 6000 feet ASL altimeter setting 29.92 inches HG indicated airspeed 100 KIAS/KCAS -20°C outside air temperature +1°C 7000 feet ASL indicated altitude 7000 feet ASL 7000 feet ASL Pressure Altitude 7000_________ 4400 feet ASL Density Altitude 7000_________ 100 Indicated/Calibrated/Equivalent Air Speed 100__________ 107 True Air Speed 111__________ 6000 Calibrated altitude above airport elevation 6000_________ 5550 Absolute altitude above the airport 6000_________ 6550 True altitude 7000_________
