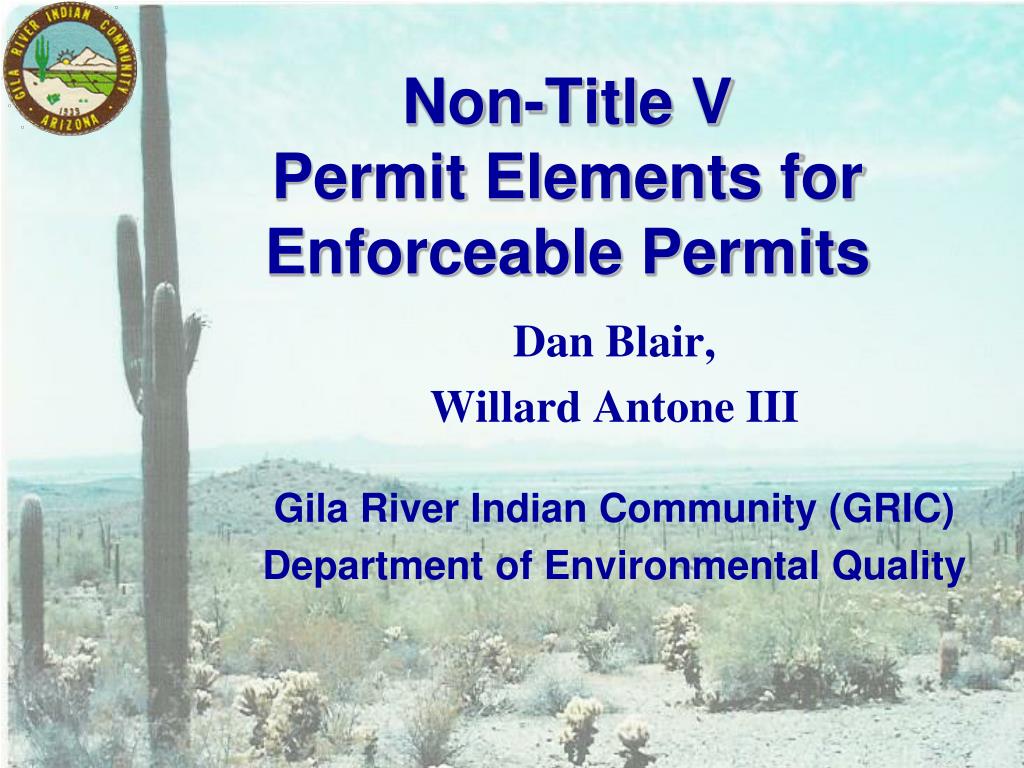

  1. Non-Title V Permit Elements for Enforceable Permits Dan Blair, Willard Antone III Gila River Indian Community (GRIC) Department of Environmental Quality

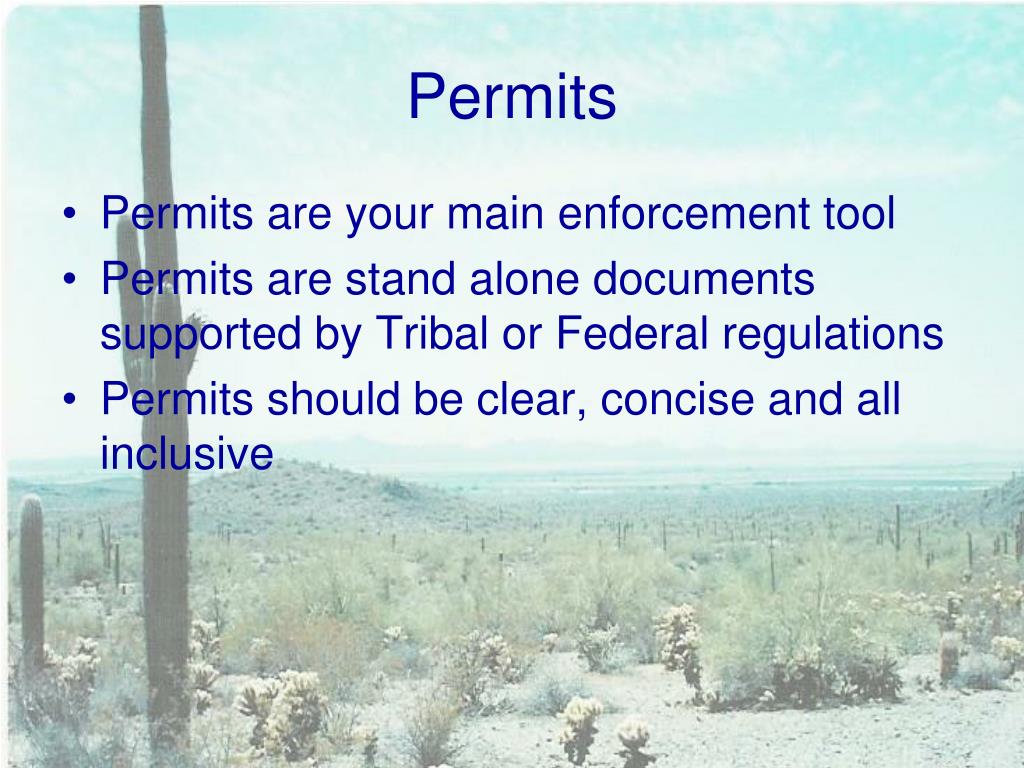

  2. Permits • Permits are your main enforcement tool • Permits are stand alone documents supported by Tribal or Federal regulations • Permits should be clear, concise and all inclusive

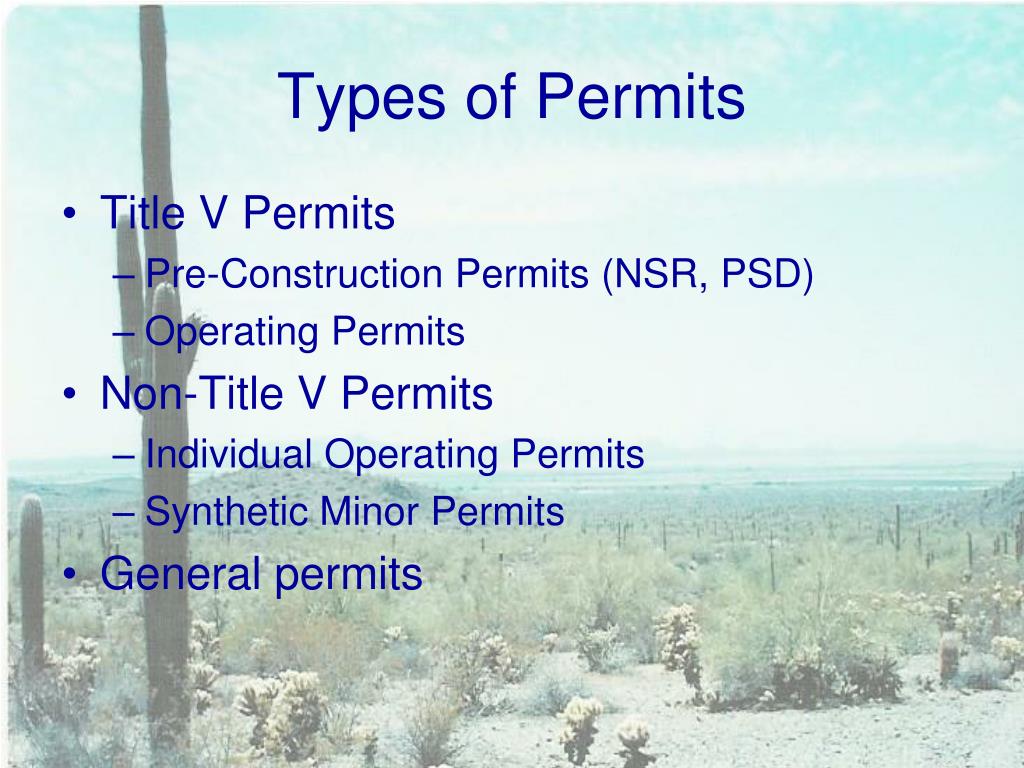

  3. Types of Permits • Title V Permits • Pre-Construction Permits (NSR, PSD) • Operating Permits • Non-Title V Permits • Individual Operating Permits • Synthetic Minor Permits • General permits

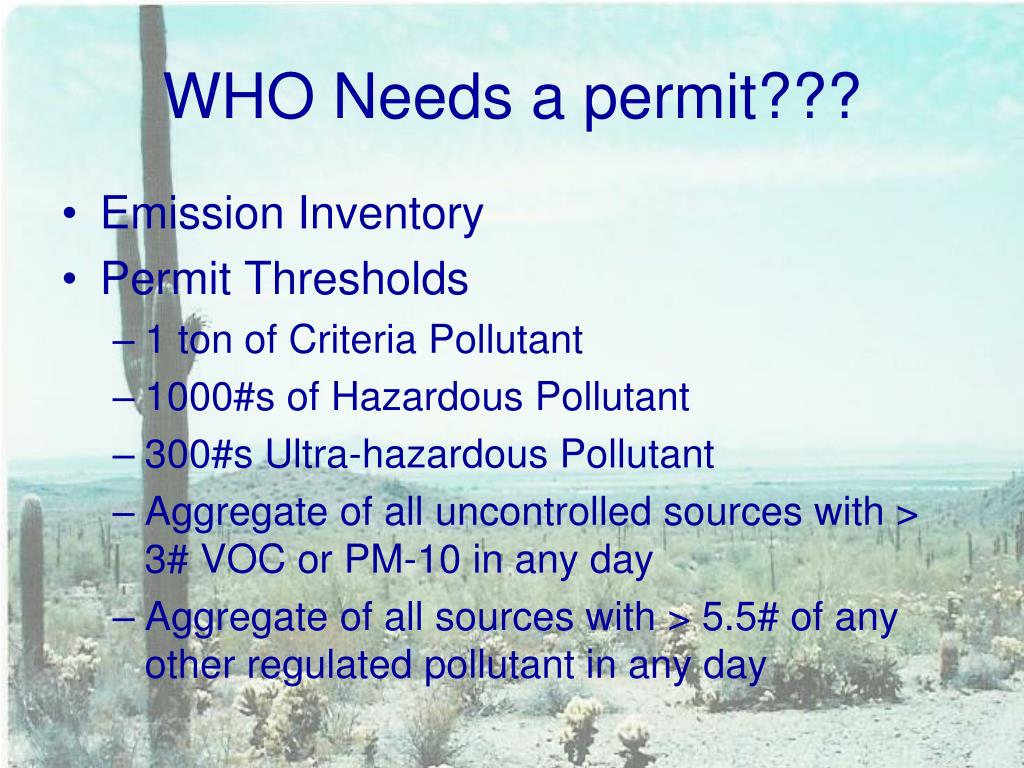

  4. WHO Needs a permit??? • Emission Inventory • Permit Thresholds • 1 ton of Criteria Pollutant • 1000#s of Hazardous Pollutant • 300#s Ultra-hazardous Pollutant • Aggregate of all uncontrolled sources with > 3# VOC or PM-10 in any day • Aggregate of all sources with > 5.5# of any other regulated pollutant in any day

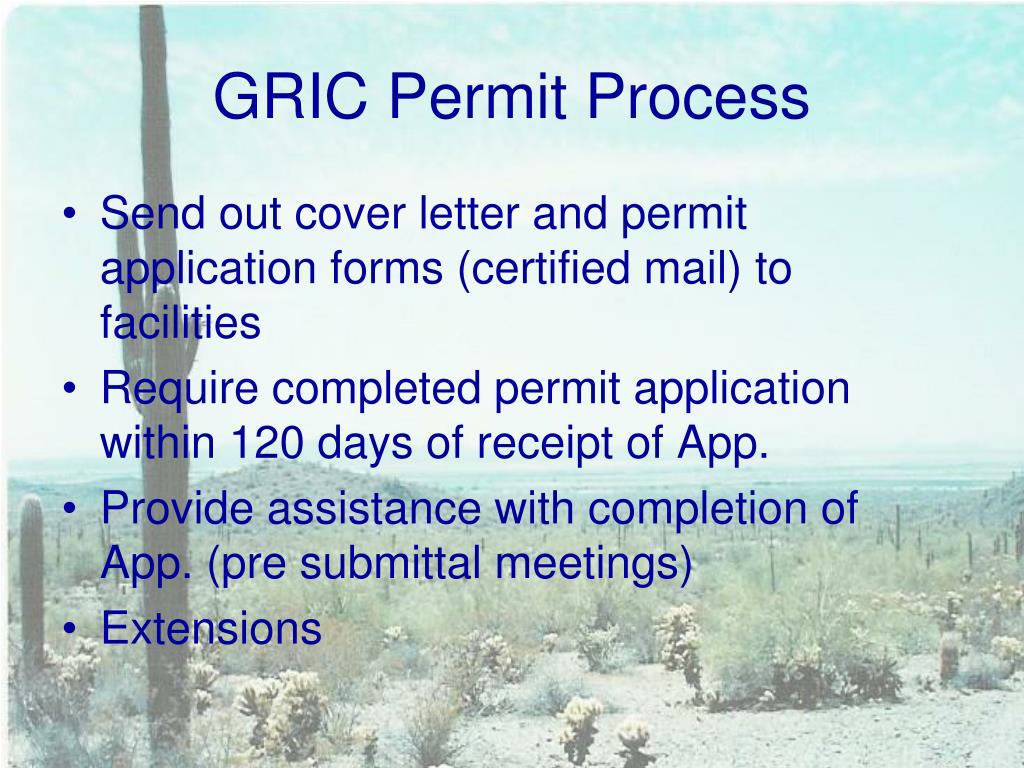

  5. GRIC Permit Process • Send out cover letter and permit application forms (certified mail) to facilities • Require completed permit application within 120 days of receipt of App. • Provide assistance with completion of App. (pre submittal meetings) • Extensions

  6. GRIC Permit Process • Department review of App for completeness (60 days) • Request supplemental information • Draft Permit, TSD’s, Calculations, BRDT • Facility review of permit • 30 day Public Comment Period • Permit decision by Director within 12 months of complete App.

  7. Facility information Hours of operation Signature of responsible party Emissions calculations Process description & flow chart Certification of Truth and Accuracy Certification of Compliance and/or Compliance Plan Equipment List Voc content Throughput Control Equipment Permit Application Content

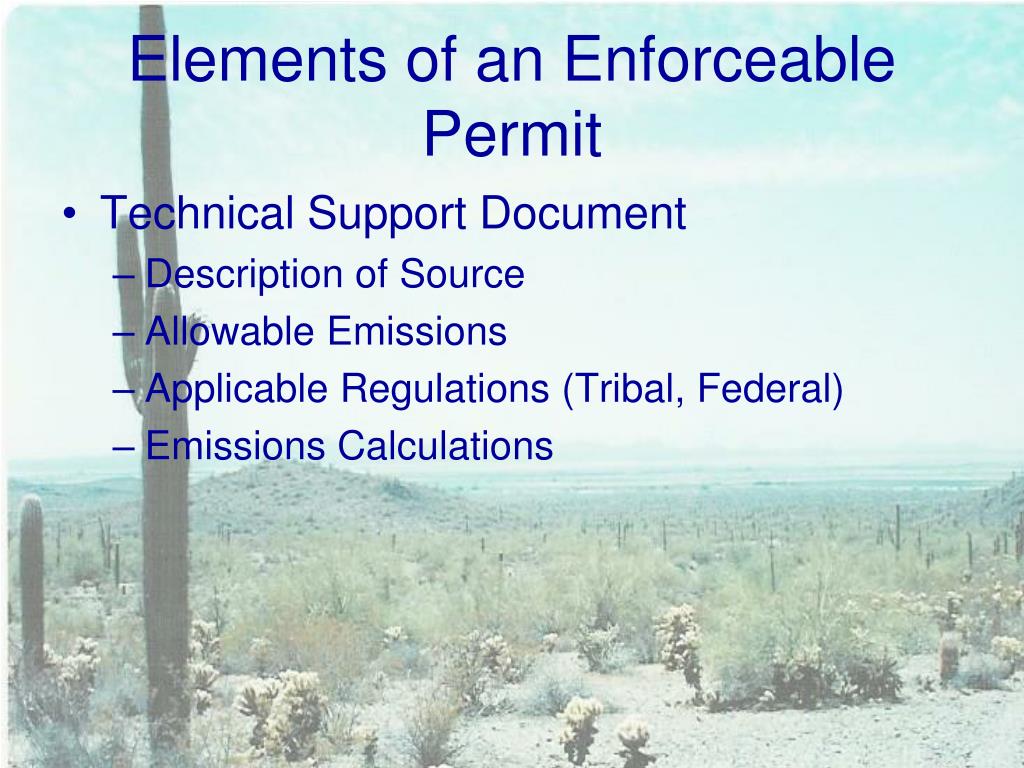

  8. Elements of an Enforceable Permit • Technical Support Document • Description of Source • Allowable Emissions • Applicable Regulations (Tribal, Federal) • Emissions Calculations

  9. Elements of an Enforceable Permit • General Permit Conditions • Affirmative Defense • Certification of Truth and Accuracy • Confidentiality • Controls • Duty to Comply • Duty to Provide information • Fees

  10. Elements of an Enforceable Permit • General Permit Conditions • Maintenance (O&M Plan) • Nuisance Provisions • Performance Testing • Permit Term • Permit Revisions • Permit Re-openings (Revocation, Termination)

  11. Elements of an Enforceable Permit General Permit Conditions (cont.) • Permit Transfers • Record Keeping/Reporting • Right of Entry • Severability

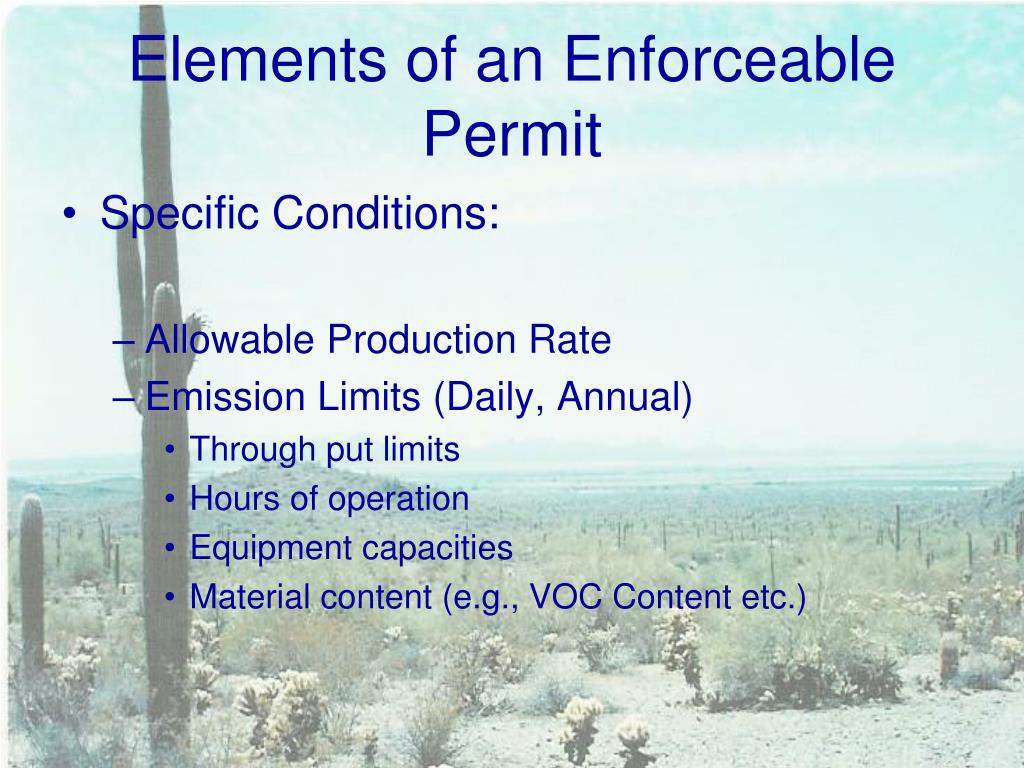

  12. Elements of an Enforceable Permit • Specific Conditions: • Allowable Production Rate • Emission Limits (Daily, Annual) • Through put limits • Hours of operation • Equipment capacities • Material content (e.g., VOC Content etc.)

  13. Jawcrusher

  14. Elements of an Enforceable Permit • Specific Conditions (cont) • Process Emission Limitations • Transfer points 7% opacity • Baghouse stack 20% • Grain loading limit from baghouse stack 0.02 gr/dscf

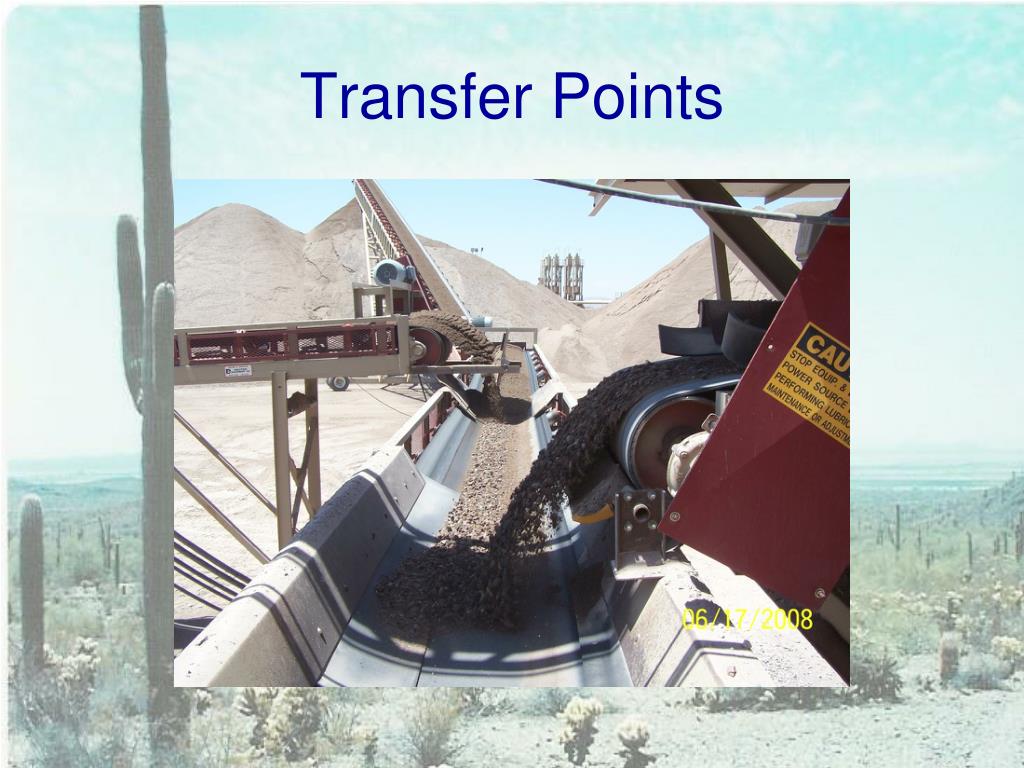

  15. Transfer Points

  16. Baghouse

  17. Elements of an Enforceable Permit • Specific Conditions (cont) • Controls • Baghouse (magnehelic gauge/pressure drop) • Cement silo overflow warning/shutoff system • Scrubbers (flow rate/nozzle inspection) • Electro Static Precipitators (ESPs) • Spray Bars • Etc.

  18. Cement Silo Overflow

  19. Magnehelic Gauge

  20. Elements of an Enforceable Permit • Specific Conditions (cont) • Recordkeeping and Reporting Requirements • Hours of operation • Through puts • Fuel usage • Control device records (flows, pressure drop etc) • Operational Restrictions • Fuel restriction (no off spec used oil, solvent) • Clean Aggregate only (no petroleum/solvents)

  21. Elements of an Enforceable Permit • Specific Conditions (cont) • Performance testing (test protocol) • Grain Loading • Percent reduction • Concentrations • EPA Method 9 opacity readings • Appendix A test methods • Retest every 5 years

  22. Elements of an Enforceable Permit • Specific Conditions (cont) • Operation and Maintenance Plan • Describes control unit monitoring devices, temps, flow rates and other parameters to ensure proper operation • List maintenance frequencies, calibrations and log sheets • List corrective actions and shutdown procedures • Upset log and corrective actions

  23. Elements of an Enforceable Permit • Specific Conditions (cont) • Open Burning • Solvent Cleaning • Fugitive Dust • Etc.
