Determination of Reaction Stoichiometry

The stoichiometric ratio between Pb(NO 3 ) 2 and KBr will be determined by the method of continuous variations (Job’s Method). Determination of Reaction Stoichiometry.

marlon
Download Presentation

Determination of Reaction Stoichiometry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The stoichiometric ratio between Pb(NO3)2 and KBr will be determined by the method of continuous variations (Job’s Method). Determination of Reaction Stoichiometry

  2. Stoichiometry, as we have learned before,is the branch of chemistry that deals with the ratio between reactants and products in a chemical reaction. Principles

  3. In order to determine the stoichiometric ratio, some quantitative property must be measured. Could use temperature, volume, mass, or pressure changes. Principles

  4. In this Lab we will use the amount of precipitate, or solid product, given off. Principles

  5. The amount of precipitate can be graphed versus the number of moles of reagent. From the graph the stoichiometry can be determined Principles

  6. Number of moles of reactant: Moles = M V Moles = (0.5mol/L)(0.020L) = 0.010 moles Calculations

  7. One reaction will be assigned to you by your TA Measure appropriate amounts of Pb(NO3)2 and KBr and combine in one beaker Procedure

  8. Weigh a piece of filter paper and a watch glass. Fold the piece of filter paper in half, and then in half again. Procedure

  9. Open one side of the paper forming a cone. Place the cone into a funnel. Pour your precipitate through the filter paper. Procedure

  10. Use the rubber policeman to ensure that all of the precipitate is transfered. Wash your precipitate with two 10ml portions of COLD water. Procedure

  11. Put the filter paper onto your watch glass and dry over a beaker of boiling water. Weigh dry filter paper and watch glass. Procedure

  12. Dry again for 5 more minutes. Reweigh Repeat until you get constant mass. Procedure

  13. Do not leave the lab until you have given the TA your final results. Obtain the rest of the class data after it is posted. If you do not obtain the class data, you will not be able to complete the lab. Procedure

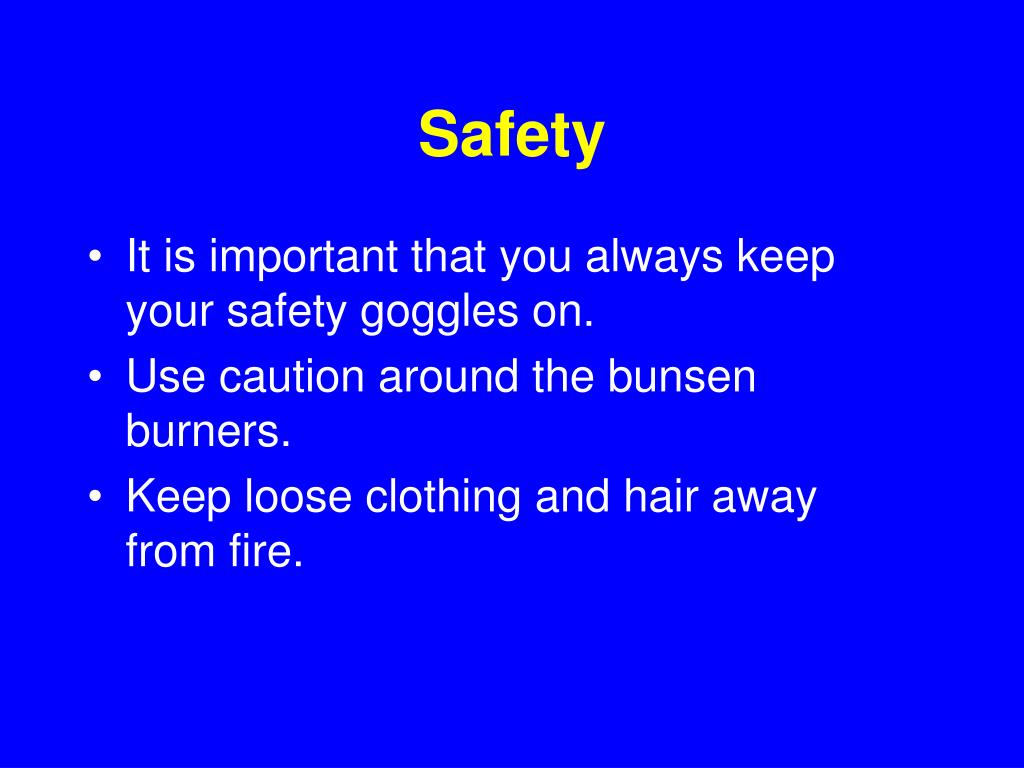

  14. It is important that you always keep your safety goggles on. Use caution around the bunsen burners. Keep loose clothing and hair away from fire. Safety
