Servicetool

ED 1 DATE: 2003.03.18 SIGN: SKRO

1404 9205-HD

ServiceTool


Servicetool

The purpose of this program is to program the Kirk handset and Kirk repeater.

One can adjust the volume, alter the start-up text, load flash code and menus and

adjust the gain levels of the microphone and loudspeaker for the Kirk Handset.

The repeater can be configured to connect to a Kirk System 1500 or a

Kirk residential base (e.g. Kirk System 500 or KCS).

To utilise this software for registration of repeaters/handset a special hardware

kit is needed. This hardware is required to make the connection between your

computer and the repeater or the handset.

This hardware can be obtained by contacting KIRK telecom A/S.

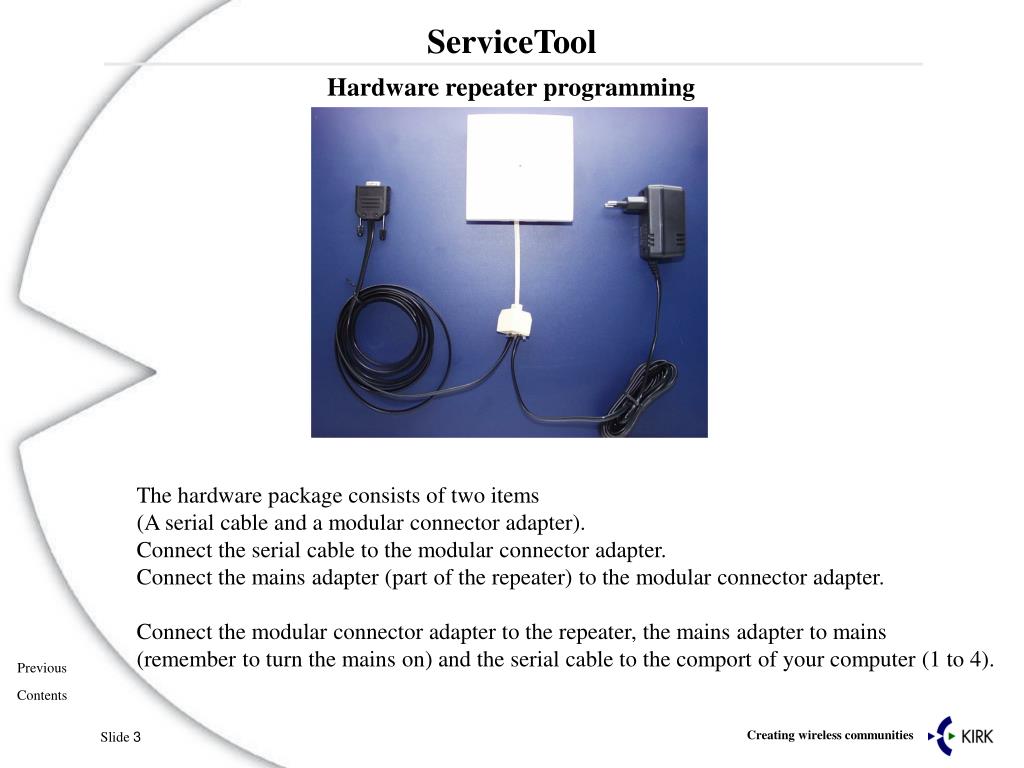

Hardware repeater programming

Hardware repeater programming

The hardware package consists of two items

(A serial cable and a modular connector adapter).

Connect the serial cable to the modular connector adapter.

Connect the mains adapter (part of the repeater) to the modular connector adapter.

Connect the modular connector adapter to the repeater, the mains adapter to mains

(remember to turn the mains on) and the serial cable to the comport of your computer (1 to 4).


Hardware handset programming

Hardware handset programming

The Service Tool for Handset includes

a Serio Interface and a Serial cable

for the handset and an adaptor.

Alternative The KIRK Docking Station can be use

– with the Power supply disconnected.


Comport setting repeater

Comport Setting/Repeater

Select Comport

Set Comport

Repeater connected

Select Baudrate (8600 for 2G4)


Kirk system 1500 repeater programming

KIRK System 1500 Repeater Programming

CCFP Ari. No.

RFP No. to synchronise on

WRFP number

Write to the WRFP


Kikr system 1500 repeater programming

KIKR System 1500 Repeater Programming

Read from the WRFP

Clear data from field


Residential kirk system 500 repeater programming

Residential/KIRK System 500 Repeater Programming

RFP No. to synchronise on :

Always 1 when KIRK System 500 or KCS

Write to the WRFP

SN. No. Residential

Base/Dect-z 500

WRFP number


Kirk system 500 repeater programming

KIRK System 500 Repeater Programming

Read from the WRFP

Clear data from field


Comport setting handset

Comport Setting/Handset

Set Comport

Handset/PP connected

Select Comport


Start up text in handset

Start-up Text in Handset

Write text

If it is a Z-3040

this box has to be ticked of

Write text to PP


Adjustment of gain values in handset

Adjustment of Gain Values in Handset

Press when

new handset

is connected

Initial values

can be given

into PP

Values read the first time !

Read gain value

Write new setting/values to PP

Adjust loudspeaker volume (Max = 0)

1 dB per step

Adjust microphone gain (Max = F)

2 dB per step


Load of menu to handset

Load of Menu to Handset

Load new menu into the handset


Load of menu to handset1

Load of Menu to Handset

Select the menu file

Open the file


Load of flash to handset

Load of Flash to Handset

Load new flash file into the handset


Load of flash to handset1

Load of Flash to Handset

Start the programming

Select the flash file

Open the file


Load of flash to handset2

Load of Flash to Handset

Press power on (PP) and “any key “ (PC) at the same time

until the programming has started.


Load of flash to handset3

Load of Flash to Handset

Programming running

Upgrade done


Serial number handset

Serial Number Handset

Read back of the Serial Number of the handset.


This program was presented by

This program was presented by

KIRK telecom A/S

Langmarksvej 34

DK-8700 Horsens

Tlf.: +45 7560 2850

Fax.: +45 7560 2851 www.kirktelecom.dk
