Presentation Transcript


Surfactants in solution l.jpg

SURFACTANTS IN SOLUTION


Classification of surfactants l.jpg

Classification of Surfactants

  • Anionic

  • Cationic

  • Zwitterionic

  • Nonionic

Sodium dodecylsulfate (SDS)

Cetylpyridinium bromide

Dipalmitoylphosphatidylcholine (lecithin)

Polyoxyethylene(4) lauryl ether (Brij 30)


Surfactant aggregates l.jpg

4 nm

Surfactant Aggregates

Normal micelles

Unimers

cylindrical

spherical

Inverted hexagonal phase

Reverse micelles

Bilayer lamella


Slide4 l.jpg

14

12

10

8

CMC

6

4

2

0

0

Surfactant concentration

1

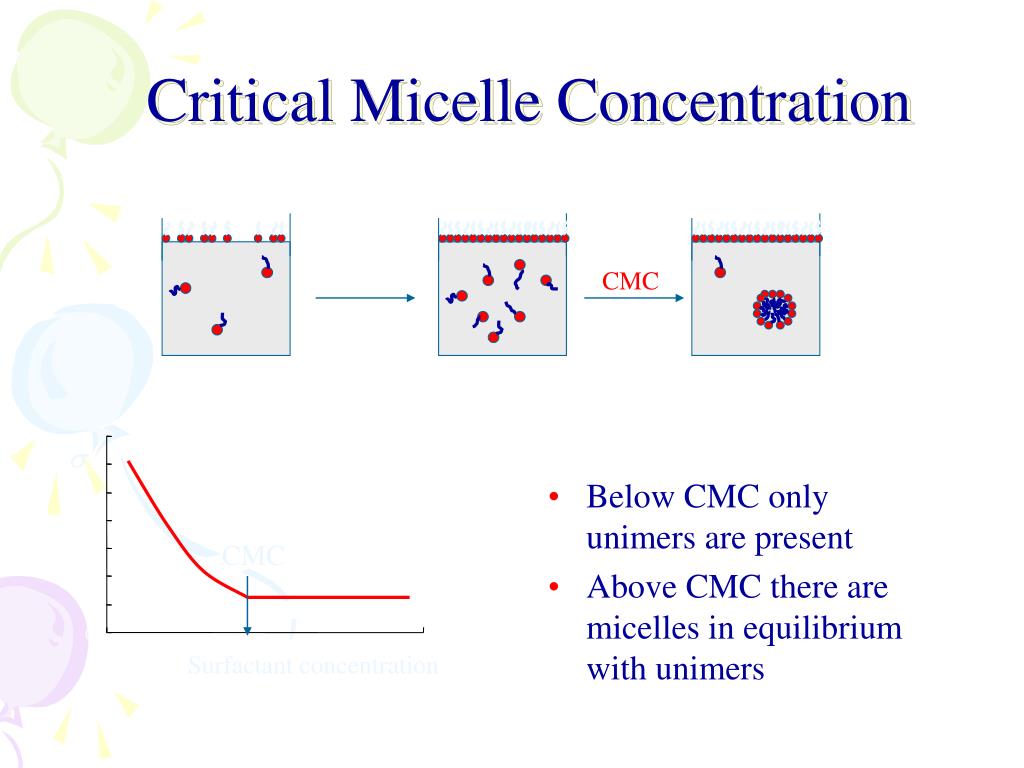

Critical Micelle Concentration

CMC

  • Below CMC only unimers are present

  • Above CMC there are micelles in equilibrium with unimers


Slide5 l.jpg

14

Concentration

unimers

14

Osmotic pressure

12

12

10

10

8

8

CMC

6

CMC

6

micelles

4

4

2

2

0

0

0

1

Surfactant concentration

0

1

Surfactant concentration

14

Isc

12

Light scattering

10

8

CMC

6

4

2

0

0

1

Surfactant concentration

Solution Properties


Solubilization l.jpg

Reverse micelles

Normal micelles

polar compound

non-polar compound

Solubilization

  • Spontaneous transfer of a compound insoluble in the bulk solvent into solution due to incorporation into the surfactant micelles

amphiphilic compound


Solubility effects l.jpg

14

Solubility

12

10

8

CMC

6

4

2

0

0

Surfactant concentration

1

Solubility Effects

  • Solubility of a poorly soluble compound increases as a result of solubilization in the micelles


An example of an hlb value calculation l.jpg

An example of an HLB value calculation

  • BRIJ ® 98 INCI name : oleth-20 is a 20 mole ethoxylate of oleyl alcohol

  • calculate the molecular weight of the 20 moles of ethylene oxide ( one mole ETO =44 );

    20 x 44 = 880

  • add this number to the molecular weight of the oleyl alcohol;

    880+ 270 = 1150 ( the mol. wt of BRIJ 98 )

  • What percentage of 1150 is 880 ?

    880/1150 = 76.5%

  • 76.5% divided by 5 = 15.3

  • 15.3 is the HLB value of BRIJ 98


Important to remember l.jpg

Important to remember !


Hlb and use of surfactants l.jpg

HLB and Use of Surfactants

Amphiphilic surfactants are characterized by the hydrophilic-lipophilic balance (HLB): a relative ratio of polar and non-polar groups in the surfactant

  • HLB ca. 1 to 3.5: Antifoams

  • HLB ca. 3.5 to 8: Water-in-Oil Emulsifiers

  • HLB ca. 7 to 9: Wetting and spreading agents

  • HLB ca. 8 to 16: Oil-in-Water Emulsifiers

  • HLB ca. 13 to 16: Detergents

  • HLB ca. 15 to 40: Solubilizers


Required hlb l.jpg

Required HLB

HLB needed for emulsification of the oil phase. If there are several oil ingredients the required HLB is calculated as a sum of their respective required HLB multiplied by the fraction of each.

  • Calculate the required HLB for the oil phase of the following o/w emulsion: cetyl alcohol 15 g., white wax 1g. Lanolin 2 g, emulsifier (q.s.), glycerin 5 g. water 100 g.

    • Required HLB Fraction

    • (from reference)

    • Cetyl alcohol15x15/1812.5

    • White wax12x1/180.7

    • Lanolin10x2/181.1

    • Total required HLB14.3


Hlb of surfactant blend l.jpg

HLB of Surfactant Blend

Surfactant blends are commonly used to obtain desired emulsifying properties.

  • Span 60 (HLB = 4.7)

  • Tween 60 (HLB = 14.9)

  • Span 80 (HLB = 4.3)

  • Tween 80 (HLB = 15.0)


Slide24 l.jpg

What is the HLB of the mixture of 40 % Span 60 (HLB = 4.7) and 60 % Tween 60 (HLB = 14.9)?

Sorbitan monostearate is an ester of

sorbitol and stearic acid (synthetic wax)

Polyoxyethylenesorbitan monooleate;

Sorbitan monooleate ethoxylate

  • HLB of mixture:4.7 x 0.4 + 14.9 x 0.6 = 10.8


Slide26 l.jpg

  • In what proportion should Span 80 (HLB = 4.3) and Tween 80 (HLB = 15.0) be mixed to obtain “required” HLB of 12.0?

  • 4.3.(1-x) + 15.x = 12x = 0.72

  • 72 % Tween 80 and 28 % Span 80


Slide28 l.jpg

Glycerol Monostearate

HLB value of 3.6~4.2

dissolves in hot grease, paraffine, ethanol, chloroform, acetone and aether, the material is widely used when producing of chocolate, margarine, ice cream, skin care balsam, cold cream, hair oil and drug ointment, also lubricant for plastic processing


Slide36 l.jpg

Shampoo


Slide37 l.jpg

Ingredients

  • Isobutane

  • Cyclomethicone

  • Aluminum Chlorohydrate

  • Propylene Glycol Dicaprylate/Dicaprate

  • Lichen extract

  • Fragrance

  • Quaternium-18

  • Silica

  • Dimethiconol


Slide38 l.jpg

cyclomethicone

Propylene Glycol Dicaprylate/Dicaprate


Slide39 l.jpg

Facial Cleanser

Aqua/Water

Palmitic acid

Myristic acid

Lauric acid

Stearic acid

Potassium hydroxide

PEG-7 Glyceryl cocoate

PEG-150 Distearate

Glycerin

Sodium laureth sulfosuccinate

Limonene

Linalool

Zinc PCA

Propylparaben

Propylene glycol

Disodium EDTA

NaCl


Slide40 l.jpg

Propylene glycol

propyl ester of p-hydroxybenzoic acid = propylparaben

zinc salt of 2-Pyrrolidone-5-Carboxylic Acid

PEG-7 Glyceryl cocoate

Polyoxyethylene glycol glyceryl cocoate (monococoate).


Slide41 l.jpg

PEG-150 Distearate

Polyethylene glycol diester of stearic acid.

Sodium laureth sulfosuccinate


Slide42 l.jpg

Cream
