1 / 13

Petroleum Vapor Intrusion

Petroleum Vapor Intrusion. 2013 Springfield Environmental Summit. Valerie Garrett Technical Environmental Specialist Hazardous Waste Program, Tanks Section. The Petroleum Vapor Intrusion Pathway. Must be Evaluated at All Petroleum Storage Tank Release Sites

marion
Download Presentation

Petroleum Vapor Intrusion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Petroleum Vapor Intrusion 2013 Springfield Environmental Summit Valerie Garrett Technical Environmental Specialist Hazardous Waste Program, Tanks Section

  2. The Petroleum Vapor Intrusion Pathway • Must be Evaluated at All Petroleum Storage Tank Release Sites • Typically the Pathway that Drives the Cleanup

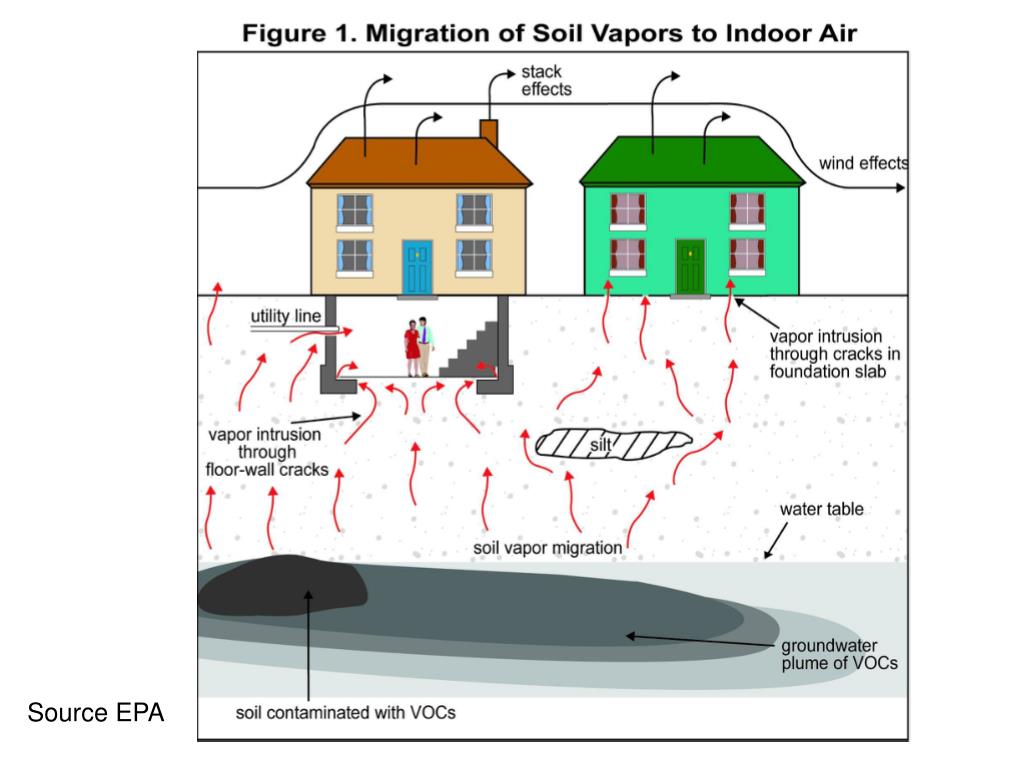

  3. Source EPA

  4. What Changes are in the Works? • Federal Level • EPA is developing a PVI Guidance • ITRC is developing a broader PVI Guidance • State Level • MDNR has compiled its own stakeholder group

  5. In 2002, EPA Drafted a Vapor Intrusion Guidance Developed Mainly for Chlorinated Sites Primary Difference between CVI & PVI Biodegradation Petroleum Specific VI Guidance needed

  6. EPA Approach • Developed & Analyzed Empirical Database • Established Inclusion Distances • Vertical (6 ft for dissolved, 15 ft for LNAPL) • Lateral/Horizontal (projection/extrapolation) • Selected Concentrations Indicating LNAPL • Groundwater 5 ppm Benzene & 30 ppm TPH • Soil 10 ppm Benzene & 250 ppm TPH

  7. Source EPA

  8. Status of EPA PVI Guidance • 1st Draft Released March 2012 – Limited Circulation for Review • 2nd Draft Released June 2012 – Limited Circulation for Review • Final Draft for External Review - April 17,2013 • Comments Due by May 24, 2013 • ASTSWMO LUST Task Force is taking the lead on assembling comments

  9. Interstate Technology & Regulatory Council(ITRC) Workgroup • Developing Broader PVI Guidance to Include • Other types of sites (ASTs, Refineries, MGP, heating oil) • Investigations & Analyses • Modeling • Remediation/Mitigation

  10. What is Missouri Doing? • PVI Stakeholder Group, contemplating similar changes • 2 of the Members are also on ITRC PVI Team

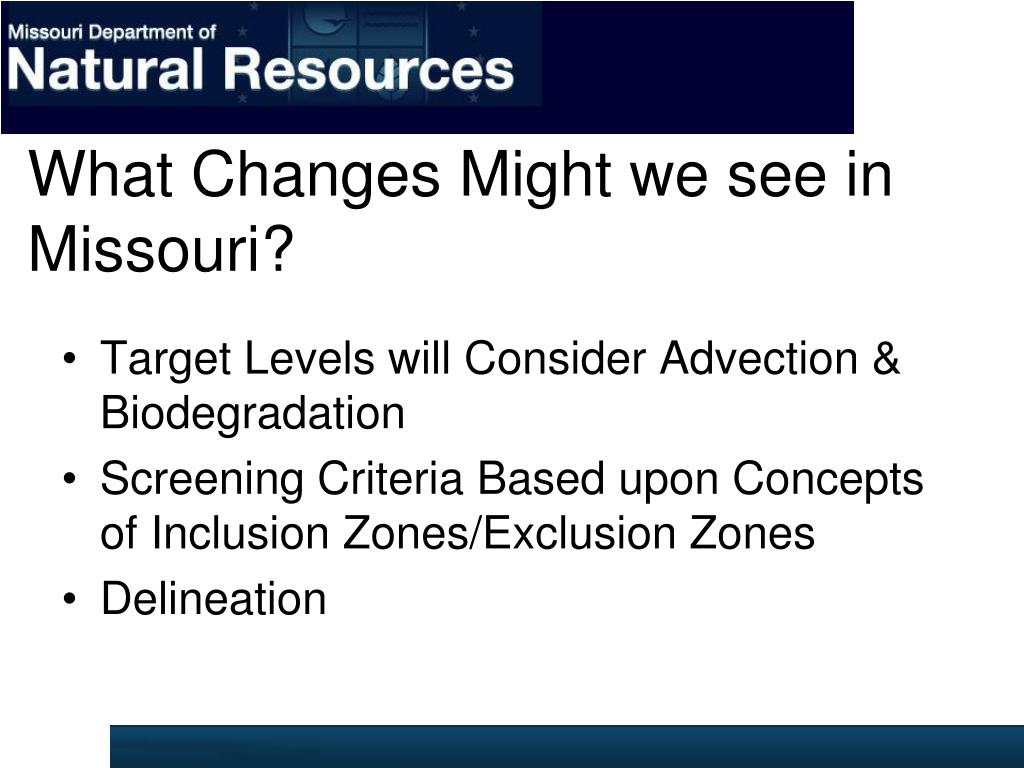

  11. What Changes Might we see in Missouri? • Target Levels will Consider Advection & Biodegradation • Screening Criteria Based upon Concepts of Inclusion Zones/Exclusion Zones • Delineation

  12. Thanks
