  1. Dual Laser FSI Alice Lighton

  2. Project Summary To set up a system for Dual Laser FSI

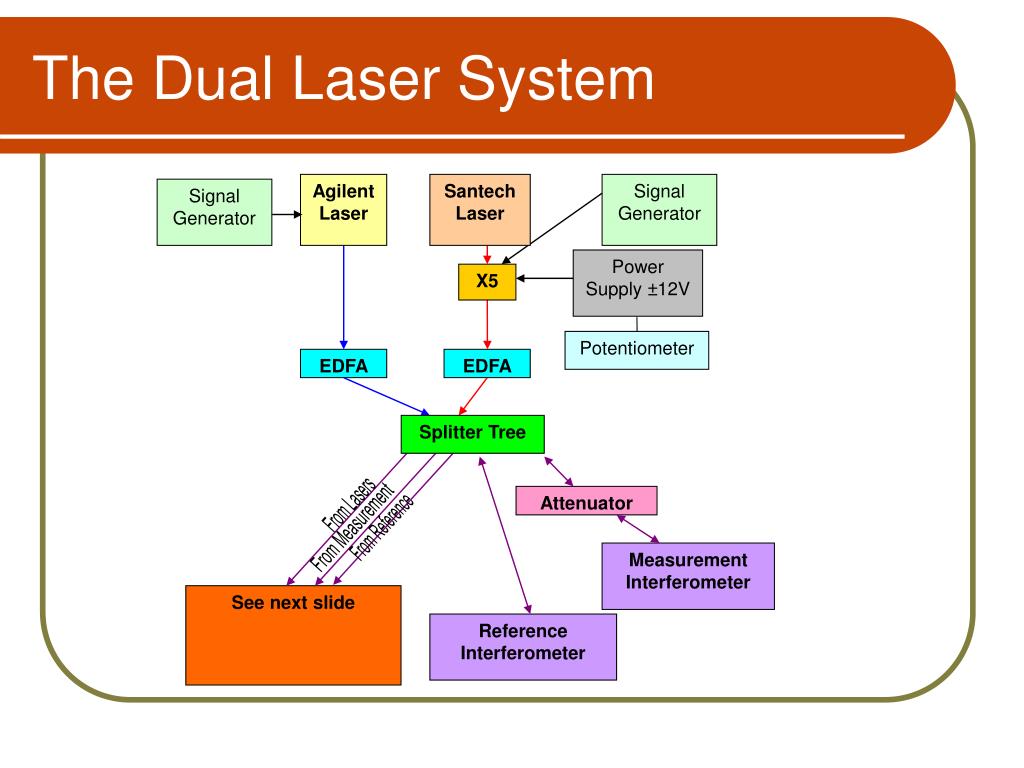

  3. The Dual Laser System Agilent Laser Santech Laser Signal Generator Signal Generator Power Supply ±12V X5 Potentiometer EDFA EDFA Splitter Tree Attenuator From Lasers From Reference From Measurement Measurement Interferometer See next slide ReferenceInterferometer

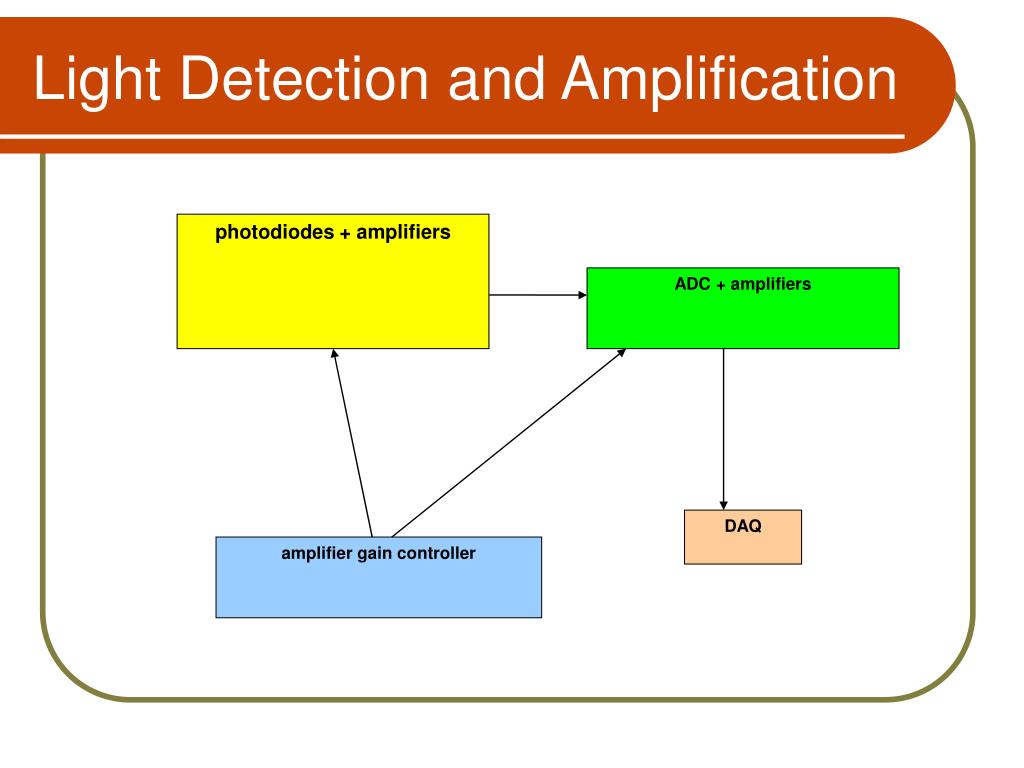

  4. photodiodes + amplifiers ADC + amplifiers DAQ amplifier gain controller Light Detection and Amplification

  5. Controller for Amplifier Gains On mealicar1

  6. The Amplifiers

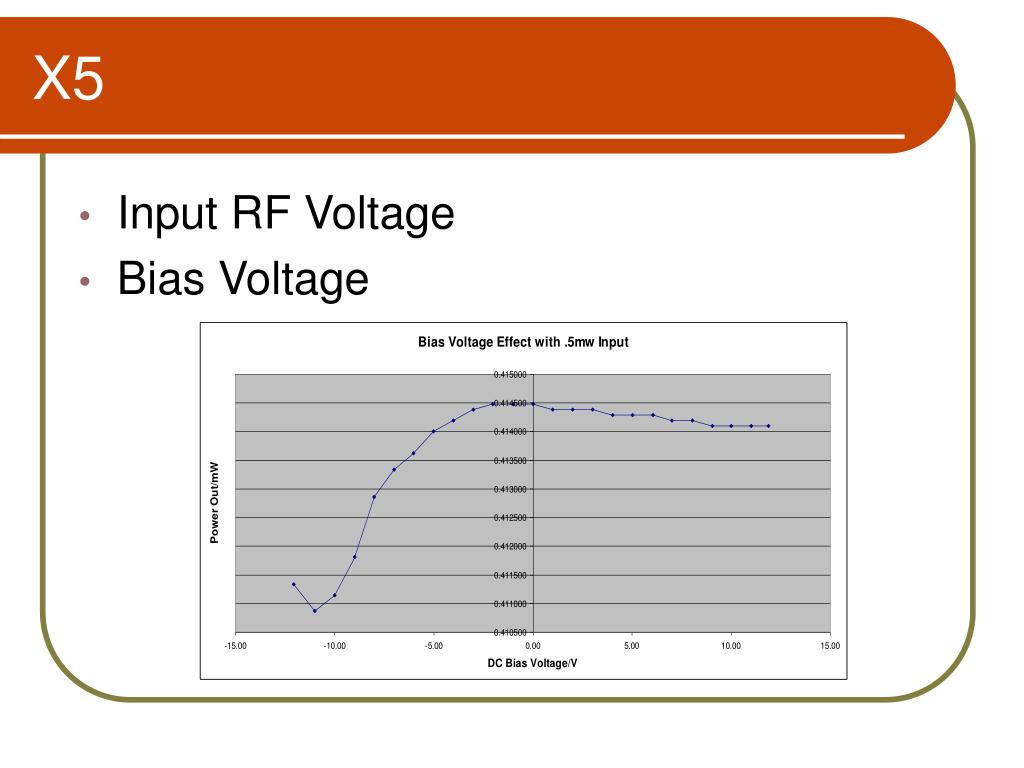

  7. X5 • Input RF Voltage • Bias Voltage

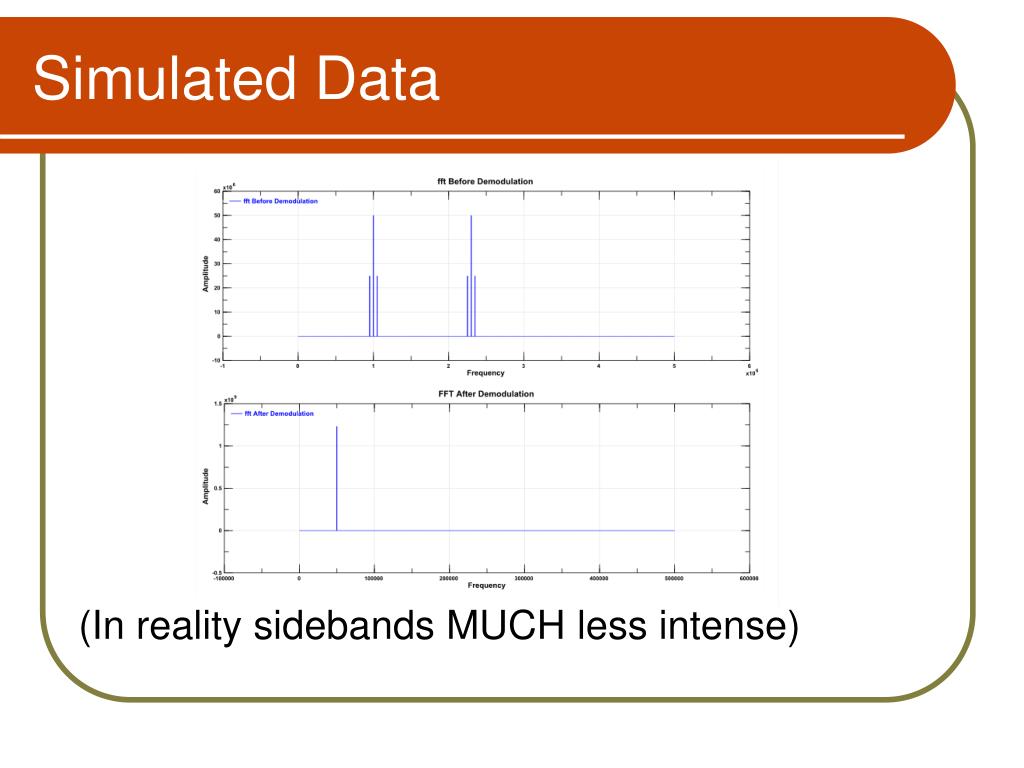

  8. Simulated Data (In reality sidebands MUCH less intense)

  9. Length Measurements Reference @2.3MHz Measurement @2.3MHz Reference @1.0MHz Measurement @1.0MHz

  10. Problems • No in-built filtering • Large errors – from demodulation, photodiodes?
