  1. Ultra Low Power CMOS Design Ph.D. Dissertation Proposal Kyungseok Kim ECE Auburn Univ. Chair: Prof. Vishwani D. Agrawal Committee Members: Prof. Victor P. Nelson Prof. Fa F. Dai May 11, 2010

  2. Outline • Study of Subthreshold Voltage Operation • Dual Voltage Assignment Algorithm (MILP) • Current Progress & Future Work • Conclusion

  3. Energy Constrained Systems • Low activity rates • Relaxed speed requirements • Long battery lifetimes ( more than 1 year ) • Energy harvesting from the environment Examples: Micro-sensor networks, Pacemakers, RFID tags, and Portable devices A. Wang, B. H. Calhoun, and A. P. Chandrakasan, Sub-Threshold Design for Ultra Low-Power Systems. Springer, 2006.

  4. D Vds = Vdd G Vgs S Subthreshold Operation (weak inversion) Eric A. Vittoz (1967) discovered that the transfer characteristics of MOS device were exponential across more than 5 decades of drain current. Measurement of a MOS transistor at very low current (Vittoz’s notebook) E. A. Vittoz, “The Electronic Watch and Low-Power Circuits,” IEEE Solid-State Circuits Newsletter, vol. 13, no. 3, pp. 7–23, 2008.

  5. Minimum Operating Voltage • Swanson and Meindl (1972) examined the voltage transfer characteristic (VTC) of an inverter: • Minimum Voltage = 8kT/q or 200 mV at 300K • (A ring oscillator worked at 100 mV soon thereafter.) • Ideal limit of the lowest possible supply voltage (2001) : • Vdd = 2kT/q ≈ 57 mV at 300K R. M. Swanson and J. D. Meindl, “Ion-Implanted Complementary MOS Transistors in Low-Voltage Circuits,” IEEE JSSC, vol. 7, no. 2, April 1972. A. Bryant, J. Brown, P. Cottrell, M. Ketchen, J. Ellis-Monaghan, E. Nowak, I. Div, and E. Junction, “Low-power CMOS at Vdd= 4kT/q,” in Device Research Conference, 2001, pp. 22–23.

  6. Functional Non-functional gain > 1 VTC of Inverter in PTM 90nm CMOS SPICE simulation ( Predictive Technology Model, PTM ) Vth_nmos = 0.29 V, Vth_pmos = 0.21 V Nominal VDD = 1.2 V, Temp. = 300K Inverter size: WP = 5.5*L Wn = 2.4*L L = 90nm

  7. 180 mV FFT Processor Dynamic Voltage Scaling (DVS) in subthreshold region according to operating scenarios ( 128 to 1024 FFT length and 8 or 16 bit precision) • Tech. : Standard 018 µm 6M CMOS (Vth = 450 mV) • Voltage scaling: 180 mV to 900 mV • Operating Freq. : 164 Hz to 6 MHz • Optimal operating point for 1024 and 16b: Vdd,opt = 350 mV Freq. = 9.6 kHz Eopt = 155 nJ Above-threshold low power FFT processor consumes 3.4 µJ in 0.7 µm process with 1.1 V A. Wang and A. Chandrakasan, “A 180mV FFT Processor Using Subthreshold Circuit Techniques,” in IEEE International Solid-State Circuits Conference Digest of Technical Papers, 2004, pp. 292–529.

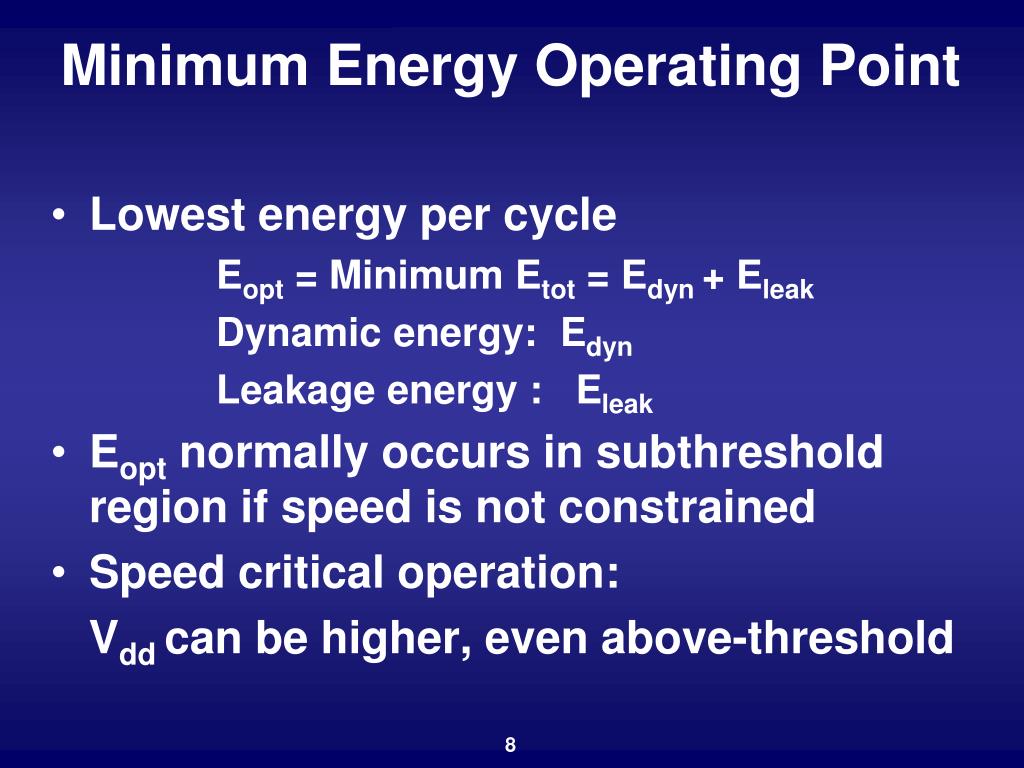

  8. Minimum Energy Operating Point • Lowest energy per cycle Eopt = Minimum Etot = Edyn + Eleak Dynamic energy: Edyn Leakage energy : Eleak • Eopt normally occurs in subthreshold region if speed is not constrained • Speed critical operation: Vdd can be higher, even above-threshold

  9. Vdd > Vth Dynamic Energy : • Edyn = α0→1CVdd2 • Quadratic reduction with supply voltage Vdd • Activity factor α affects Edyn Leakage Energy : • Eleak = Pleaktd = IleakVddtd • Ileak is composed of subthreshod leakage, gate leakage and pn junction reverse-bias current ….. • Normally smaller than dynamic energy

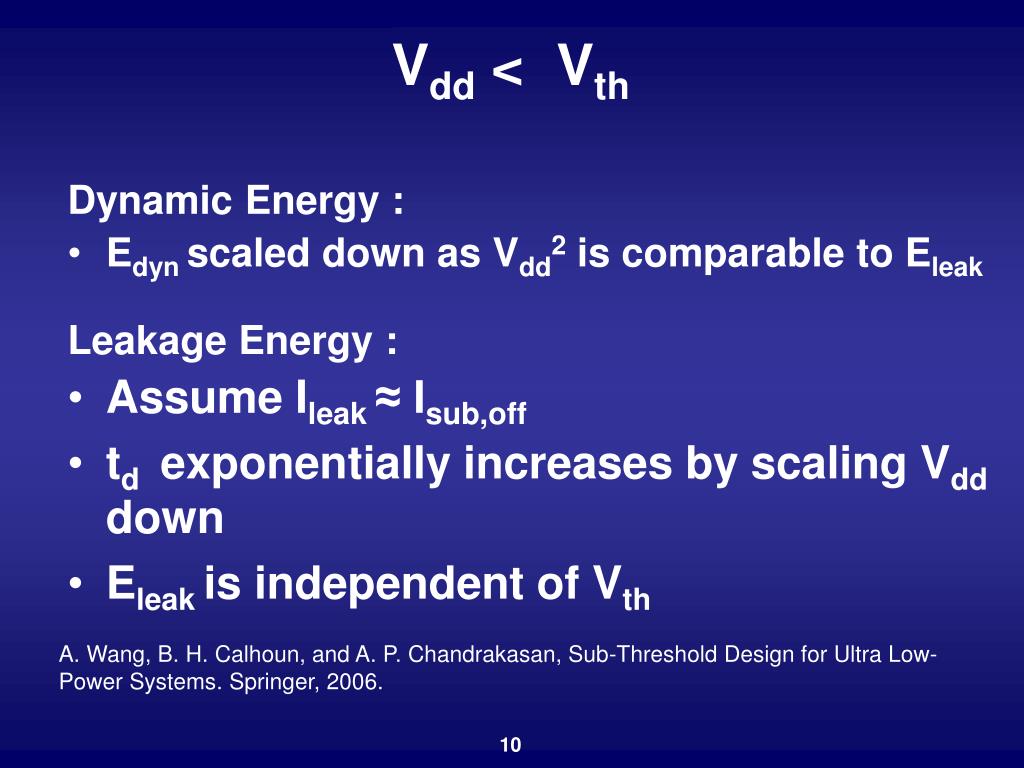

  10. Vdd < Vth • Dynamic Energy : • Edyn scaled down as Vdd2 is comparable to Eleak • Leakage Energy : • Assume Ileak ≈ Isub,off • td exponentially increases by scaling Vdd down • Eleak is independent of Vth A. Wang, B. H. Calhoun, and A. P. Chandrakasan, Sub-Threshold Design for Ultra Low-Power Systems. Springer, 2006.

  11. Ileak and td Io : Drain current at Vgs=Vth S : Subthreshold swing η : Drain-induced barrier lowering ( DIBL ) VT : Thermal voltage (=kT/q) Ileak = Isub,off = Isub (Vgs = 0) DIBL reduces Ileak with scaling Vdd K : Fitting parameter CL : Load capacitance Isub,on = Isub (Vgs = Vdd < Vth)

  12. Normalized Ileak and td for INV (SPICE Simulation) Eleak is mainly dominated by td in subthreshold region.

  13. 8-bit Ripple Carry Adder (PTM 90nm CMOS) with α=0.21 Vdd,opt = 0.17 V Etot,min = 3.29 fJ (1.89 MHz) Total Energy per Cycle ( Etot )

  14. Threshold Voltage Vs. Total Energy Lowering Vth does not change Eopt in the subthreshold region B.H. Calhoun, A. Wang, and A. Chandrakasan, “Modeling and Sizing for Minimum Energy Operation in Subthreshold Circuits,” in IEEE Journal of Solid-State Circuits, Sept. 2005.

  15. 14.7X 2.7X 59.1X 24.5X Energy Vs. Performance • Small increase of Etot in subthreshold region exponentially improves circuit speed Delay and energy per cycle of 8-bit ripple carry adder ( SPICE Simulation )

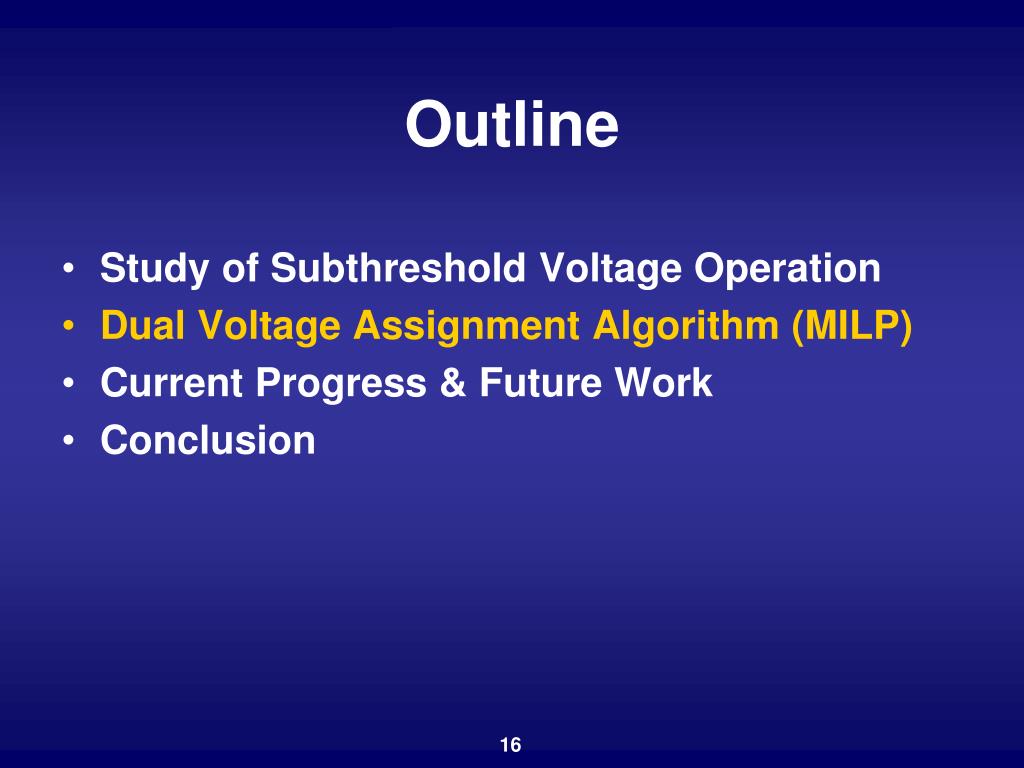

  16. Outline • Study of Subthreshold Voltage Operation • Dual Voltage Assignment Algorithm (MILP) • Current Progress & Future Work • Conclusion

  17. Motivation • Utilizing time slack for low power design is common in above-threshold, but not has been done in subthreshold operation • Small increase in Etot can significantly improves circuit speed • Two supply voltages are acceptable in today’s designs

  18. Dual-Vdd Design • Use two supply voltages VDDH and VDDL • Apply VDDH to gates on critical paths to maintain performance (speed), while VDDL to gates on non-critical paths to reduce power • Use level converters at interfaces of VDDL cells feeding into VDDH cells

  19. Driven Gates and Input Swing Level

  20. Gate td and Pleak in Subthreshold Simulation data (PTM 90nm CMOS) Two supply voltages VDDH = 250 mV and VDDL = 200 mV • Level converter has unacceptable delay overhead for subthreshold circuits:

  21. Algorithm I : Eopt for Single Vdd • Characterize Standard cells for maximum delay, average leakage, and capacitances power using SPICE simulation over subthreshold region (100 mV to 300 mV, 10 mV step, 21 points, PTM 90 nm CMOS) • Low to high signal activity from logic simulator • Critical delay Tc from STA(21 points) • Calculate Etot by the sum of energy for gates (21 points) • Find lowest Etot as Eopt

  22. Algorithm I : Results 16-bit ripple carry adder for single Vdd

  23. Algorithm II : VDDL Assignment • VDDH and Tc are given as inputs from Algorithm I • Use repeatedly MILP to solve Etot and VDDL assignment to selected gates on the non-critical paths to achieve minimum energy for a pair of VDDH and VDDL ( Vmin=90 mV ≤ VDDL < VDDH ) • Find Eopt and best VDDL Assignment corresponding to Eopt • Eliminate level converters in dual supply voltage operation by suitable constraints in MILP

  24. MILP for VDDL Assignment For given speed requirement Tc ( VDDH ) Xi Integer variable : 0 for VDDH or 1 for VDDL Ti is the latest arrival time at a gate i output from PI events T. Raja, V. D. Agrawal, and M. L. Bushnell, “Minimum Dynamic Power CMOS Circuit Design by a Reduced Constraint Set Linear Program,” in Proceedings of 16th International Conference on VLSI Design, Jan.2003, pp. 527–532.

  25. Xj Gate j Xi Gate i Xk Gate k Topological Constraints HH: Xj = 0 and Xi = 0 → Xi – Xj = 0 LL: Xj = 1 and Xi = 1 → Xi – Xj = 0 HL: Xj = 0 and Xi = 1 → Xi – Xj = 1 LH: Xj = 1 and Xi = 0 → Xi – Xj = -1 Xi – Xj ≥ 0

  26. Example Result

  27. # of paths 16-bit ripple carry adder 22% reduction of Eopt 4X4 multiplier 3% reduction of Eopt time tc Dual-Vdd Assignment Results

  28. Outline • Study of Subthreshold Voltage Operation • Dual Voltage Assignment Algorithm (MILP) • Current Progress & Future Work • Conclusion

  29. Current Progress • Validation of a dual-Vdd technique in bulk CMOS subthreshold circuits • A method for finding minimum energy operating point in single supply voltage • An MILP for dual supply voltages in subthreshold region • Level converter are avoided • A paper submitted to ICCAD 2010

  30. Future Work • Modify topological constraints to allow suitable level converters or to use circuit techniques, then possibly more VDDL cells • Build MILP framework for minimum energy optimized circuit using dual-Vdd and highest speed • Minimum energy operating circuit immune to functional fails and process variations

  31. Outline • Study of Subthreshold Voltage Operation • Dual Voltage Assignment Algorithm (MILP) • Current Progress & Future Work • Conclusion

  32. Conclusion Dual-Vdd MILP framework for minimum energy operating circuit design is effective from minimum energy operating point to highest speed operation: • Ultra low power design without performance constraint • Minimum energy optimized design for given speed • Reduced energy optimization for highest speed

  33. Thanks!
