  1. Speedstack Stack Up Design System

  2. 2008 Release : Enhanced Autostack facilities • HDI support • Improved drilling support • Improved user interface • Many other features

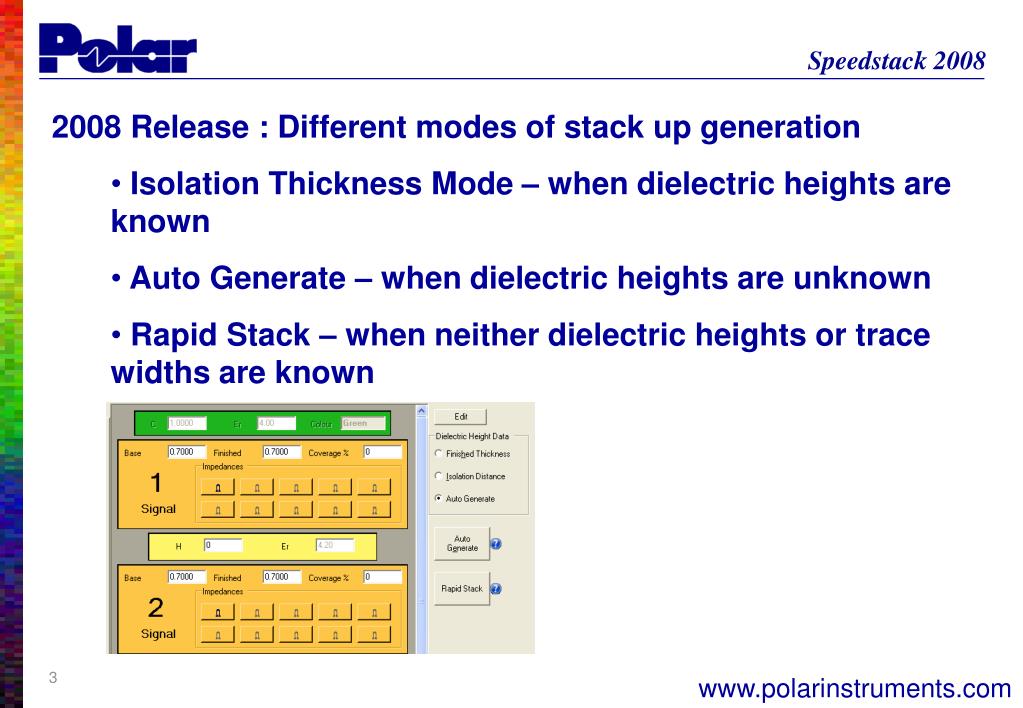

  3. 2008 Release : Different modes of stack up generation • Isolation Thickness Mode – when dielectric heights are known • Auto Generate – when dielectric heights are unknown • Rapid Stack – when neither dielectric heights or trace widths are known

  4. 2008 Release : Advanced Material Library filtering • Automatic selection of material groups from library • Allows stack ups to be built from material families

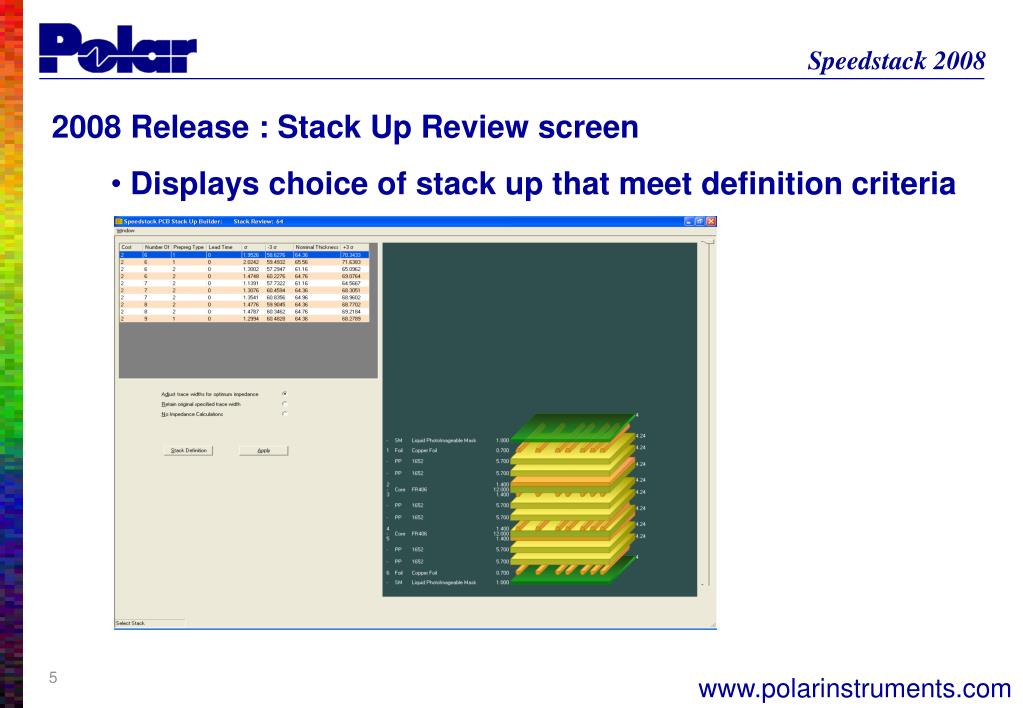

  5. 2008 Release : Stack Up Review screen • Displays choice of stack up that meet definition criteria

  6. 2008 Release : • Informative dialogs when stack up criteria can not be met • Choice to Accept or Reject

  7. 2008 Release : Stack Up Editor improvements • Improvement support for Non-Copper Core • Reprocess Stack option – set auto stack definition from current loaded stack up

  8. 2008 Release : Printing enhancements • Please see the next slide for a sample Speedstack printed report…

  9. More information? Please contact your local Polar sales office www.polarinstruments.com

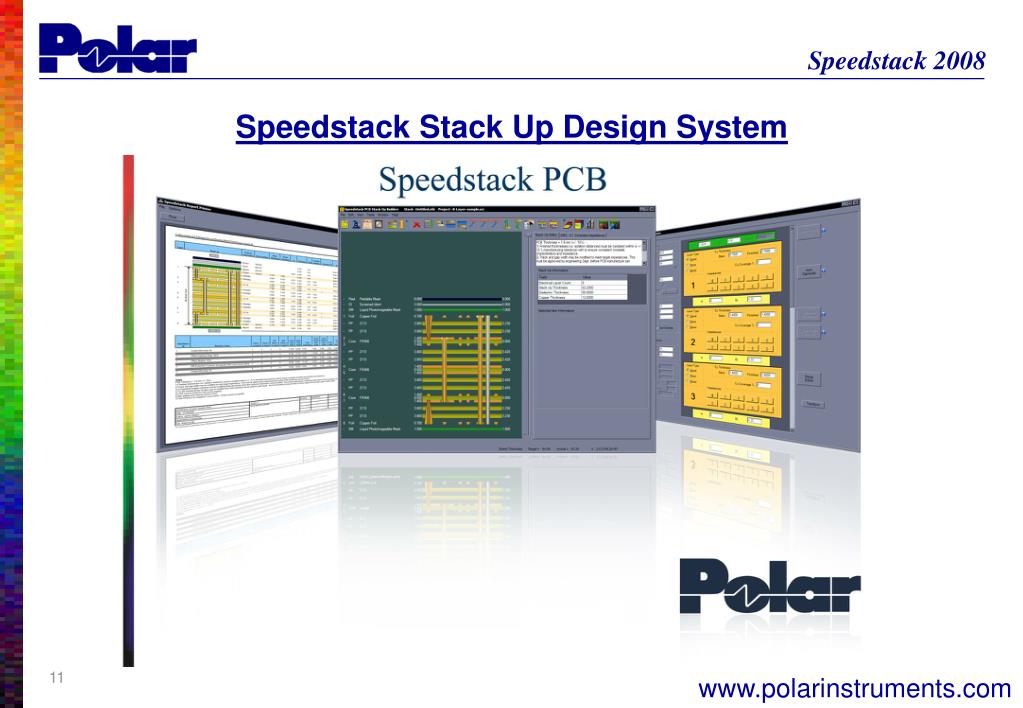

  10. Speedstack Stack Up Design System
