2iv60 computer graphics set 8 illumination models and surface rendering methods

2IV60 Computer graphicsset 8: Illumination Models and Surface-Rendering Methods

Jack van Wijk

TU/e


Opengl illumination example

OpenGL Illumination example

GlfloatlightPos[] = {2.0, 0.0, 3.0, 0.0};

GlfloatwhiteColor[] = {1.0, 1.0, 1.0, 1.0};

GlfloatpinkColor[] = {1.0, 0.5, 0.5, 1.0};

glShadeModel(GL_SMOOTH); // Use smooth shading

glEnable(GL_LIGHTING); // Enable lighting

glEnable(GL_LIGHT0); // Enable light source #0

glLightfv(GL_LIGHT0, GL_POSITION, lightPos); // position LS 0

glLightfv(GL_LIGHT0, GL_DIFFUSE, whiteColor); // set color LS 0

glMaterialfv(GL_FRONT, GL_DIFFUSE, pinkColor); // set surface

// color

glBegin(GL_TRIANGLES);

glNormal3fv(n1); glVertex3fv(v1); // draw triangle, give

glNormal3fv(n2); glVertex3fv(v2); // first normal, followed

glNormal3fv(n3); glVertex3fv(v3); // by vertex

glEnd();

What is going on here?


Introduction 1

Introduction 1

Illumination model:

Given a point on a surface, what is the perceived color and intensity? Known as Lighting Model, or Shading Model

Surface rendering:

Apply the Illumination model to color all pixels of the surface.

H&B 17:531-532


Introduction 2

Introduction 2

Example:

  • Illumination model gives color vertices,

  • Surface is displayed via interpolation of these colors.

H&B 17:531-532


Introduction 3

Introduction 3

Illumination:

  • Physics:

    • Material properties, light sources, relative positions, properties medium

  • Psychology:

    • Perception, what do we see

    • Color!

  • Often approximating models

H&B 17:531-532

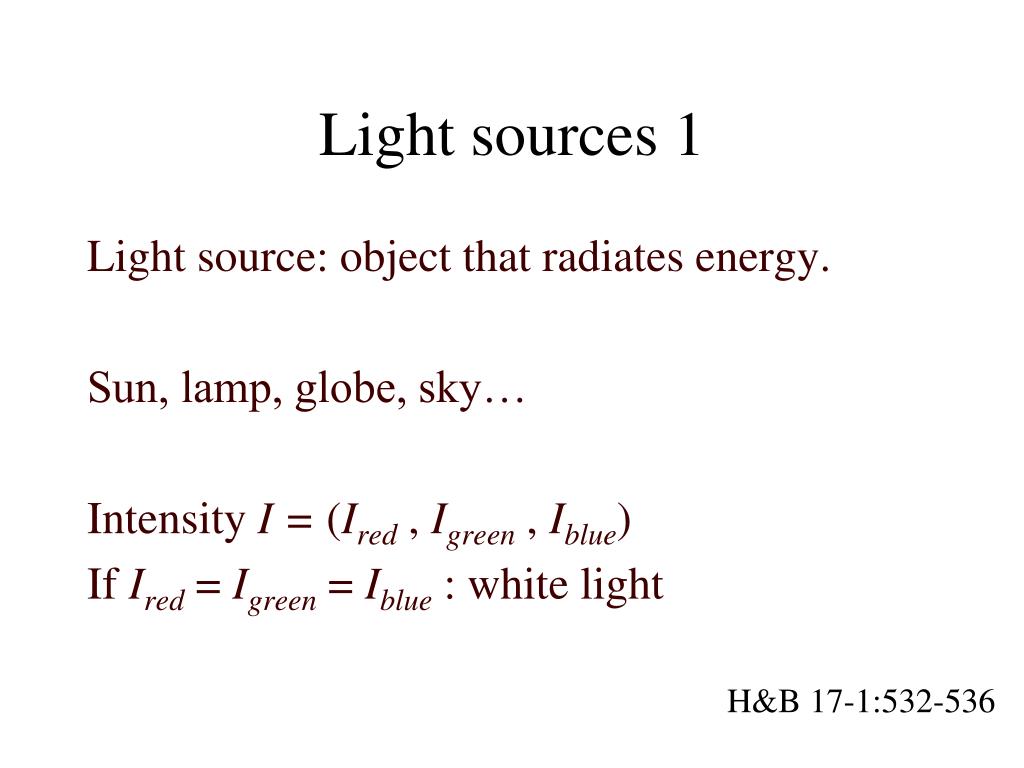

Light sources 1

Light sources 1

Light source: object that radiates energy.

Sun, lamp, globe, sky…

Intensity I = (Ired , Igreen , Iblue)

If Ired = Igreen = Iblue : white light

H&B 17-1:532-536


Light sources 2

Light sources 2

Simple model: point light source

  • position P and intensity I

  • Light rays along straight lines

  • Good approximation for small light sources

H&B 17-1:532-536


Light sources 3

Light sources 3

Simpler yet: point light source at infinity

  • Direction V and intensity I

  • Sunlight

    V

H&B 17-1:532-536


Light sources 4

Light sources 4

Damping: intensity of light decreases with distance

Energy is distributed over area sphere, hence

Il = I / d2,

with d distance to light source.

In practice often too ‘agressive’,

hence Il = I / (a0 +a1d+a2d2)

If light source at infinity: No damping with distance

d

H&B 17-1:532-536


Light sources 5

Q

a

l

light cone

Vlight

Light sources 5

Directed light source, spotlight:

Light is primarily send in direction of Vlight .

P

H&B 17-1:532-536


Light sources 6

Q

a

l

light cone

Vlight

Light sources 6

More subtle: Let I decrease with increasing angle a.

P

H&B 17-1:532-536

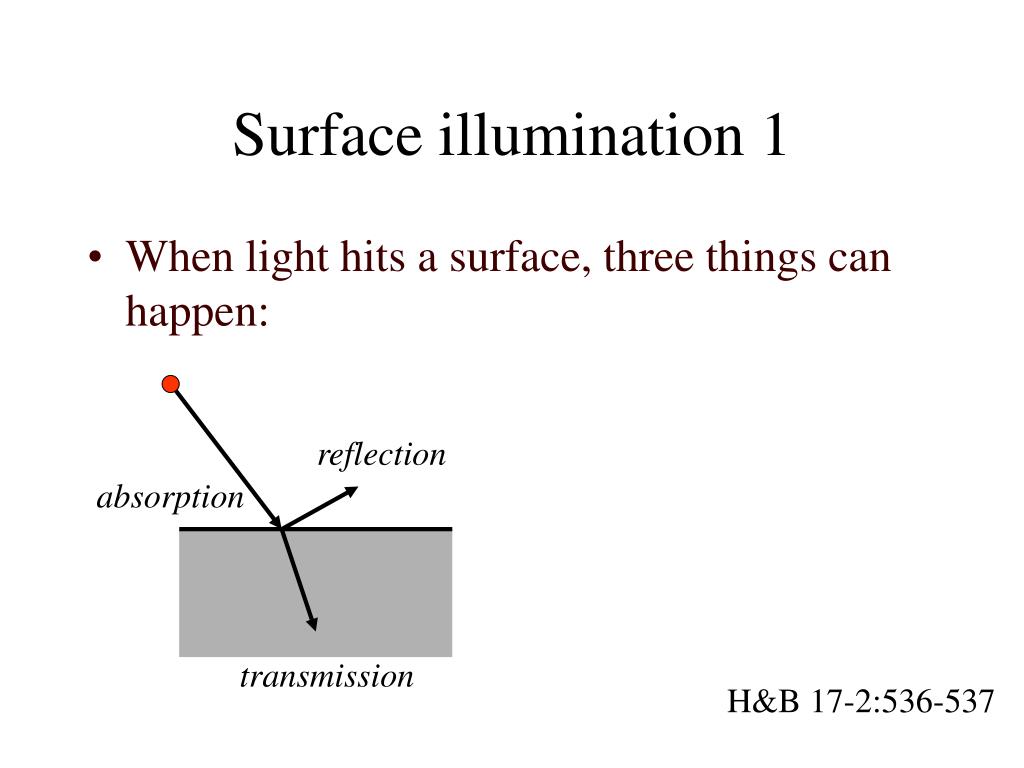

Surface illumination 1

reflection

transmission

Surface illumination 1

  • When light hits a surface, three things can happen:

absorption

H&B 17-2:536-537


Surface illumination 2

Surface illumination 2

  • Suppose, a light source radiates white light, consisting of red, green and blue light.

If only red light is reflected, then we see a red surface.

reflection

absorption

transmission

H&B 17-2:536-537


Surface illumination 3

Surface illumination 3

  • Diffuse reflection: Light is uniformly reflected in all directions

  • Specular reflection: Light is stronger reflected in one direction.

specular reflection

diffuse reflection

H&B 17-2:536-537

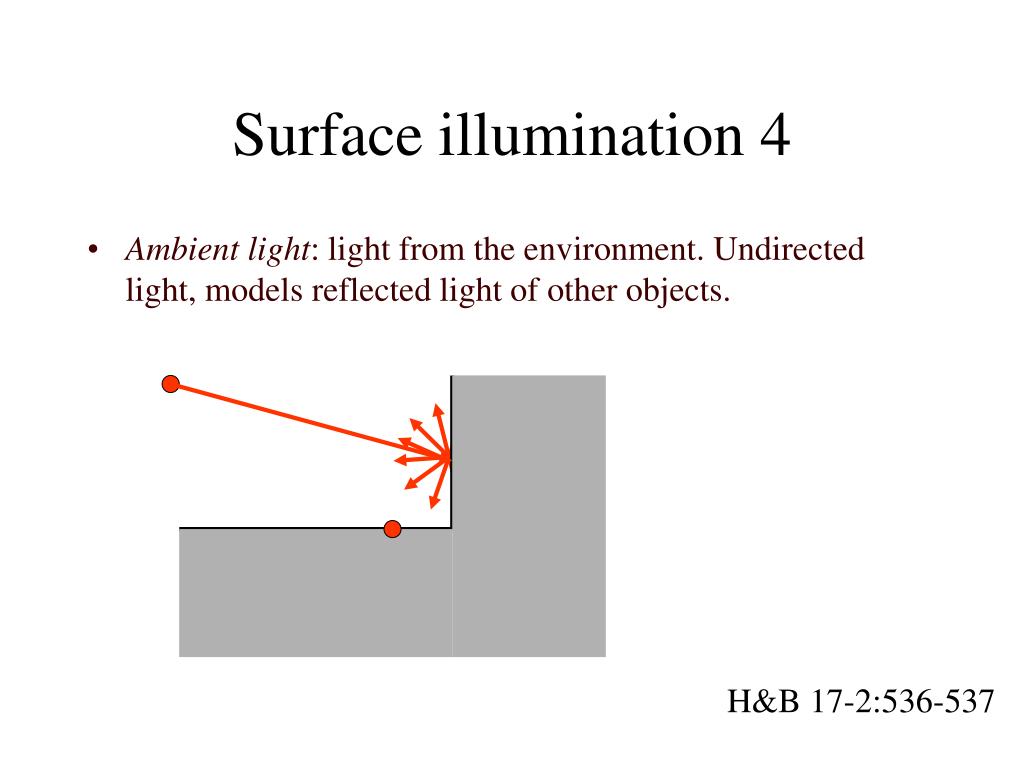

Surface illumination 4

Surface illumination 4

  • Ambientlight: light from the environment. Undirected light, models reflected light of other objects.

H&B 17-2:536-537


Basic illumination model 1

Basic illumination model 1

Basic illumination model:

  • Ambient light;

  • Point light sources;

  • Ambient reflection;

  • Diffuse reflection;

  • Specular reflection.

H&B 17-3:537-546

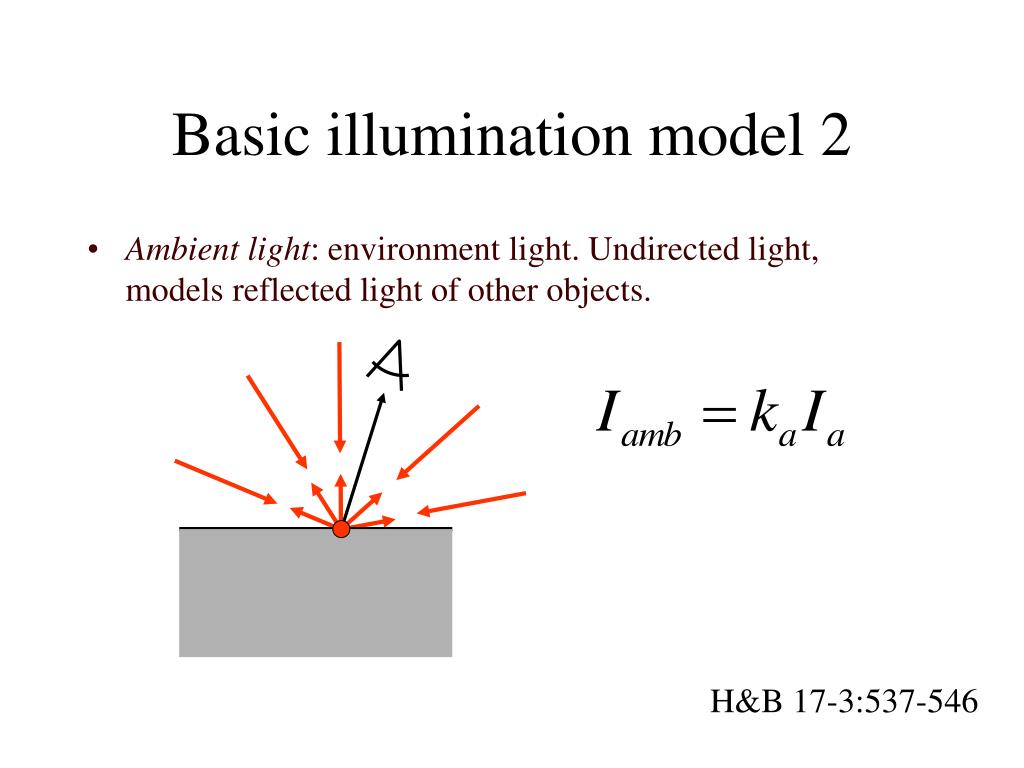

Basic illumination model 2

Basic illumination model 2

  • Ambientlight: environment light. Undirected light, models reflected light of other objects.

H&B 17-3:537-546


Basic illumination model 3

dA

dA/cos 

Basic illumination model 3

Perfect diffuse reflector: light is reflected uniformly in all directions.

H&B 17-3:537-546


Basic illumination model 4

dA

Basic illumination model 4

Perfect diffuse reflector: light is reflected uniformly in all directions.

.

  • Lambert’s law:

  • Reflected energy is

  • proportional with cos , where

  • denotes the angle between the

  • normal N and a vector to the light

  • source L.

N

L

dA/cos 

H&B 17-3:537-546


Basic illumination model 5

Basic illumination model 5

Perfect diffuse reflector: light is reflected uniformly in all directions.

Psource

N

Il

L

Psurf

H&B 17-3:537-546


Basic illumination model 6

Basic illumination model 6

Perfect specular reflector: light is only reflected in one

direction. Angle of incidence is angle of reflection.

N

L

R

q

q

H&B 17-3:537-546

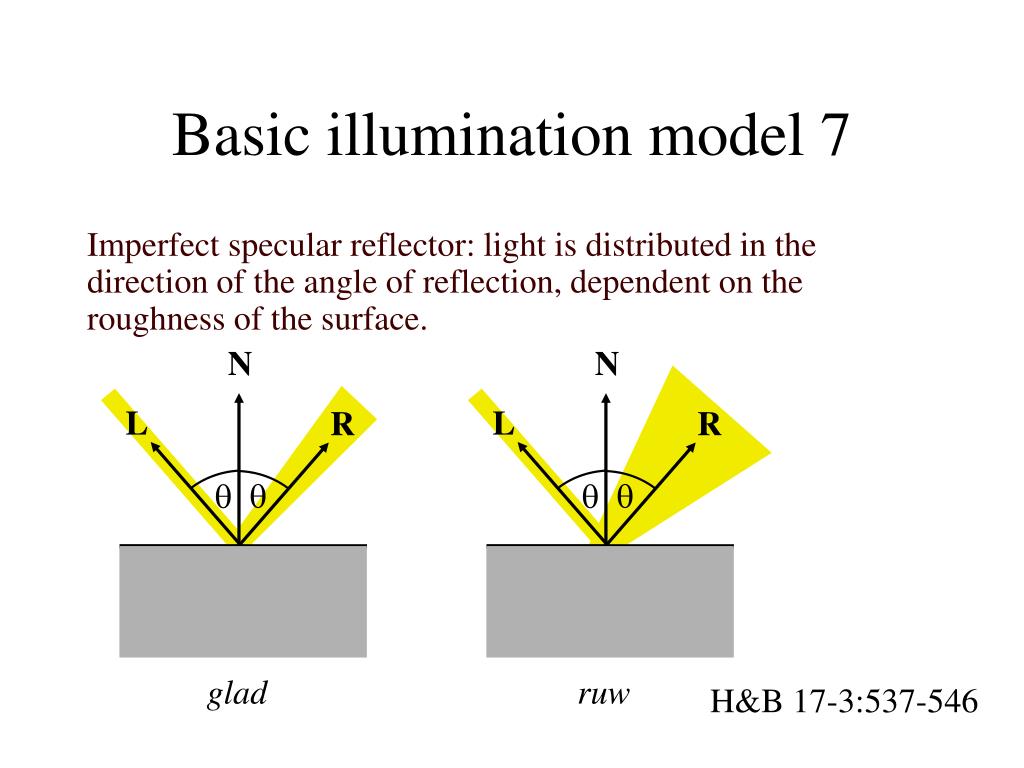

Basic illumination model 7

Basic illumination model 7

Imperfect specular reflector: light is distributed in the direction of the angle of reflection, dependent on the roughness of the surface.

N

N

L

L

R

R

q

q

q

q

glad

ruw

H&B 17-3:537-546

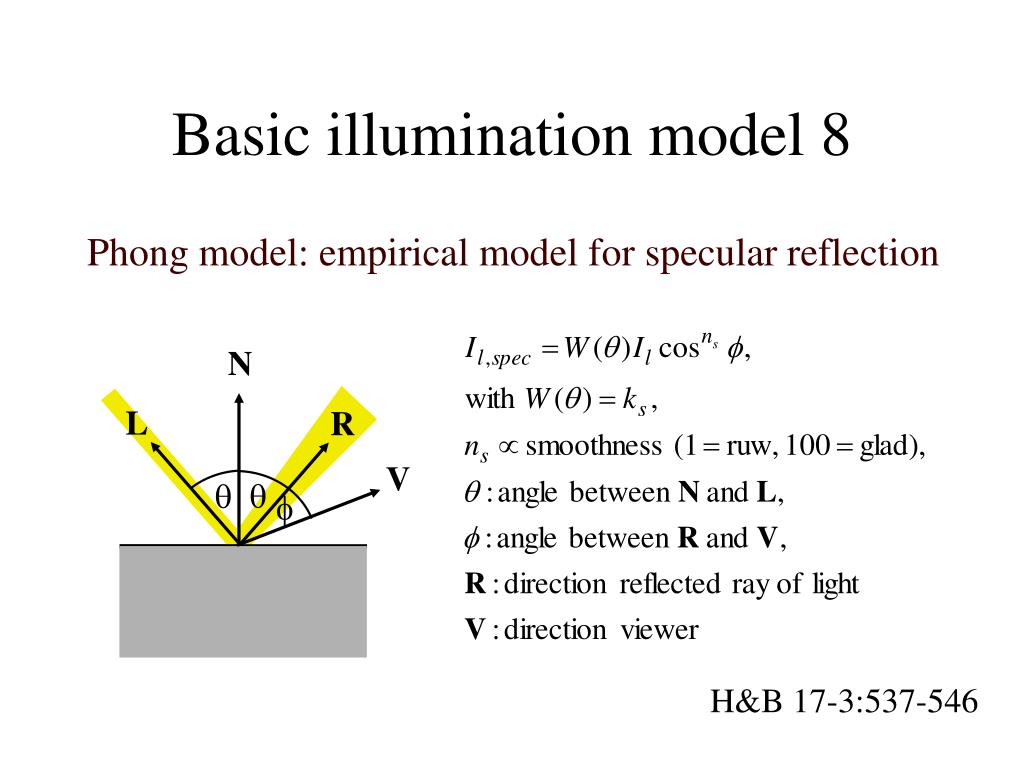

Basic illumination model 8

Basic illumination model 8

Phong model: empirical model for specular reflection

N

L

R

V

q

q

H&B 17-3:537-546


Basic illumination model 9

Basic illumination model 9

Phong model: empirical model for specular reflection

N

L

R

V

q

q

H&B 17-3:537-546


Basic illumination model 10

L

V

N.L

Basic illumination model 10

Phong model: calculating the vectors

N

L

R

H&B 17-3:537-546

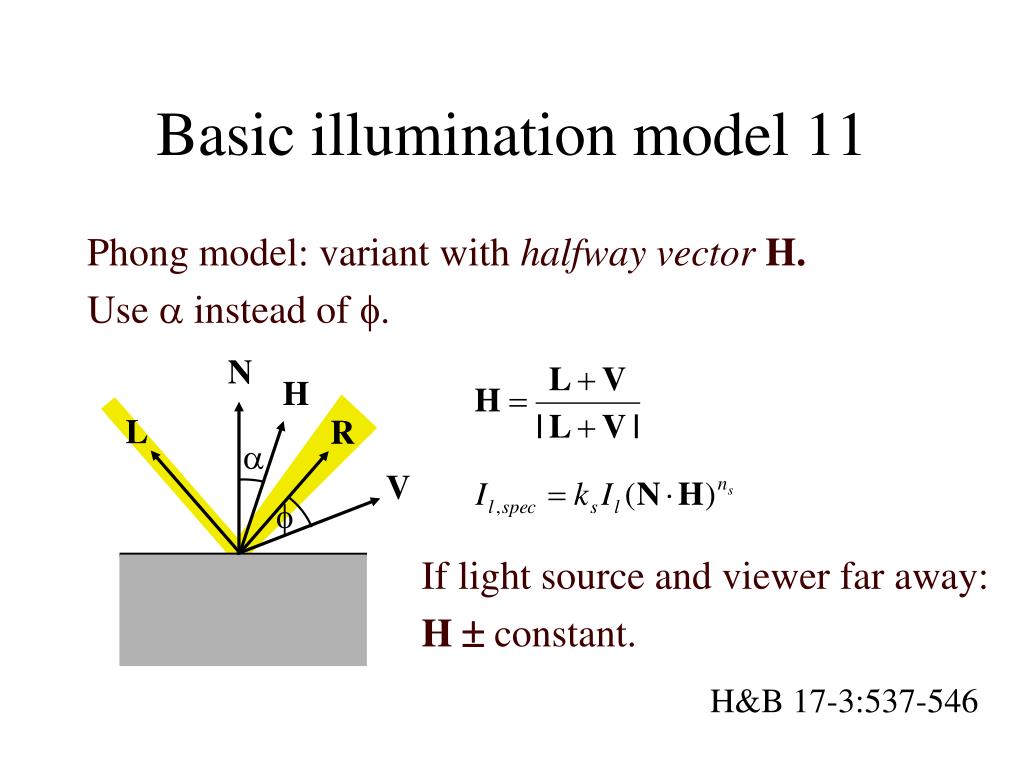

Basic illumination model 11

Basic illumination model 11

Phong model: variant with halfway vector H.

Use a instead of f.

N

H

L

R

a

V

If light source and viewer far away:

H  constant.

H&B 17-3:537-546


Basic illumination model 12

Basic illumination model 12

All together:

H&B 17-3:537-546


Basic illumination model 13

Basic illumination model 13

Color (reprise):

Light intensity I and reflection coefficients k: (r,g,b) triplets

So for instance:

Plastic: kd is colored (r,g,b), ks is grey (w,w,w)

Metal: kd and ks same color

Basic model: simple but effective.

It can be done much better though…

H&B 17-3:537-546


Transparancy 1

Transparancy 1

Transparant object:

  • reflected and transmitted light

  • refraction

  • scattering

H&B 17-4:546-549

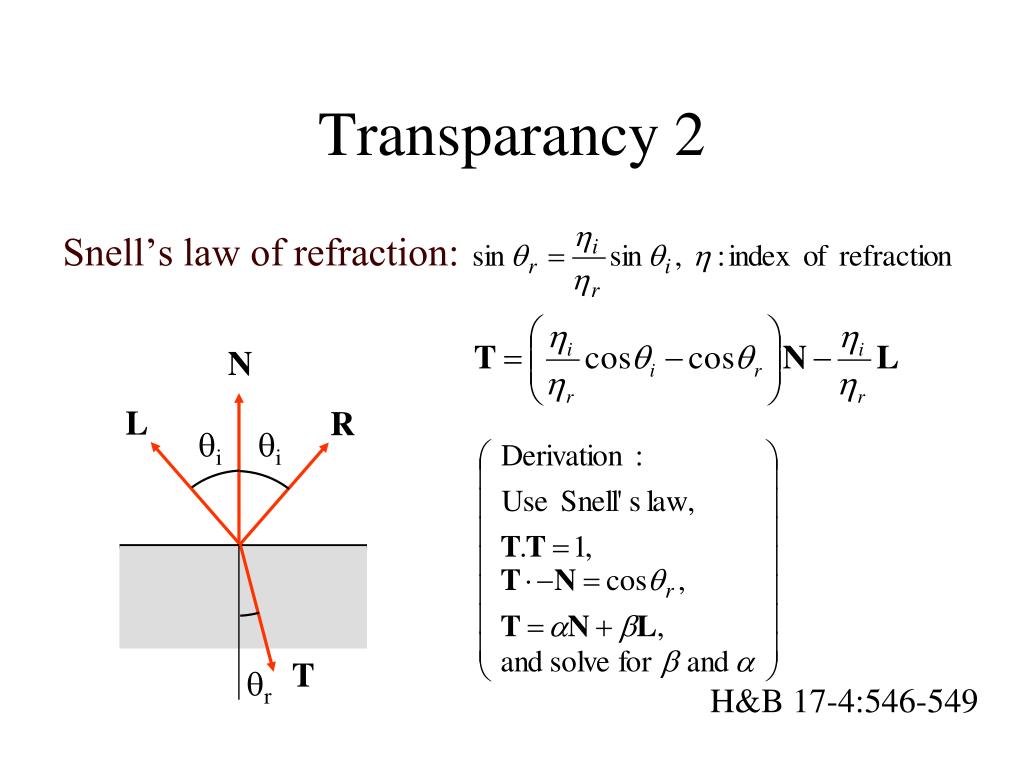

Transparancy 2

Transparancy 2

Snell’s law of refraction:

N

L

R

qi

qi

T

qr

H&B 17-4:546-549


Transparancy 3

Transparancy 3

Thin surface:

  • double refraction

  • shift of light ray

H&B 17-4:546-549

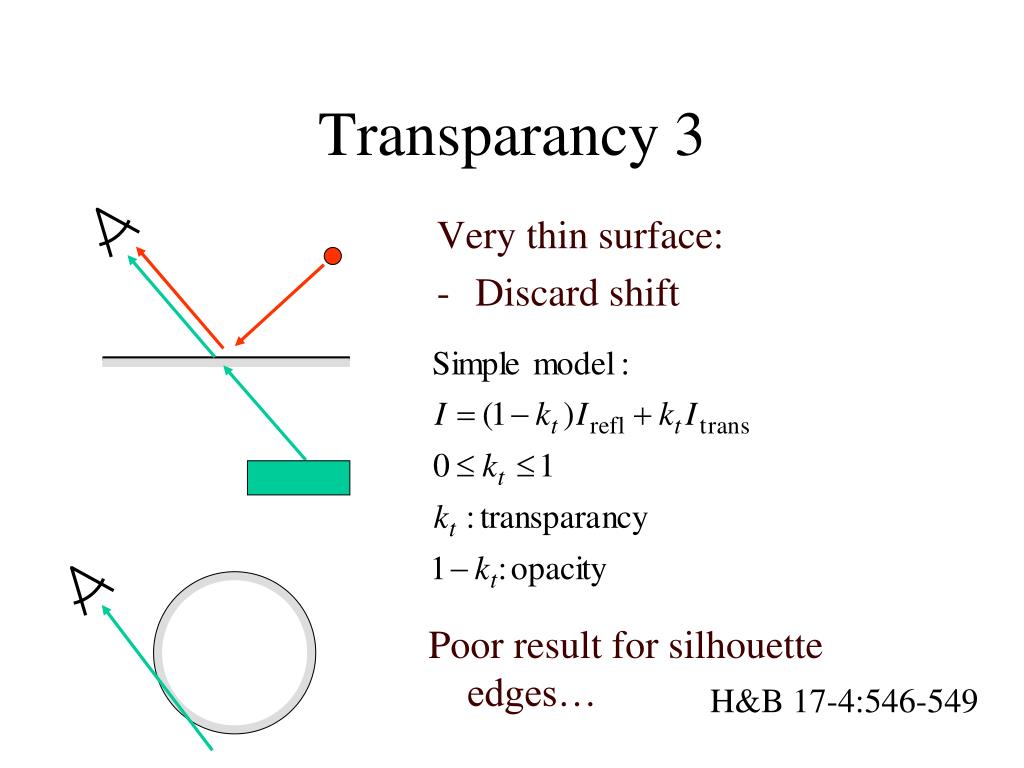

Transparancy 31

Poor result for silhouette edges…

Transparancy 3

Very thin surface:

  • Discard shift

H&B 17-4:546-549


Atmospheric effects 1

Atmospheric effects 1

Atmospheric effects:

  • dust, smoke, vapor

  • colors are dimmed

  • objects less well visible

H&B 10-5:549-550


Atmospheric effects 2

= 0.25 + [ 1  0.25 ]

Atmospheric effects 2

H&B 10-5:549-550


Rendering polygons 1

Rendering polygons 1

Basic illumination model:

Can be used per point, but that’s somewhat expensive

More efficient:

Illumination model gives color for some points;

Surface is filled in using interpolation of these colors.

H&B 17-10:559-564

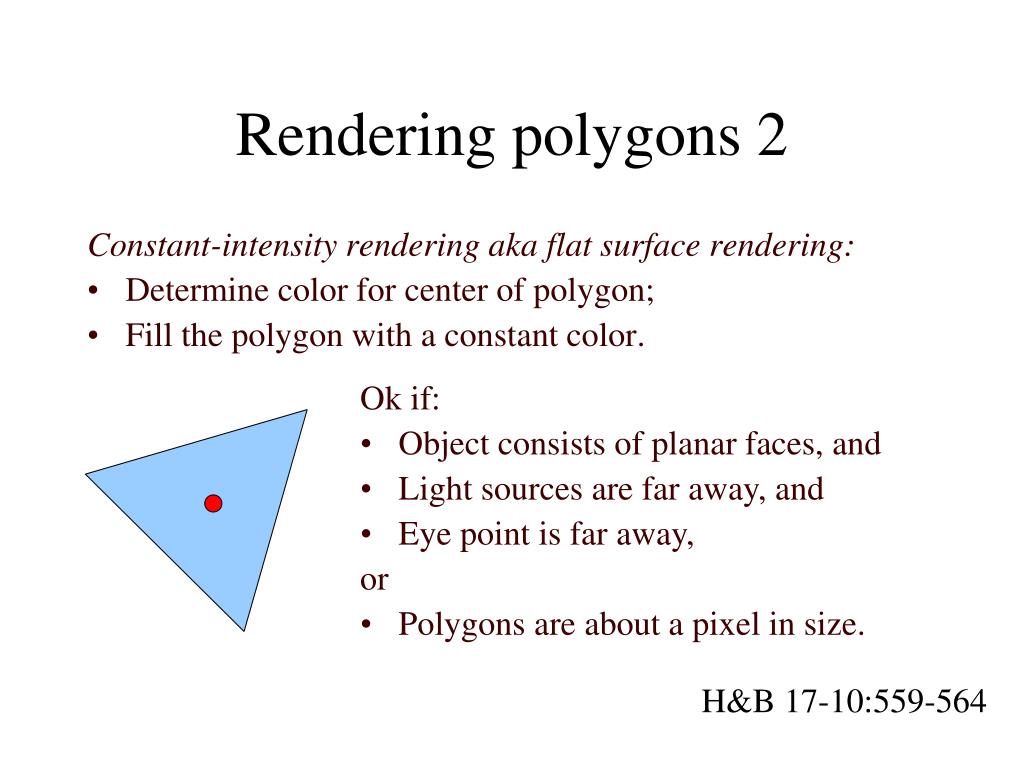

Rendering polygons 2

Rendering polygons 2

Constant-intensity rendering aka flat surface rendering:

  • Determine color for center of polygon;

  • Fill the polygon with a constant color.

  • Ok if:

  • Object consists of planar faces, and

  • Light sources are far away, and

  • Eye point is far away,

  • or

  • Polygons are about a pixel in size.

H&B 17-10:559-564

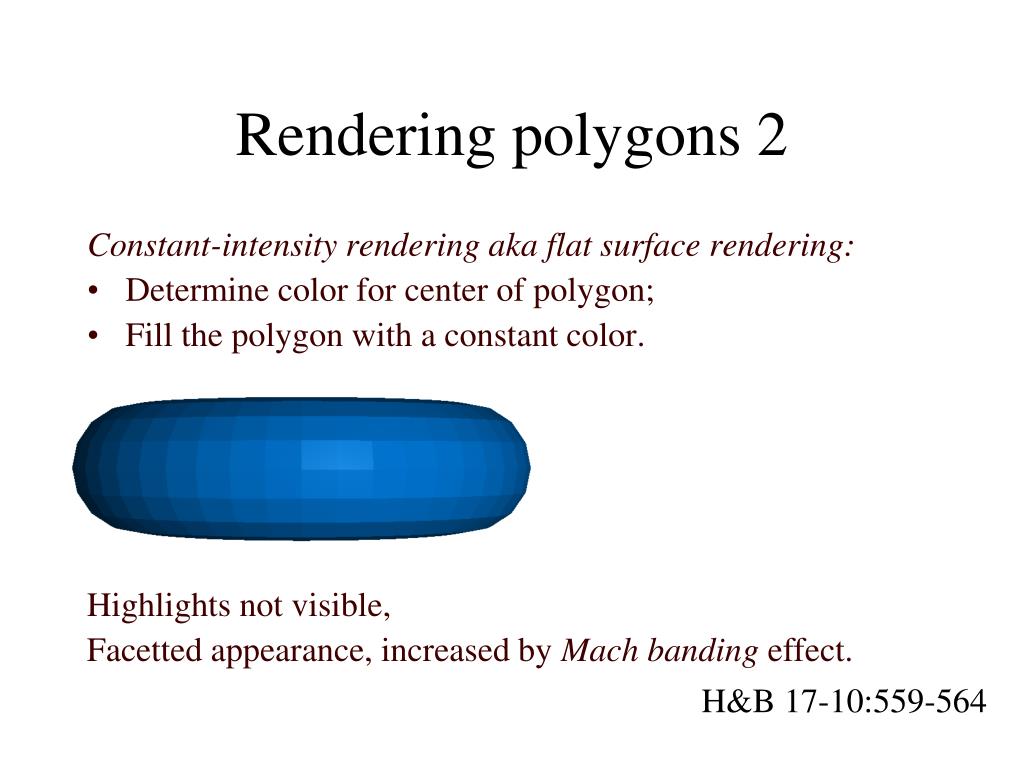

Rendering polygons 21

Rendering polygons 2

Constant-intensity rendering aka flat surface rendering:

  • Determine color for center of polygon;

  • Fill the polygon with a constant color.

Highlights not visible,

Facetted appearance, increased by Mach banding effect.

H&B 17-10:559-564


Mach banding

Mach banding

  • Human perception: edges are given emphasis, contrast is increased near edges.

Angel (2000)

H&B 17-10:559-564


Rendering polygons 22

N2

N3

N1

V

N4

Rendering polygons 2

Gouraud surface rendering:

  • Determine average normal on vertices;

  • Determine color for vertices;

  • Interpolate the colors per polygon (incrementally).

H&B 17-10:559-564


Rendering polygons 3

Rendering polygons 3

Gouraud surface rendering:

  • Much better result for curved surfaces

  • Errors near highlights

  • Linear interpolation still gives Mach banding

  • Silhouettes are still not smooth

Gouraud

Flat


Rendering polygons 4

Fast Phong surface rendering:

Like Phong surface rendering, but use 2nd order approximation of color over polygon:

Rendering polygons 4

Phong surface rendering:

  • Determine average normal per vertex;

  • Interpolate normals per polygon (incrementally);

  • Calculate color per pixel.

H&B 17-10:559-564


Rendering polygons 5

Rendering polygons 5

Phong surface rendering:

  • Even better result for curved surfaces

  • No errors at high lights

  • No Mach banding

  • Silhouettes remain coarse

  • More expensive than flat or Gouraud shading

H&B 17-10:559-564

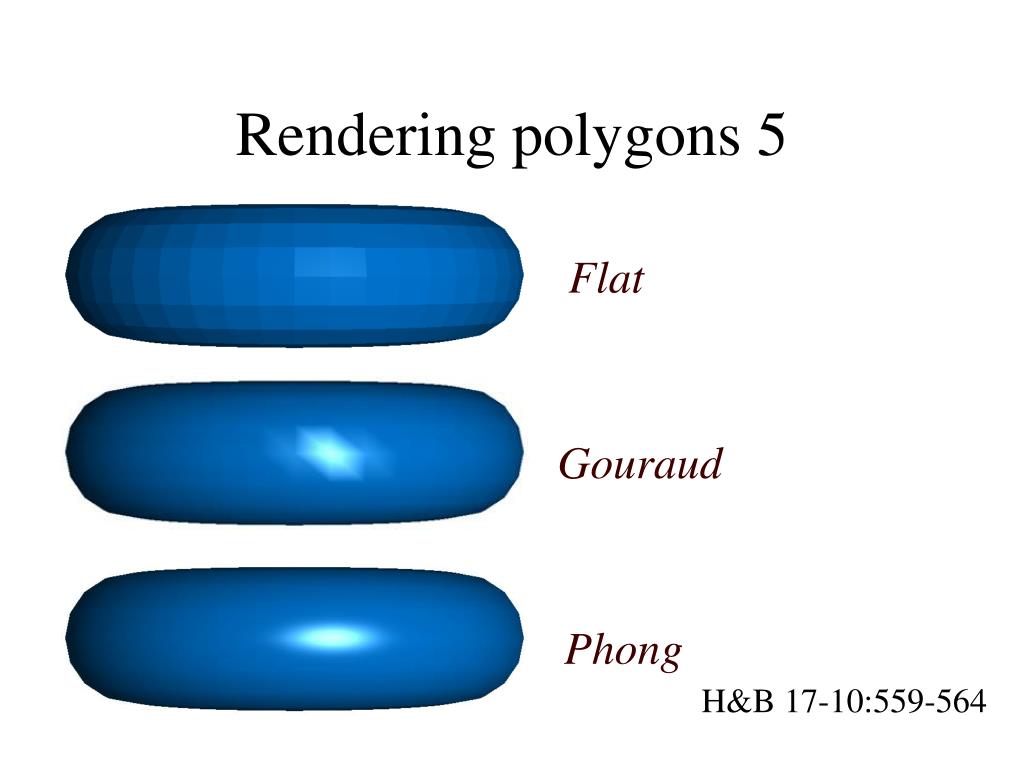

Rendering polygons 51

Rendering polygons 5

Flat

Gouraud

Phong

H&B 17-10:559-564

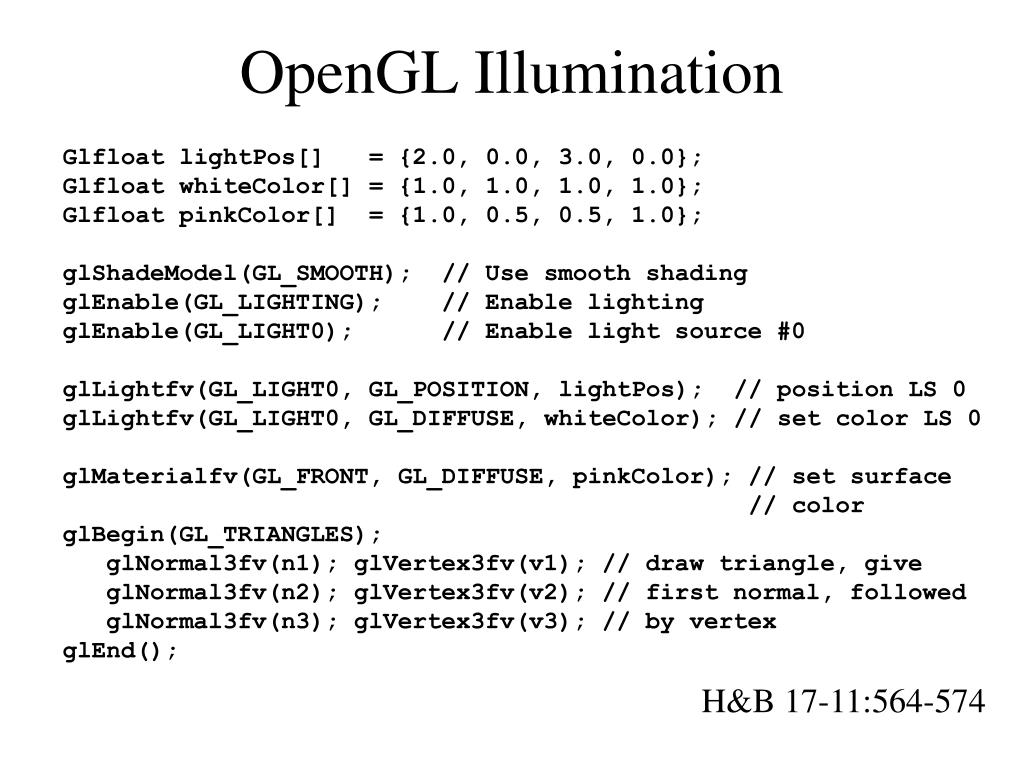

Opengl illumination

OpenGL Illumination

GlfloatlightPos[] = {2.0, 0.0, 3.0, 0.0};

GlfloatwhiteColor[] = {1.0, 1.0, 1.0, 1.0};

GlfloatpinkColor[] = {1.0, 0.5, 0.5, 1.0};

glShadeModel(GL_SMOOTH); // Use smooth shading

glEnable(GL_LIGHTING); // Enable lighting

glEnable(GL_LIGHT0); // Enable light source #0

glLightfv(GL_LIGHT0, GL_POSITION, lightPos); // position LS 0

glLightfv(GL_LIGHT0, GL_DIFFUSE, whiteColor); // set color LS 0

glMaterialfv(GL_FRONT, GL_DIFFUSE, pinkColor); // set surface

// color

glBegin(GL_TRIANGLES);

glNormal3fv(n1); glVertex3fv(v1); // draw triangle, give

glNormal3fv(n2); glVertex3fv(v2); // first normal, followed

glNormal3fv(n3); glVertex3fv(v3); // by vertex

glEnd();

H&B 17-11:564-574


Opengl light sources 1

OpenGL Light-sources 1

First, enable lighting in general:

glEnable(GL_LIGHTING);

OpenGL provides (at least) eight light-sources:

lightName = GL_LIGHT0, GL_LIGHT1, … , GL_LIGHT7

Enable the one(s) you need with:

glEnable(lightName);

Set properties with

glLight*(lightName, lightProperty, propertyValue);

* = i, f, iv, or fv (i: integer, f: float, v vector)

H&B 17-11:564-574

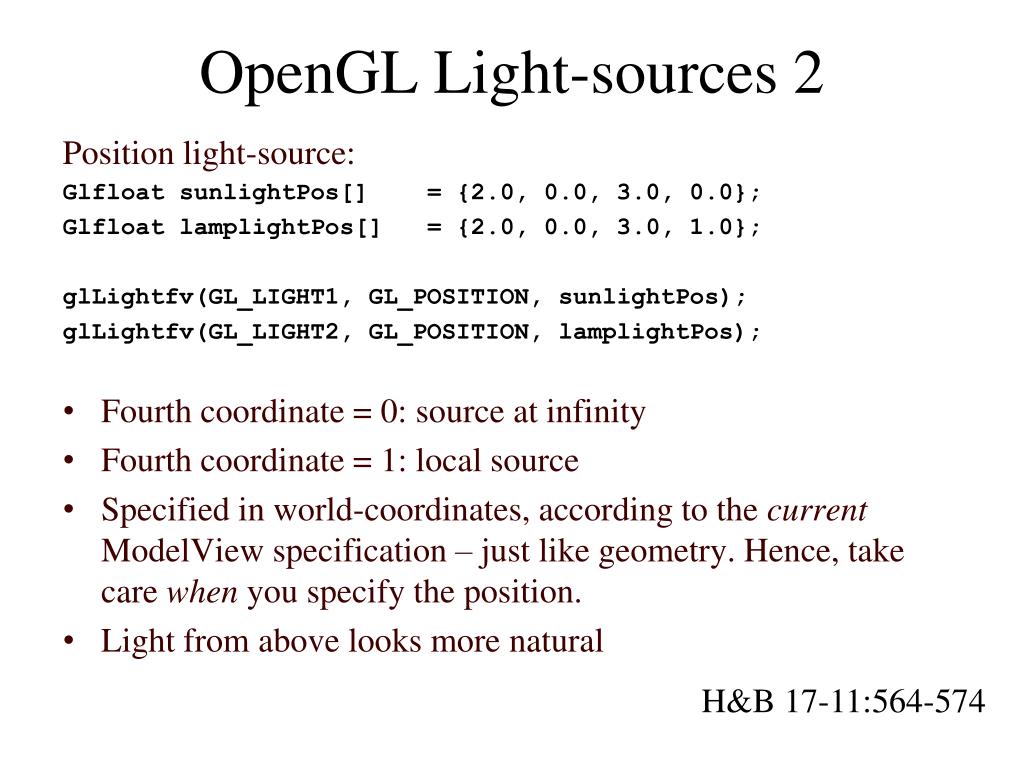

Opengl light sources 2

OpenGL Light-sources 2

  • Position light-source:

  • GlfloatsunlightPos[] = {2.0, 0.0, 3.0, 0.0};

  • GlfloatlamplightPos[] = {2.0, 0.0, 3.0, 1.0};

  • glLightfv(GL_LIGHT1, GL_POSITION, sunlightPos);

  • glLightfv(GL_LIGHT2, GL_POSITION, lamplightPos);

  • Fourth coordinate = 0: source at infinity

  • Fourth coordinate = 1: local source

  • Specified in world-coordinates, according to the currentModelView specification – just like geometry. Hence, take care when you specify the position.

  • Light from above looks more natural

H&B 17-11:564-574


Opengl light sources 3

OpenGL Light-sources 3

  • Color light-source:

  • GlfloatgreyColor[] = {0.3, 0.3, 0.3, 1.0};

  • GlfloatpinkColor[] = {1.0, 0.7, 0.7, 1.0};

  • GlfloatwhiteColor[] = {1.0, 1.0, 1.0, 1.0};

  • glLightfv(GL_LIGHT1, GL_AMBIENT, greyColor);

  • glLightfv(GL_LIGHT1, GL_DIFFUSE, pinkColor);

  • glLightfv(GL_LIGHT1, GL_SPECULAR, whiteColor);

  • OpenGL light-source has three color properties, dependent on reflection surface. Not realistic, can be used for special effects.

  • If you don’t have ambient light, things often appear black.

  • Colors are always 4-vectors here: Fourth coordinate is alpha. Most cases: set it to 1.0.

  • More settings: See book

H&B 17-11:564-574


Opengl global lighting

OpenGL Global Lighting

Global parameters:

glLightModel*(paramName, paramValue);

* = i, f, iv, or fv (i: integer, f: float, v vector)

Global ambient light:

GlfloatglobalAmbient[] = {0.3, 0.3, 0.3, 1.0};

glLightModelfv(GL_LIGHT_MODEL_AMBIENT, globalAmbient);

More precise specular reflection, take view position into account:

glLightModelI(GL_LIGHT_MODEL_LOCAL_VIEWER, GL_TRUE);

Two-sided lighting:

glLightModelI(GL_LIGHT_MODEL_TWO_SIDE, GL_TRUE);

H&B 17-11:564-574


Opengl surface properties 1

OpenGL Surface properties 1

Surface reflection parameters:

glMaterial*(surfFace, surfProperty, propertyValue);

* = i, f, iv, or fv (i: integer, f: float, v vector)

surfFace = GL_FRONT, GL_BACK, or GL_FRONT_AND_BACK

GlfloatemissionColor[] = {0.2, 0.3, 0.1, 1.0};

GlfloatdiffuseColor[] = {0.6, 0.3, 0.1, 1.0};

GlfloatspecularColor[] = {0.1, 0.1, 0.1, 1.0};

glMaterialfv(GL_FRONT, GL_EMISSION, emissionColor);

glMaterialfv(GL_FRONT, GL_DIFFUSE, diffuseColor);

glMaterialfv(GL_FRONT, GL_SPECULAR, specularColor);

glMaterialf(GL_FRONT, GL_SHININESS, 25.0f);

H&B 17-11:564-574


Opengl surface properties 2

OpenGL Surface properties 2

If colors are changed often (for instance, per vertex):

glEnable(GL_COLOR_MATERIAL);

glColorMaterial(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE);

glBegin(…);

for i = ...

for j = ...

glColor3f(red(i,j), green(i,j), blue(i,j));

glVertex3f(x(i,j), y(i,j), z(i,j));

glEnd(…);

H&B 17-11:564-574


Opengl surface properties 3

OpenGL Surface properties 3

  • Transparent surfaces:

  • First, draw all opaque surfaces;

  • Next, draw transparent surfaces, back to front*, using something like:

  • glColor4f(R, G, B, A); // A: alpha, for instance 0.40

  • glEnable(GL_BLEND);

  • glBlendFunc(GL_ONE_MINUS_SRC_ALPHA, GL_SRC_ALPHA);

  • ... Draw transparent surfaces.

  • glDisable(GL_BLEND);

  • * OpenGL cannot automatically handle transparency, because of the z-buffer algorithm used for hidden surface removal. More on this later.

H&B 17-11:564-574


Opengl surface properties 4

OpenGL Surface properties 4

Color Blending (see also H&B: 135-136):

Source: the new graphics object to be drawn;

Destination: the current image built up.

(RS, GS, BS, AS): Source color + alpha

(RD, GD, BD, AD): Destination color + alpha

(SR, SG, SB, SA): Source blending factors

(DR, DG, DB, DA): Destination blending factors

Components of Source and Destination are weighted and added:

(SRRS+DRRD, SGGS+ DGGD, SBBS+ DBBD, SAAS+ DAAD)

is stored in the current image.

H&B 17-11:564-574


Opengl surface properties 5

OpenGL Surface properties 5

(RS, GS, BS, AS): Source color + alpha

(RD, GD, BD, AD): Destination color + alpha

(SR, SG, SB, SA): Source blending factors

(DR, DG, DB, DA): Destination blending factors

glBlendFunc(sFactor, dFactor): specify the blending factors.

glBlendFunc(GL_ONE_MINUS_SRC_ALPHA, GL_SRC_ALPHA);

// Use alpha of source as transparency

glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA);

// Use alpha of source as opacity

More options available for special effects.

H&B 17-11:564-574


Opengl surface rendering 1

OpenGL Surface-Rendering 1

glShadeModel(m): specify the rendering method

m = GL_FLAT or m = GL_SMOOTH (Gouraud, default)

glNormal*(Nx, Ny, Nz) : specify the normal vector

Flat version:

glNormal3fv(nV);

glBegin(GL_TRIANGLES);

glVertex3fv(V1);

glVertex3fv(V2);

glVertex3fv(V3);

glEnd();

Smooth version:

glBegin(GL_TRIANGLES);

glNormal3fv(nV1);

glVertex3fv(V1);

glNormal3fv(nV2);

glVertex3fv(V2);

glNormal3fv(nV3);

glVertex3fv(V3);

glEnd();

H&B 17-11:564-574


Opengl surface rendering 2

OpenGL Surface-Rendering 2

glShadeModel(m): specify the rendering method

m = GL_FLAT or m = GL_SMOOTH (Gouraud, default)

glNormal*(Nx, Ny, Nz) : specify the normal vector

glEnable(GL_NORMALIZE): Let OpenGL normalize the normals for

you. And, also take care of effects of

scaling, shearing, etc.

H&B 17-11:564-574


2iv60 computer graphics set 8 illumination models and surface rendering methods

Next

  • Now that we know how to render curved surfaces, let’s study how to define these…


  • Login
