Presentation Transcript


C class members

C++ Class Members

  • Class Definition

    • class Name

    • {

    • public:

      • constructor(s)

      • destructor

      • function members

      • data members

    • protected:

      • function members

      • data members

    • private:

      • function members

      • data members

    • };

1 February 2006


C class members1

C++ Class Members

  • Class Definition - Data Members

    • Data Members

      • It is important to note …..

        • Each class instance gets distinct copies of all data members

1 February 2006


C class members2

C++ Class Members

  • Class Definition - Data Members

  • class MyClass

  • {

  • public:

    • MyClass() { myValue = 10; }

    • int getMyValue () { return myValue;}

    • int setMyValue (int aValue) { myValue = aValue;}

  • private:

    • int myValue;

  • };

  • int main(void)

  • {

    • MyClass inst0, inst1;

    • inst1.setMyValue(20);

    • cout << inst0.getMyValue() << endl

    • << inst1.getMyValue() << endl;

    • return 0;

  • }

1 February 2006


C class members3

C++ Class Members

  • Class Definition - Function Members

    • Function Members

      • Unlike data members

      • Only one instance of each function member exists for a class

      • Unless the function is declared inline

1 February 2006


C class members4

C++ Class Members

  • Class Definition - Function Members

    • Function Members

      • If only a single instance…..

        • How are data members which function manipulates

        • bound to the function instance?????

      • What is not shown

        • The member function has a hidden argument

        • The arg is a pointer to the object that was sent the message

        • Pointer is identified by the keyword this

1 February 2006


C class members5

C++ Class Members

  • Class Definition - Function Members

    • Function Members

      • The this pointer

        • Has type ClassType

        • Contains the address of the class instance through which the member function was invoked

        • Starting address is same as the address of the first variable in the class structure

1 February 2006


C class members6

C++ Class Members

  • Class Definition - Function Members

    • Function Members

      • Every nonstatic function member has a pointer implicitly declared

        • ClassName * const this;

      • this is initialized to point to the object for which the member

      • function was invoked

      • Because this is declared const

        • It cannot be changed

        • Object pointed to can

1 February 2006


C class members7

C++ Class Members

  • Class Definition - Function Members

    • Function Members

      • Since this is a pointer to the beginning of the class structure

        • One can select elements using pointer notation

          • this -> myElement

      • To refer to the entire instance…..

        • *this

        • return *this

          • Will produce a copy of the instance as the return value

1 February 2006


C class members8

C++ Class Members

  • Class Definition - Function Members

    • class Link

    • {

    • public:

      • void append (Link* aLink);

      • void setPrev (Link* aLink);

    • private:

      • Link* next;

      • Link* prev;

    • };

    • void Link :: append(Link* aLink)

    • {

      • next = aLink;

      • aLink -> setPrev(this);

      • return;

    • }

Next

Li

Li+1

Previous

this

1 February 2006


C class members9

C++ Class Members

  • Managing Storage - Object Creation

    • When a C++ object is created 2 events occur……..

      • Storage is allocated for the object

      • The constructor is called to initialize the storage

    • Storage allocation occurs in several ways and at different times

1 February 2006


C class members10

C++ Class Members

  • Managing Storage - Object Creation

    • Static Storage

      • Allocated when the program begins

      • Constant for the life of the program

    • Stack

      • Storage allocated on the stack when an execution point is

      • reached - Opening curly brace.

      • Released at the complementary execution point - closing curly

      • brace.

    • Heap - Free Store

      • Storage is dynamically allocated from the heap at runtime

1 February 2006


C class members11

C++ Class Members

  • Managing Storage - Object Creation

    • Declaration

      • Introduces a name

      • Tells the compiler what the name means

      • Usually go into header files

    • Definition

      • Allocates storage for the name

1 February 2006


C class members12

C++ Class Members

  • Managing Storage - Object Creation

    • Variable

      • The compiler determines the variable size and generates space

      • If there is an initializing value, the value entered into that storage

      • Compile time storage usually allocated at the opening brace

      • Constructor not called until sequence point where object defined

      • Auto storage will be allocated on the stack

    • Function

      • Compiler generates code and allocates storage to hold the code

      • Storage for function has an address that can be produced using

        • Function name with no arg list

        • Address of operator

      • Usually go into implementation files

1 February 2006


C class members13

C++ Class Members

  • Managing Storage - Linkage

    • Linkage

      • Describes storage to represent an identifier as seen by linker

        • Internal

          • Storage created for identifier for file being compiled

          • Name may be used in other files without conflict

        • External

          • Single piece of storage for all files being compiled

          • Accessed from other files by keyword extern

          • Variables defined outside functions

          • Inline function definitions default to external linkage

        • Automatic (local) Variables

          • Exist on the stack while function being called

          • Auto variables have no linkage

1 February 2006


C class members14

C++ Class Members

  • Managing Storage - Inline Functions

    • Inline Functions

      • C++ permits specification of inline functions

      • Identified by keyword inline … the definition of function follows

      • syntax

      • inline type functionName (argsi) { body }

      • When inline definition encountered

        • No code generated

        • Code remembered and substituted for each function call

1 February 2006


C class members15

char a

static int b

class M

m2

char a

m0

char a

int b

m3

char a

m1

char a

C++ Class Members

  • Static Data Members

    • A class is a type not a data object

    • When an instance of a class is defined…..

      • The instance gets a copy of all data members

    • If data member declared static

      • Single copy

        • Shared by all instances of the class

      • Smalltalk

        • Pool variables

1 February 2006


C class members16

C++ Class Members

  • Static Data Members

    • syntax

      • Declaration

        • static type varName;

      • Definition

        • type ClassName :: varName < = value >

      • Static member exists even if no class instances exist

        • Remain in scope of class

        • Can only be accessed from outside if declared public

1 February 2006


C class members17

C++ Class Members

  • Static Data Members

    • Storage for a static variable

      • Must be explicitly reserved and initialized

    • Static can be declared within a class

      • Definition and initialization must occur outside Class

      • Can be only single definition

    • Static (nonclass) variables

      • Initialized to 0 by default

    • Static class variables

      • Cannot be initialized by the constructor

1 February 2006


C class members18

C++ Class Members

  • Initializing Static Data Members...

  • class SimpleClass

  • {

  • public:

    • SimpleClass () {}

    • SimpleClass (int aValue){myValue = aValue;}

    • // static char myChar = 'c'; This is illegal

    • static char myChar;

  • private:

    • static int myValue;

  • };

  • // Define and initialize the static variables

  • int SimpleClass::myValue = 10;

  • char SimpleClass::myChar = 'a';

1 February 2006


C class members19

C++ Class Members

  • Static Data Members

    • Static Data Member

      • Can appear as a default arg to a member function

    • Non-static Data Member

      • Cannot appear as a default arg to a member function

    • Within a class body…..

      • int a;

      • static int b;

      • int f1 ( int myValue0 = a ); // illegal

      • int f2 ( int myValue1 = b ); // ok

1 February 2006


C class members20

C++ Class Members

  • Static Data Members

    • A static data member can be an instance of the class of which it is a

    • member…..

    • A non-static can only point to an instance of it’s class.

      • Within a class body

        • class F1

        • {

        • public:

          • F1 *a;// ok

          • static F1 b;// ok

          • F1 c;// illegal

        • };

1 February 2006


C class members21

C++ Class Members

  • Const Data Members

    • Class data members can be specified as const

    • Consequence

      • Storage always allocated and must be initialized at point of

      • definition

        • Initialization must occur in the constructor

        • Implemented via the initialization list

      • Storage not allocated until instance created…...

      • At that time, the const must be

        • Created

        • Initialized

    • Const variable persists for the lifetime of the instance

1 February 2006


C class members22

C++ Class Members

  • Static Function Members

    • Function members can be declared static

    • A static function has no this pointer

    • static function can access

      • Directly

        • static members

        • enums and typedefs

      • Indirectly

        • Regular members via . or -> through an explicit object

1 February 2006


C class members23

C++ Class Members

  • Static Function Members

  • class SimpleClass

  • {

  • public:

    • //static int getMyNumber() {return myNumber;} requires an object

    • static int getMyNumber() { return myValue;}

    • static int getMyStuff(SimpleClass *myClass) {return myClass->myNumber;}

    • static int getMyVal() {return myValue;}

    • static char myChar;

    • char myLetter;

  • private:

    • static int myValue;

    • int myNumber;

  • };

  • int SimpleClass::myValue=10;

  • char SimpleClass::myChar = 'a';

1 February 2006


C class members24

C++ Class Members

  • Static Function Members

  • int main()

  • {

    • SimpleClass myClass, yourClass, *myClassPtr = &myClass ;

    • cout << SimpleClass::getMyStuff(myClassPtr) << endl;

    • cout << myClass.myChar << " " << SimpleClass::myChar << endl;

    • return 0;

  • }

1 February 2006


C class members25

C++ Class Members

  • Const Function Members

    • The keyword const can be placed after argument list of member

    • function

      • syntax

      • returnType functionName ( argsi ) const { function body }

      • Tells compiler that function

        • Can only read data members

        • Cannot write them

      • Member functions declared const

        • Can be called for non-const objects

      • Non-const member functions

        • Cannot be called for const objects.

1 February 2006


C class members26

C++ Class Members

  • Overloading Function Members

    • Functions can use same name in the same scope

      • If signature is unique

        • Name plus signature

        • Uniquely identify function

    • Same holds true for member functions

      Same rules applied to disambiguate

      Must provide Implementation for each overloaded function

1 February 2006


C class members27

C++ Class Members

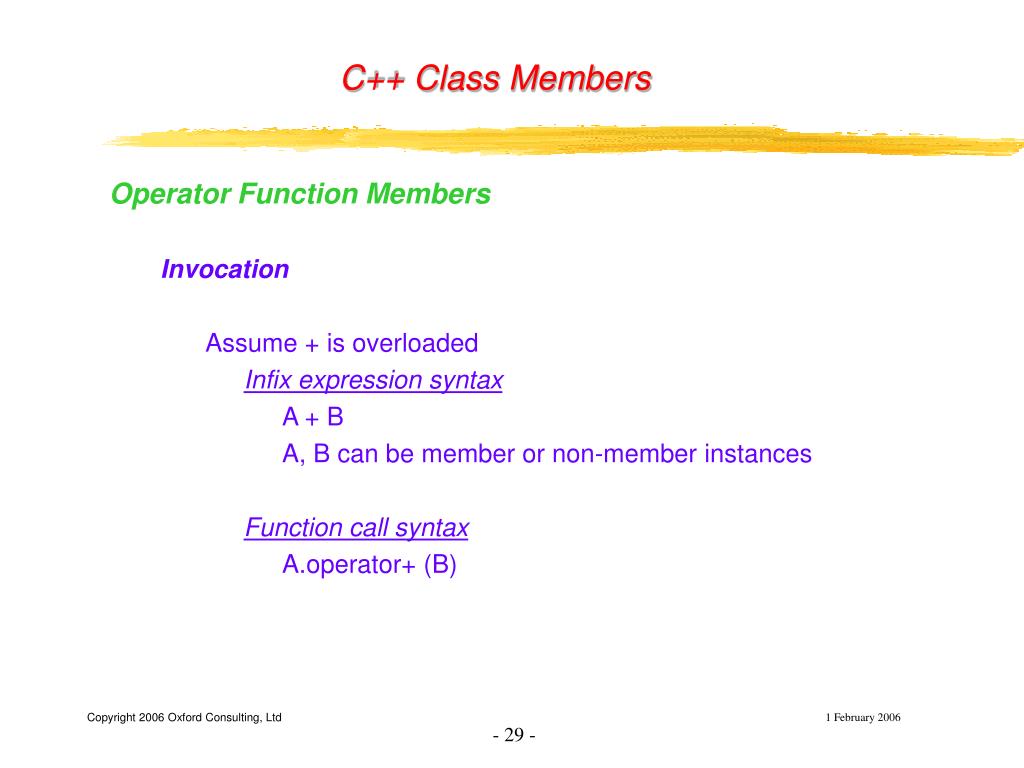

  • Operator Function Members

    • C++ defined operators can be overloaded to work on Class type

    • operands

    • Must take at least one class type argument

      • syntax

        • operator X (args) { body }

        • X is the operator symbol being overloaded

        • args - as appropriate for implementation

        • body - implements the function

1 February 2006


C class members28

C++ Class Members

  • Operator Function Members

    • Invocation

      • Assume + is overloaded

        • Infix expression syntax

          • A + B

          • A, B can be member or non-member instances

        • Function call syntax

          • A.operator+ (B)

1 February 2006


C class members29

C++ Class Members

  • Operator Function Members

    • Rules

      • Because operator functions are invoked using the same syntax

      • Operator functions...

        • 1.Must have the same number of arguments as language defined versions

        • 2.Must have the same precedence as the builtin operators…This cannot be overridden

        • 3.Cannot have default parameters

        • 4.Cannot override the predefined meaning

1 February 2006


C class members30

C++ Class Members

  • Operator Function Members

    • Limitations

      • Because of the operator function syntax

      • 1. Certain user defined operators cannot behave

      • analogously to built in versions

        • Prefix version

        • operator++ () {}

        • Postfix version

        • operator++ (int) {}

      • 2. Some operators cannot be overloaded. , ?: :: . *

      • 3. Some operators must be members only =, [ ] , ( ), ->

1 February 2006


C class members31

C++ Class Members

  • Overloading Operators

  • class Complex

  • {

  • public:

    • int im, re;

    • Complex(int r=0, int i=0):re(r), im(i) { }

    • Complex operator+ (Complex a1) {return Complex(re+a1.re, im+a1.im);}

    • Complex& operator++ ()

    • {

      • re += 1, im += 1;

      • cout << “prefix" << endl;

      • return Complex(re -1, im -1);

    • }

    • Complex& operator++ (int)

    • {

      • re+=1, im+=1;

      • cout << "postfix" << endl;

      • return *this;

    • }

  • };

1 February 2006


C class members32

C++ Class Members

  • Operator Function Members

    • Member

      • Left hand operand must be an instance of class overloading

      • the operator

        • Unary

          • x.operator@()

          • x is class instance

        • Binary

          • x.operator(y)

          • x operator@ y

          • x is class instance

1 February 2006


C class members33

C++ Class Members

  • Operator Function Members

    • Non-Member

      • If operator requires left hand operand of a different type…..

        • Must use non-member syntax

        • Must be declared friend if the operator requires access to

        • protected or private members

        • Unary

          • operator@(x)

        • Binary

        • operator@(x,y)

          • x operator@ y

1 February 2006


C class members34

C++ Class Members

  • Operators in Action

    • The Copy Constructor and the Assignment Operator

      • There are many occasions when a copy of an object is needed

        • Object passed by value

          • x.func(y)

          • A copy of y is made and passed

        • Object returned by value

        • Object initialized by another object

          • ClassName x1 = x2

          • A copy of x2 is made

        • Object assigned to another object

          • x1 = x2

          • x2 is copied to x1 and

          • x1 is destroyed

1 February 2006


C class members35

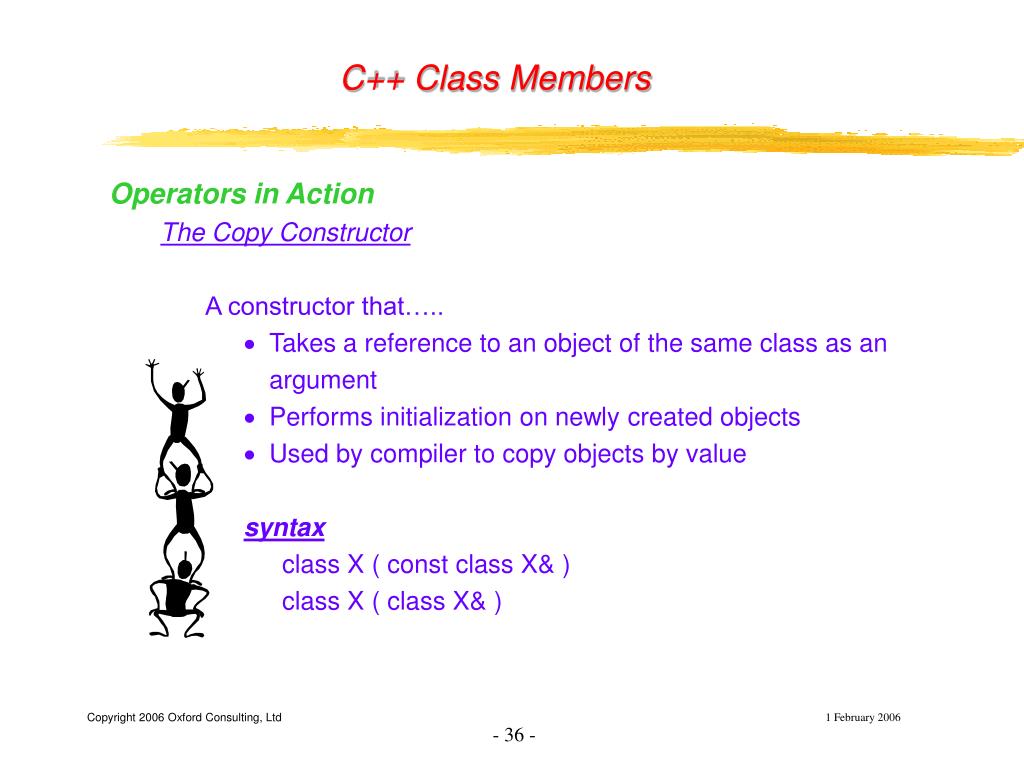

C++ Class Members

  • Operators in Action

    • The Copy Constructor

      • A constructor that…..

        • Takes a reference to an object of the same class as an

        • argument

        • Performs initialization on newly created objects

        • Used by compiler to copy objects by value

        • syntax

          • class X ( const class X& )

          • class X ( class X& )

1 February 2006


C class members36

C++ Class Members

  • Operators in Action

    • The Copy Constructor

      • If a copy constructor is not defined

        • Shallow bitwise copy performed - memcpy

      • If a copied object uses new to allocate memory when created

        • One must write a copy constructor

      • Copy constructor need only be written

        • If class object is passed by value

      • To prevent pass by value

        • Define a private copy constructor

1 February 2006


C class members37

C++ Class Members

  • Operators in Action

    • The Assignment Operator - operator=()

      • Called when one initialized object is to be assigned to a second.

      • The operator must serve as a destructor to the assignee object.

      • Can have a return value…

        • The most common is *this

      • Is not called for the declarations such as

        • ClassName object1 = object2

1 February 2006


C class members38

C++ Class Members

  • Class Members - Friends

    • A class Definition….

      • Provides 3 levels of access to data and function members

        • public

        • protected

        • private

Closed

Open

1 February 2006


C class members39

C++ Class Members

  • Class Members - Friends

    • C++ provides means for more liberal access to non-public members

    • under specified set of conditions…..

      • Nonmember designated as a friend of the class

        • Class friend is designated by

          Keyword friend

          Followed by class name

1 February 2006


C class members40

C++ Class Members

  • Class Members - Friends

    • Once an object is designated as a friend….

      • It has access to non-public members as if they were public

        • If B is designated as friend of A

          • B can access A’s non-public members

          • A cannot access B’s

1 February 2006


C class members41

C++ Class Members

  • Class Members - Friends

    • Friend may be:

      • 1. Class

        • friend class X;

      • 2. A particular function

        • friend int sub (int y);

      • 3. A particular class member

        • friend int Mult::get();

1 February 2006


C class members42

C++ Class Members

  • Class Members - Friends

    • A friend does not have a this pointer unless it is a member function in

    • its own right

      • Question:

        • If it is a member function which this pointer does it have

          • Class A a;

          • Class B b;

          • Let B be declared as a friend of A

          • The this pointer of a function bFunct() contains

          • the address of the class instance b

1 February 2006


C class members43

C++ Class Members

  • Class Members - Friends

    • Caveats and Problems,,,

      • Friends can have access to everything … this defeats data

      • hiding.

      • Introduces extra coupling between classes.

      • Permits change of internal state from the outside.

      • Should use member functions not friends to change state.

1 February 2006


  • Login
