Basic fluid mechanics

Lecture no 1 to 10

Basic Fluid Mechanics

Summary of introductory concepts

By Engr Sarfaraz Khan Turk


Introduction

Introduction

What is Fluid Mechanics?

Fluid mechanics deals with the study of all fluids under static and dynamic situations. Fluid mechanics is a branch of continuous mechanics which deals with a relationship between forces, motions, and statically conditions in a continuous material. This study area deals with many and diversified problems such as surface tension, fluid statics, flow in enclose bodies, or flow round bodies (solid or otherwise), flow stability, etc.


Basic fluid mechanics

History

Faces of Fluid Mechanics

Archimedes

(C. 287-212 BC)

Newton

(1642-1727)

Leibniz

(1646-1716)

Bernoulli

(1667-1748)

Euler

(1707-1783)

Navier

(1785-1836)

Stokes

(1819-1903)

Prandtl

(1875-1953)

Reynolds

(1842-1912)

Taylor

(1886-1975)


Introduction contd

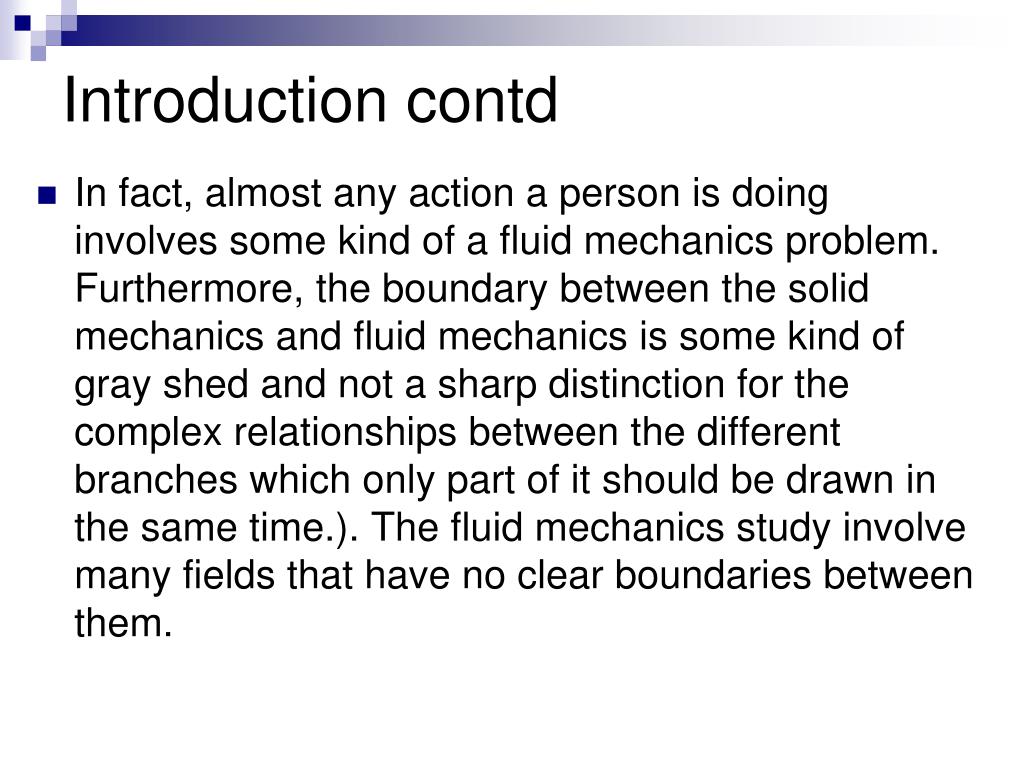

Introduction contd

In fact, almost any action a person is doing involves some kind of a fluid mechanics problem. Furthermore, the boundary between the solid mechanics and fluid mechanics is some kind of gray shed and not a sharp distinction for the complex relationships between the different branches which only part of it should be drawn in the same time.). The fluid mechanics study involve many fields that have no clear boundaries between them.


Introduction contd1

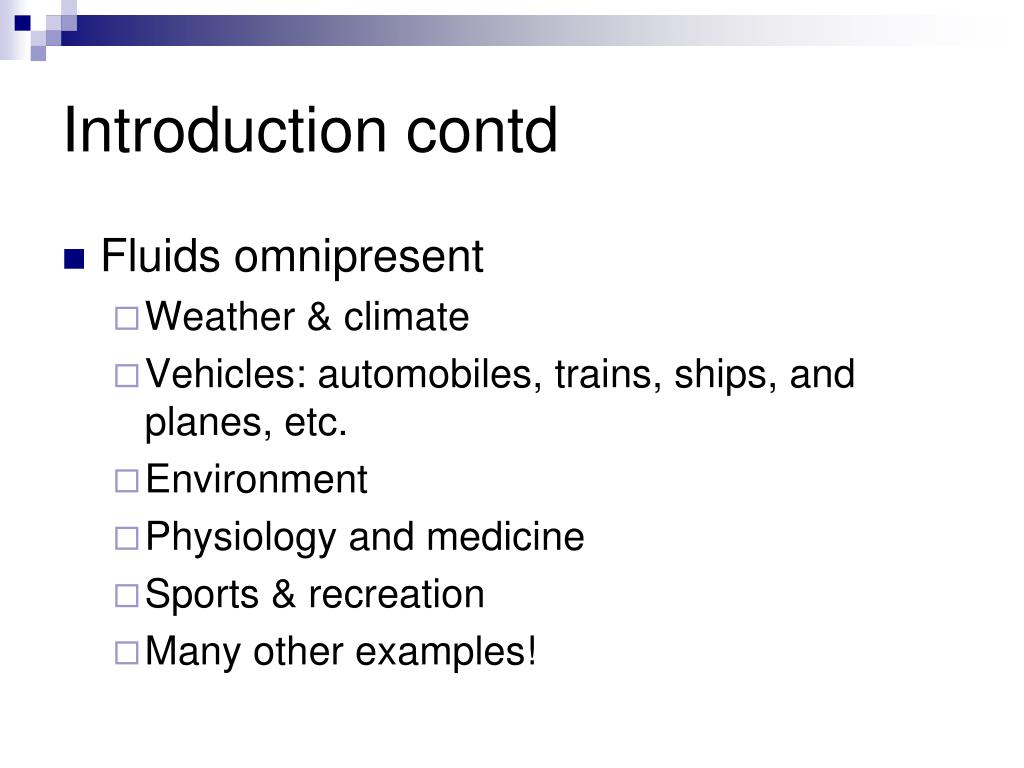

Introduction contd

  • Fluids omnipresent

    • Weather & climate

    • Vehicles: automobiles, trains, ships, and planes, etc.

    • Environment

    • Physiology and medicine

    • Sports & recreation

    • Many other examples!


Introduction1

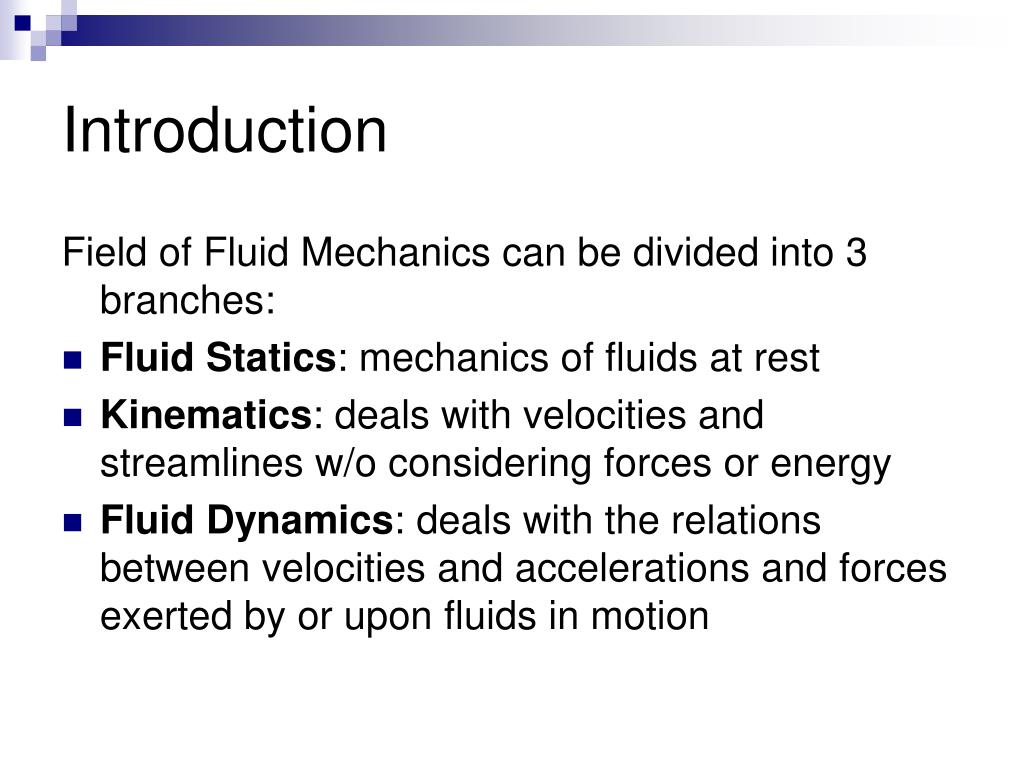

Introduction

Field of Fluid Mechanics can be divided into 3 branches:

  • Fluid Statics: mechanics of fluids at rest

  • Kinematics: deals with velocities and streamlines w/o considering forces or energy

  • Fluid Dynamics: deals with the relations between velocities and accelerations and forces exerted by or upon fluids in motion


Streamlines

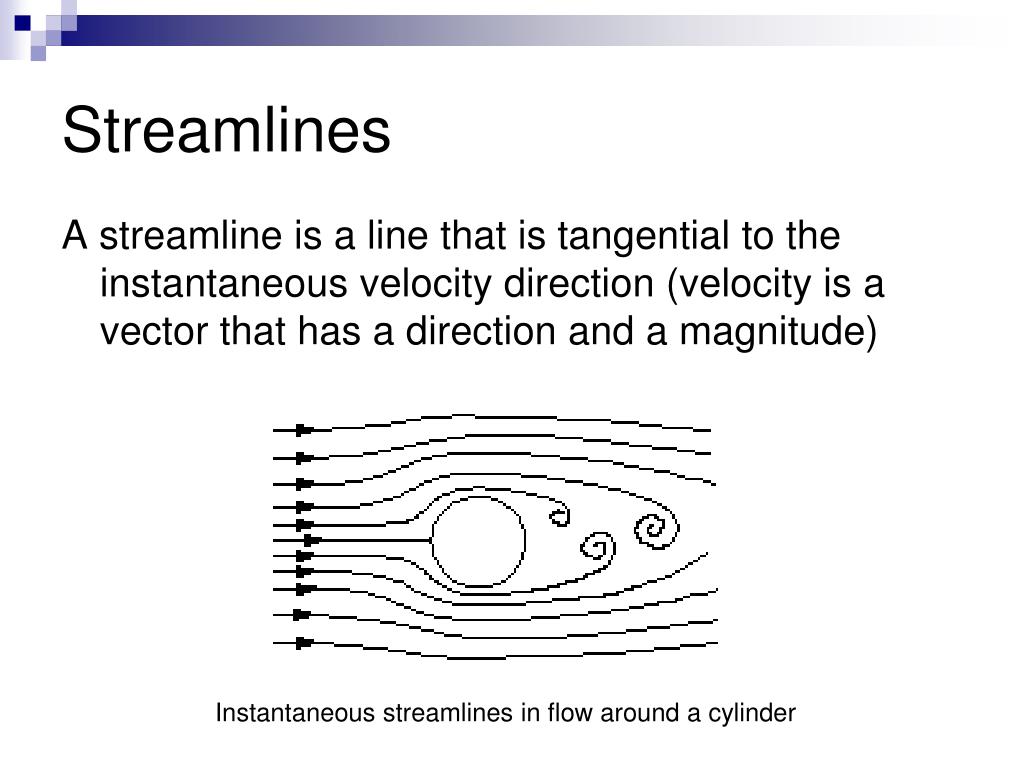

Streamlines

A streamline is a line that is tangential to the instantaneous velocity direction (velocity is a vector that has a direction and a magnitude)

Instantaneous streamlines in flow around a cylinder


Intro con t

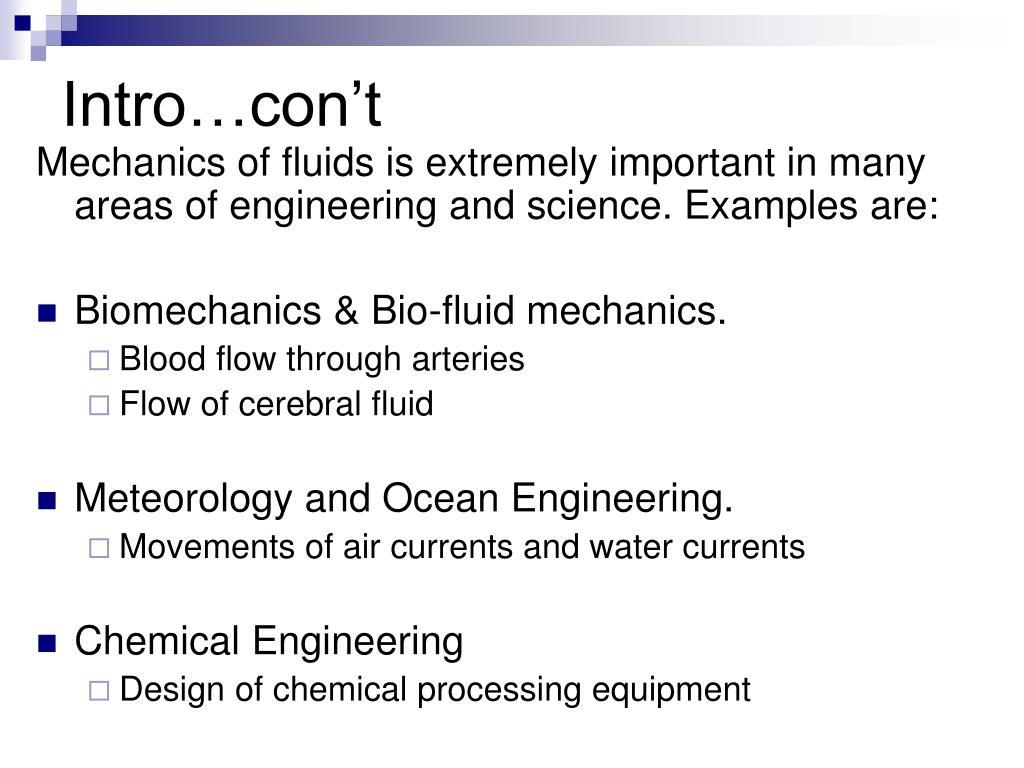

Intro…con’t

Mechanics of fluids is extremely important in many areas of engineering and science. Examples are:

  • Biomechanics & Bio-fluid mechanics.

    • Blood flow through arteries

    • Flow of cerebral fluid

  • Meteorology and Ocean Engineering.

    • Movements of air currents and water currents

  • Chemical Engineering

    • Design of chemical processing equipment


Intro con t1

Intro…con’t

  • Mechanical Engineering

    • Design of pumps, turbines, air-conditioning equipment, pollution-control equipment, etc.

  • Civil Engineering

    • Transport of river sediments

    • Pollution of air and water

    • Design of piping systems

    • Flood control systems


Intro con t2

Intro…con’t

  • Fluids essential to life

    • Human body 65% water

    • Earth’s surface is 2/3 water

    • Atmosphere extends 17km above the earth’s surface

  • History shaped by fluid mechanics

    • Geomorphology

    • Human migration and civilization

    • Modern scientific and mathematical theories and methods

    • Warfare

  • Affects every part of our lives


Dimensions and units

Dimensions and Units

  • Before going into details of fluid mechanics, we stress importance of units

  • In U.S, two primary sets of units are used:

    • 1. SI (Systeme International) units

    • 2. English units

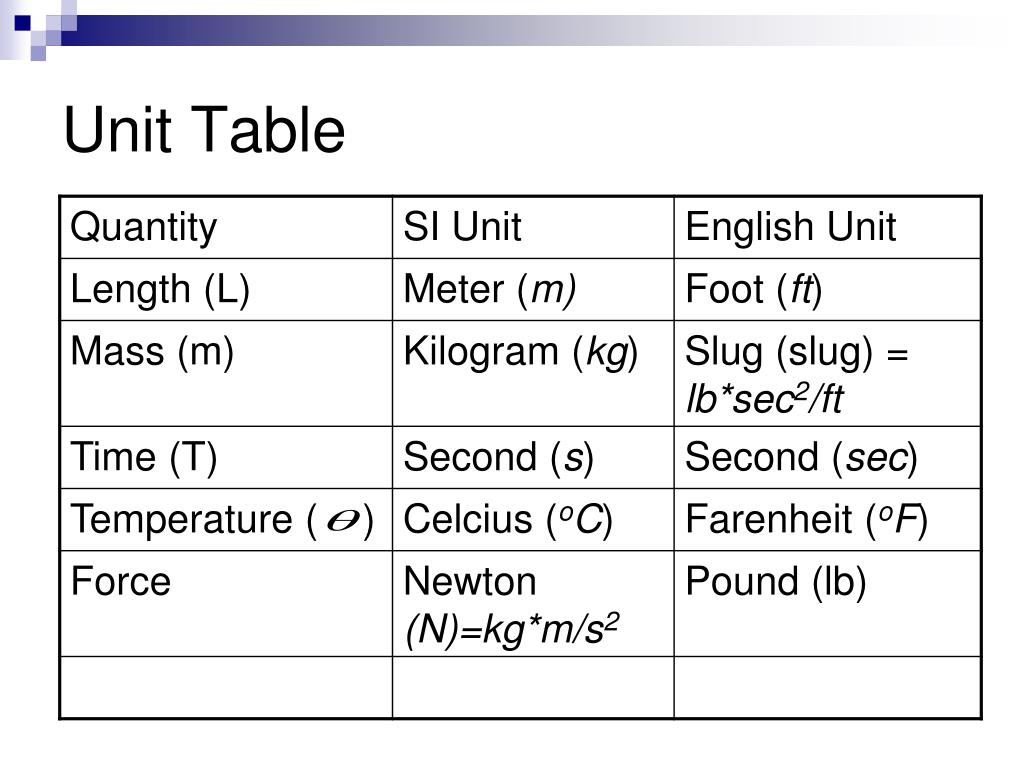

Unit table

Unit Table

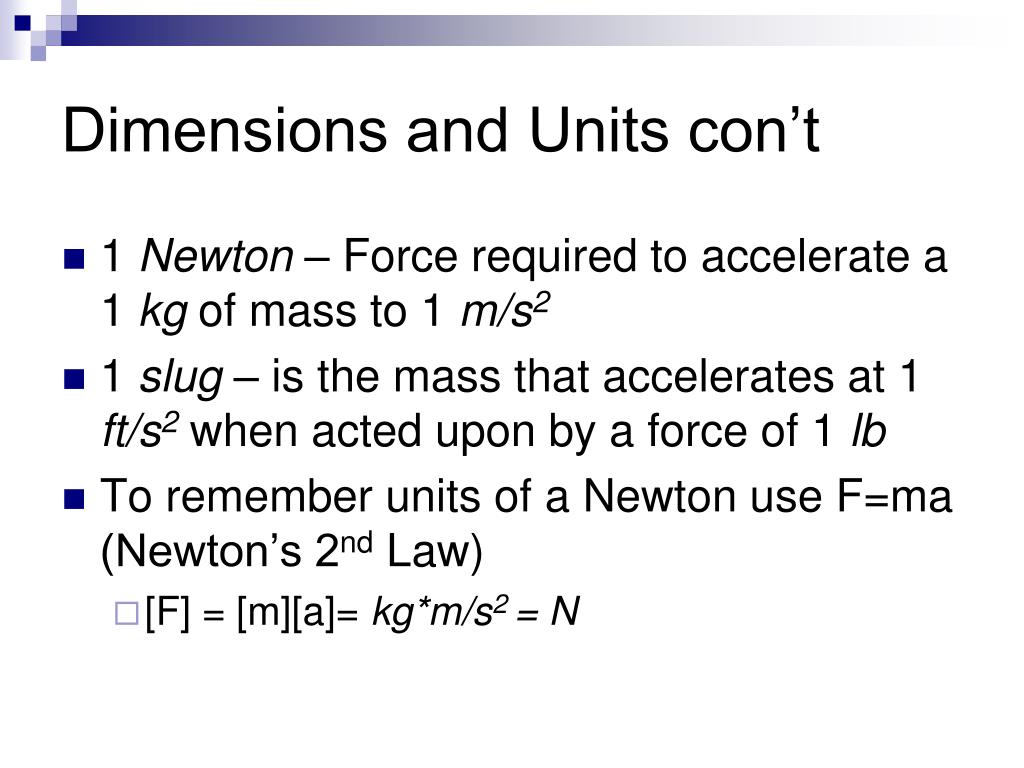

Dimensions and units con t

Dimensions and Units con’t

  • 1 Newton – Force required to accelerate a 1 kg of mass to 1 m/s2

  • 1 slug – is the mass that accelerates at 1 ft/s2 when acted upon by a force of 1 lb

  • To remember units of a Newton use F=ma (Newton’s 2nd Law)

    • [F] = [m][a]= kg*m/s2 = N

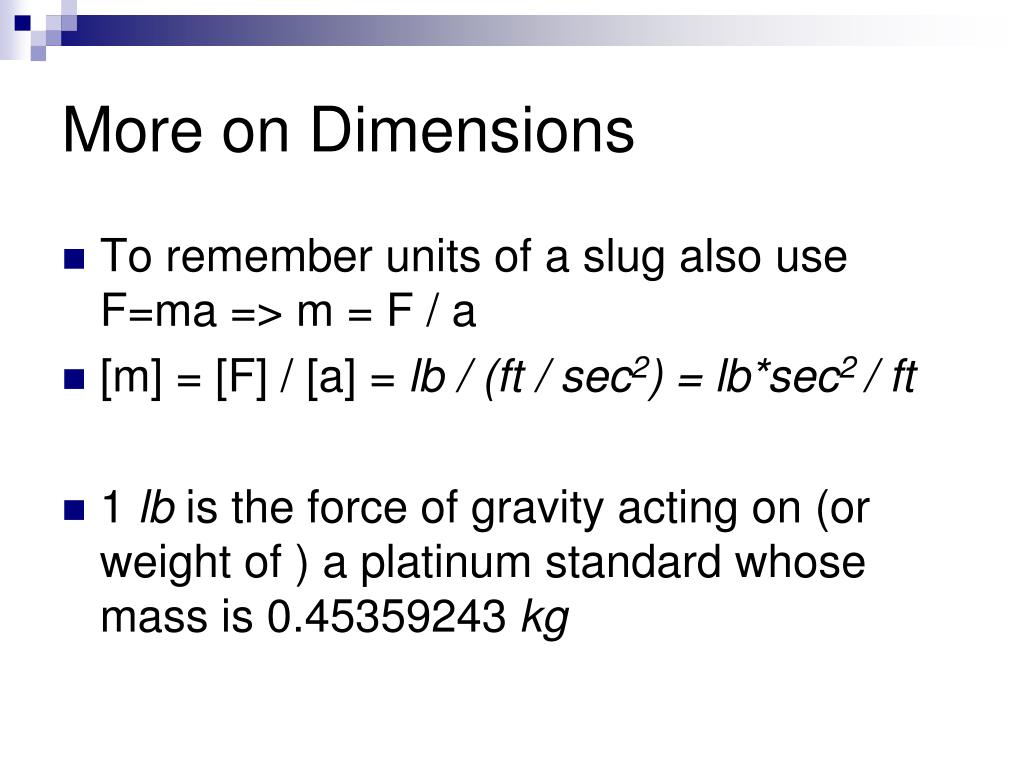

More on dimensions

More on Dimensions

  • To remember units of a slug also use F=ma => m = F / a

  • [m] = [F] / [a] = lb / (ft / sec2) = lb*sec2 / ft

  • 1 lb is the force of gravity acting on (or weight of ) a platinum standard whose mass is 0.45359243 kg


Weight and newton s law of gravitation

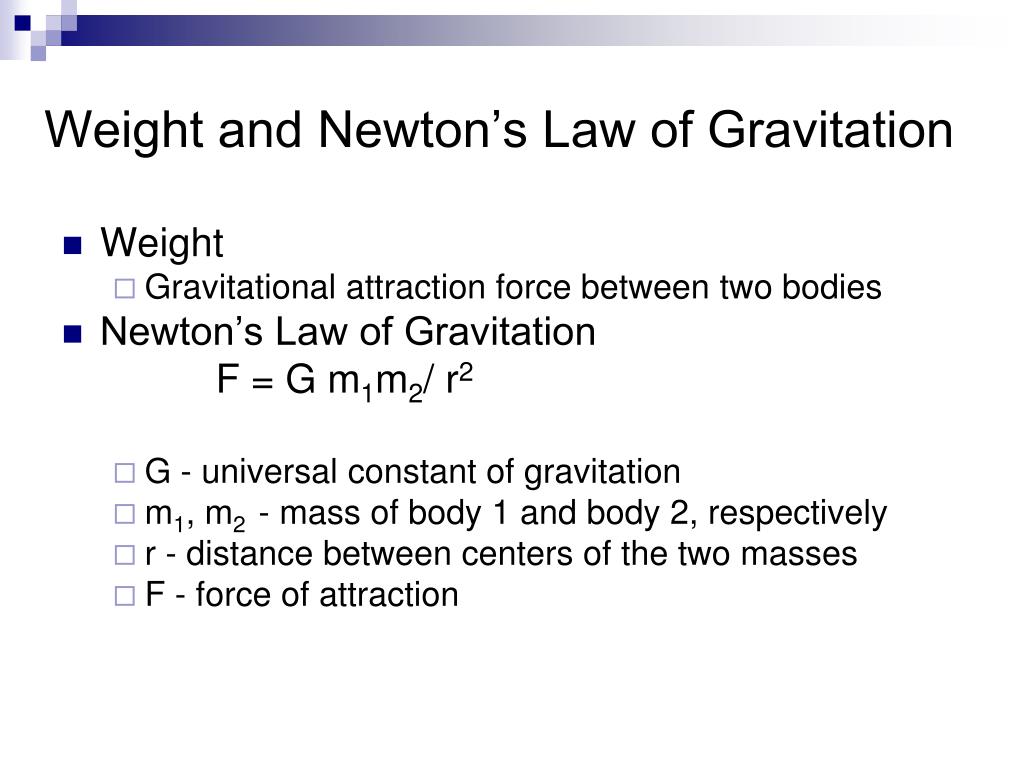

Weight and Newton’s Law of Gravitation

  • Weight

    • Gravitational attraction force between two bodies

  • Newton’s Law of Gravitation

    F = G m1m2/ r2

    • G - universal constant of gravitation

    • m1, m2 - mass of body 1 and body 2, respectively

    • r - distance between centers of the two masses

    • F - force of attraction


Weight

Weight

  • m2 - mass of an object on earth’s surface

  • m1 - mass of earth

  • r - distance between center of two masses

  • r1 - radius of earth

  • r2 - radius of mass on earth’s surface

  • r2 << r1, therefore r = r1+r2 ~ r1

  • Thus, F = m2 * (G * m1 / r2)


Weight1

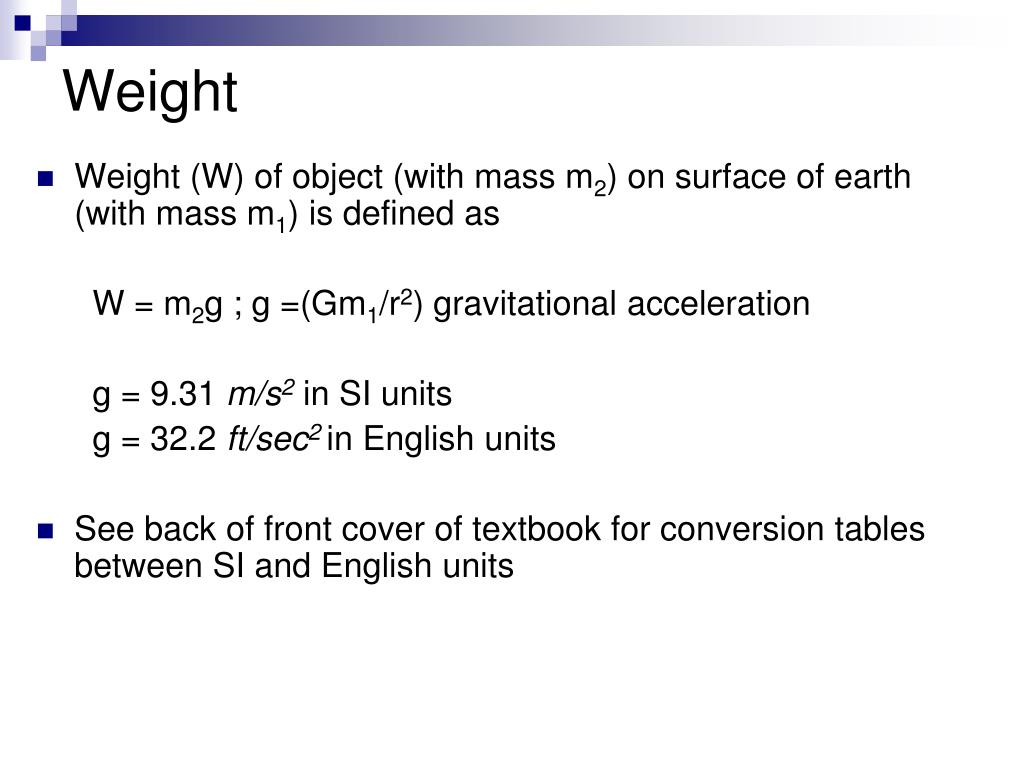

Weight

  • Weight (W) of object (with mass m2) on surface of earth (with mass m1) is defined as

    W = m2g ; g =(Gm1/r2) gravitational acceleration

    g = 9.31 m/s2in SI units

    g = 32.2 ft/sec2in English units

  • See back of front cover of textbook for conversion tables between SI and English units


Properties of fluids preliminaries

Properties of Fluids - Preliminaries

  • Consider a force, , acting on a 2D region of area A sitting on x-y plane

    Cartesian components:

z

y

A

x

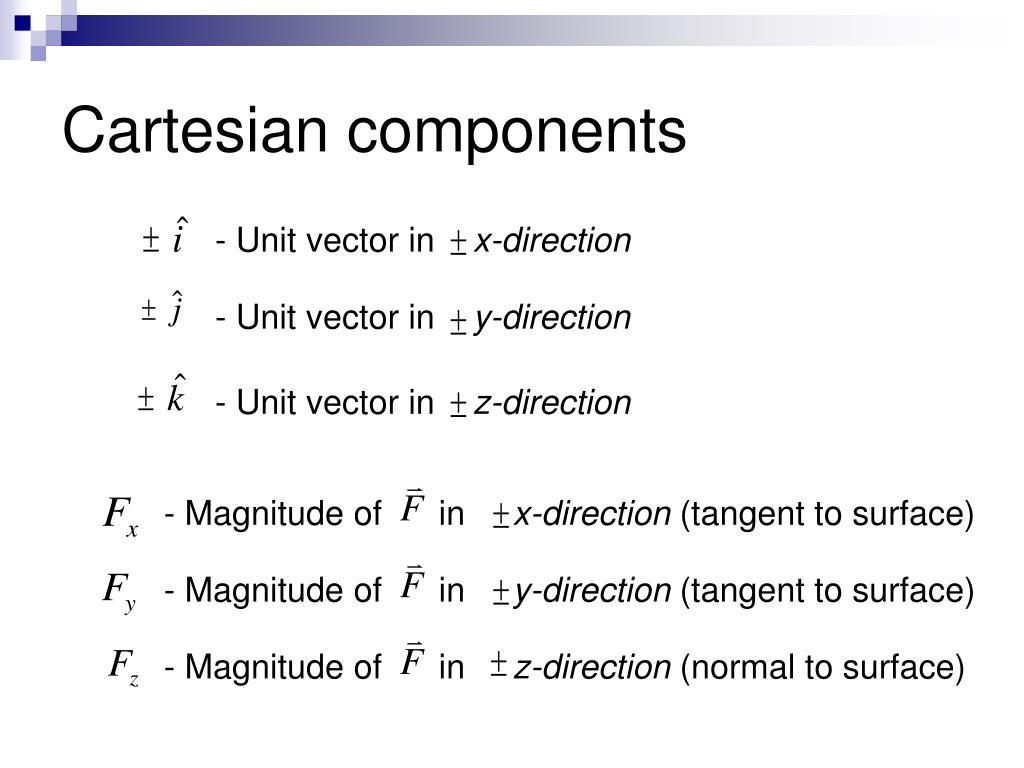

Cartesian components

Cartesian components

- Unit vector in x-direction

- Unit vector in y-direction

- Unit vector in z-direction

- Magnitude of in x-direction (tangent to surface)

- Magnitude of in y-direction (tangent to surface)

- Magnitude of in z-direction (normal to surface)


Basic fluid mechanics

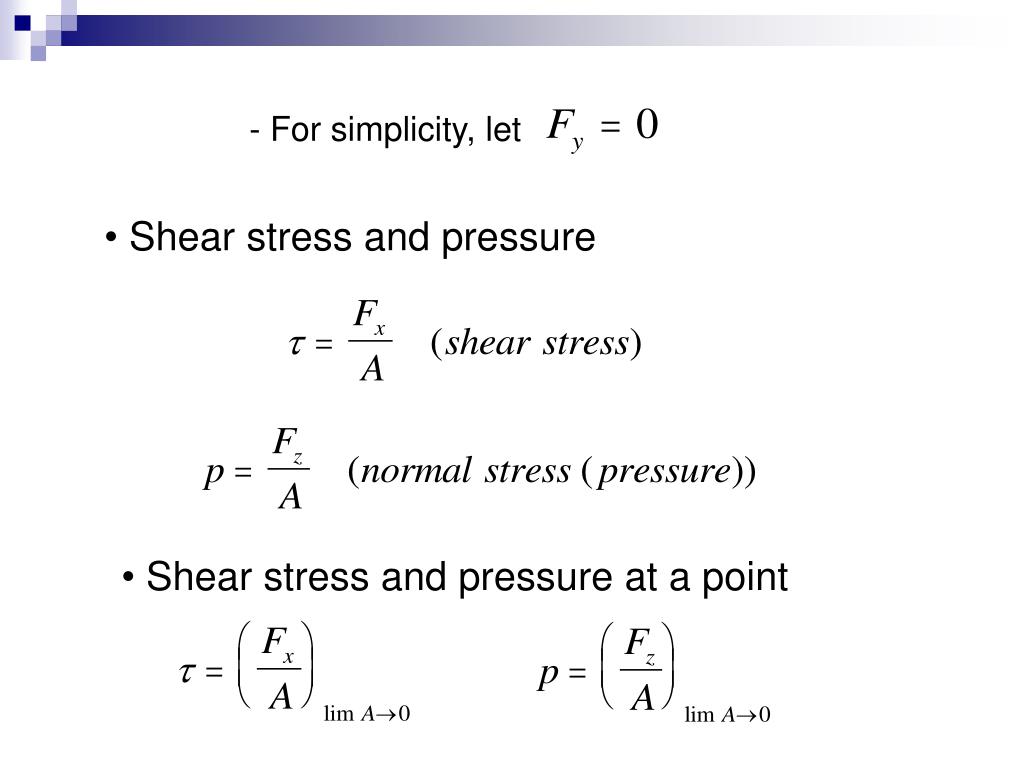

- For simplicity, let

  • Shear stress and pressure

  • Shear stress and pressure at a point


Basic fluid mechanics

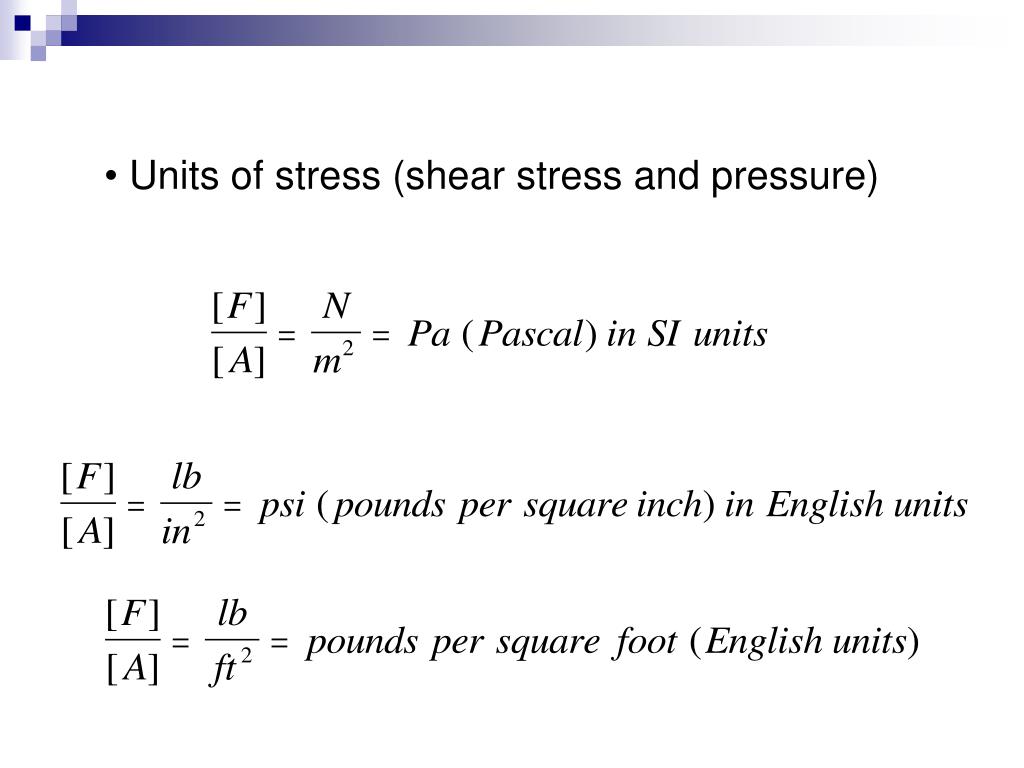

  • Units of stress (shear stress and pressure)

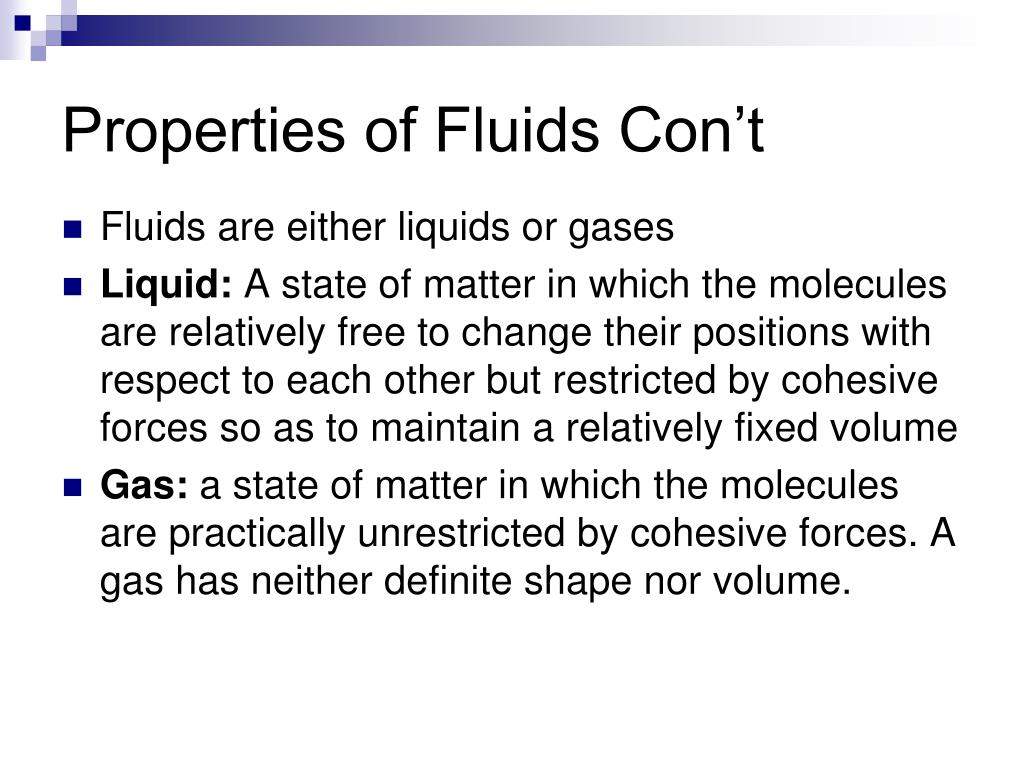

Properties of fluids con t

Properties of Fluids Con’t

  • Fluids are either liquids or gases

  • Liquid: A state of matter in which the molecules are relatively free to change their positions with respect to each other but restricted by cohesive forces so as to maintain a relatively fixed volume

  • Gas: a state of matter in which the molecules are practically unrestricted by cohesive forces. A gas has neither definite shape nor volume.

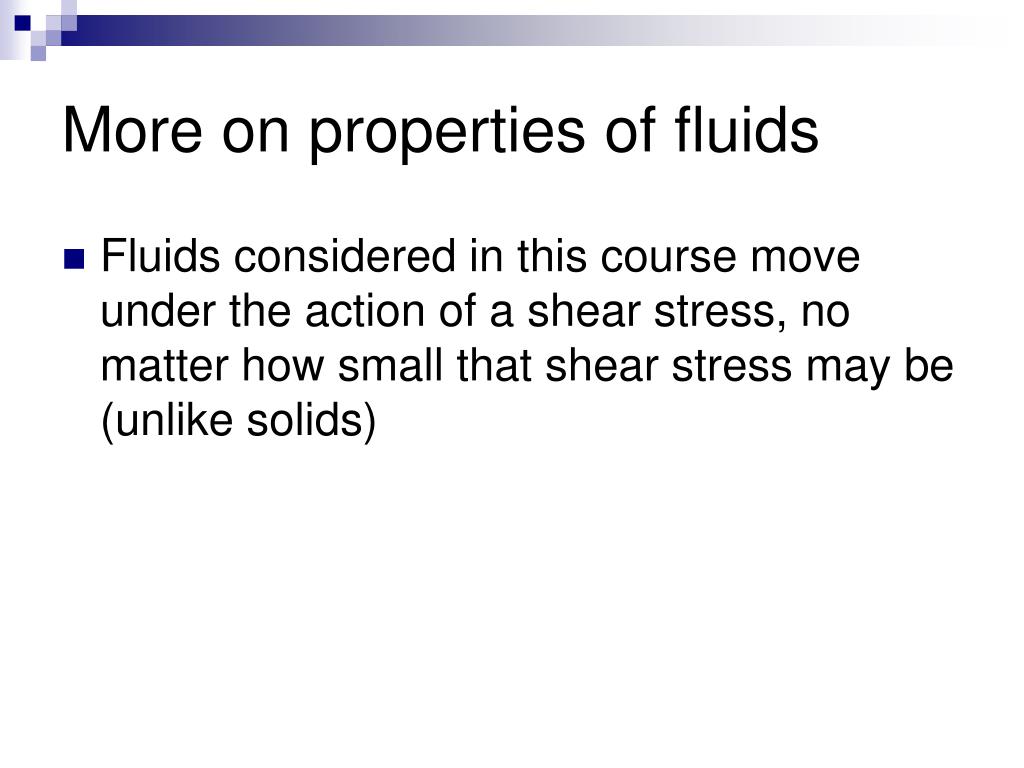

More on properties of fluids

More on properties of fluids

  • Fluids considered in this course move under the action of a shear stress, no matter how small that shear stress may be (unlike solids)


Continuum view of fluids

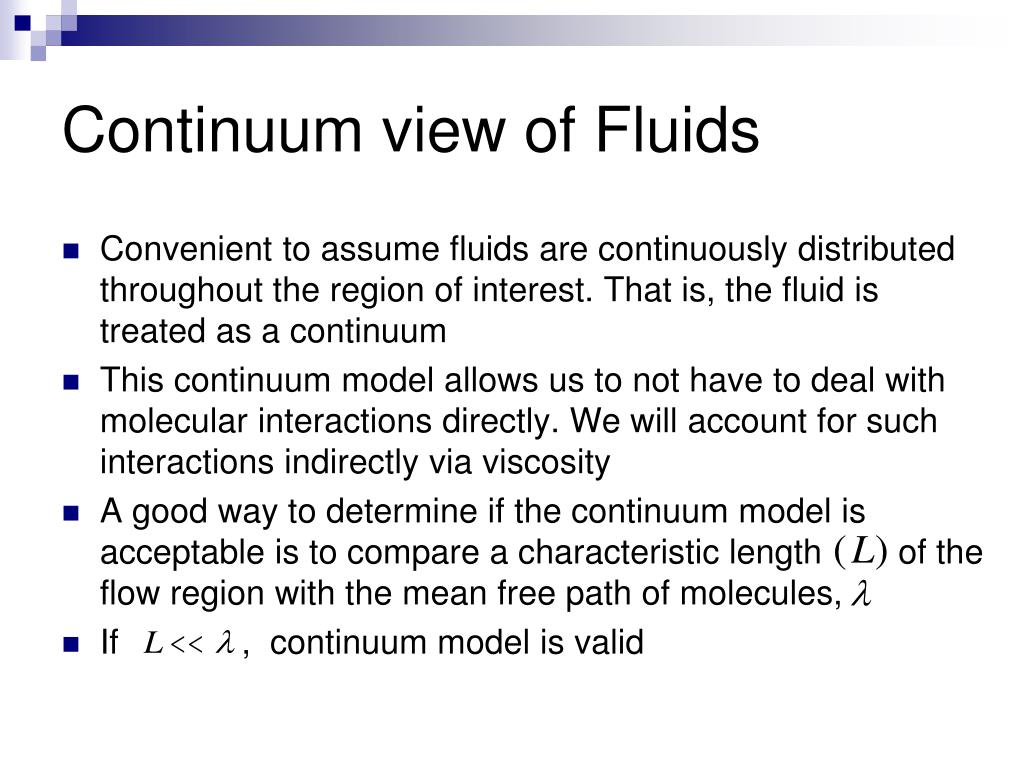

Continuum view of Fluids

  • Convenient to assume fluids are continuously distributed throughout the region of interest. That is, the fluid is treated as a continuum

  • This continuum model allows us to not have to deal with molecular interactions directly. We will account for such interactions indirectly via viscosity

  • A good way to determine if the continuum model is acceptable is to compare a characteristic length of the flow region with the mean free path of molecules,

  • If , continuum model is valid


Basic fluid mechanics

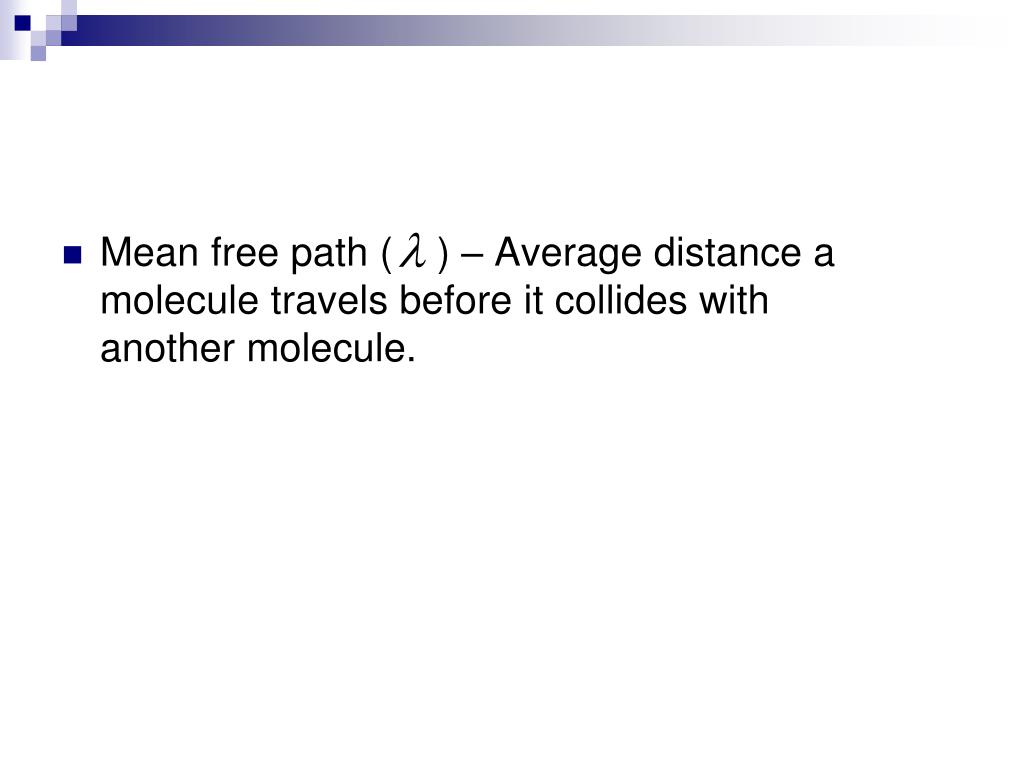

  • Mean free path ( ) – Average distance a molecule travels before it collides with another molecule.


Basic fluid mechanics

Density and specific weight

Density (mass per unit volume):

Units of density:

Specific weight (weight per unit volume):

Units of specific weight:

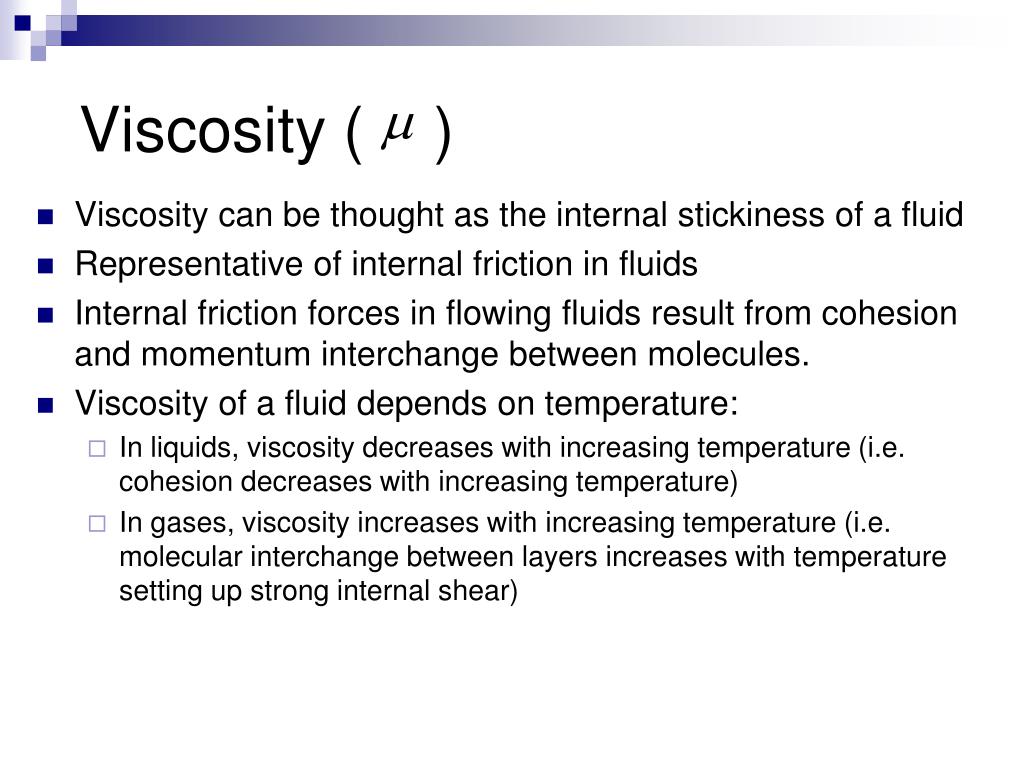

Viscosity

Viscosity ( )

  • Viscosity can be thought as the internal stickiness of a fluid

  • Representative of internal friction in fluids

  • Internal friction forces in flowing fluids result from cohesion and momentum interchange between molecules.

  • Viscosity of a fluid depends on temperature:

    • In liquids, viscosity decreases with increasing temperature (i.e. cohesion decreases with increasing temperature)

    • In gases, viscosity increases with increasing temperature (i.e. molecular interchange between layers increases with temperature setting up strong internal shear)


More on viscosity

More on Viscosity

  • Viscosity is important, for example,

    • in determining amount of fluids that can be transported in a pipeline during a specific period of time

    • determining energy losses associated with transport of fluids in ducts, channels and pipes


No slip condition

No slip condition

  • Because of viscosity, at boundaries (walls) particles of fluid adhere to the walls, and so the fluid velocity is zero relative to the wall

  • Viscosity and associated shear stress may be explained via the following: flow between no-slip parallel plates.


Basic fluid mechanics

Flow between no-slip parallel plates -each plate has area A

Moving plate

Fixed plate

Force induces velocity on top plate. At top plate flow velocity is

At bottom plate velocity is


Basic fluid mechanics

The velocity induced by moving top plate can be sketched as follows:

The velocity induced by top plate is expressed as follows:


Basic fluid mechanics

For a large class of fluids, empirically,

More specifically,

Shear stress induced by is

From previous slide, note that

Thus, shear stress is

In general we may use previous expression to find shear stress at a point

inside a moving fluid. Note that if fluid is at rest this stress is zero because


Basic fluid mechanics

Newton’s equation of viscosity

Shear stress due to viscosity at a point:

- kinematic

viscosity

- viscosity (coeff. of viscosity)

fluid surface

Fixed no-slip plate

e.g.: wind-driven flow in ocean


Basic fluid mechanics

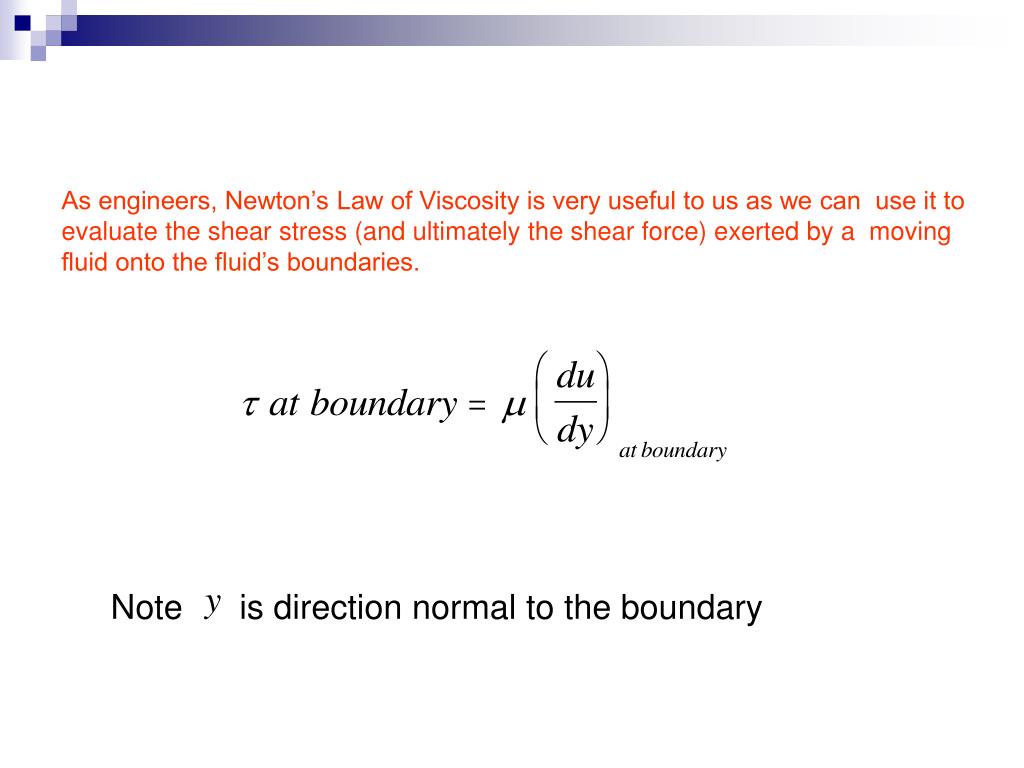

As engineers, Newton’s Law of Viscosity is very useful to us as we can use it to

evaluate the shear stress (and ultimately the shear force) exerted by a moving

fluid onto the fluid’s boundaries.

Note is direction normal to the boundary


Basic fluid mechanics

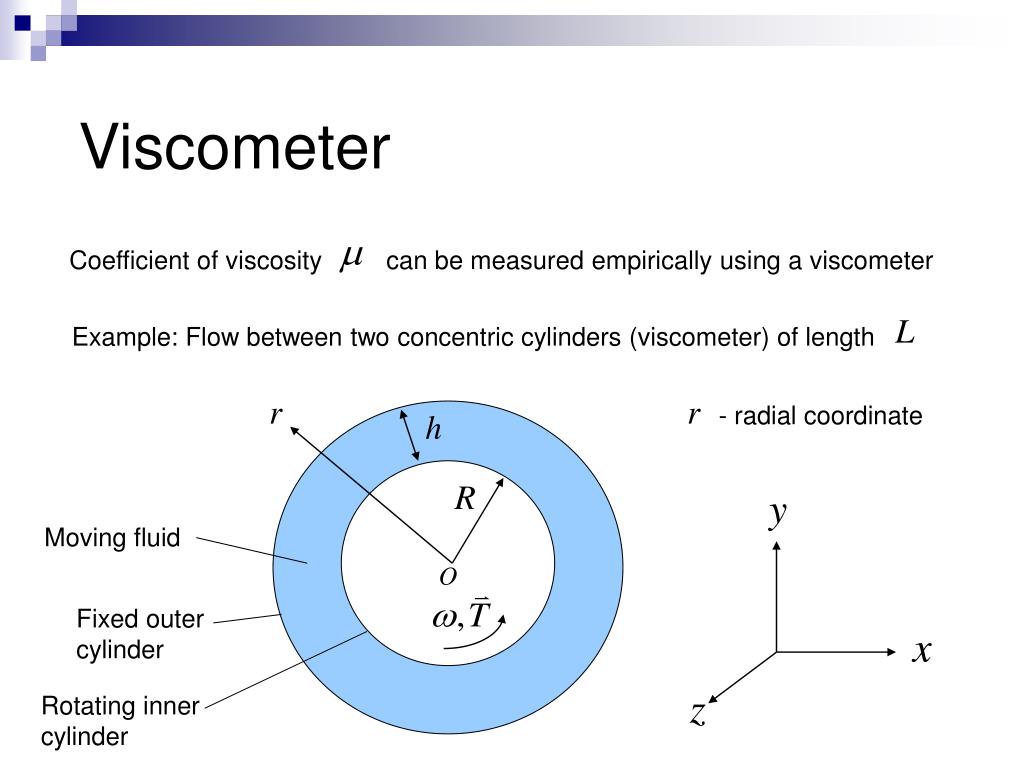

Viscometer

Coefficient of viscosity can be measured empirically using a viscometer

Example: Flow between two concentric cylinders (viscometer) of length

- radial coordinate

Moving fluid

Fixed outer

cylinder

Rotating inner

cylinder


Basic fluid mechanics

Inner cylinder is acted upon by a torque, , causing it to rotate about point at a constant angular velocity and

causing fluid to flow. Find an expression for

Because is constant, is balanced by a resistive torque exerted by the moving fluid onto inner cylinder

The resistive torque comes from the resistive stress exerted by the moving fluid onto the inner cylinder. This stress on the inner cylinder leads to an overall resistive force , which induces the resistive torque about point


Basic fluid mechanics

Compressibility

  • All fluids compress if pressure increases resulting in an

    increase in density

  • Compressibility is the change in volume due to a

    change in pressure where V is volume and p is pressure.

  • A good measure of compressibility is the bulk modulus

    (It is inversely proportional to compressibility often denoted K sometimes B).


Basic fluid mechanics

Vertical, drained compressibility's


Basic fluid mechanics

Compressibility

  • From previous expression we may write

  • For water at 15 psia and 68 degrees Farenheit,

  • From above expression, increasing pressure by 1000 psi will compress the water by only 1/320 (0.3%) of its original volume

  • Thus, water may be treated as incompressible (density is constant)

  • In reality, no fluid is incompressible, but this is a good approximation for

    certain fluids The degree of compressibility of a fluid has strong implications for its dynamics.


Basic fluid mechanics

Vapor pressure of liquids

  • All liquids tend to evaporate when placed in a closed container

  • Vaporization will terminate when equilibrium is reached between

    the liquid and gaseous states of the substance in the container

    i.e. # of molecules escaping liquid surface = # of incoming molecules

  • Under this equilibrium we call the call vapor pressure the saturation

    pressure

  • At any given temperature, if pressure on liquid surface falls below the

    the saturation pressure, rapid evaporation occurs (i.e. boiling)

  • For a given temperature, the saturation pressure is the boiling pressure


Basic fluid mechanics

Properties of Liquids: Surface Tensionhttp://www.visionlearning.com/library/module_viewer.php?mid=57Water Strider Video


Surface tension

Surface Tension

Surface Tension-a force that tends to pull adjacent parts of a liquid’s surface together, thereby decreasing surface area to the smallest possible size.

~The higher the attraction forces (intermolecular forces), the higher the surface tension. Surface tension causes liquid droplets to take a spherical shape.

  • The surface of any liquid behaves as if it was a stretched membrane. This phenomenon is known as surface tension

  • Surface tension is caused by intermolecular forces at the liquid’s interface with a gas or a solid.


More bugs that think they re all that and a bag of chips the water strider

more bugs that think they’re all that and a bag of chips: the Water Strider


Surface tension1

Surface Tension

  • Surface tension depends on the nature of the liquid, the surrounding media and temperature.

  • Liquids that have strong intermolecular forces will have higher values of surface tension than liquids that have weak intermolecular forces.

  • A. Beading of rain water on a waxy surface, such as a leaf. Water adheres weakly to wax and strongly to itself, so water clusters into drops. Surface tension gives them their near-spherical shape, because a sphere has the smallest possible surface area to volume ratio.


Basic fluid mechanics

B. Formation of drops occurs when a mass of liquid is stretched. The animation shows water adhering to the faucet gaining mass until it is stretched to a point where the surface tension can no longer bind it to the faucet. It then separates and surface tension forms the drop into a sphere. If a stream of water was running from the faucet, the stream would break up into drops during its fall. Gravity stretches the stream, then surface tension pinches it into spheres.

C. Flotation of objects denser than water occurs when the object is nonwettable and its weight is small enough to be borne by the forces arising from surface tension. For example, water striders use surface tension to walk on the surface of a pond. The surface of the water behaves like an elastic film: the insect's feet cause indentations in the water's surface, increasing its surface area.


Basic fluid mechanics

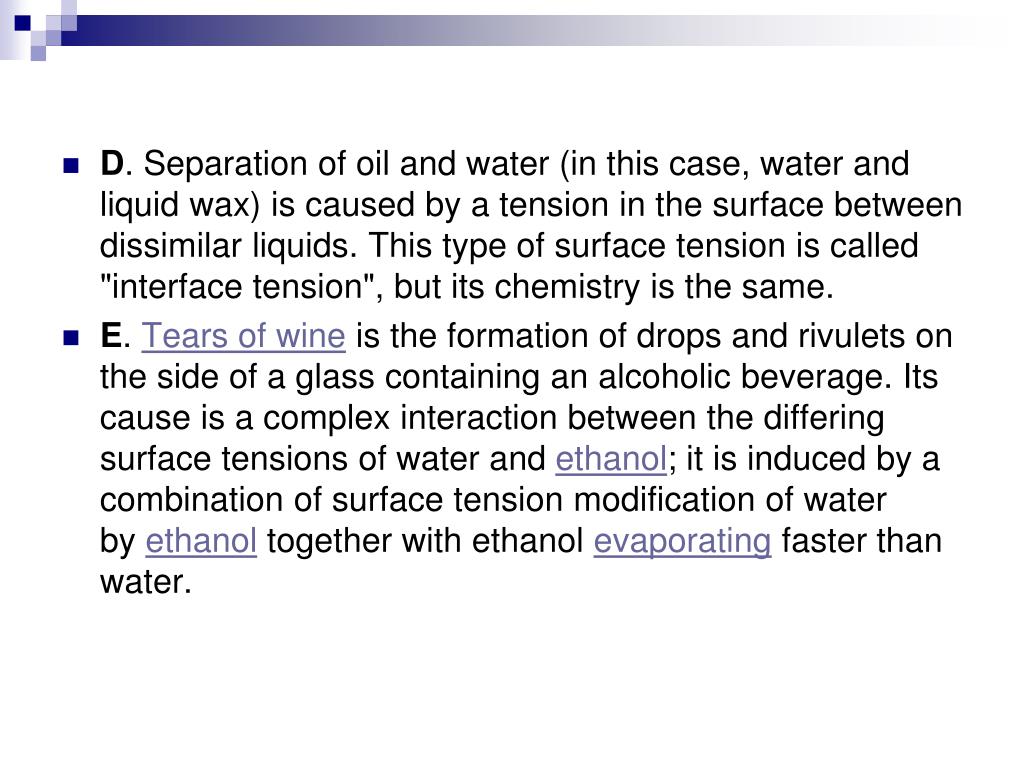

D. Separation of oil and water (in this case, water and liquid wax) is caused by a tension in the surface between dissimilar liquids. This type of surface tension is called "interface tension", but its chemistry is the same.

E. Tears of wine is the formation of drops and rivulets on the side of a glass containing an alcoholic beverage. Its cause is a complex interaction between the differing surface tensions of water and ethanol; it is induced by a combination of surface tension modification of water by ethanol together with ethanol evaporating faster than water.


Even a piece of steel can do this trick if it is small steel 8x water

Even a piece of steel can do this trick if it is small (steel  ~ 8x water)


4 h 2 o molecules

but what’s surface tension, really?

4 H2O molecules

  • separated in space from each other

  • have partial + and – charges

  • what would they do???

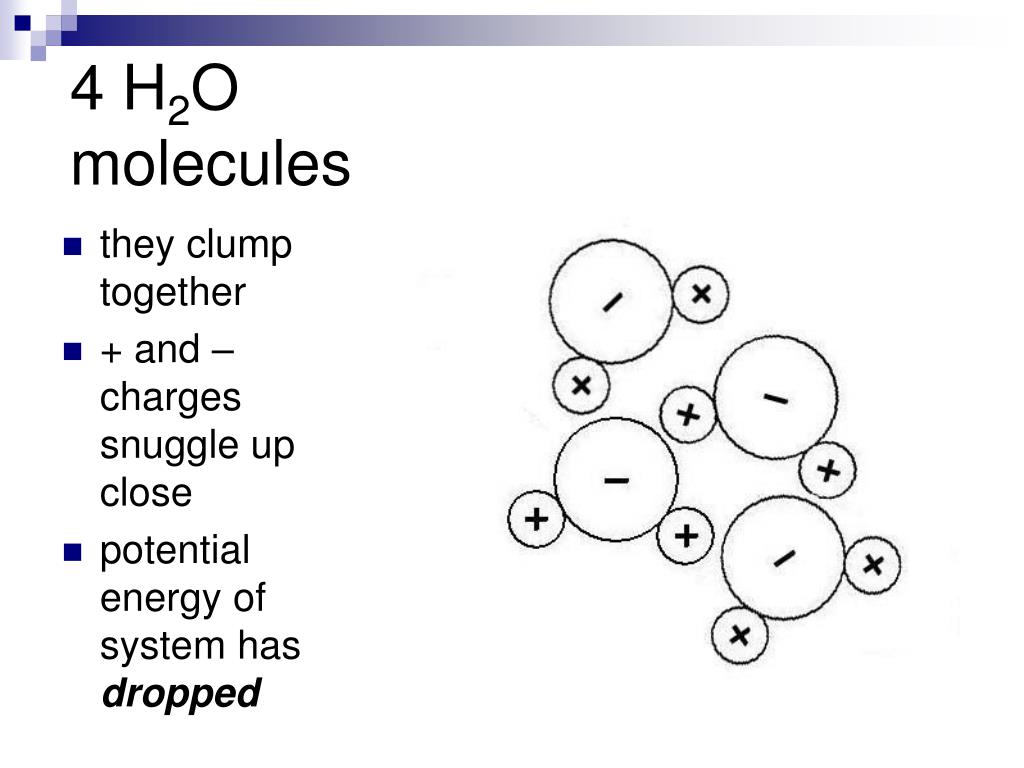

4 h 2 o molecules1

4 H2O molecules

  • they clump together

  • + and – charges snuggle up close

  • potential energy of system has dropped


Surface tension2

Surface Tension

  • water in bulk has many binding partners

  • water at surface has less, has exposed charges left over

  • potential energy of water at surface is higher

  • deforming droplet to increase surface area takes work


Contact angles

Contact Angles

  • here’s a droplet on a surface -


Contact angle

Contact Angle

  • here’s a slice of it –

  • tangent to droplet edge is “contact angle”

  • why is theta theta?


Contact angle1

Contact Angle

  • balance of forces

  • surface tension pulls up

  • gravity & adhesion pulls down

  • what are the other two?


Remember this

Remember this?

  • water at surface has less binding partners

  • energy at surface is higher


What if

What if -

  • what if the circles are aluminum atoms in a solid?

  • what if the space above it is liquid ethanol?


Contact angle2

Contact Angle

  • F = dE/dX

  • surface/air & surface/water interfaces also have “surface tension”, in ergs/cm2

  • moving water edge back and forth incurs energy costs/profits

  • but units of F are energy/distance, not area?! what’s the deal?


Obtuse contact angles

Obtuse contact Angles

  • hydrophobic surface

  • “gravity & adhesion” is now “gravity & repulsion”

  • if no gravity, drop leaves


Basic fluid mechanics

http://citt.ufl.edu/Marcela/Sepulveda/html/en_tension.htm


  • Login
