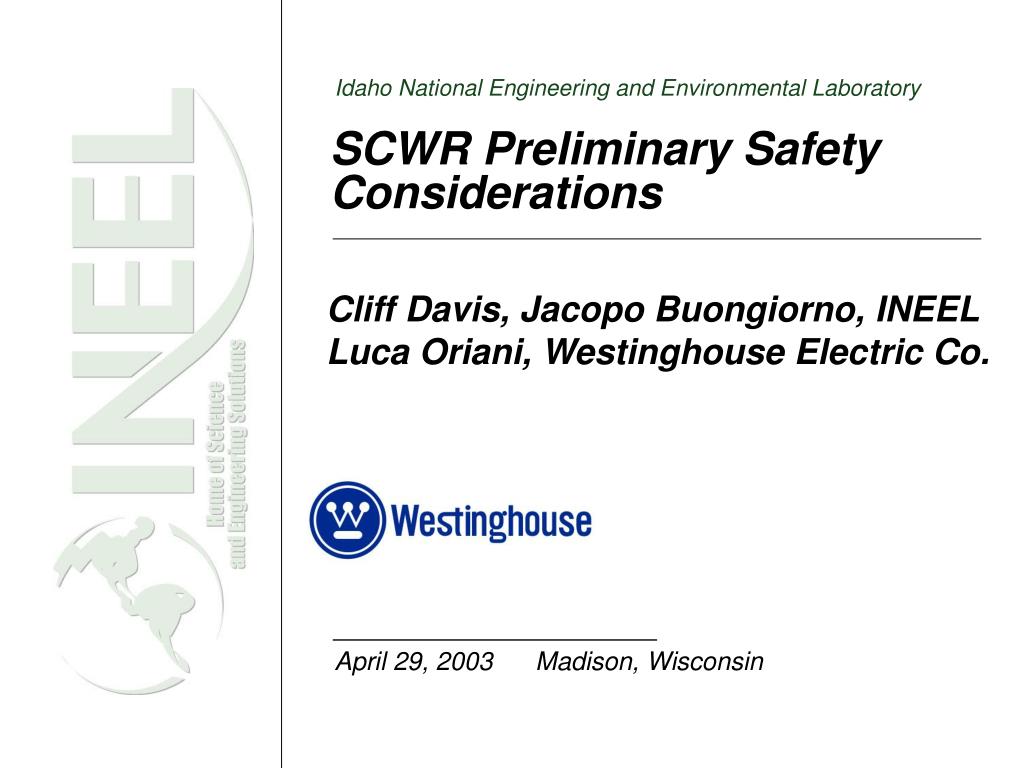

  1. SCWR Preliminary Safety Considerations Cliff Davis, Jacopo Buongiorno, INEEL Luca Oriani, Westinghouse Electric Co. April 29, 2003 Madison, Wisconsin

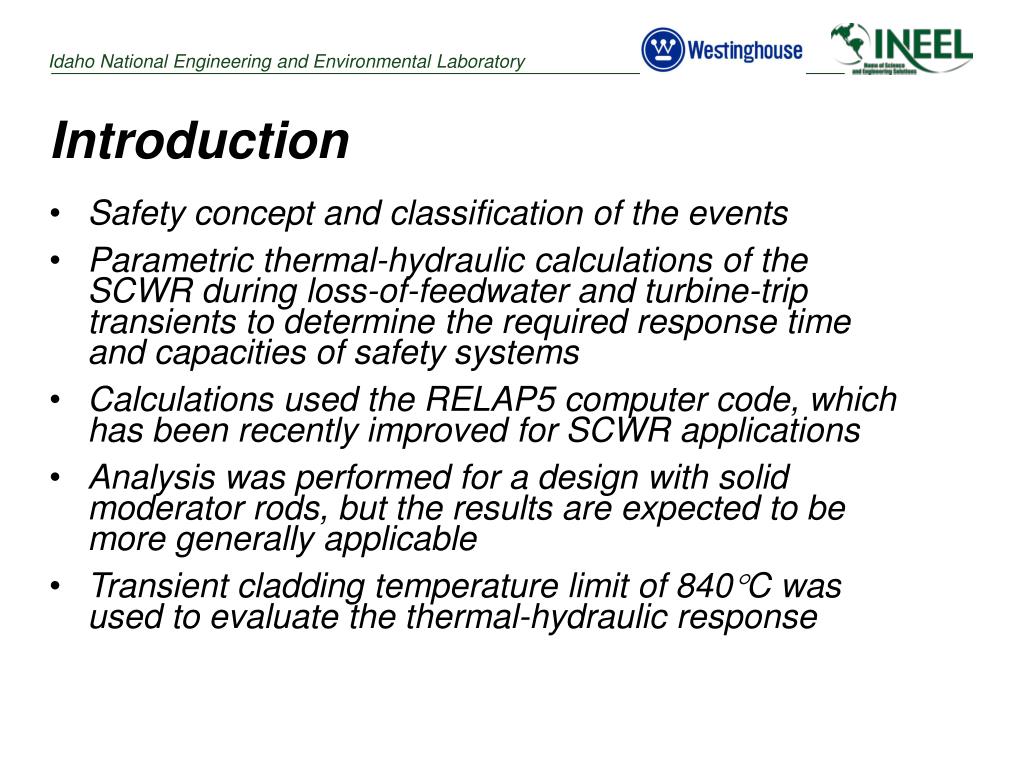

  2. Introduction • Safety concept and classification of the events • Parametric thermal-hydraulic calculations of the SCWR during loss-of-feedwater and turbine-trip transients to determine the required response time and capacities of safety systems • Calculations used the RELAP5 computer code, which has been recently improved for SCWR applications • Analysis was performed for a design with solid moderator rods, but the results are expected to be more generally applicable • Transient cladding temperature limit of 840C was used to evaluate the thermal-hydraulic response

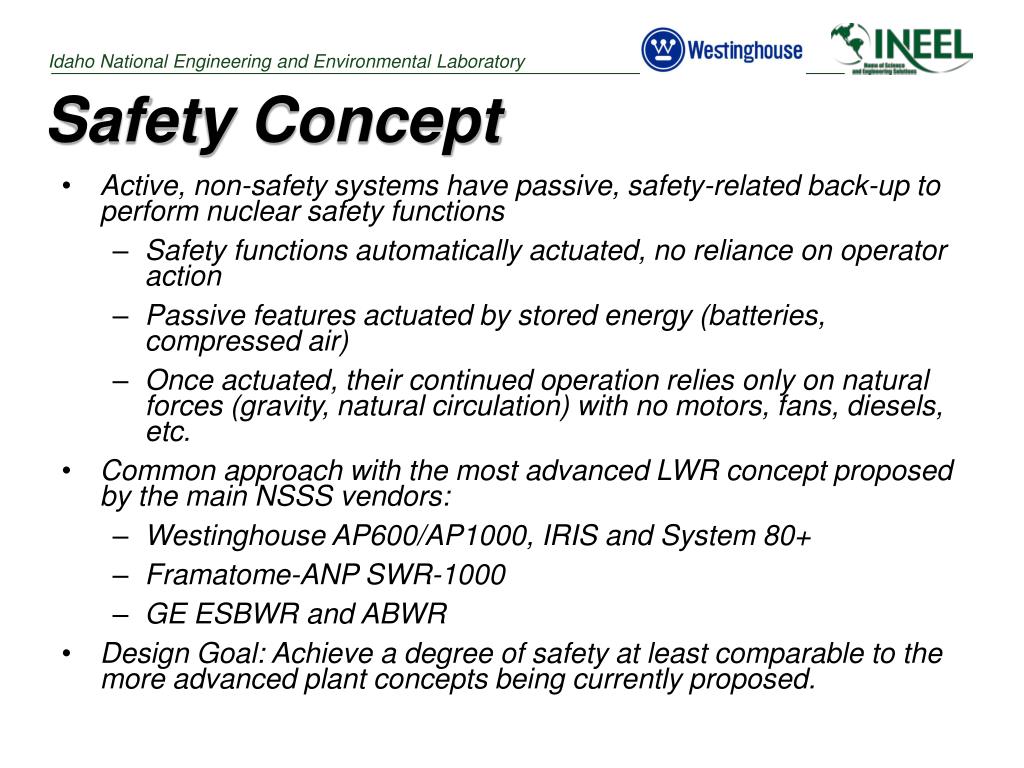

  3. Safety Concept • Active, non-safety systems have passive, safety-related back-up to perform nuclear safety functions • Safety functions automatically actuated, no reliance on operator action • Passive features actuated by stored energy (batteries, compressed air) • Once actuated, their continued operation relies only on natural forces (gravity, natural circulation) with no motors, fans, diesels, etc. • Common approach with the most advanced LWR concept proposed by the main NSSS vendors: • Westinghouse AP600/AP1000, IRIS and System 80+ • Framatome-ANP SWR-1000 • GE ESBWR and ABWR • Design Goal: Achieve a degree of safety at least comparable to the more advanced plant concepts being currently proposed.

  4. ANS Classification of Events • Classification of Accident events per ANSI N18.2-1973 (industry standard based on ANS committee)Condition I: Normal operation and operational transientsCondition II: Faults of moderate frequencyCondition III: Infrequent faultsCondition IV: Limiting faults • Classification according to expected frequency of occurrence • Less frequent events may have more severe consequences

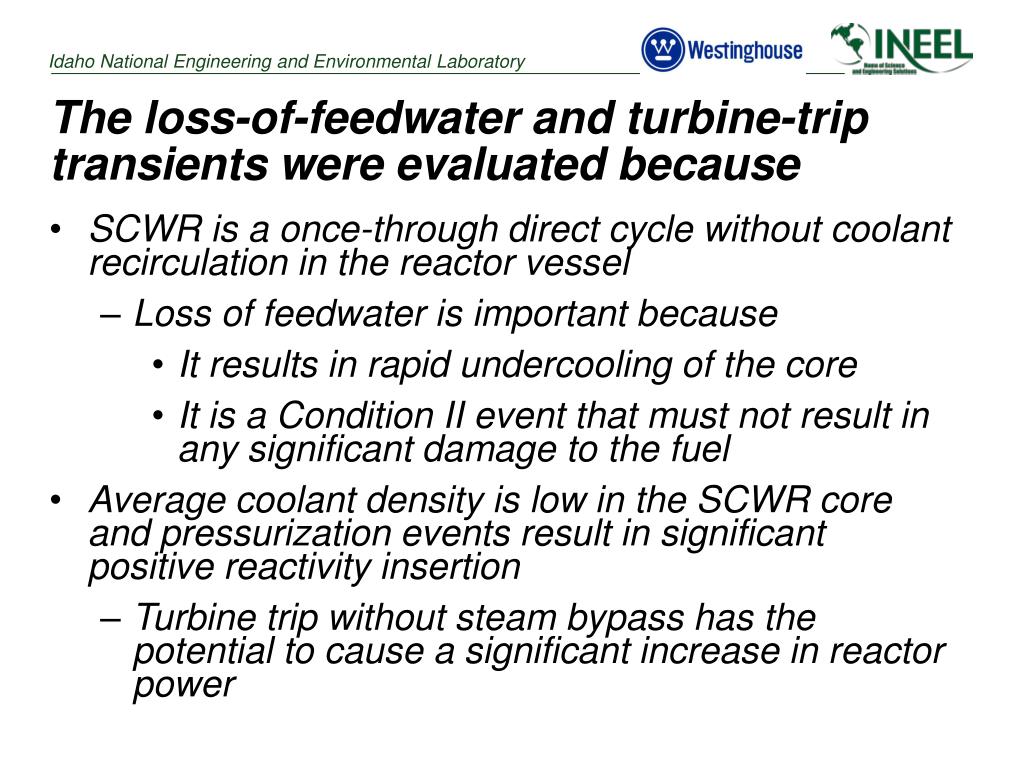

  5. The loss-of-feedwater and turbine-trip transients were evaluated because • SCWR is a once-through direct cycle without coolant recirculation in the reactor vessel • Loss of feedwater is important because • It results in rapid undercooling of the core • It is a Condition II event that must not result in any significant damage to the fuel • Average coolant density is low in the SCWR core and pressurization events result in significant positive reactivity insertion • Turbine trip without steam bypass has the potential to cause a significant increase in reactor power

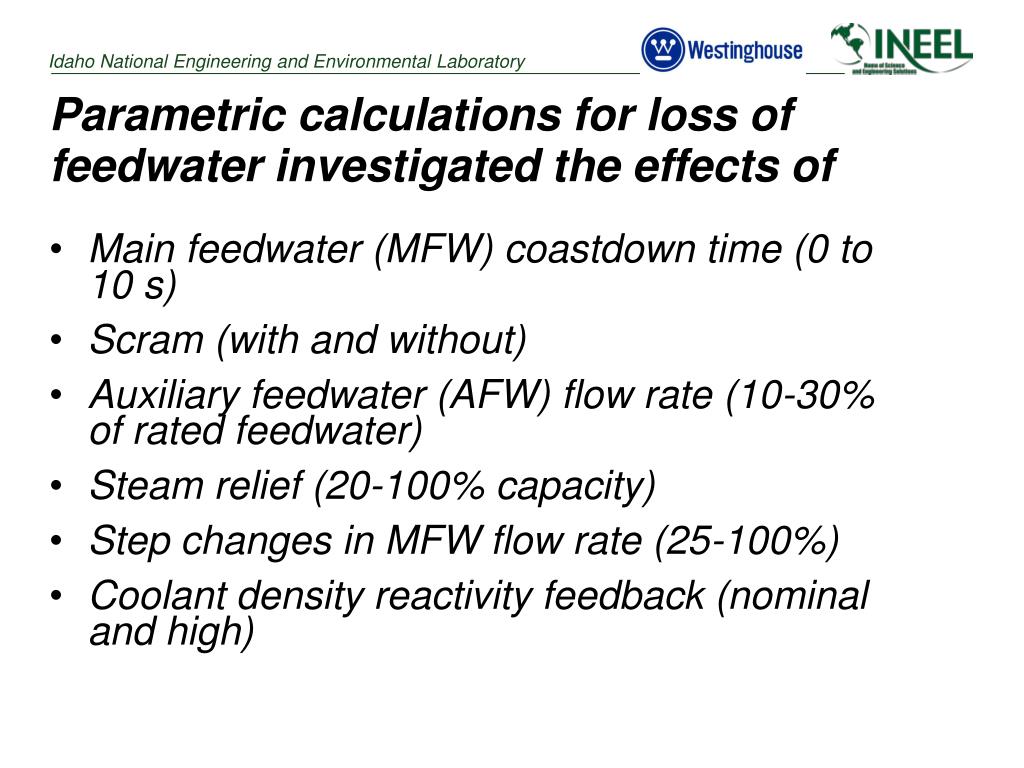

  6. Parametric calculations for loss of feedwater investigated the effects of • Main feedwater (MFW) coastdown time (0 to 10 s) • Scram (with and without) • Auxiliary feedwater (AFW) flow rate (10-30% of rated feedwater) • Steam relief (20-100% capacity) • Step changes in MFW flow rate (25-100%) • Coolant density reactivity feedback (nominal and high)

  7. Transient temperature limit met when AFW flow exceeded 15% • 5-s MFW coastdown • Scram • Constant pressure

  8. Temperature limit met for 50% step change in MFW flow • No scram • No AFW

  9. Fast-opening 100%-capacity turbine bypass system helps significantly • 5-s MFW coastdown • Scram • No AFW

  10. Higher coolant density reactivity feedback lowers cladding temperature • 5-s MFW coastdown • Scram • No AFW

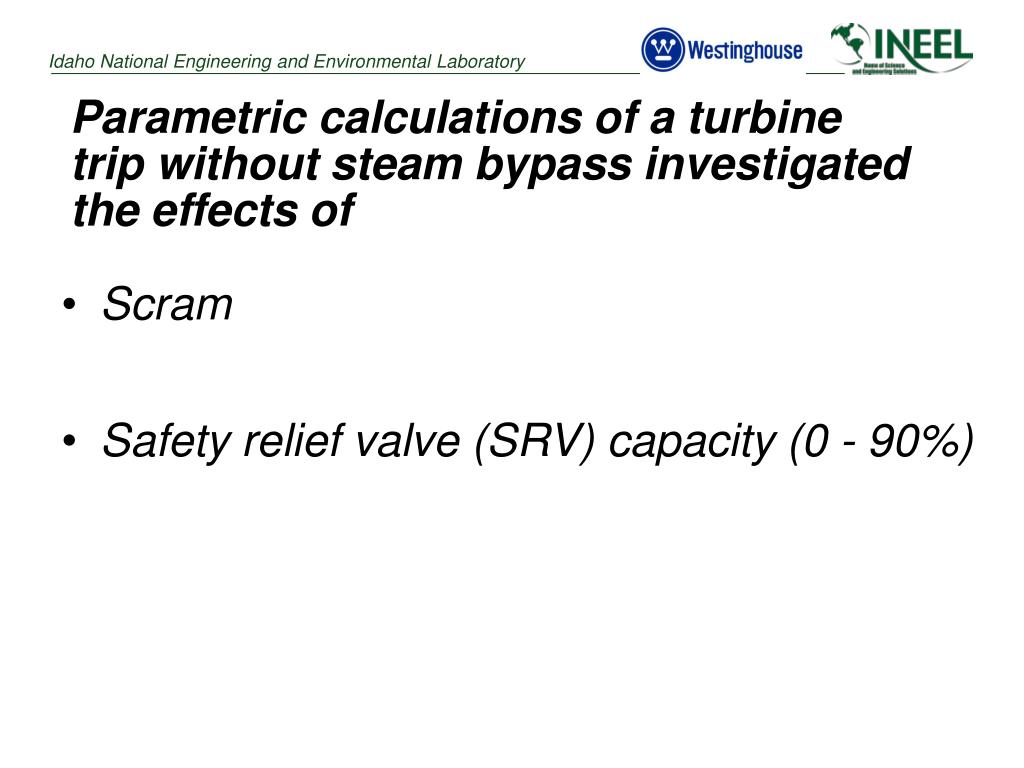

  11. Parametric calculations of a turbine trip without steam bypass investigated the effects of • Scram • Safety relief valve (SRV) capacity (0 - 90%)

  12. Pressure response following a turbine trip is acceptable • Instant control valve closure • Continued MFW at rated flow

  13. Small increase in reactor power following turbine trip • Instant control valve closure • Continued MFW

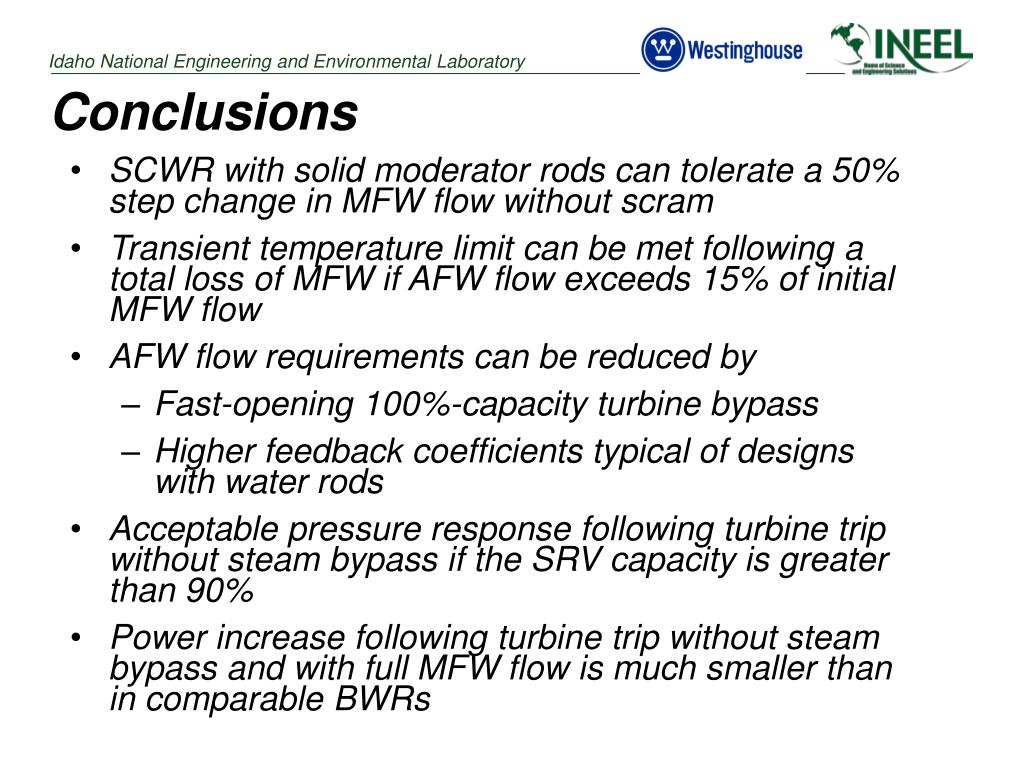

  14. Conclusions • SCWR with solid moderator rods can tolerate a 50% step change in MFW flow without scram • Transient temperature limit can be met following a total loss of MFW if AFW flow exceeds 15% of initial MFW flow • AFW flow requirements can be reduced by • Fast-opening 100%-capacity turbine bypass • Higher feedback coefficients typical of designs with water rods • Acceptable pressure response following turbine trip without steam bypass if the SRV capacity is greater than 90% • Power increase following turbine trip without steam bypass and with full MFW flow is much smaller than in comparable BWRs
