  1. Rotational Panoramic Radiography Seung - Hyun Heo

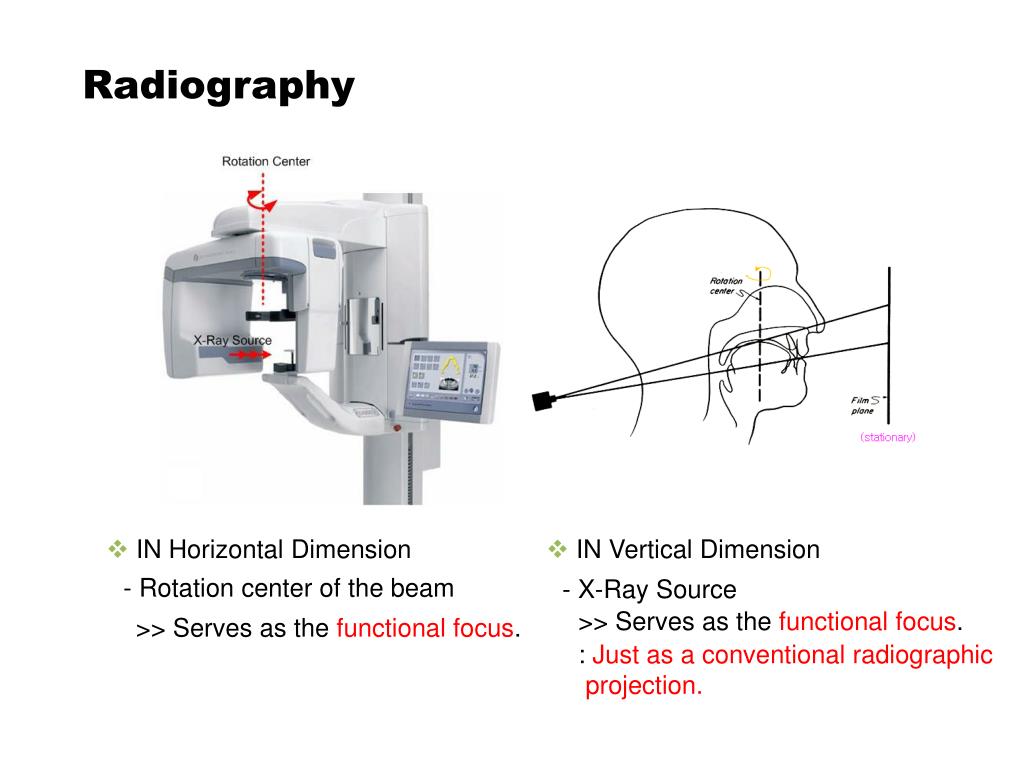

  2. Radiography • IN Horizontal Dimension • IN Vertical Dimension - Rotation center of the beam - X-Ray Source >> Serves as the functional focus. >> Serves as the functional focus. : Just as a conventional radiographic projection.

  3. IntraOral v.s. ExtraOral • ExtraOral Radiography - Panoramic Radiography ,Tomography - Show the entire dentition and related structures on a single film. • The patient in a seated position, and other types require the patient to be in a standing position. - Regardless of the type of machine, Must follow the manufacture`s instructions carefully - Panoramic film are not as clear or as well defined as the images on IntraOral films - 구내 방사선 사진들에 비하여 촬영이 간단. - 방사선 노출량이 적고, 개구제한이있는 환자에도 사용가능. - 구내 방사선사진에 비하여 해상도가 떨어지며, 소구치부의 인접면 중첩현상이 있다. - 확대율이 일정하지 않으며 기하학적 왜곡이 발생한다. • Panorama - “ an unobstructed view of a region in any direction” - The series of images are combined onto a single film, an overall view(panorama) of the maxilla and mandible is created.

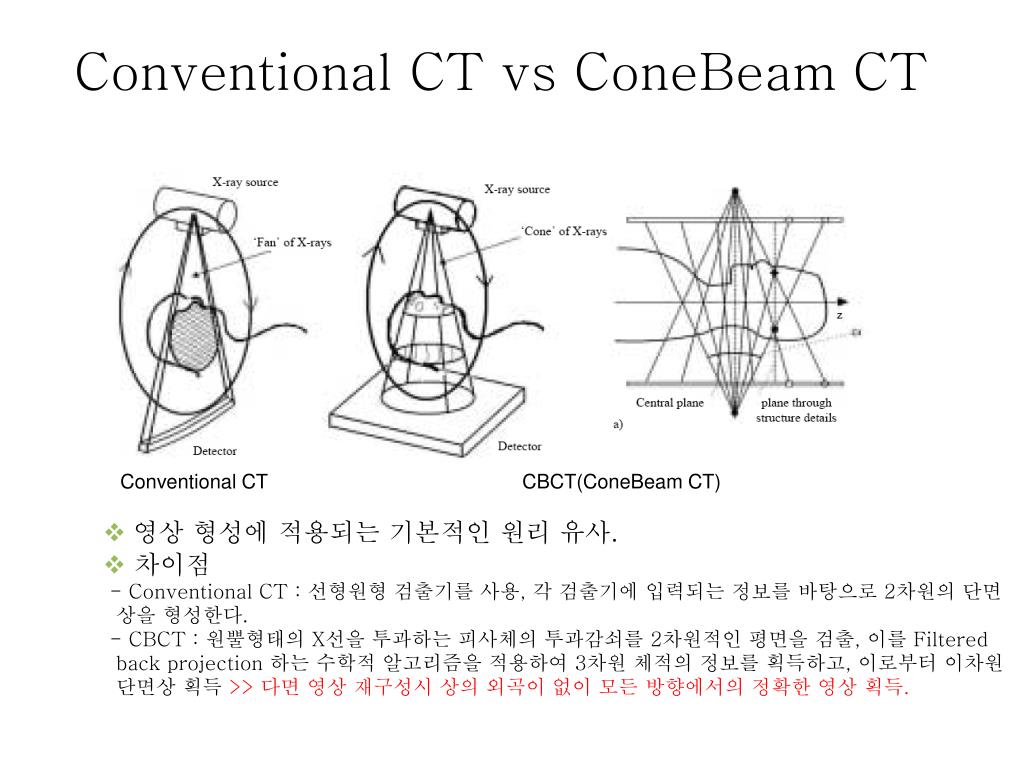

  4. Conventional CT vs ConeBeam CT Conventional CT CBCT(ConeBeam CT) • 영상 형성에 적용되는 기본적인 원리 유사. • 차이점 • - Conventional CT : 선형원형 검출기를 사용, 각 검출기에 입력되는 정보를바탕으로 2차원의 단면 • 상을 형성한다. • -CBCT : 원뿔형태의 X선을 투과하는 피사체의 투과감쇠를 2차원적인 평면을 검출, 이를 Filtered • back projection 하는 수학적 알고리즘을 적용하여 3차원 체적의 정보를 획득하고, 이로부터 이차원 • 단면상 획득 >> 다면 영상 재구성시 상의 외곡이 없이 모든 방향에서의 정확한 영상 획득.

  5. Conventional CT vs ConeBeam CT • Voxel(체적소)

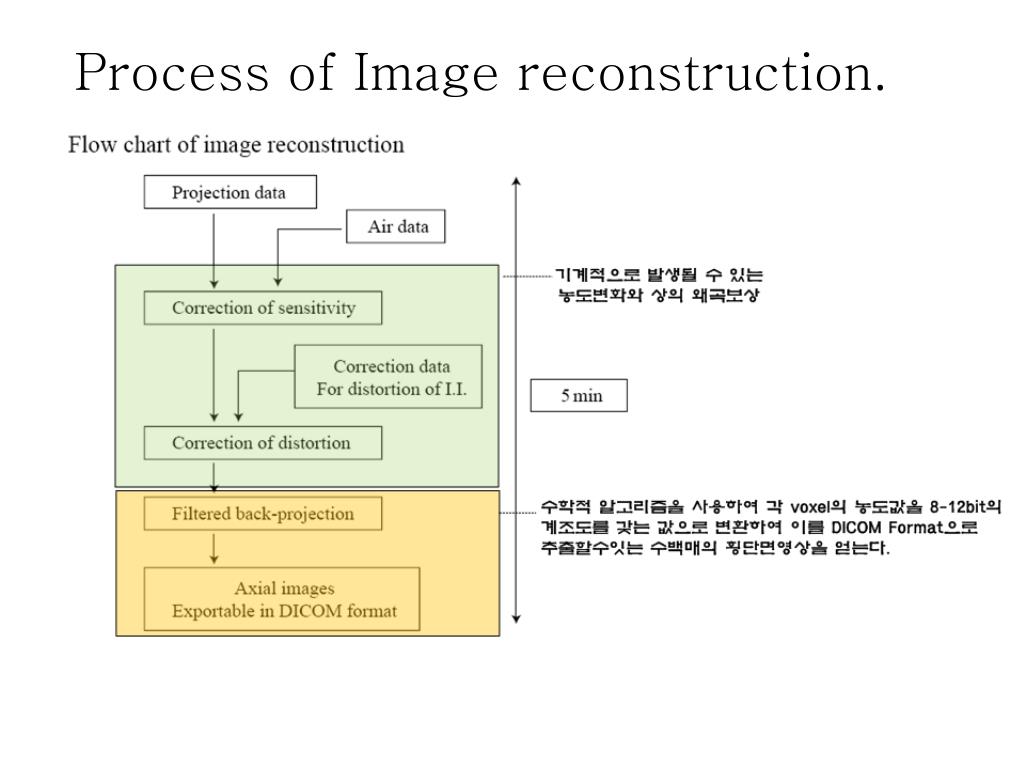

  6. Process of Image reconstruction.

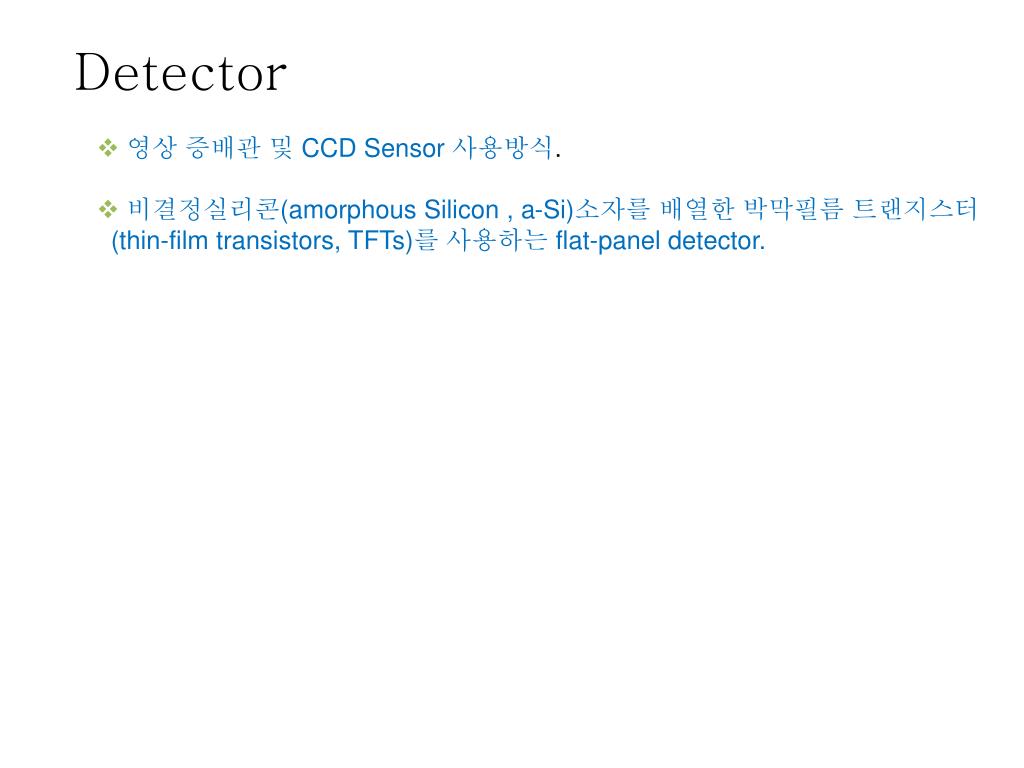

  7. Detector • 영상 증배관 및 CCD Sensor 사용방식. • 비결정실리콘(amorphous Silicon , a-Si)소자를 배열한 박막필름 트랜지스터 • (thin-film transistors, TFTs)를 사용하는 flat-panel detector.

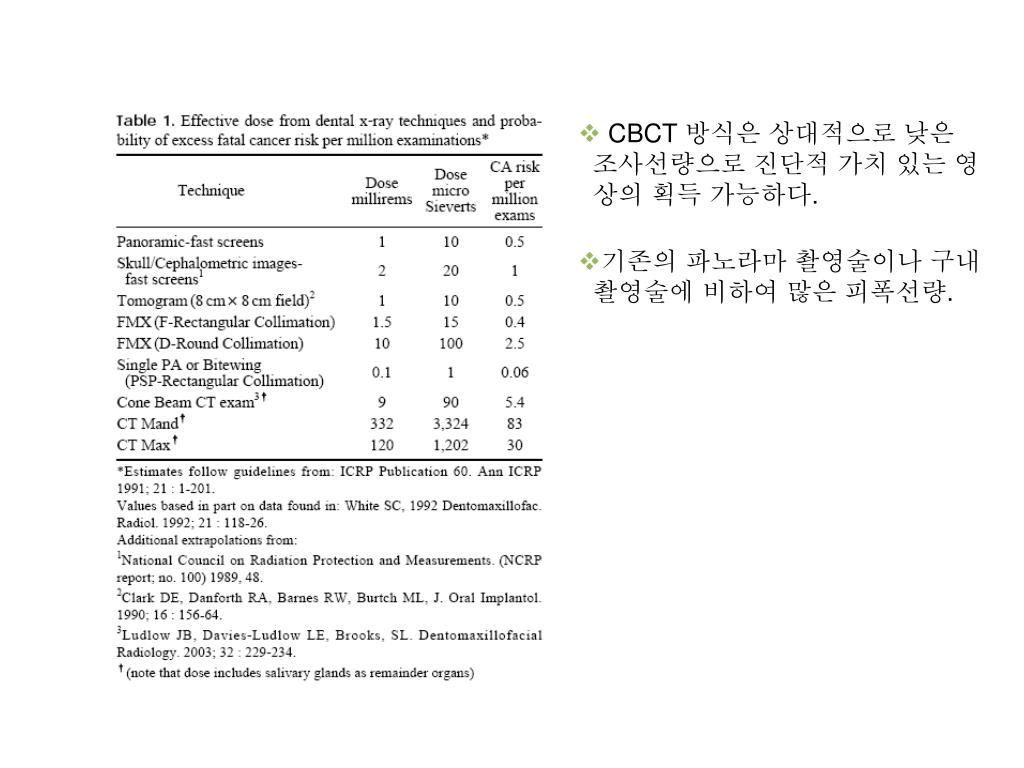

  8. CBCT 방식은 상대적으로 낮은 • 조사선량으로 진단적 가치 있는 영 • 상의 획득 가능하다. • 기존의 파노라마 촬영술이나 구내 • 촬영술에 비하여 많은 피폭선량.

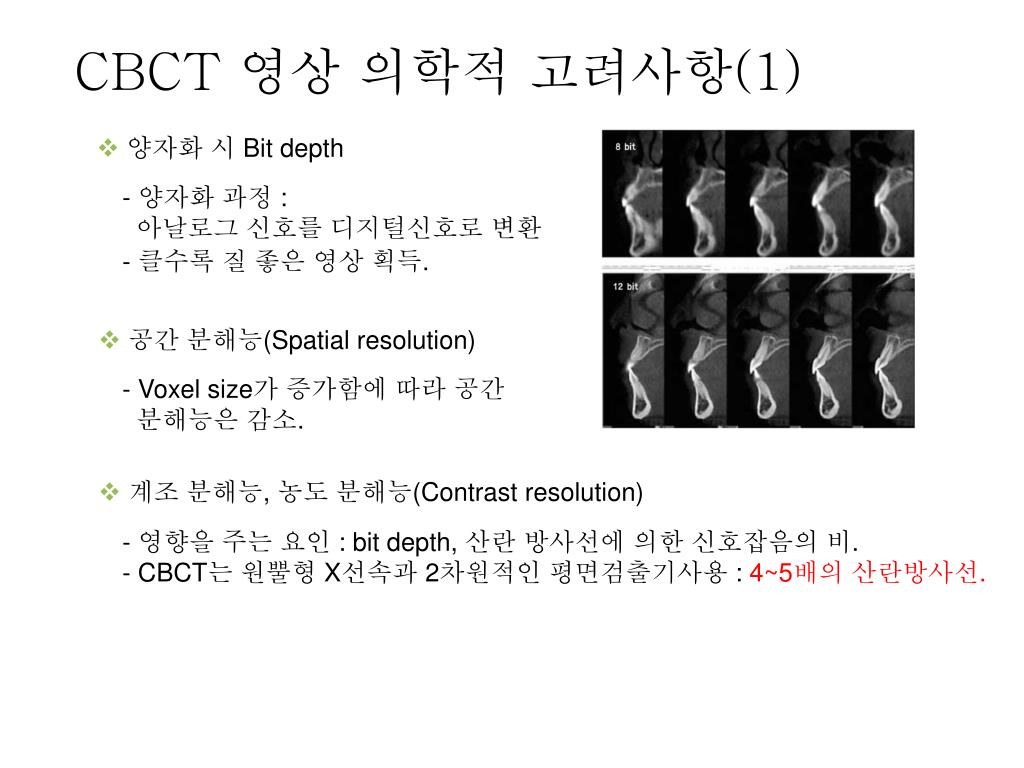

  9. CBCT 영상 의학적 고려사항(1) • 양자화 시 Bit depth • 양자화 과정 : • 아날로그 신호를 디지털신호로 변환 • 클수록 질 좋은 영상 획득. • 공간 분해능(Spatial resolution) • Voxel size가 증가함에 따라 공간 • 분해능은 감소. • 계조 분해능, 농도 분해능(Contrast resolution) • 영향을 주는 요인 : bit depth, 산란 방사선에 의한 신호잡음의 비. • CBCT는 원뿔형 X선속과 2차원적인 평면검출기사용 : 4~5배의 산란방사선.

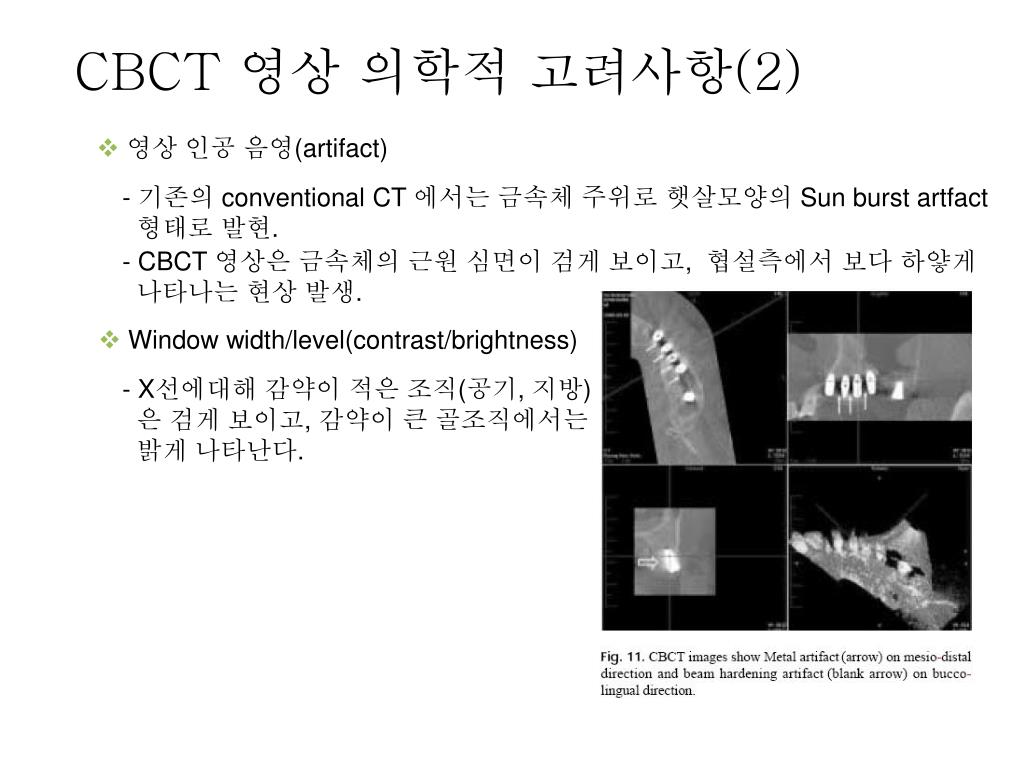

  10. CBCT 영상 의학적 고려사항(2) • 영상 인공 음영(artifact) • 기존의 conventional CT 에서는 금속체 주위로 햇살모양의 Sun burst artfact • 형태로 발현. • CBCT 영상은 금속체의 근원 심면이 검게 보이고, 협설측에서 보다 하얗게 • 나타나는 현상 발생. • Window width/level(contrast/brightness) • X선에대해 감약이 적은 조직(공기, 지방) • 은 검게 보이고, 감약이 큰 골조직에서는 • 밝게 나타난다.

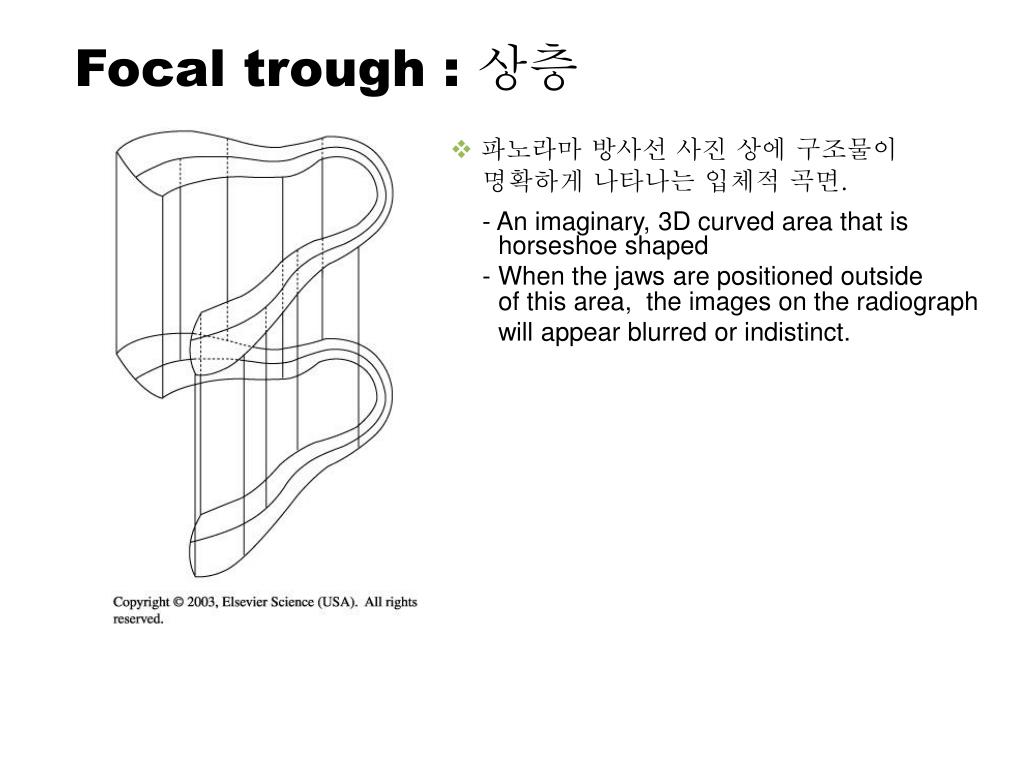

  11. Focal trough : 상층 • 파노라마 방사선 사진 상에 구조물이 명확하게 나타나는 입체적 곡면. - An imaginary, 3D curved area that is horseshoe shaped - When the jaws are positioned outside of this area, the images on the radiograph will appear blurred or indistinct.

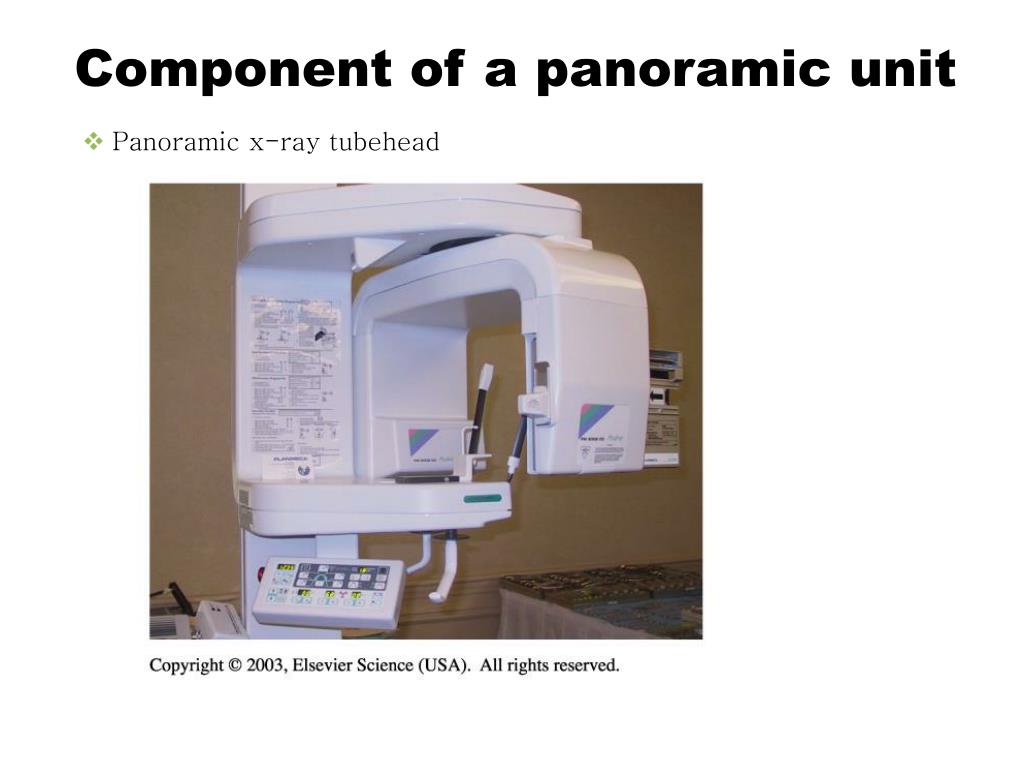

  12. Component of a panoramic unit • Panoramic x-ray tubehead

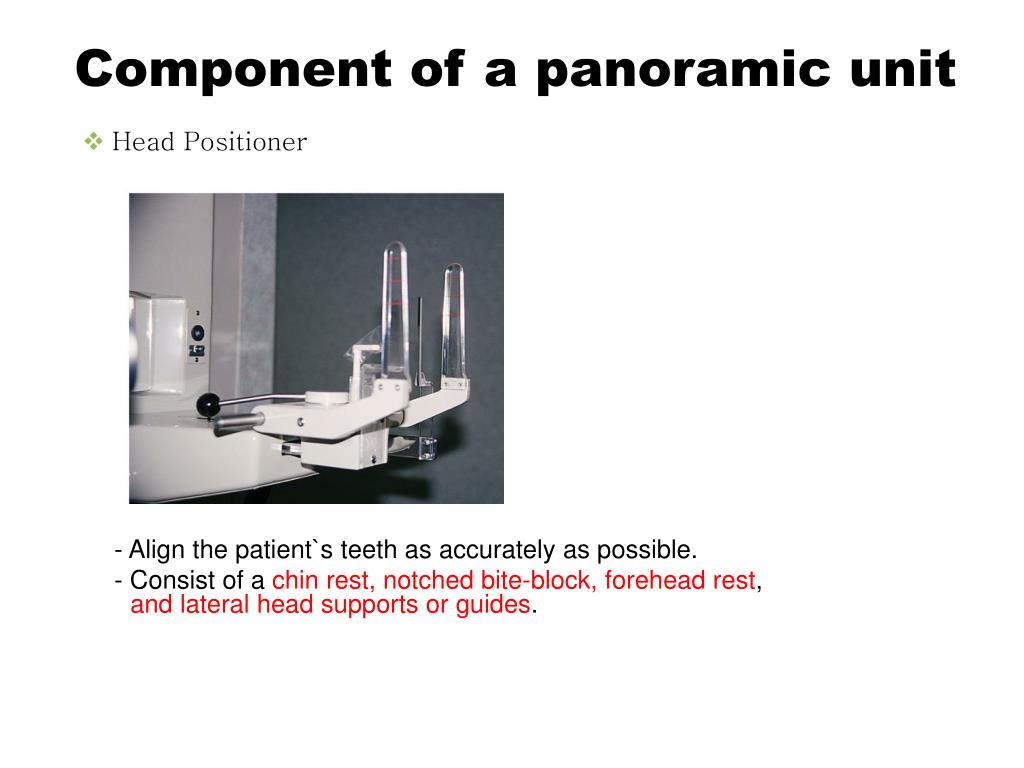

  13. Component of a panoramic unit • Head Positioner - Align the patient`s teeth as accurately as possible. - Consist of a chin rest, notched bite-block, forehead rest, and lateral head supports or guides.
