Module 8

Module 8

Implementing IPv6


Module overview

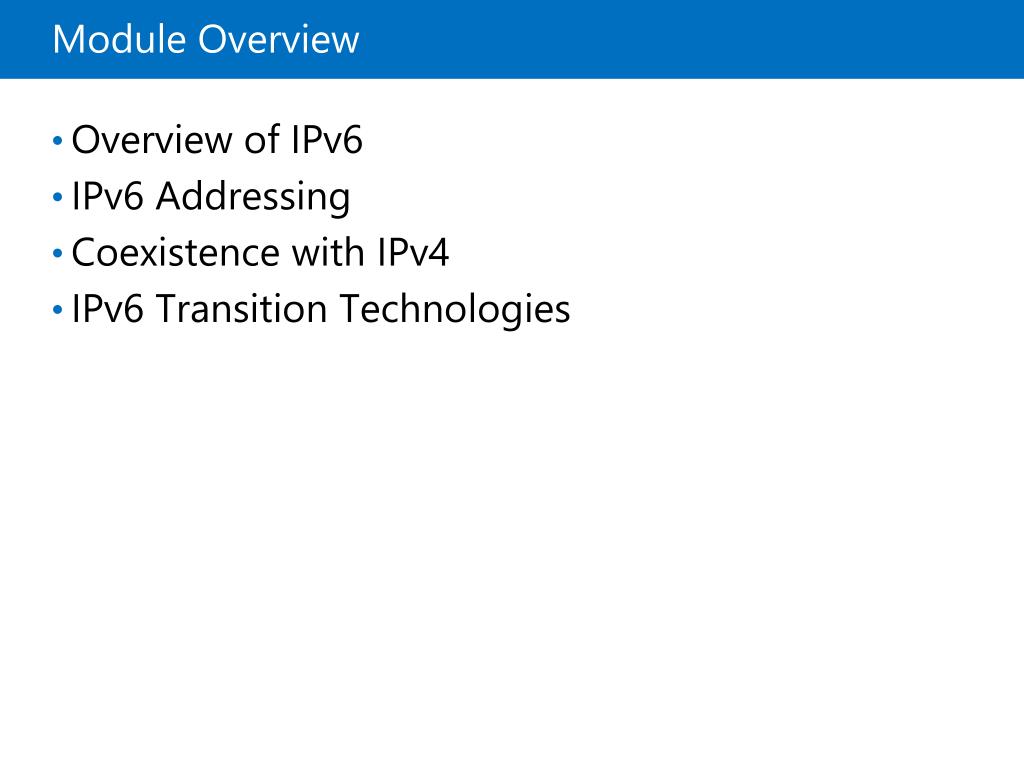

Module Overview

  • Overview of IPv6IPv6 AddressingCoexistence with IPv4IPv6 Transition Technologies


Lesson 1 overview of ipv6

Lesson 1: Overview of IPv6

  • Benefits of IPv6Differences Between IPv4 and IPv6IPv6 Address Format


Benefits of ipv6

Benefits of IPv6

Benefits of IPv6 include:

  • Larger address space

  • Hierarchical addressing and routing infrastructure

  • Stateless and stateful address configuration

  • Required support for IPsec

  • End-to-end communication

  • Required support for QoS

  • Improved support for single-subnet environments

  • Extensibility


Differences between ipv4 and ipv6

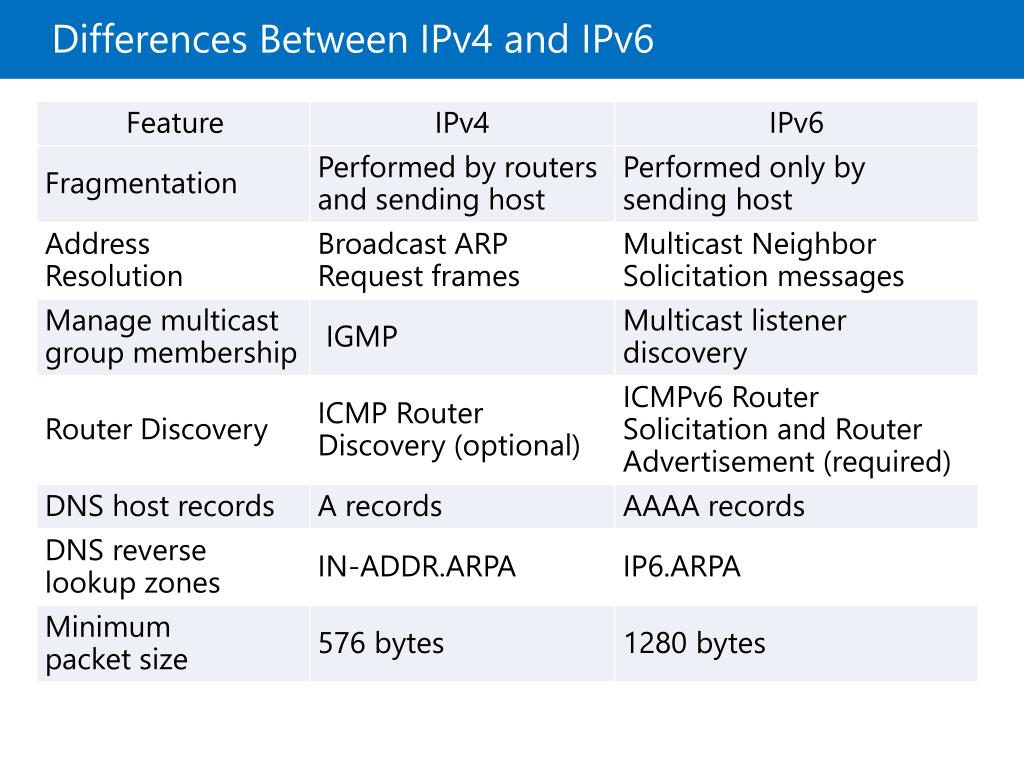

Differences Between IPv4 and IPv6

Placeholderto ensure the table gets published correctly. This should sit behind the table and not be visible.


Ipv6 address format

IPv6 Address Format

  • 128-bit address in binary:

  • 128-bit address divided into 16-bit blocks:

  • Each 16-bit block converted to HEX (base 16):

  • Further simplify by removing leading zeros:

00100000000000010000110110111000000000000000000000101111001110110000001010101010000000001111111111111110001010001001110001011010

0010000000000001000011011011100000000000000000000010111100111011 0000001010101010 0000000011111111 1111111000101000 1001110001011010

2001:0DB8:0000:2F3B:02AA:00FF:FE28:9C5A

2001:DB8:0:2F3B:2AA:FF:FE28:9C5A

[0010][1111][0011][1011]

8 4 2 1

[0 0 1 0]

0+0+2+0=2

[1 1 1 1]

8+4+2+1=F

[0 0 1 1]

0+0+2+1=3

[1 0 1 1]

8+0+2+1=B

= 2F3B


Lesson 2 ipv6 addressing

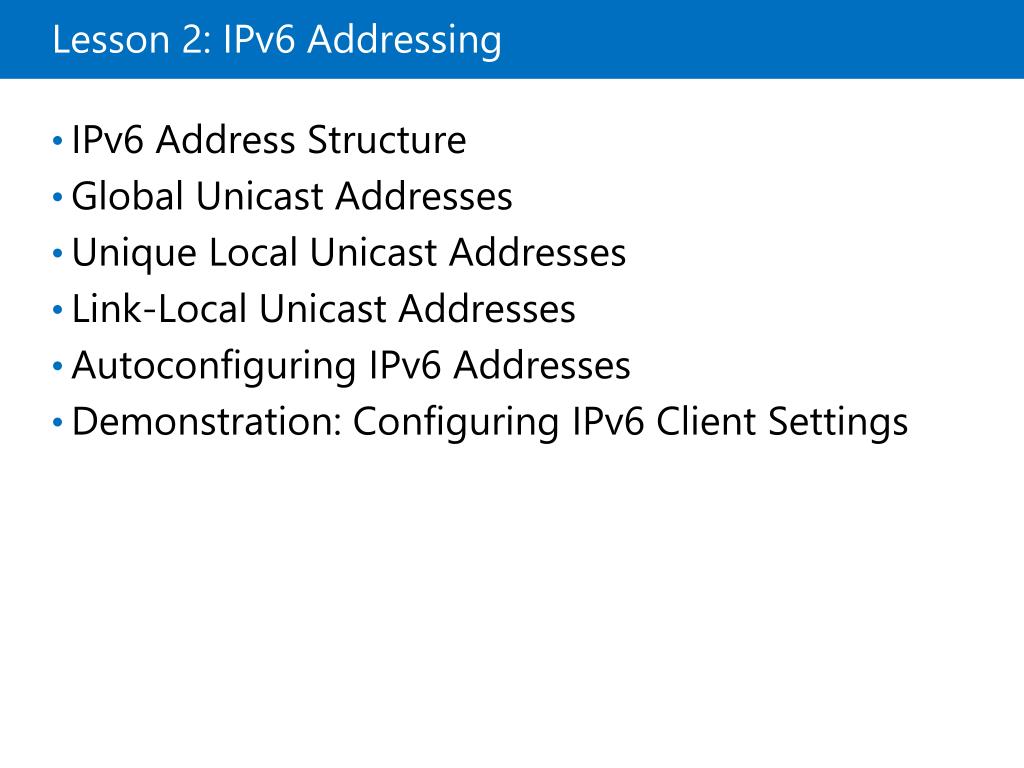

Lesson 2: IPv6 Addressing

  • IPv6 Address StructureGlobal Unicast AddressesUnique Local Unicast AddressesLink-Local Unicast AddressesAutoconfiguring IPv6 AddressesDemonstration: Configuring IPv6 Client Settings


Ipv6 address structure

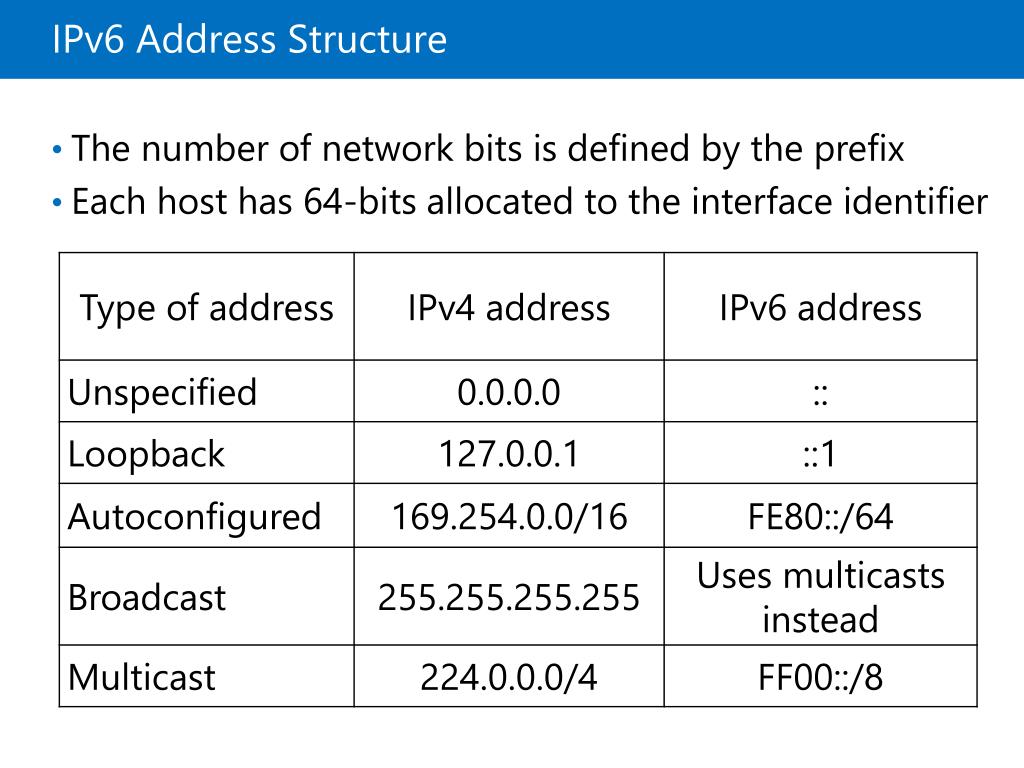

IPv6 Address Structure

  • The number of network bits is defined by the prefix

  • Each host has 64-bits allocated to the interface identifier


Global unicast addresses

Global Unicast Addresses

48 bits

64 bits

16 bits

45 bits

001

Global Routing

Prefix

Subnet

ID

Interface ID

  • Are routable on the Ipv6 Internet

  • Allocate 16 bits for internal subnetting

  • Begin with 2 or 3 (2000::/3)

Prefix assigned to top-level ISPs

Subnet bits for organizations

Prefix managedby IANA

Client interface ID


Unique local unicast addresses

Unique Local Unicast Addresses

  • Are equivalent to IPv4 private addresses

  • Require the organization ID to be randomly generated

  • Allocates 16 bits for internal subnetting

64

bits

16

bits

40

bits

8

bits

11111101

Interface ID

Subnet ID

Organization ID

FD00::/8


Link local unicast addresses

Link-Local Unicast Addresses

  • Are automatically generated on all IPv6 hosts

  • Are similar to IPv4 APIPA addresses

  • Are sometimes used in place of broadcast messages

  • Include a zone ID that identifies the interface

  • Examples:

  • fe80::2b0:d0ff:fee9:4143%3

  • fe80::94bd:21cf:4080:e612%2

64 bits

54 bits

10 bits

1111 1110 10

000 . . . 000

Interface ID

FE80::/8


Autoconfiguring ipv6 addresses

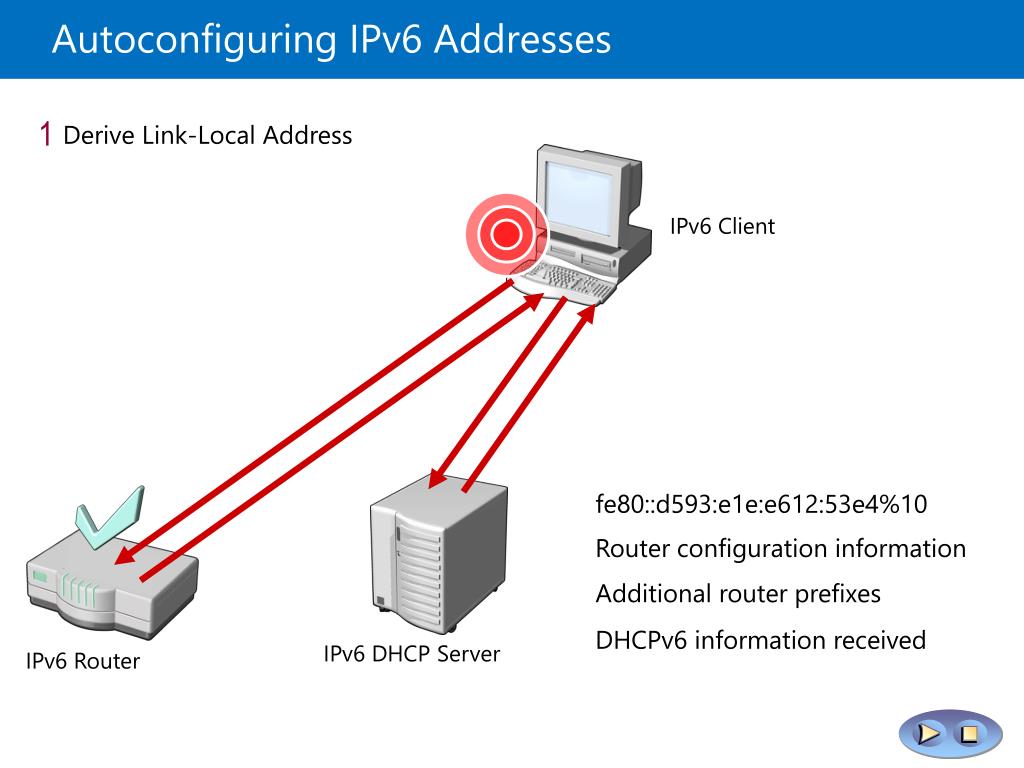

Autoconfiguring IPv6 Addresses

Check for address conflicts using neighbor solicitation

Check for a router on the network

2

3

Derive Link-Local Address

If Managed or Other flag set, check DHCPv6

1

Autoconfigured IP Timeline

Add prefixes

6

5

Valid

Check the router for prefixes

4

Time

Preferred Lifetime

Valid Lifetime

Invalid

Deprecated

Preferred

Tentative

IPv6 Client

fe80::d593:e1e:e612:53e4%10

Router configuration information

Additional router prefixes

DHCPv6 information received

IPv6 DHCP Server

IPv6 Router


Demonstration configuring ipv6 client settings

Demonstration: Configuring IPv6 Client Settings

In this demonstration, you will see how to:

  • View IPv6 configuration by using IPconfig

  • Configure IPv6 on a domain controller and a server

  • Verify IPv6 communication is functional


Lesson 3 coexistence with ipv4

Lesson 3: Coexistence with IPv4

  • What Are Node Types?IPv4 and IPv6 CoexistenceDemonstration: Configuring DNS to Support IPv6What Is IPv6 Over IPv4 Tunneling?


What are node types

What Are Node Types?

IPv6-Only Node

IPv6 Network

IPv4/IPv6 Node

IPv4-Only Node

IPv4 Network


Ipv4 and ipv6 coexistence

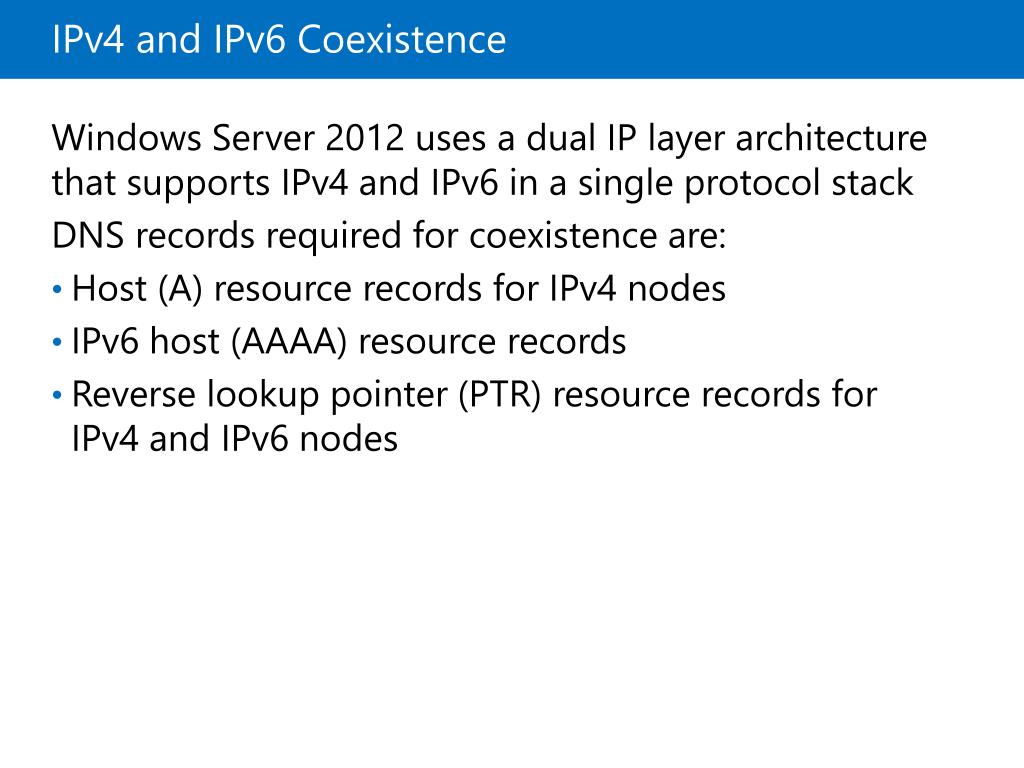

IPv4 and IPv6 Coexistence

Windows Server 2012 uses a dual IP layer architecture that supports IPv4 and IPv6 in a single protocol stack

DNS records required for coexistence are:

  • Host (A) resource records for IPv4 nodes

  • IPv6 host (AAAA) resource records

  • Reverse lookup pointer (PTR) resource records for IPv4 and IPv6 nodes


Demonstration configuring dns to support ipv6

Demonstration: Configuring DNS to Support IPv6

In this demonstration, you will see how to:

  • Configure an IPv6 host (AAAA) resource record for an IPv6 address

  • Verify name resolution for an IPv6 host (AAAA) resource record


What is ipv6 over ipv4 tunneling

What Is IPv6 Over IPv4 Tunneling?

IPv6 Packet

IPv6 Packet

IPv6 header

Extension headers

Upper layer protocol data unit

IPv4 header

IPv6 header

Extension headers

Upper layer protocol data unit

IPv6 over IPv4 tunneling allows IPv6 to communicate through an IPv4 network

IPv4 Packet

IPv6

IPv4

IPv4 Packet


Lesson 4 ipv6 transition technologies

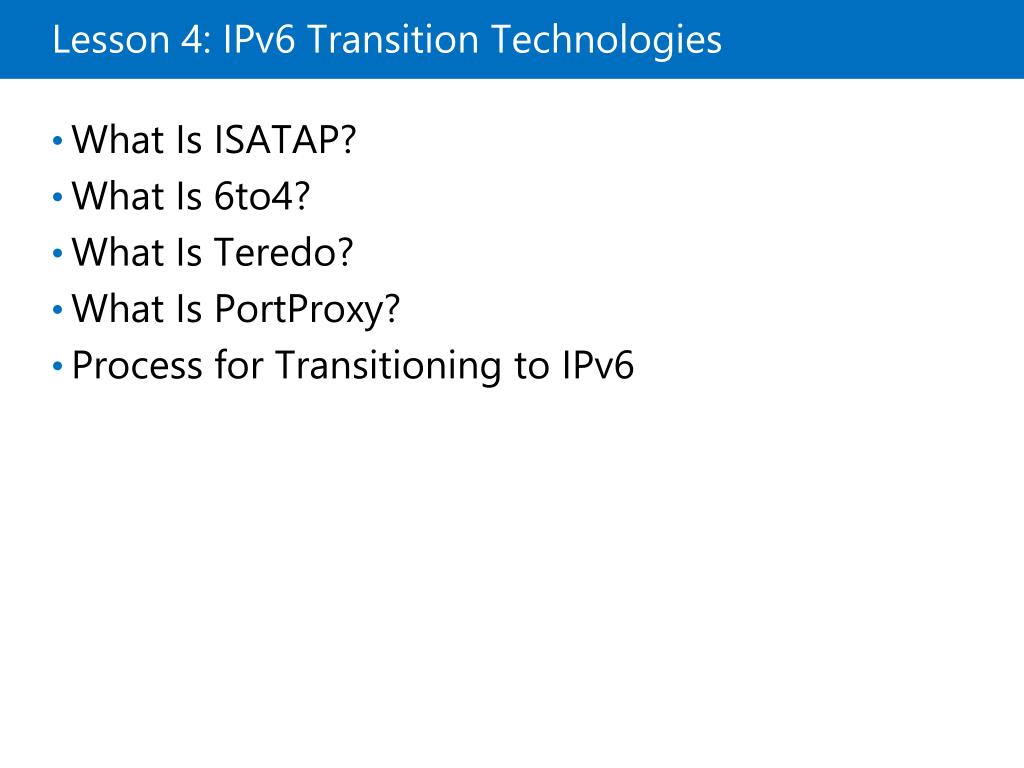

Lesson 4: IPv6 Transition Technologies

  • What Is ISATAP?What Is 6to4?What Is Teredo?What Is PortProxy?Process for Transitioning to IPv6


What is isatap

What Is ISATAP?

  • Allows IPv6 communication over an IPv4 intranet

  • Can be enabled by configuring an ISATAP host record

  • Connects all nodes to a single IPv6 network

  • Uses the IPv4 address as part of the IPv6 address

    • Private address: FD00::0:5EFE:192.168.137.133

    • Public address: 2001:db8::200:5EFE:131.107.137.133

ISATAP Host

ISATAP Router

IPv4-onlyintranet

IPv6-capablenetwork

ISATAP Host


What is 6to4

What Is 6to4?

  • Provides IPv6 connectivity over the IPv4 Internet

  • Works between sites or from host to site

  • Is not suitable for scenarios using NAT

  • Uses the following network address format:

    • 2002:WWXX:YYZZ:Subnet_ID::/64

6to4 router

IPv6/IPv4

  • To enable Windows Server 2012 as a 6to4 router:

  • Enable ICS

  • Use Windows PowerShell

IPv6/IPv4

IPv4 Internet

6to4 router

IPv6/IPv4

IPv6/IPv4


What is teredo

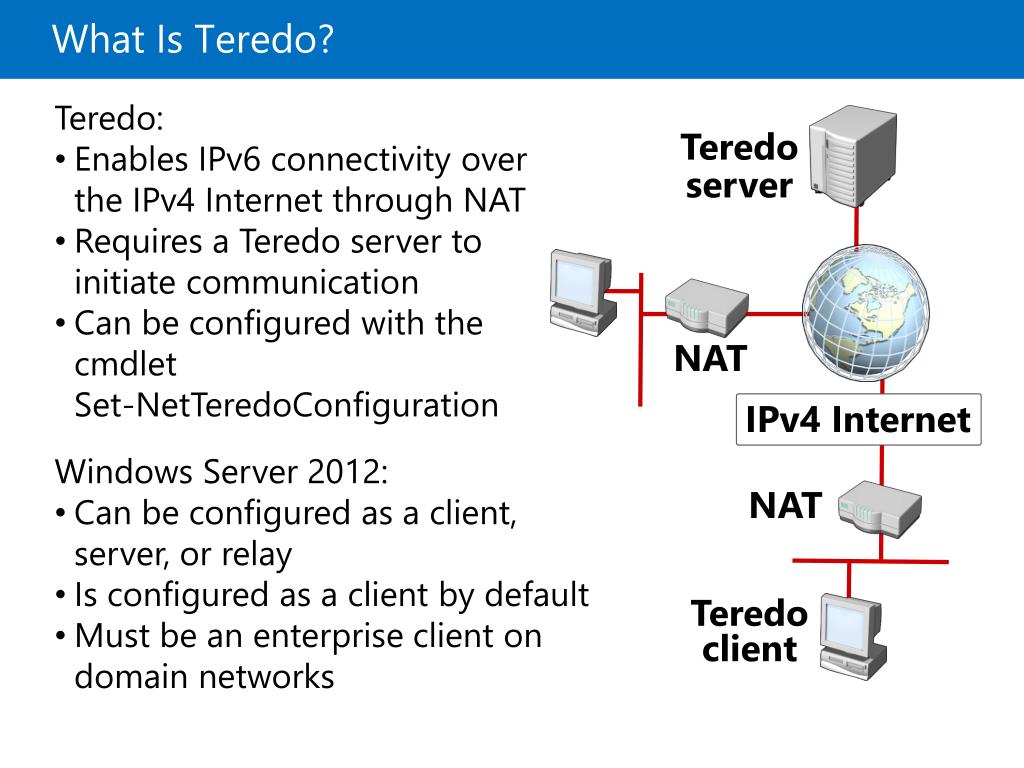

What Is Teredo?

  • Teredo:

  • Enables IPv6 connectivity over the IPv4 Internet through NAT

  • Requires a Teredo server to initiate communication

  • Can be configured with the cmdlet Set-NetTeredoConfiguration

Teredo server

NAT

IPv4 Internet

  • Windows Server 2012:

  • Can be configured as a client, server, or relay

  • Is configured as a client by default

  • Must be an enterprise client on domain networks

NAT

Teredo client


What is portproxy

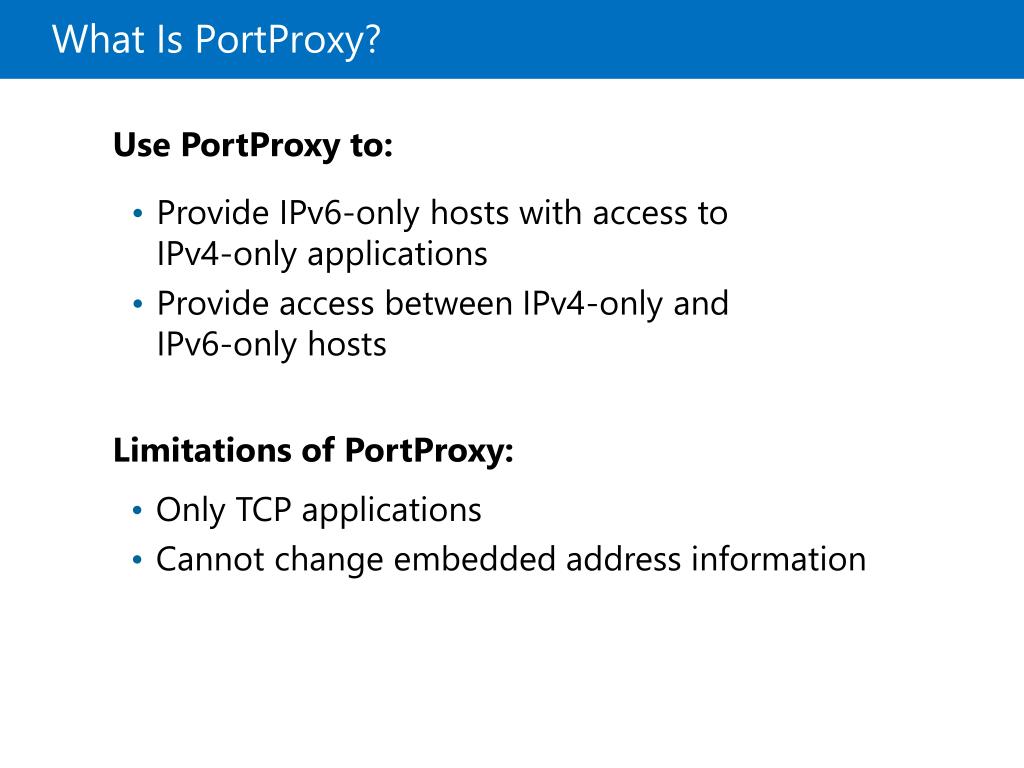

What Is PortProxy?

Use PortProxy to:

  • Provide IPv6-only hosts with access to IPv4-only applications

  • Provide access between IPv4-only and IPv6-only hosts

Limitations of PortProxy:

  • Only TCP applications

  • Cannot change embedded address information


Process for transitioning to ipv6

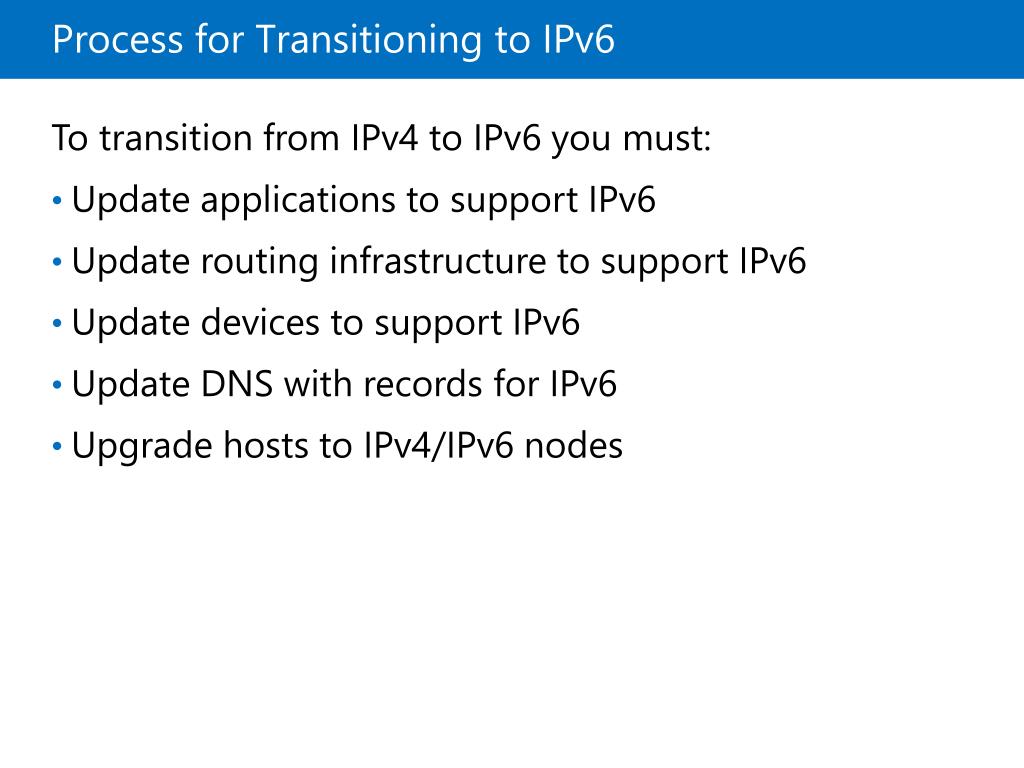

Process for Transitioning to IPv6

To transition from IPv4 to IPv6 you must:

  • Update applications to support IPv6

  • Update routing infrastructure to support IPv6

  • Update devices to support IPv6

  • Update DNS with records for IPv6

  • Upgrade hosts to IPv4/IPv6 nodes


Lab implementing ipv6

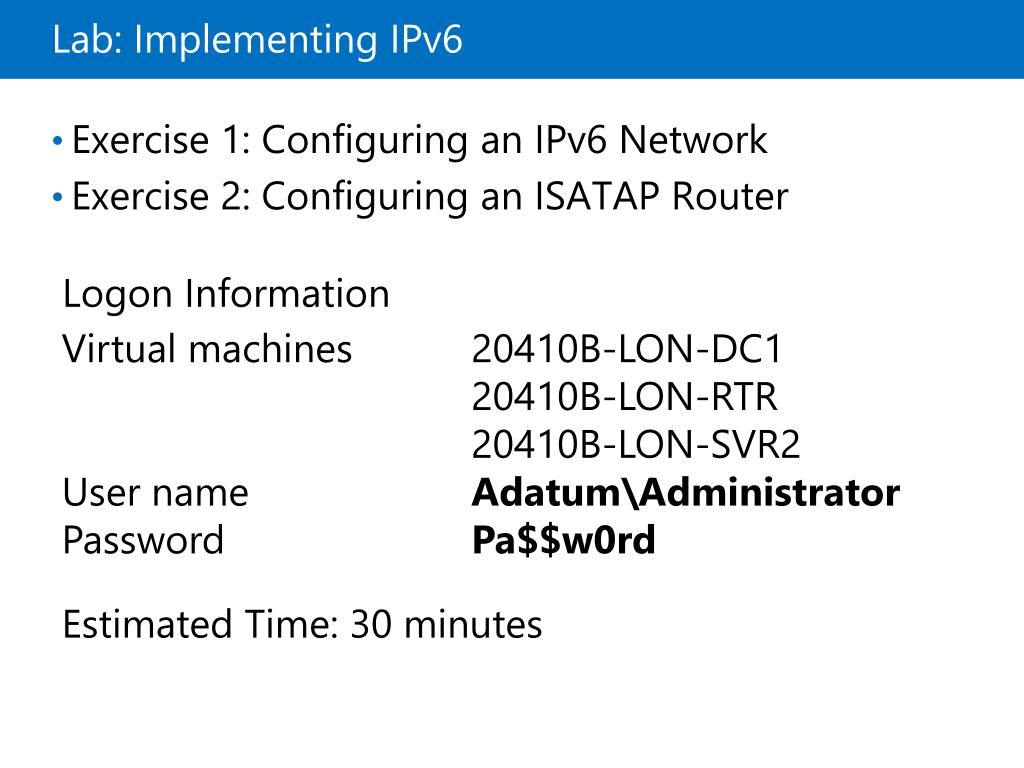

Lab: Implementing IPv6

  • Exercise 1: Configuring an IPv6 NetworkExercise 2: Configuring an ISATAP Router

Virtual machines20410B‑LON‑DC1

20410B‑LON‑RTR

20410B‑LON‑SVR2

User nameAdatum\Administrator

PasswordPa$$w0rd

Logon Information

Estimated Time: 30 minutes


Lab scenario

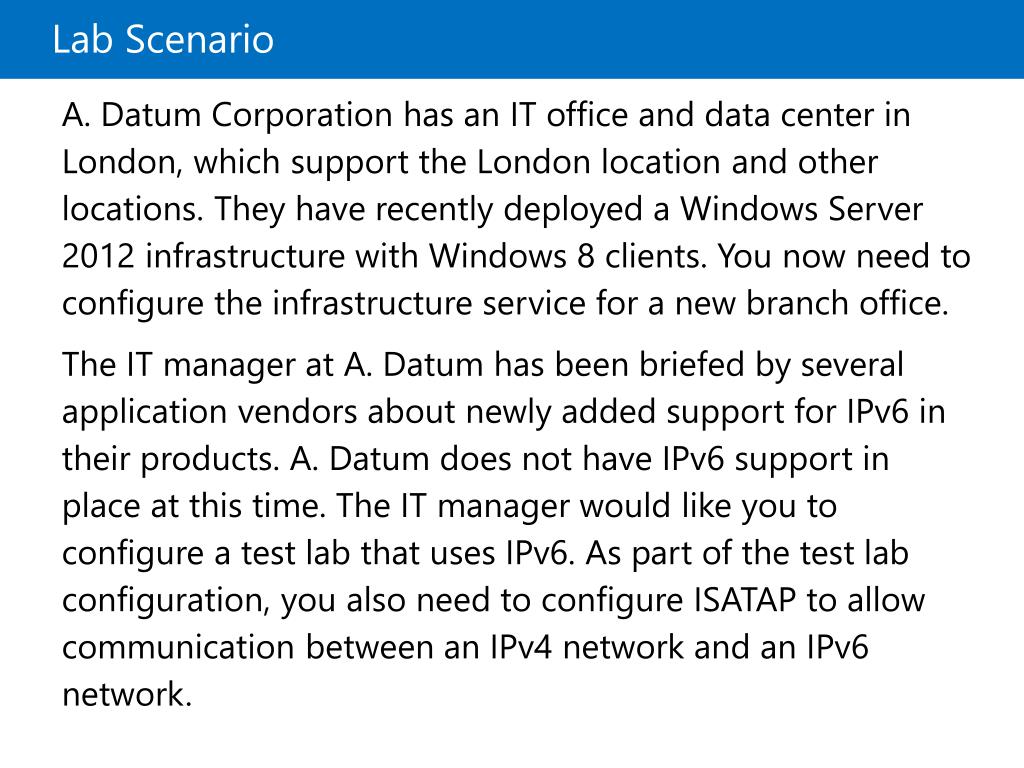

Lab Scenario

A. Datum Corporation has an IT office and data center in London, which support the London location and other locations. They have recently deployed a Windows Server 2012 infrastructure with Windows 8 clients. You now need to configure the infrastructure service for a new branch office.

The IT manager at A. Datum has been briefed by several application vendors about newly added support for IPv6 in their products. A. Datum does not have IPv6 support in place at this time. The IT manager would like you to configure a test lab that uses IPv6. As part of the test lab configuration, you also need to configure ISATAP to allow communication between an IPv4 network and an IPv6 network.


Lab review

Lab Review

  • Did you configure IPv6 statically or dynamically in this lab?Why did you not need to configure LON-DC1 with the IPv4 address of the ISATAP router?


Module review and takeaways

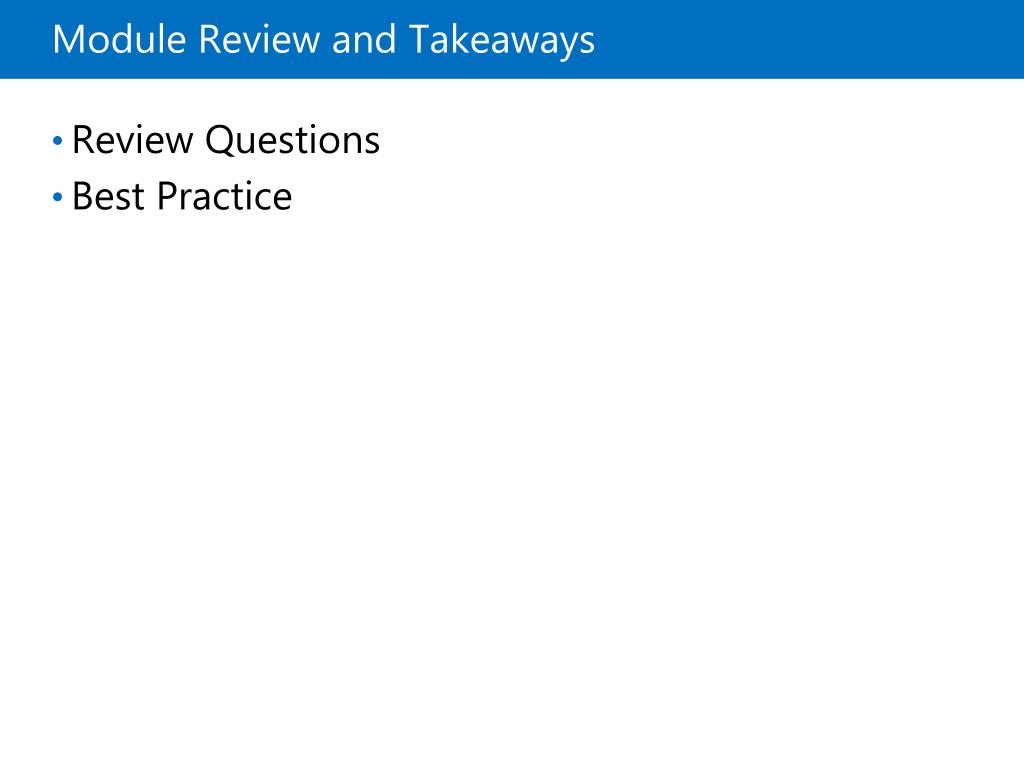

Module Review and Takeaways

  • Review QuestionsBest Practice
