Presentation Transcript
slide2

Sole Agent

Informatics Pulse

Ibrahim A. ALHawawi (CEO)

Tele: (+966505470505) – (+966553595000)

Informatics Pulse has the right of the sole agent in Saudi Arabia and neighboring Middle East contries regarding Kyce\'s construction technologies.If you have any questions about Kyce\'s construction technologies, please contact Informatics Pulseand inquire about them.

slide4

KunYang Construction & Engineering

Friendly Environmental Company Leading New Technology

Obtained Inno-Biz Certification

Designated as a Venture Business

Authorized as a Research Institute

Obtained ISO9001 / ISO14001 Certification

Obtained Certificate Quality Innovation Excellent Company

Obtained A Certificate of Business Transparency

Awarded in 2002/2003 Korea Patented Technology Contest

Selected as Good Technology of Small and Medium Enterprise Innovation Contest

Tel: +82-42-472-0546

Fax: +82-42-472-0549

http:///www.kyce.co.kr

Email: [email protected]

slide5

CONTENTS

1. Outline of Semi-shield method & Micro-shield / Micro-tunnelling

2. Characteristics of Semi-shield method & Micro-shield / Micro-tunnelling

3. Types of Semi-shield method & Micro-shield / Micro-tunnelling

3-1. Mud-injection earth pressure balance type

3-2. Water-injection earth pressure balance type

4. Construction Work Procedure of Semi-shield method & Micro-shield / Micro-tunnelling

5. Outline of HDD method

6. Characteristics of HDD method

7. Construction Work Procedure of HDD method

8. Construction Case (Micro-shield / Micro-tunnelling)

slide6

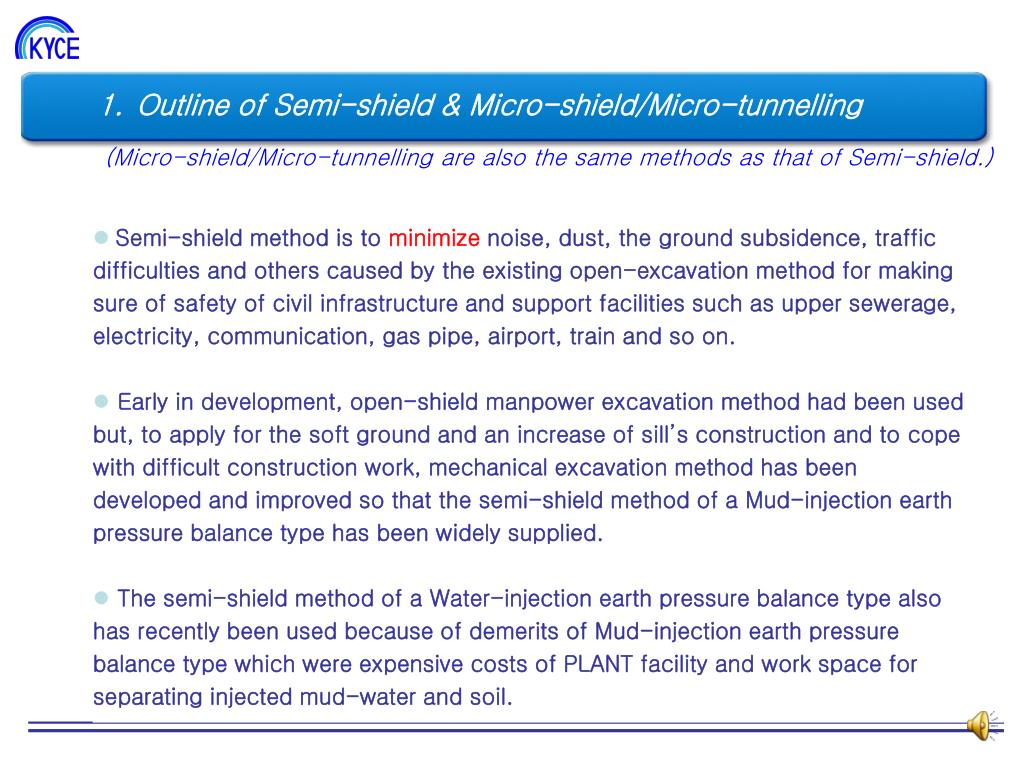

Outline of Semi-shield & Micro-shield/Micro-tunnelling

조 직 도

(Micro-shield/Micro-tunnelling are also the same methods as that of Semi-shield.)

  • Semi-shield method is to minimize noise, dust, the ground subsidence, traffic difficulties and others caused by the existing open-excavation method for making sure of safety of civil infrastructure and support facilities such as upper sewerage, electricity, communication, gas pipe, airport, train and so on.
  • Early in development, open-shield manpower excavation method had been used but, to apply for the soft ground and an increase of sill’s construction and to cope with difficult construction work, mechanical excavation method has been developed and improved so that the semi-shield method of a Mud-injection earth pressure balance type has been widely supplied.
  • The semi-shield method of a Water-injection earth pressure balance type also has recently been used because of demerits of Mud-injection earth pressure balance type which were expensive costs of PLANT facility and work space for separating injected mud-water and soil.
slide7

2. Characteristics of Semi-shield method & Micro-shield/Micro-tunnelling

(Micro-shield/Micro-tunnelling are also the same methods as that of Semi-shield.)

  • Long distance propulsion can be applied without equipments of middle bases.
  • Problems with the press of a propulsion pipe created in composite soil can be

solved by automatic injection equipment of lublicator for soil.

  • Construction work of long distance and tunnel curve can be precisely

carried out with automatic measurement equipment.

  • Minimize the ground displacement
  • Minimize traffic difficulties and environmental damage
  • Applicable to various kinds of soil
  • Construction period can be shortened with high propulsion speed.
  • Relatively small sizes of starting work shaft and arrival work shaft
slide8

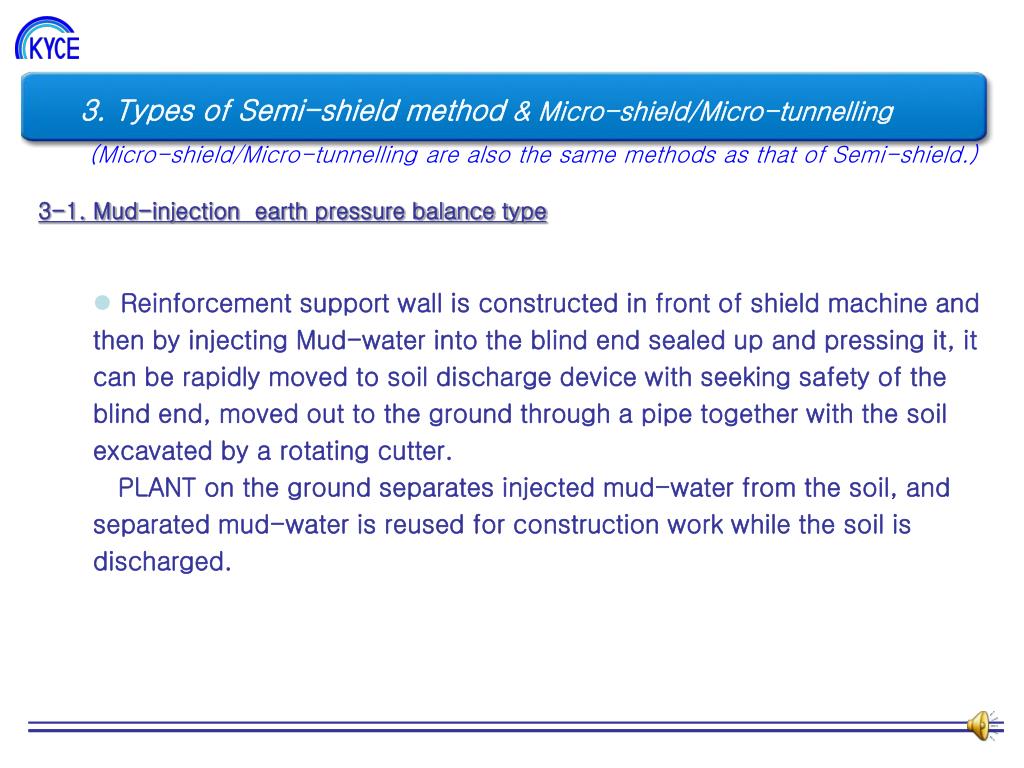

3. Types of Semi-shield method & Micro-shield/Micro-tunnelling

조 직 도

(Micro-shield/Micro-tunnelling are also the same methods as that of Semi-shield.)

3-1. Mud-injection earth pressure balance type

  • Reinforcement support wall is constructed in front of shield machine and then by injecting Mud-water into the blind end sealed up and pressing it, it can be rapidly moved to soil discharge device with seeking safety of the blind end, moved out to the ground through a pipe together with the soil excavated by a rotating cutter.

PLANT on the ground separates injected mud-water from the soil, and separated mud-water is reused for construction work while the soil is discharged.

slide9

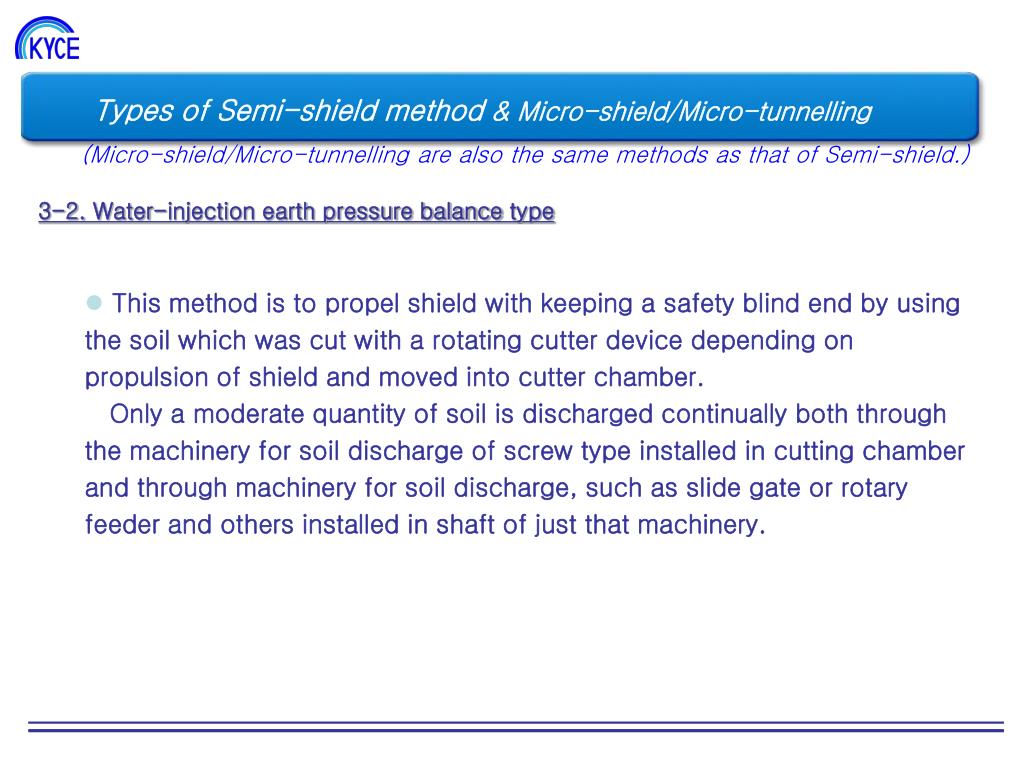

Types of Semi-shield method & Micro-shield/Micro-tunnelling

조 직 도

(Micro-shield/Micro-tunnelling are also the same methods as that of Semi-shield.)

3-2. Water-injection earth pressure balance type

  • This method is to propel shield with keeping a safety blind end by using the soil which was cut with a rotating cutter device depending on propulsion of shield and moved into cutter chamber.

Only a moderate quantity of soil is discharged continually both through the machinery for soil discharge of screw type installed in cutting chamber and through machinery for soil discharge, such as slide gate or rotary feeder and others installed in shaft of just that machinery.

slide10

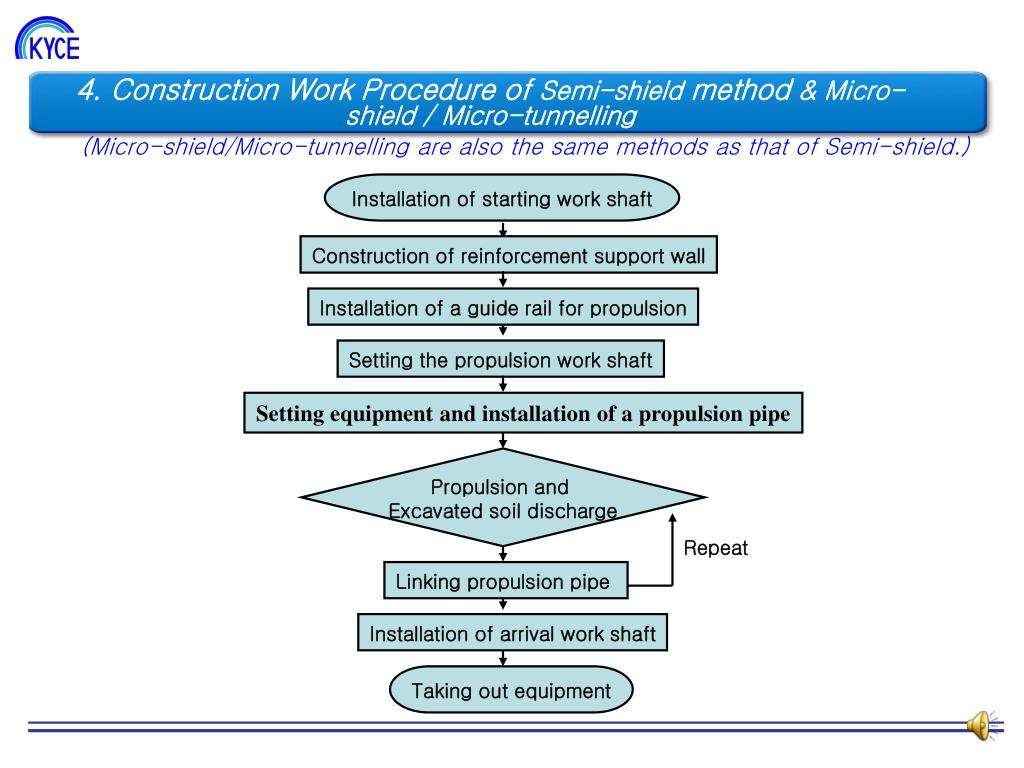

4. Construction Work Procedure of Semi-shield method & Micro-shield / Micro-tunnelling

조 직 도

(Micro-shield/Micro-tunnelling are also the same methods as that of Semi-shield.)

Installation of starting work shaft

Construction of reinforcement support wall

Installation of a guide rail for propulsion

Setting the propulsion work shaft

Setting equipment and installation of a propulsion pipe

Propulsion and

Excavated soil discharge

Repeat

Linking propulsion pipe

Installation of arrival work shaft

Taking out equipment

slide11

5. Outline of HDD method

조 직 도

  • As a kind of horizontal propulsion methods, this is the method of tunnelling

through the ground surface-to-ground surface without vertical work shaft.

  • After fixing Bit on the end of pipe, the ground is punched and at this time, high pressure water is sprayed into the pipe. The service water used at this moment is to compound materials of bentonite or gel component.
slide12

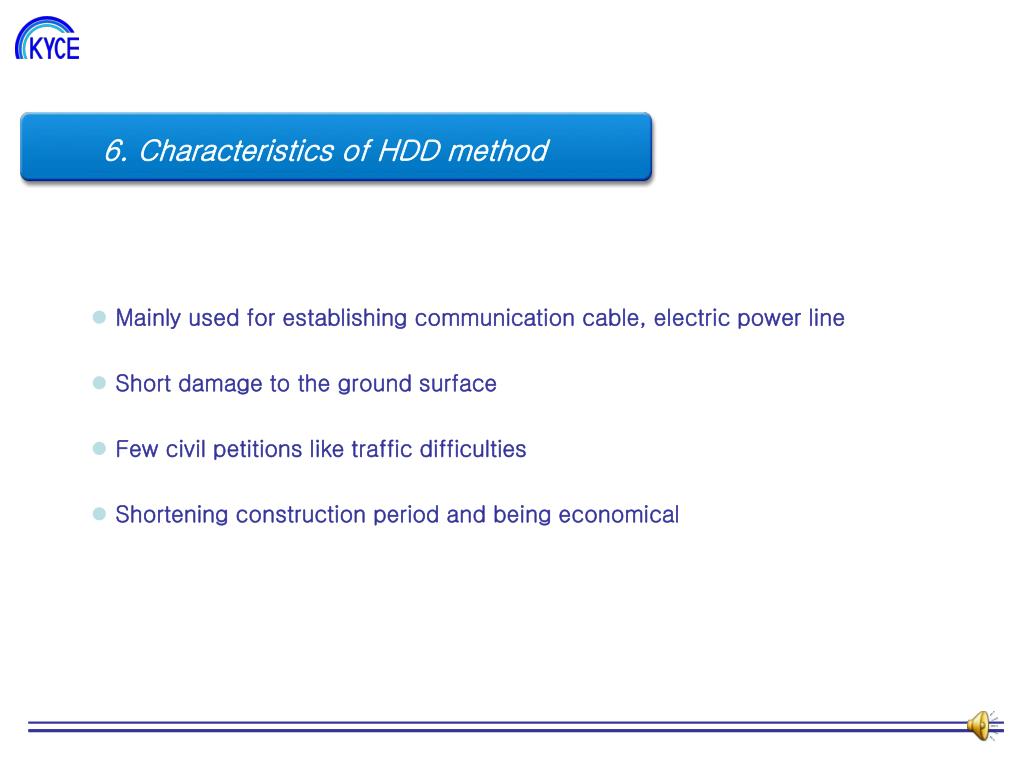

6. Characteristics of HDD method

조 직 도

  • Mainly used for establishing communication cable, electric power line
  • Short damage to the ground surface
  • Few civil petitions like traffic difficulties
  • Shortening construction period and being economical
slide13

7. Construction Work Procedure of HDD method

조 직 도

Checking out buried underground materials in punching section

Preparing for equipment and construction materials

Shooting

Input drill head-> Control jetting pressure-> Checking out

head position with deep locator-> Arrive at drill head target pit

Reaming

Remove drill head-> Attach reamer

-> Fix Swivel pipe/cable with grip-> Control jetting pressure

Completion

Stop Jetting-> Remove swivel and grip from Pipe

-> Seal up the shift of pipe/cable with end cap

Arrangement of construction site and withdrawal

slide14

8. Construction Case (Micro-shield / Micro-tunnelling)

Project D300. General soil L=50.0M

Installation of laser measurement machine for direction adjustment

Installation of a guide rail for propulsion

slide15

Construction Case (Micro-shield / Micro-tunnelling)

Project D300. General soil L=50.0M

Initial work of a propulsion leading machine

slide16

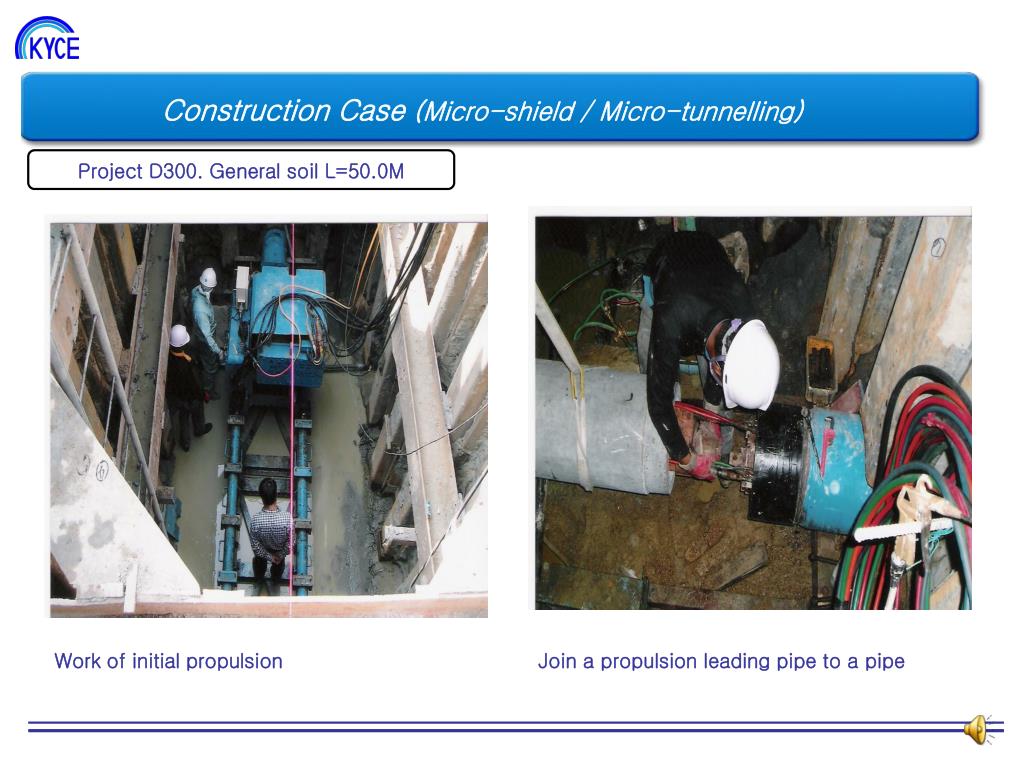

Construction Case (Micro-shield / Micro-tunnelling)

Project D300. General soil L=50.0M

Work of initial propulsion

Join a propulsion leading pipe to a pipe

slide17

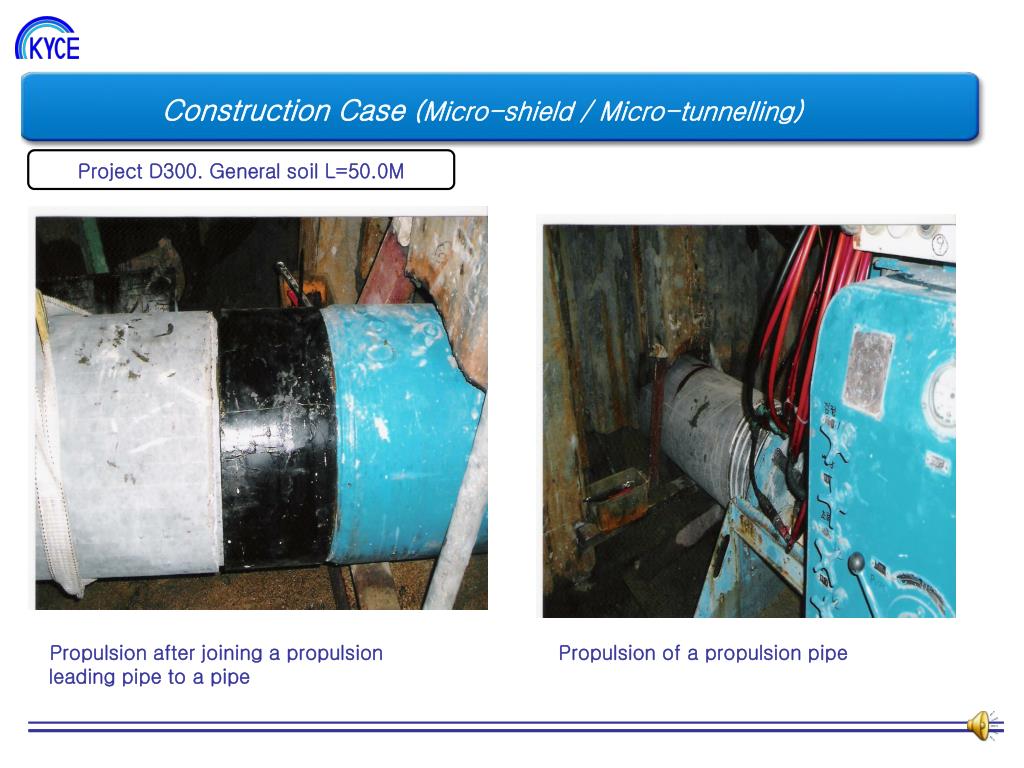

Construction Case (Micro-shield / Micro-tunnelling)

Project D300. General soil L=50.0M

Propulsion after joining a propulsion leading pipe to a pipe

Propulsion of a propulsion pipe

slide18

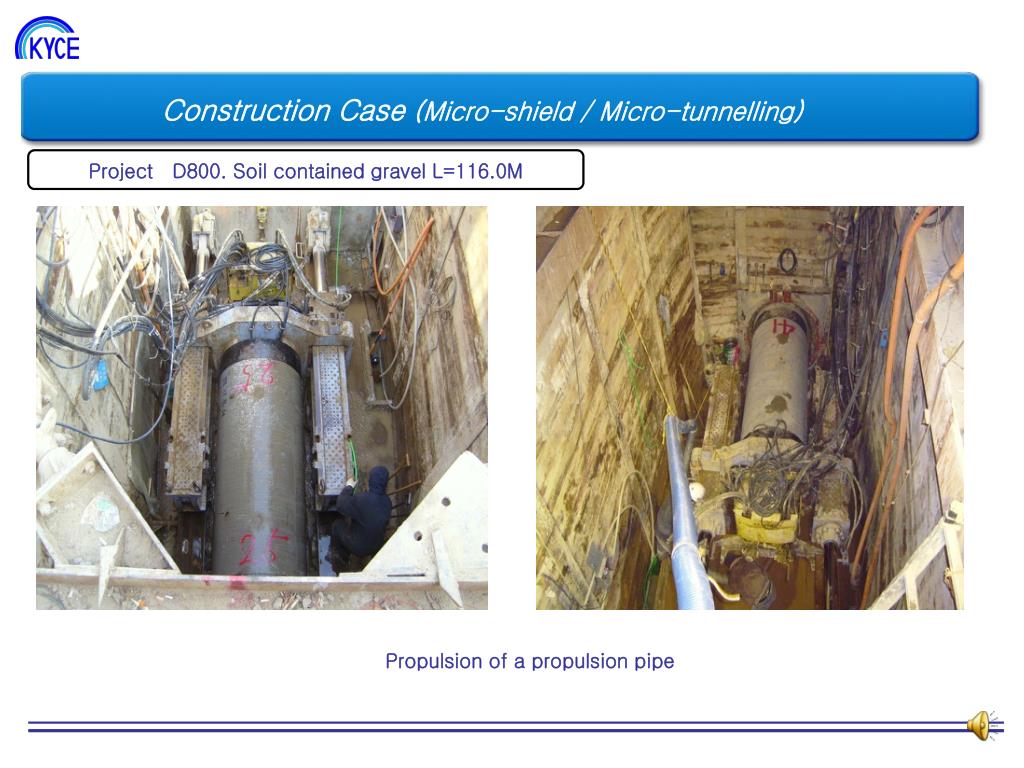

Construction Case (Micro-shield / Micro-tunnelling)

Project D800. Soil contained gravel L=116.0M

Propulsion of a propulsion pipe

slide19

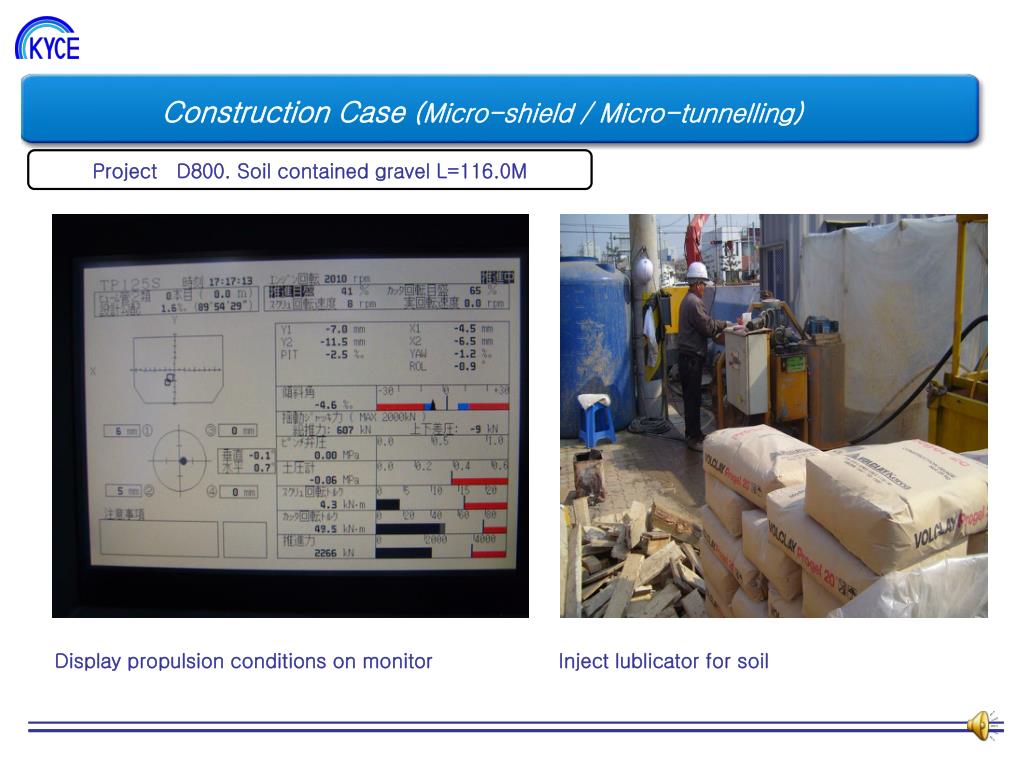

Construction Case (Micro-shield / Micro-tunnelling)

Project D800. Soil contained gravel L=116.0M

Display propulsion conditions on monitor

Inject lublicator for soil

slide20

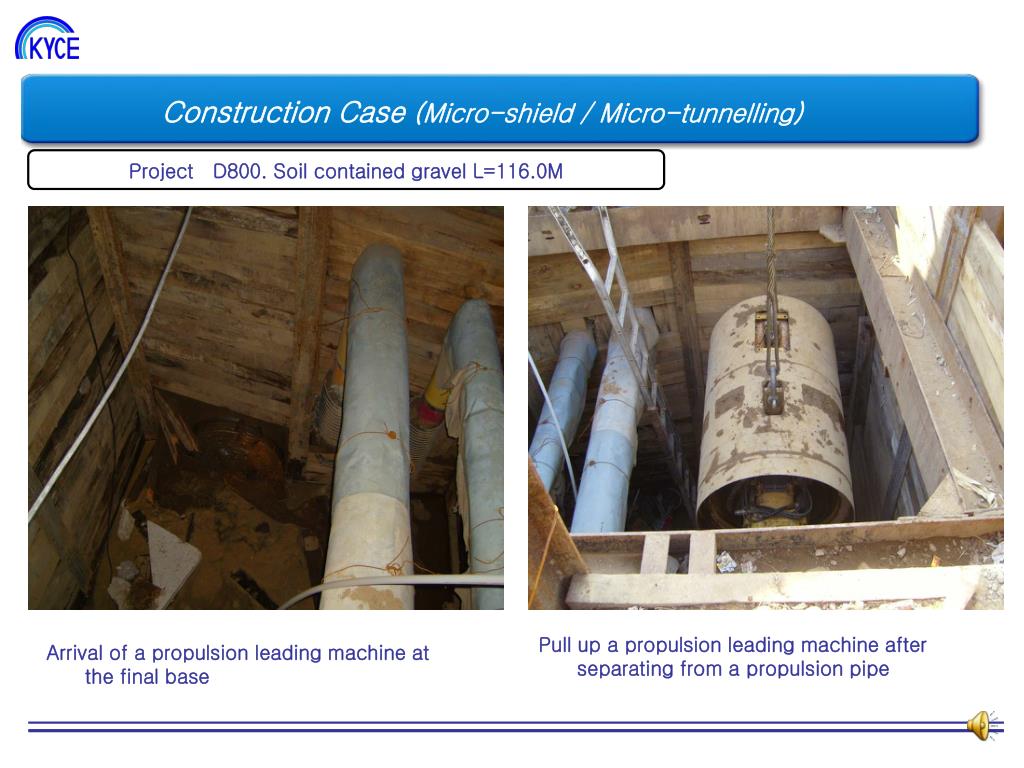

Construction Case (Micro-shield / Micro-tunnelling)

Project D800. Soil contained gravel L=116.0M

Pull up a propulsion leading machine after separating from a propulsion pipe

Arrival of a propulsion leading machine at the final base

slide21

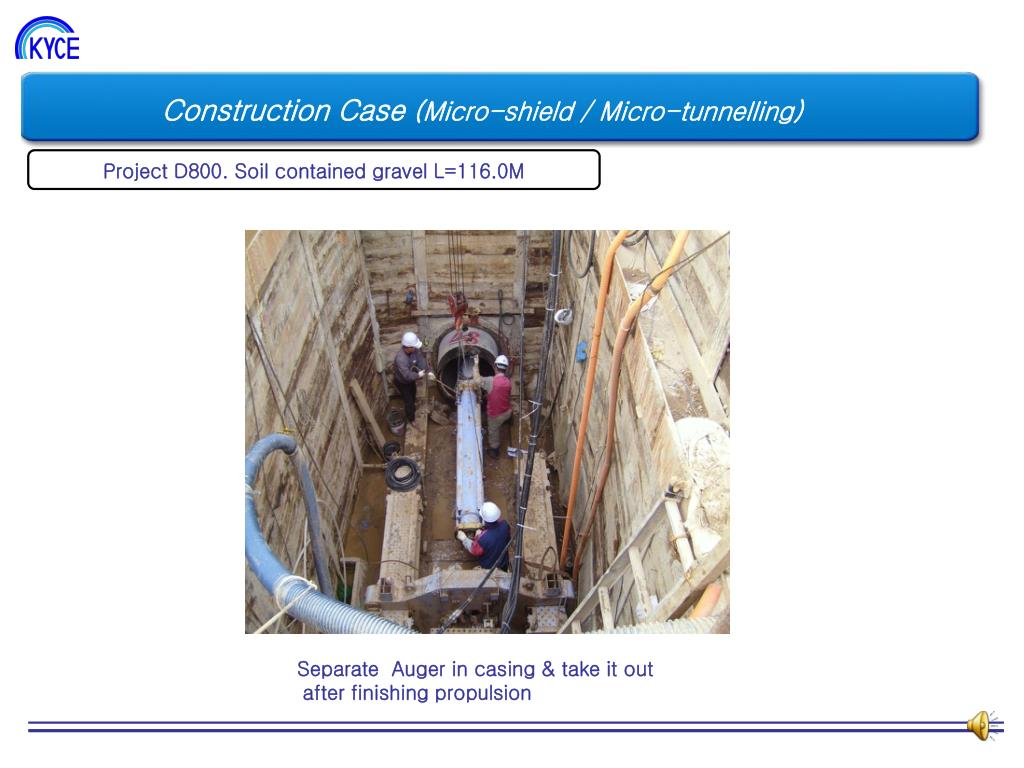

Construction Case (Micro-shield / Micro-tunnelling)

Project D800. Soil contained gravel L=116.0M

Separate Auger in casing & take it out after finishing propulsion

slide22

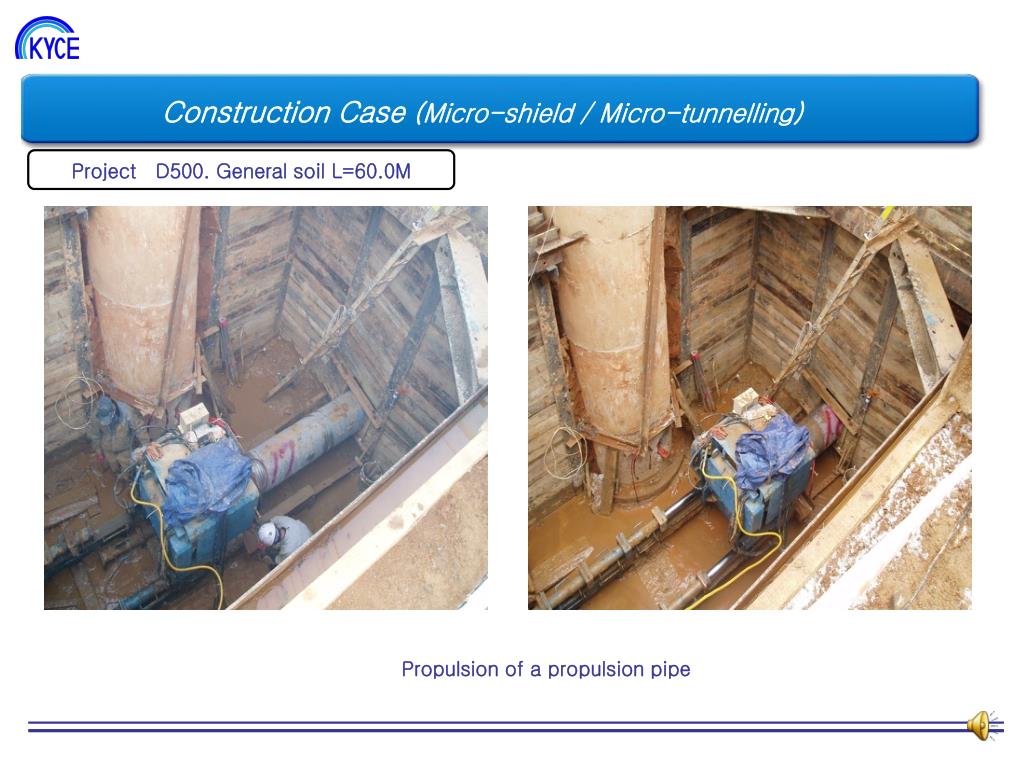

Construction Case (Micro-shield / Micro-tunnelling)

Project D500. General soil L=60.0M

Propulsion of a propulsion pipe

slide23

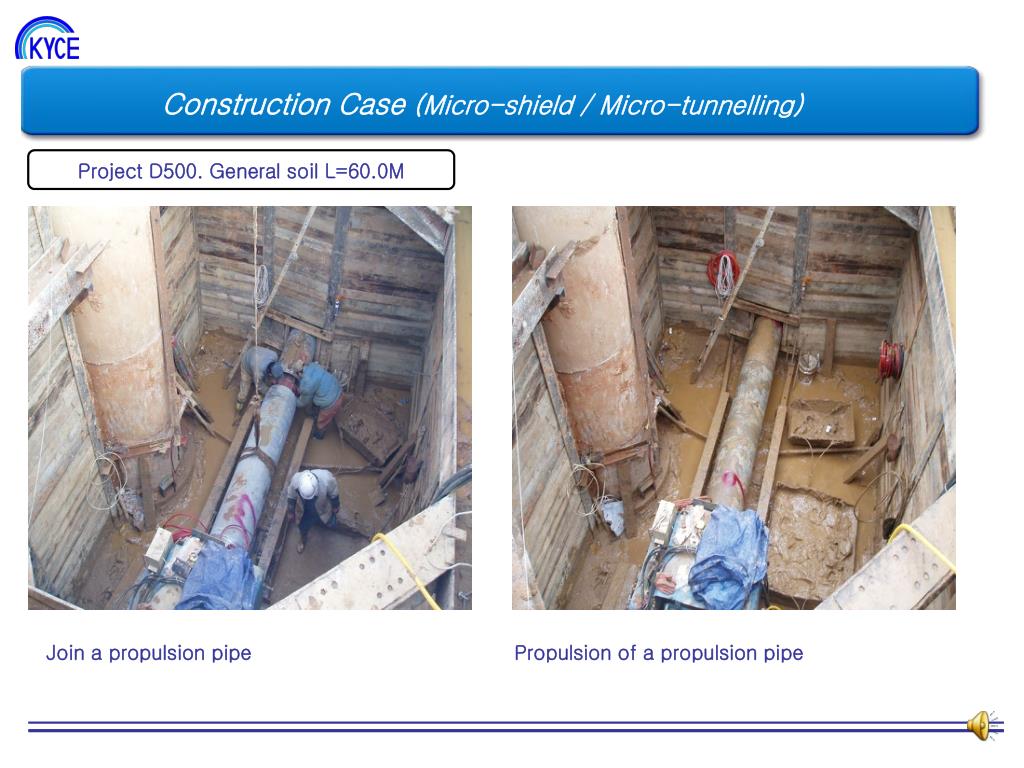

Construction Case (Micro-shield / Micro-tunnelling)

Project D500. General soil L=60.0M

Join a propulsion pipe

Propulsion of a propulsion pipe

slide24

Construction Case (Micro-shield / Micro-tunnelling)

Project D500. General soil L=60.0M

Arrival of a propulsion leading machine at the final base

Pull up a propulsion leading machine after separating from a propulsion pipe

slide25

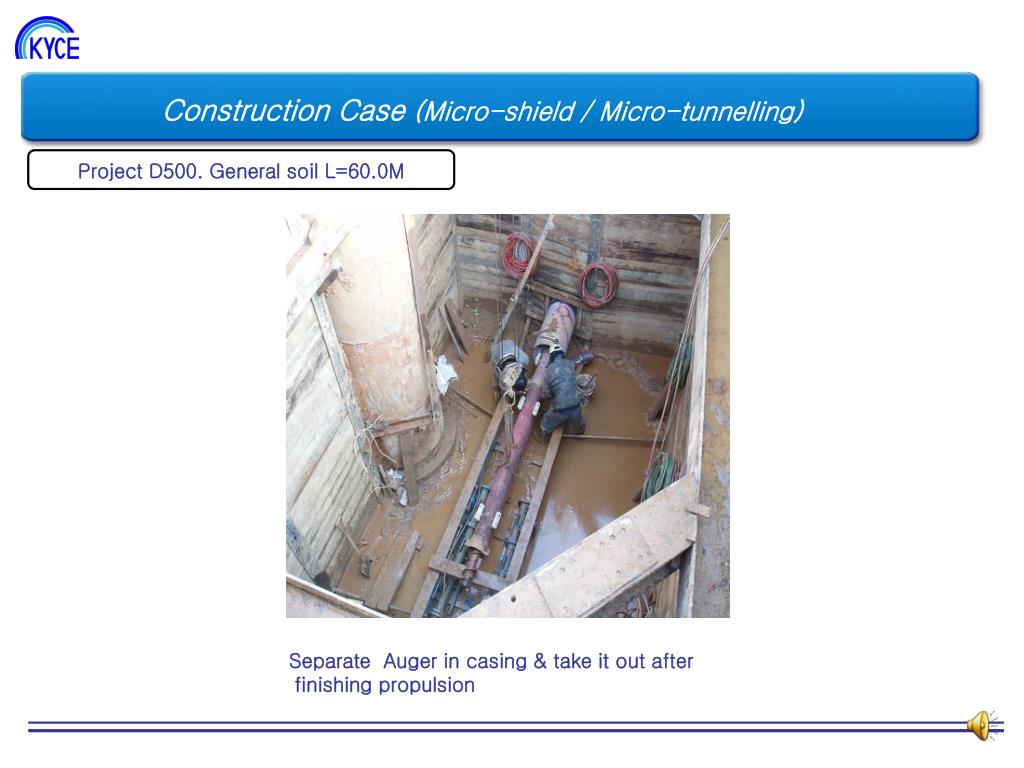

Construction Case (Micro-shield / Micro-tunnelling)

Project D500. General soil L=60.0M

Separate Auger in casing & take it out after finishing propulsion
