VE Scan of Western Canada Projects – The Flexibility of VE for Decision Making

2012 CSVA Conference


Outline flexibility of ve for decision making

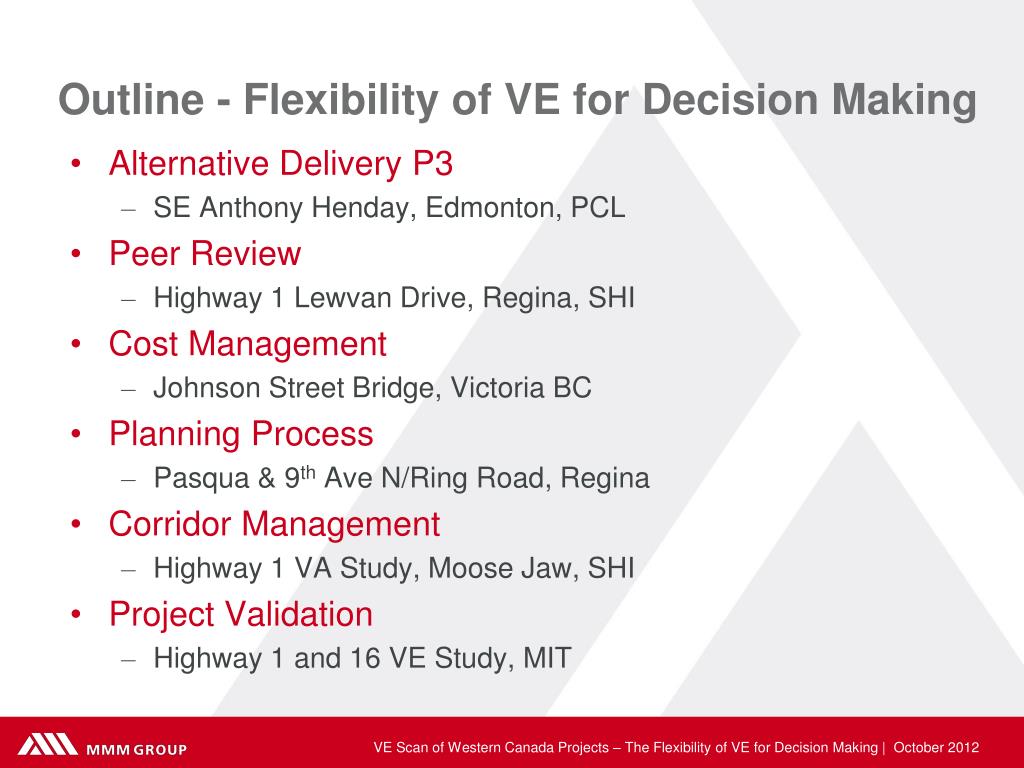

Outline - for Decision MakingFlexibility of VE for Decision Making

  • Alternative Delivery P3

    • SE Anthony Henday, Edmonton, PCL

  • Peer Review

    • Highway 1 Lewvan Drive, Regina, SHI

  • Cost Management

    • Johnson Street Bridge, Victoria BC

  • Planning Process

    • Pasqua & 9th Ave N/Ring Road, Regina

  • Corridor Management

    • Highway 1 VA Study, Moose Jaw, SHI

  • Project Validation

    • Highway 1 and 16 VE Study, MIT


Alternative delivery p3 se anthony henday edmonton pcl
Alternative Delivery P3 for Decision MakingSE Anthony Henday, Edmonton – PCL

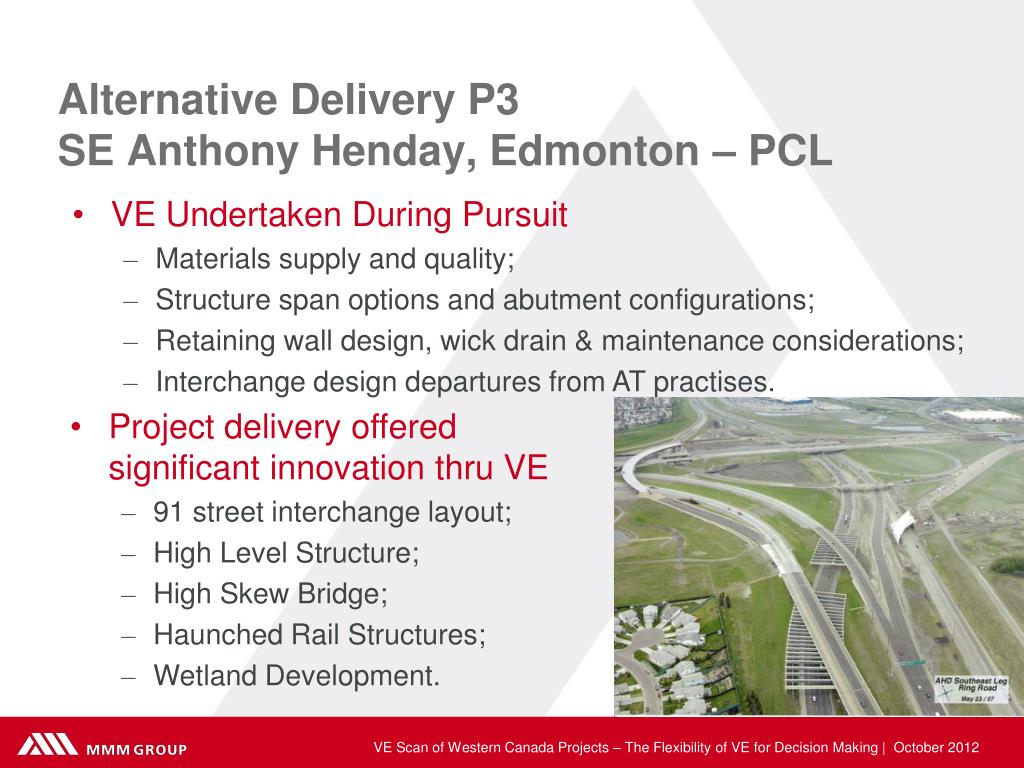

  • VE Undertaken During Pursuit

    • Materials supply and quality;

    • Structure span options and abutment configurations;

    • Retaining wall design, wick drain & maintenance considerations;

    • Interchange design departures from AT practises.

  • Project delivery offered significant innovation thru VE

    • 91 street interchange layout;

    • High Level Structure;

    • High Skew Bridge;

    • Haunched Rail Structures;

    • Wetland Development.


Alternative delivery p3 se anthony henday edmonton pcl 91 street interchange
Alternative Delivery P3 for Decision MakingSE Anthony Henday, Edmonton – PCL 91 Street Interchange

Modification to interchange layout and avoidance of utilities


Alternative delivery p3 se anthony henday edmonton pcl high level structure

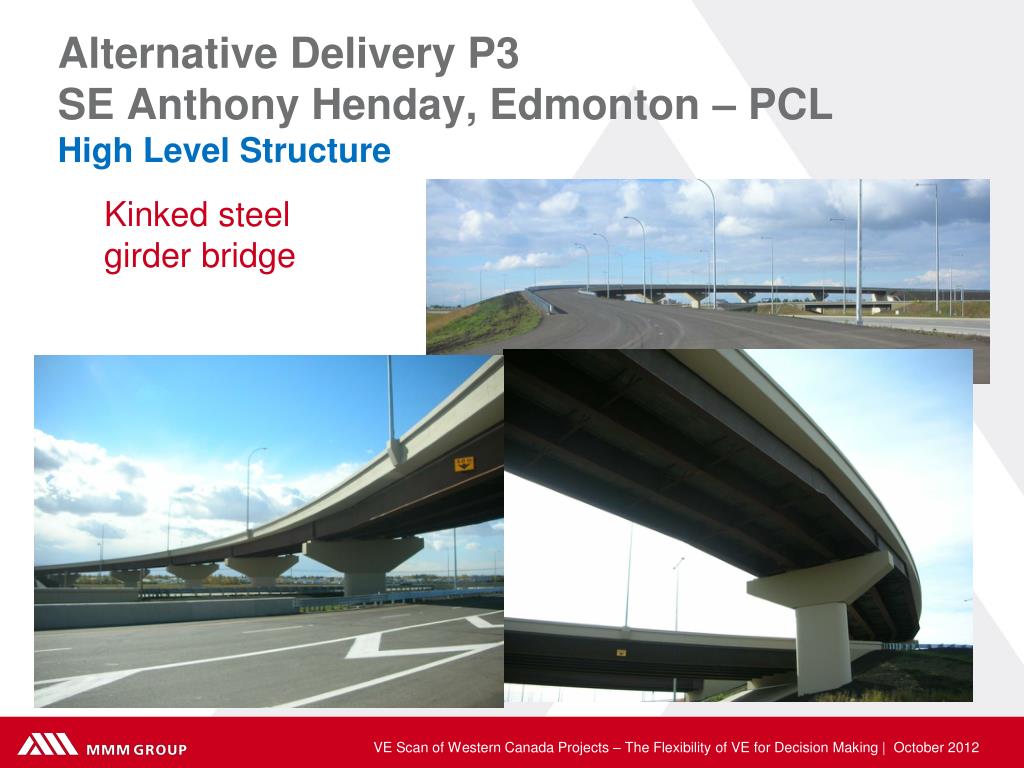

Alternative Delivery P3 for Decision MakingSE Anthony Henday, Edmonton – PCL High Level Structure

Kinked steel girder bridge


Alternative delivery p3 se anthony henday edmonton p3 high skew bridge
Alternative Delivery P3 for Decision MakingSE Anthony Henday, Edmonton – P3 High Skew Bridge

Reduced foundation & materials in structure

Traffic accommodation to accommodate cast in place construction


Alternative delivery p3 se anthony henday edmonton p3 haunched rail structures
Alternative Delivery P3 for Decision MakingSE Anthony Henday, Edmonton – P3 Haunched Rail Structures

Haunched girders over railway for vertical clearance

Reconsideration of mid span MSE wall


Alternative delivery p3 se anthony henday edmonton p3 wetland development

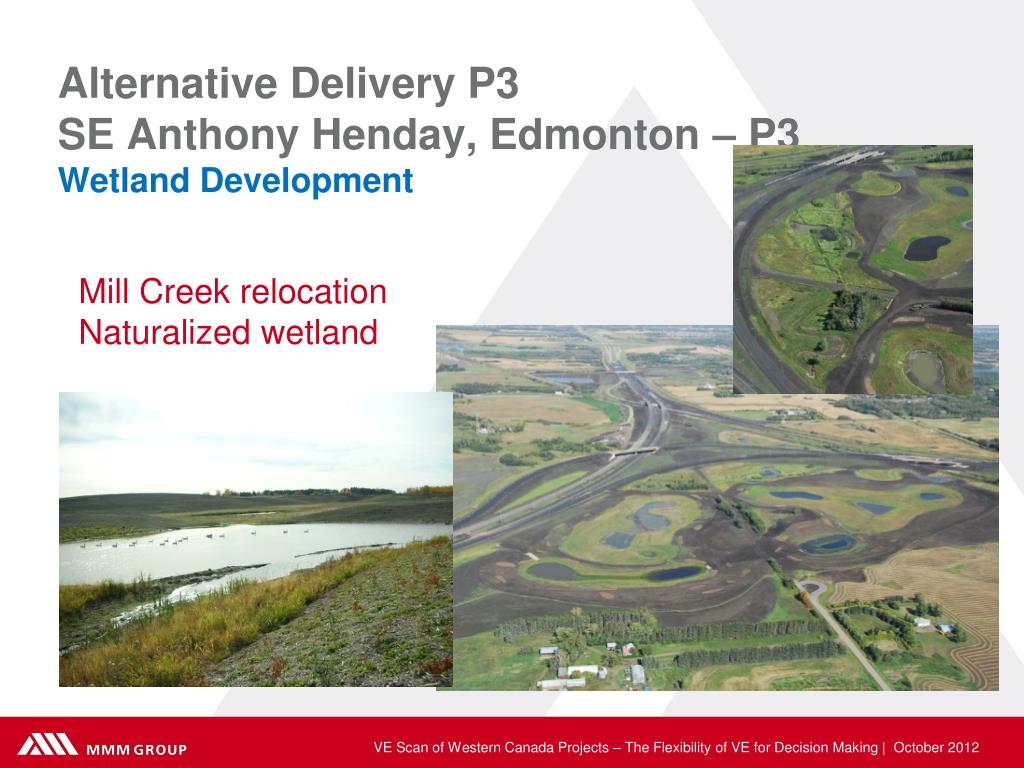

Alternative Delivery P3 for Decision MakingSE Anthony Henday, Edmonton – P3 Wetland Development

Mill Creek relocation

Naturalized wetland


Peer review highway 1 lewvan drive regina shi
Peer Review for Decision MakingHighway 1 Lewvan Drive, Regina, SHI


Peer Review for Decision MakingHighway 1 Lewvan Drive, Regina, SHI

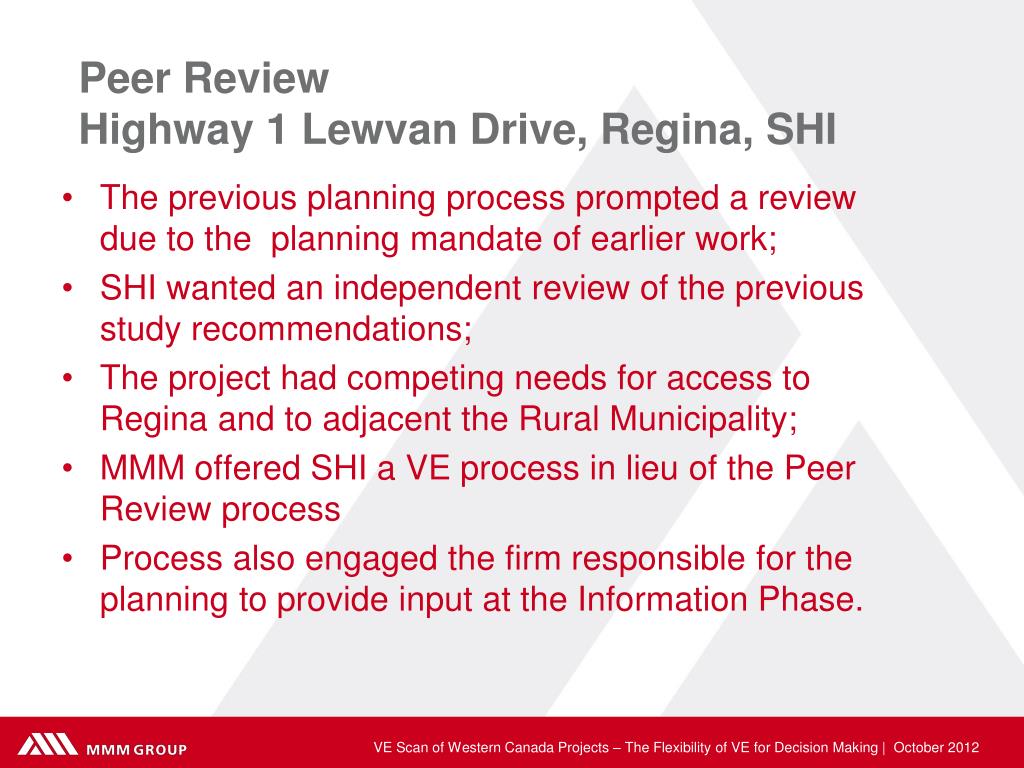

  • The previous planning process prompted a review due to the planning mandate of earlier work;

  • SHI wanted an independent review of the previous study recommendations;

  • The project had competing needs for access to Regina and to adjacent the Rural Municipality;

  • MMM offered SHI a VE process in lieu of the Peer Review process

  • Process also engaged the firm responsible for the planning to provide input at the Information Phase.


Peer Review for Decision MakingHighway 1 Lewvan Drive, Regina, SHI

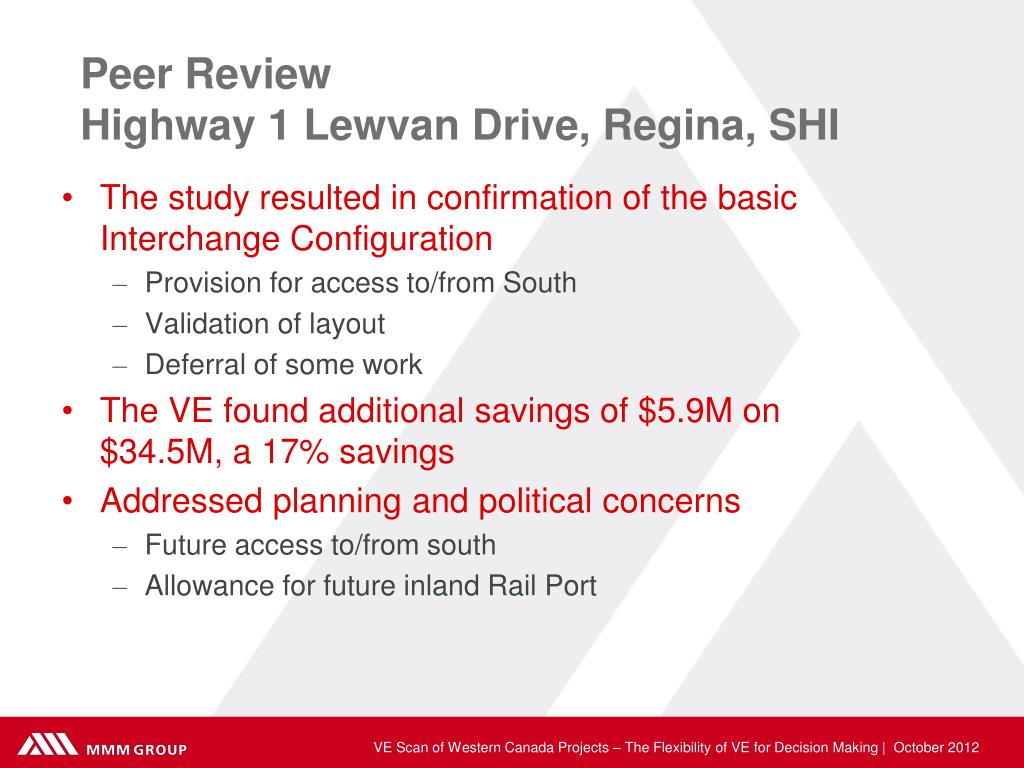

  • The study resulted in confirmation of the basic Interchange Configuration

    • Provision for access to/from South

    • Validation of layout

    • Deferral of some work

  • The VE found additional savings of $5.9M on $34.5M, a 17% savings

  • Addressed planning and political concerns

    • Future access to/from south

    • Allowance for future inland Rail Port


Peer Review for Decision MakingHighway 1 Lewvan Drive, Regina, SHI

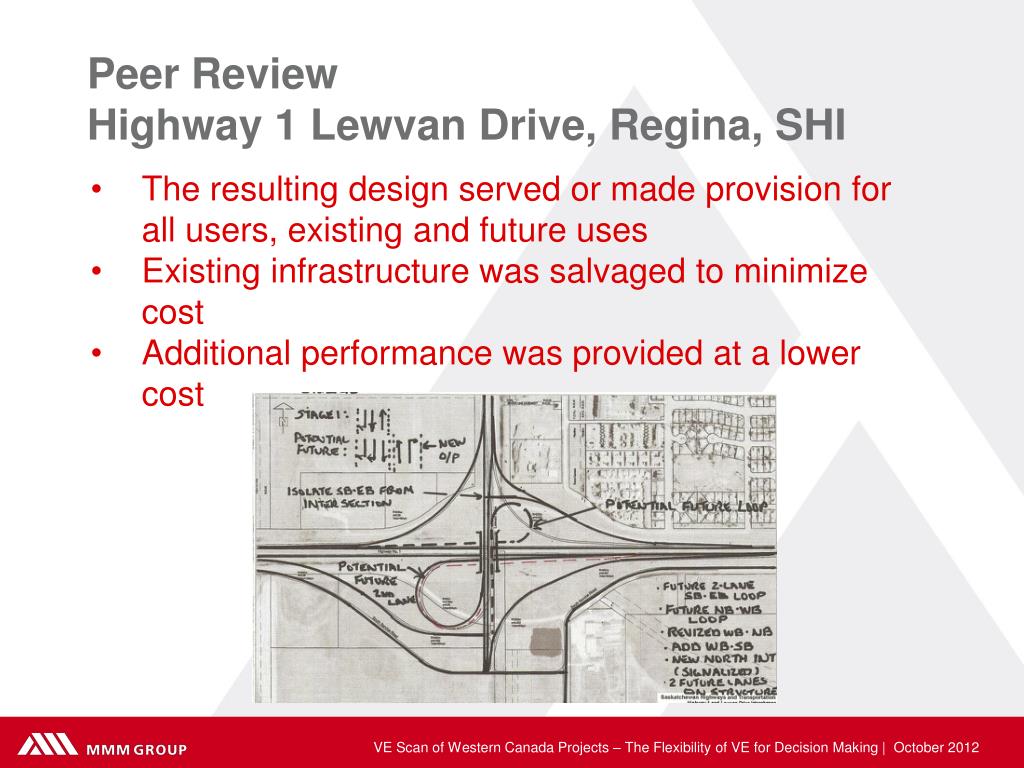

  • The resulting design served or made provision for all users, existing and future uses

  • Existing infrastructure was salvaged to minimize cost

  • Additional performance was provided at a lower cost


Cost management johnson street bridge victoria bc
Cost Management for Decision MakingJohnson Street Bridge, Victoria, BC

  • The Johnson Street bridge was assessed for consideration as a traditional and a P3 project

  • Decision was made to proceed with traditional project delivery

    • Project cost estimate identified as $78.9M


Cost management johnson street bridge victoria bc1
Cost Management for Decision MakingJohnson Street Bridge, Victoria, BC

  • A VE study was undertaken to review project scope and to verify the cost

  • VE process, from the Information through the Evaluation Phase, was conducted

  • Architectural design constrained VE opportunities


Cost management johnson street bridge victoria bc2
Cost Management for Decision MakingJohnson Street Bridge, Victoria, BC

  • 116 Ideas were generated of which 82 were carried forward for further consideration

  • Implementation is the responsibility of the design team

  • Project costs were validated and up to $5m in possible savings was identified (for a project contingency cushion)

  • The VE challenged some of the project Design Criteria


Planning process pasqua st 9 th ave n ring road regina
Planning Process for Decision MakingPasqua St & 9th Ave N/Ring Road, Regina

Pasqua Corridor

Study Limits


Planning process pasqua st 9 th ave n ring road regina1
Planning Process for Decision MakingPasqua St & 9th Ave N/Ring Road, Regina

  • Evaluate Options for an interchange for improved Traffic Operations, Safety, Construction Phasing

  • Base Case was the interchange design from the previous study

  • Evaluated at-grade options for an improved intersection at Pasqua and Ring Road to defer the construction of the interchange.

  • Study also addressed the traffic delays at the intersections in the Pasqua Corridor from Sherwood to Rochdale

  • Review opportunities to improve the safety and traffic operations.


Planning process pasqua st 9 th ave n ring road regina2
Planning Process for Decision MakingPasqua St & 9th Ave N/Ring Road, Regina

  • 121 Ideas were generated with 31 Proposals

    • Diverging diamond interchange

    • XDL Intersection

    • Rotary interchange

  • Addressed Value Target considerations

    • Corridor and cross section options

    • Interchange layouts versus intersections

    • Up to a $19.2M savings on $23.7M

  • The preferred solution best accommodates the traffic flow patterns

  • Regina is considering pursuit of first XDL intersection in Canada


Planning process pasqua st 9 th ave n ring road regina3
Planning Process for Decision MakingPasqua St & 9th Ave N/Ring Road, Regina


Corridor management highway 1 va study moose jaw shi

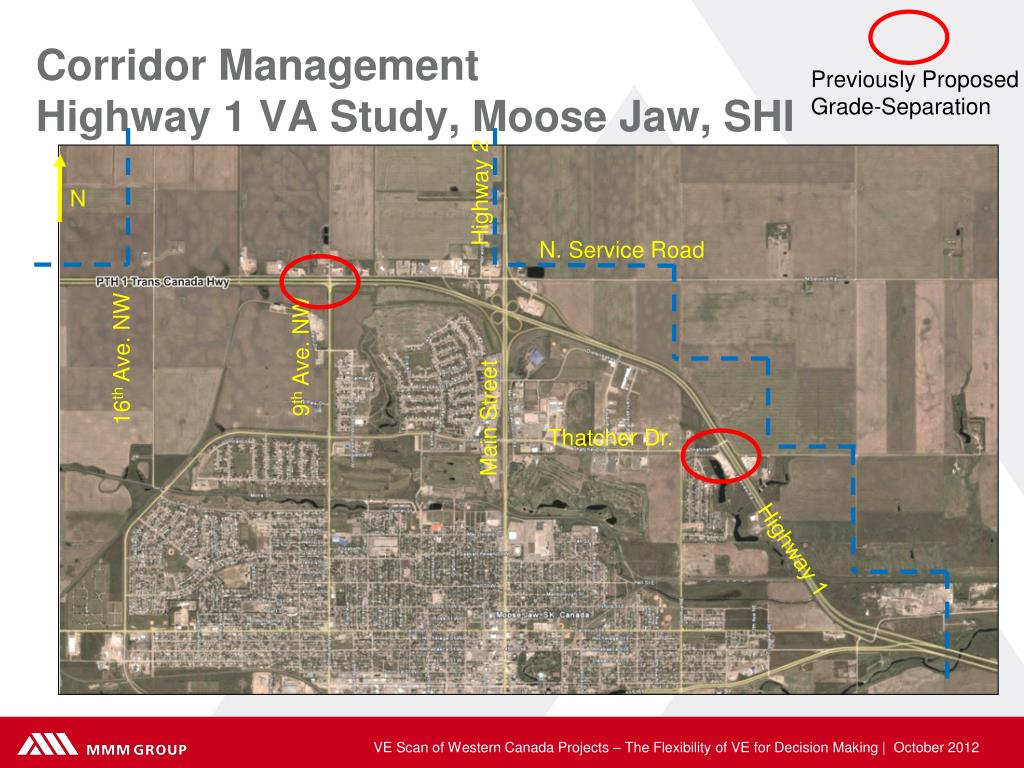

Previously Proposed Grade-Separation for Decision Making

Corridor ManagementHighway 1 VA Study, Moose Jaw, SHI

Highway 2

N

N. Service Road

16th Ave. NW

9th Ave. NW

Main Street

Thatcher Dr.

Highway 1


Corridor management highway 1 va study moose jaw shi1
Corridor Management for Decision MakingHighway 1 VA Study, Moose Jaw, SHI

  • Primary goal:

    Develop an ultimate functional plan for the Hwy 1 corridor in the City of Moose Jaw, SK

  • Objectives:

    Validate interchange locations and medium to long-term plans for the Hwy 1 corridor

    Review existing infrastructure and develop ultimate Hwy 1 corridor short and long-term solutions to meet safety and traffic operation requirements

    Determine value-base staged implementation of site-specific and corridor improvements


Corridor management highway 1 va study moose jaw shi2
Corridor Management for Decision MakingHighway 1 VA Study, Moose Jaw, SHI

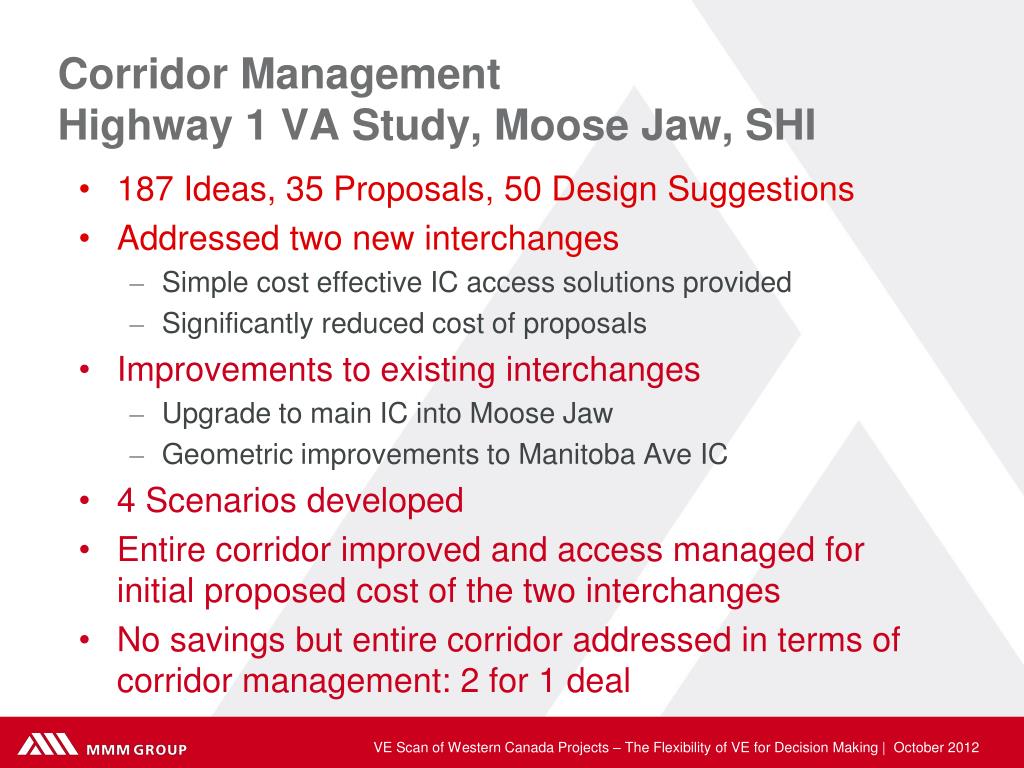

  • 187 Ideas, 35 Proposals, 50 Design Suggestions

  • Addressed two new interchanges

    • Simple cost effective IC access solutions provided

    • Significantly reduced cost of proposals

  • Improvements to existing interchanges

    • Upgrade to main IC into Moose Jaw

    • Geometric improvements to Manitoba Ave IC

  • 4 Scenarios developed

  • Entire corridor improved and access managed for initial proposed cost of the two interchanges

  • No savings but entire corridor addressed in terms of corridor management: 2 for 1 deal


Project validation highway 1 and 16 ve study mit
Project Validation for Decision MakingHighway 1 and 16 VE Study, MIT


Project validation highway 1 and 16 ve study mit1
Project Validation for Decision MakingHighway 1 and 16 VE Study, MIT

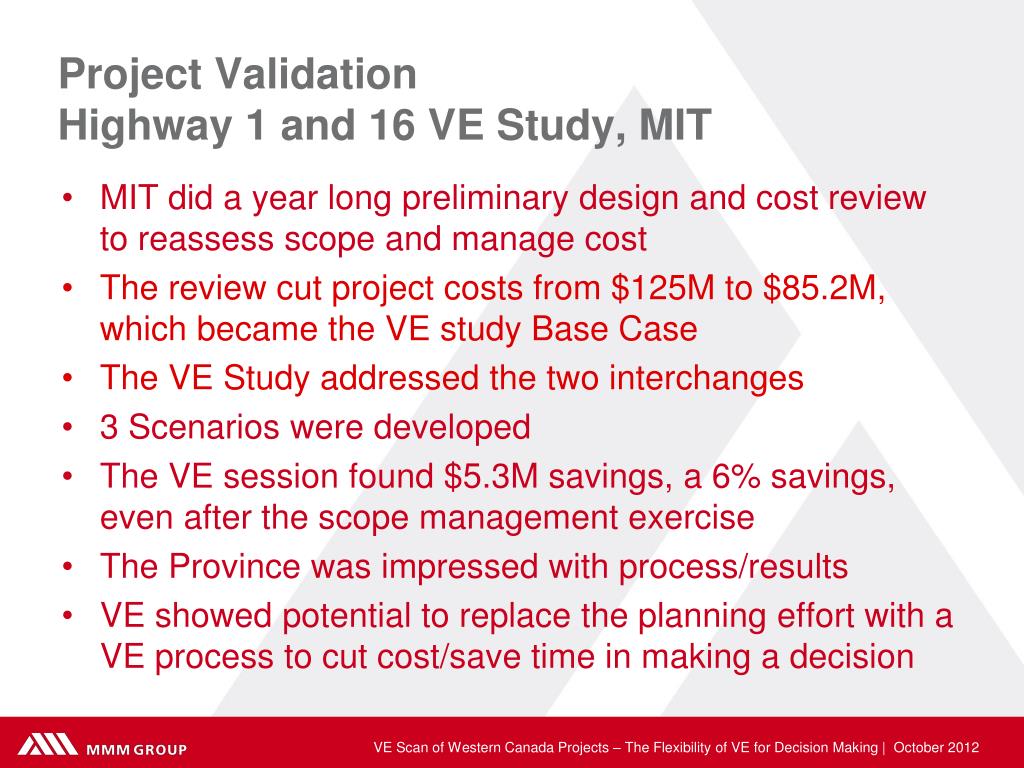

  • MIT did a year long preliminary design and cost review to reassess scope and manage cost

  • The review cut project costs from $125M to $85.2M, which became the VE study Base Case

  • The VE Study addressed the two interchanges

  • 3 Scenarios were developed

  • The VE session found $5.3M savings, a 6% savings, even after the scope management exercise

  • The Province was impressed with process/results

  • VE showed potential to replace the planning effort with a VE process to cut cost/save time in making a decision


Summary
Summary for Decision Making

  • VE is a flexible tool that serves many needs

  • Effective in Alternative Delivery to deliver innovation

  • Offers an alternative means of Peer Review

  • Can provide a second review to assist with Cost Management

  • Offers opportunity for creativity and idea generation in the Planning Process

  • Serves a role to provide analysis and test options in corridor management studies

  • Can validate project costs and serves to confirm cost savings

  • VE/VA has a role in almost any project


Thank you
Thank you for Decision Making
