Jun li yang geoff downes fiona chen dave cown

Jun Li YANG, Geoff DOWNES, Fiona CHEN, Dave COWN

Investigation Of within-tree and between-site Resin Canal Variation in Radiata Pine


Overview

Overview

  • Radiata pine is a softwood with resin canals.

  • Resin blemishes cause significant

  • Losses in some products.

  • Factors affecting presence include:

    • Climate

    • Insects, diseases

    • Silviculture

    • Genetics


Objectives

Objectives

  • To understand within-tree resin canal variation

  • To understand regional resin canal variation and site effects

  • To investigate relationships between resin canals, external resin bleeding of standing trees and blemishes in wood samples


Investigation of within tree and between site resin canal variation in radiata pine

Introduction

  • Resin characteristics occur naturally in softwoods

  • Resin defects can cause significant losses in appearance grade products and are a problem in value-added processing of radiata pine

  • Within- and between-tree variation in resin canal occurrence is poorly documented

  • Site factors and links to stem resin bleeding and to internal blemishes are unknown


Investigation of within tree and between site resin canal variation in radiata pine

Materials and methods

Software was developed to assist resin canal quantification:

  • Capture measurements on scanned images of smooth transverse surfaces

  • Count resin canal numbers

  • Measure and record resin canal location within samples

  • Measure and record growth ring width

  • Measure resin canal sizes


Investigation of within tree and between site resin canal variation in radiata pine

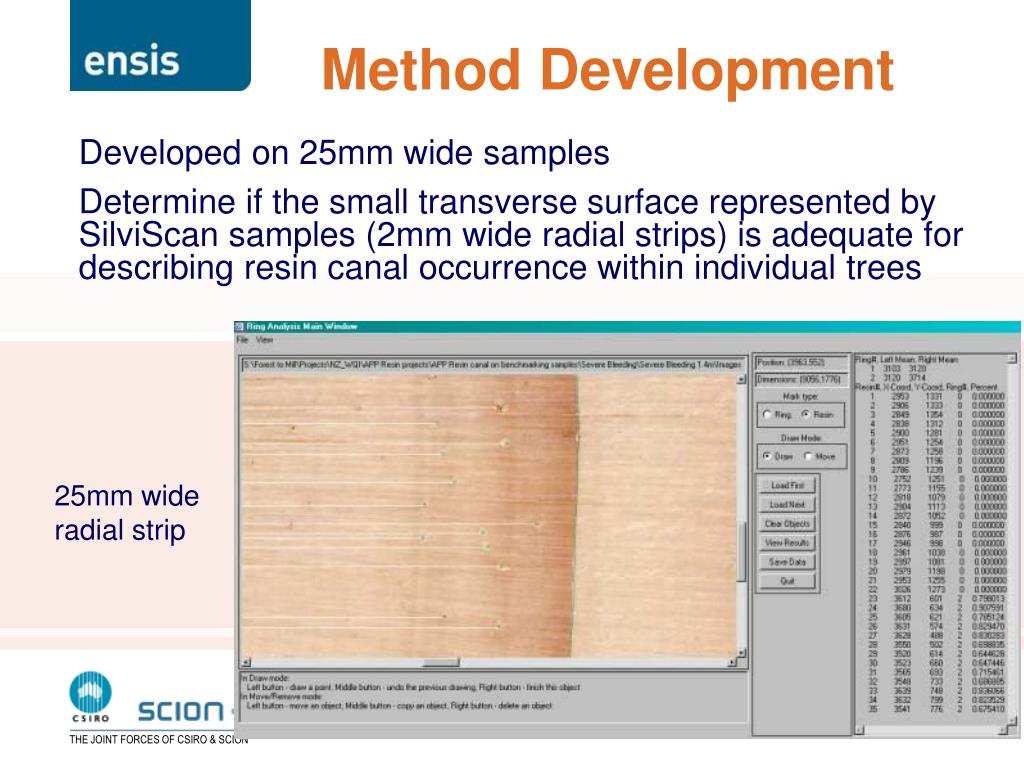

Method Development

Developed on 25mm wide samples

Determine if the small transverse surface represented by SilviScan samples (2mm wide radial strips) is adequate for describing resin canal occurrence within individual trees

25mm wide radial strip


Investigation of within tree and between site resin canal variation in radiata pine

Materials & Analyses

Used new method to asses resin canals on samples from a regional trial

  • 150, 2 mm wide SilviScan samples (15 sites, 10 strips per site)

  • Polish the transverse surface

  • Quantified resin canal occurrence in each sample (frequency at 15 sites, resin canal size at 9 sites)

    Data analysis (ANOVA) – effect of site on resin canal frequency and size

    Compared with assessments of stem resin bleeding and resin blemishes from discs


Investigation of within tree and between site resin canal variation in radiata pine

Count Resin Canals

2 mm wide strips


Investigation of within tree and between site resin canal variation in radiata pine

Measure Resin Canal Sizes

2 mm wide strips


Investigation of within tree and between site resin canal variation in radiata pine

Resin Canal Radial Frequency (Single site)

  • Non area-weighted data

  • Decrease from pith to cambium

  • Vary between trees and between sites

  • Within-tree (between-ring) variation is much greater than between-tree variation

  • Positively related to ring width


Investigation of within tree and between site resin canal variation in radiata pine

Resin Canal Size

(Single site)

  • Increase from pith to cambium

  • Vary between trees and between sites

  • Within-tree (between-ring) variation is much greater than between-tree variation

  • Inversely related to ring width


Investigation of within tree and between site resin canal variation in radiata pine

Mean area-weighted resin canal frequency per m2

Significant differences between sites

80% difference between two extreme sites

Resin Canal Frequency Across Sites (15)


Investigation of within tree and between site resin canal variation in radiata pine

Significant differences between sites

30% difference between two extreme sites

Resin Canal Sizes Across Sites (9)


Investigation of within tree and between site resin canal variation in radiata pine

Resin Canal Frequency v.s. Resin Blemishes

  • Area-weighted resin canal count (count / m2)

  • Moderate relationship between resin canal frequency and resin blemishes (r2 = 0.54)

  • Sites with very low resin canal count have low levels of blemishes

  • Sites with high resin canal count are among highly-blemished sites


Conclusions 1 sampling

Conclusions 1 – Sampling

  • A 2mm radial strip gives similar resin canal information (number and location of resin canals) to a 20-25mm wide radial strip in 90% of cases

  • To detect annual changes in resin canal frequency, strips from 5-7 trees are required.

  • To investigate site differences, at least 6 trees (one strip per tree) are needed per site


Conclusions 2 site effect

Conclusions 2 – Site Effect

  • Resin canal frequency is positively associated with site temperature (r = 0.7) and inversely associated with site elevation (r = -0.6)

  • Warmer and/or lower elevation sites tend to produce more resin canals

  • Temperature appears to have a greater effect than site elevation

  • Rainfall, soil fertility (C/N ratio) and latitude did not affect resin canal frequency


Conclusions 3 resin canal relationships

Conclusions 3 - Resin Canal Relationships

  • Resin canal frequency is not related to resin canal size, based on site means

  • Positive relationship between resin canal frequency and ring width

  • Inverse relationship between resin canal size and ring width

  • Significant between-site differences in resin canal count and size


Conclusions 4 relationships with other resinous features

Conclusions 4 – Relationships with Other Resinous Features

  • Resin canal frequency is moderately associated with resin blemishes (r2 = 54%), based on site means

  • Resin canal count is weakly linked to external resin bleeding score, resin pockets and resinous patches

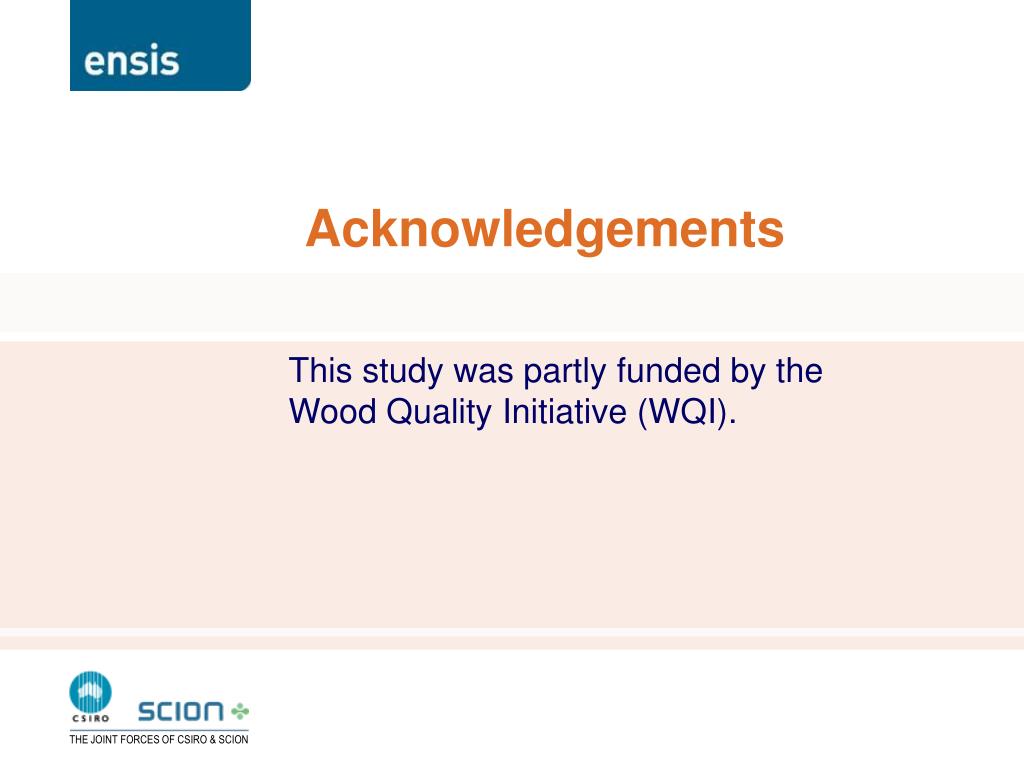

Acknowledgements

Acknowledgements

This study was partly funded by the Wood Quality Initiative (WQI).
