  1. Product Management Rimatrix / Fabian Schäfer

  2. Monitoring in Data CentersControlling environmental conditions Product Management Rimatrix / Fabian Schäfer

  3. Monitoring with the CMC IIINext generation of the intelligent monitoring system • Important in Data Centers: Monitor environmental conditions • Failures of components can be very expensive • Monitoring with automatic actions in case of error or critical conditions • Early response to critical conditions • Long-term measurements to show potentials for energy saving Product Management Rimatrix / Fabian Schäfer

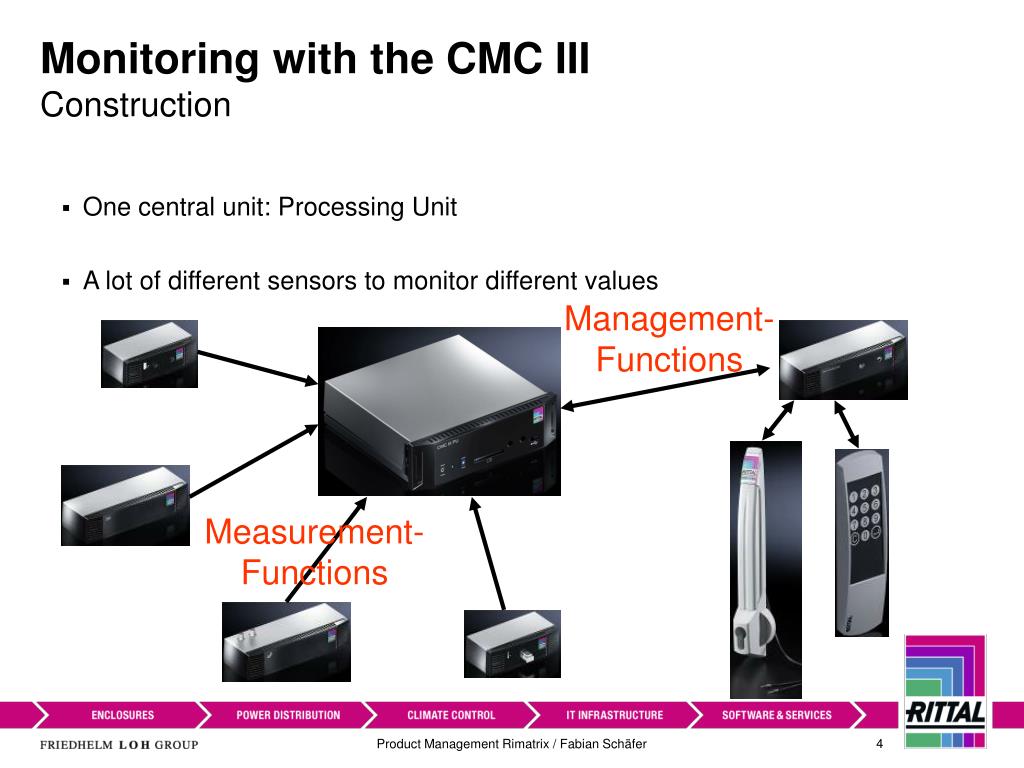

  4. Monitoring with the CMC IIIConstruction • One central unit: Processing Unit • A lot of different sensors to monitor different values Management-Functions Measurement-Functions Product Management Rimatrix / Fabian Schäfer

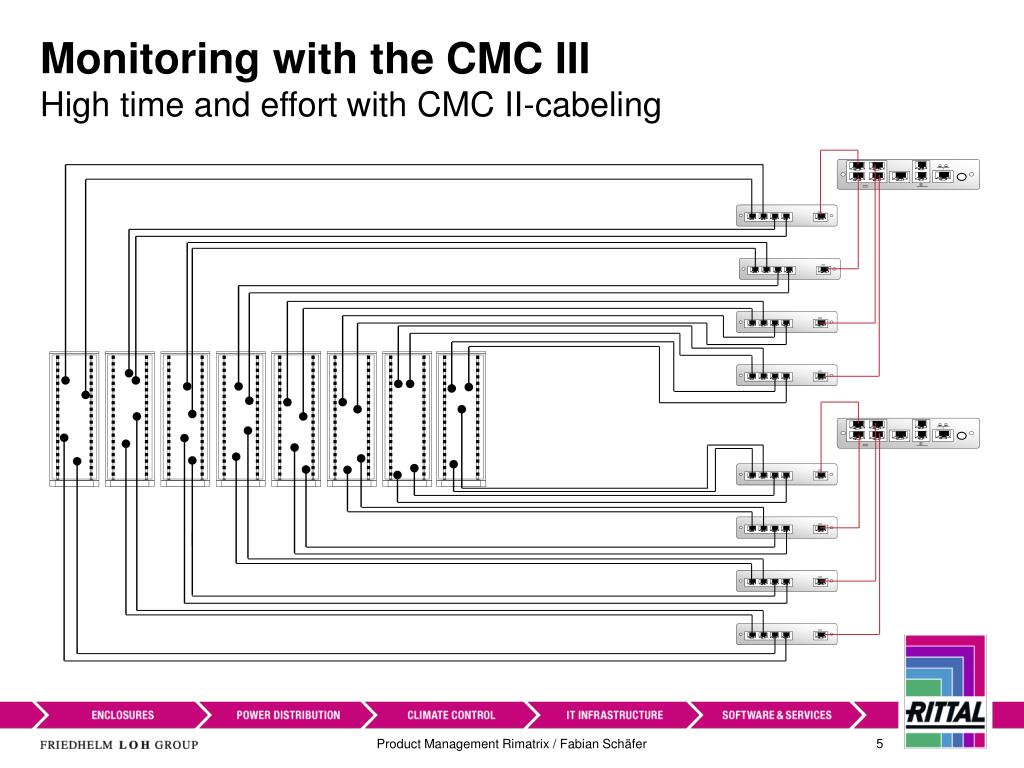

  5. Monitoring with the CMC IIIHigh time and effort with CMC II-cabeling Product Management Rimatrix / Fabian Schäfer

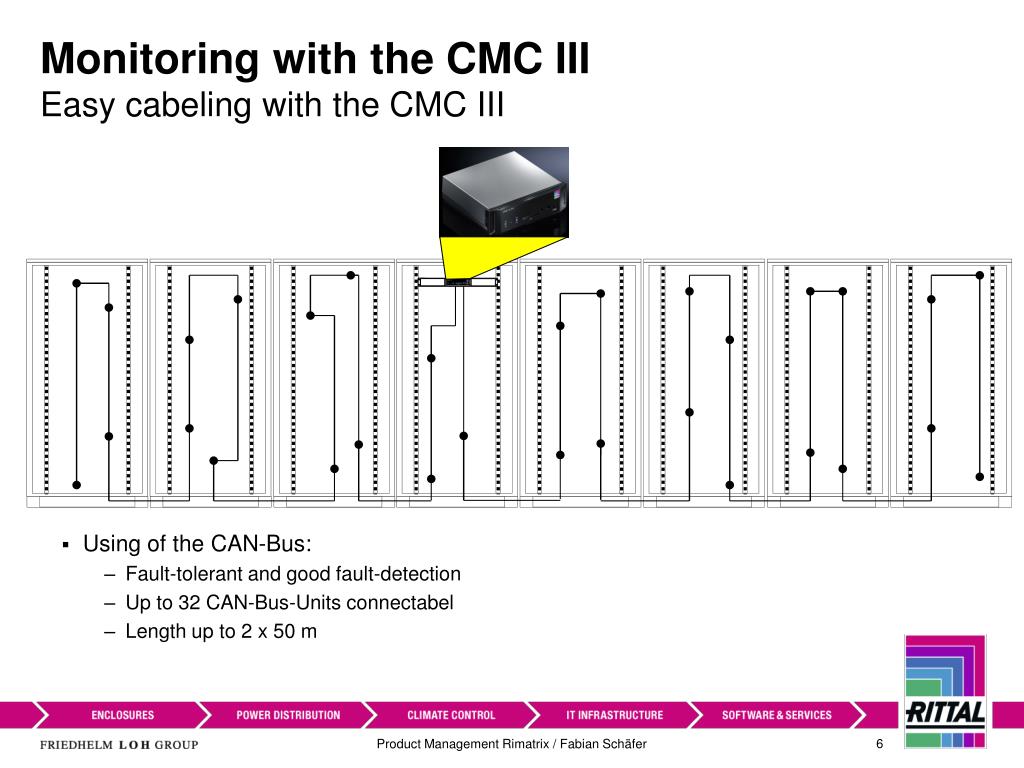

  6. Monitoring with the CMC IIIEasy cabeling with the CMC III • Using of the CAN-Bus: • Fault-tolerant and good fault-detection • Up to 32 CAN-Bus-Units connectabel • Length up to 2 x 50 m Product Management Rimatrix / Fabian Schäfer

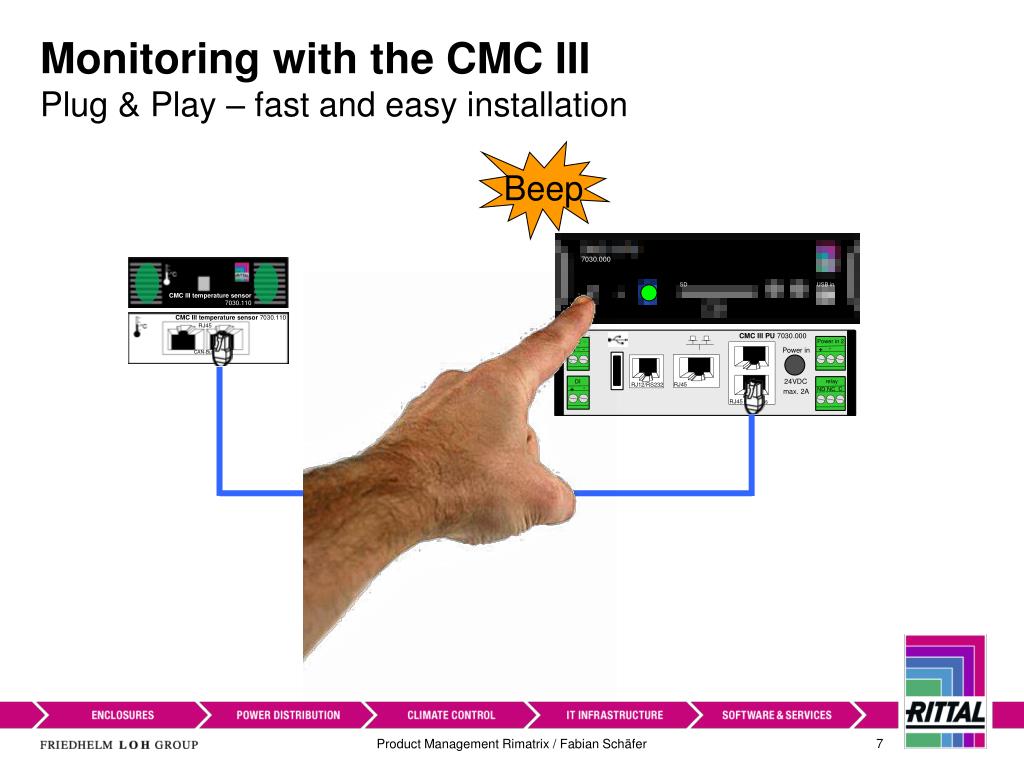

  7. Monitoring with the CMC IIIPlug & Play – fast and easy installation Beep Product Management Rimatrix / Fabian Schäfer

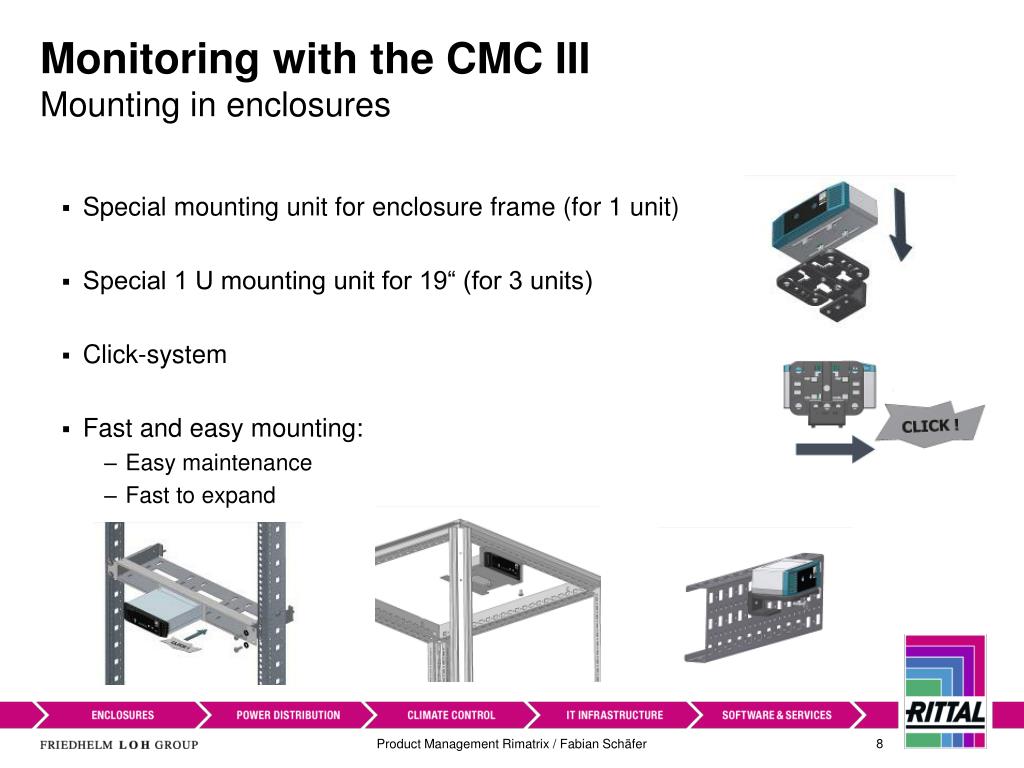

  8. Monitoring with the CMC IIIMounting in enclosures • Special mounting unit for enclosure frame (for 1 unit) • Special 1 U mounting unit for 19“ (for 3 units) • Click-system • Fast and easy mounting: • Easy maintenance • Fast to expand Product Management Rimatrix / Fabian Schäfer

  9. Limit exceeded @ Monitoring with the CMC IIIFunctionality • Sensors transmit their measured values to the Processing Unit • Processing Unit monitors measurement and operates automated: • Limit setting in the Processing Unit • If a limit is exceeded, the CMC sends a text message to a technician • E-Mail (over Network) and SMS (over GSM or ISDN) • Automatic reactions programmable Product Management Rimatrix / Fabian Schäfer

  10. Front Monitoring with the CMC IIICharacteristics of the Processing Unit • 24 V Power supply can be installed redundant: • PoE also possible • Mini-USB • Configuration directly at the Processing Unit • USB-Device and SD-Card-Slot • Recording of measured values • Software-updates • Integrated Sensors: • Temperature-Sensor • Infrared-Sensor • 2 digital Inputs • Relay-Output Back Product Management Rimatrix / Fabian Schäfer

  11. Monitoring with the CMC IIINetwork-communication • Ethernet-interface for LAN • Access to Webpage over network: • HTTP • HTTPS with 128 Bit SSL-encryption • Parameter settings: • Telnet • SSH • Network-Protocols: • IPv6 • SNMPv3 Product Management Rimatrix / Fabian Schäfer

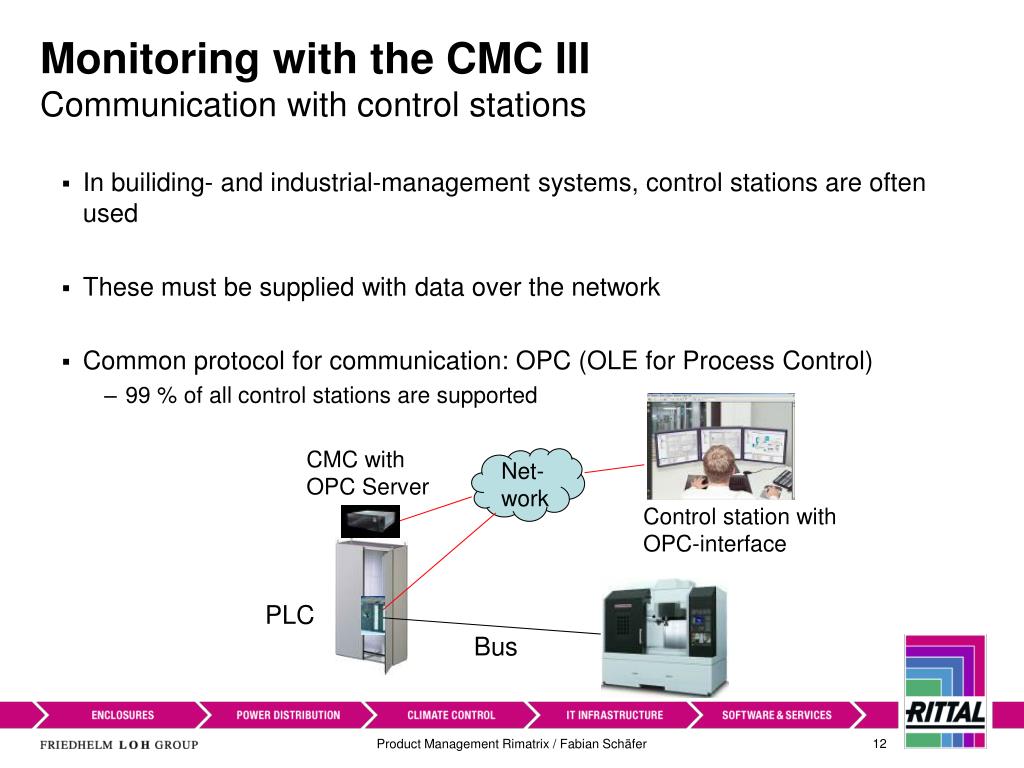

  12. Net- work Monitoring with the CMC IIICommunication with control stations • In builiding- and industrial-management systems, control stations are often used • These must be supplied with data over the network • Common protocol for communication: OPC (OLE for Process Control) • 99 % of all control stations are supported CMC with OPC Server Control station with OPC-interface PLC Bus Product Management Rimatrix / Fabian Schäfer

  13. Monitoring with the CMC IIIIndustrial applications • Problem: • Processing Unit oversized and expensive for small applications • Solution: • Smaller version of the Processing Unit with less functionality • „Processing Unit Compact“ • Differences: • Supports only 4 CAN-Bus-Units • No SD-Card-Slot • No USB-Device-Interface • Only one CAN-Bus-Port • Price Product Management Rimatrix / Fabian Schäfer

  14. Processing Unit CAN-Bus participant 1 participant 2 participant 3 Monitoring with the CMC IIISensorunits • Sensors for direct connection Product Management Rimatrix / Fabian Schäfer

  15. Monitoring with the CMC IIISensorunits (2) • Interface-modules to connect CMC II-sensors Product Management Rimatrix / Fabian Schäfer

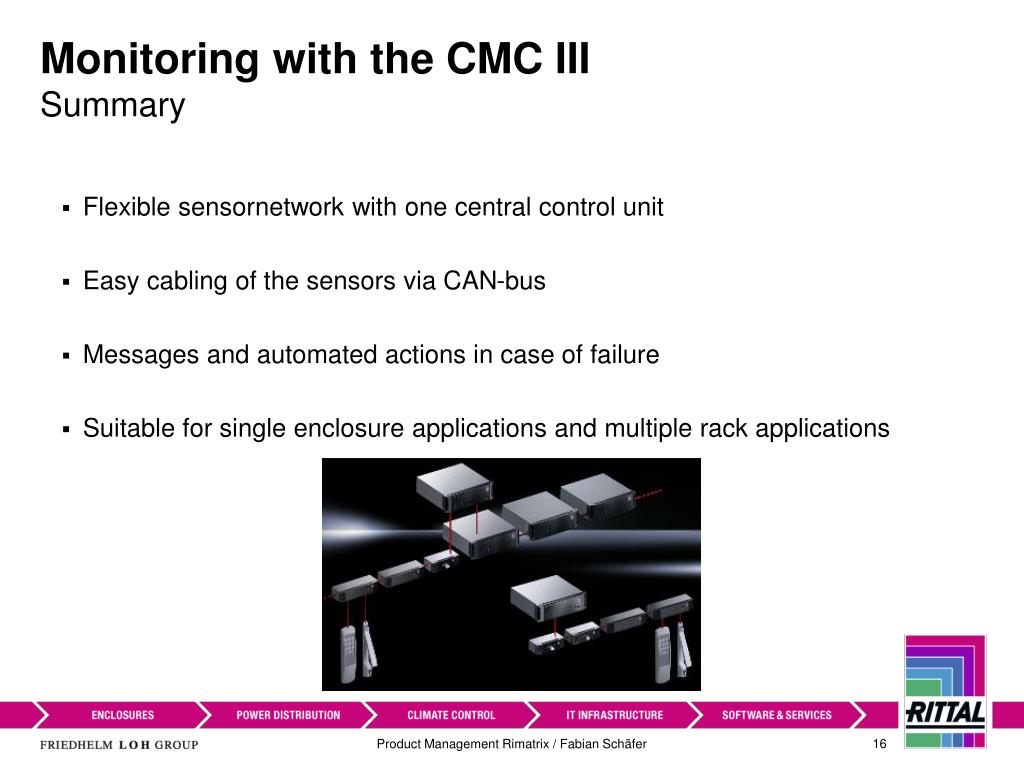

  16. Monitoring with the CMC IIISummary • Flexible sensornetwork with one central control unit • Easy cabling of the sensors via CAN-bus • Messages and automated actions in case of failure • Suitable for single enclosure applications and multiple rack applications Product Management Rimatrix / Fabian Schäfer
