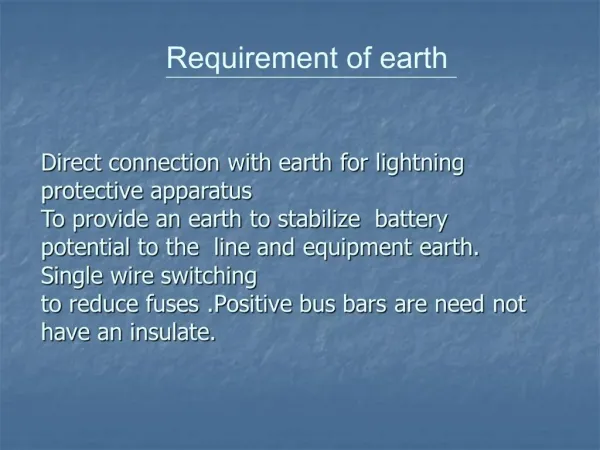

1. Direct connection with earth for lightning protective apparatus To provide an earth to stabilize battery potential to the line and equipment earth. Single wire switching to reduce fuses .Positive bus bars are need not have an insulate.

2. Purpose of earthing Service System Earth a. Switching equipment. B. Transmission equipment C. Measuring equipment D. AC power supply E. Corrosion mitigation. Protective system earth a.Protection against high voltage b.Protection against high current.

3. Requirement of service system earth It should have low resistance to DC It should carry high current with out heating and burning on it It should remain same resistance in all seasons It enable sufficient current flow to earth

4. Type of earth Individual earth Common earth

5. Design Low value of surge impedance Low resistance Lightning earth Close to the power plant No Sharp bend and coil etc Service earth Service earth carries the current to the earth ( it discharge the current to the earth)

6. DC 1 amp flows on a steel wire consumes 10 kg of steel per annum 25ma 20 year consumes 20kg of steel

7. Types Spike earth electrode System Lead stripe electrode system Earth plate electrode system

8. SPIKE earth 275,375 dia mm

9. Resistance of a single pipe log 4L R= r --- -- -1 2L a r= Soil resistively L= length of the pipe in cm a= radius of the pipe in cm

10. Earth plate electrode system
