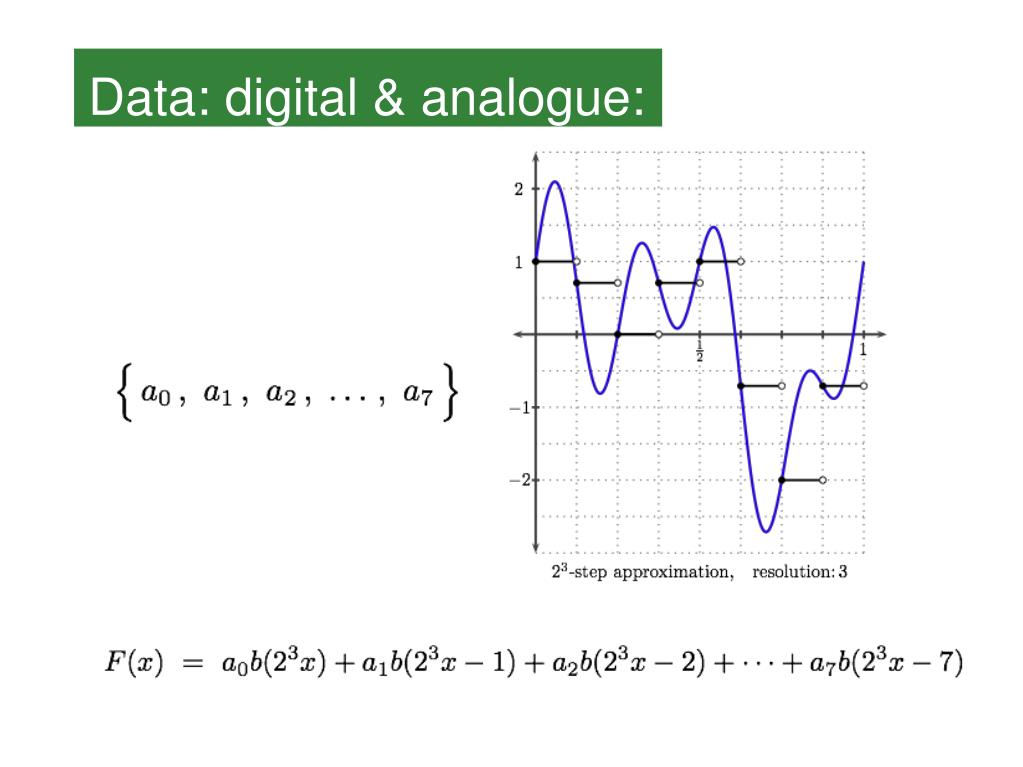

  1. Data: digital & analogue:

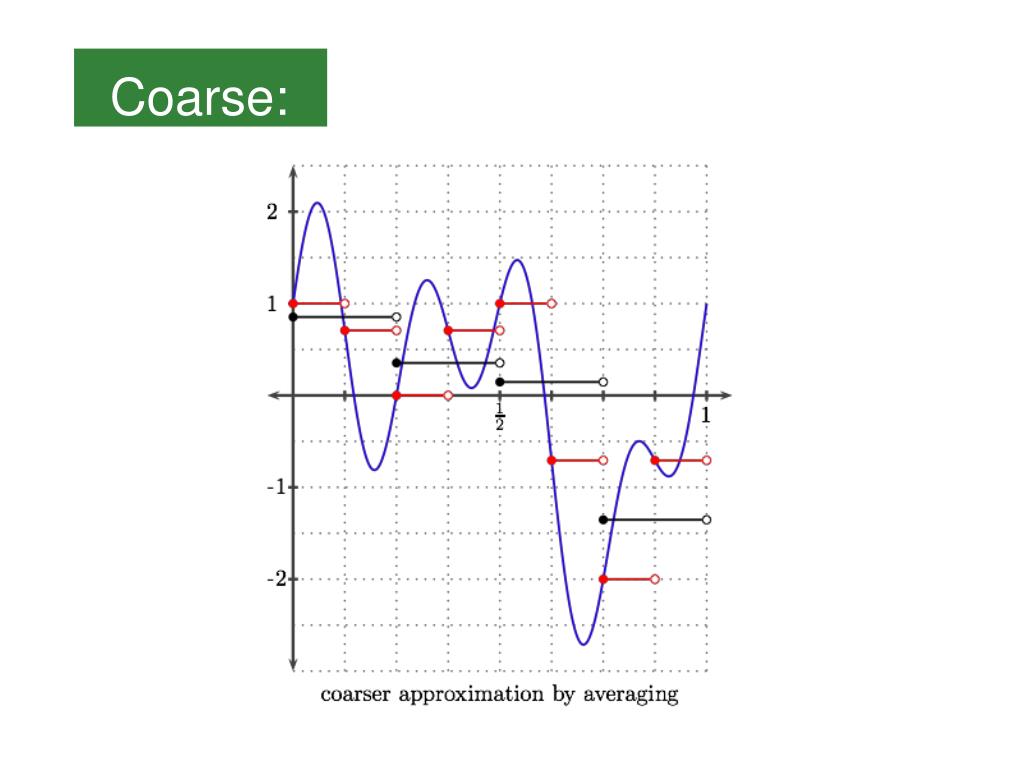

  2. Coarse:

  3. Coarse + Fine: Splitting: coarse at resn 3 = coarse at resn 2 + fine detail at resn 2 coarse at resn 3 = coarse at resn 2 + fine detail at resn 2

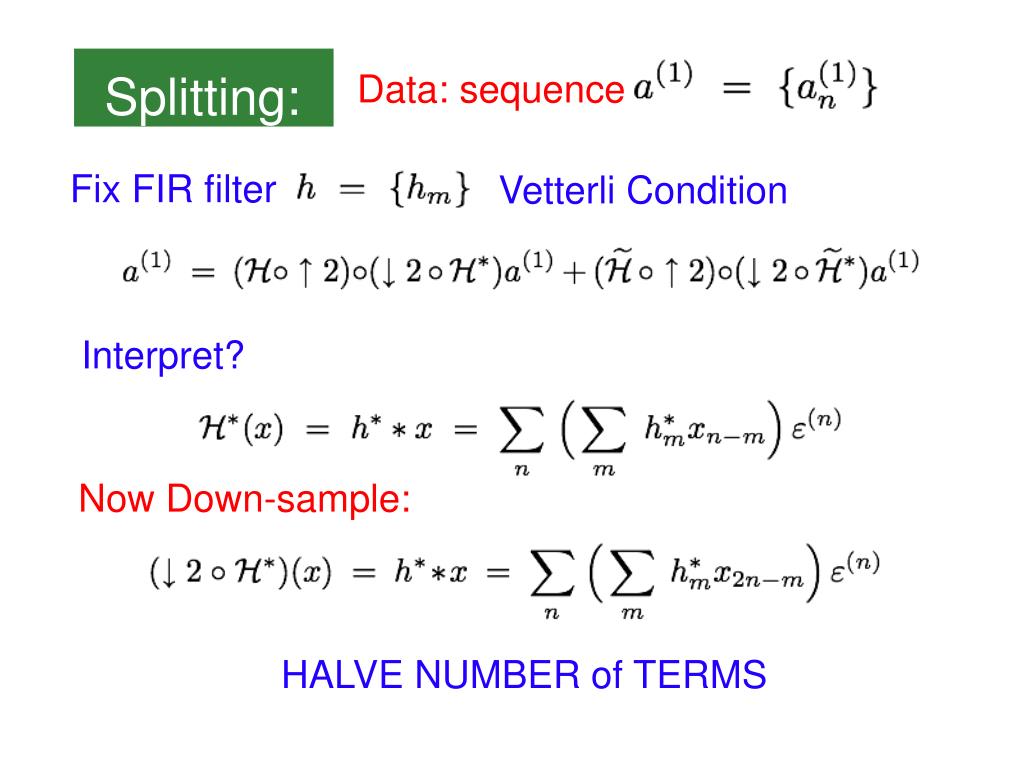

  4. Splitting: Data: sequence Fix FIR filter Vetterli Condition Interpret? Now Down-sample: HALVE NUMBER of TERMS

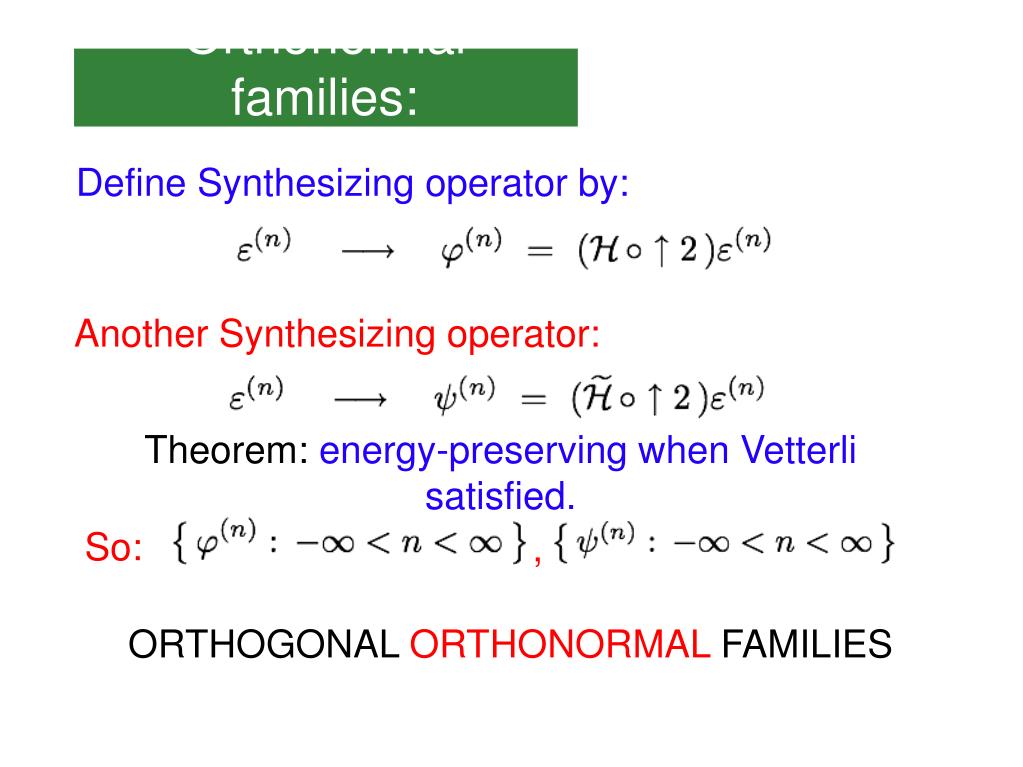

  5. Orthonormal families: Define Synthesizing operator by: Another Synthesizing operator: Theorem: energy-preserving when Vetterli satisfied. So: , ORTHOGONAL ORTHONORMAL FAMILIES

  6. Interpret Splitting: Analyzed sequences: Analyze and Synthesize: coarse detail fine detail

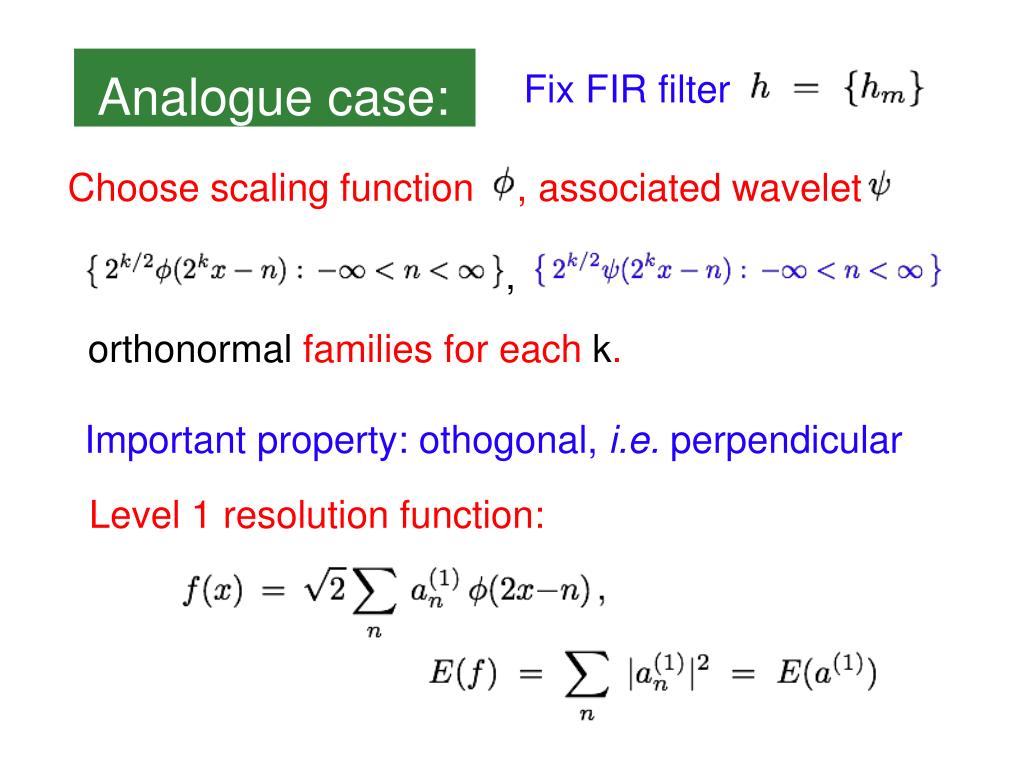

  7. Fix FIR filter Analogue case: Choose scaling function , associated wavelet , orthonormal families for each k. Important property: othogonal, i.e. perpendicular Level 1 resolution function:

  8. Coarse + Fine detail: Coarse detail : use scaling function family at level 0 , Fine detail : use wavelet family at level 0 , Relate , to filter coefficients?

  9. 2-scale equation again: Exploit as before Coarse detail coefficients:

  10. 2-scale equation again: Fine detail coefficients: Analyze and Synthesize: coarse detail fine detail
