Budker INP Novosibirsk. Numerical model of the fusion-fission hybrid system based on gas dynamic trap for transmutation of radioactive wastes. Andrey Anikeev. Institute for Neutron Physics and Reactor Technology, KIT, Karlsruhe, Germany. In collaboration with:.

manning
Download Presentation

Andrey Anikeev

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Budker INP Novosibirsk Numerical model of the fusion-fission hybrid system based on gas dynamic trap for transmutation of radioactive wastes Andrey Anikeev Institute for Neutron Physics and Reactor Technology, KIT, Karlsruhe, Germany In collaboration with: Budker Institute of Nuclear Physics, Novosibirsk, Russia (original affilation) Institut für Sicherheitsforschung, Forschungszentrum Dresden-Rossendorf.

  2. Motivation Transmutation of long-lived radioactive nuclear waste, including plutonium, minor actinides and fission products, represents a highly important problem of fission reactor technology and is presently studied worldwide in large-scale. Fusion-fission devices might be useful such as the production of fuel for fission reactors, direct electricity production, and closing the nuclear fuel cycle by transmuting spent nuclear fuel from fission reactors. GDT based neutron source shows great promise in future fusion-fission applications.

  3. Objectives • Numerical modelling and choice of parameters of the GDT NS as a driver in ADS-like subcritical burners. • Neutron flux > 1018 n/s • Test a GDT-DS burner capability Requirements to MA burner systems: • energy efficiency Q=Poutel/Pinpel > 1 (self-sufficiency) ! • servicing of min 5 LWRs

  4. ~ 15 m Background GDT plasma neutron source as irradiation facility Kotelnikov I.A., Mirnov V.V., Nagorny V.P., Ryutov D.D., Plasma Physics and Controlled Fusion Research, 2, IAEA, Vienna, p.309, 1985 Test zone Magnetic field :B0 1 T Neutral beams injection: D0+T0 B 15 T energy , ED/T65keV Target warm plasma : total power, Pinj 36 MW temperature Те 0.75 keV Energy consumption: 60 MW (50 MW) densityne 2-5x1020m-3 Total fusion neutron power: 1.25 MW

  5. Background GDT plasma neutron source as irradiation facility Kotelnikov I.A., Mirnov V.V., Nagorny V.P., Ryutov D.D., Plasma Physics and Controlled Fusion Research, 2, IAEA, Vienna, p.309, 1985 Test zone

  6. GDT neutron source driven systemTechnical idea The technical idea would be to put up the GDT vertically and to surround both neutron production zones by a sub-critical system. • Positive features of the GDT NS: • Continuous source. • 2 drivers with variable intensities. • n-zones can be longitudinally extended. • n-emission intensity can be axially profiled. • Neutron energy = 14 MeV Is a compact machine  relatively low investment costs!

  7. Preceding resultsComparison of the driven sub-critical MA burners * for both side of GDT (2 n-zones) [1] G. Aliberti et al.. Nuclear Science and Eng. 146 (2004) 13. [2] K. Noack et al. Annals of Nuclear Energy 35 (2008) 1216–1222. [3] A. Anikeev et al. in Proc. of Cairo 11th International Conference on Energy & Environment (2009).

  8. Preceding resultsComparison of the driven sub-critical MA burners * for both side of GDT (2 n-zones) [1] G. Aliberti et al.. Nuclear Science and Eng. 146 (2004) 13. [2] K. Noack et al. Annals of Nuclear Energy 35 (2008) 1216–1222. [3] A. Anikeev et al. in Proc. of Cairo 11th International Conference on Energy & Environment (2009).

  9.  ~3 !  0.75 3.5 Study:Optimisation of the GDT neutron source I. Improvement of the GDT basic: Electron temperature : Te should be increased up to the self-consistent value. – Radial confinement ! – Reduction of the electron heat losses ! GDT „Basic version“: Pinp = 50 MWel, Einj = 65 keV x : Pfis = 144 МW therm (one side) Pfistotal = 288 MWtherm(both side) Pouttotal = 115MWel Q = 2.3  ~3 GDT-DS Te< 10-2Einj !

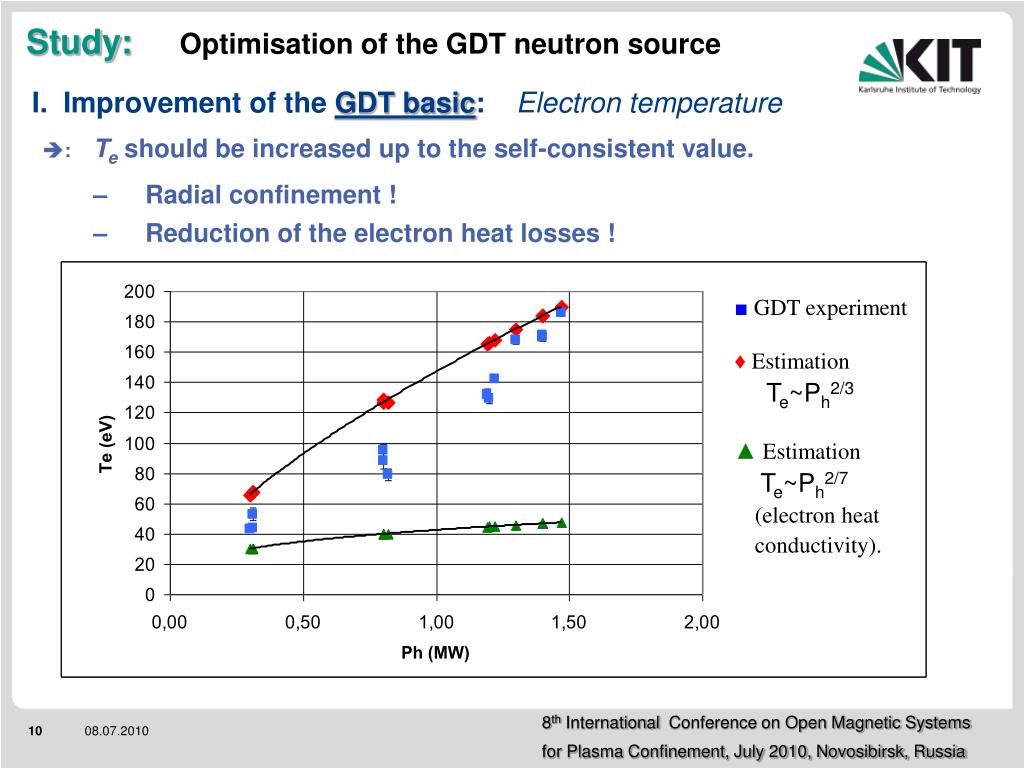

  10. Study:Optimisation of the GDT neutron source I. Improvement of the GDT basic: Electron temperature : Te should be increased up to the self-consistent value. – Radial confinement ! – Reduction of the electron heat losses ! ■ GDT experiment ♦ EstimationTe~Ph2/3 ▲ Estimation Te~Ph2/7(electron heat conductivity).

  11. Study:Optimisation of the GDT neutron source II. Improved GDT neutron source for driven system (KIT version): Requirements: Continuous source. Neutron emission Sn > 1018 n/s (for each n-zones). Neutron power flux densyty qn < 2 MW/m2 → Geometry of the n-zone. Fusion energy efficiency Qfus ~ 1 → low energy “cost” of a neutron. Assumptions: Improved axial confinement → low axial loses→Te ~ 3 keV. Vortex radial confinement → low transverse tranport. High β ~ 60% (experimentally attained value). Maximal magnetic field in the mirror with approriate mirror ratio. Pilet injection → steady state plasma density. Extended neutron emission region → 2 x 2m n-zones.

  12. Study:Optimisation of the GDT neutron source II. Improved GDT neutron source for driven system: Instruments and methods of modeling: A full 3D calculations by Integrated Transport Code System (ITCS). ITCSincludes modules: MCFIT – Monte-Carlo Fast Ions Transport code – fast ions, fusion reactions. NeuFIT – Neutral particles and gas simulations. FITMag – Magnetic field perturbation by high pressure plasmas (β reduction). PlasmaX – Target plasma simulations (heating, losses → temperature). NeutronS – Neutron flux calculation. + Input/Output subroutines.

  13. Magnetic field(SC coils): in midplane, B01 T im mirror, Bm 15 T lenght, L 16 m Target warm plasma : temperature, Те3keV density, ne 5x1020m-3 radius, a 10 cm Neutral beams injection:D0+T0 energy, Einj 65 keV total power, Pinj 75 MW trapped power, Ptr 50 MW Fussion power: total, Pfus 15 MW neutron, Pn 12 MW neutron yield 1.6 MW/m Study:Optimisation of the GDT neutron source II. Improved GDT neutron source for driven system: Results:Main parameters of the GDTNS_KA: Is a compact machine → low investment costs. Electricity consumption ~ 120 MW. 2 x 2m neutron emission zones with intencivity of 1.5x1018 neutron/s

  14. —vacuum magnetic field – –beta reduced MF n-zone n-zone Results: Improved GDT neutron source for driven system On axis magnetic field profile

  15. Results: Improved GDT neutron source for driven system Axial profile of neutron yield 2 x 2 m neutron emission zones with intencivity of 1.5x1018 neutron/s

  16. Study: Subcritical GDT driven MA burner First analysis of proposed GDT driven subcritical reactor we made on a base of EFIT (European Facility for Industrial Transmutation) reactor design [1]. The EFIT reactor is designed to be a demonstration ADS facility for industrial scale transmutation of minor actinides, with a power of about 400 MWth. The EFIT reactor is cooled by lead. Its fuel is uranium free CERCER fuel 50% MgO +50% (Pu,MAO2) in volume, containing a large quantity of americium. The plutonium content is ~ 37% leading to Keff ~ 0.97. In [2] several variations of EFIT design parameters were studied by using ENDF/B-6.5 based 69 group cross sections in the deterministic Sn code TWODANT. We used original (A) and extended (G) version of the EFIT reactor design for application with the GDT neutron source instead of the ADS lead target. [1] J.U. Knebel et.al., 9th Information Exchange Meeting P&T, Nîmes, 2006 [2] M. Badea, R. Dagan, C.H.M. Broeders, Jahrestagung Kerntechnik 2007, Karlsruhe, 22.-24.Mai 2007

  17. R 48 cm G R 30 cm Pb_Ext A Plenum R 48 cm R 30 cm Fuel Pb_Ext Pb Buffer Plenum 14 MeV n-source 14 MeV n-source Pb Buffer Fuel 250 cm 240 cm 400 cm 90 cm R=115.72 cm R=156.72 cm Study: Subcritical GDT driven MA burner Applied EFIT-like cylindrical geometry with GDT neutron source The fuel composition CERCER fuel 50% MgO +50% (Pu,MAO2) : a) plutonium with weight fractions: Pu238 0.04, Pu239 0.46, Pu240 0.34, Pu241 0.04, Pu242 0.12 b) MA with weight fractions: U234 0.04, Np237 0.04, Am241 0.73, Am243 0.15, Cm244 0.03, Cm245 0.01.

  18. Study: Subcritical GDT driven MA burner Results of calculations Pfis = 550 MW therm (one side) Pouttotal = 440MWel (both side) Pinp = 120 МВтel Q = 3.7

  19. Conclusions. • A new improved numerical model of the GDT neutron source based on last experimental results with a scaling to high Te ~ 3 keV and Qfus~ 0.3 was proposed and numerical simulated. The two 2 m n-zones with 1.6 MW/m neutron yield can produce 1.5x1018n/s each. It can be used for application to FDS burner of MA. • Analysis of proposed GDT driven subcritical reactor for MA burning was made on the base of the EFIT reactor design. The elongated version of EFIT with GDT-NS instead a spallation target show considerable promise for future development of this model. Detailed 3D simulation and thermohydraulic study should be made in the nex step of the project.

  20. Thank you for attention!!!
