  1. Motif discovery Prof. William Stafford Noble Department of Genome SciencesDepartment of Computer Science and Engineering University of Washington thabangh@gmail.com

  2. Outline • One-minute response • Revision • Motifs • Gibbs sampling • Expectation maximization • Python

  3. One-minute responses • Are we able to read from the smooth curve that we learned to create today what is a “good enough p-value”? • No, the curve gives you the p-value, but deciding what is “good enough” requires that you know the costs associated with false positives and false negatives. • The concepts were clear (for today). • Keep doing more explanation on the board. • Can you please explain the last part of converting scores to p-values? • Continue with revision every day.

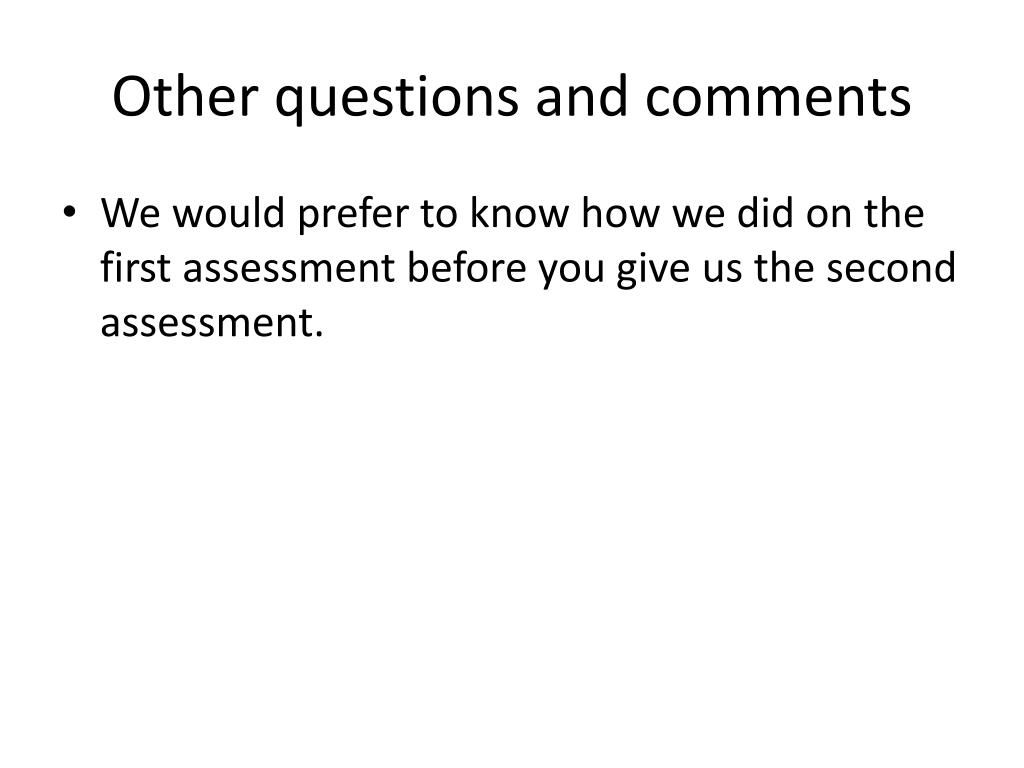

  4. Other questions and comments • We would prefer to know how we did on the first assessment before you give us the second assessment.

  5. Converting scores to p-values 0 1 2 3 4 … 400 • Say that your motif has N rows. Create a matrix that has N rows and 100N columns. • The entry in row i, column j is the number of different sequences of length i that can have a score of j. A 10 67 59 44 C 60 39 49 29 G 0 71 50 54 T 100 43 13 64

  6. Converting scores to p-values 0 1 2 3 4 … 10 60 100 400 • For each value in the first column of your motif, put a 1 in the corresponding entry in the first row of the matrix. • There are only 4 possible sequences of length 1. A 10 67 59 44 C 60 39 49 29 G 0 71 50 54 T 100 43 13 64 1 1 1 1

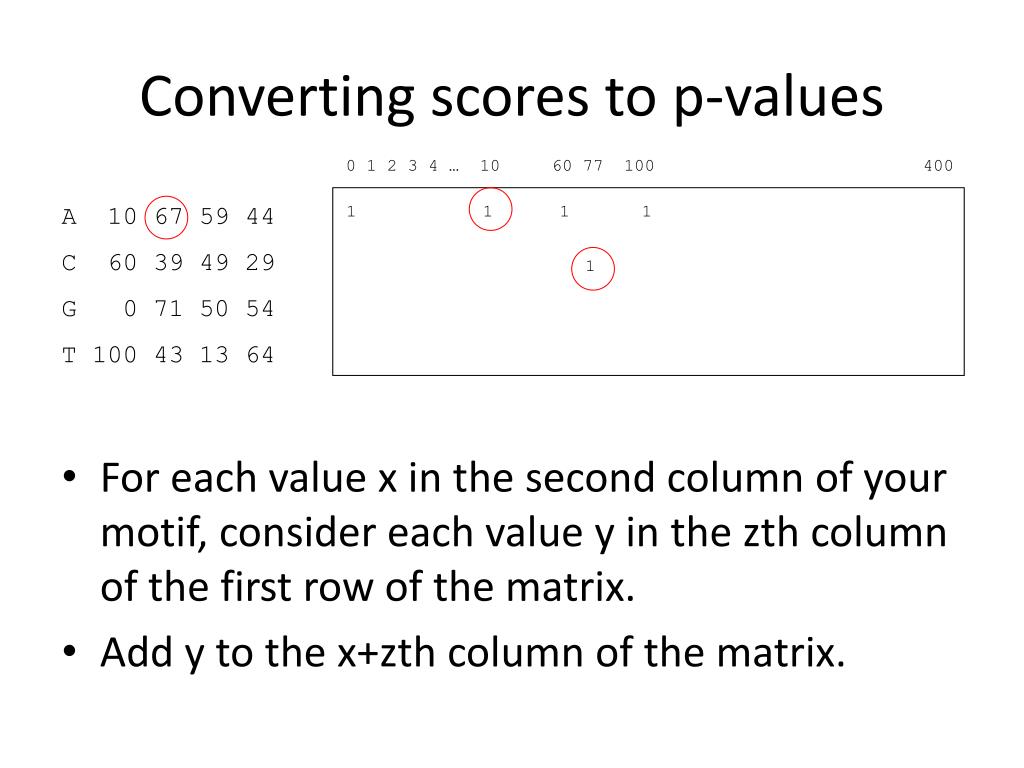

  7. Converting scores to p-values 0 1 2 3 4 … 10 60 77 100 400 • For each value x in the second column of your motif, consider each value y in the zth column of the first row of the matrix. • Add y to the x+zth column of the matrix. A 10 67 59 44 C 60 39 49 29 G 0 71 50 54 T 100 43 13 64 1 1 1 1 1

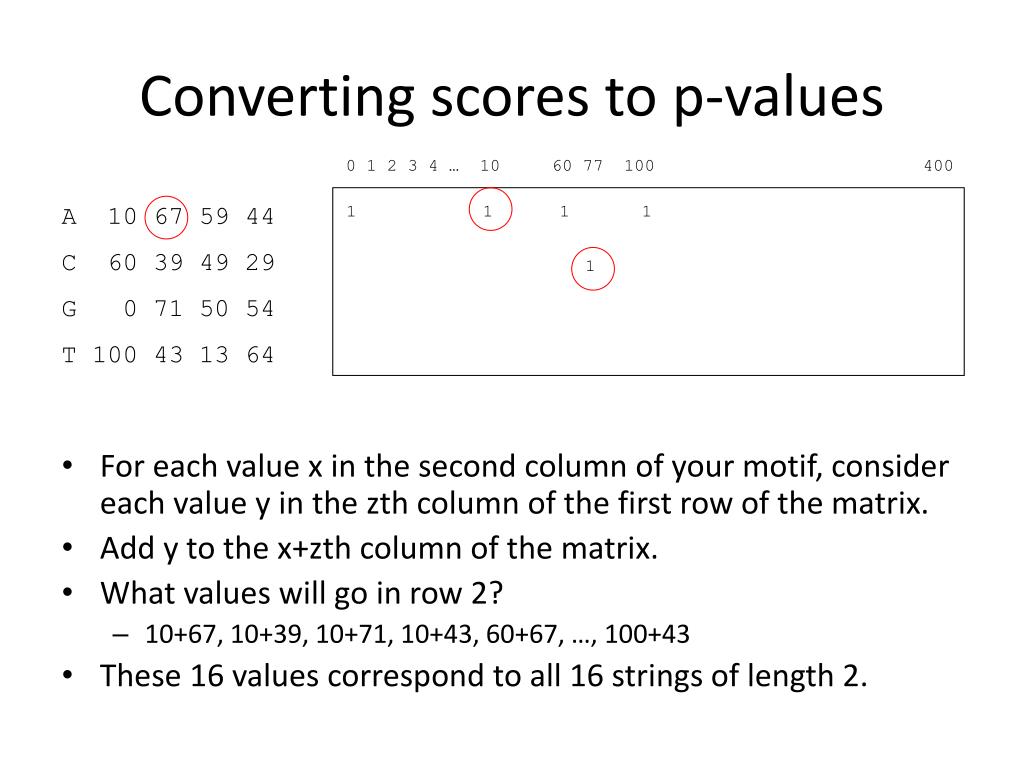

  8. Converting scores to p-values 0 1 2 3 4 … 10 60 77 100 400 • For each value x in the second column of your motif, consider each value y in the zth column of the first row of the matrix. • Add y to the x+zth column of the matrix. • What values will go in row 2? • 10+67, 10+39, 10+71, 10+43, 60+67, …, 100+43 • These 16 values correspond to all 16 strings of length 2. A 10 67 59 44 C 60 39 49 29 G 0 71 50 54 T 100 43 13 64 1 1 1 1 1

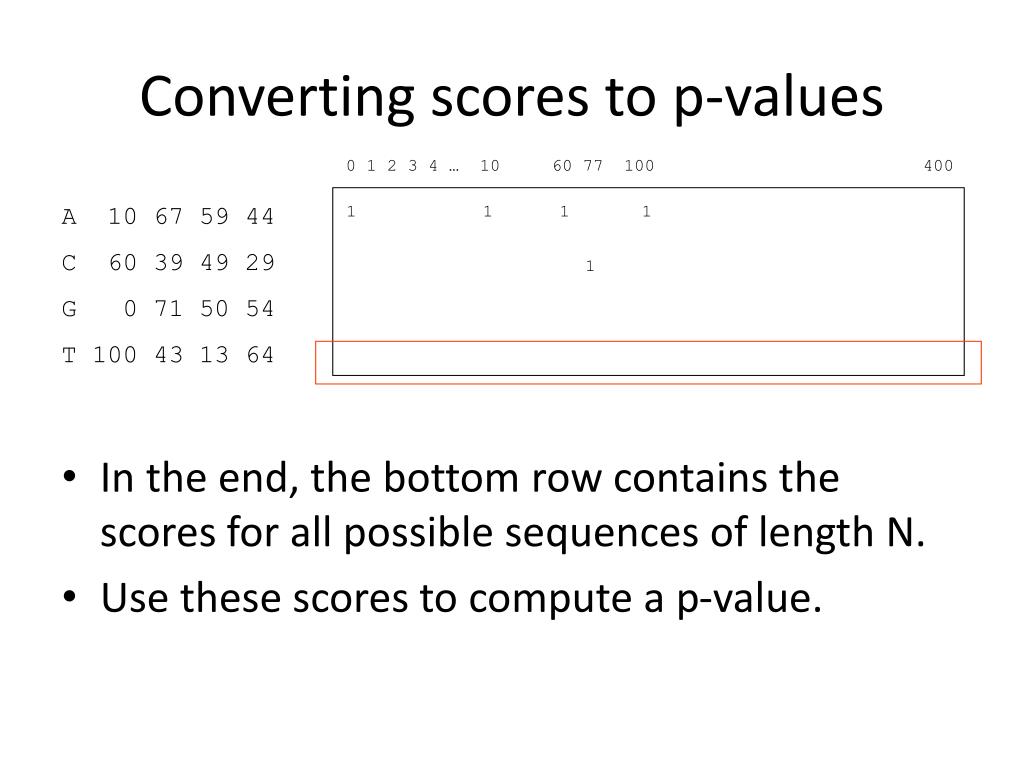

  9. Converting scores to p-values 0 1 2 3 4 … 10 60 77 100 400 • In the end, the bottom row contains the scores for all possible sequences of length N. • Use these scores to compute a p-value. A 10 67 59 44 C 60 39 49 29 G 0 71 50 54 T 100 43 13 64 1 1 1 1 1

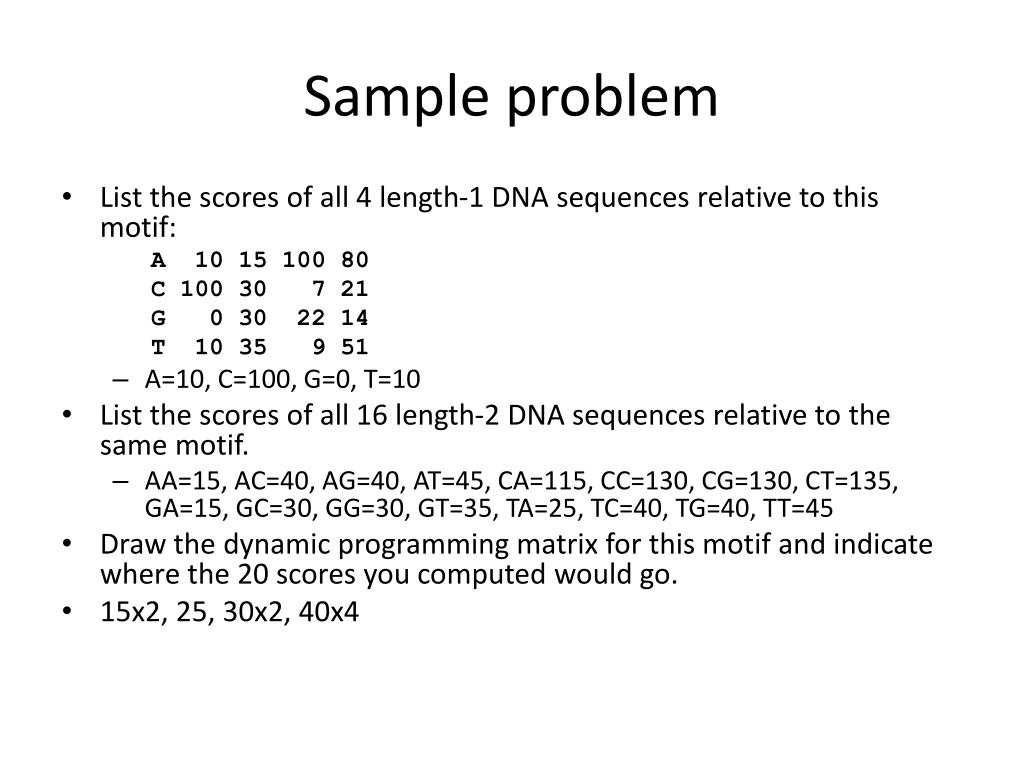

  10. Sample problem • List the scores of all 4 length-1 DNA sequences relative to this motif: A 10 15 100 80 C 100 30 7 21 G 0 30 22 14 T 10 35 9 51 • A=10, C=100, G=0, T=10 • List the scores of all 16 length-2 DNA sequences relative to the same motif. • AA=15, AC=40, AG=40, AT=45, CA=115, CC=130, CG=130, CT=135, GA=15, GC=30, GG=30, GT=35, TA=25, TC=40, TG=40, TT=45 • Draw the dynamic programming matrix for this motif and indicate where the 20 scores you computed would go. • 15x2, 25, 30x2, 40x4

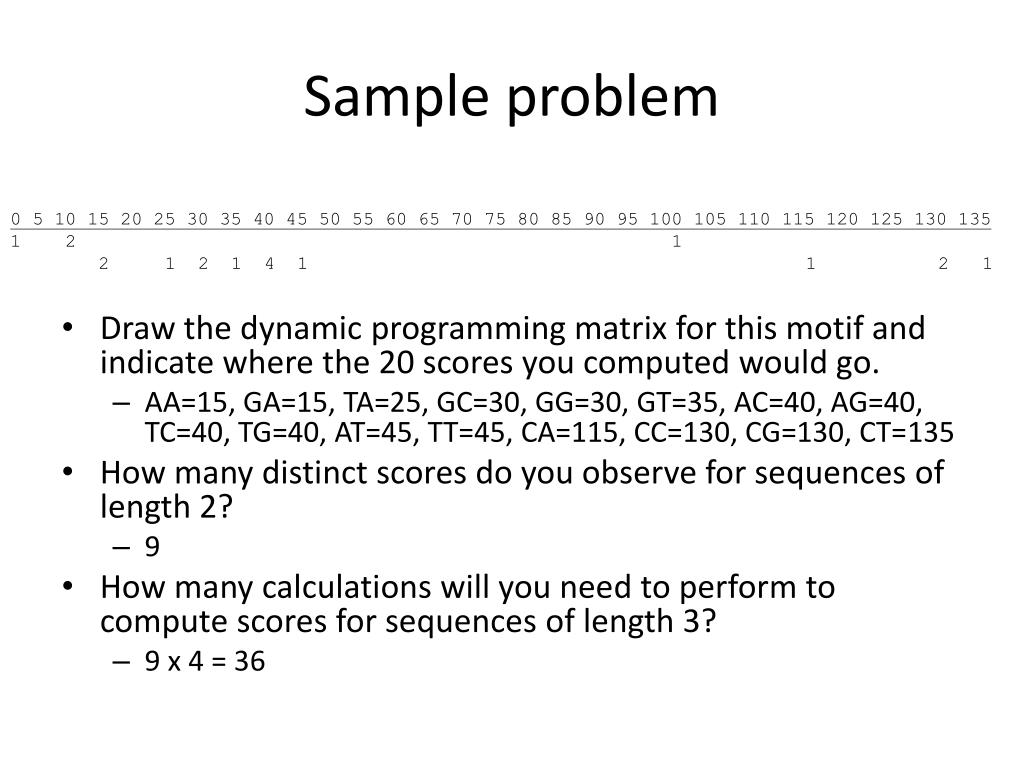

  11. Sample problem • Draw the dynamic programming matrix for this motif and indicate where the 20 scores you computed would go. • AA=15, GA=15, TA=25, GC=30, GG=30, GT=35, AC=40, AG=40, TC=40, TG=40, AT=45, TT=45, CA=115, CC=130, CG=130, CT=135 • How many distinct scores do you observe for sequences of length 2? • 9 • How many calculations will you need to perform to compute scores for sequences of length 3? • 9 x 4 = 36 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 1 2 1 2 1 2 1 4 1 1 2 1

  12. Revision • How many distinct amino acid sequences of length 10 exist? • 2010=1.024 x 1012 • Say that you use dynamic programming to compute the distribution of scores for a motif of width 10. You then observe a sequence with a score of 28. Describe how you would compute the p-value of 28 from the output of the dynamic programming. • Compute the sum S of the counts for scores ≥28. • The p-value is S/2010.

  13. Motif discovery problem • Given sequences • Find motif seq. 1 seq. 2 seq. 3 seq. 1 seq. 2 seq. 3 IGRGGFGEVY at position 515 LGEGCFGQVV at position 430 VGSGGFGQVY at position 682

  14. Motif discovery problem • Given: • a sequence or family of sequences. • Find: • the number of motifs • the width of each motif • the locations of motif occurrences

  15. Why is this hard? • Input sequences are long (thousands or millions of residues). • Motif may be subtle • Instances are short. • Instances are only slightly similar. ? ?

  16. xxxxxxxxxxx.xxxxxxxxx.xxxxx..........xxxxxx.xxxxxxx.xxxxxxxxxx.xxxxxxxxx HAHU V.LSPADKTN..VKAAWGKVG.AHAGE..........YGAEAL.ERMFLSF..PTTKTYFPH.FDLS.HGSA HAOR M.LTDAEKKE..VTALWGKAA.GHGEE..........YGAEAL.ERLFQAF..PTTKTYFSH.FDLS.HGSA HADK V.LSAADKTN..VKGVFSKIG.GHAEE..........YGAETL.ERMFIAY..PQTKTYFPH.FDLS.HGSA HBHU VHLTPEEKSA..VTALWGKVN.VDEVG...........G.EAL.GRLLVVY..PWTQRFFES.FGDL.STPD HBOR VHLSGGEKSA..VTNLWGKVN.INELG...........G.EAL.GRLLVVY..PWTQRFFEA.FGDL.SSAG HBDK VHWTAEEKQL..ITGLWGKVNvAD.CG...........A.EAL.ARLLIVY..PWTQRFFAS.FGNL.SSPT MYHU G.LSDGEWQL..VLNVWGKVE.ADIPG..........HGQEVL.IRLFKGH..PETLEKFDK.FKHL.KSED MYOR G.LSDGEWQL..VLKVWGKVE.GDLPG..........HGQEVL.IRLFKTH..PETLEKFDK.FKGL.KTED IGLOB M.KFFAVLALCiVGAIASPLT.ADEASlvqsswkavsHNEVEIlAAVFAAY.PDIQNKFSQFaGKDLASIKD GPUGNI A.LTEKQEAL..LKQSWEVLK.QNIPA..........HS.LRL.FALIIEA.APESKYVFSF.LKDSNEIPE GPYL GVLTDVQVAL..VKSSFEEFN.ANIPK...........N.THR.FFTLVLEiAPGAKDLFSF.LKGSSEVPQ GGZLB M.L.DQQTIN..IIKATVPVLkEHGVT...........ITTTF.YKNLFAK.HPEVRPLFDM.GRQ..ESLE xxxxx.xxxxxxxxxxxxx..xxxxxxxxxxxxxxx..xxxxxxx.xxxxxxx...xxxxxxxxxxxxxxxx HAHU QVKGH.GKKVADA.LTN......AVA.HVDDMPNA...LSALS.D.LHAHKL....RVDPVNF.KLLSHCLL HAOR QIKAH.GKKVADA.L.S......TAAGHFDDMDSA...LSALS.D.LHAHKL....RVDPVNF.KLLAHCIL HADK QIKAH.GKKVAAA.LVE......AVN.HVDDIAGA...LSKLS.D.LHAQKL....RVDPVNF.KFLGHCFL HBHU AVMGNpKVKAHGK.KVLGA..FSDGLAHLDNLKGT...FATLS.E.LHCDKL....HVDPENF.RL.LGNVL HBOR AVMGNpKVKAHGA.KVLTS..FGDALKNLDDLKGT...FAKLS.E.LHCDKL....HVDPENFNRL..GNVL HBDK AILGNpMVRAHGK.KVLTS..FGDAVKNLDNIKNT...FAQLS.E.LHCDKL....HVDPENF.RL.LGDIL MYHU EMKASeDLKKHGA.TVL......TALGGILKKKGHH..EAEIKPL.AQSHATK...HKIPVKYLEFISECII MYOR EMKASaDLKKHGG.TVL......TALGNILKKKGQH..EAELKPL.AQSHATK...HKISIKFLEYISEAII IGLOB T.GA...FATHATRIVSFLseVIALSGNTSNAAAV...NSLVSKL.GDDHKA....R.GVSAA.QF..GEFR GPUGNI NNPK...LKAHAAVIFKTI...CESATELRQKGHAVwdNNTLKRL.GSIHLK....N.KITDP.HF.EVMKG GPYL NNPD...LQAHAG.KVFKL..TYEAAIQLEVNGAVAs.DATLKSL.GSVHVS....K.GVVDA.HF.PVVKE GGZLB Q......PKALAM.TVL......AAAQNIENLPAIL..PAVKKIAvKHCQAGVaaaH.YPIVGQEL.LGAIK xxxxxxxxx.xxxxxxxxx.xxxxxxxxxxxxxxxxxxxxxxx..x HAHU VT.LAA.H..LPAEFTPA..VHASLDKFLASV.STVLTS..KY..R HAOR VV.LAR.H..CPGEFTPS..AHAAMDKFLSKV.ATVLTS..KY..R HADK VV.VAI.H..HPAALTPE..VHASLDKFMCAV.GAVLTA..KY..R HBHU VCVLAH.H..FGKEFTPP..VQAAYQKVVAGV.ANALAH..KY..H HBOR IVVLAR.H..FSKDFSPE..VQAAWQKLVSGV.AHALGH..KY..H HBDK IIVLAA.H..FTKDFTPE..CQAAWQKLVRVV.AHALAR..KY..H MYHU QV.LQSKHPgDFGADAQGA.MNKALELFRKDM.ASNYKELGFQ..G MYOR HV.LQSKHSaDFGADAQAA.MGKALELFRNDM.AAKYKEFGFQ..G IGLOB TA.LVA.Y..LQANVSWGDnVAAAWNKA.LDN.TFAIVV..PR..L GPUGNI ALLGTIKEA.IKENWSDE..MGQAWTEAYNQLVATIKAE..MK..E GPYL AILKTIKEV.VGDKWSEE..LNTAWTIAYDELAIIIKKE..MKdaA GGZLB EVLGDAAT..DDILDAWGK.AYGVIADVFIQVEADLYAQ..AV..E Globin motifs

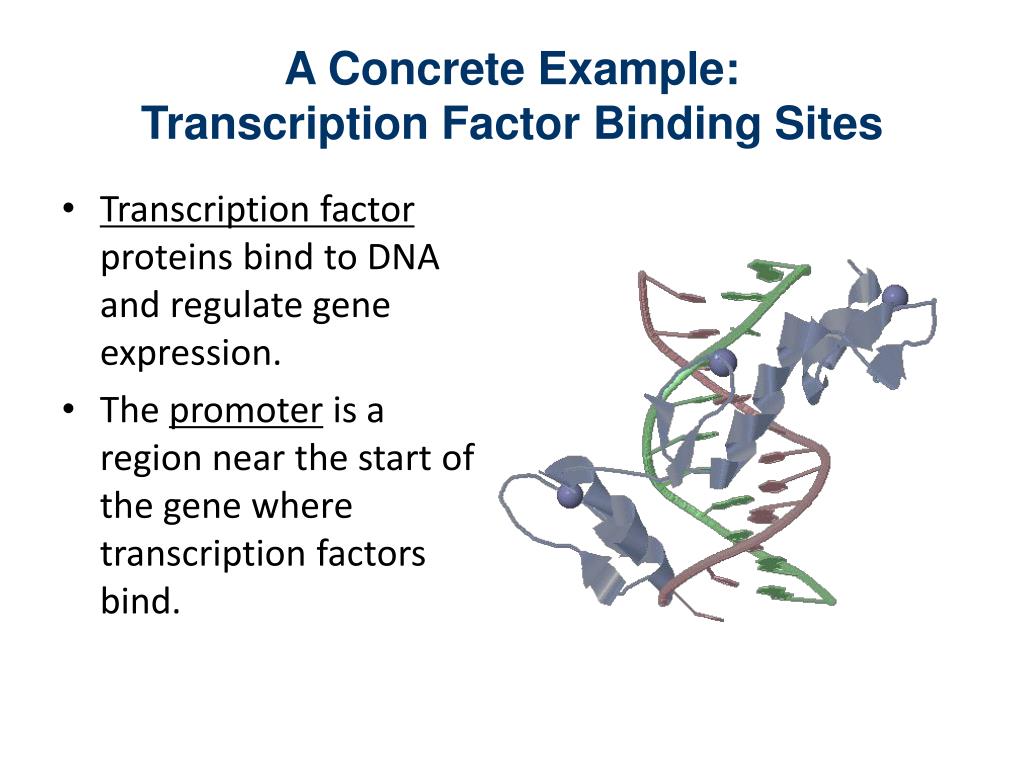

  17. A Concrete Example: Transcription Factor Binding Sites • Transcription factor proteins bind to DNA and regulate gene expression. • The promoter is a region near the start of the gene where transcription factors bind.

  18. TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACATTCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 A Concrete Example: Transcription Factor Binding Sites We are given a set of promoters from co-regulated genes.

  19. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …HIS7 …ARO4 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …THR4 …ARO1 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 …PRO3 A Concrete Example: Transcription Factor Binding Sites An unknown transcription factor binds to positions unknown to us, on either DNA strand.

  20. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 A Concrete Example: Transcription Factor Binding Sites The DNA binding motif of the transcription factor can be described by a position-specific scoring matrix (PSSM).

  21. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 A Concrete Example: Transcription Factor Binding Sites The sequence motif discovery problem is to discover the sites (or the motif) given just the sequences.

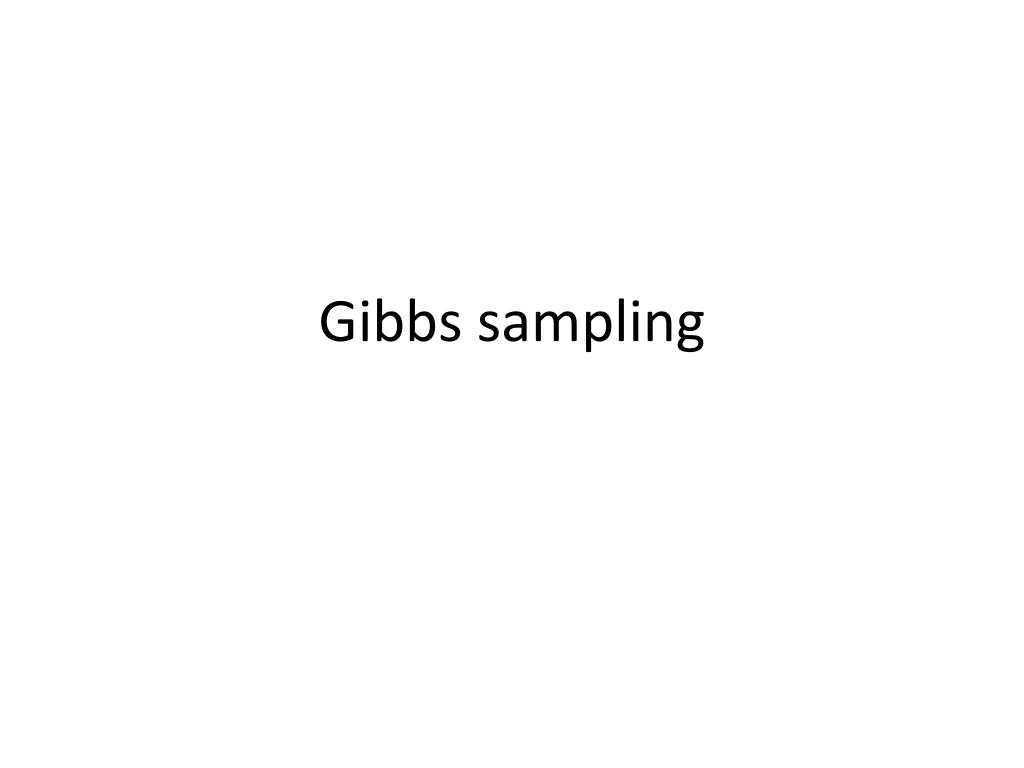

  22. Gibbs sampling

  23. Alternating approach • Guess an initial weight matrix • Use weight matrix to predict instances in the input sequences • Use instances to predict a weight matrix • Repeat 2 & 3 until satisfied.

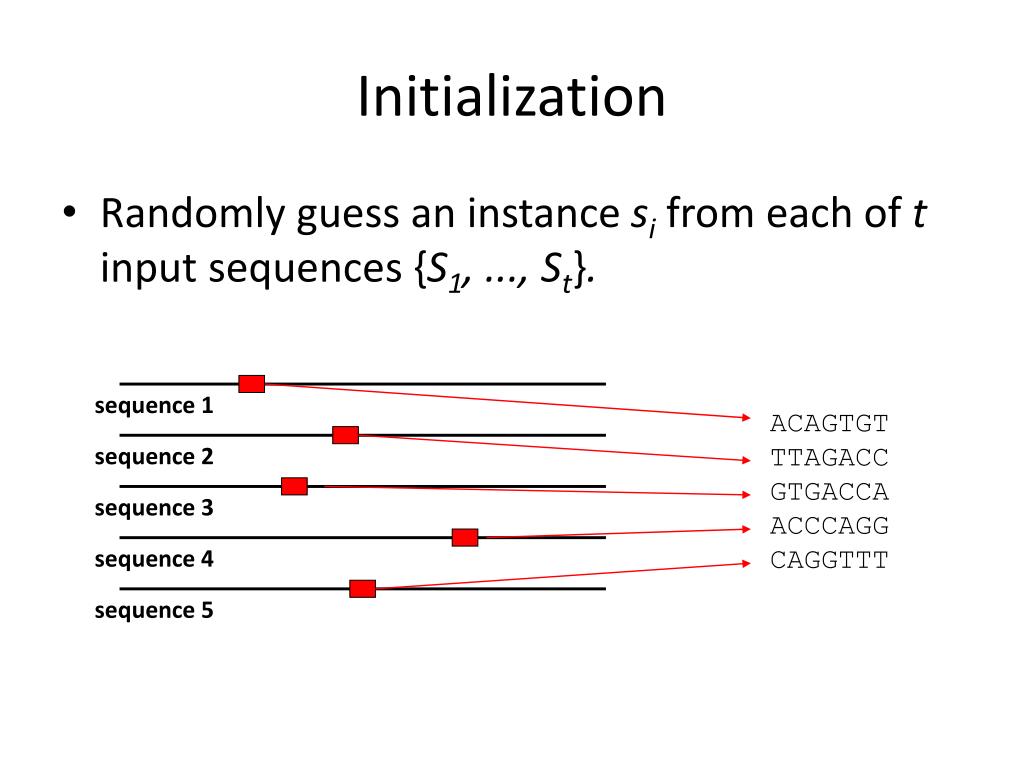

  24. Initialization • Randomly guess an instance si from each of t input sequences {S1, ..., St}. sequence 1 ACAGTGT TTAGACC GTGACCA ACCCAGG CAGGTTT sequence 2 sequence 3 sequence 4 sequence 5

  25. Gibbs sampler • Initially: randomly guess an instance si from each of t input sequences {S1, ..., St}. • Steps 2 & 3 (search): • Throw away an instance si: remaining (t - 1)instances define weight matrix. • Weight matrix defines instance probability at each position of input string Si • Pick new si according to probability distribution • Return highest-scoring motif seen

  26. Sampler step illustration: ACAGTGT TAGGCGT ACACCGT ??????? CAGGTTT A C G T ACAGTGT TAGGCGT ACACCGT ACGCCGT CAGGTTT sequence 4 11% ACGCCGT:20% ACGGCGT:52%

  27. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 The MEME Algorithm MEME uses expectation maximization (EM) to discover sequence motifs. Slides courtesy of Tim Bailey

  28. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 The MEME Algorithm The positions (and strands) of the sites are the missing information variables, Z = {Zi,j}.

  29. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 The MEME Algorithm If we knew theZ = {Zi,j}, we could estimate the motif PSSM using maximum likelihood.

  30. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 1 AAAAGAGTCA 2AAATGACTCA AAGTGAGTCA i AAAAGAGTCA GGATGAGTCA NAAATGAGTCA 12 … w j The MEME Algorithm Count Matrix Frequency Matrix Alignment A C G T A C G T 12 … w 12 … w

  31. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …HIS7 …ARO4 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …THR4 …ARO1 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 …PRO3 The MEME Algorithm θ(1) MEME starts Expectation Maximization from an initial estimate of θ based on a subsequence in the data.

  32. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 The MEME Algorithm θ(1) EM maximizes the expected joint likelihood of the sequences (X) and missing information (Z) under a probabilistic model.

  33. 5’- TCTCTCTCCACGGCTAATTAGGTGATCATGAAAAAATGAAAAATTCATGAGAAAAGAGTCAGACATCGAAACATACAT …HIS7 …ARO4 5’- ATGGCAGAATCACTTTAAAACGTGGCCCCACCCGCTGCACCCTGTGCATTTTGTACGTTACTGCGAAATGACTCAACG …ILV6 5’- CACATCCAACGAATCACCTCACCGTTATCGTGACTCACTTTCTTTCGCATCGCCGAAGTGCCATAAAAAATATTTTTT 5’- TGCGAACAAAAGAGTCATTACAACGAGGAAATAGAAGAAAATGAAAAATTTTCGACAAAATGTATAGTCATTTCTATC …THR4 …ARO1 5’- ACAAAGGTACCTTCCTGGCCAATCTCACAGATTTAATATAGTAAATTGTCATGCATATGACTCATCCCGAACATGAAA 5’- ATTGATTGACTCATTTTCCTCTGACTACTACCAGTTCAAAATGTTAGAGAAAAATAGAAAAGCAGAAAAAATAAATAA …HOM2 5’- GGCGCCACAGTCCGCGTTTGGTTATCCGGCTGACTCATTCTGACTCTTTTTTGGAAAGTGTGGCATGTGCTTCACACA …PRO3 The MEME Algorithm θ(1) The current estimates of the parameters of the data model are φ(t), and include θ(t).

  34. The MEME Algorithm EM iteratively refines φ(t).

  35. The MEME Algorithm E-step: Use φ(t) to estimate the probabilities of each position in the data being a site.

  36. The MEME Algorithm M-step: Use Z(t) to find the value of φthat maximizes the expectation of the joint conditional probability.

  37. Alternating approach • Guess an initial weight matrix • Use weight matrix to predict instances in the input sequences • Use instances to predict a weight matrix • Repeat 2 & 3 until satisfied.

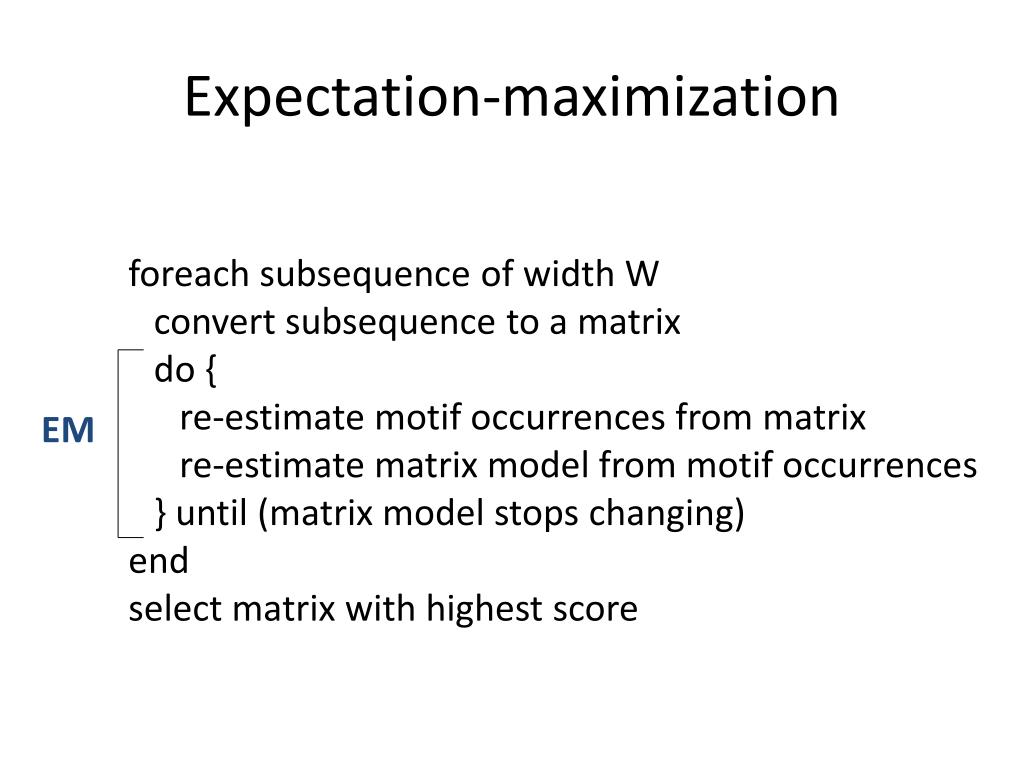

  38. Expectation-maximization foreach subsequence of width W convert subsequence to a matrix do { re-estimate motif occurrences from matrix re-estimate matrix model from motif occurrences } until (matrix model stops changing) end select matrix with highest score EM

  39. Comparison • Both EM and Gibbs sampling involve iterating over two steps • Convergence: • EM converges when the PSSM stops changing. • Gibbs sampling runs until you ask it to stop. • Solution: • EM may not find the motif with the highest score. • Gibbs sampling will provably find the motif with the highest score, if you let it run long enough.

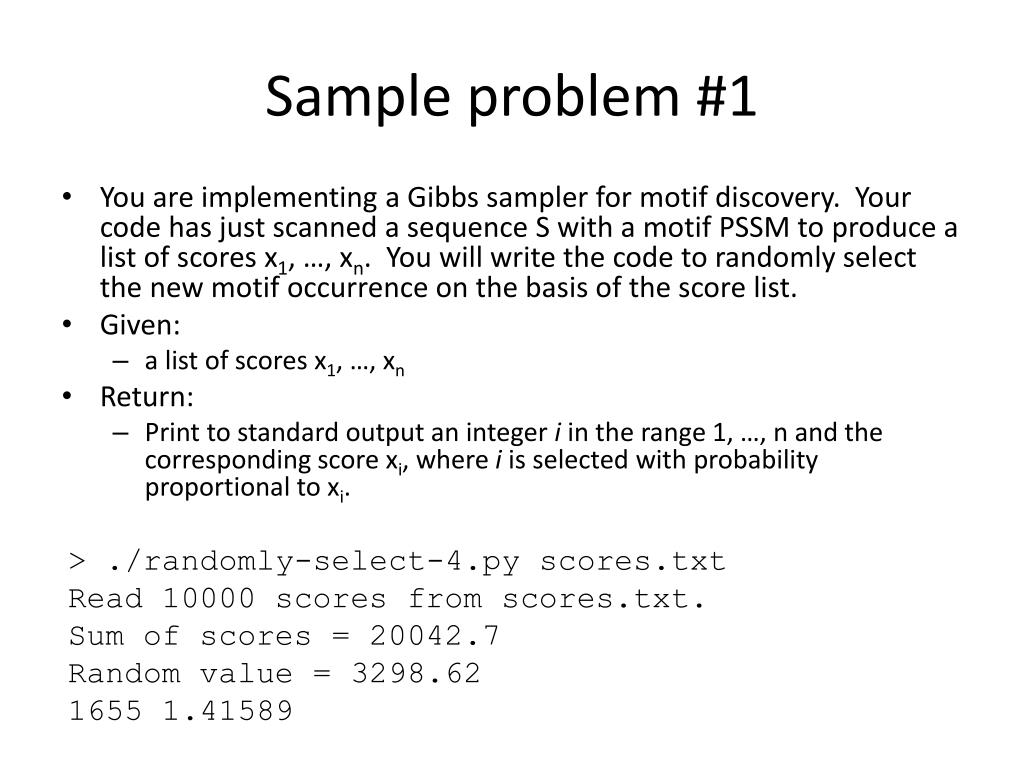

  40. Sample problem #1 • You are implementing a Gibbs sampler for motif discovery. Your code has just scanned a sequence S with a motif PSSM to produce a list of scores x1, …, xn. You will write the code to randomly select the new motif occurrence on the basis of the score list. • Given: • a list of scores x1, …, xn • Return: • Print to standard output an integer i in the range 1, …, n and the corresponding score xi, where iis selected with probability proportional to xi. > ./randomly-select-4.py scores.txt Read 10000 scores from scores.txt. Sum of scores = 20042.7 Random value = 3298.62 1655 1.41589

  41. Sample problem #2 • Given: • a list of DNA sequences, • the motif width, • the integer index of the (currently estimated) motif occurrence within each sequence, • the index j of the sequence for which to update the motif occurrence, and • the list of scores for sequence j. • Return: • a new alignment with the motif occurrence for sequence j randomly replaced.

  42. >./do-gibbs-step.py crp0.txt 10 crp0-offsets.txt 1 crp0-scores.txt > foo Read 18 sequences from crp0.txt. Read 95 values from crp0-scores.txt. Read 18 values from crp0-indices.txt. Sum of scores = 189.341 Random value = 69.6017 Selected 36 with score 2.81402. > cat foo TTTGTGGCAT CAGAAAAGTC ACTGTGAGCA TATGCAAAGG GGTGTTAAAT ATTGTGATGT AATTTATTCC AACGTGATCA AATGTGAGTT TCTGTAACAG TCTGTGAACT ATTGTGACAC TGCCTGACGG ATTGTGATTC GTTGTGATGT GGTGTGAAAT AATGAGACGT TTTGTGAGTG
