Presentation Transcript

Itp 150

ITP 150

Week 4








  • Controls

  • Propeties

  • Events

  • Methods

  • Procedures

  • Functions

Move Clear







ITP 150 - Lecturer: A. Borquez

Controls for displaying and entering text

Controls for Displaying andEntering Text

To provide this featureUse this control

Text that can be edited by the user, for example Text box

an order entry field or a password box

Text that is displayed only, for example to identify Label

a field on a form or display instructions to the user

ITP 150 - Lecturer: A. Borquez

Controls that present choices to users

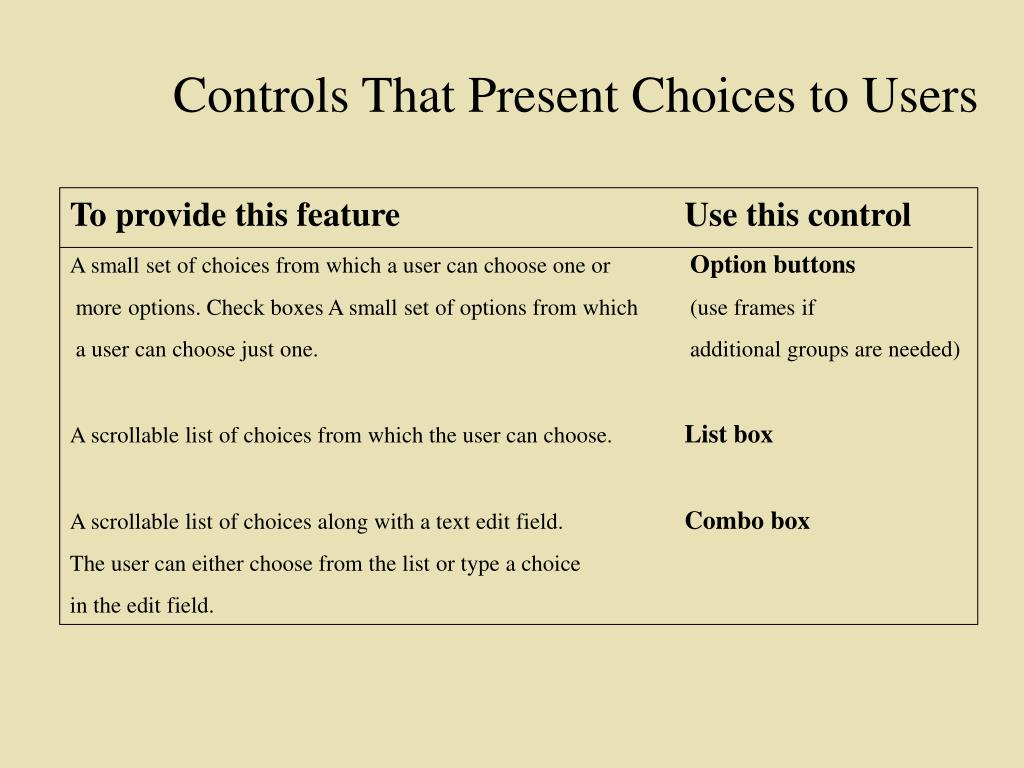

Controls That Present Choices to Users

To provide this featureUse this control

A small set of choices from which a user can choose one or Option buttons

more options. Check boxes A small set of options from which (use frames if

a user can choose just one. additional groups are needed)

A scrollable list of choices from which the user can choose. List box

A scrollable list of choices along with a text edit field. Combo box

The user can either choose from the list or type a choice

in the edit field.

Controls that display pictures and graphics

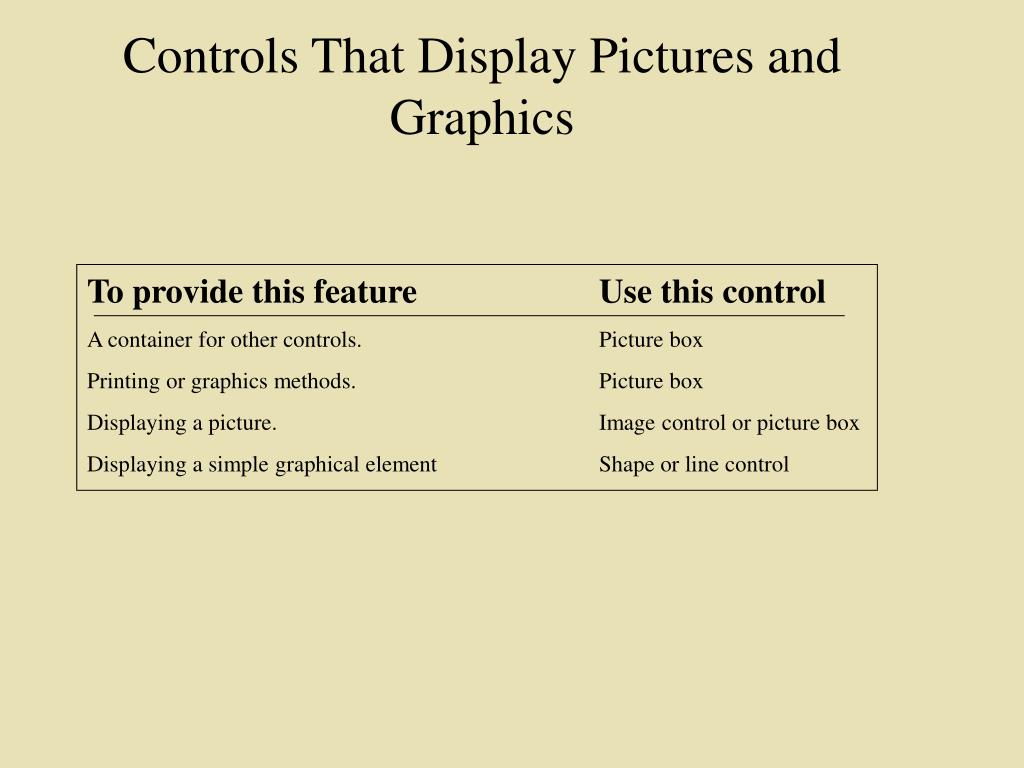

Controls That Display Pictures and Graphics

To provide this featureUse this control

A container for other controls.Picture box

Printing or graphics methods. Picture box

Displaying a picture. Image control or picture box

Displaying a simple graphical element Shape or line control

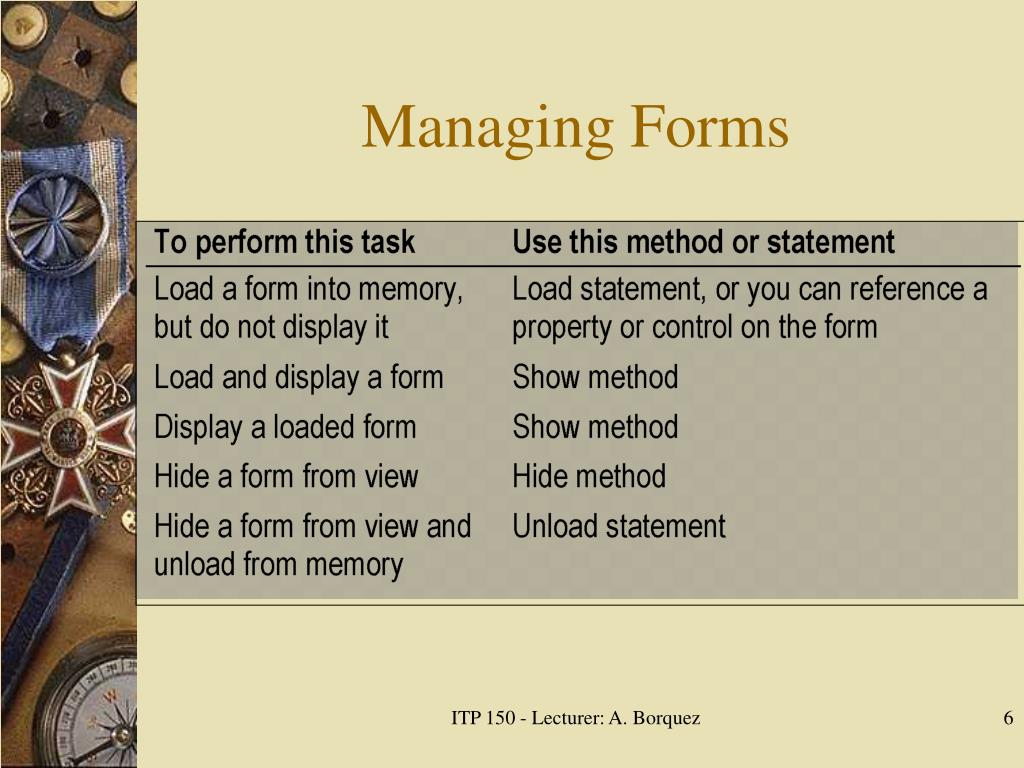

Managing forms

Managing Forms

ITP 150 - Lecturer: A. Borquez



  • In Visual Basic, you use variables to temporarily store values during the execution of an application

  • Variables have a name (the word you use to refer to the value the variable contains) and a data type (which determines the kind of data the variable can store)

  • To declare a variable is to tell the program about it in advance. You declare a variable with the Dim statement, supplying a name for the variable:Dimvariablename [Astype]

ITP 150 - Lecturer: A. Borquez

Variable rules

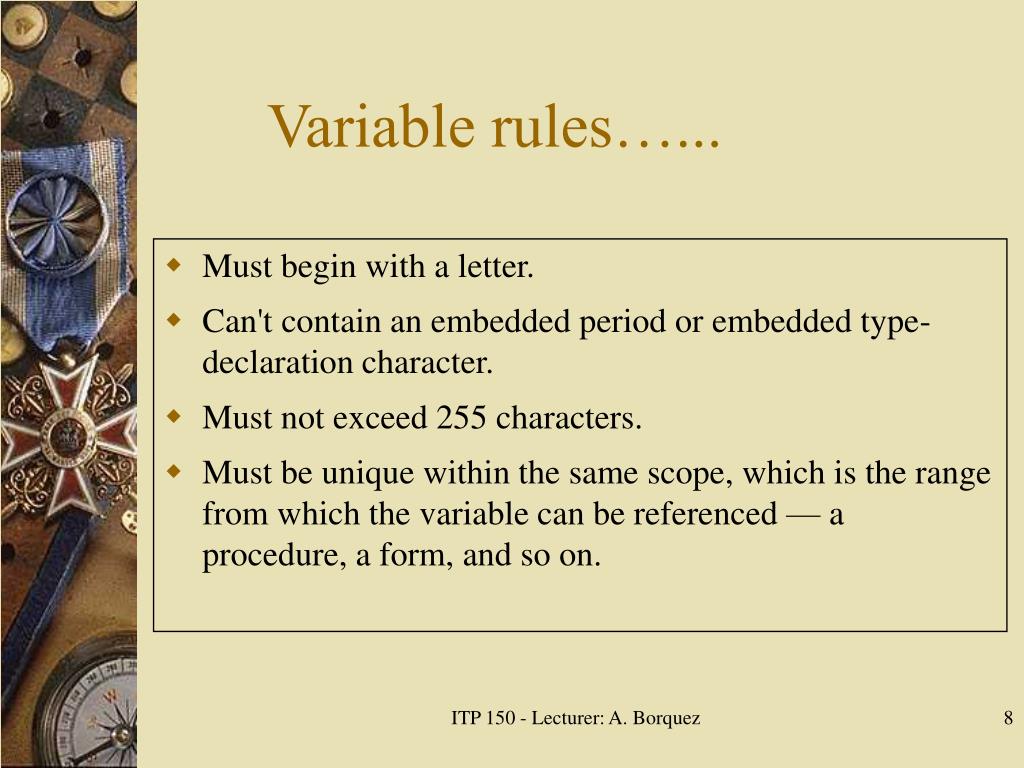

Variable rules…...

  • Must begin with a letter.

  • Can't contain an embedded period or embedded type-declaration character.

  • Must not exceed 255 characters.

  • Must be unique within the same scope, which is the range from which the variable can be referenced — a procedure, a form, and so on.

ITP 150 - Lecturer: A. Borquez

Itp 150

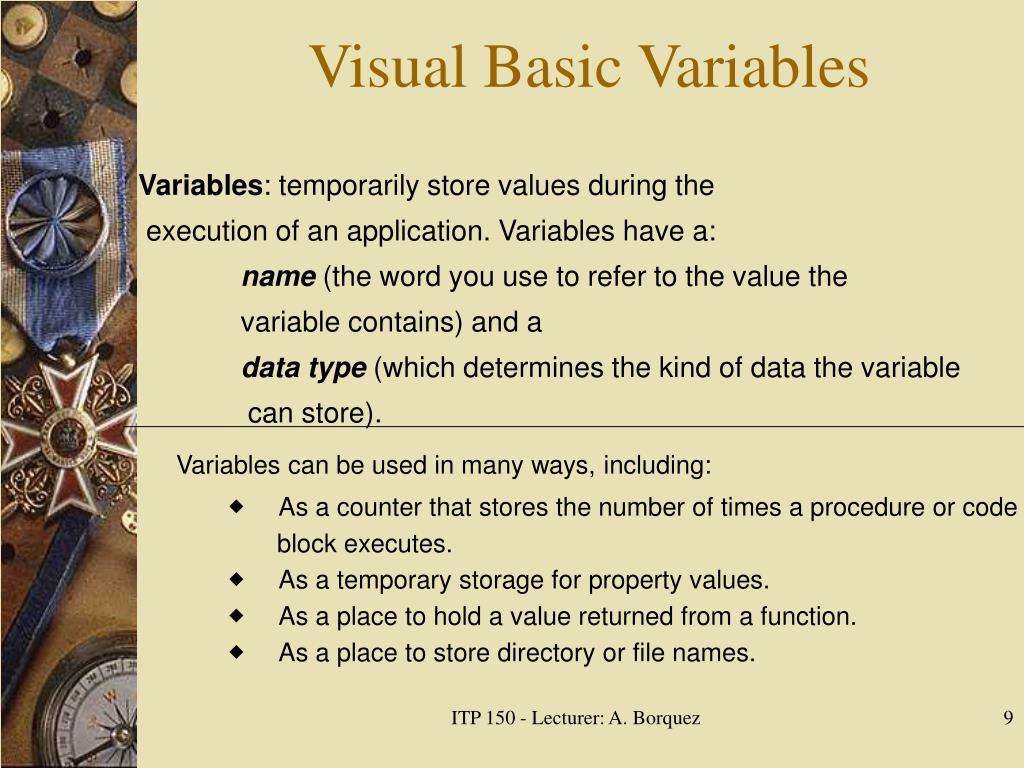

Visual Basic Variables

  • Variables: temporarily store values during the

  • execution of an application. Variables have a:

  • name (the word you use to refer to the value the

  • variable contains) and a

  • data type (which determines the kind of data the variable

  • can store).

  • Variables can be used in many ways, including:

    • ®As a counter that stores the number of times a procedure or code

    • block executes.

    • ®As a temporary storage for property values.

    • ®As a place to hold a value returned from a function.

    • ®As a place to store directory or file names.

ITP 150 - Lecturer: A. Borquez

Other variable issues to think about

Other Variable issues to think about….

  • Implicit vs. Explicit Declarations

  • Declaring a variable in the Declarations section of a form, standard, or class module, rather than within a procedure, makes the variable available to all the procedures in the module.

  • Declaring a variable using the Public keyword makes it available throughout your application.

  • Declaring a local variable using the Static keyword preserves its value even when a procedure ends.

ITP 150 - Lecturer: A. Borquez

Variable data types

Variable Data Types

Data typeStorage size

Byte1 byte

Boolean2 bytes

Integer2 bytes

Long (long integer)4 bytes

Single (single floating-point)4 bytes

Double(double floating-point)8 bytes

Currency (scaled integer)8 bytes

Date8 bytes

Object4 bytes + size of object

String (variable-length)10 bytes + string length

String (fixed-length)length of string

Variant16 bytes

ITP 150 - Lecturer: A. Borquez

Variable data types naming conventions

Variable Data Types Naming Conventions

Data typePrefix












ITP 150 - Lecturer: A. Borquez

Understanding the scope of variables

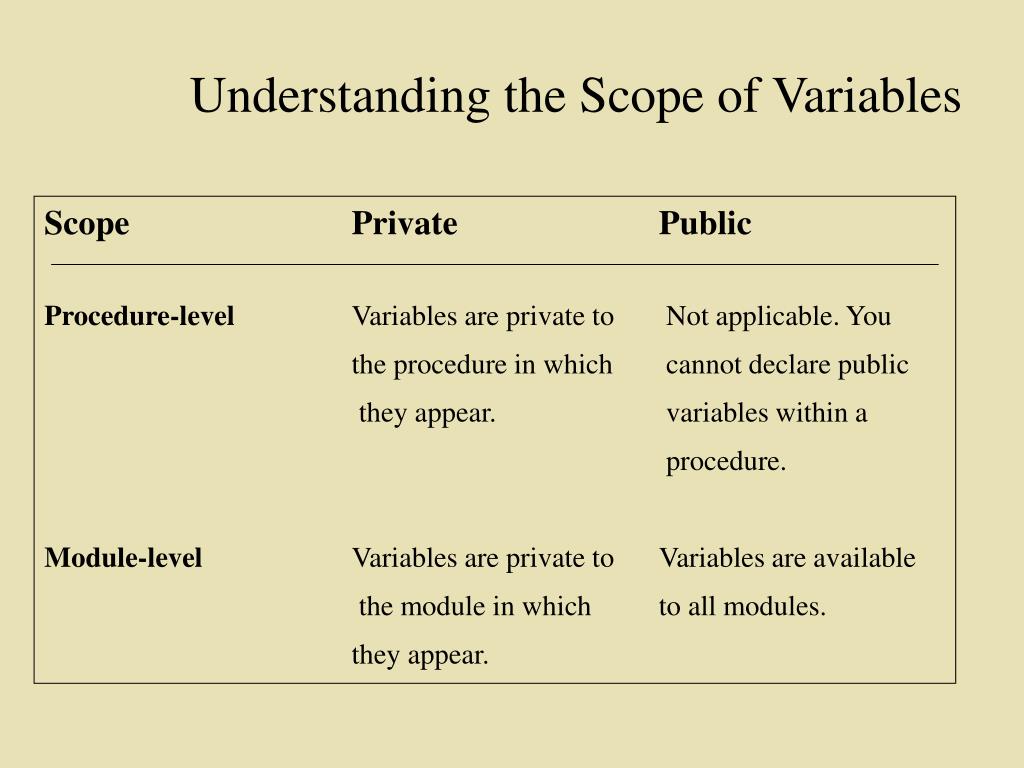

Understanding the Scope of Variables


Procedure-level Variables are private to Not applicable. You

the procedure in which cannot declare public

they appear. variables within a


Module-level Variables are private toVariables are available

the module in which to all modules.

they appear.

Introduction to procedures

Introduction to Procedures

There are two major benefits of programming with procedures:

  • Procedures allow you to break your programs into discrete logical units, each of which you can debug more easily than an entire program without procedures.

  • Procedures used in one program can act as building blocks for other programs, usually with little or no modification.

ITP 150 - Lecturer: A. Borquez

Itp 150

Working with Date and Time

  • Dim dtNewDate As Date

  • dtNewDate = dtDate + 5

  • Now, Date, and Time functions

  • MsgBox "The current date and time is " & Now()

  • MsgBox "The date is " & Date()

  • MsgBox "The time is " & Time()

ITP 150 - Lecturer: A. Borquez

Itp 150

VB Date/Time Functions

FunctionExampleValue displayed








ITP 150 - Lecturer: A. Borquez

Itp 150

The DateDiff Function

The DateDiff function returns the number of time intervals

between two dates.

  • DateDiff(interval, date1, date2[, firstdayofweek[, firstweekofyear]])

  • Dim dtTheDate As Date

  • Dim strMsg As String

  • dtTheDate = InputBox("Enter a date")

  • strMsg = "Days from today: " & DateDiff("d", Now, dtTheDate)

  • MsgBox strMsg

Itp 150

VB Format Function

the Format function accepts a numeric value and converts it to a string

Format syntaxResult

Format(Now, “m/d/yy”)1/27/99

Format(Now, “dddd, mmmm dd, yyyy”)Wednesday, January 27, 1999

Format(Now, “d-mmm”)27-Jan

Format(Now, “mmmm-yy”)January-99

Format(Now, “hh:mm AM/PM”)07:18 AM

Format(Now, “h:mm:ss a/p”)7:18:00 a

Format(Now, “d-mmmm h:mm”)3-January 7:18

Using Named Formats

  • txtDate.Text = Format(Now, "Long Date")

  • txtCost.Text = Format(1000, "Currency")

Sub procedures vs function procedures

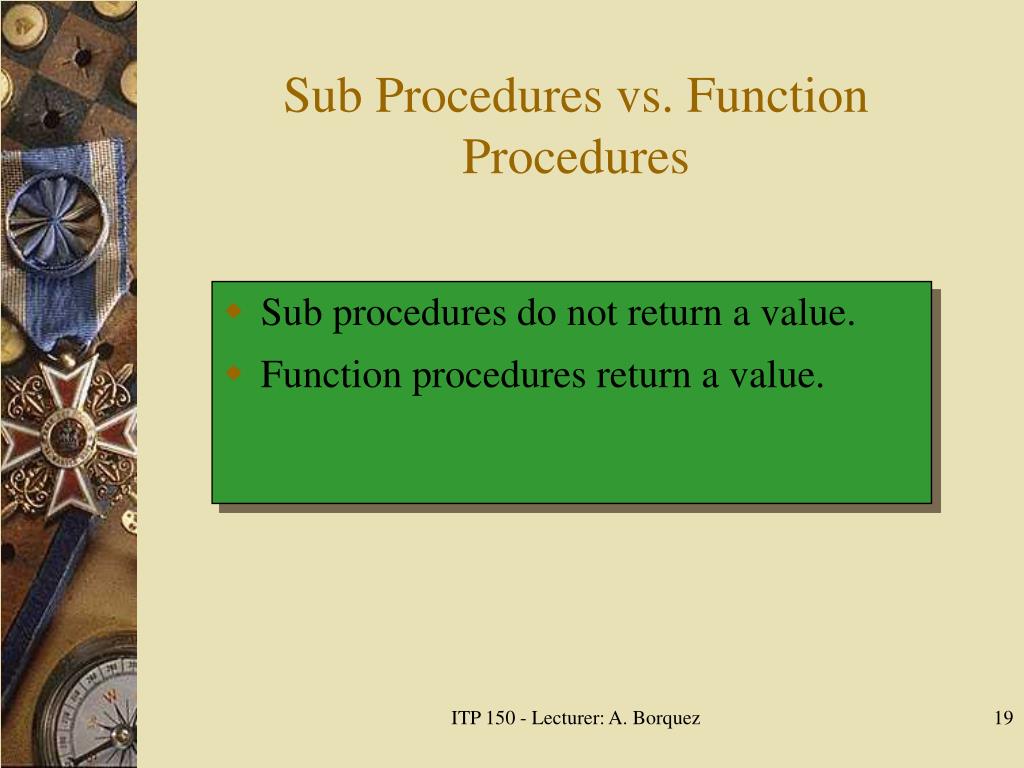

Sub Procedures vs. Function Procedures

  • Sub procedures do not return a value.

  • Function procedures return a value.

ITP 150 - Lecturer: A. Borquez

A closer look at sub procedures

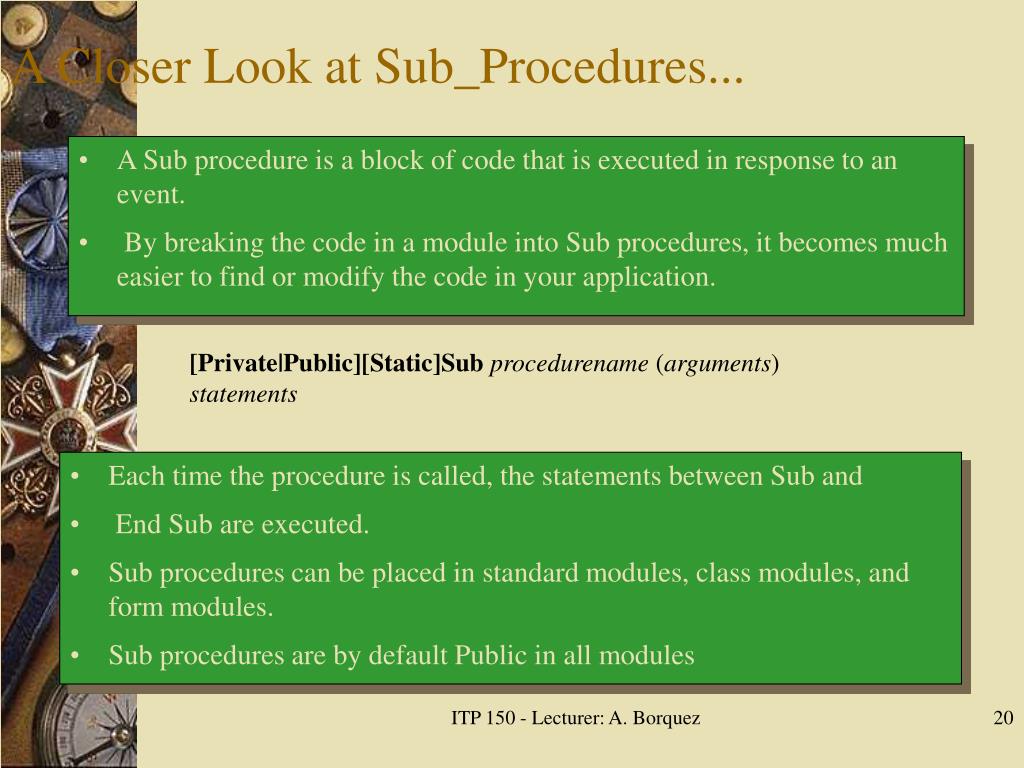

A Closer Look at Sub_Procedures...

  • A Sub procedure is a block of code that is executed in response to an event.

  • By breaking the code in a module into Sub procedures, it becomes much easier to find or modify the code in your application.

[Private|Public][Static]Subprocedurename (arguments)statements

  • Each time the procedure is called, the statements between Sub and

  • End Sub are executed.

  • Sub procedures can be placed in standard modules, class modules, and form modules.

  • Sub procedures are by default Public in all modules

ITP 150 - Lecturer: A. Borquez

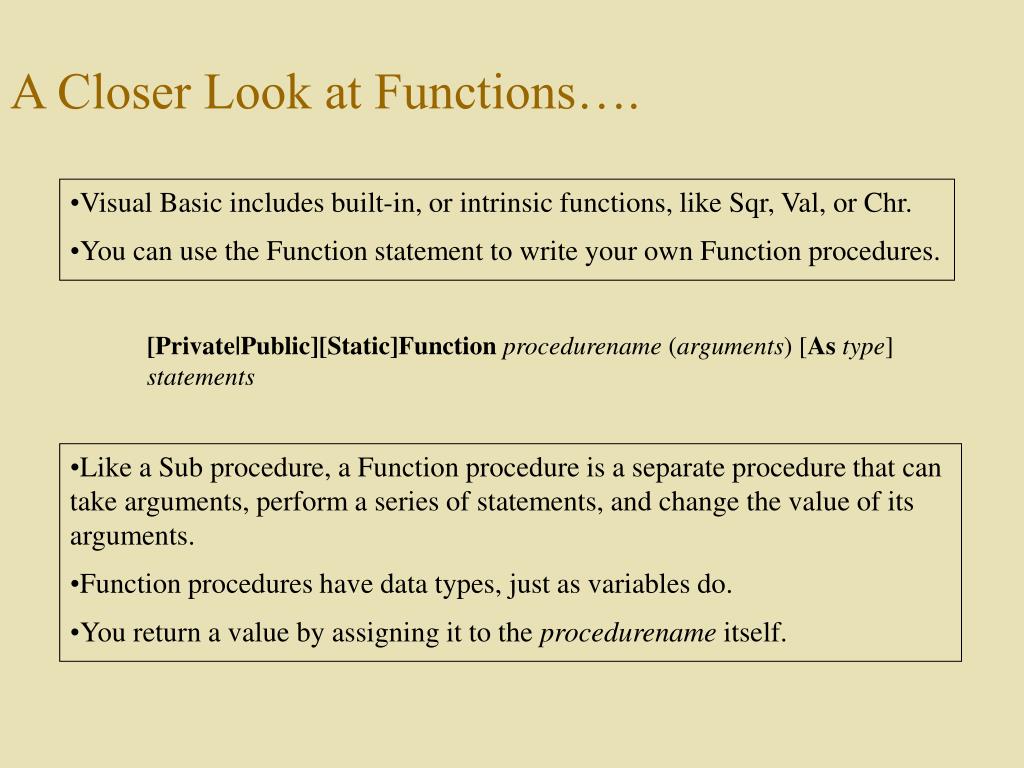

A closer look at functions

A Closer Look at Functions….

  • Visual Basic includes built-in, or intrinsic functions, like Sqr, Val, or Chr.

  • You can use the Function statement to write your own Function procedures.

[Private|Public][Static]Functionprocedurename (arguments) [Astype]statements

  • Like a Sub procedure, a Function procedure is a separate procedure that can take arguments, perform a series of statements, and change the value of its arguments.

  • Function procedures have data types, just as variables do.

  • You return a value by assigning it to the procedurename itself.
