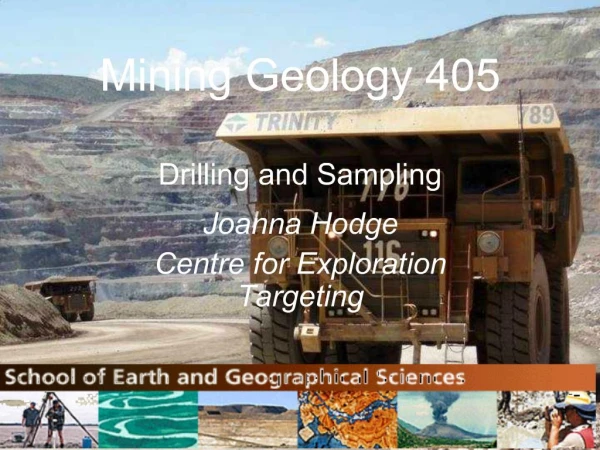

1. Mining Geology 405Drilling and Sampling Joanna Hodge
Centre for Exploration Targeting
2. Overview Drilling Techniques
Drilling Equipment
Downhole Surveying
Sampling
3. Drilling and Sampling Important mineral exploration procedure
Delineate subsurface conditions
Expensive
Number of techniques
Tests ideas and theories developed during prospect and target generation
LOCATES AND DEFINES ECONOMIC MINERALISATION
4. Drilling Techniques 3 main techniques used in Goldfields
RAB (Rotary Air Blast)
RC (Reverse Circulation)
Diamond drilling
5. Rotary Air Blast (RAB) Cheapest
Least penetrative (~100m)
Geochemical sampling to base of regolith (ie only penetrates weathered cover over fresh rocks)
Uses compressed air to break ground
Air pumped down through drill rod
Cuttings blown up hole between rod and hole wall
Single barrel technique
6. Advantages Cheap
Fast
Large sample volume
7. Disadvantages No fresh rock samples
Limited depth
No structural data
Contamination
8. RAB – single barrel technique, air blown down centre of rod tube, sample is blown to surface along narrow space between rod string and side of hole – Contamination!
RC – dual tube system – air passes down hole between outer and inner tube, sample is returned to surface through inner tube – no contamination, determine exact location of samples
Diamond – circular diamond bit rotating at v high speed cuts a cylinder of rock. Core enters core-barrel located behind bit and prevented from falling back into hole by core lifter. Core barrel holds three metres of core; when full device called overshot lowered down hole, attaches on to core barrel and it is returned to surfaceRAB – single barrel technique, air blown down centre of rod tube, sample is blown to surface along narrow space between rod string and side of hole – Contamination!
RC – dual tube system – air passes down hole between outer and inner tube, sample is returned to surface through inner tube – no contamination, determine exact location of samples
Diamond – circular diamond bit rotating at v high speed cuts a cylinder of rock. Core enters core-barrel located behind bit and prevented from falling back into hole by core lifter. Core barrel holds three metres of core; when full device called overshot lowered down hole, attaches on to core barrel and it is returned to surface
9. Reverse Circulation (RC) Moderately priced
Good penetration (to ~350m)
Samples fresh rock
Dual barrel technique
High pressure fluid forced down outer pipe and returns chips to surface up inner pipe
11. Advantages Relatively cheap
Quick
Large sample
Uncontaminated
12. Disadvantages Limited access
No structural data
Sample contamination below water table
16. Diamond Drilling Expensive
Greatest penetration
Whole rock samples
17. RAB – single barrel technique, air blown down centre of rod tube, sample is blown to surface along narrow space between rod string and side of hole – Contamination!
RC – dual tube system – air passes down hole between outer and inner tube, sample is returned to surface through inner tube – no contamination, determine exact location of samples
Diamond – circular diamond bit rotating at v high speed cuts a cylinder of rock. Core enters core-barrel located behind bit and prevented from falling back into hole by core lifter. Core barrel holds three metres of core; when full device called overshot lowered down hole, attaches on to core barrel and it is returned to surfaceRAB – single barrel technique, air blown down centre of rod tube, sample is blown to surface along narrow space between rod string and side of hole – Contamination!
RC – dual tube system – air passes down hole between outer and inner tube, sample is returned to surface through inner tube – no contamination, determine exact location of samples
Diamond – circular diamond bit rotating at v high speed cuts a cylinder of rock. Core enters core-barrel located behind bit and prevented from falling back into hole by core lifter. Core barrel holds three metres of core; when full device called overshot lowered down hole, attaches on to core barrel and it is returned to surface
18. Advantages Maximum geological information
Uncontaminated
High quality sampling
19. Disadvantages Expensive
Slow
Small sample size
Extensive site preparation and water supply required
20. Appropriate Drilling Methods RAB
Early exploration
First pass and infill drilling
RC
Intermediate exploration
Delineate ore body
Grade control
Diamond
Late stage
Structural controls
21. Drilling
22. Directional control Important to survey RC and Diamond holes to ascertain exact position of underground features
Rod strings can deviate significantly and do not travel straight.
Inaccurately surveyed holes can lead to large discrepancies in the actual location of an orebody
Surveying is undertaken down the drillhole by a single-shot camera to record dip and azimuth every 30-50m during drilling, or after drilling is completed by a gyro
If surveying indicates that a drillhole is deviating significantly off course, the driller can take remedial action. Draw diagram
Orientation of drill hole wrt dip and azimuth v important. Rod string not rigid, therefore attitude can change with depth – deviation. Holes usually flatten (downward drilling pressure) and swing right (direction rods turn) but not always. Deviation often influenced by dominant foliation (bedding or cleavage)Draw diagram
Orientation of drill hole wrt dip and azimuth v important. Rod string not rigid, therefore attitude can change with depth – deviation. Holes usually flatten (downward drilling pressure) and swing right (direction rods turn) but not always. Deviation often influenced by dominant foliation (bedding or cleavage)
23. Sampling & Sampling Theory “Good sampling is like religion – everyone believes in it, but few practice it.”
Sampling results are estimates made within bounds of precision (repeatability) and accuracy (lack of bias)
24. A Sample Representative part or single item from larger whole
Taken for purpose of inspection
Evidence of quality
Part of statistical population whose properties are studied to gain information about the whole
By definition have two elements
Typicality
Smallness
25. Problems, Bias Variable geological environments
Erratic metal distribution
High unit value of precious metals exacerbates error
Low cut-off grades requires greater care when sampling
Sampling provides basic data for subsequent resource and reserve calculations
Grade control errors can be costly Discuss
Variable geological environments – what is the missing material? Soft, friable or soluble? How would the missing material impact on the analysis? Oxidation, surface leaching and secondary enrichment, contamination from external sources. Density contrasts ie in chip samplesDiscuss
Variable geological environments – what is the missing material? Soft, friable or soluble? How would the missing material impact on the analysis? Oxidation, surface leaching and secondary enrichment, contamination from external sources. Density contrasts ie in chip samples
26. Objectives Determine, minimise source of error
Determine optimum sample size and density/spacing for
In situ mineralisation (core, channel samples)
Broken ore (drill chips, ROM material, crushed material)
27. Errors Core sample split unevenly or divided improperly
Density differences in chip samples
Hardness differences
28. Where biased or unrepresentative sample data can be recognised, the source of the error can be eliminated
Geological bias can be taken into account by separating out sub-populations eg. zoned ore bodies, leaching or secondary enrichment
Contamination should be avoided by good sampling methodology
Human factors?
Different samplers or procedures
Fraud
29. Errors
31. Overall Error Estimation OE = AE+S(FE+GSE+DE+EE+PE)
OE = overall estimation error
AE = analytical error (lab precision)
FE = fundamental error (in situ variability)
GSE = grouping & segregation error (broken ore, drill chips)
DE = delimitation error (sample site selection)
EE = extraction error (sample selection)
PE = preparation error (lab prep)
=S(contamination error + sample loss + chemical/physical alteration + human mistakes + fraud)
32. Coefficient of Variability The higher the CoV, the more difficult ore grade estimation is
1.0 – 1.5 good precision
1.5 – 2.0 fair precision
> 2.5 high imprecision – treat with caution
33. Ore Deposit Classification Type A: Simple geometry, low CoV
Simple geometry, simple grade distribution, eg coal, iron, bauxite, nickel laterite
Simple geometry, complex grade distribution, eg, disseminated copper, gold stockworks, Witwatersrand gold
34. Ore Deposit Classification Type B: Complex geometry, simple grade distribution, low CoV
Base metal deposits
35. Ore Deposit Classification Type C: Complex geometry, complex grade distribution, high CoV
Lode gold deposits – Yilgarn!
Sampling procedures must be tailored to the style of mineralisation
36. Sample size Required sample size depends on:
In situ concentration of ore mineral
In situ grain size of ore mineral
Other factors that apply specifically to broken or crushed material
37. Rules of Thumb Sample size limited by physical and economic constraints
Bigger is better
If samples are poor, then get lots of samples
38. Why Grade Control How much ore is going to the waste dump?
How much waste is going through the mill?
Important to eliminate dilution
Even more important not to throw away your ore!
39. Grade Control Carried out routinely at all mine sites to evaluate ore distribution in the pit, or underground
Variety of methods used – in open pits commonly RC drilling. Blast holes also logged and assayed.
Drilling carried out on fixed pattern to a set depth, unlike exploration drilling
Depth determined by size of bench being mined; usually covers two benches at a time.
Samples usually only analysed for limited element suite eg. Au only in gold mine, however this is a site-specific decision.
42. Next Week Geological logging
Geotechnical logging
Ore deposit models
Summary and review
