Basalt mat

Basalt Mat

New brand ECOMAT in insulation segment

Basalt Fibers LTD.

www.basalt-fibers.com

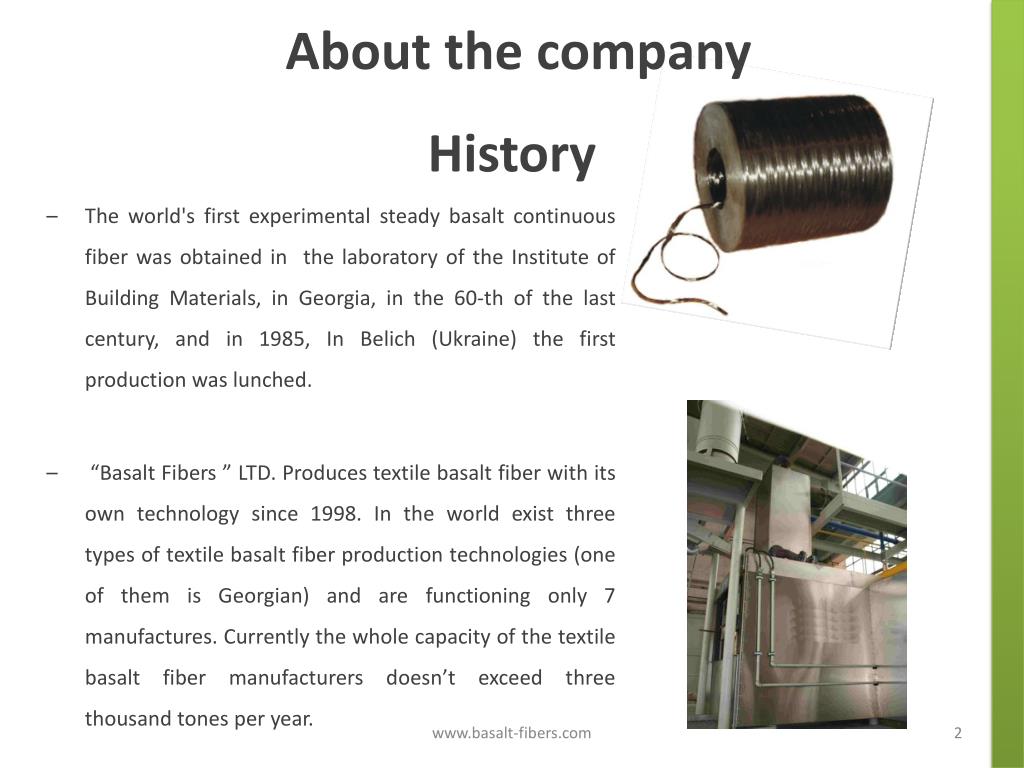

About the company history

About the companyHistory

– The world's first experimental steady basalt continuous fiber was obtained in the laboratory of the Institute of Building Materials, in Georgia, in the 60-th of the last century, and in 1985, In Belich (Ukraine) the first production was lunched.

– “Basalt Fibers ” LTD. Produces textile basalt fiber with its own technology since 1998.In the world exist three types of textile basalt fiber production technologies (one of them is Georgian) and are functioning only 7 manufactures. Currently the whole capacity of the textile basalt fiber manufacturers doesn’t exceed three thousand tones per year.

www.basalt-fibers.com


Basalt mat

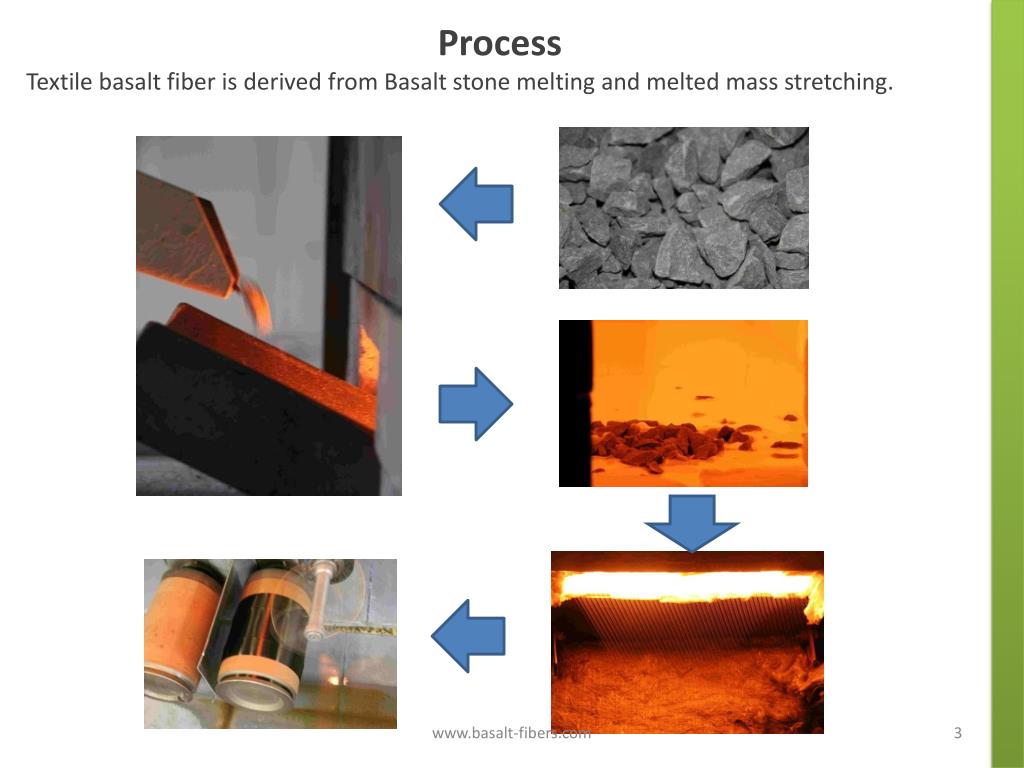

Process

Textile basalt fiber is derived from Basalt stone melting and melted mass stretching.

www.basalt-fibers.com


Basalt mat

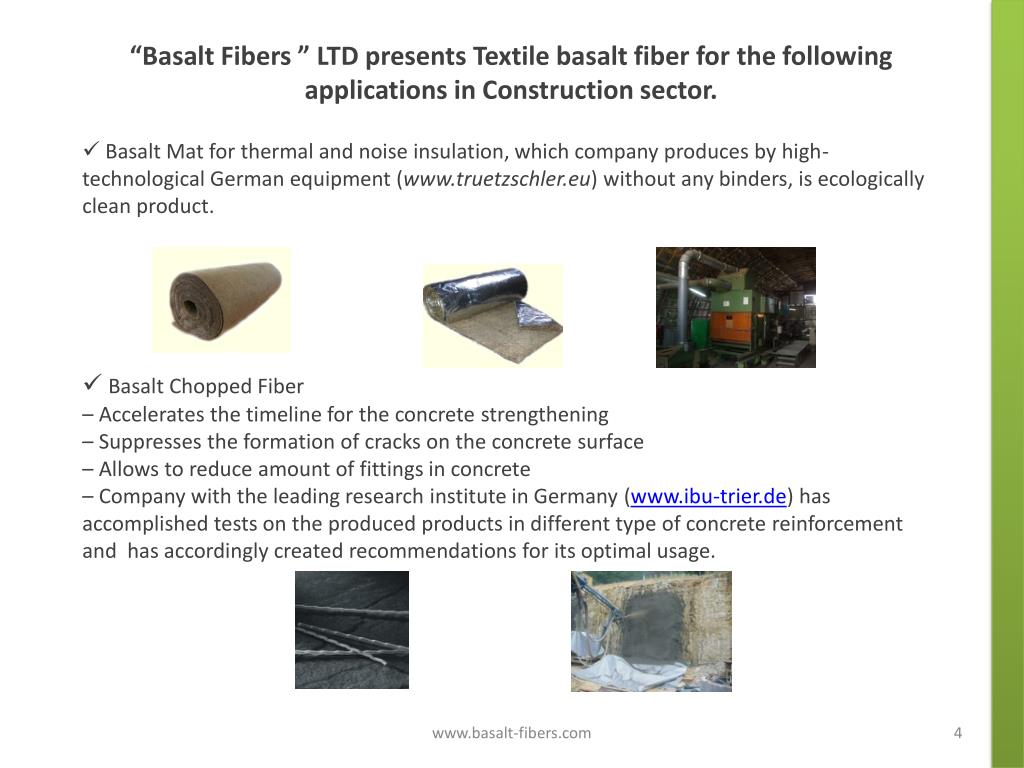

  • “Basalt Fibers ” LTD presents Textile basalt fiber for the following applications in Construction sector.

  • Basalt Mat for thermal and noise insulation, which company produces by high-technological German equipment (www.truetzschler.eu)without any binders, is ecologically clean product.

  • Basalt Chopped Fiber

  • – Accelerates the timeline for the concrete strengthening

  • – Suppresses the formation of cracks on the concrete surface

  • – Allows to reduce amount of fittings in concrete

  • – Company with the leading research institute in Germany (www.ibu-trier.de) has accomplished tests on the produced products in different type of concrete reinforcement and has accordingly created recommendations for its optimal usage.

www.basalt-fibers.com


Basalt mat advantages for georgian market

Basalt Mat advantages for Georgian market

  • In comparison with the existing competitors, EcoMat has the lowest heat transfer coefficient (0,031W/m0K) and widest temperature range (–2670C ÷ +8500C) of usage. It enables consumer to reach the highest level of insulation and noise resistance parameters with the maximum low volume of the product.

  • Represents totally ecologically clean product, as it is the natural basalt stone transferred to the form of thread, which is formed as a mat after carding on mechanic needling board.

  • On Georgian market it is the most competitive product as it meets the strict requirements of modern touristic and public infrastructure and represents not flammable, as well as not burnable insulation material.(ASTM C553)

www.basalt-fibers.com

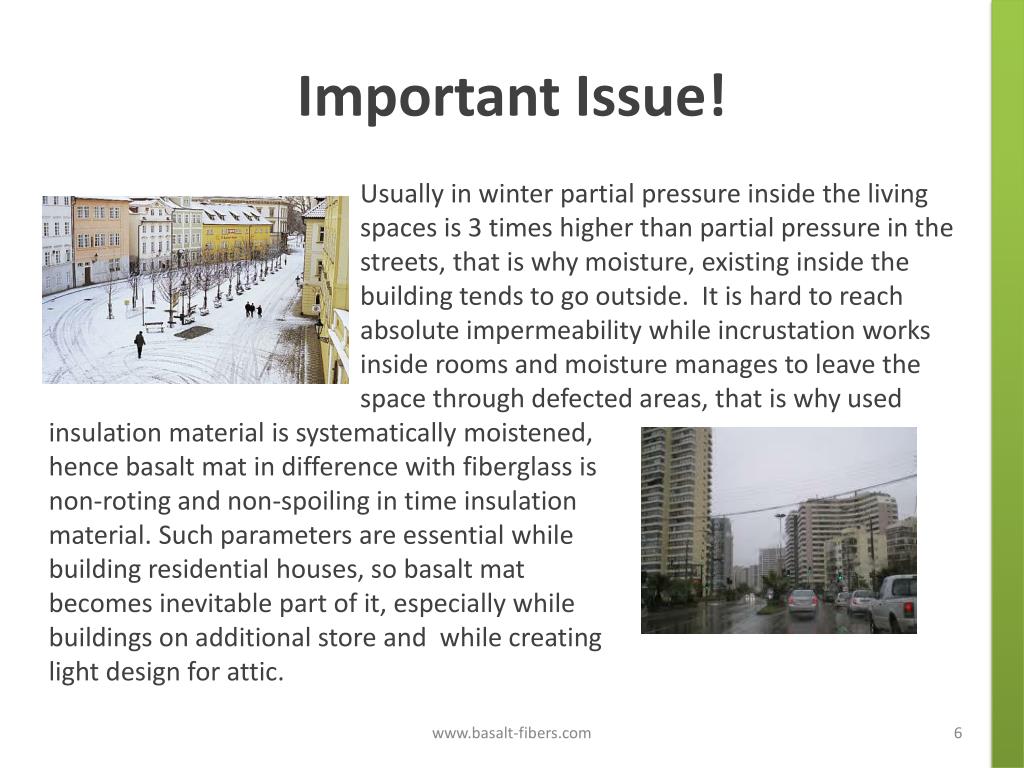

Important issue

Important Issue!

Usually in winter partial pressure inside the living spaces is 3 times higher than partial pressure in the streets, that is why moisture, existing inside the building tends to go outside. It is hard to reach absolute impermeability while incrustation works inside rooms and moisture manages to leave the space through defected areas, that is why used

insulation material is systematically moistened, hence basalt mat in difference with fiberglass is non-roting and non-spoiling in time insulation material. Such parameters are essential while building residential houses, so basalt mat becomes inevitable part of it, especially while buildings on additional store and while creating light design for attic.

www.basalt-fibers.com


Basalt mat

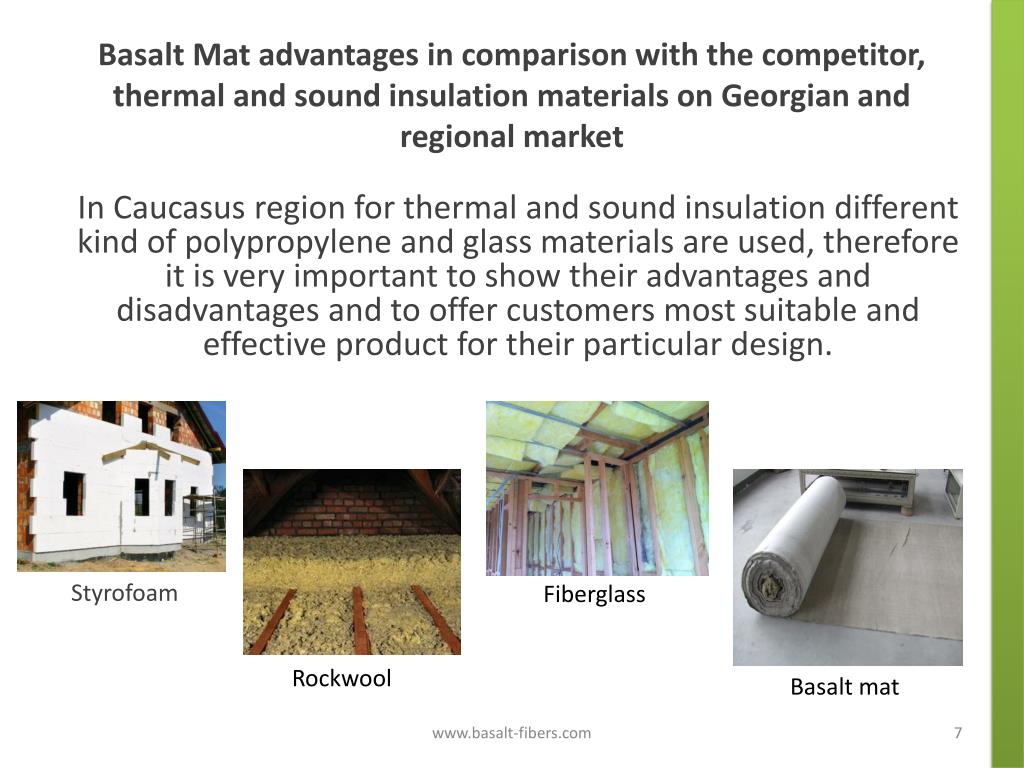

Basalt Mat advantages in comparison with the competitor, thermal and sound insulation materials on Georgian and regional market

In Caucasus region for thermal and sound insulation different kind of polypropylene and glass materials are used, therefore it is very important to show their advantages and disadvantages and to offer customers most suitable and effective product for their particular design.

Styrofoam

Fiberglass

Rockwool

Basalt mat

www.basalt-fibers.com


Styrofoam

Styrofoam

  • Positive:

  • Relatively cheap in comparison with basalt mat;

  • Non-roting while moisture.

  • Negative:

  • Burnable and its smoke can suffocate a human (Fire safety norm prohibit its usage in living spaces!);

  • Requires special system for attaching to the surface and corresponding installation works need to be performed in the construction;

  • To keep parameters for thermal and sound insulation big thickness is required, not less than 10 cm in wall design;

  • Not elastic and requires selection of special constructional forms in building design (additional cost!).

www.basalt-fibers.com


Fiberglass

Fiberglass

  • Negative:

  • Fire safety norms norm prohibit its usage in living spaces, as temperature stability lasts only till 300°C;

  • Health norms prohibit its usage in living spaces, as 4%-8% of the weight consists of phenol pitch that is used as an astringent for the material;

  • Rots and collapses in moisture accumulation zone, requires completely dry environment;

  • Its big thickness and formless, uneven surface requires selection of special constructional attachment forms in building design (additional cost!).

  • Positive:

  • Relatively cheap in comparison with basalt mat.

www.basalt-fibers.com

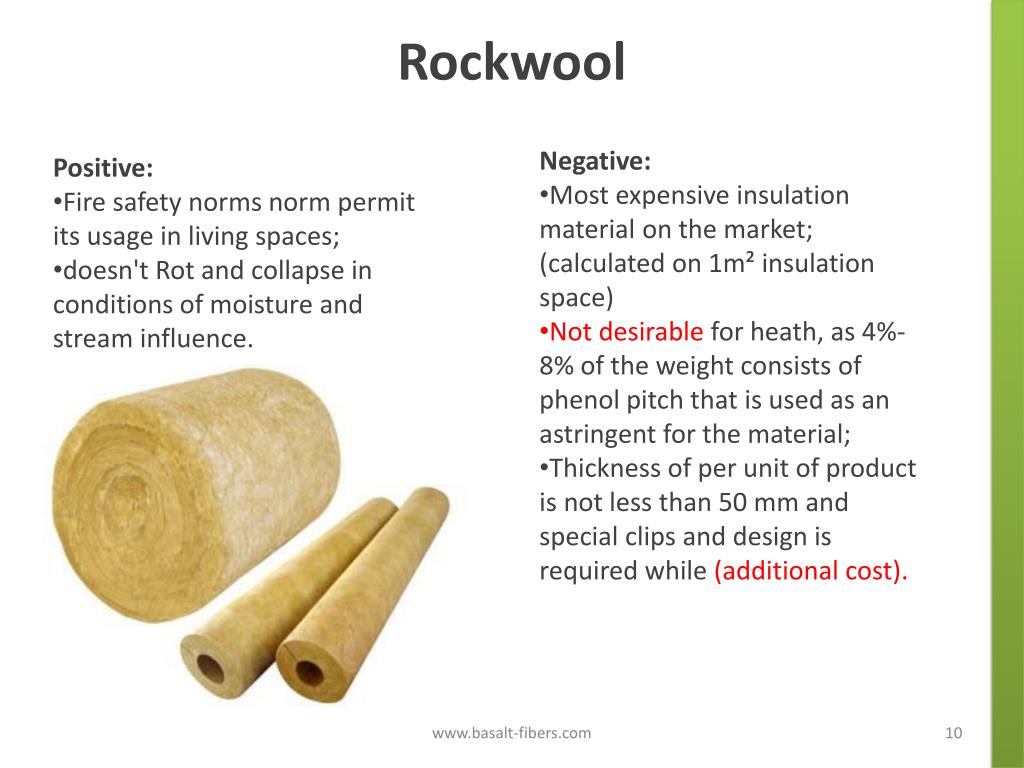

Rockwool

Rockwool

  • Negative:

  • Most expensive insulation material on the market; (calculated on 1m² insulation space)

  • Not desirable for heath, as 4%-8% of the weight consists of phenol pitch that is used as an astringent for the material;

  • Thickness of per unit of product is not less than 50 mm and special clips and design is required while (additional cost).

  • Positive:

  • Fire safety norms norm permit its usage in living spaces;

  • doesn't Rot and collapse in conditions of moisture and stream influence.

www.basalt-fibers.com

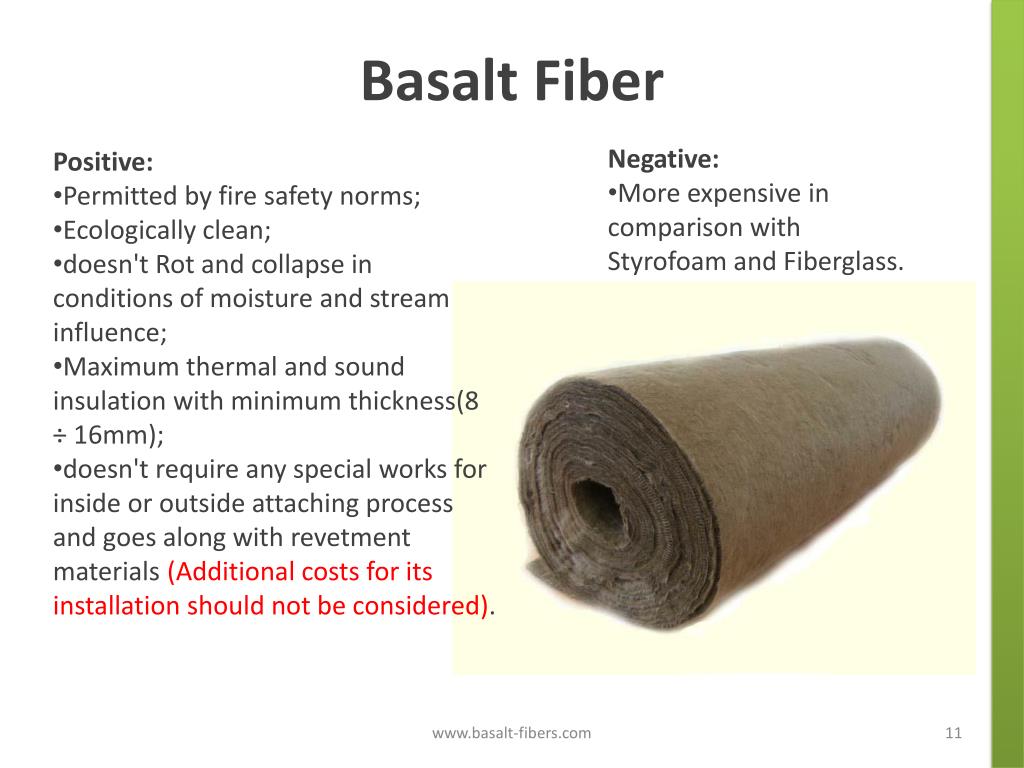

Basalt fiber

Basalt Fiber

  • Negative:

  • More expensive in comparison with Styrofoam and Fiberglass.

  • Positive:

  • Permitted by fire safety norms;

  • Ecologically clean;

  • doesn't Rot and collapse in conditions of moisture and stream influence;

  • Maximum thermal and sound insulation with minimum thickness(8 ÷ 16mm);

  • doesn't require any special works for inside or outside attaching process and goes along with revetment materials(Additional costs for its installation should not be considered).

www.basalt-fibers.com


Basalt mat

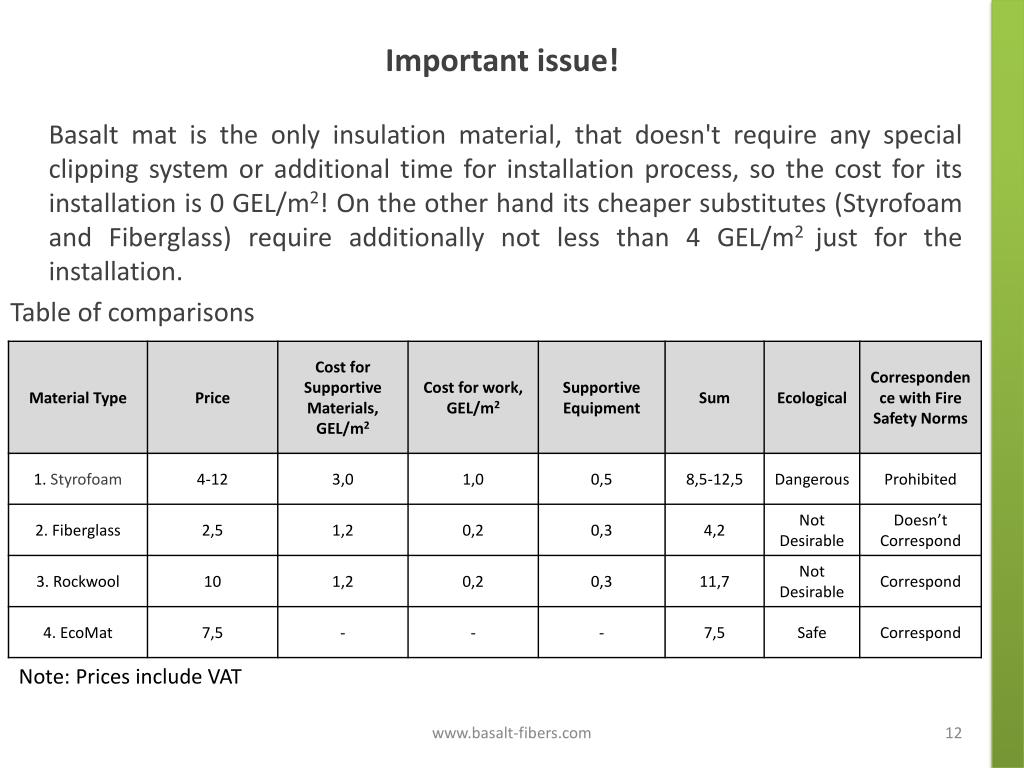

Important issue!

Basalt mat is the only insulation material, that doesn't require any special clipping system or additional time for installation process, so the cost for its installation is 0 GEL/m2! On the other hand its cheaper substitutes (Styrofoam and Fiberglass) require additionally not less than 4 GEL/m2just for the installation.

Table of comparisons

Note: Prices include VAT

www.basalt-fibers.com


Basalt mat

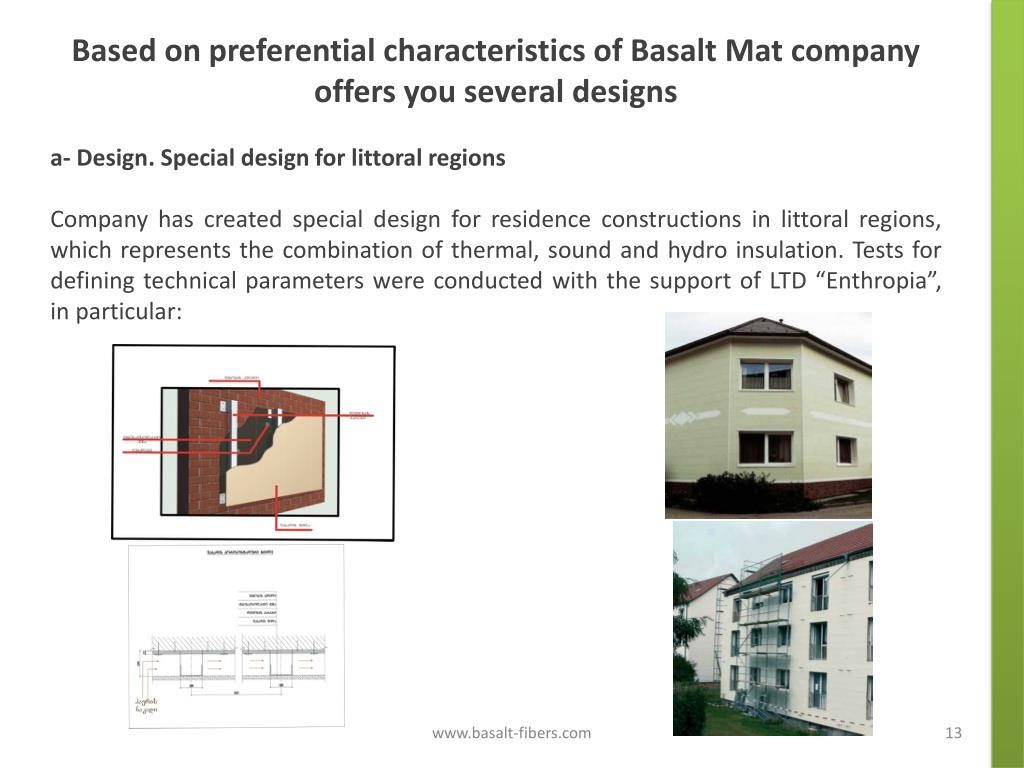

Based on preferential characteristics of Basalt Mat company offers you several designs

a- Design. Special design for littoral regions

Company has created special design for residence constructions in littoral regions, which represents the combination of thermal, sound and hydro insulation. Tests for defining technical parameters were conducted with the support of LTD “Enthropia”, in particular:

www.basalt-fibers.com


Basalt mat

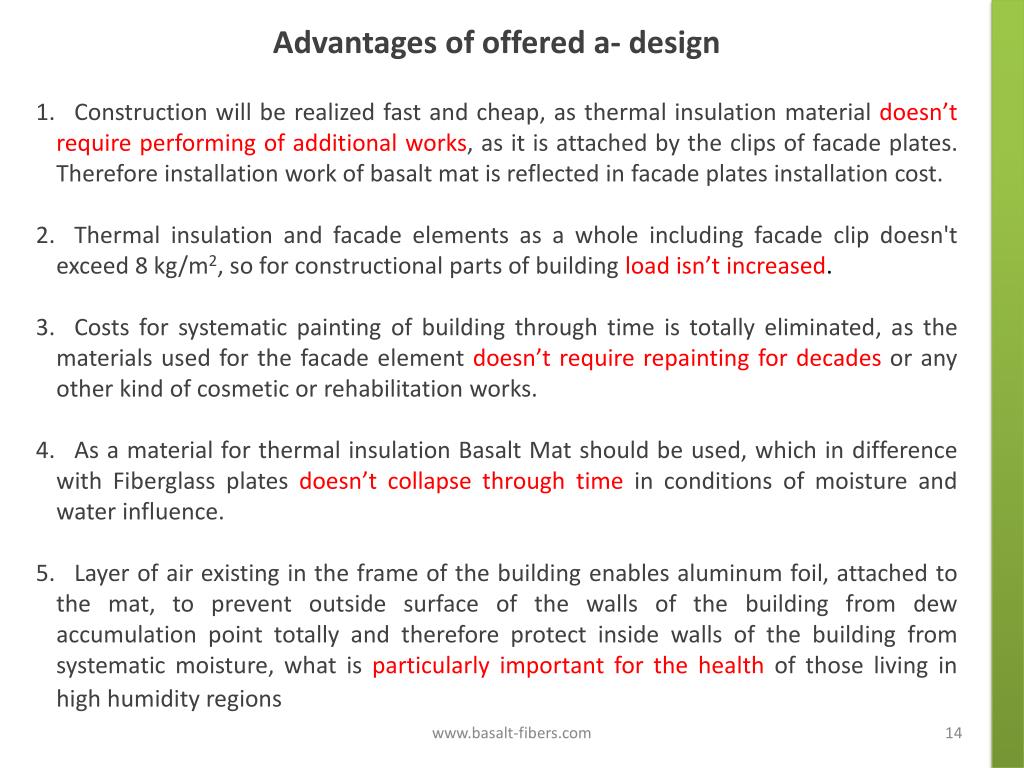

  • Advantages of offered a-design

  • Construction will be realized fast and cheap, as thermal insulation material doesn’t require performing of additional works, as it is attached by the clips of facade plates. Therefore installation work of basalt mat is reflected in facade plates installation cost.

  • Thermal insulation and facade elements as a whole including facade clip doesn't exceed 8 kg/m2, so for constructional parts of building load isn’t increased.

  • Costs for systematic painting of building through time is totally eliminated, as the materials used for the facade element doesn’t require repainting for decades or any other kind of cosmetic or rehabilitation works.

  • As a material for thermal insulation Basalt Mat should be used, which in difference with Fiberglass plates doesn’t collapse through time in conditions of moisture and water influence.

  • Layer of air existing in the frame of the building enables aluminum foil, attached to the mat, to prevent outside surface of the walls of the building from dew accumulation point totally and therefore protect inside walls of the building from systematic moisture, what is particularly important for the health of those living in high humidity regions

www.basalt-fibers.com


B design thermal insulation of attic

B–Design. Thermal insulation of attic

While restoration of old districts of Georgian cities, main point is to create as much useful space as possible with the aid of light weighted roofing and walls that have thermal insulation parameters. The best way for resolving the above problem cheaply and effectively is to use the design offered by “Basalt Fibers ” LTD.

www.basalt-fibers.com

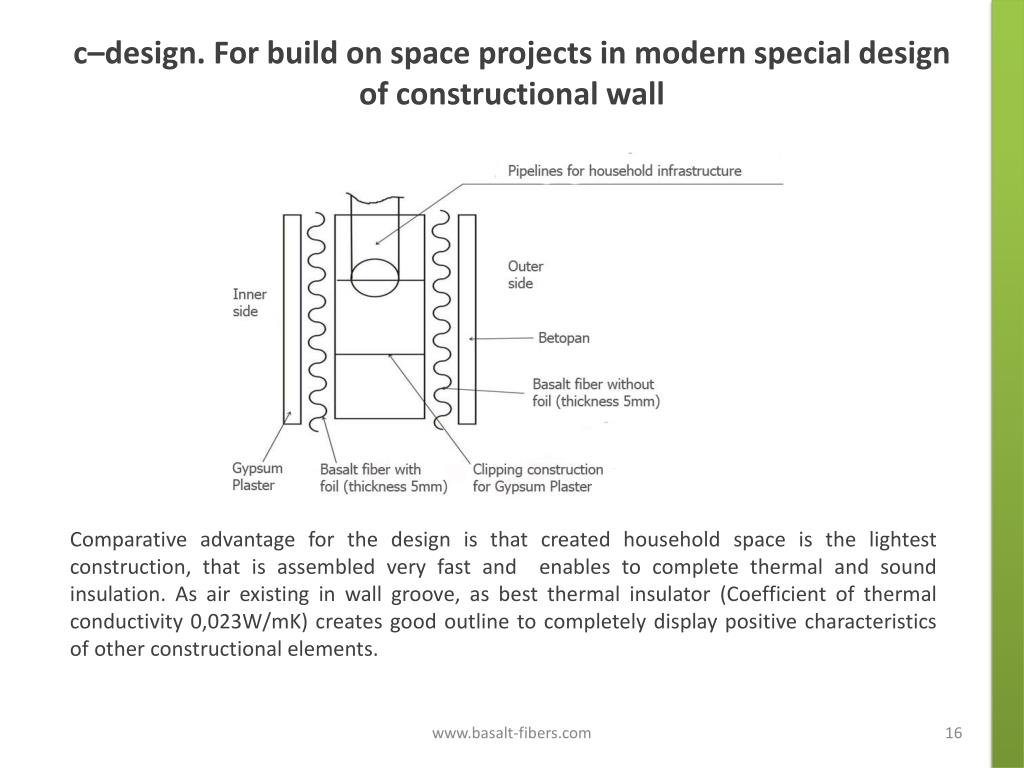

C design for build on space projects in modern special design of constructional wall

c–design. For build on space projects in modern special design of constructional wall

Comparative advantage for the design is that created household space is the lightest construction, that is assembled very fast and enables to complete thermal and sound insulation. As air existing in wall groove, as best thermal insulator (Coefficient of thermal conductivity 0,023W/mK)creates good outline to completely display positive characteristics of other constructional elements.

www.basalt-fibers.com


Basalt mat

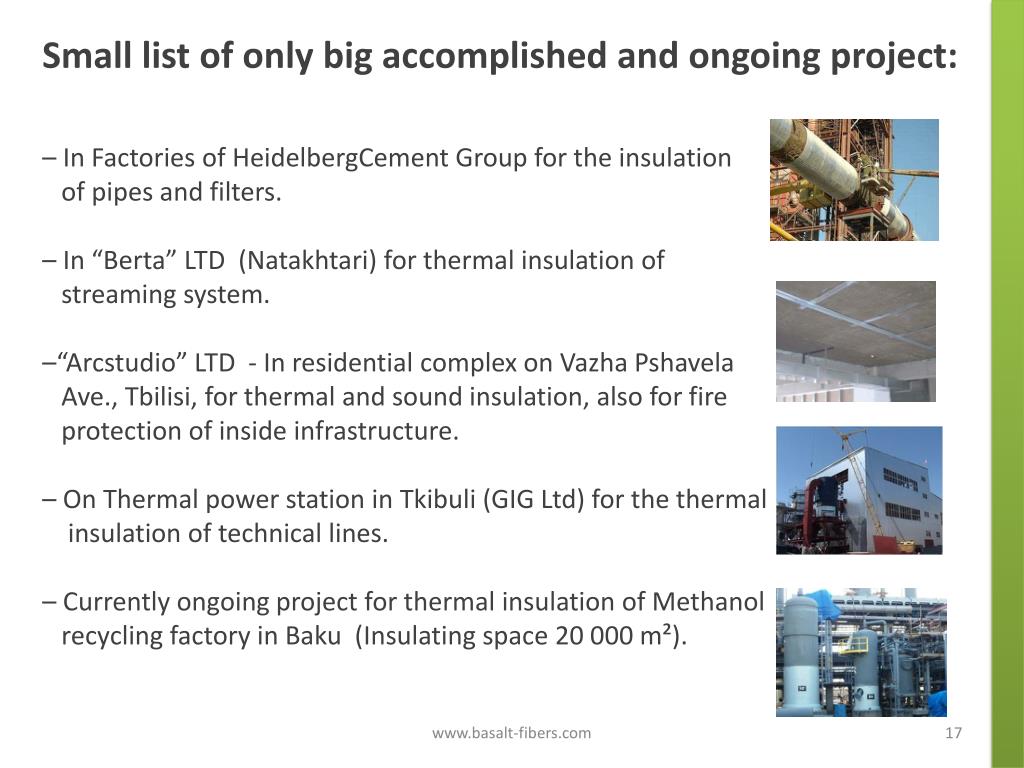

Small list of only big accomplished and ongoing project:

– In Factories of HeidelbergCement Group for the insulation

of pipes and filters.

– In “Berta” LTD (Natakhtari) forthermal insulation of

streaming system.

–“Arcstudio” LTD -In residential complex on VazhaPshavela

Ave., Tbilisi, for thermal and sound insulation, also for fire

protection of inside infrastructure.

– On Thermal power station in Tkibuli(GIG Ltd) for the thermal

insulation of technical lines.

– Currently ongoing project for thermal insulation of Methanol

recycling factory in Baku (Insulating space 20 000m²).

www.basalt-fibers.com


Basalt mat

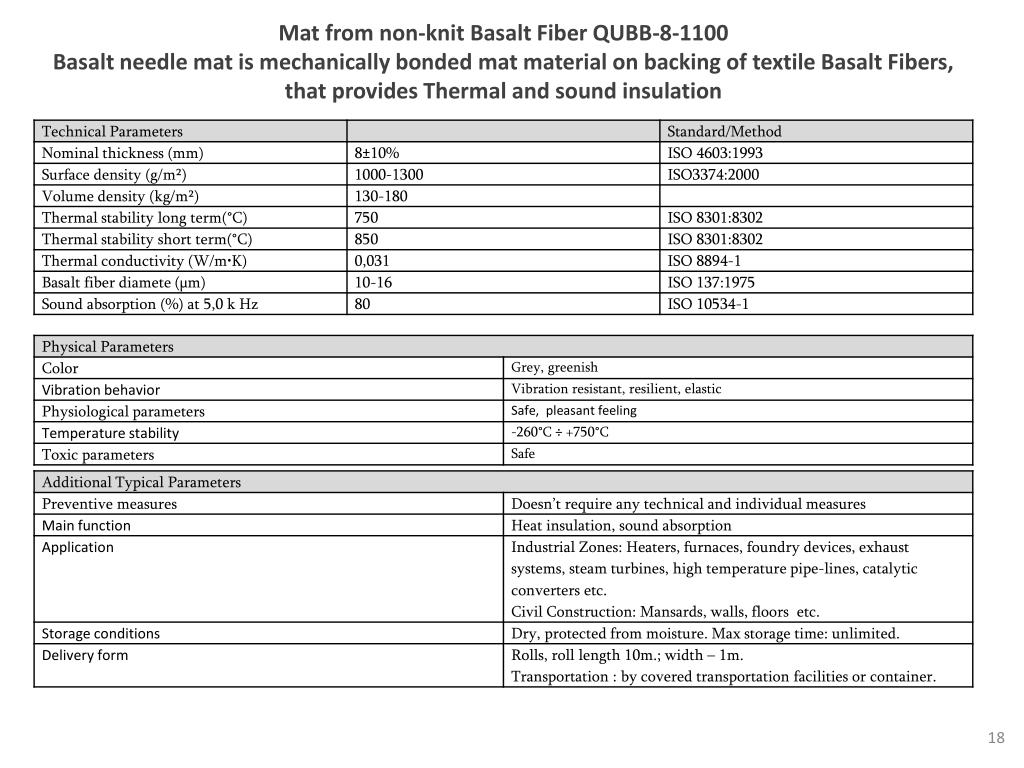

Mat from non-knit Basalt FiberQUBB-8-1100

Basalt needle mat is mechanically bonded mat material on backing of textile Basalt Fibers, that provides Thermal and sound insulation


Compliance of ecomat with modern standards of fire resistance

Compliance of EcoMat with modern standards of fire resistance

www.basalt-fibers.com


Basalt mat

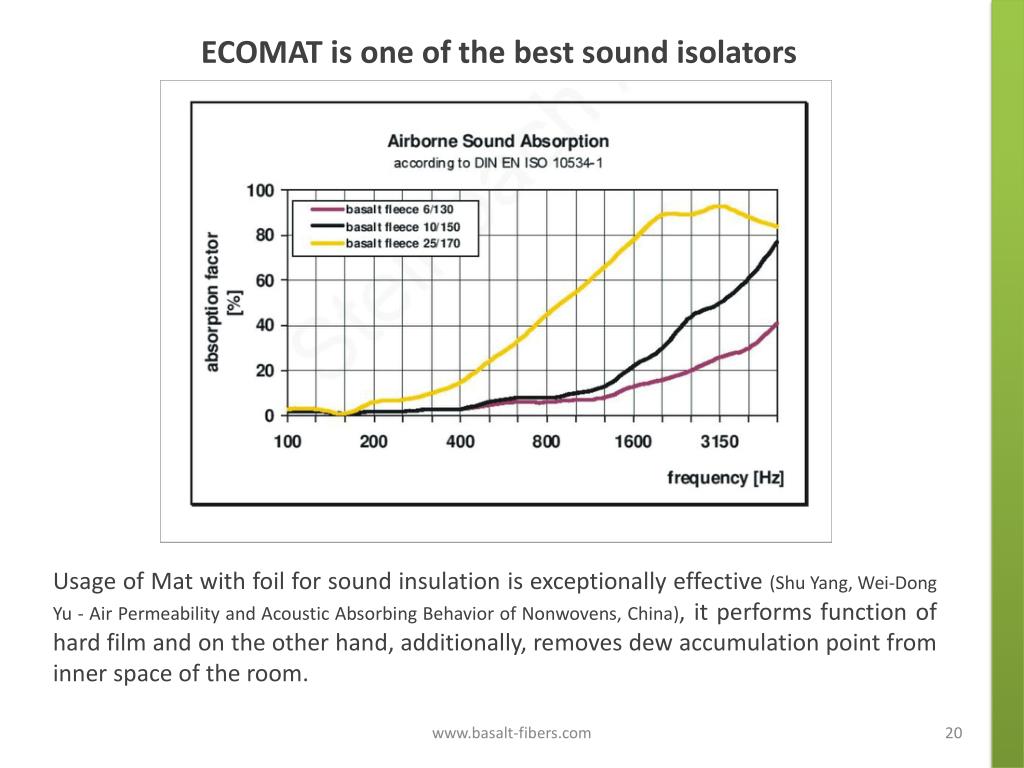

ECOMAT is one of the best sound isolators

Usage of Mat with foil for sound insulation is exceptionally effective(Shu Yang, Wei-Dong Yu - Air Permeability and Acoustic Absorbing Behavior of Nonwovens, China), it performs function of hard film and on the other hand, additionally, removes dew accumulation point from inner space of the room.

www.basalt-fibers.com


Basalt mat

Thank You

For

Attention !!!

www.basalt-fibers.com
