Makefiles

Software Tools

Makefiles


Make overview

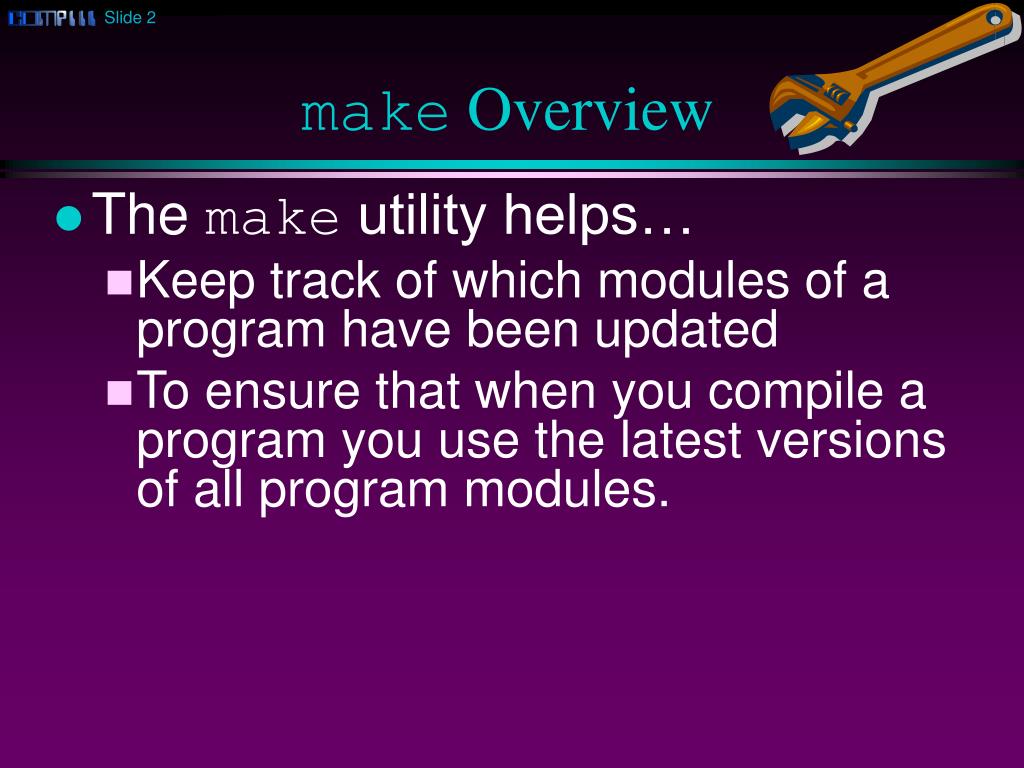

make Overview

  • The make utility helps…

    • Keep track of which modules of a program have been updated

    • To ensure that when you compile a program you use the latest versions of all program modules.


The make utility

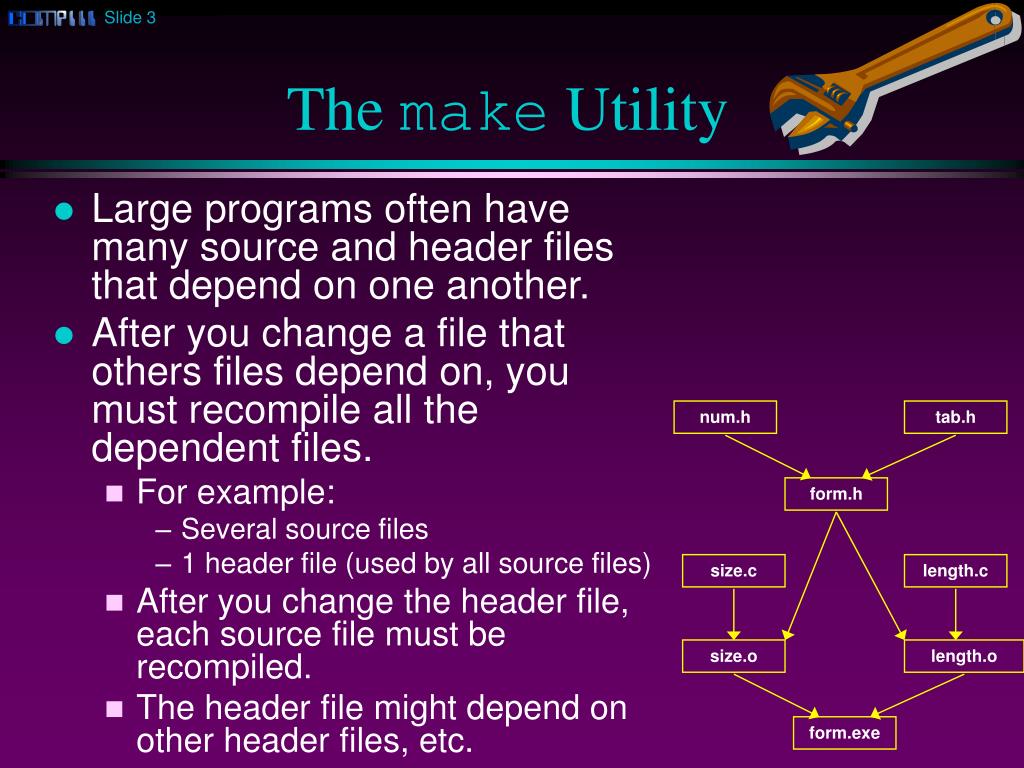

The make Utility

  • Large programs often have many source and header files that depend on one another.

  • After you change a file that others files depend on, you must recompile all the dependent files.

    • For example:

      • Several source files

      • 1 header file (used by all source files)

    • After you change the header file, each source file must be recompiled.

    • The header file might depend on other header files, etc.

num.h

tab.h

form.h

size.c

length.c

size.o

length.o

form.exe


The make utility1

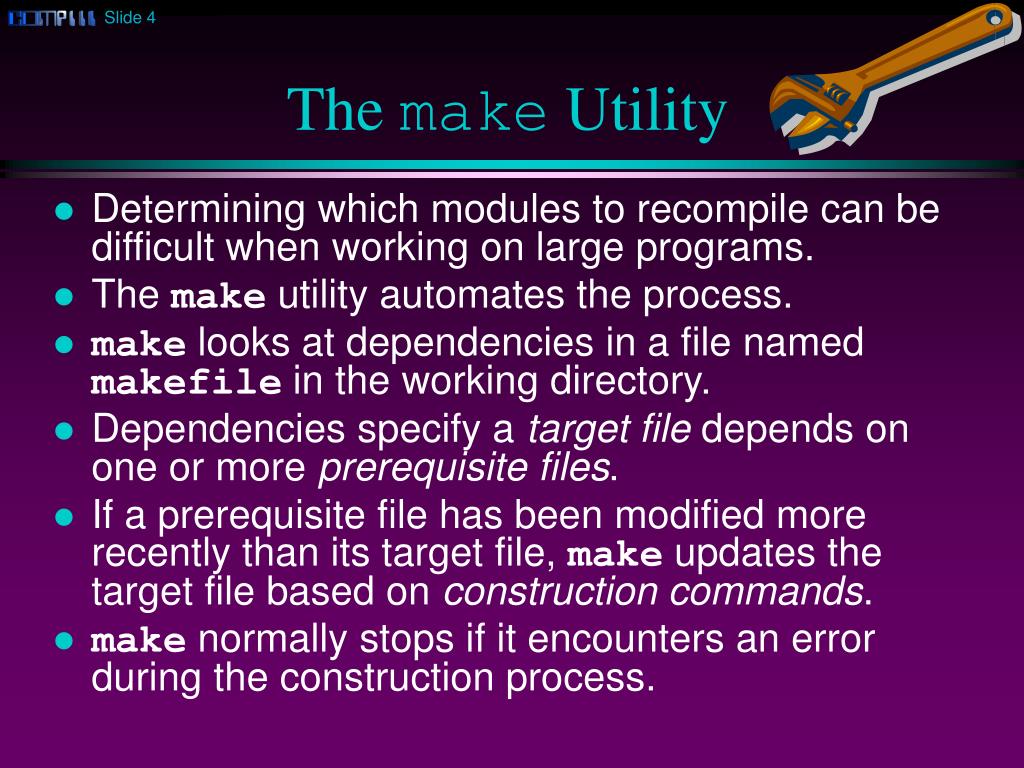

The make Utility

  • Determining which modules to recompile can be difficult when working on large programs.

  • The make utility automates the process.

  • make looks at dependencies in a file named makefile in the working directory.

  • Dependencies specify a target file depends on one or more prerequisite files.

  • If a prerequisite file has been modified more recently than its target file, make updates the target file based on construction commands.

  • make normally stops if it encounters an error during the construction process.


Makefile format

makefile Format

  • Themakefileformat:

    target:prerequisite-list

    [TAB]construction commands

  • Thetargetis the name of the file that depends on the files in the prerequisite-list.

  • Theconstruction-commandsare regular commands to the shell that usually compile and/or link the target file.

  • Themakeutility executes the construction-commandswhen the modification time of one or more of the files in the prerequisite-list is more recent than the target file.


Make example 0

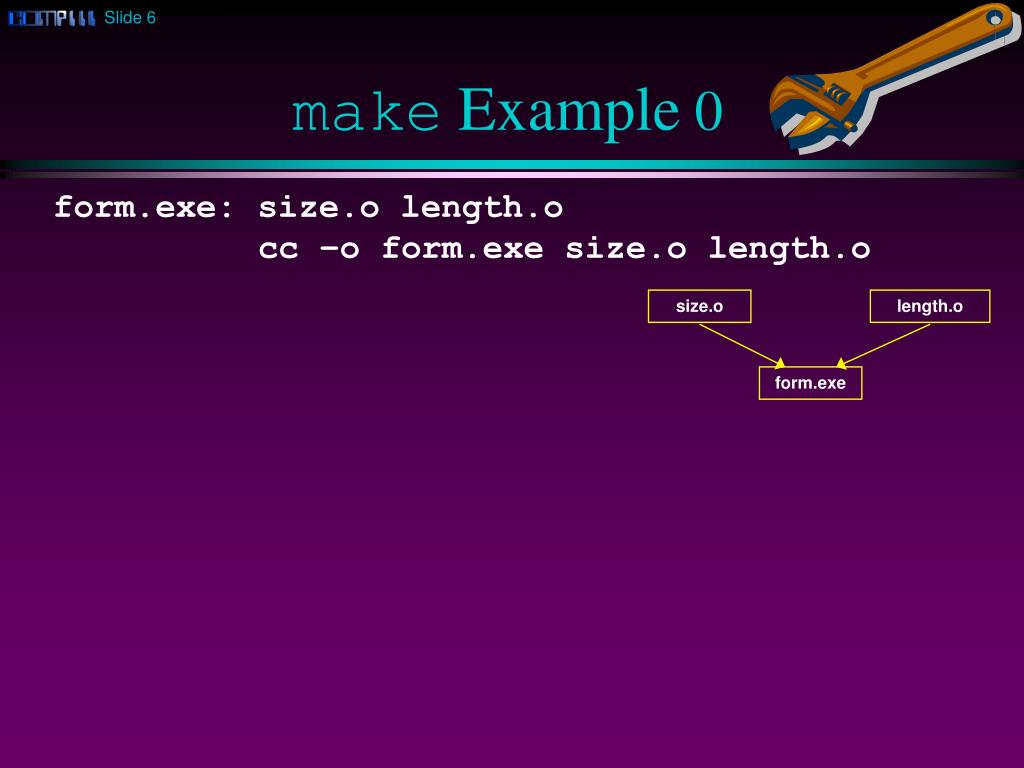

make Example 0

form.exe: size.o length.o

cc –o form.exe size.o length.o

size.o

length.o

form.exe


Make example 1

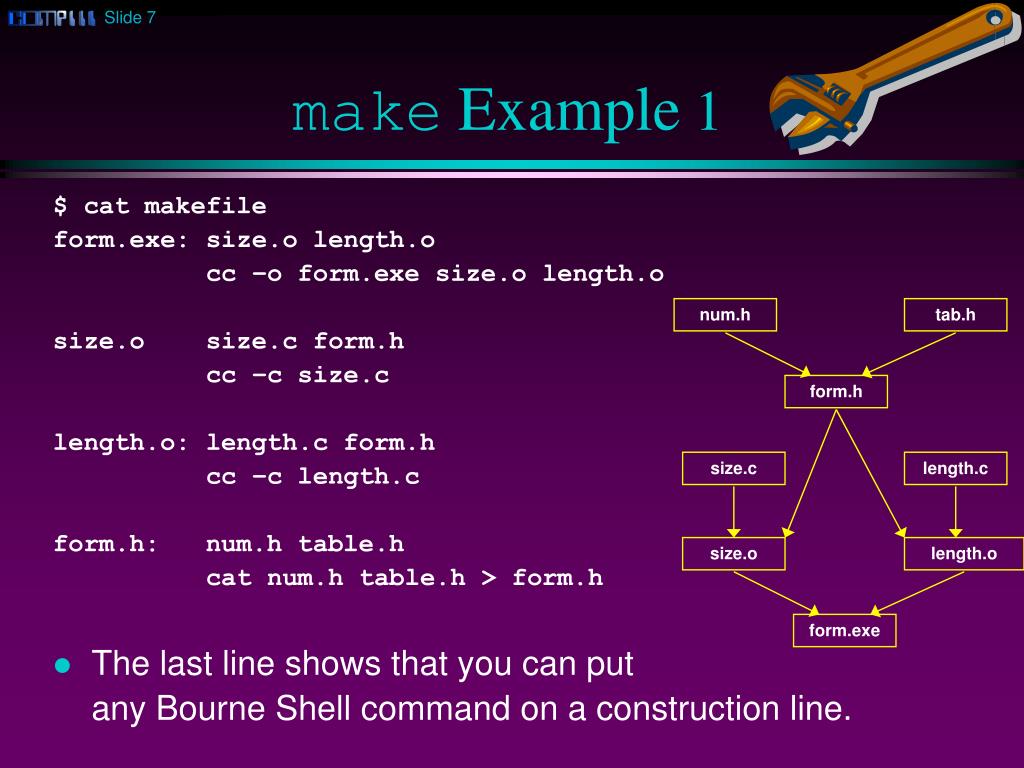

make Example 1

$ cat makefile

form.exe: size.o length.o

cc –o form.exe size.o length.o

size.o size.c form.h

cc –c size.c

length.o: length.c form.h

cc –c length.c

form.h: num.h table.h

cat num.h table.h > form.h

  • The last line shows that you can put

    any Bourne Shell command on a construction line.

num.h

tab.h

form.h

size.c

length.c

size.o

length.o

form.exe


Make example 2

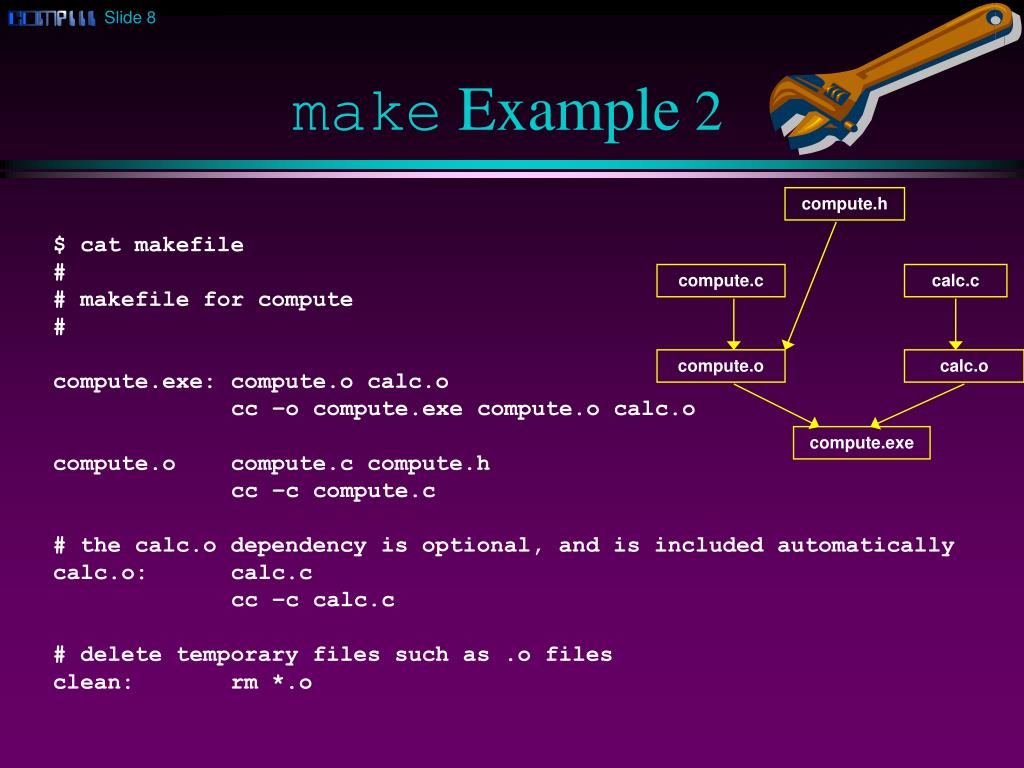

make Example 2

compute.h

$ cat makefile

#

# makefile for compute

#

compute.exe: compute.o calc.o

cc –o compute.exe compute.o calc.o

compute.o compute.c compute.h

cc –c compute.c

# the calc.o dependency is optional, and is included automatically

calc.o: calc.c

cc –c calc.c

# delete temporary files such as .o files

clean: rm *.o

compute.c

calc.c

compute.o

calc.o

compute.exe


Make example 21

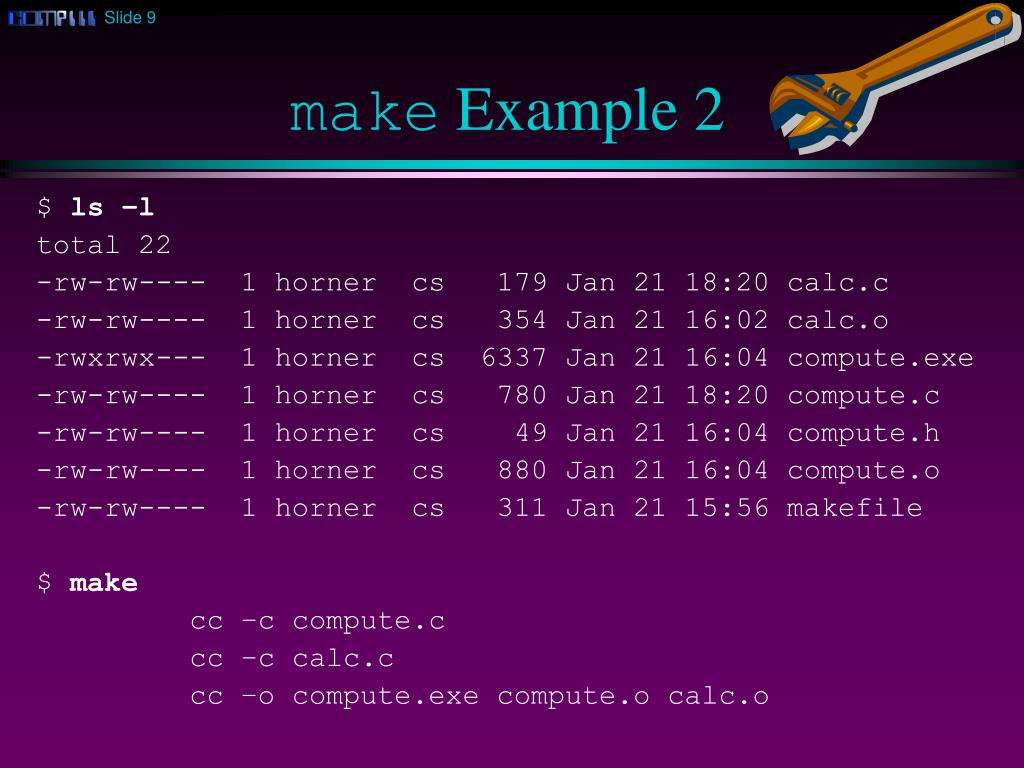

make Example 2

$ ls –l

total 22

-rw-rw---- 1 horner cs 179 Jan 21 18:20 calc.c

-rw-rw---- 1 horner cs 354 Jan 21 16:02 calc.o

-rwxrwx--- 1 horner cs 6337 Jan 21 16:04 compute.exe

-rw-rw---- 1 horner cs 780 Jan 21 18:20 compute.c

-rw-rw---- 1 horner cs 49 Jan 21 16:04 compute.h

-rw-rw---- 1 horner cs 880 Jan 21 16:04 compute.o

-rw-rw---- 1 horner cs 311 Jan 21 15:56 makefile

$ make

cc –c compute.c

cc –c calc.c

cc –o compute.exe compute.o calc.o


Make example 2 continued

make Example 2(continued)

  • The touch utility updates the date of a file to now.

    $ make

    ‘compute.exe’ is up to date.

    $ touch calc.c

    $ make

    cc –c calc.c

    cc –o compute.exe compute.o calc.o

    $ touch compute.h

    $ make

    cc –c compute.c

    cc –o compute.exe compute.o calc.o

    $ make clean

    rm *.o

    $


Disks usage statistics

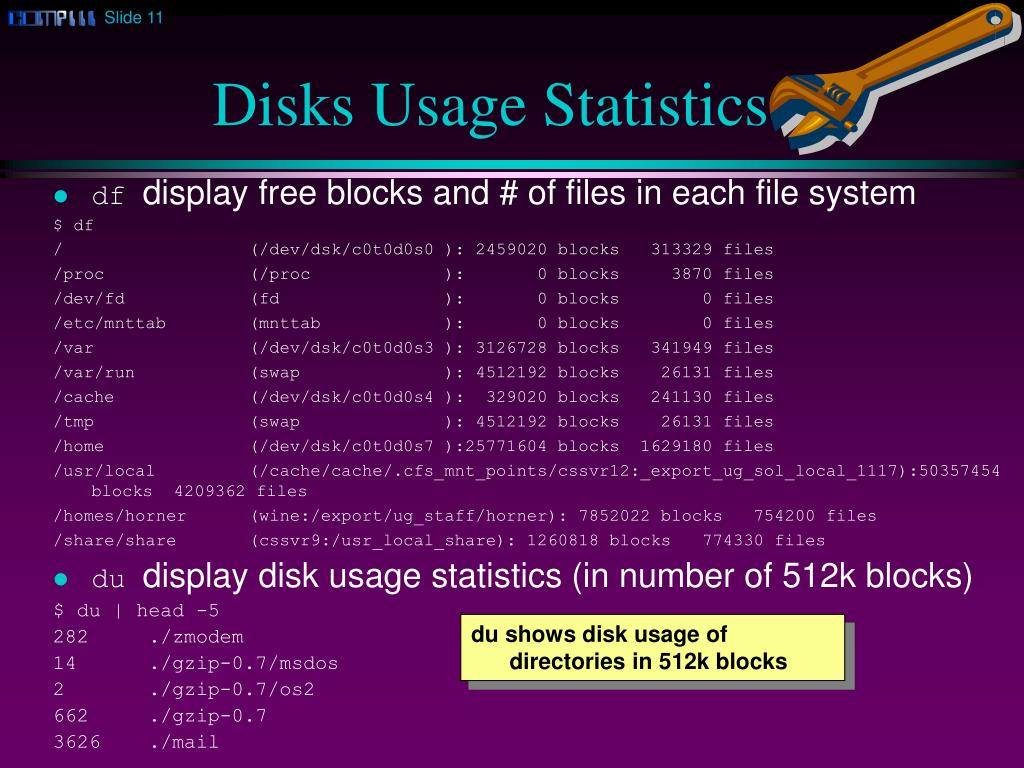

Disks Usage Statistics

  • df display free blocks and # of files in each file system

    $ df

    / (/dev/dsk/c0t0d0s0 ): 2459020 blocks 313329 files

    /proc (/proc ): 0 blocks 3870 files

    /dev/fd (fd ): 0 blocks 0 files

    /etc/mnttab (mnttab ): 0 blocks 0 files

    /var (/dev/dsk/c0t0d0s3 ): 3126728 blocks 341949 files

    /var/run (swap ): 4512192 blocks 26131 files

    /cache (/dev/dsk/c0t0d0s4 ): 329020 blocks 241130 files

    /tmp (swap ): 4512192 blocks 26131 files

    /home (/dev/dsk/c0t0d0s7 ):25771604 blocks 1629180 files

    /usr/local (/cache/cache/.cfs_mnt_points/cssvr12:_export_ug_sol_local_1117):50357454 blocks 4209362 files

    /homes/horner (wine:/export/ug_staff/horner): 7852022 blocks 754200 files

    /share/share (cssvr9:/usr_local_share): 1260818 blocks 774330 files

  • du display disk usage statistics (in number of 512k blocks)

    $ du | head -5

    282 ./zmodem

    14 ./gzip-0.7/msdos

    2 ./gzip-0.7/os2

    662 ./gzip-0.7

    3626 ./mail

du shows disk usage of directories in 512k blocks
