Recall lecture 3

Recall-Lecture 3

  • Current generated due to two main factors

    • Drift – movement of carriers due to the existence of electric field

    • Diffusion – movement of carriers due to gradient in concentrations


Recall lecture 31

Recall-Lecture 3

  • Introduction of PN junction

    • Space charge region/depletion region

    • Built-in potential voltage Vbi

  • Reversed biased pn junction

    • no current flow

  • Forward biased pn junction

    • current flow due to diffusion of carriers.

Vbi


Analysis of pn junction diode in a circuit

Analysis of PN Junction Diode in a Circuit

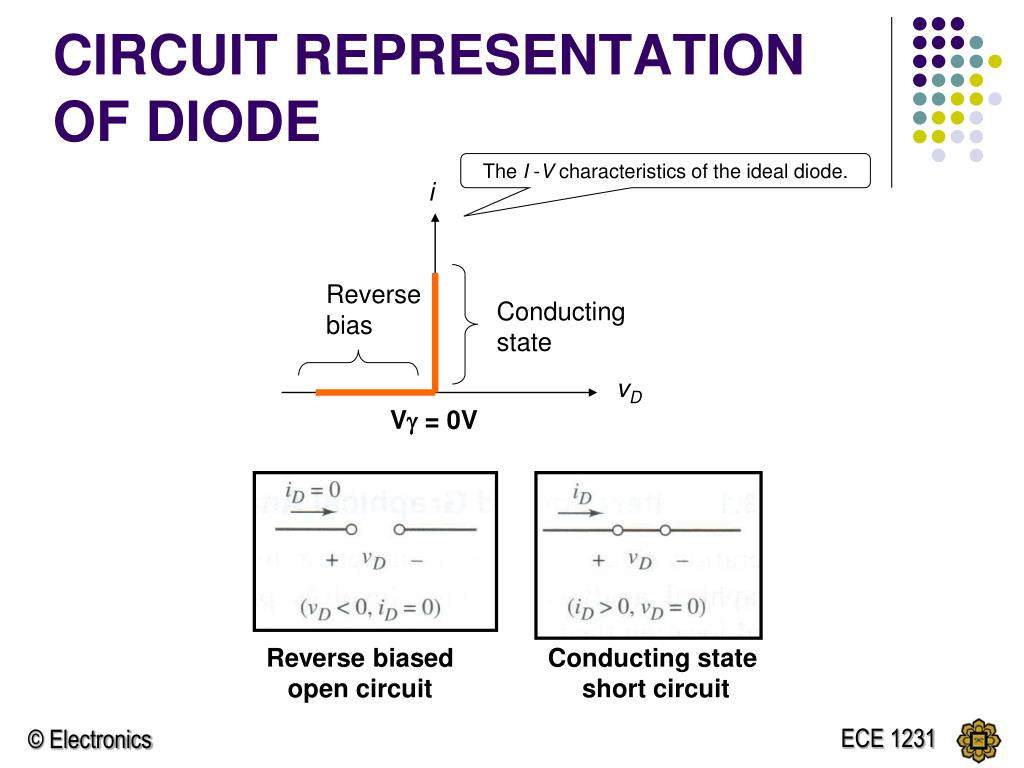

Circuit representation of diode

CIRCUIT REPRESENTATION OF DIODE

i

vD

The I -V characteristics of the ideal diode.

Reverse bias

Conducting state

V = 0V

Reverse biased

open circuit

Conducting state

short circuit

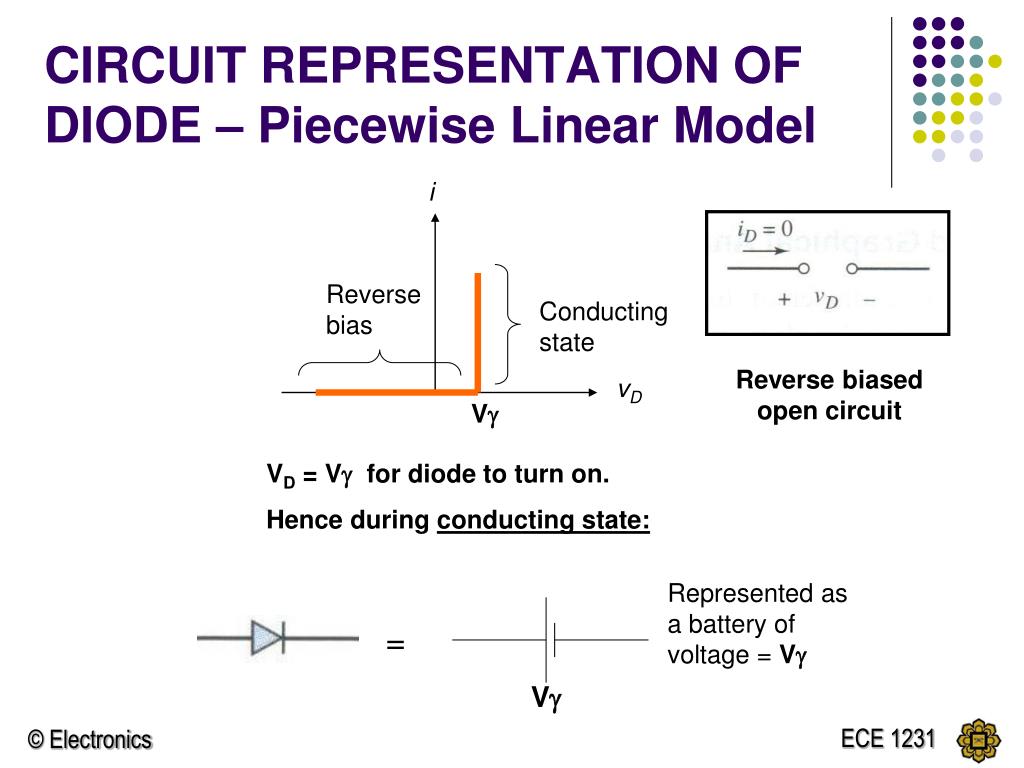

Circuit representation of diode piecewise linear model

CIRCUIT REPRESENTATION OF DIODE – Piecewise Linear Model

i

vD

Represented as a battery of voltage = V

=

V

Reverse bias

Conducting state

Reverse biased

open circuit

V

VD =V for diode to turn on.

Hence during conducting state:


Recall lecture 3

i

vD

Represented as a battery of voltage = V and forward resistance, rfin series

+ VD -

=

rf

V

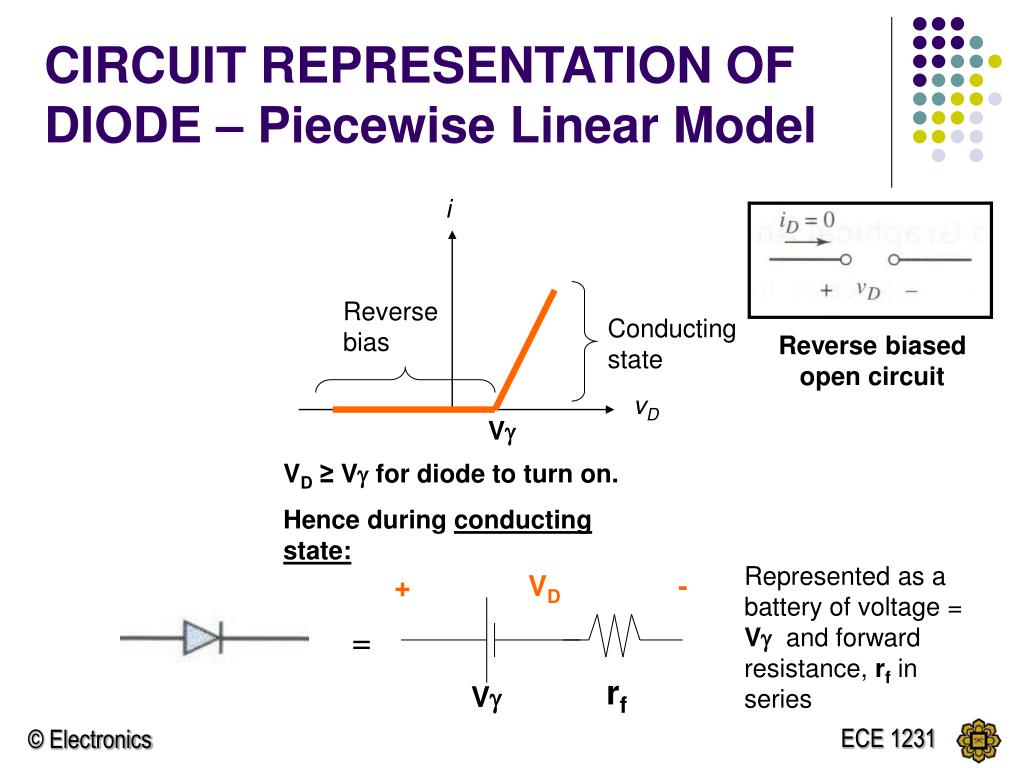

CIRCUIT REPRESENTATION OF DIODE – Piecewise Linear Model

Reverse bias

Conducting state

Reverse biased

open circuit

V

VD ≥V for diode to turn on.

Hence during conducting state:


Recall lecture 3

Diode Circuits: DC Analysis and Models

Example

Consider a circuit with a dc voltage VPSapplied across a resistor and a diode.

Applying KVL, we can write,

or,

The diode voltage VD and current ID are related by the ideal diode equation: (IS is assumed to be known for a particular diode)

Equation contains only one unknown, VD:


Why do you need the piecewise linear model

Why do you need the Piecewise Linear Model?


Recall lecture 3

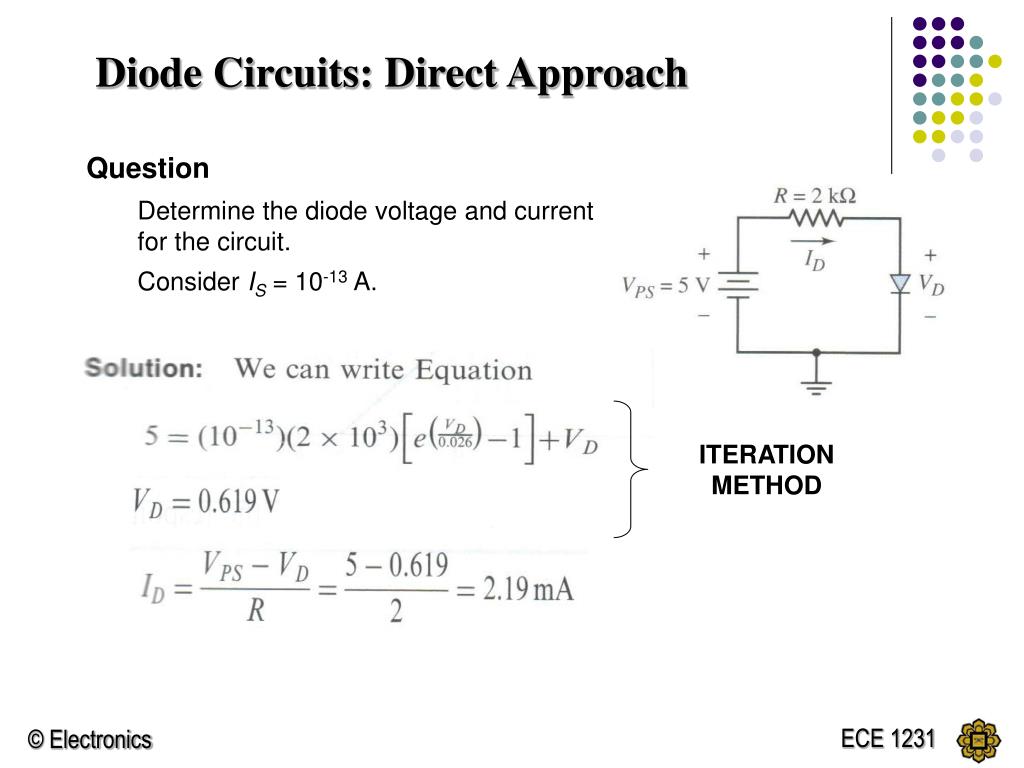

Diode Circuits: Direct Approach

Question

Determine the diode voltage and current for the circuit.

Consider IS = 10-13 A.

and

ITERATION METHOD


Recall lecture 3

Diode Circuits: Using Models

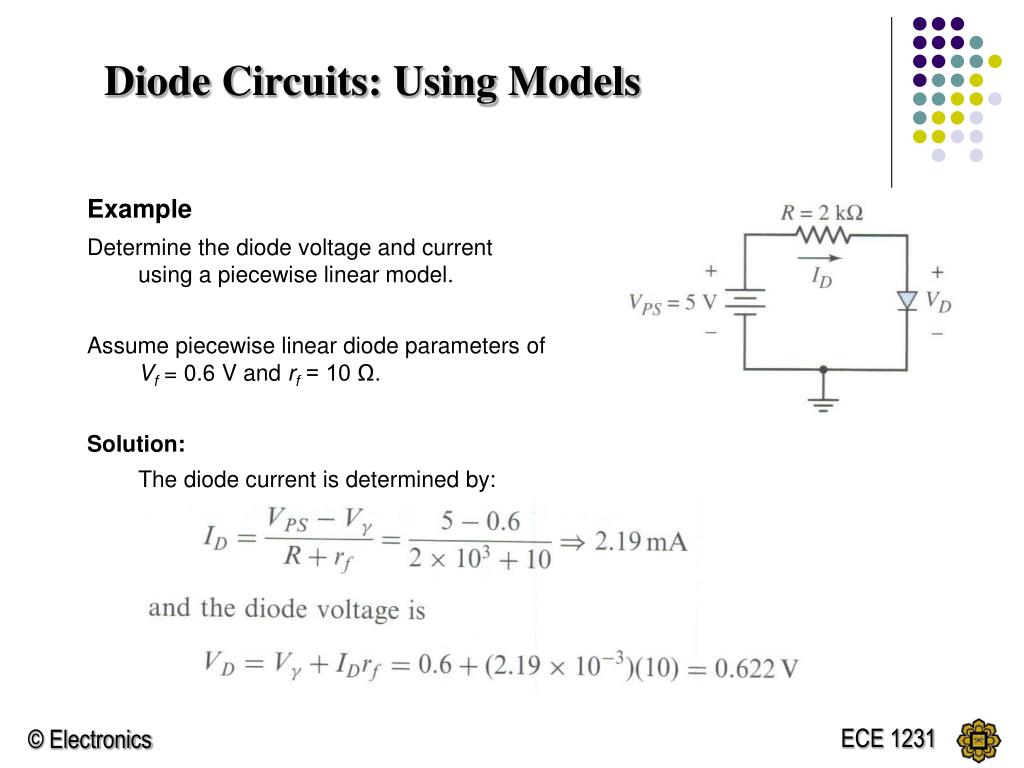

Example

Determine the diode voltage and current using a piecewise linear model.

Assume piecewise linear diode parameters of Vf = 0.6 V and rf = 10 Ω.

Solution:

The diode current is determined by:


Diode dc analysis

DIODE DC ANALYSIS

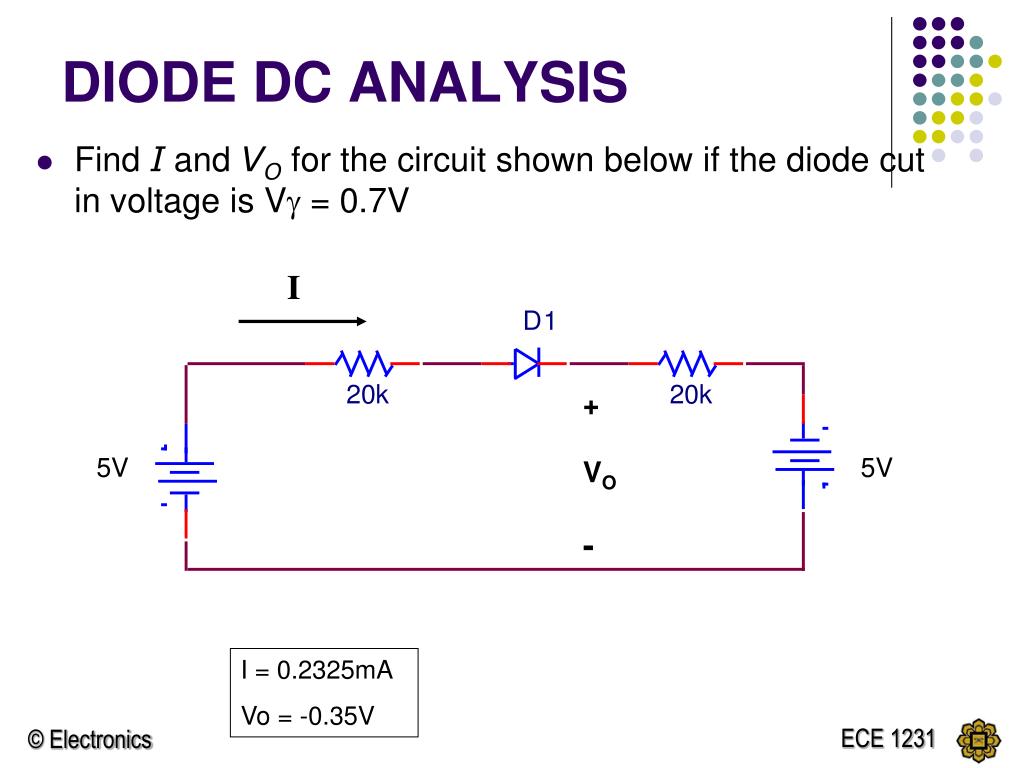

I

  • Find I and VOfor the circuit shown below if the diode cut in voltage is V = 0.7V

+

VO

-

I = 0.2325mA

Vo = -0.35V


Recall lecture 3

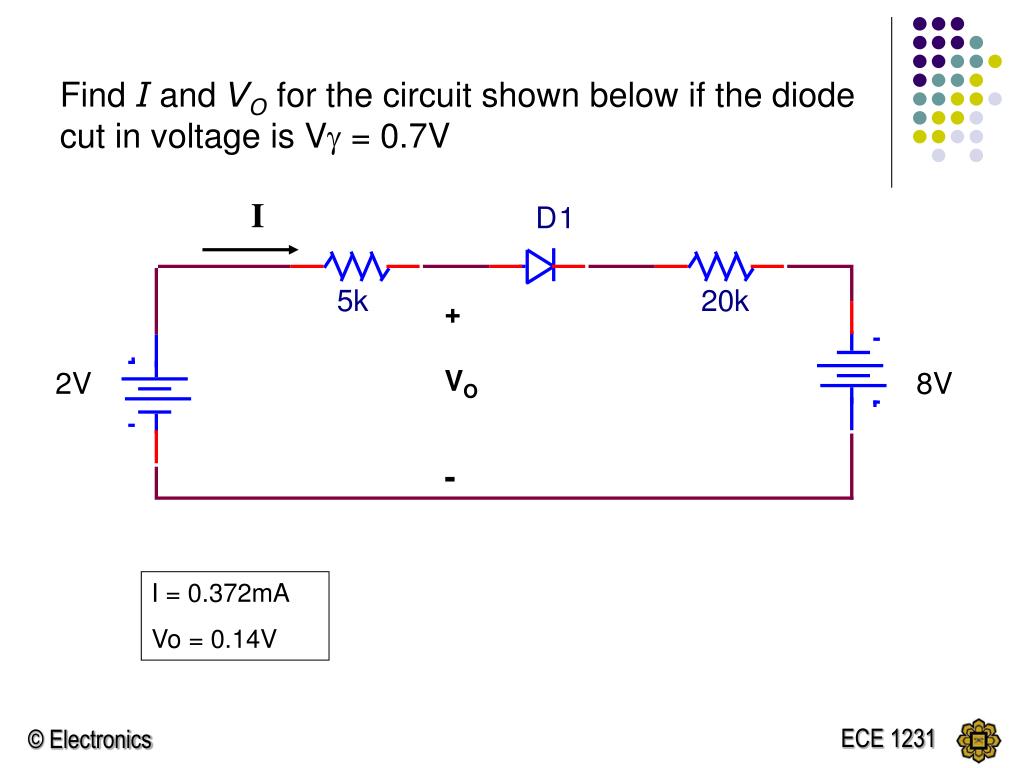

Find I and VOfor the circuit shown below if the diode cut in voltage is V = 0.7V

I

+

VO

-

I = 0.372mA

Vo = 0.14V


Recall lecture 3

Example 2

Determine ID if V = 0.7V

R = 4k

b)If VPS = 8V, what must be the value of R to get ID equal to part (a)


Diode ac equivalent

DIODE AC EQUIVALENT


Recall lecture 3

  • Sinusoidal Analysis

    The total input voltage vI = dcVPS + acvi

iD= IDQ + id

vD = VDQ+ vd

IDQ and VDQ are the DC diode current

and voltage respectively.


Recall lecture 3

If vd << VT, the equation can be expanded into linear series as:

The DC diode current Is:

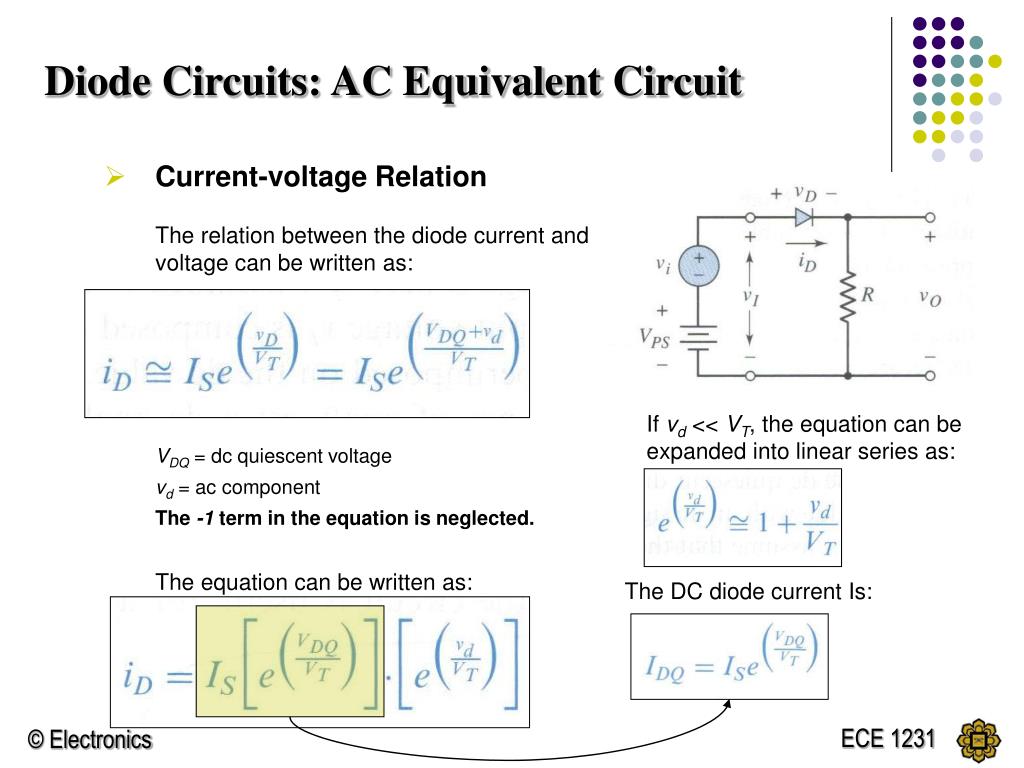

Diode Circuits: AC Equivalent Circuit

  • Current-voltage Relation

    The relation between the diode current and voltage can be written as:

    VDQ = dc quiescent voltage

    vd = ac component

    The -1 term in the equation is neglected.

    The equation can be written as:


Recall lecture 3

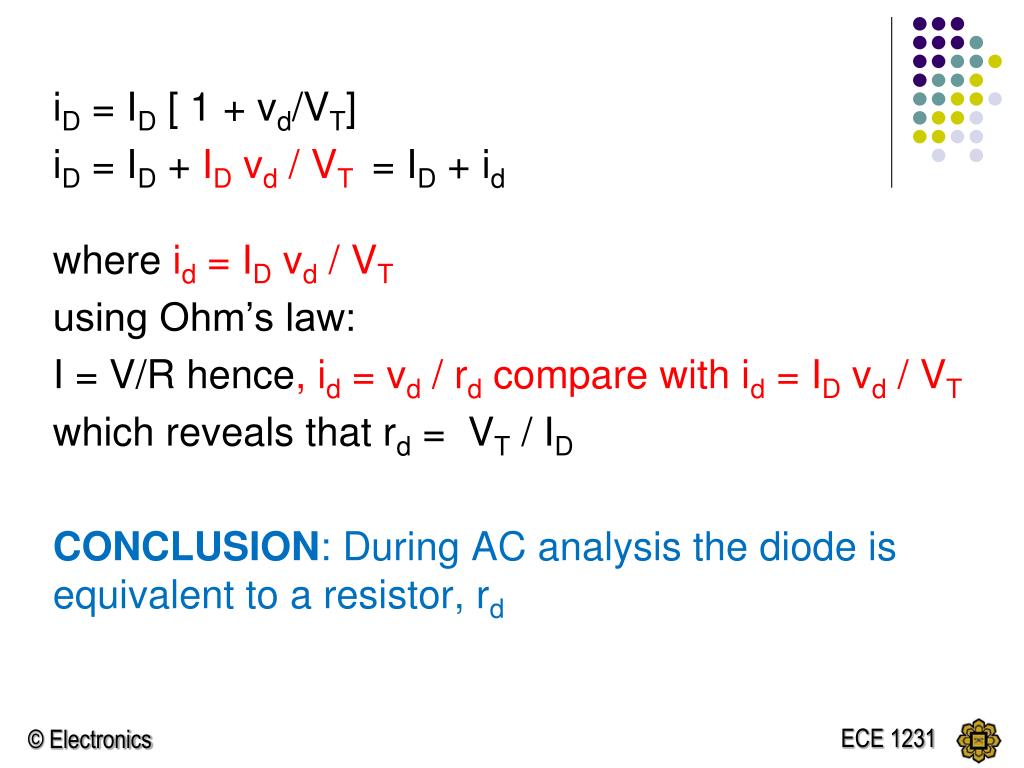

iD = ID [ 1 + vd/VT]

iD = ID + ID vd / VT = ID + id

where id =ID vd / VT

using Ohm’s law:

I = V/R hence, id = vd / rd compare with id =ID vd / VT

which reveals that rd = VT / ID

CONCLUSION: During AC analysis the diode is equivalent to a resistor, rd


Recall lecture 3

VDQ = V

rd

IDQ

id

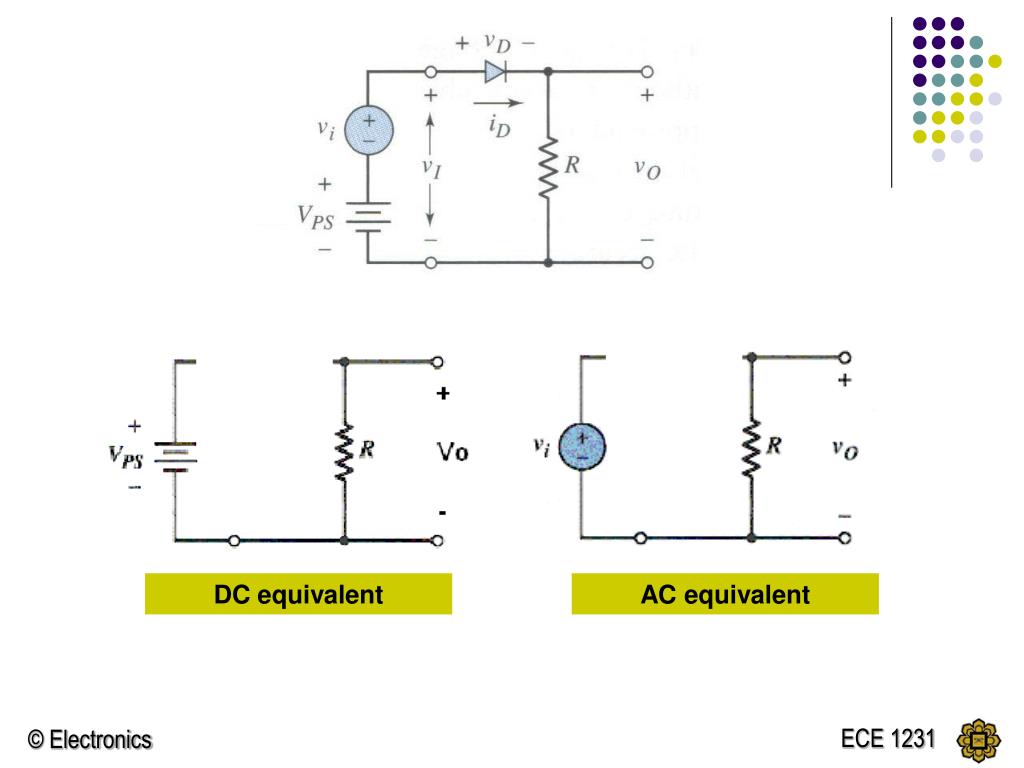

DC equivalent

AC equivalent


Recall lecture 3

VDQ = V

IDQ

Example 1

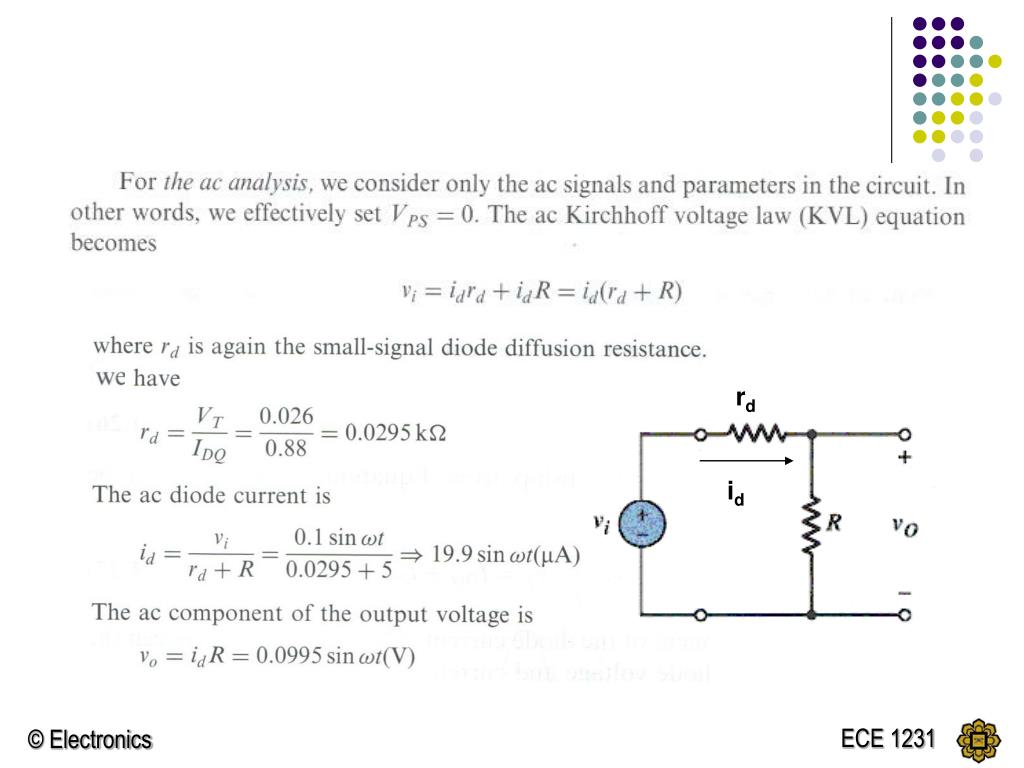

Analyze the circuit (by determining VO & vo ).

Assume circuit and diode parameters of

VPS = 5 V, R = 5 kΩ, Vγ = 0.6 V & vi = 0.1 sin ωt


Recall lecture 3

rd

id


Example 2

EXAMPLE 2

  • Assume the circuit and diode parameters for the circuit below are

    VPS = 10V, R = 20k, V = 0.7V, and vi = 0.2 sin t. Determine the quiescent current, IDQ and the time varying current.
