AASHTO

Technical Committee on Geometric Design


Aashto standing committee on highways l.jpg

AASHTO Standing Committee on Highways

AASHTO Subcommittee on Design

Provide a focal point and working group for developing and recommending AASHTO geometric design criteria. This assignment includes formulating new and revised criteria to keep current all geometric design standards, polices, and guidelines.

AASHTO Technical Committee on Geometric Design


Slide3 l.jpg

AASHTO Technical Committee on Geometric Design

  • States from each of the four regions

  • FHWA; serves as secretary

  • American Public Works Association

  • League of Cities

  • National Association of County Engineers


Publication responsibilities l.jpg

Publication Responsibilities

  • A Policy on Accommodation of Utilities within Freeway Right of Way, 2005

  • A Policy on Design Standards – Interstate System, 2005

  • Guide for Accommodating Utilities within Highway Right of Way, 2005

  • Guide for Development of Rest Areas on Major Arterials and Freeways, 2001


Publication responsibilities5 l.jpg

Publication Responsibilities

  • Guide for the Planning, Design, and Operation of Pedestrian Facilities, 2004

  • Guidelines for Geometric Design of Very Low Volume Local Roads (ADT < 400), 2001

  • Guide for the Development of Bicycle Facilities, 1999 (NCHRP 20-7 Project Coordinated with Technical Committee on Non-motorized Transportation)


Research proposals and oversight l.jpg

Research Proposals and Oversight

  • Designing Roadway Transitions from Rural Highways to Urban/Suburban Highways or Streets

  • Design Speed Alternatives for Selecting Geometric Criteria

  • One – and Multi-Lane Loop Ramp Design


Research proposals and oversight7 l.jpg

Research Proposals and Oversight

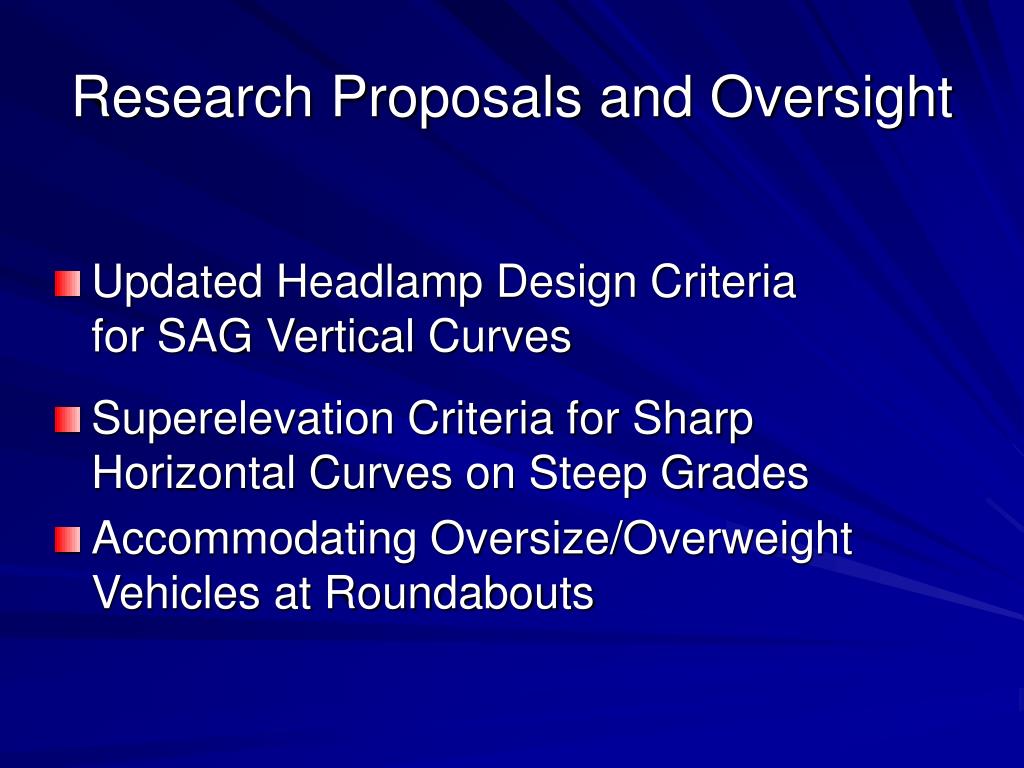

  • Updated Headlamp Design Criteria for SAG Vertical Curves

  • Superelevation Criteria for Sharp Horizontal Curves on Steep Grades

  • Accommodating Oversize/Overweight Vehicles at Roundabouts


A policy on geometric design of highways and streets l.jpg

A Policy on Geometric Design of Highways and Streets

( Green Book )


Chapter 1 l.jpg

Chapter 1

Highway Functions


Slide10 l.jpg

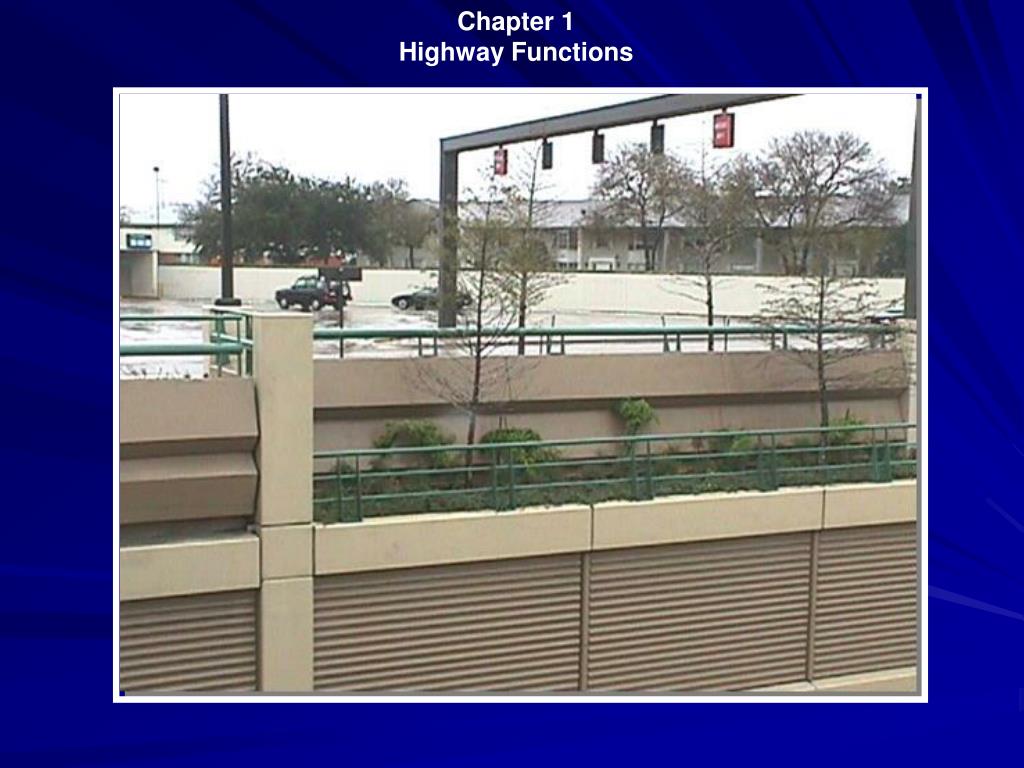

Chapter 1Highway Functions


Slide11 l.jpg

Chapter 1Highway Functions


Slide12 l.jpg

Chapter 1Highway Functions


Slide13 l.jpg

Chapter 1Highway Functions


Proposed changes l.jpg

ProposedChanges

  • Designer Consideration of the Context of the Project Area

  • Highlights the Flexibility Available to Encourage Choosing Design Criteria:

  • Consistent with the Context of the Project

  • Needs and Value of the Community

  • With Respect to Economic Limitations

Chapter 1


Chapter 2 l.jpg

Chapter 2

Design Controls and Criteria


Slide16 l.jpg

Chapter 2

Design Control & Criteria


Slide17 l.jpg

Chapter 2

Design Control & Criteria


Proposed changes18 l.jpg

Proposed Changes

  • Adding SU-40 Single Unit Truck (3-axle)

  • Removing WB-50 Semitrailer Truck and Replacing with WB-62

  • Adding WB-92B – Rocky Mountain Double

Chapter 2


Chapter 3 l.jpg

Chapter 3

Elements of Design


Slide20 l.jpg

Chapter 3

Elements of Design


Slide21 l.jpg

Chapter 3

Elements of Design


Proposed changes22 l.jpg

Proposed Changes

  • Stopping Sight Distance Tables Clarified Whether on Level, Wet Weather, or Grades

  • Passing Sight Distance for Two-Lane Highways Revised (NCHRP Report 605)

  • Height of Object will Include Discussion About Decision Sight Distance

Chapter 3


Proposed changes continued l.jpg

Proposed Changes continued

  • Revision Method for “Lane Drop Taper Length” for Passing Lane Sections

  • Lighting – Updated to Conform to the Roadway Lighting Guide

Chapter 3


Chapter 4 l.jpg

Chapter 4

Cross Section Elements


Proposed changes25 l.jpg

Proposed Changes

  • Traveled Way Definition Revised to be Consistent with Roadside Design Guide

  • Rumble Strip Section Added Based on State Experience and TRB/FHWA Research

Chapter 4


Proposed changes continued26 l.jpg

Proposed Changes continued

  • Roadside Design Discussion Provided in a More Consistent Format with the Roadside Design Guide

  • Sidewalks and Curb Ramps – Updating Discussion to Conform to AASHTO Pedestrian Guide and ADAAG

Chapter 4


Chapter 5 l.jpg

Chapter 5

Local Roads and Streets


Slide28 l.jpg

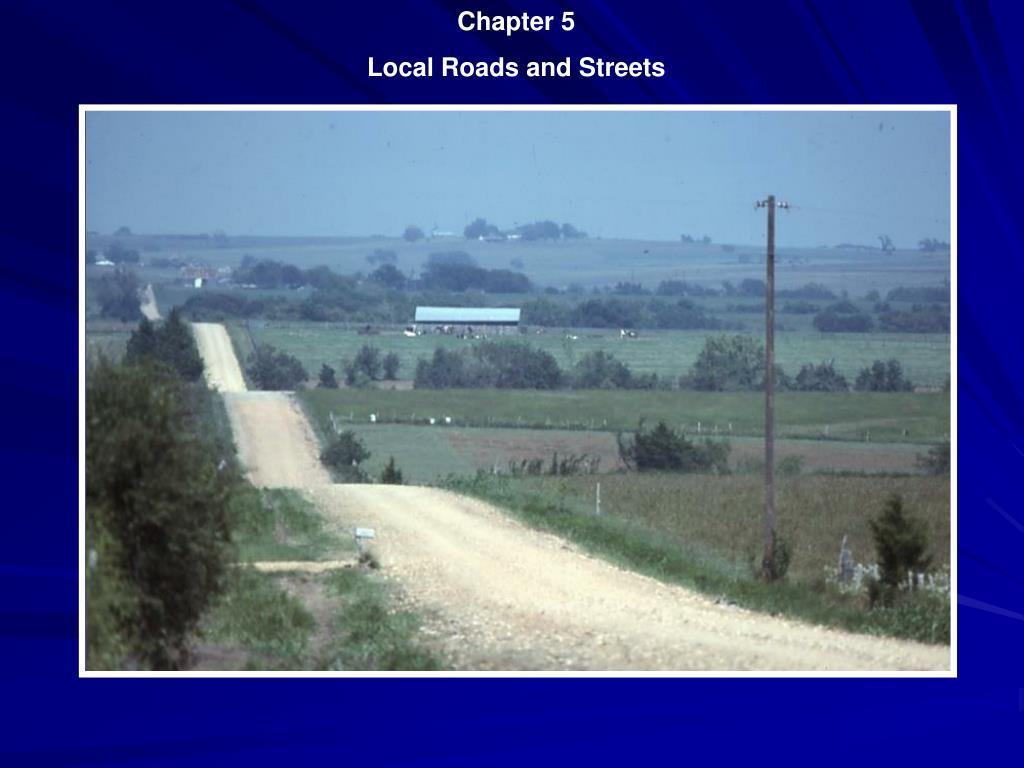

Chapter 5

Local Roads and Streets


Slide29 l.jpg

Chapter 5

Local Roads and Streets


Proposed changes30 l.jpg

Proposed Changes

  • Updated Reference to AASHTO LRFD Bridge Design Specifications

Reorganized Clear Zone Discussion

to Roadside Design

Added Discussion of Level of Service in Rural/Urban

Chapter Reorganized to Generally Follow Other Functional Chapters

Chapter 5


Chapter 6 l.jpg

Chapter 6

Collector Roads and Streets


Slide32 l.jpg

Chapter 6

Collector Roads and Streets


Slide33 l.jpg

Chapter 6

Collector Roads and Streets


Proposed changes34 l.jpg

Proposed Changes

  • Chapter Reformatted to Provide Some Consistency with other Functional Classification Chapters

  • Adding Text About Selection of LOS for this Functional Classification

  • Roadside Design Discussion

Chapter 6


Chapter 7 l.jpg

Chapter 7

Arterials

(Rural & Urban)


Slide36 l.jpg

Chapter 7

Arterials (Rural & Urban)


Proposed changes37 l.jpg

Proposed Changes

  • Added Discussion About Characteristics of Urban Arterials

  • Added Discussion About LOS Selection for Urban Arterials

  • Revised Discussion About the Relationship Between Design Speed and Lane Width

Chapter 7


Proposed changes continued38 l.jpg

Proposed ChangesContinued

  • Benefits of Medians to Pedestrians in Urban Areas

  • Added Discussion About Off-Setting Left Turn Lanes When Selecting Median Widths

Chapter 7


Chapter 8 l.jpg

Chapter 8

Freeways


Slide40 l.jpg

Chapter 8

Freeways


Proposed changes41 l.jpg

Proposed Changes

  • Added Discussion on Superelevation Rates on Freeways Considering Snow/Ice, Viaducts, and Section Consistency

  • Reformat to Generally Sequence Other Functional Classification Chapters

  • Reorganize Clear Zone Discussion to Roadside Design

Chapter 8


Chapter 9 l.jpg

Chapter 9

Intersections


Slide43 l.jpg

Chapter 9

Intersections


Proposed changes44 l.jpg

Proposed Changes

  • Chapter Being Reformatted to Provide Better Sequence of Design Material

  • Adding Discussion of Intersection Capacity Based on HCM

  • Updating Discussion of Roundabouts and Adding Discussion of Continuous Flow Intersections

Chapter 9


Proposed changes continued45 l.jpg

Proposed Changes continued

  • Expanding the Discussion of Indirect Left Turns and U-turns

  • Based on TRB Access Management Manual:

  • Definition of Functional Area

  • Components of Auxiliary Lanes

  • Deceleration Length Discussion

  • Adding Design Criteria for Double/Triple Let Turns – NCHRP 505

Chapter 9


Chapter 10 l.jpg

Chapter 10

Grade Separations and Interchanges


Slide47 l.jpg

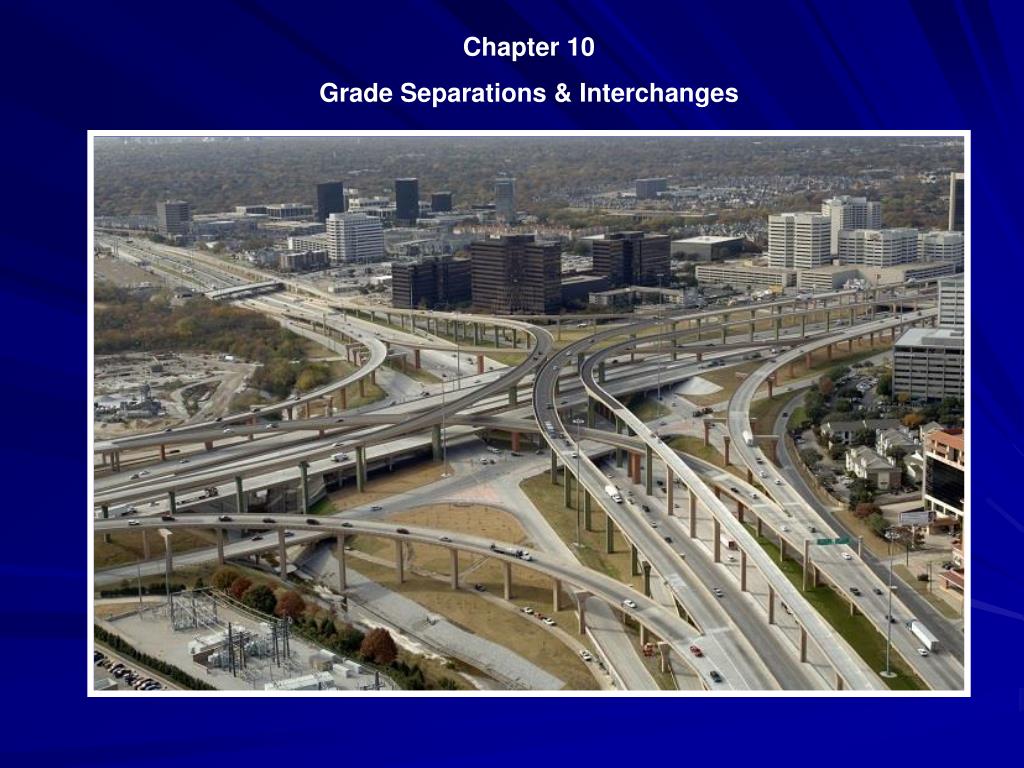

Chapter 10

Grade Separations & Interchanges


Proposed changes48 l.jpg

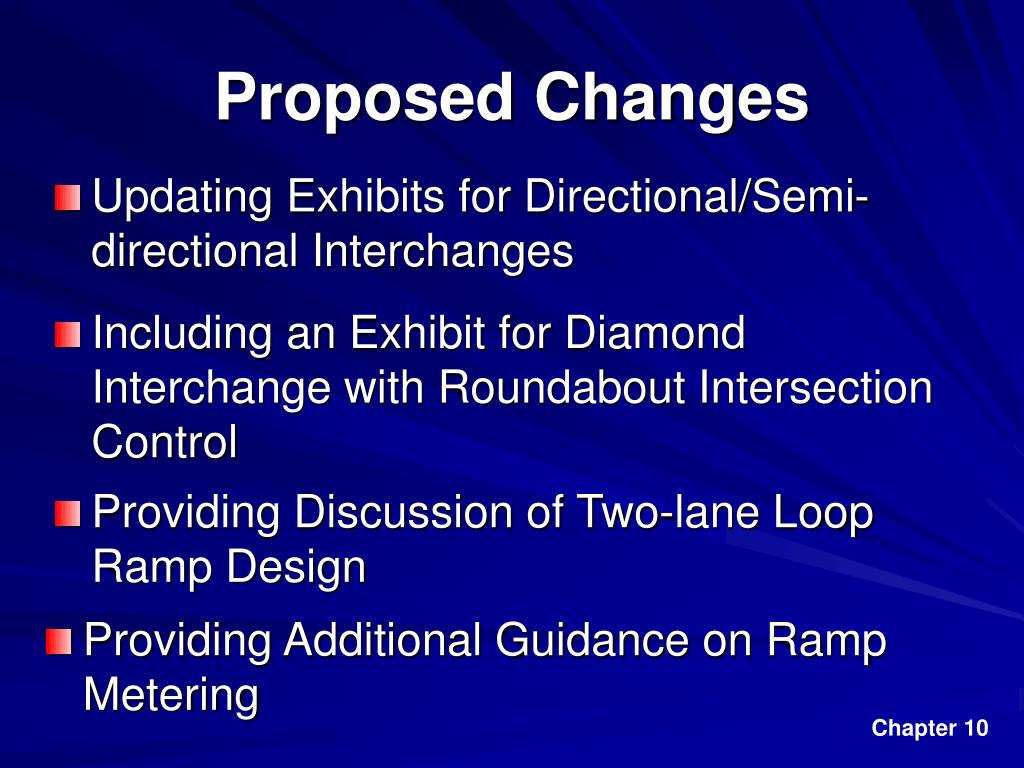

Proposed Changes

  • Updating Exhibits for Directional/Semi-directional Interchanges

  • Including an Exhibit for Diamond Interchange with Roundabout Intersection Control

  • Providing Discussion of Two-lane Loop Ramp Design

  • Providing Additional Guidance on Ramp Metering

Chapter 10


Green book schedule l.jpg

Green Book Schedule

  • Currently doing a technical mark up for consistency

  • Committee meeting in the Fall of 2009

  • One more technical review

  • Ballot in the First Quarter of Calendar 2010
