Intrusion detection in wireless sensor networks

Intrusion Detection in Wireless Sensor Networks

Group Meeting

Spring 2005

Presented by Edith Ngai


Outline

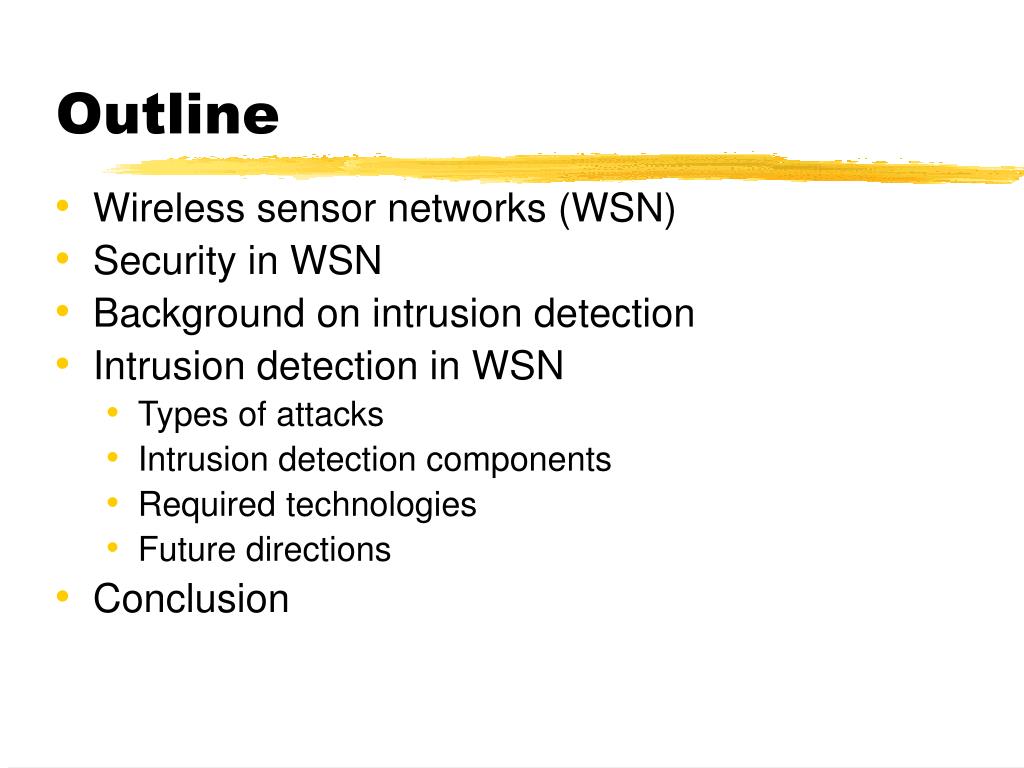

Outline

  • Wireless sensor networks (WSN)

  • Security in WSN

  • Background on intrusion detection

  • Intrusion detection in WSN

    • Types of attacks

    • Intrusion detection components

    • Required technologies

    • Future directions

  • Conclusion


Technology trend

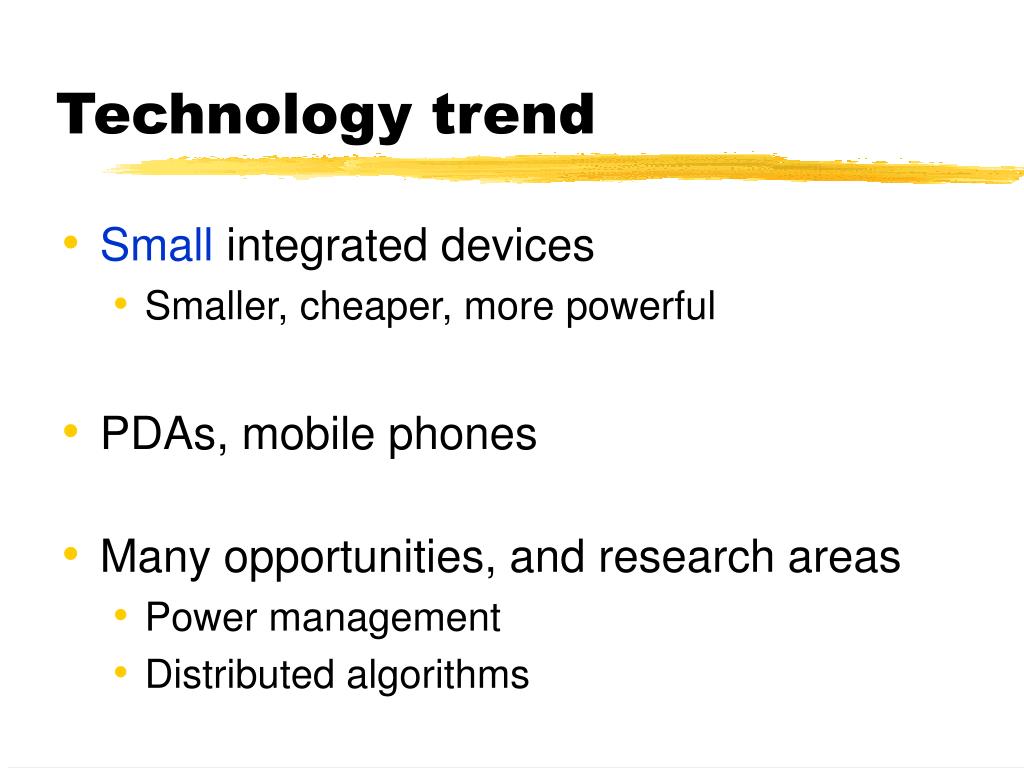

Technology trend

  • Small integrated devices

    • Smaller, cheaper, more powerful

  • PDAs, mobile phones

  • Many opportunities, and research areas

    • Power management

    • Distributed algorithms


Wireless sensor networks

Wireless sensor networks

  • Wireless sensor node

    • power supply

    • sensors

    • embedded processor

    • wireless link

  • Many, cheap sensors

    • wireless  easy to install

    • intelligent  collaboration

    • low-power  long lifetime


Possible applications

Possible applications

  • Military

    • battlefield surveillance, biological attack detection, targeting

  • Ecological

    • fire detection, flood detection, agricultural uses

  • Health related

    • human physiological data monitoring

  • Miscellaneous

    • car theft detection, inventory control, home applications


Required technologies

Required technologies

  • Efficient data routing

    • ad-hoc network

    • one or more ‘datasinks’

  • In-network data processing

    • large amounts of raw data

    • limited power and bandwidth

  • Node localization


Security in wsn

Security in WSN

  • Main security threats in WSN are:

    • Radio links are insecure – eavesdropping / injecting faulty information is possible

    • Sensor nodes are not temper resistant – if it is compromised the attacker obtains all security information

  • Protecting confidentiality, integrity, and availability of the communications and computations


Intrusion detection in wireless sensor networks

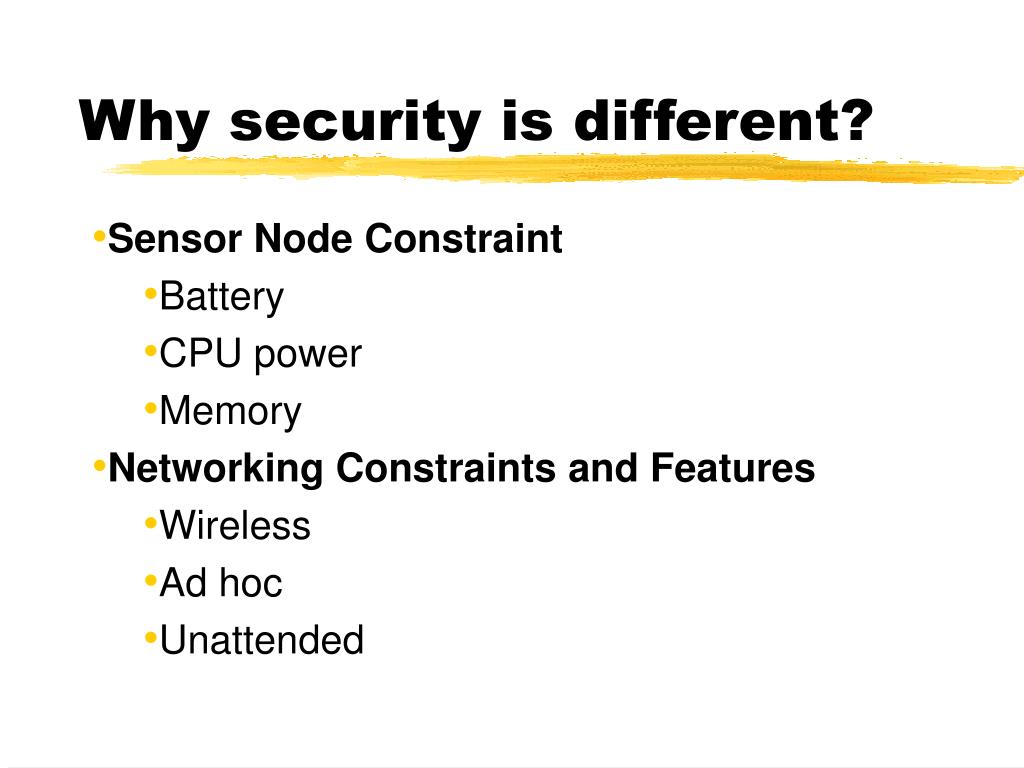

Why security is different?

  • Sensor Node Constraint

    • Battery

    • CPU power

    • Memory

  • Networking Constraints and Features

    • Wireless

    • Ad hoc

    • Unattended


Network defense

Network defense

React

- Response

- Terminate Connections

- Block IP Addresses

- Containment

- Recovery

- Reconstitute

Protect

- Encryption

- Firewalls

- Authentication

- Biometrics

Detect

- Intrusions

- Attacks

- Misuse of Resources

- Data Correlation

- Data Visualization

- Malicious Behaviors

- Network Status/ Topology


What is intrusion detection

What is intrusion detection?

  • Intrusion detection is the process of discovering, analyzing, and reportingunauthorized or damaging network or computer activities

  • Intrusion detection discovers violations of confidentiality, integrity, and availability of information and resources


What is intrusion detection1

What is intrusion detection?

  • Intrusion detection demands:

    • As much information as the computing resources can possibly collect and store

    • Experienced personnel who can interpret network traffic and computer processes

    • Constant improvement of technologies and processes to match pace of Internet innovation


How useful is intrusion detection

How useful is intrusion detection?

  • Provide digital forensic data to support post-compromise law enforcement actions

  • Identify host and network misconfigurations

  • Improve management and customer understanding of the Internet's inherent hostility

  • Learn how hosts and networks operate at the operating system and protocol levels


Intrusion detection models

Intrusion detection models

  • All computer activity and network traffic falls in one of three categories:

    • Normal

    • Abnormal but not malicious

    • Malicious

  • Properly classifying these events are the single most difficult problem -- even more difficult than evidence collection


Intrusion detection models1

Intrusion detection models

  • Two primary intrusion detection models

    • Network-based intrusion detection monitors network traffic for signs of misuse

    • Host-based intrusion detection monitors computer processes for signs of misuse

  • So-called "hybrid" systems may do both

    • A hybrid IDS on a host may examine network traffic to or from the host, as well as processes on that host


Ids paradigms

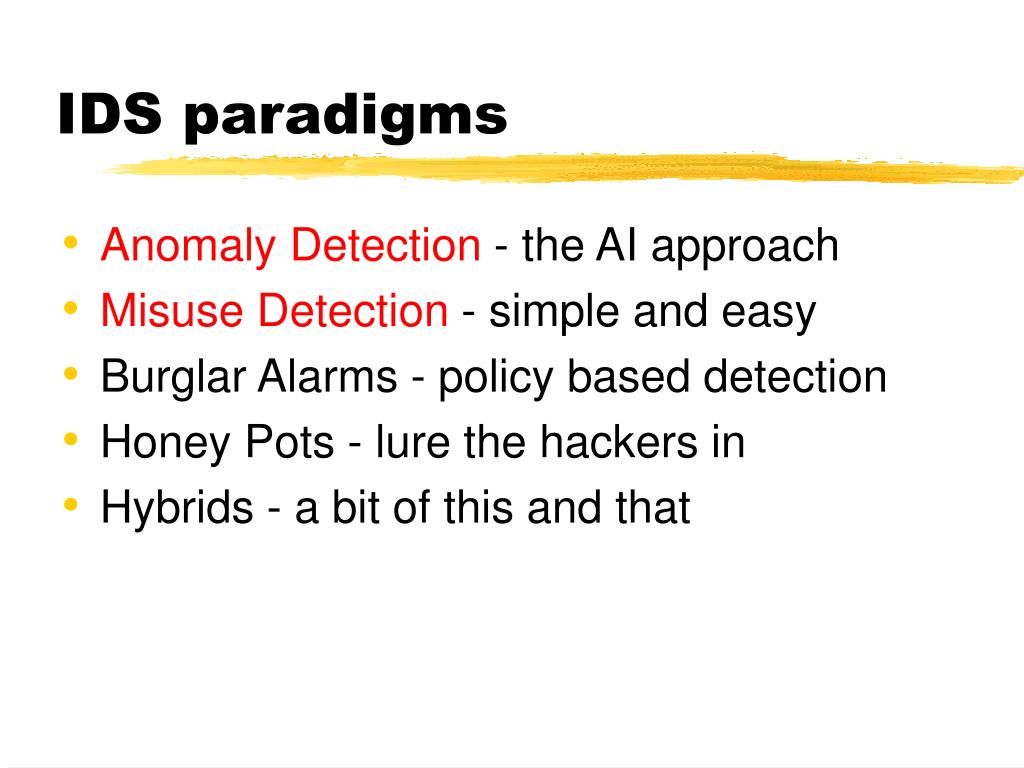

IDS paradigms

  • Anomaly Detection - the AI approach

  • Misuse Detection - simple and easy

  • Burglar Alarms - policy based detection

  • Honey Pots - lure the hackers in

  • Hybrids - a bit of this and that


Anomaly detection

Anomaly detection

  • Goals:

    • Analyze the network or system and infer what is normal

    • Apply statistical or heuristic measures to subsequent events and determine if they match the model/statistic of “normal”

    • If events are outside of a probability window of “normal” then generate an alert


Misuse detection

Misuse detection

  • Goals:

    • Know what constitutes an attack

    • Detect it

    • A database of known attack signatures should be maintained


Intrusion detection in wsn

Intrusion Detection in WSN


Network model

Network model

  • BSj: base station at location (Xj, Yj)

  • Si: sensor node at location (xi, yi)

  • R: transmission range of the base station

  • r: transmission range of the sensor node

  • k-coverage: a node covers by k BSs


Definitions

Definitions

  • Coverage of a base station

  • Number of coverage from base stations

  • p sends data to q successfully (in 1-hop)

  • p sends data to q successfully via k hops

  • p fails in sending data from p to q


Types of intrusions

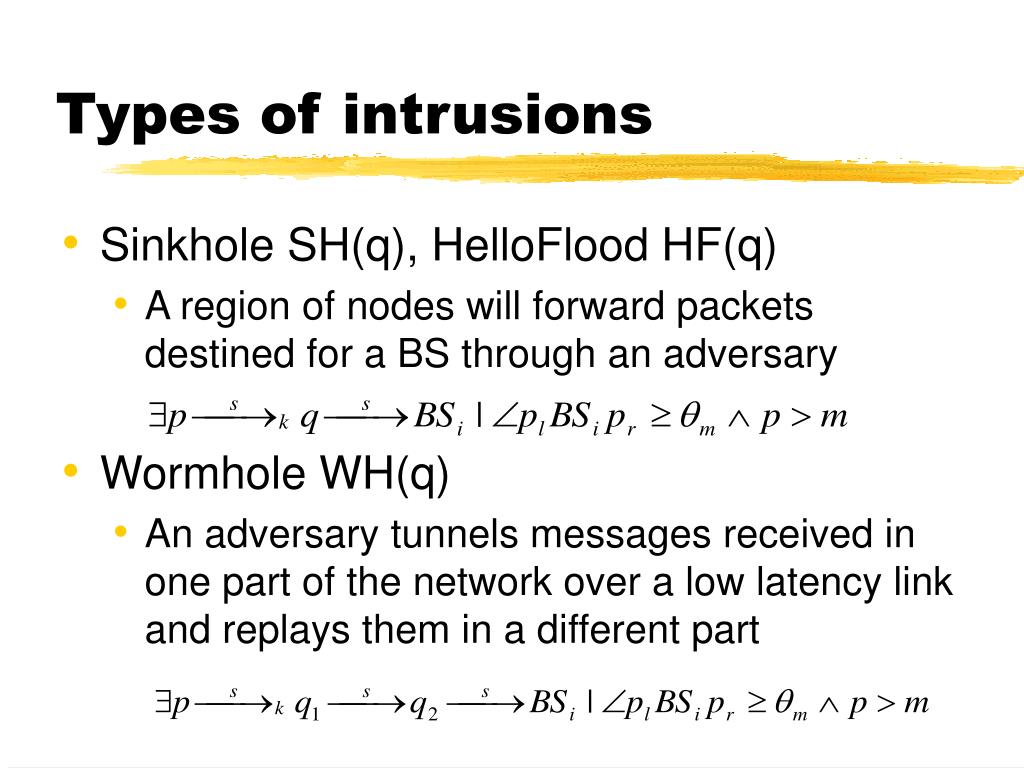

Types of intrusions

  • Sinkhole SH(q), HelloFlood HF(q)

    • A region of nodes will forward packets destined for a BS through an adversary

  • Wormhole WH(q)

    • An adversary tunnels messages received in one part of the network over a low latency link and replays them in a different part


Types of intrusions1

Types of intrusions

  • Missing Data MD(p)

    • Missing data from p to BSi

  • Wrong Data WD(p)

    • Inconsistent data

  • Interference

    • Sensor p cannot send packet to its neighboring nodes


Architecture

Architecture


Intrusion detection components

Intrusion detection components

  • Neighbor monitoring

    • Watchdog

  • Data fusion

    • Local – neighboring nodes

    • Global – overlapping areas

  • Topology discovery

  • Route tracing

  • History


Intrusion classification

Intrusion classification

Attack Types: I - Sinkhole, Hello FloodII – WormholeIII – Missing Data

IV – Wrong DataV - Interference


Required technologies1

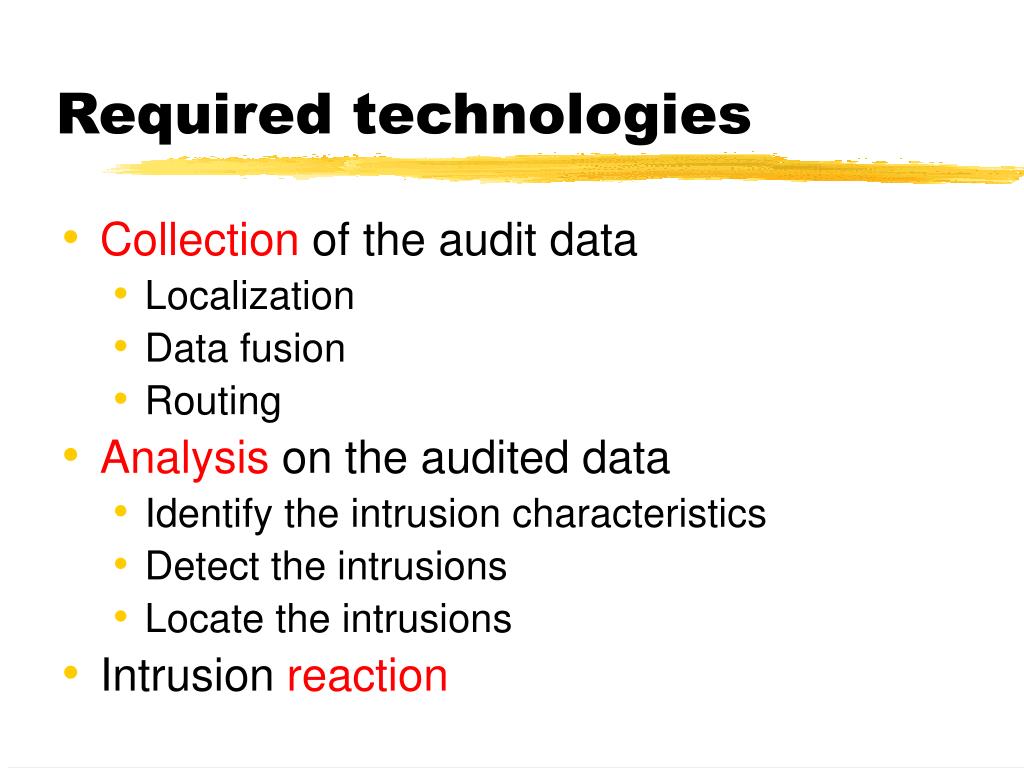

Required technologies

  • Collection of the audit data

    • Localization

    • Data fusion

    • Routing

  • Analysis on the audited data

    • Identify the intrusion characteristics

    • Detect the intrusions

    • Locate the intrusions

  • Intrusion reaction


Future direction

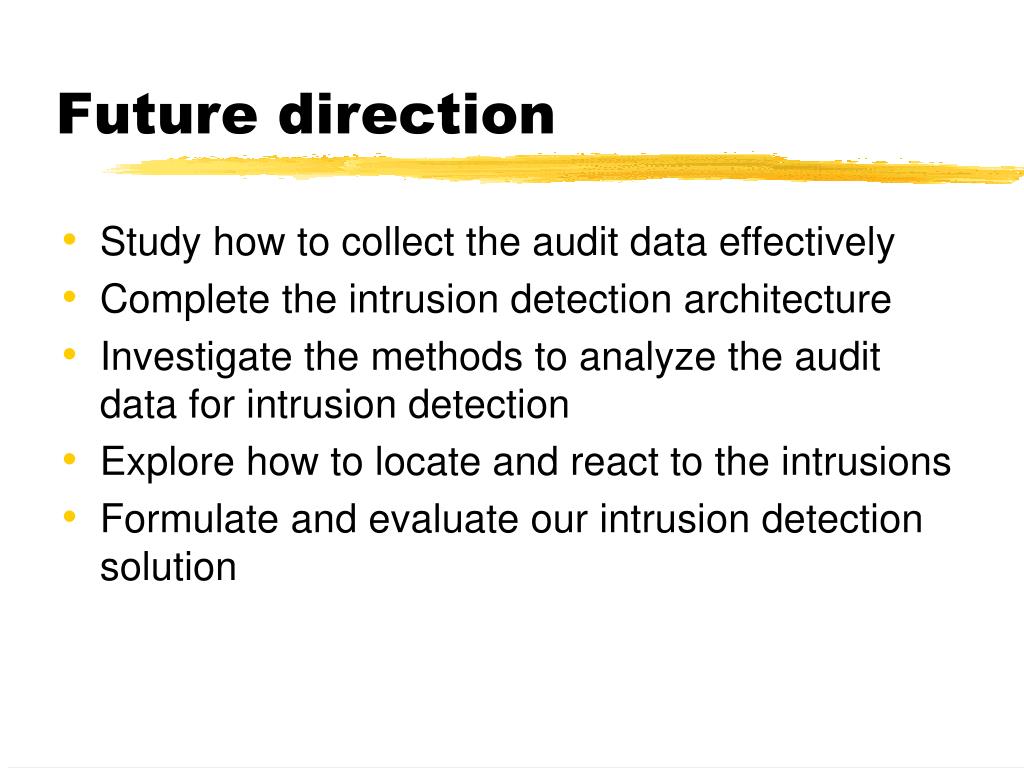

Future direction

  • Study how to collect the audit data effectively

  • Complete the intrusion detection architecture

  • Investigate the methods to analyze the audit data for intrusion detection

  • Explore how to locate and react to the intrusions

  • Formulate and evaluate our intrusion detection solution


Conclusion

Conclusion

  • We discussed the characteristics of WSN and its security issues

  • We studied traditional intrusion detection technologies

  • We introduced the problem of intrusion detection in WSN

  • We proposed an intrusion detection architecture and analyzed various kinds of intrusions in WSN

  • We showed our future direction
