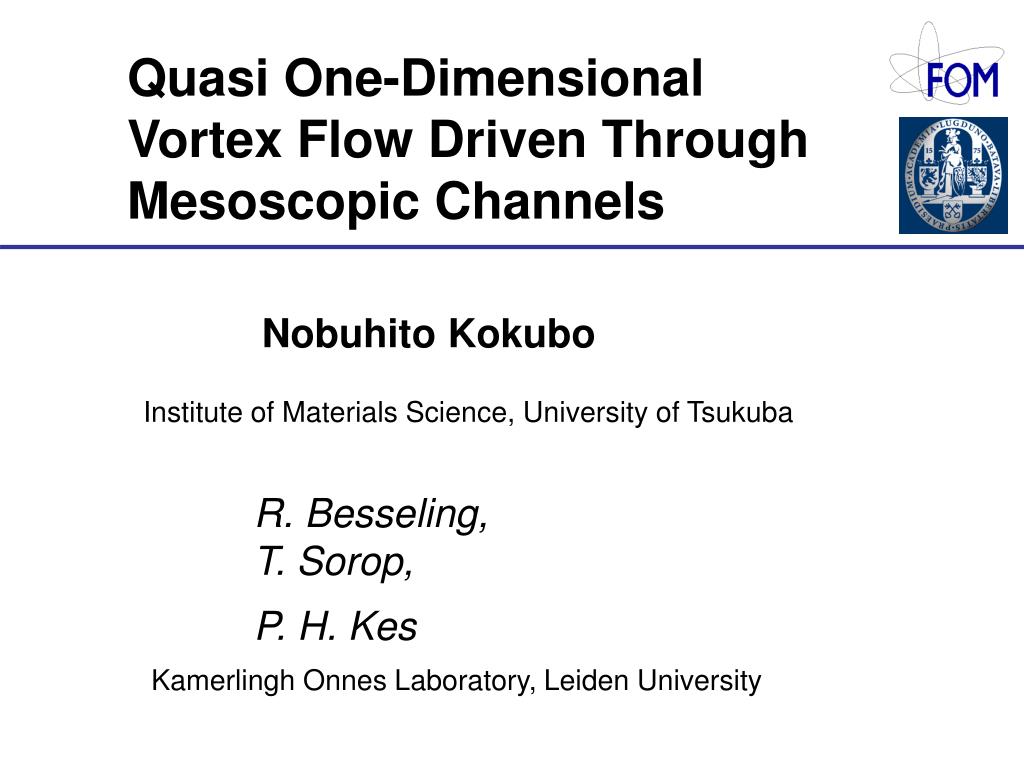

  1. Quasi One-Dimensional Vortex Flow Driven Through Mesoscopic Channels Nobuhito Kokubo Institute of Materials Science, University of Tsukuba R. Besseling, T. Sorop, P. H. Kes Kamerlingh Onnes Laboratory, Leiden University

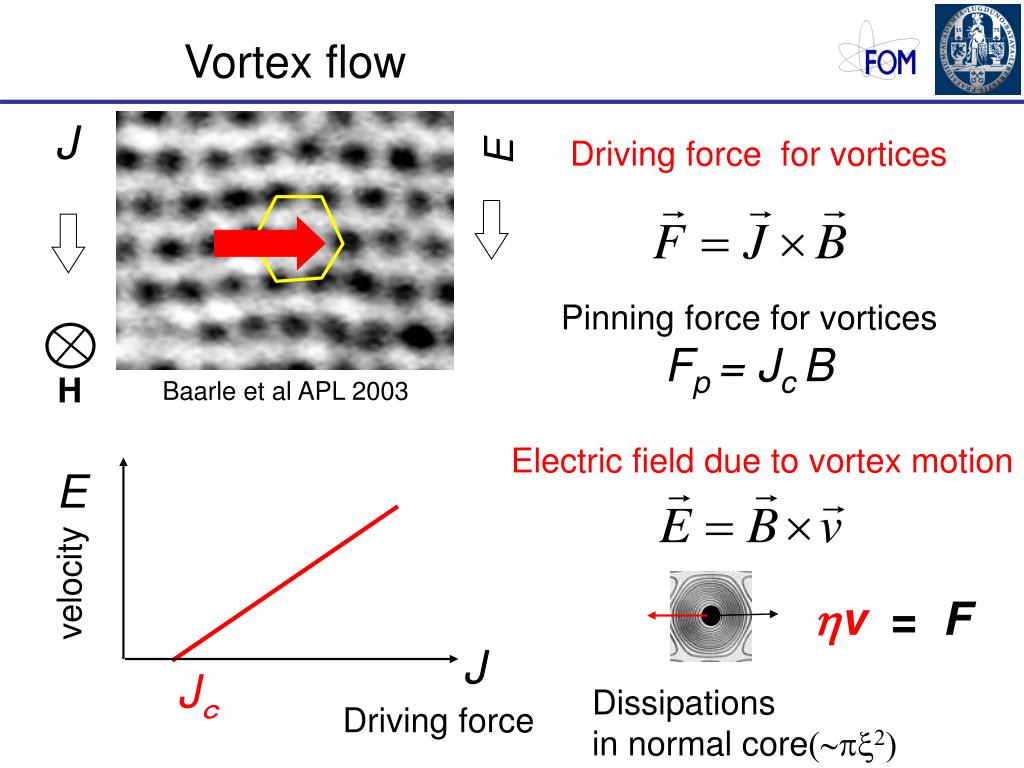

  2. E J Driving force for vortices E Electric field due to vortex motion velocity Jｃ hv = F J Driving force Dissipations in normal core(~px2) Vortex flow Pinning force for vortices Fp = Jc B H Baarle et al APL 2003

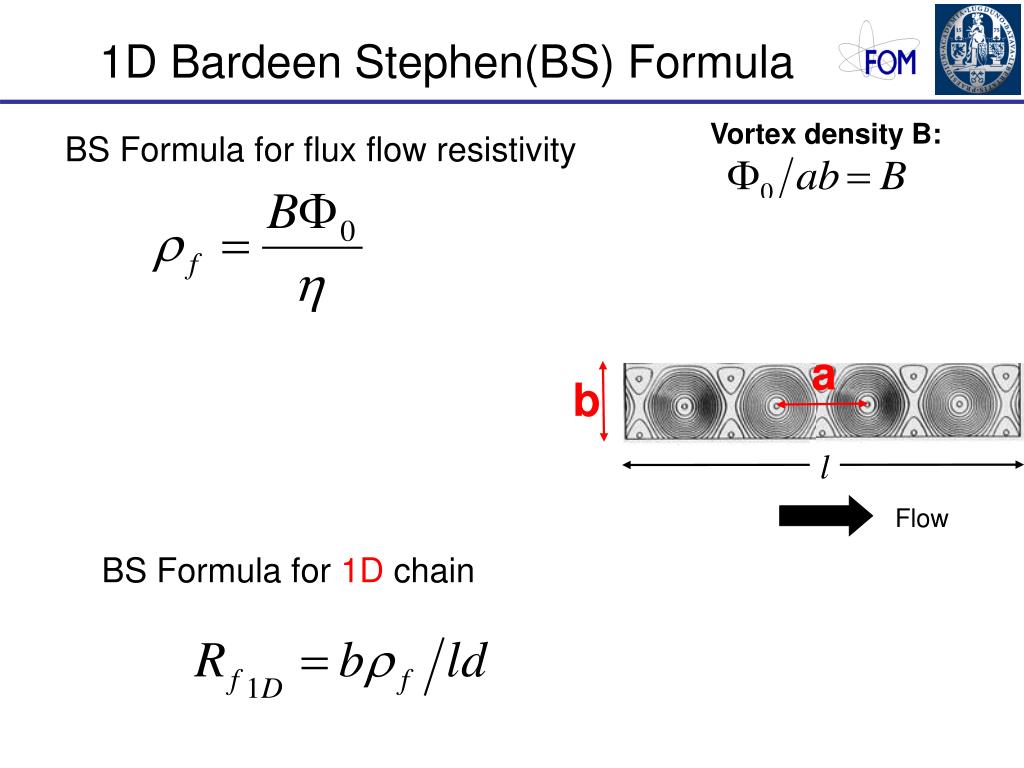

  3. b BS Formula for 1D chain 1D Bardeen Stephen(BS) Formula Vortex density B: BS Formula for flux flow resistivity b a l Flow

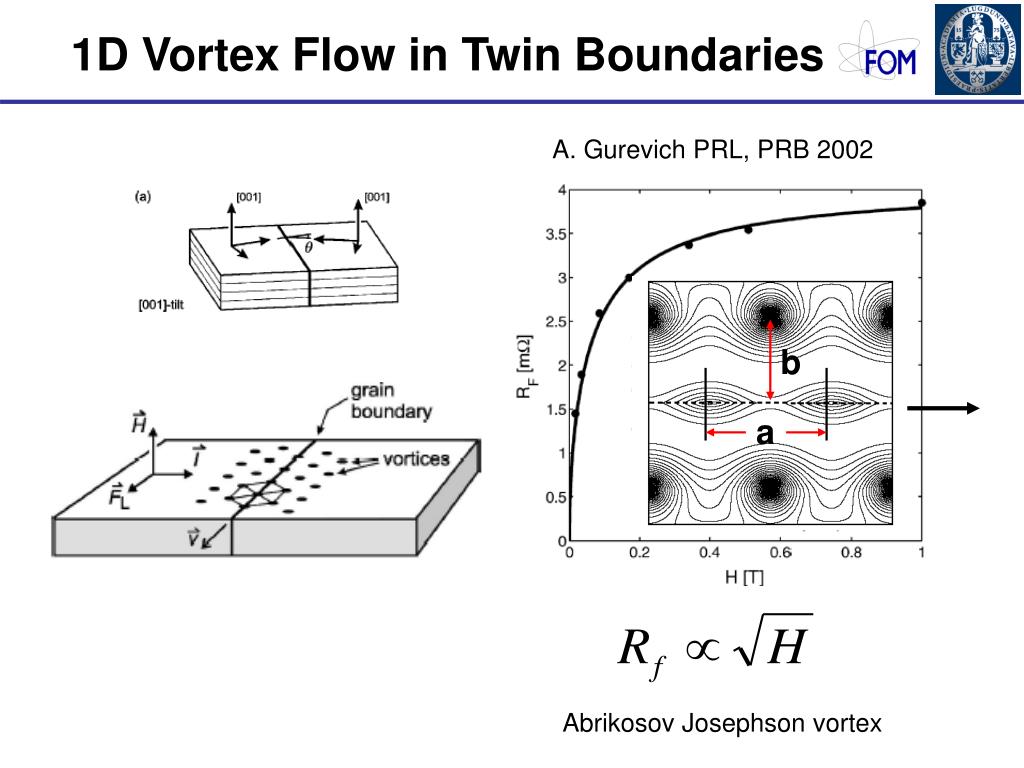

  4. 1D Vortex Flow in Twin Boundaries A. Gurevich PRL, PRB 2002 b a Abrikosov Josephson vortex

  5. IV Curves in Twin Boundaries

  6. Outline of This Talk Vortex flow channel device A short summary of previous results • New results • A kink anomaly in IV characteristics • ML experiments Summary of this talk

  7. Mesoscopic Vortex Flow Channels 0.2 – 1mm Strong pinning NbN layer J H Weak pinning a-NbGe layer J w < l SEM picture (w=650nm)

  8. 2.0 w=230 nm ) ~c (B) 3 66 N/m 1.0 6 (10 p F experimental data 0 a 0 0.4 1.2 0.8 Matching condition m0H (T) Mismatch condition b Matching Effects The shear modulus of vortex lattice c66 w f J

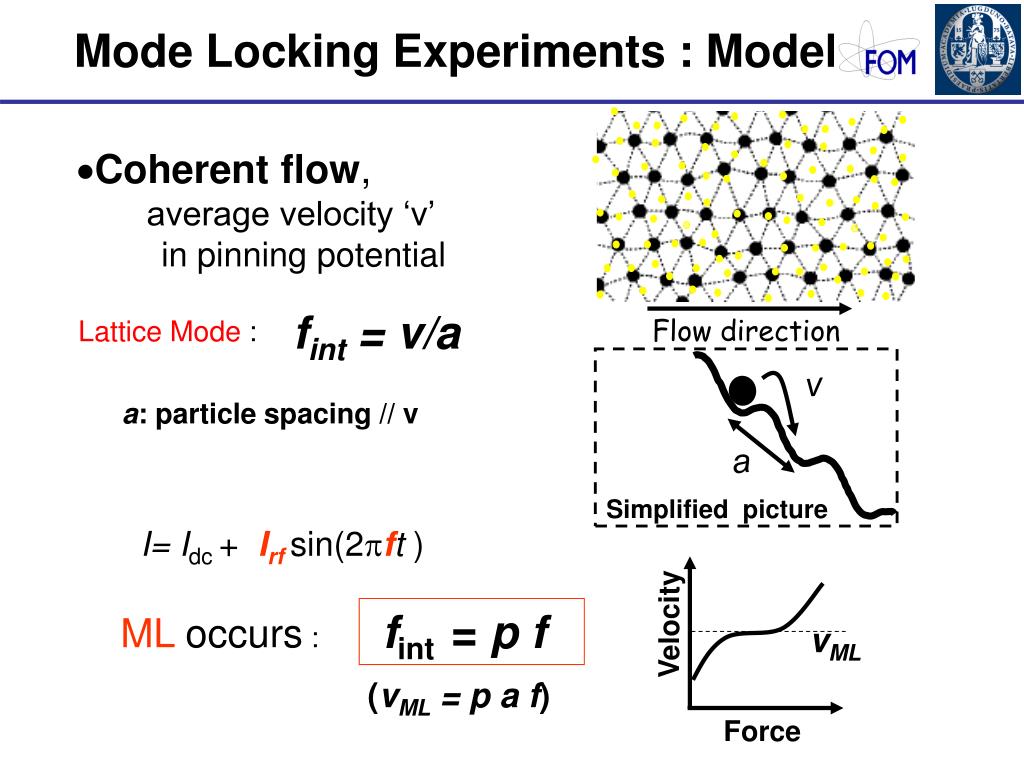

  9. v a Simplified picture I= Idc + Irfsin(2pft ) Velocity fint = p f vML ML occurs : (vML = p a f) Force Mode Locking Experiments : Model • Coherent flow, average velocity ‘v’ in pinning potential fint = v/a Lattice Mode : Flow direction a: particle spacing // v

  10. p=3 Large Irf p=2 Irf=0 p=1 weff f=6MHz a b Mode Locking Experiments: Result w=230nm T<<Tc(NbGe)

  11. Field Evolution of n and Fc Vortex density Oscillation in Fc is closely related with the flow configurations in channels PRL 88,247004 (2002)

  12. Quasi 1D flow properties NbN A decoration image in channels in a field of 50mT taken by N. Saha, Field History in Channels NbN Field down (FD) mode H is ramped down after applying a large field (>Hc2 of NbGe) • Field up (FU) mode • H is ramped up after ZFC • Field Focusing in channels Conventional 2D FF behavior

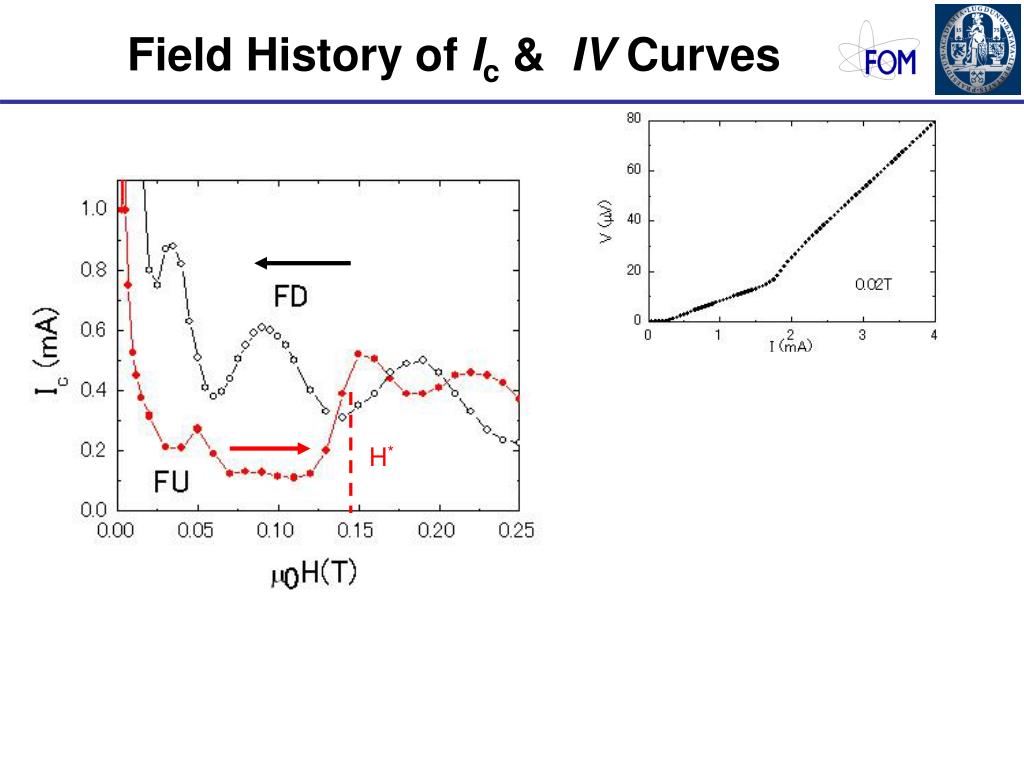

  13. H* Field History of Ic & IV Curves

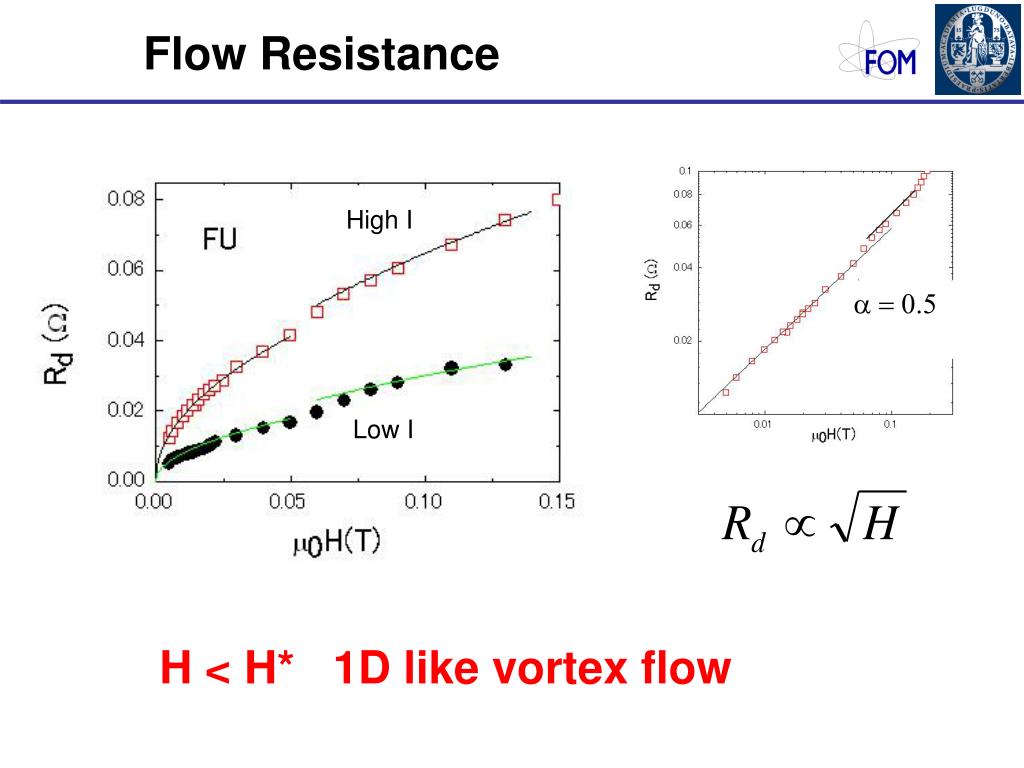

  14. Low I Flow Resistance High I a = 0.5 H < H* 1D like vortex flow

  15. n = 5 n = 3 f (MHz) (= v/a) Dynamic Change in Flow Structure f = fint = v/aat p=1 DC A kink anomaly mark a dynamic change in flow configuration

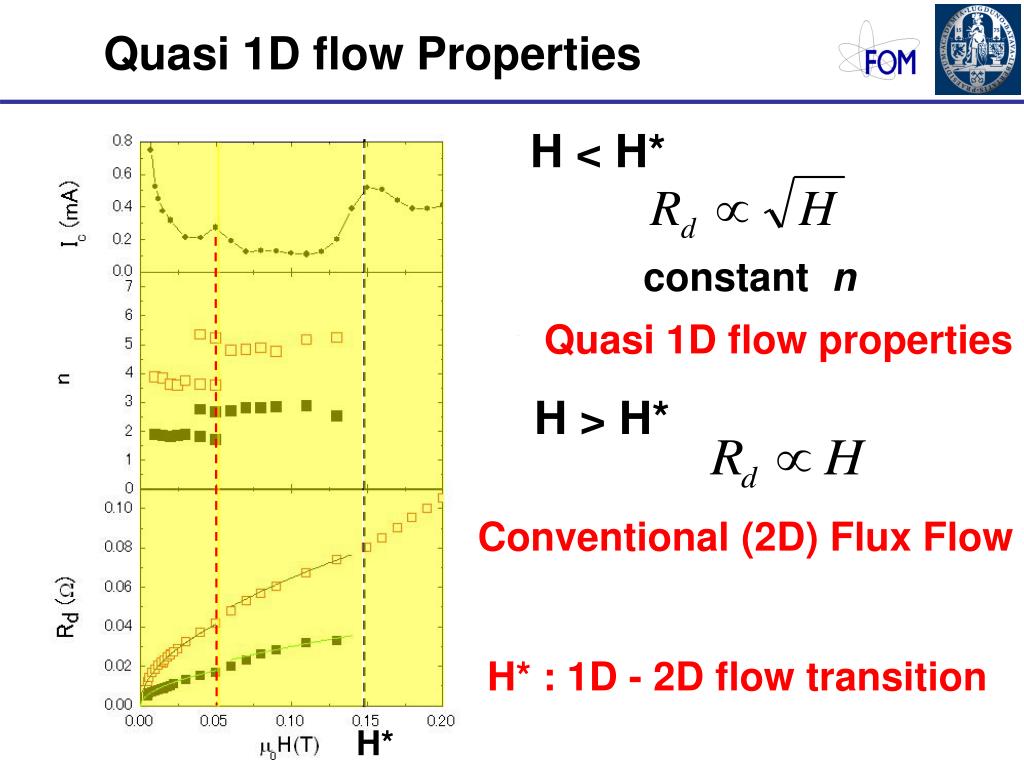

  16. H < H* constant n Quasi 1D flow properties H > H* H* Conventional (2D) Flux Flow H* Quasi 1D flow Properties n = 5 High RFB n = 4 Low RFB Lower R.F. branch : n Higher R.F. branch: n+2 H* : 1D - 2D flow transition

  17. FD FU Mobile Mobile Field profile in a channel

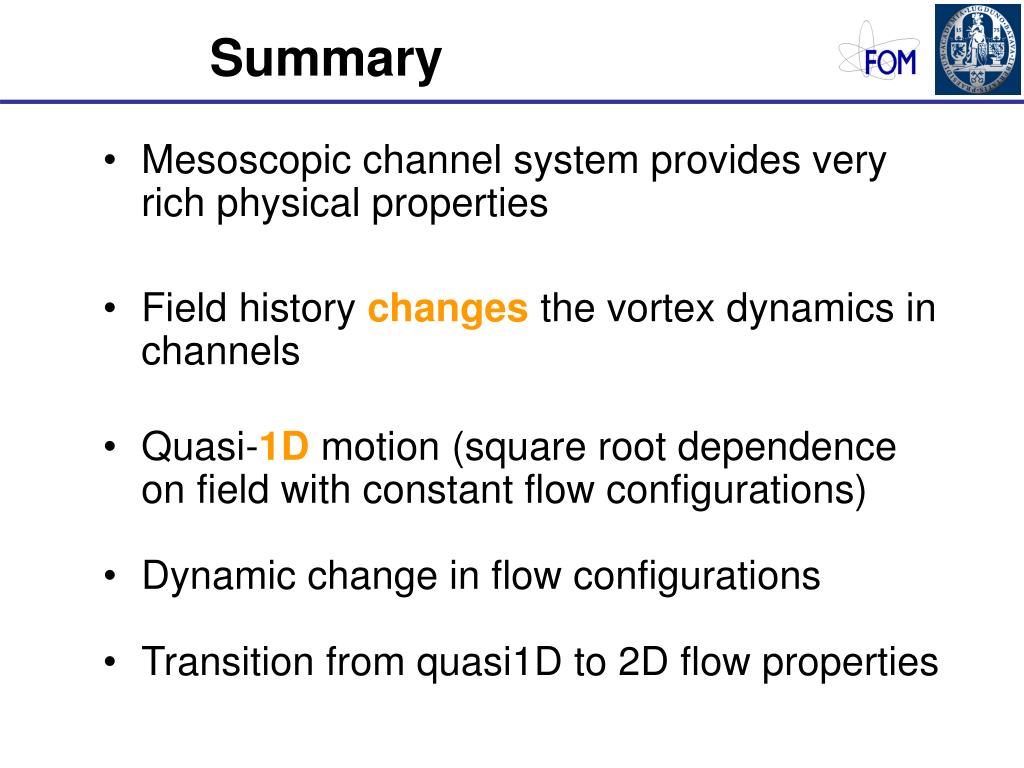

  18. Summary • Mesoscopic channel system provides very rich physical properties • Field history changes the vortex dynamics in channels • Quasi-1D motion (square root dependence on field with constant flow configurations) • Dynamic change in flow configurations • Transition from quasi1D to 2D flow properties
