Presentation Transcript


4350113

Biosorption of lead ,cadmium,and mercury ions on loofa sponge immobilized biomass of Aspergillus terreus

指導老師: 孫 逸 民 教授

學 生: 田 汶 玄


Introduction 1

Introduction(1)

Heavy metals are discharged from various industries such as electroplating, metal finishing, textile, storage batteries, mining, ceramic and glass.


4350113

Introduction(2)

The commonly used procedures for removing metal ions from wastewater include chemical precipitation, ion exchange, membrane separation, reverse osmosis, and electrolysis.


4350113

Introduction(3)

However, these techniques have certain disadvantages such as incomplete removal, high reagent and energy requirements, generation of toxic sludge.


Introduction 4

Introduction(4)

The search for alternative treatment techniques has focused attention on the use of biological materials such as algae, fungi, yeast and bacteria for the removal and recovery technologies and because of the better performance and low cost of these biological materials .


Introduction 5

Introduction(5)

The purpose of the present study is to provide an immobilized biosorption system using a low cost, physically strong, and highly porous immobilization matrix; loofa sponge.


4350113

Introduction(6)

The study investigated the use of loofa sponge immobilized fungal biomass as a biosorbent for the removal of lead, cadmium ,and mercury from aqueous solution.


Materials and methods

Materials and Methods


Microorganism

Microorganism

The Aspergillus terreus was maintained by pure culturing on potato dextrose agar slants at 28 ℃ for 7 days.

Mycelium suspensions from 7-day old cultures, preculture on glucose at 28 ℃ for 24 hours.

Then, above Mycelium suspensions was main culture for 15 days.


Culture medium

culture medium


Pretreatment of loofa sponge

Pretreatment of loofa sponge

The fibrous sponge was cut into discs of approximately 0.2g , soaked in boiling water for 30 min, thoroughly washed under tap water, and left for 24 h in distilled water, changed 3-4 times.

The sponge piece were oven dried at 70 ℃.


Immobilization of a terrues within loofa sponge

Immobilization of A.terrues within loofa sponge

The mycelium suspension (2.5 ml) was inoculated into 250 ml flasks containing 50 ml of the growth medium and pre-weighed loofa sponge discs.

The inoculated flasks were incubated at 28 ℃ and shaken at 200 rpm.

After 15 days of incubation, loofa sponge immobilized A.terrues were harvested from the medium, washed twice with distilled water and stored at 70 ℃ until use.


Biomass of fungal growth

Biomass of fungal growth

The dry weight of the fungal biomass entrapped within sponge pieces was determined by weighing sponge pieces before and after fungal growth after 48 h drying at 70 ℃.


Metal solutions

Metal solutions

HgCl2 (Riedel-de Haën)

CdCl2‧2.5H2O (Panreac )

PbCl2 (J. T. Baker)


Biosorption studies

Biosorption studies

The biosorption capacity of FBILS (fungal biomass immobilized in loofa sponge) was determined by contacting 100 ml metal solution of known concentration in 250 ml flasks.

The metal solution was shaken on an orbital shaker at 200 rpm and 30 ℃.

FBILS were separated from the solution by decantation.

Residual metal concentration in the metal solutions by centrifugation at 3000 rpm for 5 min

Supernatant was analysed for residual metal ions concentration was determined using flame atomic absorption spectrophotometer.


Effect of contact time and ph on metal ion biosorption

Effect of contact time and pH on metal ion biosorption

For the determination of rate of metal biosorption by FBILS, the supernatant was analysed for residual metal ions after the contact period of 10, 20, 30, 60, 120, 240 and 360 min.

The effect of pH on metal ions sorption by FBILS was determined by equilibrating the sorption at different pH values of 2, 3. 4, and 5.


Chemical and physical stability of fbils

Chemical and physical stability of FBILS

For the purpose, FIBILS was shaken on an orbital shaker at different rotation speed for 2 days.

Similarly, soaking of FBILS in buffer of various pH (2.0–12.0 for 20 days) was shaken on an orbital shaker at 200 rpm for 20 days had weight loss 20% of the FBILS were observed during this period.


Data analysis

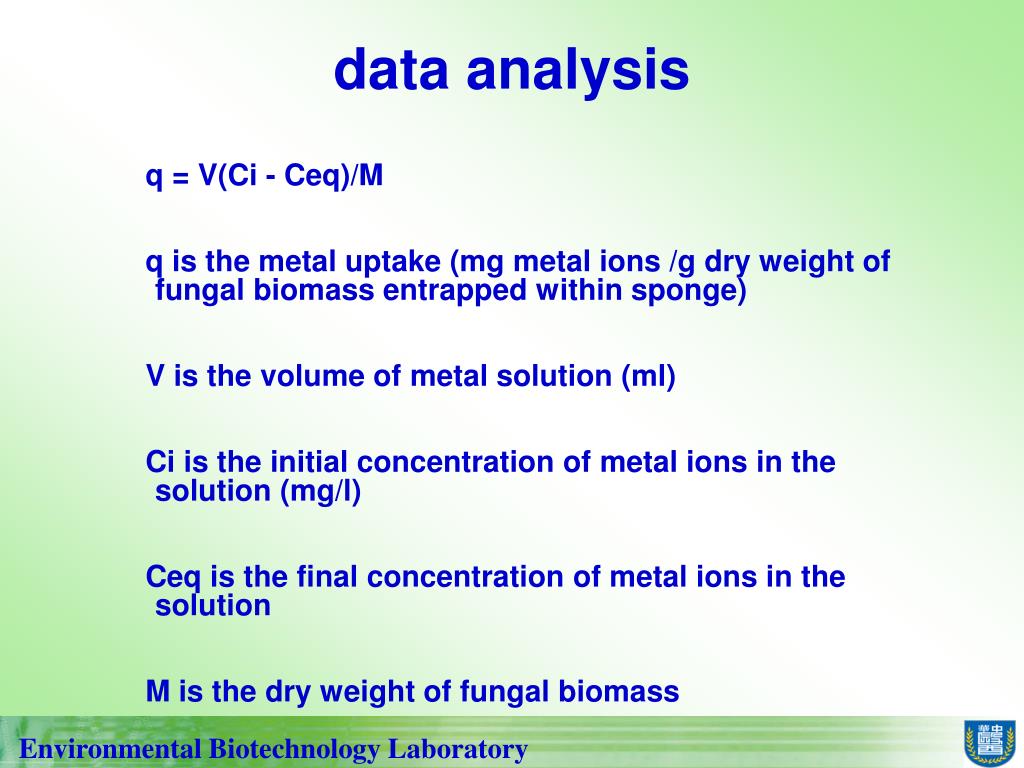

data analysis

q = V(Ci - Ceq)/M

q is the metal uptake (mg metal ions /g dry weight of fungal biomass entrapped within sponge)

V is the volume of metal solution (ml)

Ci is the initial concentration of metal ions in the solution (mg/l)

Ceq is the final concentration of metal ions in the solution

M is the dry weight of fungal biomass


Results and discussion

Results and discussion


Fungal biomass immobilized within loofa sponge

Fungal biomass immobilized within loofa sponge

(b)

(a)

  • natural loofa sponge covered with A. terrues biomass

  • artificial loofa sponge covered with A. terrues biomass


Growth curve aspergillus terreus immobilized loofa sponge

Growth curve — Aspergillus terreus immobilized loofa sponge


Effect of different phase on metal uptake by fbils

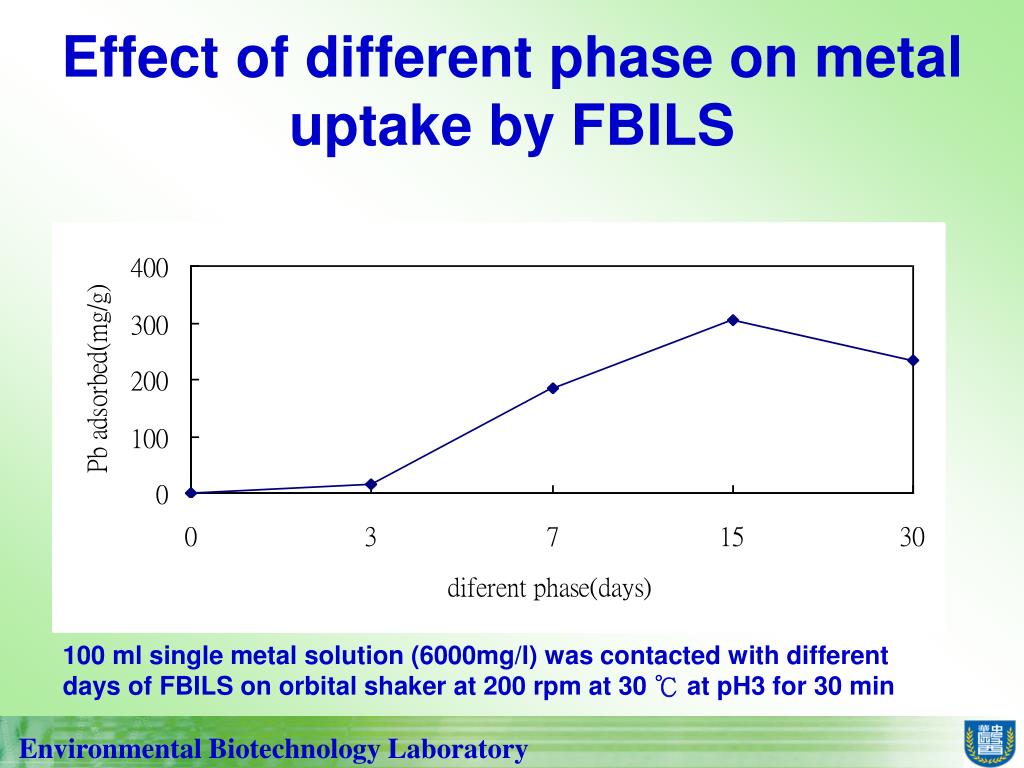

Effect of different phase on metal uptake by FBILS

100 ml single metal solution (6000mg/l) was contacted with different days of FBILS on orbital shaker at 200 rpm at 30 ℃ at pH3 for 30 min


Time course profiles for metal ion biosorption by fbils

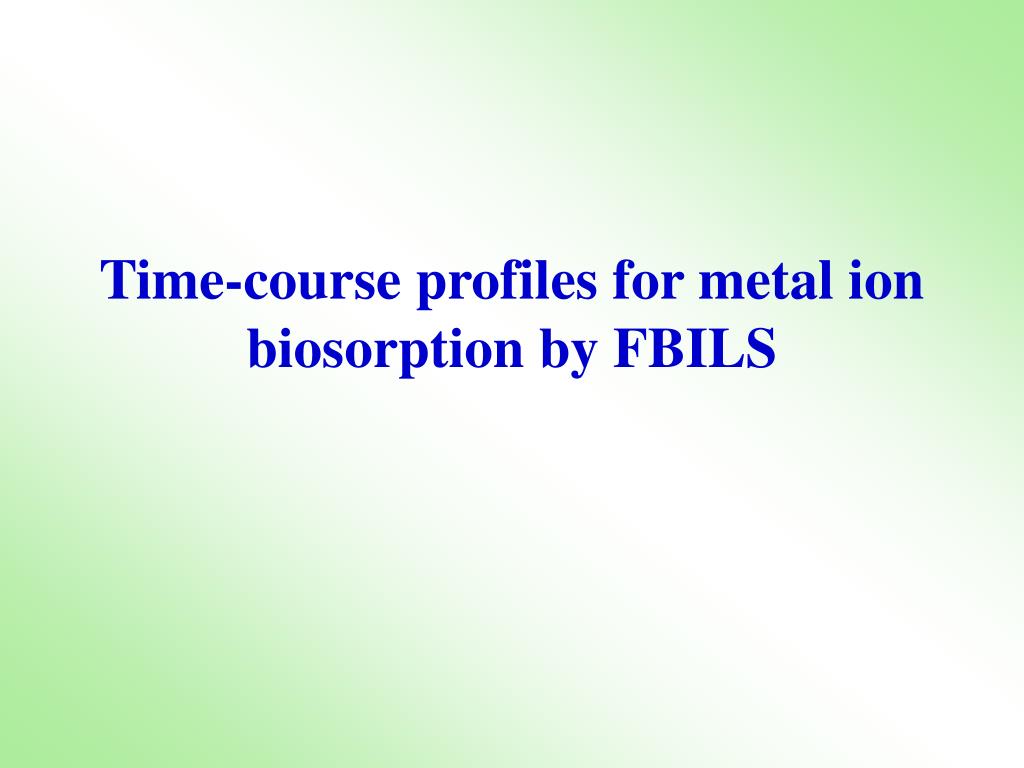

Time-course profiles for metal ion biosorption by FBILS


Effect of ph on metal uptake by fbils

effect of pH on metal uptake by FBILS

Metal solution was contacted with 15 days of FBILS at optimal condition


Effect of temperature on metal biosorption by fbils

Effect of temperature on metal biosorption by FBILS

Metal solution was contacted with 15 days of FBILS at optimal condition


Effect of rotation rate on metal biosorption by fbils

Effect of rotation rate on metal biosorption by FBILS

Metal solution was contacted with 15 days of FBILS at optimal condition


Effect of initial metal ion concentration

Effect of initial metal ion concentration


Chemical stability of libcs

Chemical stability of LIBCS

soaking of FBILS in buffer of various pH (2.0–12.0 for 20 days)


Physical stability of fbils

physical stability of FBILS

soaking of FBILS in pH7 buffer for 2 days


Conclusions

Conclusions


4350113

Loofa sponge is an effective immobilization carrier for the entrapment of A.terreus to produce FBILS.

The biosorption capacity of FBILS for single metal decreased in the order Pb > Hg > Cd

FBILS showed an excellent potential for the removal lead(II) from aqueous solution.

FBILS showed an good physical and chemical stability.


Thanks for your attention

Thanks for your attention
