  1. DNAmethylation and epigenetics

  2. DNA methylation in Eukaryots • Non-methylated DNA: Saccharomyces cerevisiae, • Drosophila, Caenorhabditis, …. • mammals: 3-8% cytosine residues, CpG sequences • (u embryonal stem cell also non-CG, • in brain alsohydroxymethylC) • plants: 25-30% cytosine residues (~ genome size) • mainly in repetitive heterochromatinic regions • (non-methylated islands of gene-rich DNA in large genomes) • metC (CG) even in coding sequences of transcribed genes

  3. Epigenetics • Mitoticaly and/or meioticaly herritable changes in gene function, which are not based on changes in primary DNA sequence • Mechanism:DNA methylation • histon modifications (acetylation, methylation,..) • Regulation of gene expression in development, parental imprinting • Transgene and TE silencing, • Paramutations, • Conformational changes in chromatin (keeping heterochromatin structure)

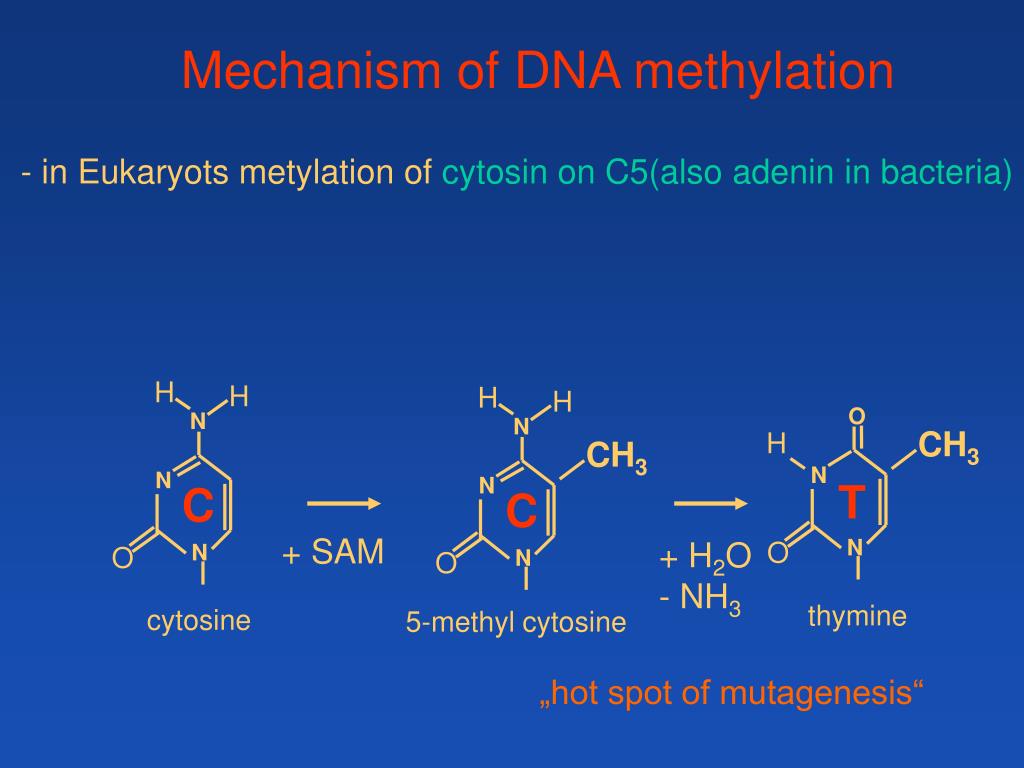

  4. CH3 CH3 Mechanism of DNA methylation • in Eukaryots metylation of cytosin on C5(also adenin in bacteria) H H H H O N N H N N N T C C + SAM N + H2O - NH3 O N O N O thymine cytosine 5-methyl cytosine „hot spot of mutagenesis“

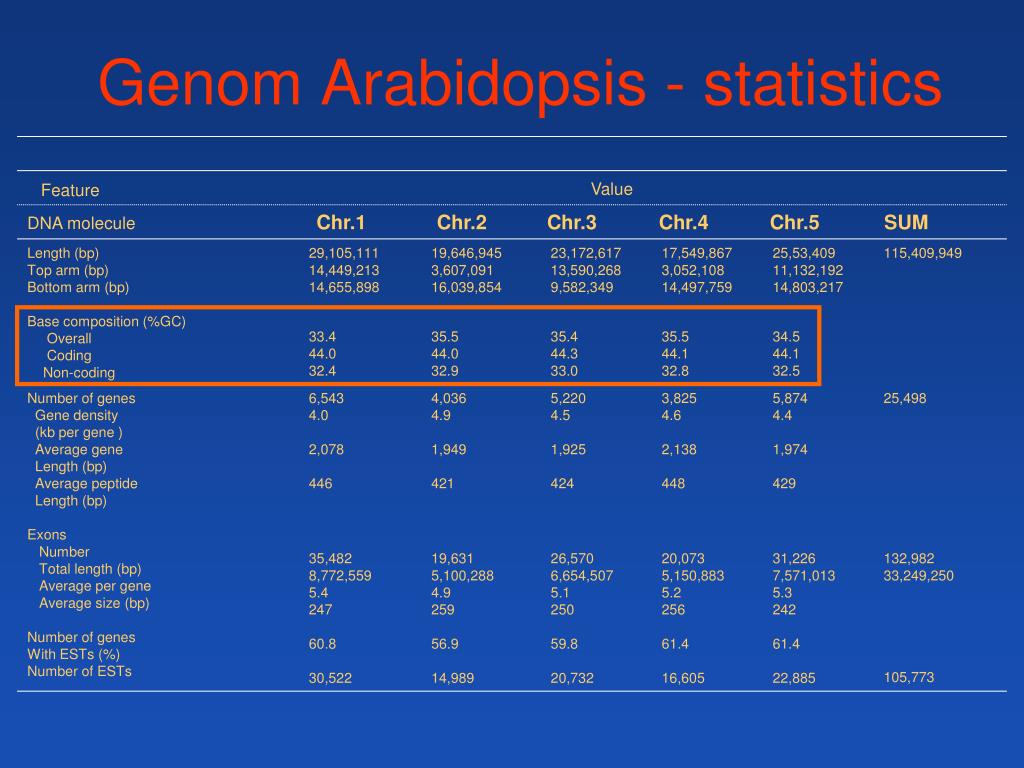

  5. Value Feature Chr.1 Chr.2 Chr.3 Chr.4 Chr.5 SUM DNA molecule Length (bp) Top arm (bp) Bottom arm (bp) Base composition (%GC) Overall Coding Non-coding Number of genes Gene density (kb per gene ) Average gene Length (bp) Average peptide Length (bp) Exons Number Total length (bp) Average per gene Average size (bp) Number of genes With ESTs (%) Number of ESTs 29,105,111 14,449,213 14,655,898 19,646,945 3,607,091 16,039,854 23,172,617 13,590,268 9,582,349 17,549,867 3,052,108 14,497,759 25,53,409 11,132,192 14,803,217 115,409,949 33.4 44.0 32.4 35.5 44.0 32.9 35.4 44.3 33.0 35.5 44.1 32.8 34.5 44.1 32.5 6,543 4.0 2,078 446 4,036 4.9 1,949 421 5,220 4.5 1,925 424 3,825 4.6 2,138 448 5,874 4.4 1,974 429 25,498 35,482 8,772,559 5.4 247 19,631 5,100,288 4.9 259 26,570 6,654,507 5.1 250 20,073 5,150,883 5.2 256 31,226 7,571,013 5.3 242 132,982 33,249,250 105,773 60.8 30,522 56.9 14,989 59.8 20,732 61.4 16,605 61.4 22,885 Genom Arabidopsis - statistics

  6. DNA methylation in plants – target sequences - both symmetric (palindromatic) sekvenceand asymmetric sequences: 5’ -------CG-------CNG----------C---C------G--C---- 3’ 3’ -------GC-------GNC----------G---G------C--G---- 5’ Symmetric – methylation pattern easily kept after replication hemimethylated state = signal for maintainance methylation -----C*G------------ C*NG-----------C*------- ---------C*G ---- -----G C-------------G NC-----------G ------- ---------G C*---- -----CG -------------CNG -----------C-------- -----GC*-------------GNC*-----------G-------- Asymmetric – after replication de novo methylation (by another signal – histon modification or presence of complementary sRNA)

  7. Methylationanalysis - hydrogensulphitesequencing(NaHSO3) 1.denaturation ---------C---------C--------CC---C------C------------C-- 2.modificationofCyt to Ura (5metC remainsunchanged) ---------C---------U--------UU---C------U------------U-- 3.shotgunsequencing, specific PCR + sequencing originalsequence ---------C---------C--------CC---C------C------------C-- ---------G---------G--------GG---G------G------------G-- modifiedsequence ---------C---------U--------UU---C------U------------U-- ---------G---------A--------AA---G------A------------A--

  8. Analysis of methylation in Arabidopsis „Chromosome epigenetic landscape“

  9. Analysis of DNA methylation in Arabidopsis Strong methylation in heterochromatin near centromeres MetC even in coding sequences of expressed genes! (more than 30 % genes, middle expression) Metylation in promotors of developmentally regulated genes (less than 5 % genes)

  10. Plant cytosine 5-methyltransferases MET1 (metyltransferase) CMT3a CMT2 (chromomethyltransferases) DRM2 (a DRM1) (domain rearranged methyltransferase)

  11. ----C*G------------- C*HG---------- C*------- ---------C*G ---- ---- G C------------ G DC-----------G ------- ---------G C*---- -----CG -------------CHG -----------C-------- -----GC*-------------GDC*-----------G-------- • MET1 (metyltransferase1) • related to mammalian Dnmt1 • maintenance methylation of symmetric CG • - asociated with replication • involvement of nucleosom remodeling complex (DDM1) • (in heterochromatin) • Signal – hemimethylated CG (CpG)

  12. ----C*G------------- C*HG---------- C*------- ---------C*G ---- ---- G C------------ G DC-----------G ------- ---------G C*---- -----CG ------------- CHG -----------C-------- -----GC*-------------GDC*-----------G-------- • CMT3 (chromomethyltransferase3) • - unique for plants and fungi • related to mammalian Dnmt1 + chromodomain (meK) • - mainly constitutive heterochromatin (repeats, retroTEs) • „maintenance“ methylation of CHG • Activity associated with methylation of histon H3K9

  13. ----C*G------------- C*HG---------- C*------- ---------C*G ---- ---- G C------------ GDC-----------G ------- ---------G C*---- -----CG ------------- CHG -----------C-------- -----GC*-------------GDC*-----------G-------- • CMT2 (chromomethyltransferase2) • - related to CMT3 (chromodomain - meK) • - mainly constitutive heterochromatin (repeats, retroTEs) • „maintenance“ methylation of CHH • Activity associated with methylation of histon H3K9

  14. ----C*G------------- C*HG---------- C*------- ---------C*G ---- ---- G C------------ G HC-----------G ------- ---------G C*---- -----CG -------------CHG -----------C-------- -----GC*-------------GHC*-----------G-------- • DRM2 a 1 (domain rearranged methyltransferase) • - related to mammalian Dnmt3, but with rearranged domains, • - de novo methylation of all sequences (CG, CNG, asymmetric) • DRM1 – early seed development, DRM3 inactive (but necessary) • maintenance methylation of asymetric and CNG • regulation of gene expression, silencing • Targed sequences determined by the presence of complementary • siRNA

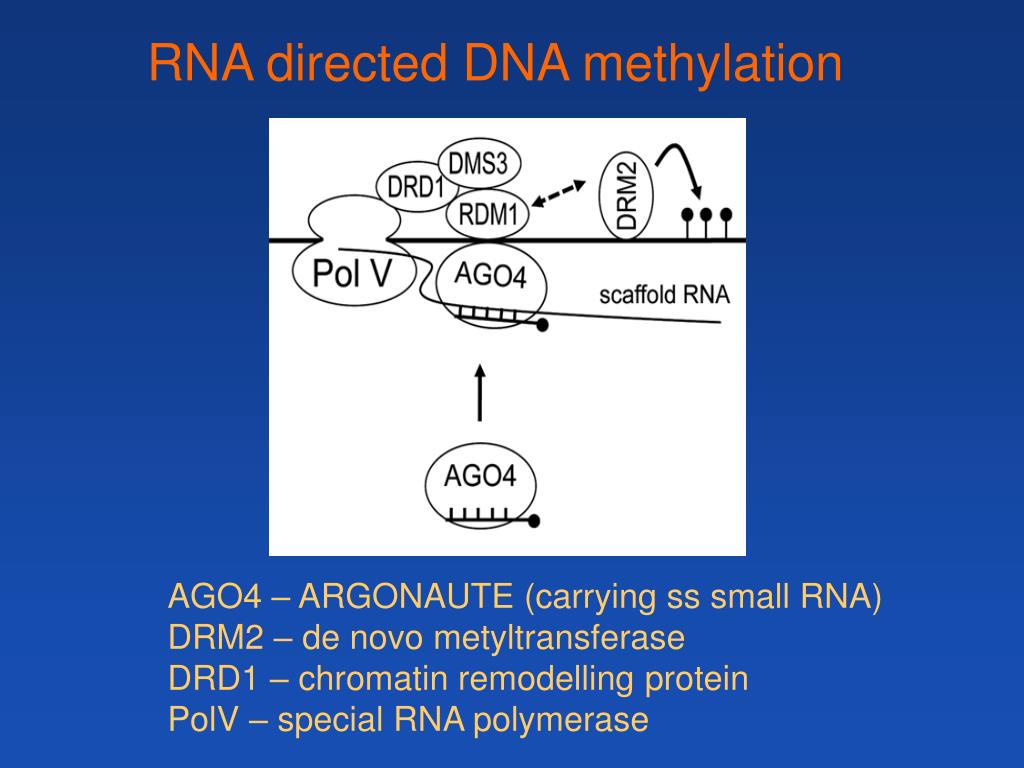

  15. RNA directed DNA methylation AGO4 – ARGONAUTE (carrying ss small RNA) DRM2 – de novo metyltransferase DRD1 – chromatin remodelling protein PolV – special RNA polymerase

  16. Maintenancemethylationof DNA Heterochromatine with histone H1 - middle part oflongerTE (coding region) - chromatine remodellingfactorDDM1required - methylationdrivenwith: H3K9me2 (CHH, CHG) – CMT2, CMT3 CG hemimethylation– MET1 Chromatine without histone H1 - TE borders, shortTE, genes - chromatine remodellingfactorDRD1required - methylationdrivenwith: siRNA(RdDM) – DRM2 (RdDM– H3K9me2, demet. H3K4, seelater) CG hemimethylation – MET1

  17. Maintenancemethylationof TE Zemach et al. 2013

  18. DNA demethylation 1) by inactivation of maintenance enzymes after replication (MET1, CMT2, CMT3, histon methylatransferases) 2) DNA glycosylases (cleavage of methylcytosine, cytosine incorporated by reparation) ROS1 (REPRESSOR OF SILENCING) – somatic cells (RNA binding ROS3 required – unknown function) DML2, DML3 (DEMETER-LIKE) – somatic cells DME1 (DEMETER) – parental imprinting (endosperm)

  19. ros1 dml2 dml3 DNA demethylation increase in methylation • ROS1, DML2, DML3) • mutation in „demethylation“ genes • → increased methylation in 3’ and 5’ UTR • protection of genes (promoters) • against methylation • (alt. modulation of transcription) • In methyltransferase mutants – demethylation inhibited (feed back regulation) methylation WT

  20. Modulation of DNA methylation • - inactivation of methyltransferase genes MET1, DDM1, CMT3 • - application of 5-azacytidine – inhibits MET1 • - dihydroxypropyladenine (DHPA) – modulates [SAM] • Fenotypic changes connected with demethylation: • - variable: from negligible to strong (caused by activated TE) • sex reversion reversion, • cycloidea phenotype • (hypermethylation)

  21. Reactivation of silenced (trans)genes by 5-azacytidine hemiMet? deMet - inhibitor of MET1 (5-azacytidine, AzaC) + AzaC + AzaC Demethylated - reactivation often only transient! Nocarová, Fischer, unpubl.

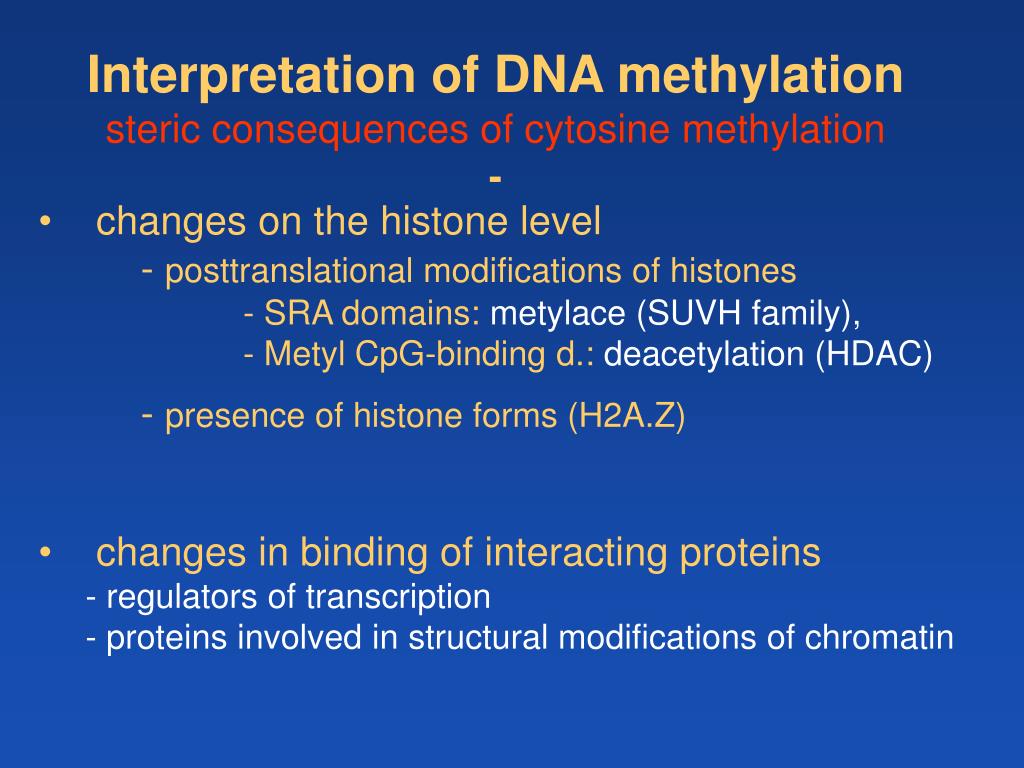

  22. Interpretationof DNA methylationstericconsequencesof cytosine methylation- • changes on the histone level • - posttranslational modifications of histones • - SRA domains: metylace (SUVH family), • - Metyl CpG-binding d.: deacetylation (HDAC) • - presence of histone forms (H2A.Z) • changes in binding of interacting proteins • - regulators of transcription • - proteins involved in structural modifications of chromatin

  23. example:MBD proteins (metyl-CpG-binding domain) - plant MBD proteins lack TRD (transcription repression domain) - specificity of binding affected with other interacting proteins - AtMBD5 interacts also with C*HH - MBD probably interact with histone modifying proteins (HDAC = histon deacethylases → inactivation) Model of chromatin compression by dimerazing AtMBD7 protein

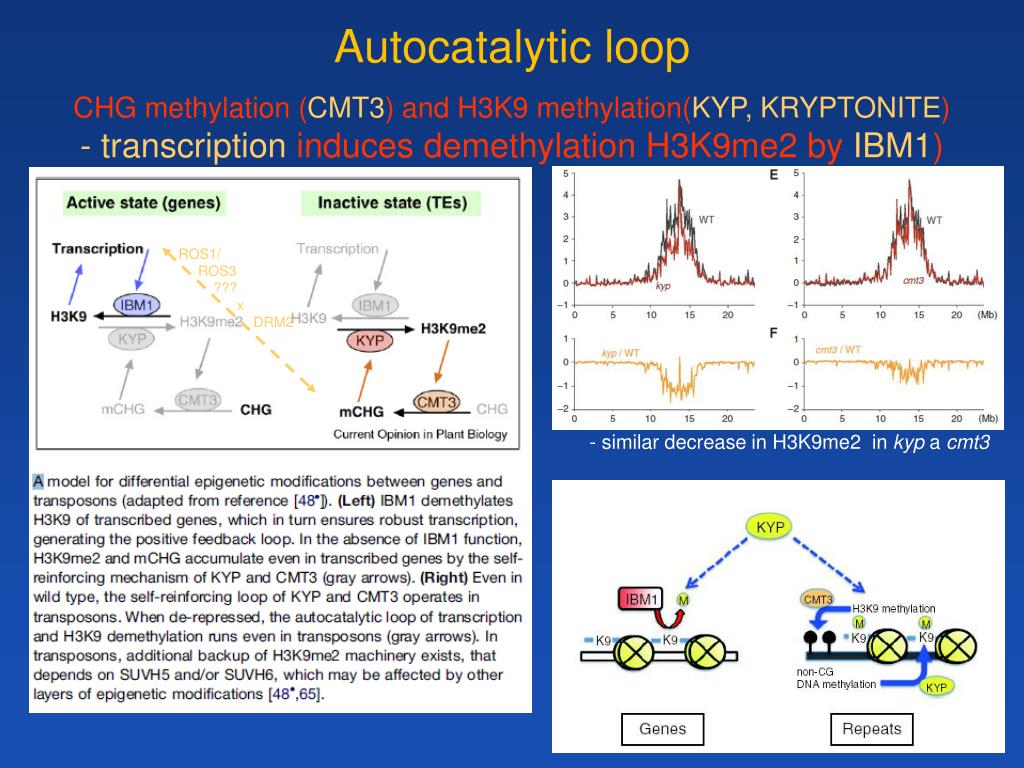

  24. Autocatalytic loop CHG methylation (CMT3) and H3K9 methylation(KYP, KRYPTONITE) - transcription induces demethylation H3K9me2 by IBM1) ROS1/ ROS3 ??? x DRM2 - similar decrease in H3K9me2 in kyp a cmt3

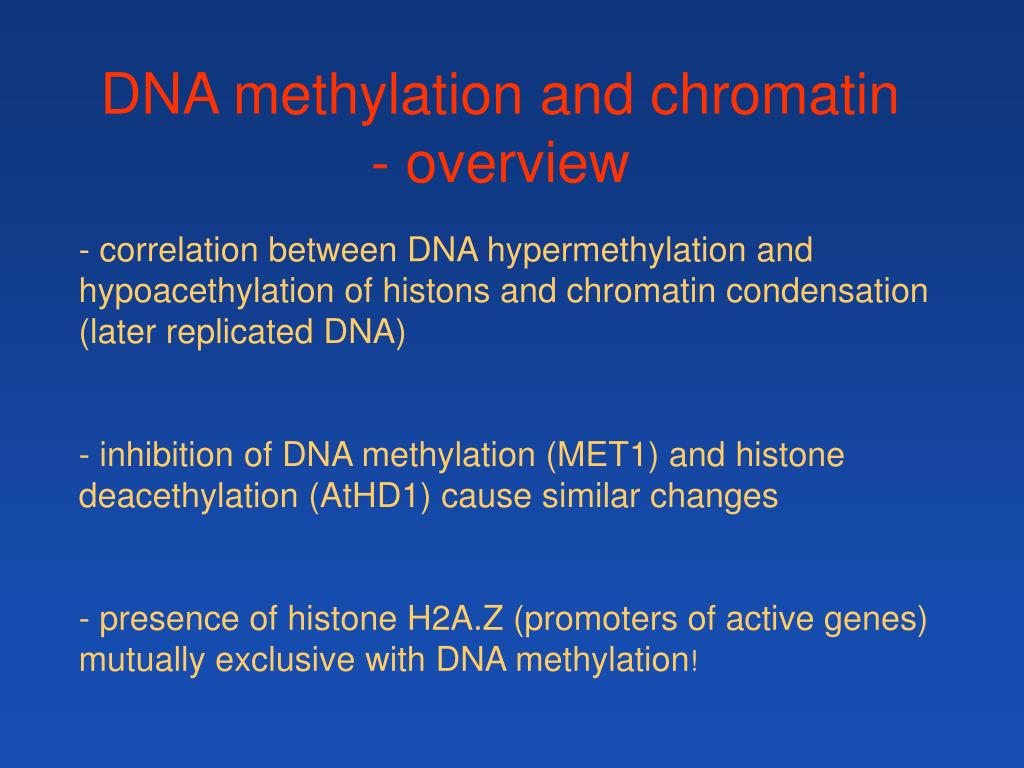

  25. DNA methylation and chromatin - overview • correlation between DNA hypermethylation and hypoacethylation of histons and chromatin condensation (later replicated DNA) • inhibition of DNA methylation (MET1) and histone deacethylation (AtHD1) cause similar changes • presence of histone H2A.Z (promoters of active genes) mutually exclusive with DNA methylation!

  26. DNA methylation and chromatin - overview • - H3K9 di(tri-)methylation (KYP) signal for CHG methylation • - CHG methylation signal for H3K9 methylation • H3K9 demethylation (IBM1) likely induced by transcription • H3K4 trimethylation typical for euchromatin, induced by transcription

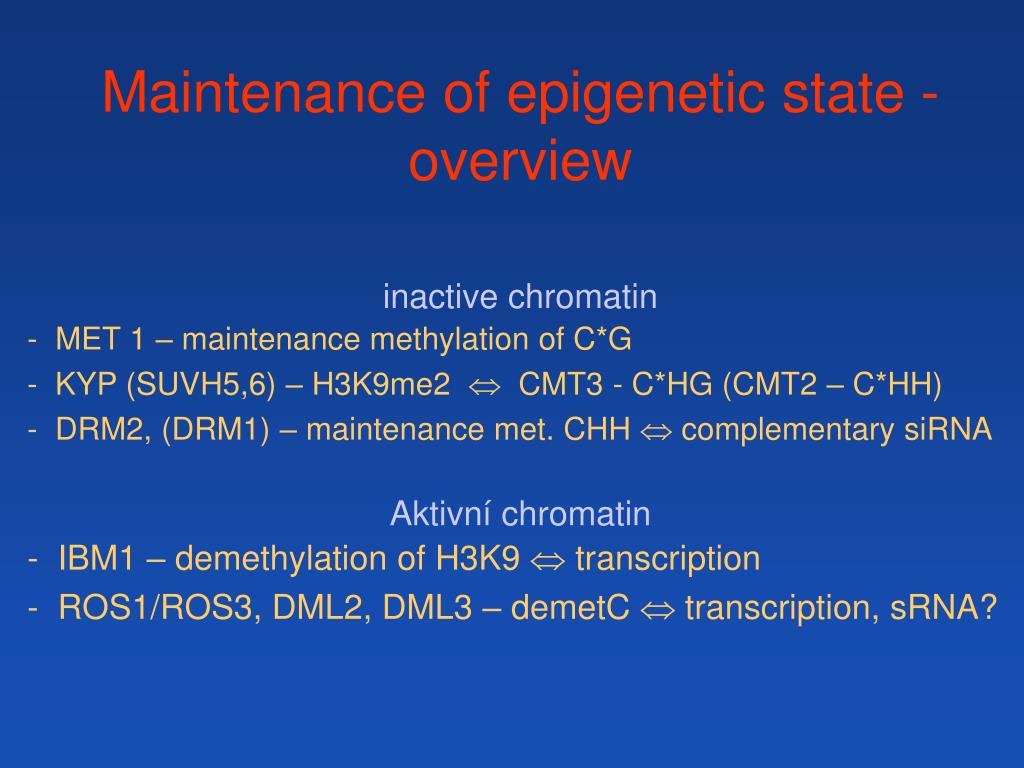

  27. Maintenance of epigenetic state - overview • inactive chromatin • - MET 1 – maintenance methylation of C*G • KYP (SUVH5,6) – H3K9me2  CMT3 - C*HG (CMT2 – C*HH) • DRM2, (DRM1) – maintenance met. CHH  complementary siRNA • Aktivní chromatin • IBM1 – demethylation of H3K9  transcription • ROS1/ROS3, DML2, DML3 – demetC  transcription, sRNA?

  28. Interconnections among DNA methylation and chromatin structure metC = dsDNA modification histone post- translational modifications and forms binding of interacting proteins TF, RNA pol., MBD, …

  29. Roles of DNA methylation • herritable (mitotic and partially even meiotic modulation of transcription– gene expression • - defence against invazive DNA (TE) • - regulation of gene expression (ontogenesis, differenciation, cell memmory, stress reaction) • - parental imprinting • modulation of chromatin structure (both - cause and result) • - timing of DNA replication • - regulation of homologous recombination (meiosis) • tool of evolution • - genomes of polyploids (methylation changes) • - new genes (mutagenesis of pseudogenes)
