Electrical Potential

Electrical Potential. Electrical Potential. The measure of the cell’s ability to produce an electric current Measured in volts Can’t measure an individual half-cell When half-cells are connected, the difference between two cells can be measured

maj
Download Presentation

Electrical Potential

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Electrical Potential

  2. Electrical Potential • The measure of the cell’s ability to produce an electric current • Measured in volts • Can’t measure an individual half-cell • When half-cells are connected, the difference between two cells can be measured • Reduction potential: the tendency of a half-reaction to occur as a reduction • Difference between reduction potentials is called the cell potential

  3. Standard Cell Potential • Standard cell potential (E0cell) is measured when the ionconcentrations are 1M • We assign an arbitrary value of zero to the hydrogen half cell under std. conditions. 2H+(aq) + 2e- H2(g) E0red = 0.00 volts • 1 M H+ solution, H2(g) bubbled in around a Pt electrode at std. P and 25oC. • Can use to measure E0red for other half-cells

  4. F2(g) + 2e- 2F-(aq) Cl2(g) + 2e- 2Cl-(aq) MnO2(g) + 4H+(aq) + 2e- Mn2+(aq) + 2H2O(l) NO3-(aq) + 4H+(aq) + 3e- NO(g) + 2H2O(l) Ag+(aq) + e- Ag(s) Fe3+(g) + e- Fe2+(aq) O2(g) + 2H2O(l) + 4e- 4OH-(aq) strength of reducing agent Cu2+(aq) + 2e- Cu(s) strength of oxidizing agent N2(g) + 5H+(aq) + 4e- N2H5+(aq) Fe2+(aq) + 2e- Fe(s) 2H2O(l) + 2e- H2(g) + 2OH-(aq) Na+(aq) + e- Na(s) Li+(aq) + e- Li(s) Selected Standard Electrode Potentials (298K) Half-Reaction E0(V) +2.87 +1.36 +1.23 +0.96 +0.80 +0.77 +0.40 +0.34 0.00 2H+(aq) + 2e- H2(g) -0.23 -0.44 -0.83 -2.71 -3.05 • Part of Table 20.1 on pg 712 in your text

  5. Standard Reduction Potentials • Remember  E0H+ is ALWAYS 0.00V • If we look at the voltaic cell between H and Zn: • First determine what is oxidized and what is reduced: • Zn (oxidized), H (reduced) • Write ½ reactions: • Zn (s) Zn2+ (aq) + 2e- • 2H+ (aq) + 2e-  H2(g) • Combine: Zn + 2H+ Zn2+ + H2 • The cell potential was measured at +0.76 V • Plug into E0cell = E0red – E0oxid 0.76 V = 0.00V – E0Zn2+ E0Zn2+ = -0.76V

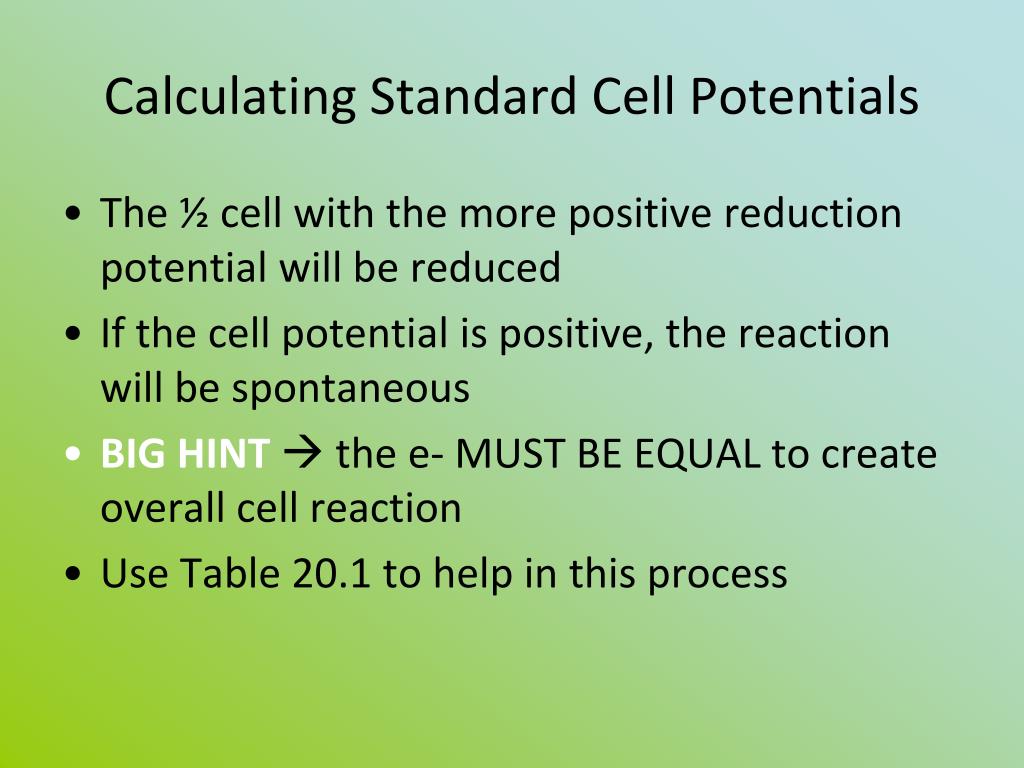

  6. Calculating Standard Cell Potentials • The ½ cell with the more positive reduction potential will be reduced • If the cell potential is positive, the reaction will be spontaneous • BIG HINT the e- MUST BE EQUAL to create overall cell reaction • Use Table 20.1 to help in this process

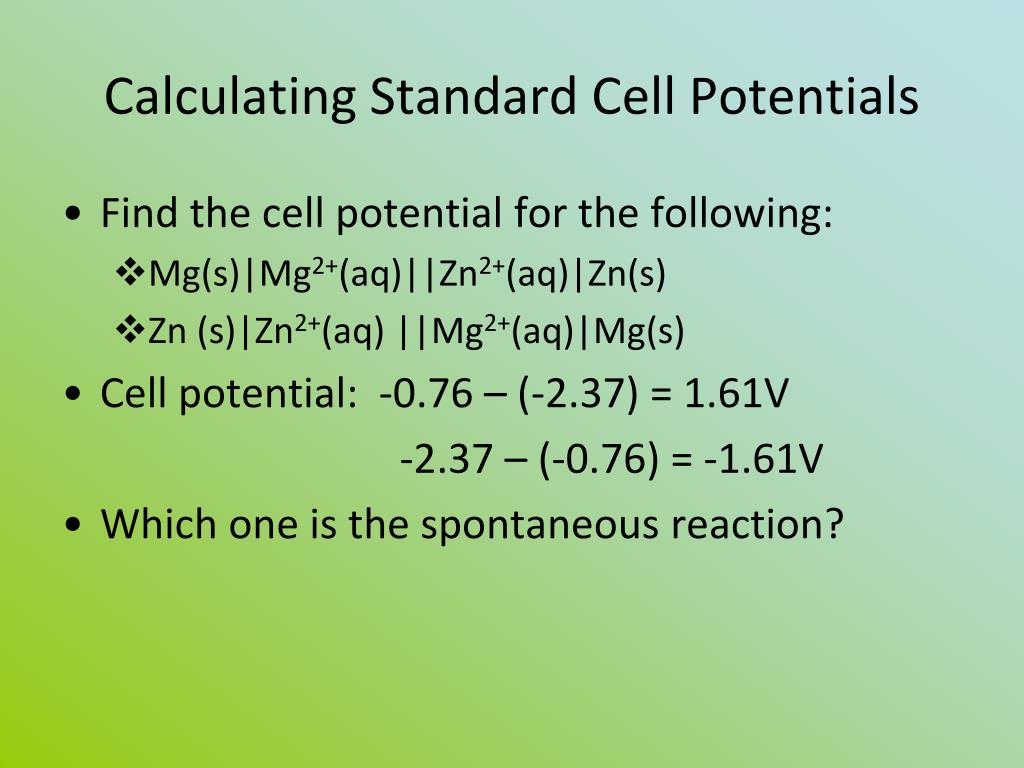

  7. Calculating Standard Cell Potentials • Find the cell potential for the following: • Mg(s)|Mg2+(aq)||Zn2+(aq)|Zn(s) • Zn (s)|Zn2+(aq) ||Mg2+(aq)|Mg(s) • Cell potential: -0.76 – (-2.37) = 1.61V -2.37 – (-0.76) = -1.61V • Which one is the spontaneous reaction?

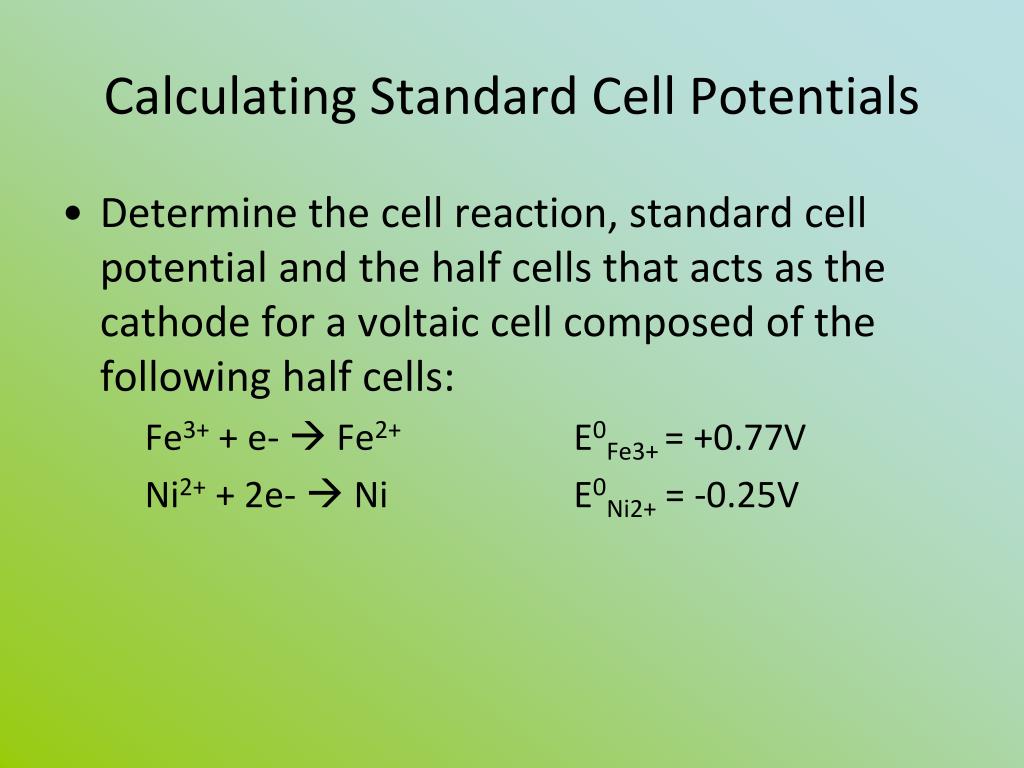

  8. Calculating Standard Cell Potentials • Determine the cell reaction, standard cell potential and the half cells that acts as the cathode for a voltaic cell composed of the following half cells: Fe3+ + e-  Fe2+ E0Fe3+ = +0.77V Ni2+ + 2e-  Ni E0Ni2+ = -0.25V

  9. Now you try some! • A voltaic cell is constructed using the following half-reaction: Ag+ + e-  Ag E0 = +0.80 V Cu2+ + 2e-  Cu E0 = +0.34 V • Determine the cell reaction and the standard cell potential • Calculate the standard cell potential to determine whether this redox reaction will occur spontaneously: 3Zn+ + 2Cr  3Zn + 2Cr3+

  10. Now what?? • Work on the half-sheet with a partner. When completed, check your work with Mrs. Etnyre. • When you get the answers correct, you may work on homework for the rest of the hour.
