  1. Sundance PXIe Solution Offering the freedom to design solutions

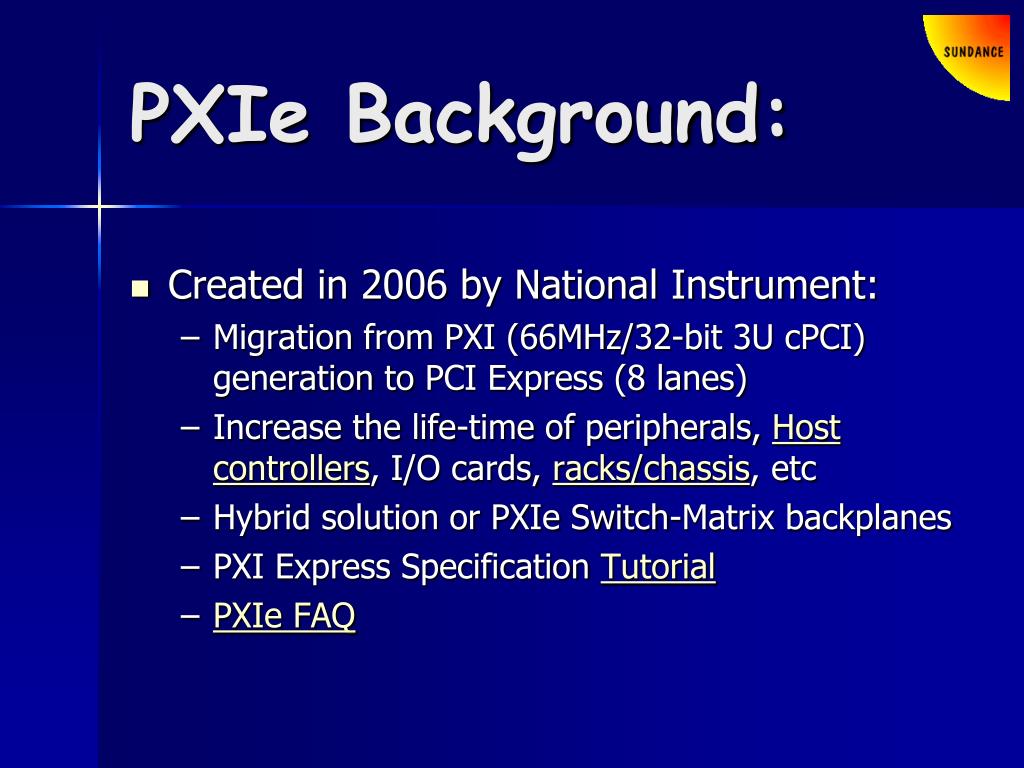

  2. PXIe Background: • Created in 2006 by National Instrument: • Migration from PXI (66MHz/32-bit 3U cPCI) generation to PCI Express (8 lanes) • Increase the life-time of peripherals, Host controllers, I/O cards, racks/chassis, etc • Hybrid solution or PXIe Switch-Matrix backplanes • PXI Express Specification Tutorial • PXIe FAQ

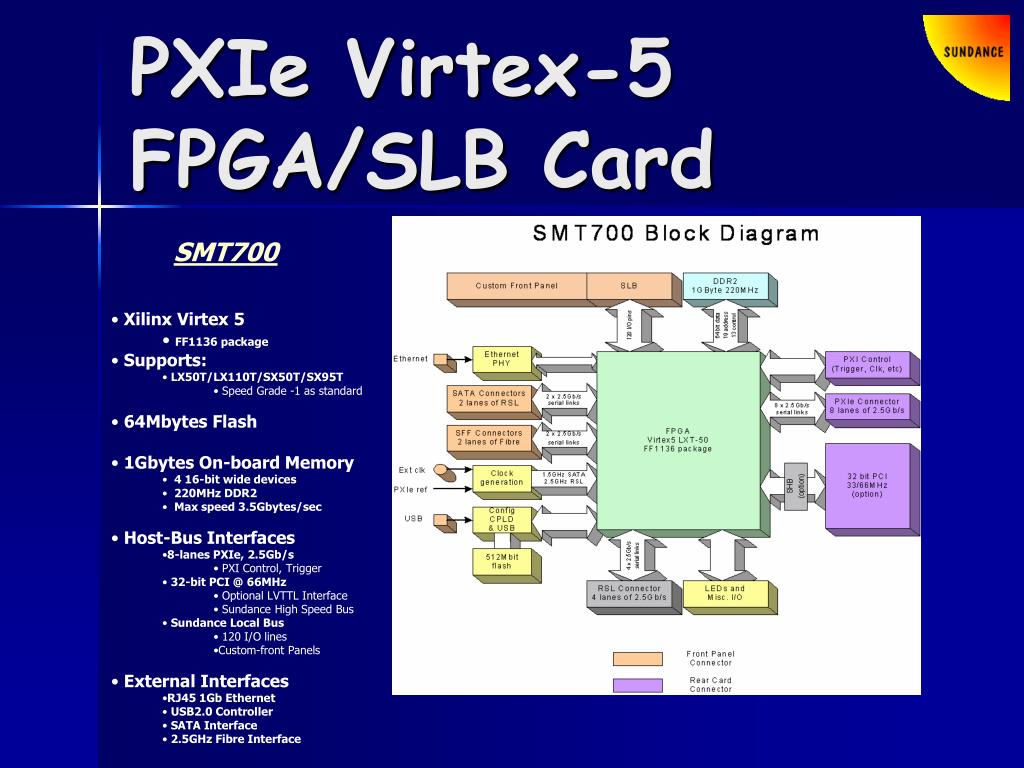

  3. PXIe Virtex-5 FPGA/SLB Card SMT700 • Xilinx Virtex 5 • FF1136 package • Supports: • LX50T/LX110T/SX50T/SX95T • Speed Grade -1 as standard • 64Mbytes Flash • 1Gbytes On-board Memory • 4 16-bit wide devices • 220MHz DDR2 • Max speed 3.5Gbytes/sec • Host-Bus Interfaces • 8-lanes PXIe, 2.5Gb/s • PXI Control, Trigger • 32-bit PCI @ 66MHz • Optional LVTTL Interface • Sundance High Speed Bus • Sundance Local Bus • 120 I/O lines • Custom-front Panels • External Interfaces • RJ45 1Gb Ethernet • USB2.0 Controller • SATA Interface • 2.5GHz Fibre Interface

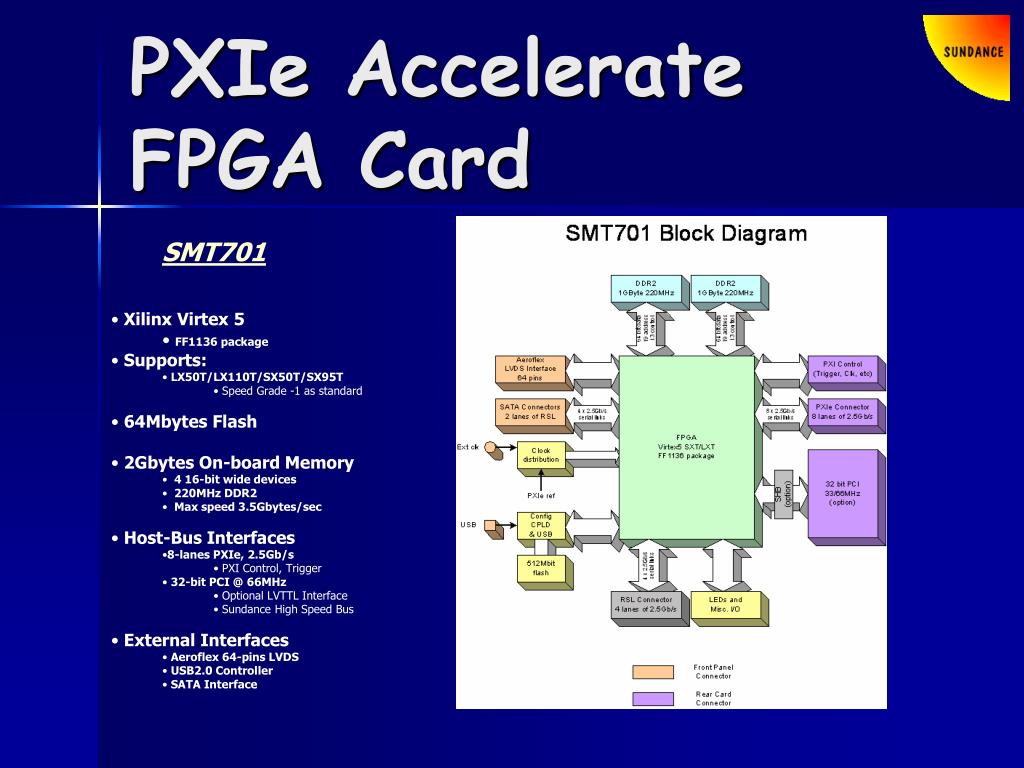

  4. PXIe Accelerate FPGA Card SMT701 • Xilinx Virtex 5 • FF1136 package • Supports: • LX50T/LX110T/SX50T/SX95T • Speed Grade -1 as standard • 64Mbytes Flash • 2Gbytes On-board Memory • 4 16-bit wide devices • 220MHz DDR2 • Max speed 3.5Gbytes/sec • Host-Bus Interfaces • 8-lanes PXIe, 2.5Gb/s • PXI Control, Trigger • 32-bit PCI @ 66MHz • Optional LVTTL Interface • Sundance High Speed Bus • External Interfaces • Aeroflex 64-pins LVDS • USB2.0 Controller • SATA Interface

  5. PXIe TIM Carrier Card SMT710 • Xilinx Virtex 5 • FF1136 package • Supports: • LX50T/LX110T/SX50T/SX95T • Speed Grade -1 as standard • 64Mbytes Flash • 1Gbytes On-board Memory • 4 16-bit wide devices • 220MHz DDR2 • Max speed 3.5Gbytes/sec • Host-Bus Interfaces • 8-lanes PXIe, 2.5Gb/s • PXI Control, Trigger • 32-bit PCI @ 66MHz • Optional LVTTL Interface • Sundance High Speed Bus • Sundance TIM Module slot • 120 I/O lines • Custom-front Panels • External Interfaces • RJ45 1Gb Ethernet • USB2.0 Controller • SATA Interface • 2.5GHz Fibre Interface

  6. PXIe Dual 3GHz ADC Card SMT702 • Xilinx Virtex 5 • FF1136 package • Supports: • LX110T-3 • Optional, SX95-2 • 64Mbytes Flash • 1Gbytes On-board Memory • 4 16-bit wide devices • 2 Banks of ADC Storage • 250MHz DDR2 • Max speed 3.5Gbytes/sec • Host-Bus Interfaces • 8-lanes PXIe, 2.5Gb/s • PXI Control, Trigger • 32-bit PCI @ 66MHz • Optional LVTTL Interface • Sundance High Speed Bus • Sundance High-Speed Bus • 60 I/O lines • Custom-front Panels • External Interfaces • Dual ADC, 3 GHz, 8-bit • Clock Distribution • SATA Interfaces

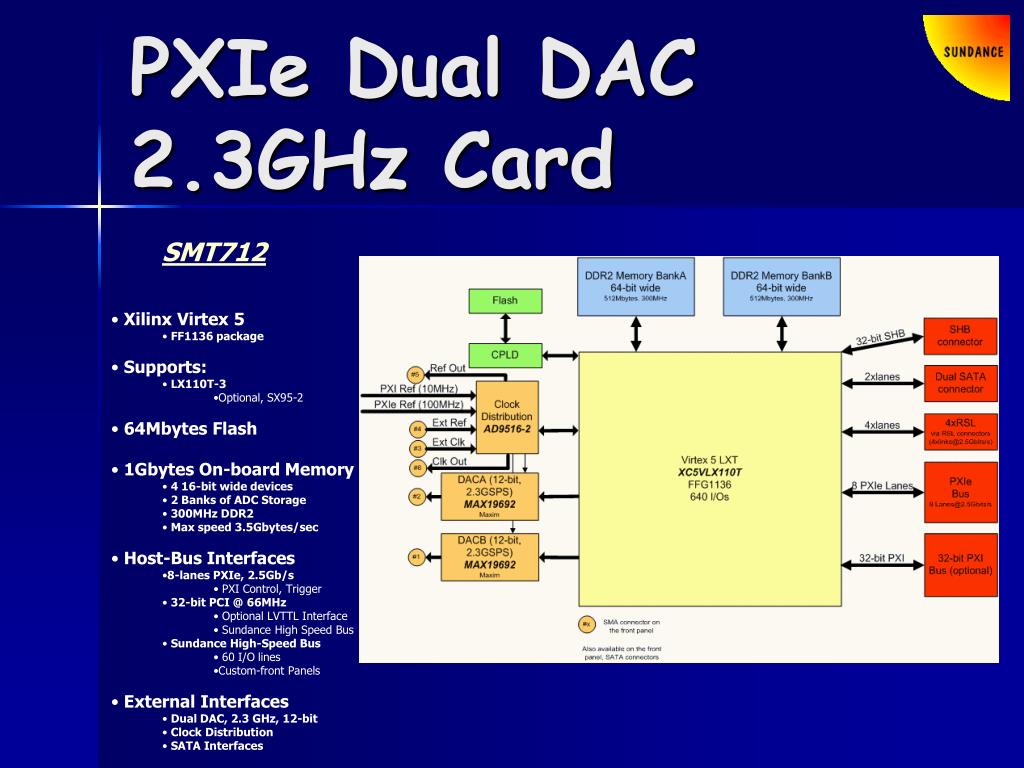

  7. PXIe Dual DAC 2.3GHz Card SMT712 • Xilinx Virtex 5 • FF1136 package • Supports: • LX110T-3 • Optional, SX95-2 • 64Mbytes Flash • 1Gbytes On-board Memory • 4 16-bit wide devices • 2 Banks of ADC Storage • 300MHz DDR2 • Max speed 3.5Gbytes/sec • Host-Bus Interfaces • 8-lanes PXIe, 2.5Gb/s • PXI Control, Trigger • 32-bit PCI @ 66MHz • Optional LVTTL Interface • Sundance High Speed Bus • Sundance High-Speed Bus • 60 I/O lines • Custom-front Panels • External Interfaces • Dual DAC, 2.3 GHz, 12-bit • Clock Distribution • SATA Interfaces

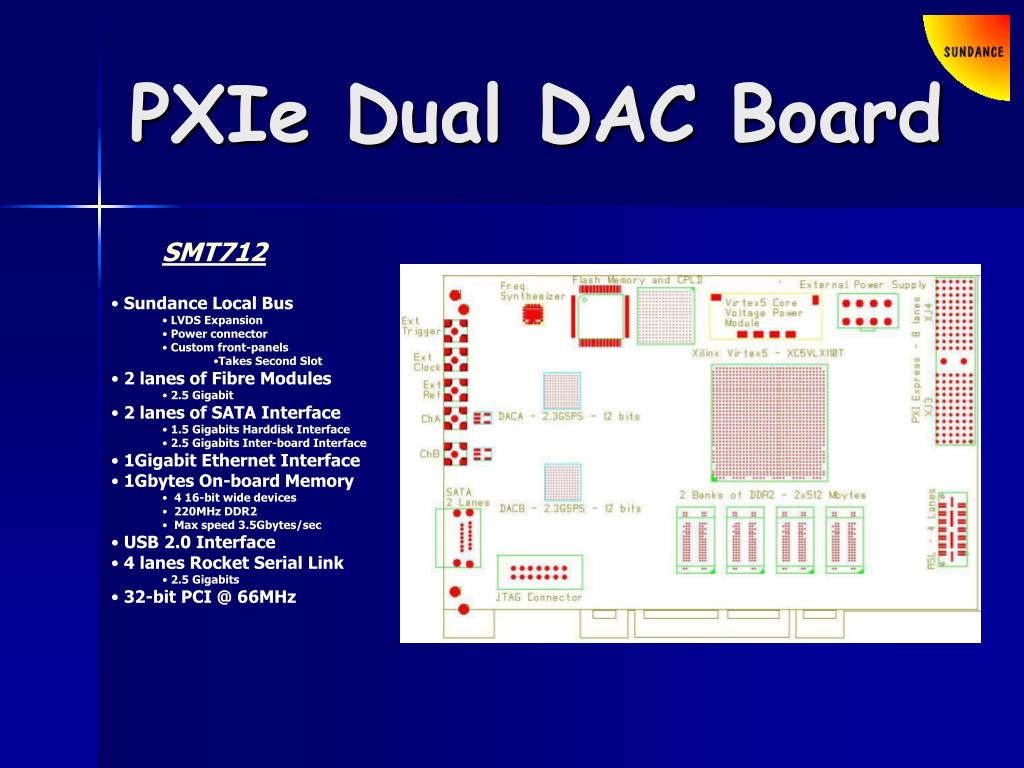

  8. PXIe Dual DAC Board SMT712 • Sundance Local Bus • LVDS Expansion • Power connector • Custom front-panels • Takes Second Slot • 2 lanes of Fibre Modules • 2.5 Gigabit • 2 lanes of SATA Interface • 1.5 Gigabits Harddisk Interface • 2.5 Gigabits Inter-board Interface • 1Gigabit Ethernet Interface • 1Gbytes On-board Memory • 4 16-bit wide devices • 220MHz DDR2 • Max speed 3.5Gbytes/sec • USB 2.0 Interface • 4 lanes Rocket Serial Link • 2.5 Gigabits • 32-bit PCI @ 66MHz
