Subject relationships in frbr oo and their implication on cidoc crm

Subject relationships in FRBROOand their implication on CIDOC CRM

CIDOC CRM SIG Meeting

Edinburgh, 9-12 July 2007


1 subject relationships in cidoc crm

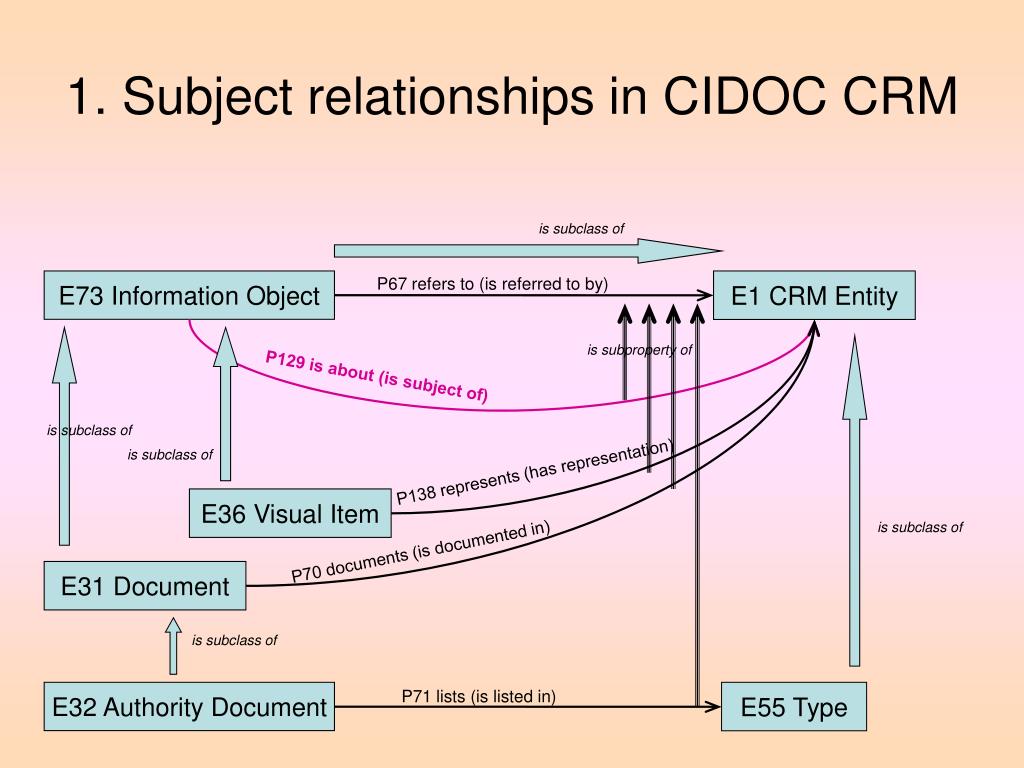

1. Subject relationships in CIDOC CRM

is subclass of

P67 refers to (is referred to by)

E73 Information Object

E1 CRM Entity

is subproperty of

P129 is about (is subject of)

is subclass of

is subclass of

P138 represents (has representation)

E36 Visual Item

is subclass of

P70 documents (is documented in)

E31 Document

is subclass of

P71 lists (is listed in)

E32 Authority Document

E55 Type

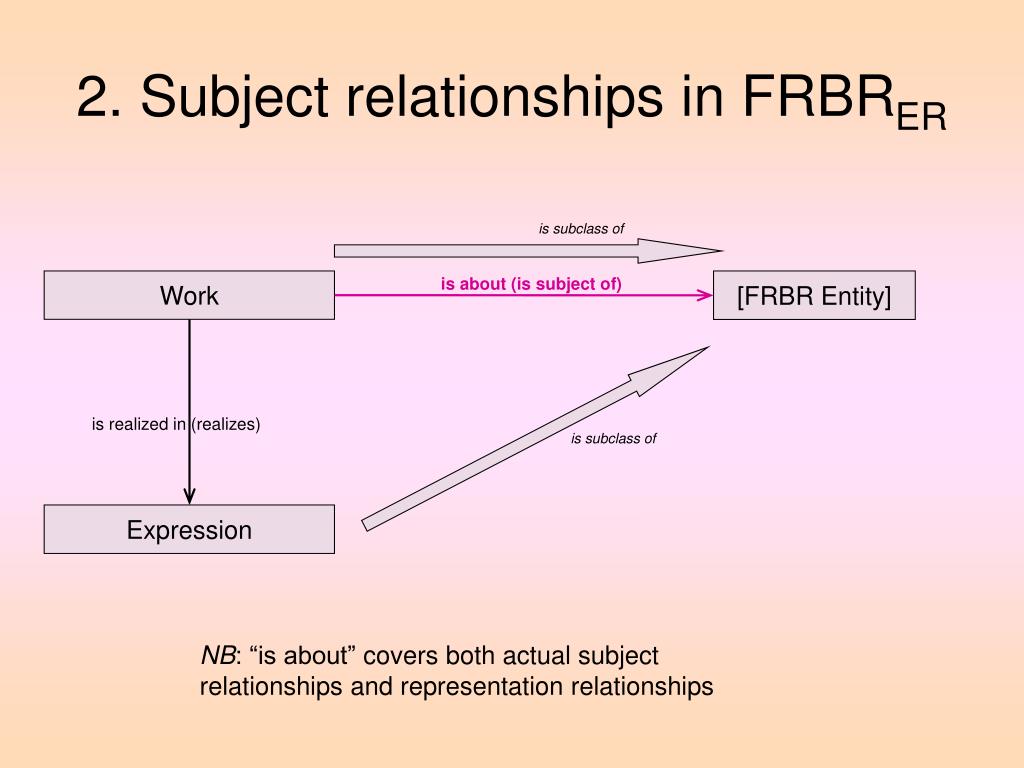

2 subject relationships in frbr er

2. Subject relationships in FRBRER

is subclass of

is about (is subject of)

Work

[FRBR Entity]

is realized in (realizes)

is subclass of

Expression

NB: “is about” covers both actual subject relationships and representation relationships


3 products of the mind in cidoc crm and frbr er

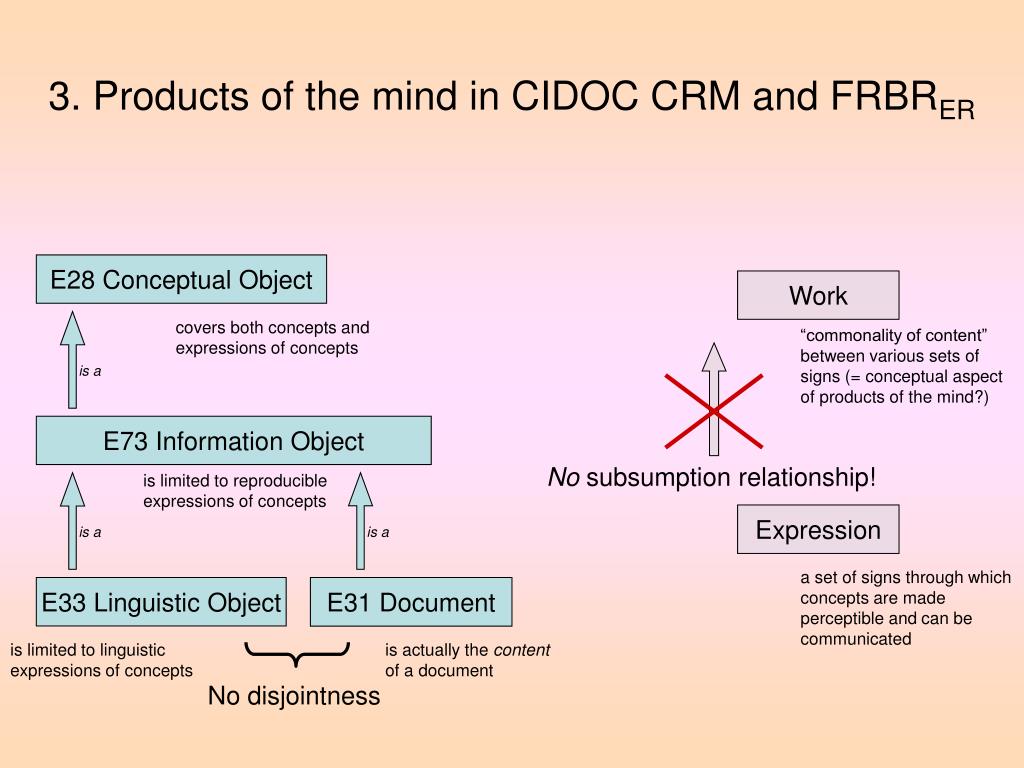

3. Products of the mind in CIDOC CRM and FRBRER

E28 Conceptual Object

Work

covers both concepts and expressions of concepts

“commonality of content” between various sets of signs (= conceptual aspect of products of the mind?)

is a

E73 Information Object

No subsumption relationship!

is limited to reproducible expressions of concepts

Expression

is a

is a

a set of signs through which concepts are made perceptible and can be communicated

E33 Linguistic Object

E31 Document

is limited to linguistic expressions of concepts

is actually the content of a document

No disjointness


4 products of the mind in frbr oo

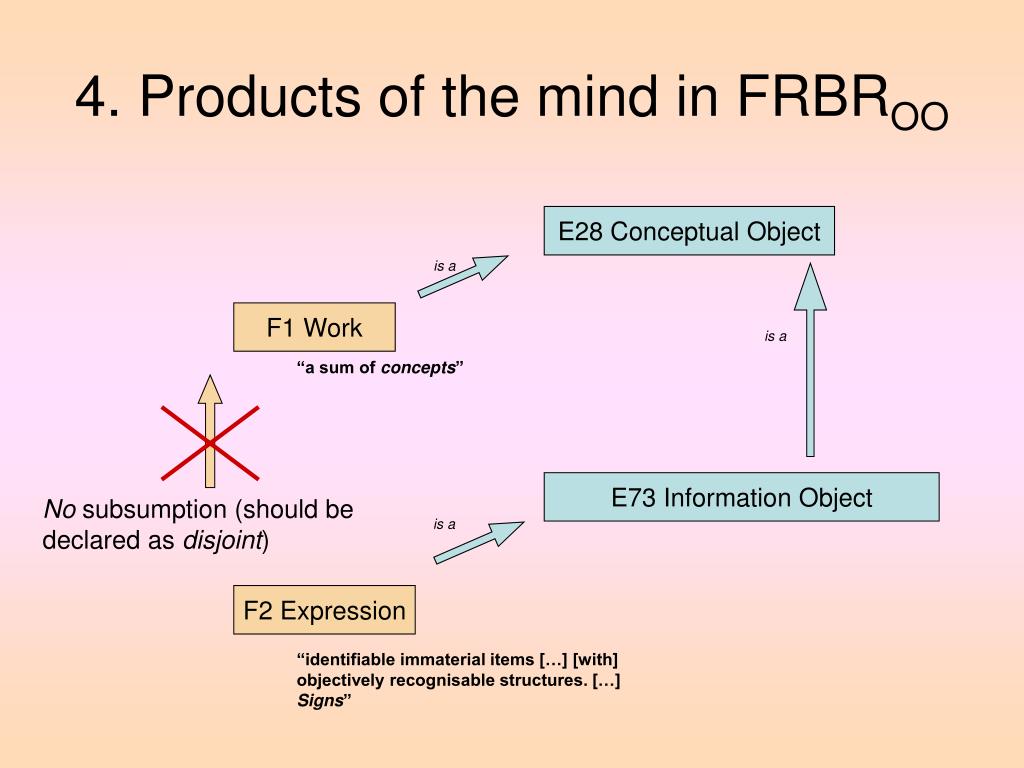

4. Products of the mind in FRBROO

E28 Conceptual Object

is a

F1 Work

is a

“a sum of concepts”

E73 Information Object

No subsumption (should be declared as disjoint)

is a

F2 Expression

“identifiable immaterial items […] [with] objectively recognisable structures. […] Signs”


5 and now the trouble

E28 Conceptual Object

is a

Work

[FRBR Entity]

=

is about

P129 is about

E73 Information Object

E1 CRM Entity

is a

NO HARMONIZATION IS POSSIBLE!!!

Expression

=

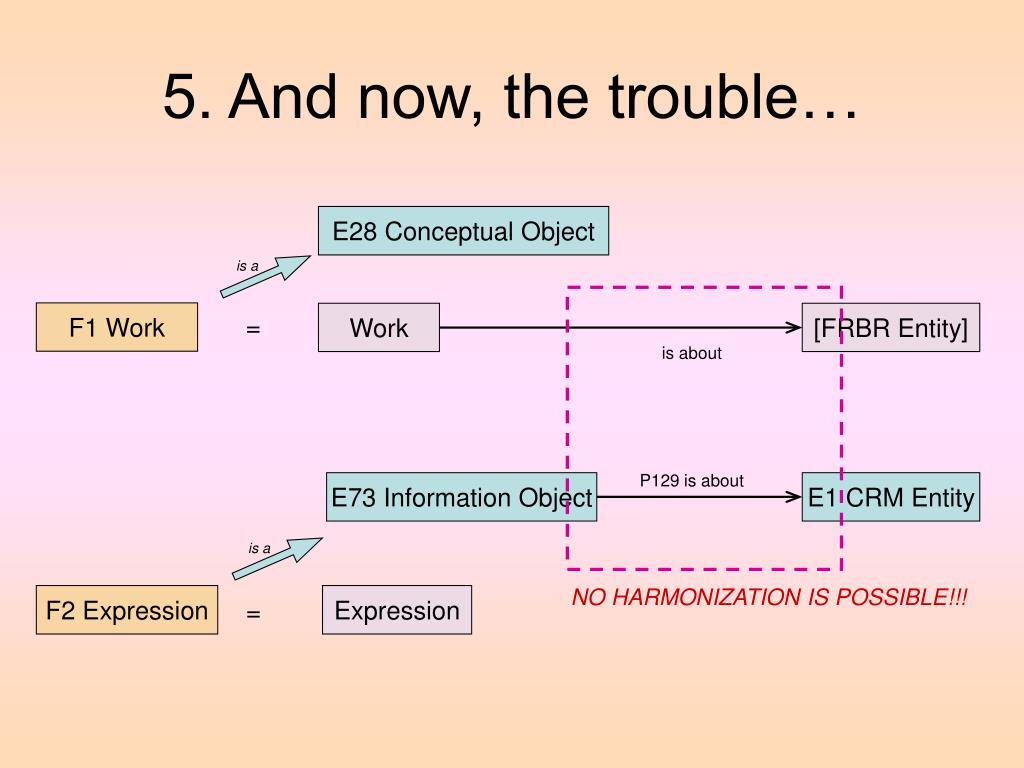

5. And now, the trouble…

F1 Work

F2 Expression

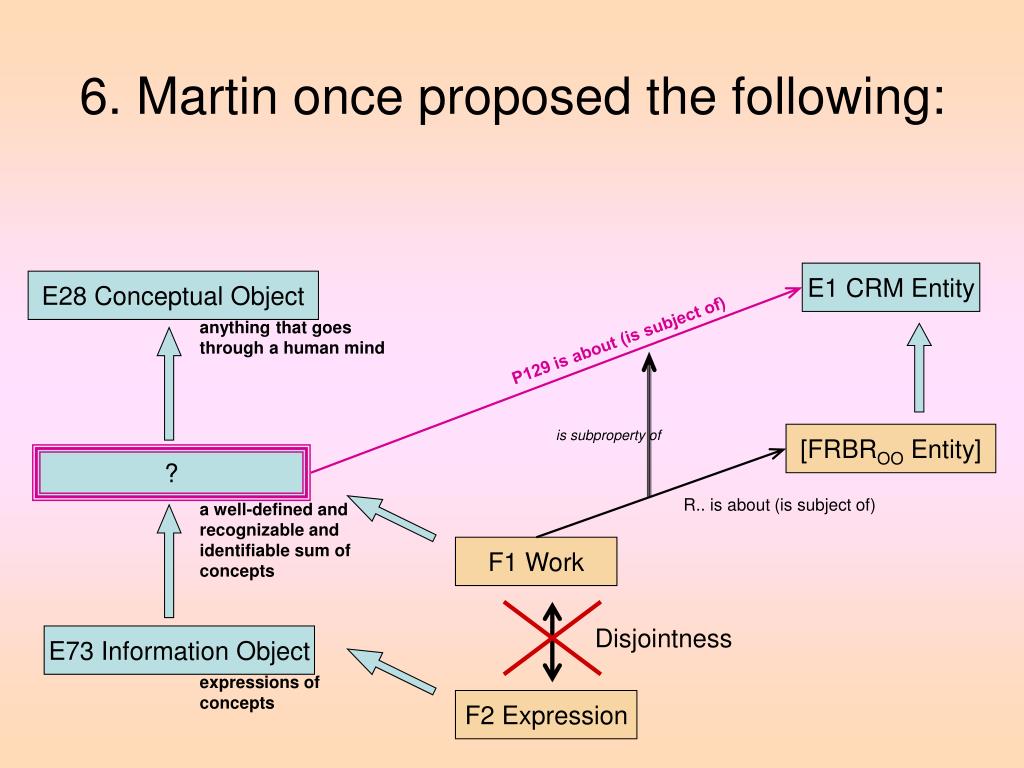

6 martin once proposed the following

P129 is about (is subject of)

is subproperty of

[FRBROO Entity]

R.. is about (is subject of)

F1 Work

Disjointness

F2 Expression

6. Martin once proposed the following:

E1 CRM Entity

E28 Conceptual Object

anything that goes through a human mind

?

a well-defined and recognizable and identifiable sum of concepts

E73 Information Object

expressions of concepts


E62 string e73 information object e41 appellation

E62 String, E73 Information Object, E41 Appellation

CIDOC CRM SIG Meeting

Edinburgh, 9-12 July 2007

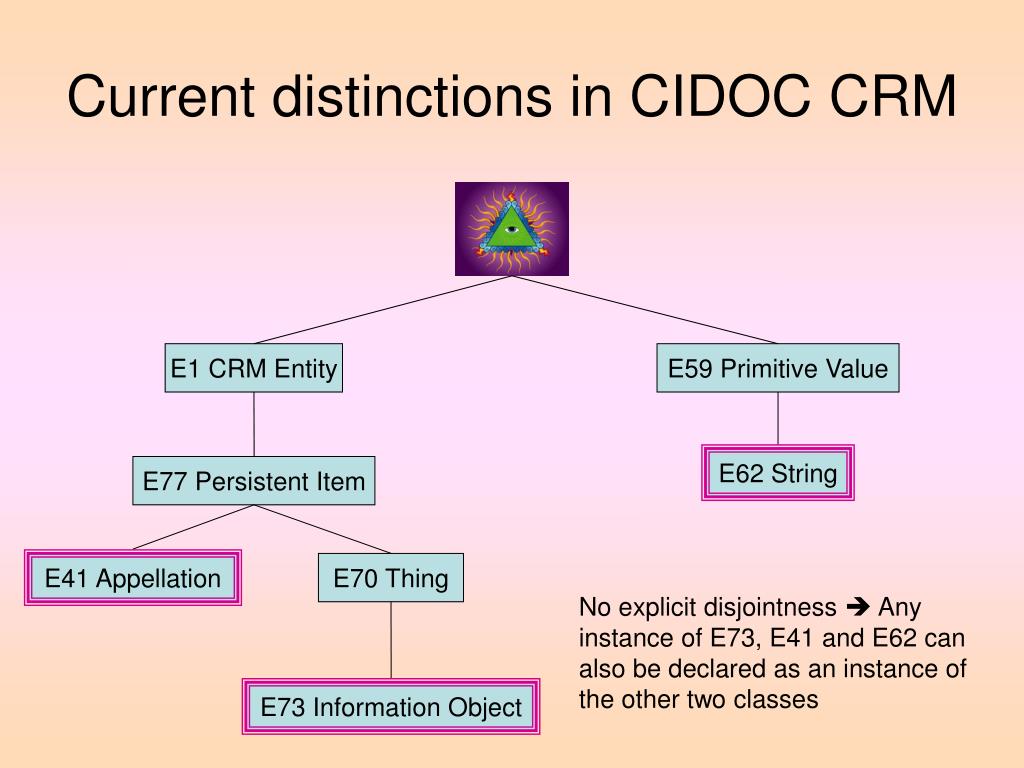

Current distinctions in cidoc crm

Current distinctions in CIDOC CRM

E1 CRM Entity

E59 Primitive Value

E62 String

E77 Persistent Item

E41 Appellation

E70 Thing

No explicit disjointness  Any instance of E73, E41 and E62 can also be declared as an instance of the other two classes

E73 Information Object

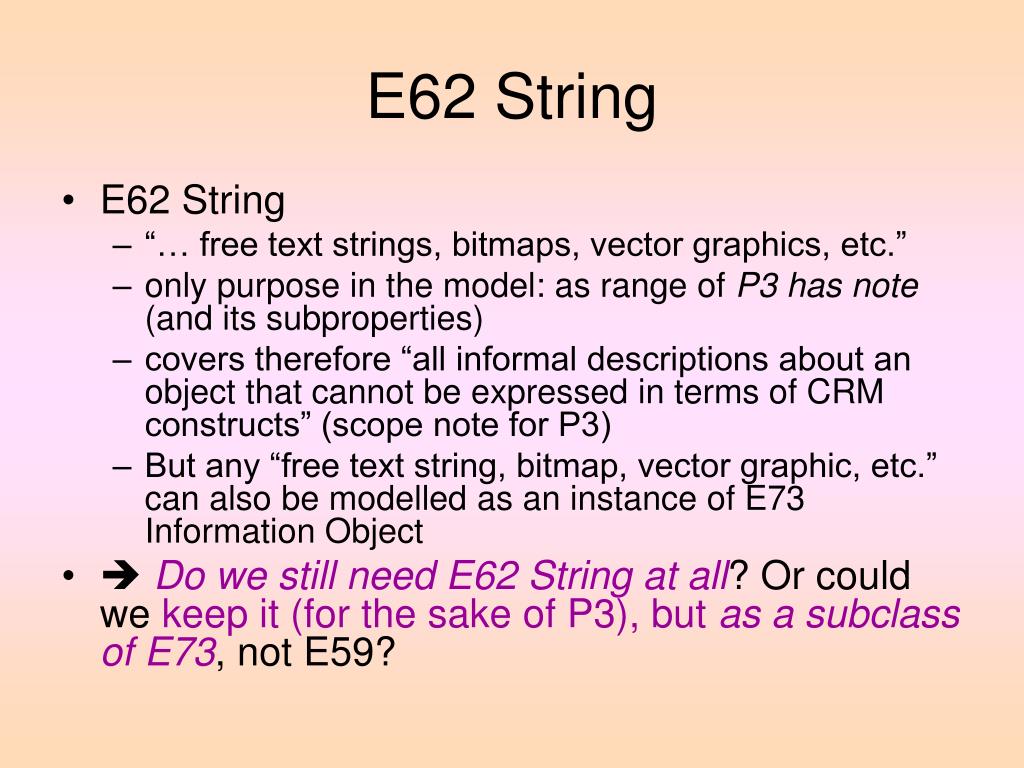

E62 string

E62 String

  • E62 String

    • “… free text strings, bitmaps, vector graphics, etc.”

    • only purpose in the model: as range of P3 has note (and its subproperties)

    • covers therefore “all informal descriptions about an object that cannot be expressed in terms of CRM constructs” (scope note for P3)

    • But any “free text string, bitmap, vector graphic, etc.” can also be modelled as an instance of E73 Information Object

  •  Do we still need E62 String at all? Or could we keep it (for the sake of P3), but as a subclass of E73, not E59?


E62 string as a subclass of e73 information object

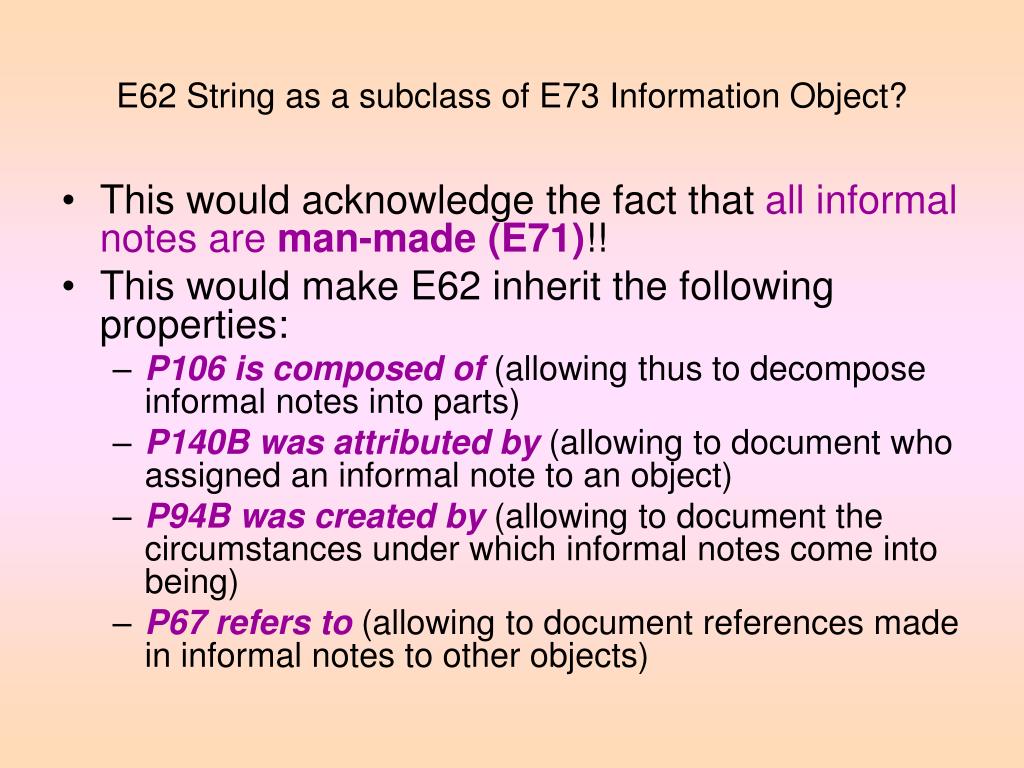

E62 String as a subclass of E73 Information Object?

  • This would acknowledge the fact that all informal notes are man-made (E71)!!

  • This would make E62 inherit the following properties:

    • P106 is composed of (allowing thus to decompose informal notes into parts)

    • P140B was attributed by (allowing to document who assigned an informal note to an object)

    • P94B was created by (allowing to document the circumstances under which informal notes come into being)

    • P67 refers to (allowing to document references made in informal notes to other objects)


E41 appellation

E41 Appellation

  • E41 Appellation

    • its instances can most often also be instances of E33 Linguistic Object

      • its subclass E35 Title is the only one that is also declared as a subclass of E33 Linguistic Object, although not all titles are linguistic (e.g. Anthony Braxton’s titles)

    • its instances can also be instances of E36 Visual Item:

    • … or even gestures (in sign language):

    • … or just combinations of signs (see examples for E42 Object Identifier)

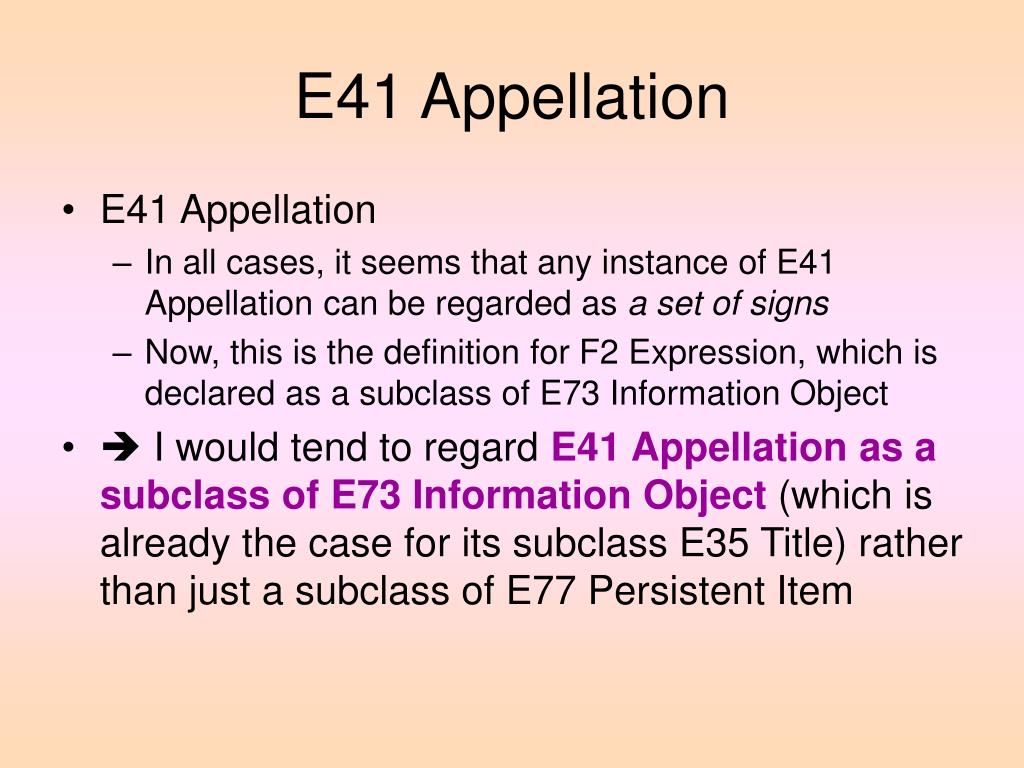

E41 appellation1

E41 Appellation

  • E41 Appellation

    • In all cases, it seems that any instance of E41 Appellation can be regarded as a set of signs

    • Now, this is the definition for F2 Expression, which is declared as a subclass of E73 Information Object

  •  I would tend to regard E41 Appellation as a subclass of E73 Information Object (which is already the case for its subclass E35 Title) rather than just a subclass of E77 Persistent Item


E41 appellation as a subclass of e73 information object

E41 Appellation as a subclass of E73 Information Object?

  • This would acknowledge the fact that all Appellations are man-made (E71)!!

  • This would make E41 inherit the following properties:

    • P106 is composed of(allowing thus to decompose appellations into parts)

    • P94B was created by(allowing to document the circumstances under which appellations come into being)

    • P67 refers to(allowing e.g. to document the origin of nicknames)

    • P128B is carried by(allowing us to document where we found evidence for an appellation)


My proposal

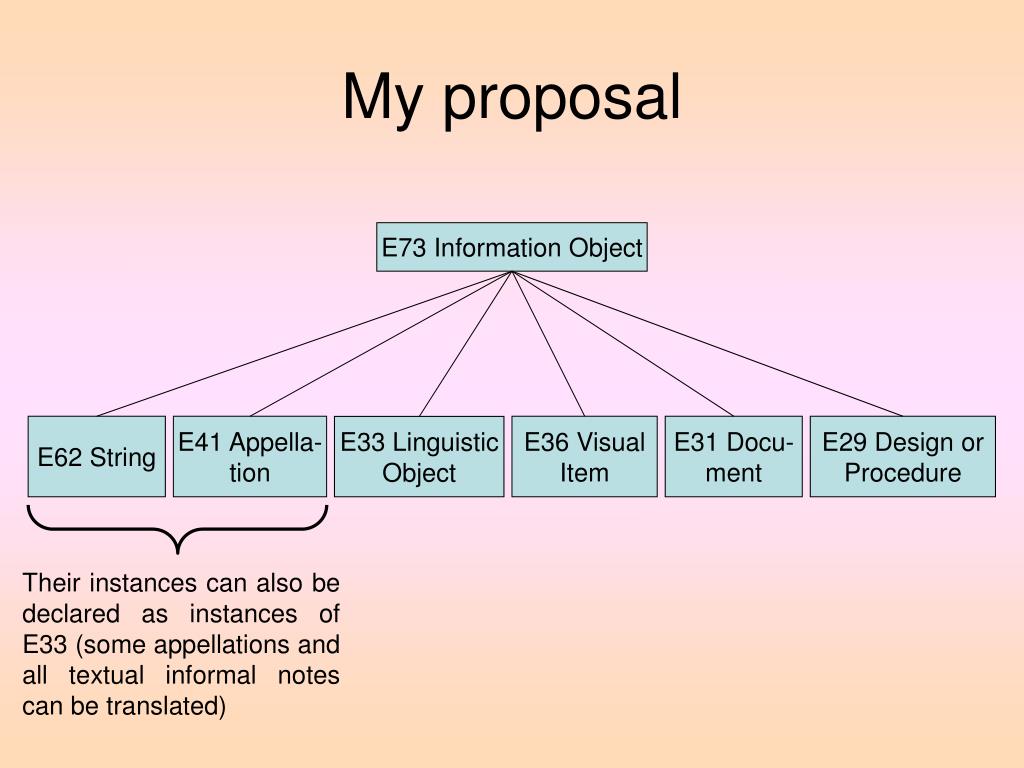

My proposal

E73 Information Object

E62 String

E41 Appella-tion

E36 VisualItem

E31 Docu-ment

E29 Design orProcedure

E33 LinguisticObject

Their instances can also be declared as instances of E33 (some appellations and all textual informal notes can be translated)


A model for constructing appellations

A modelfor constructing appellations

CIDOC CRM SIG Meeting

Edinburgh, 9-12 July 2007


A model for constructing appellations1

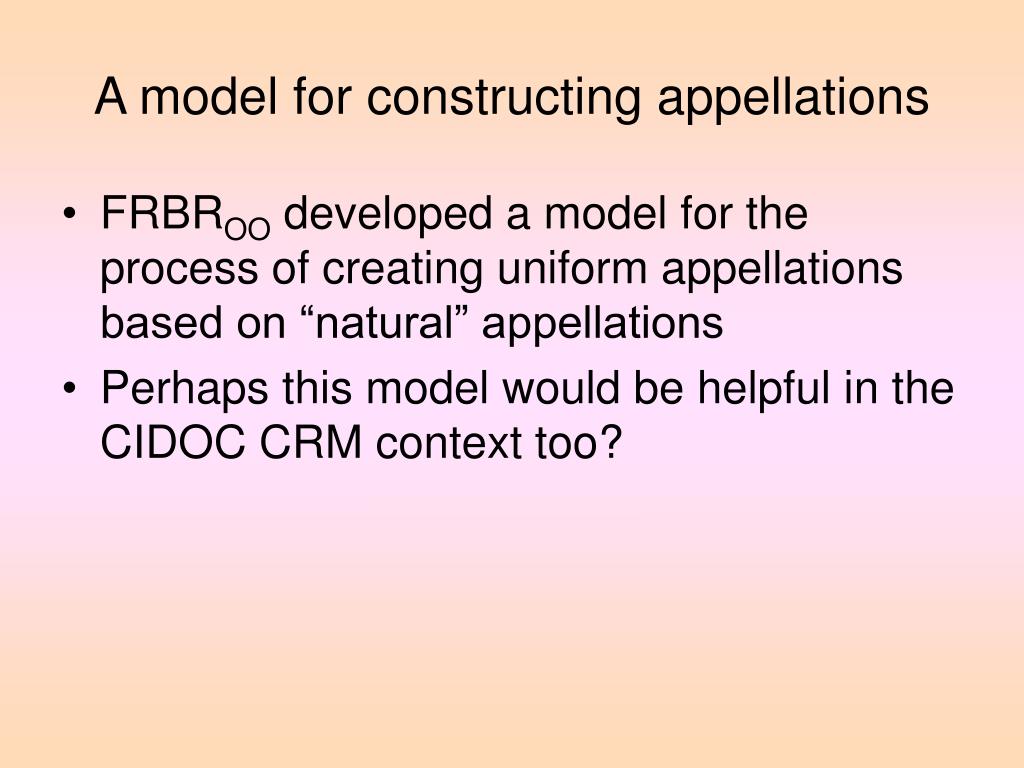

A model for constructing appellations

  • FRBROO developed a model for the process of creating uniform appellations based on “natural” appellations

  • Perhaps this model would be helpful in the CIDOC CRM context too?


A model for constructing appellations2

A model for constructing appellations

F16 IdentifierRule

E13 AttributeAssignment

R52 used rule

(was rule used in)

E41 Appellation

is a

=

R26 used constituent

(was used in)

F13 Name

F33 IdentifierAssignment

R51 consists of

(forms part of)

R24 assigned to

(was assigned by)

is a

R25 assigned

(was assigned by)

P1B identifies

F14 Identifier

P1B identifies

E1 CRM Entity


Example

Example

F14 Identifier

Leonardo, da Vinci, 1452-1519. Mona Lisa

instance:

instance:

instance:

instance:

F13 Name

E50 Date

E35 Title

R25 assigned

R26 used

constituent

R26 used

constituent

R26 used

constituent

F16 IdentifierRule

F33 IdentifierAssignment

R52 used rule

(was rule used in)

instance: (AACR2R)

F28 BibliographicAgency

P14 carried out by

instance:(Library of Congress)


Subject relationships in frbr oo and their implication on cidoc crm

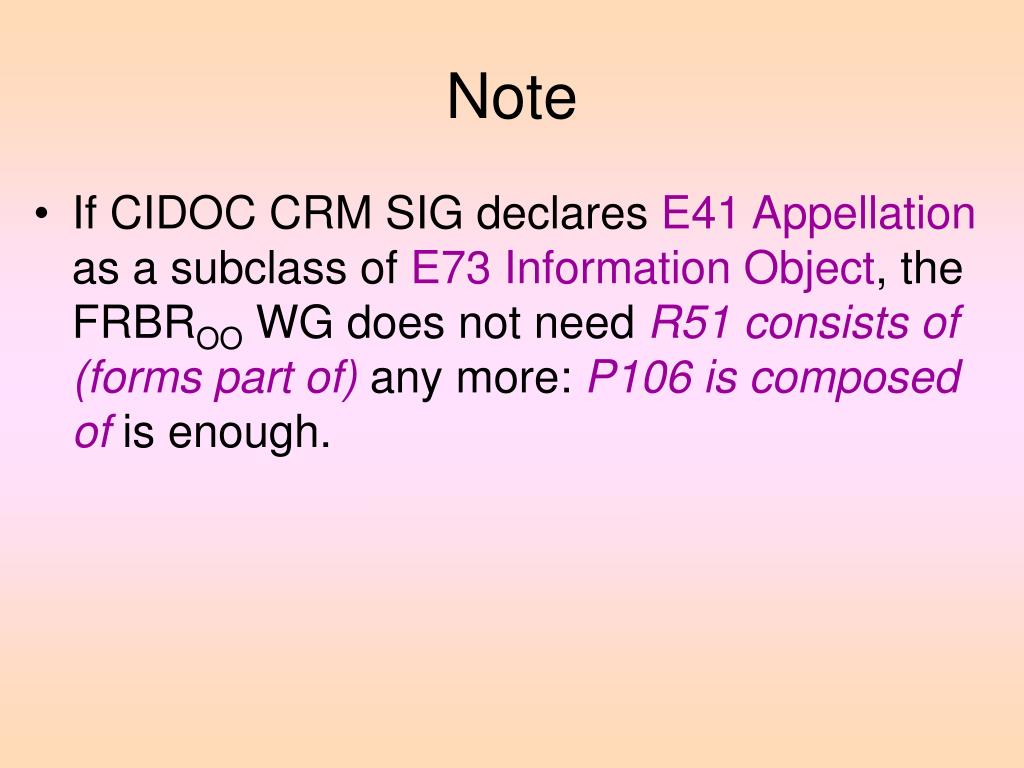

Note

  • If CIDOC CRM SIG declares E41 Appellation as a subclass of E73 Information Object, the FRBROO WG does not need R51 consists of (forms part of) any more: P106 is composed of is enough.
