Distributed dynamic capacity contracting a congestion pricing framework for diff serv

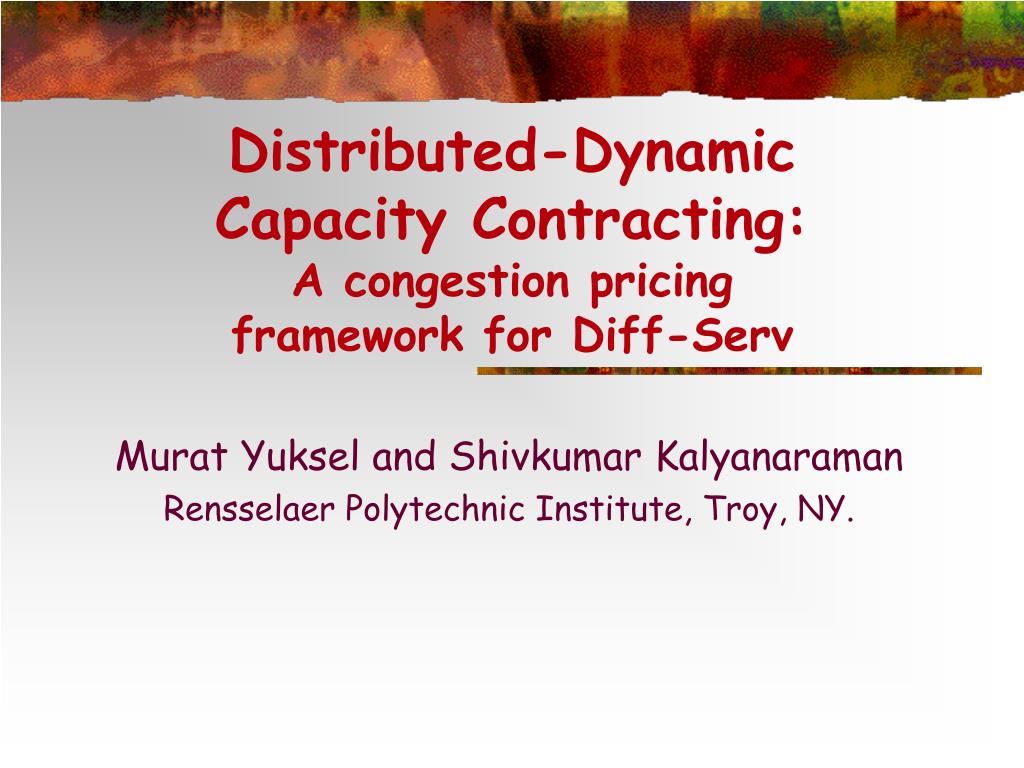

Distributed-Dynamic Capacity Contracting: A congestion pricing framework for Diff-Serv

Murat Yuksel and Shivkumar Kalyanaraman

Rensselaer Polytechnic Institute, Troy, NY.


Overview

Overview

  • Motivation/Context

  • Framework: Dynamic Capacity Contracting (DCC)

  • Scheme: Edge-to-Edge Pricing (EEP)

  • Distributed-DCC

  • Simulation Experiments

  • Summary

IEEE MMNS 2002


Motivation context

Motivation/Context

  • Multimedia (MM) applications introduce extensive traffic loads.

  • Hence, better ways of managing network resources are needed for provision of sufficient QoS for MM applications.

  • For this purpose, congestion pricing is one of the methods among many others.

  • Two major implemetation problems:

    • Timely feedback about price

    • Congestion information about the network

IEEE MMNS 2002


Dcc framework

DCC Framework

IEEE MMNS 2002


Dcc framework cont d

DCC Framework (cont’d)

  • Solves implementation issues by:

    • Short-term contracts, i.e. middle-ground between Smart Market and Expected Capacity

    • Edge-to-edge coordination for price calculation

  • Users negotiate with the provider at ingress points

  • The provider estimates user’s incentives by observing user’s traffic at different prices

  • A simple way of representing user’s incentive is his/her budget

  • Budget estimation:

IEEE MMNS 2002


Dcc framework cont d1

DCC Framework (cont’d)

  • The provider offers short-term contracts:

    • is price per unit volume

    • Vmax is maximum volume user can contract for

    • T is contract length

  • Pv is formulated by “pricing scheme” at the ingress, e.g. EEP, Price Discovery

  • Vmax is a parameter to be set by soft admission control

IEEE MMNS 2002


Dcc framework cont d2

DCC Framework (cont’d)

IEEE MMNS 2002


Dcc framework cont d3

DCC Framework (cont’d)

  • Key benefits:

    • Does not require per-packet accounting

    • Requires updates to edges only

    • enables congestion pricing by edge-to-edge congestion detection techniques

    • deployable on diff-serv architecture of the Internet

IEEE MMNS 2002


Edge to edge pricing eep

Edge-to-Edge Pricing (EEP)

  • At Ingress i, given and :

  • Balancing supply (edge-to-edge capacity) and demand (budget for route ij)

  • If is congestion-based (i.e. decreases when congestion, increases when no congestion), then becomes a congestion-sensitive price.

  • formulation above is optimal for maximization of total user utility.

IEEE MMNS 2002


Distributed dcc

Distributed-DCC

  • DCC + distributed contracting, i.e. flexibility of advertising local prices

  • Defines: ways of maintaining stability and fairness of the overall system

  • Operates on a per-edge-to-edge flow basis

  • Major components:

    • Ingresses

    • Egresses

    • Logical Pricing Server (LPS)

IEEE MMNS 2002


Distributed dcc cont d

Distributed-DCC (cont’d)

IEEE MMNS 2002


Distributed dcc cont d1

Distributed-DCC (cont’d)

IEEE MMNS 2002


Distributed dcc cont d2

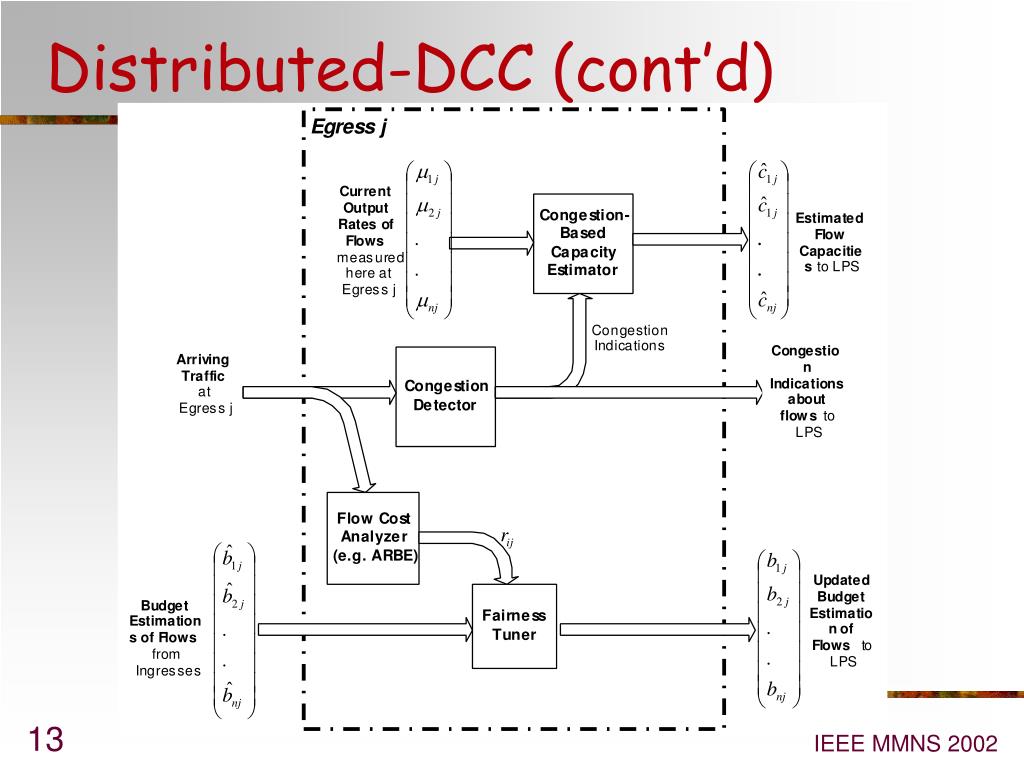

Distributed-DCC (cont’d)

IEEE MMNS 2002


Distributed dcc cont d3

Distributed-DCC (cont’d)

  • Congestion-Based Capacity Estimator:

    • Estimates available capacity for each flow fij exiting at Egress j

    • To calculate it uses:

      • Congestion indications from Congestion Detector

      • Actual output rates of flows

    • Increase when fij generates congestion indications, decrease when it does not, e.g.:

IEEE MMNS 2002


Distributed dcc cont d4

Distributed-DCC (cont’d)

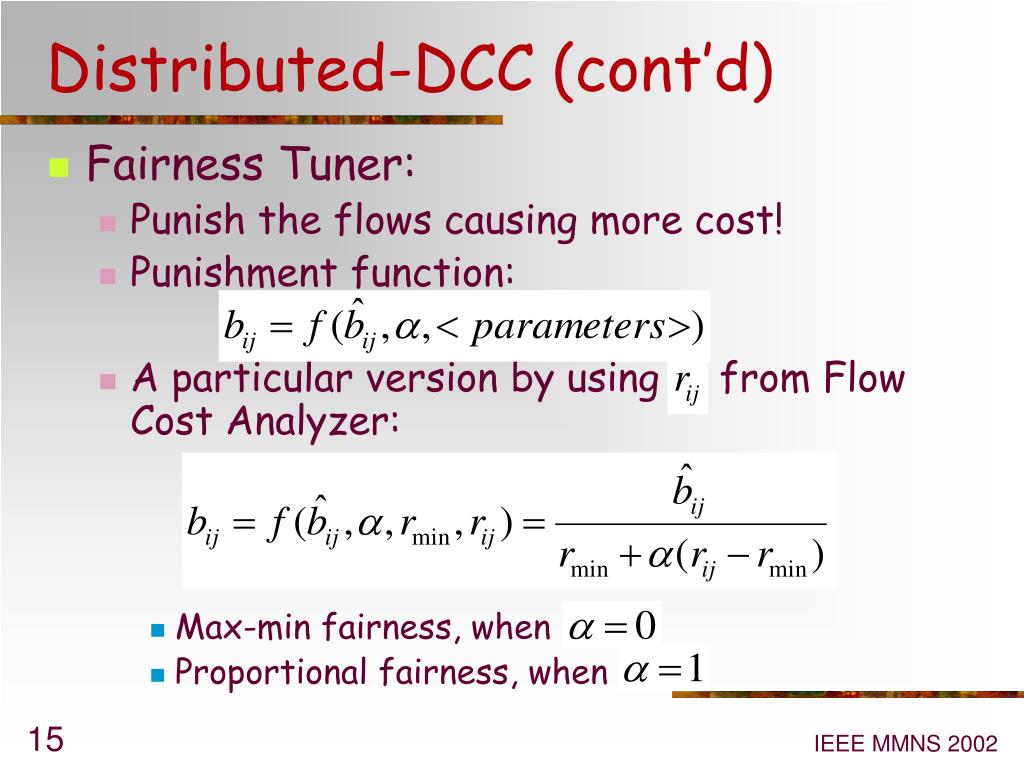

  • Fairness Tuner:

    • Punish the flows causing more cost!

    • Punishment function:

    • A particular version by using from Flow Cost Analyzer:

      • Max-min fairness, when

      • Proportional fairness, when

IEEE MMNS 2002


Distributed dcc cont d5

Distributed-DCC (cont’d)

IEEE MMNS 2002


Distributed dcc cont d6

Distributed-DCC (cont’d)

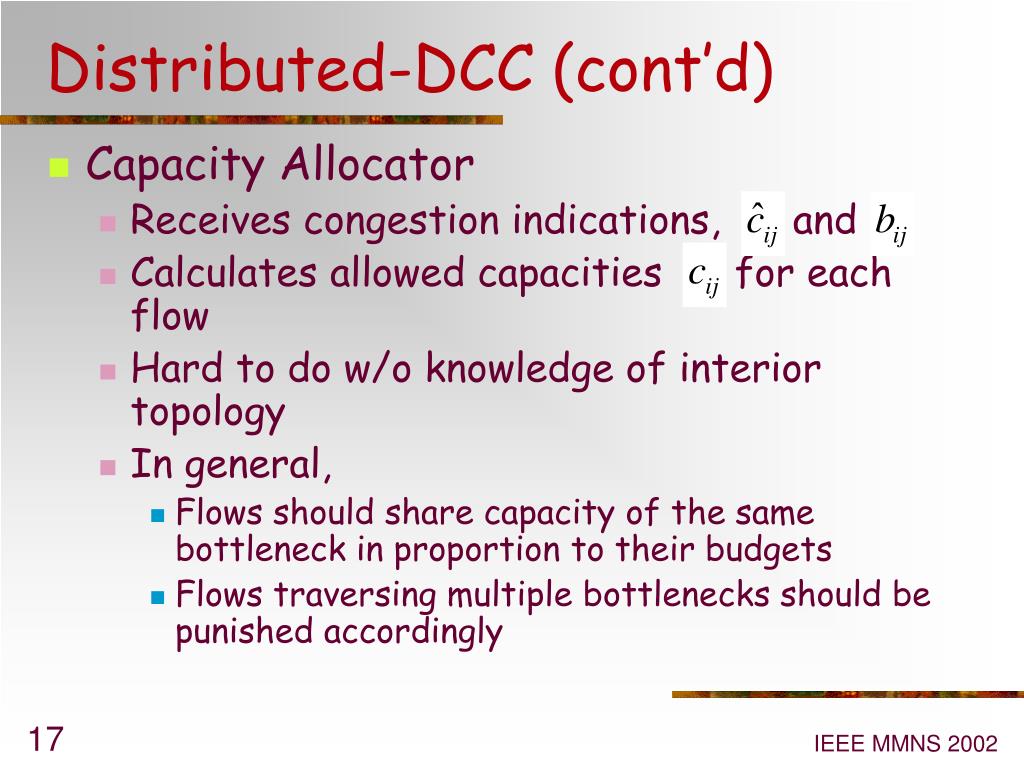

  • Capacity Allocator

    • Receives congestion indications, and

    • Calculates allowed capacities for each flow

    • Hard to do w/o knowledge of interior topology

    • In general,

      • Flows should share capacity of the same bottleneck in proportion to their budgets

      • Flows traversing multiple bottlenecks should be punished accordingly

IEEE MMNS 2002


Distributed dcc cont d7

Distributed-DCC (cont’d)

  • An example Capacity Allocator:

    • Edge-to-edge Topology-Independent Capacity Allocation (ETICA).

      • Define for flow :

      • Define as congested, if .

IEEE MMNS 2002


Distributed dcc cont d8

Distributed-DCC (cont’d)

  • An example Capacity Allocator: (cont’d)

    • Allowed capacity for flow :

    • Intuition: If a group of flows are congested, then it is more probable that they are traversing the same bottleneck.

    • Assumes no knowledge about interior topology.

IEEE MMNS 2002


Simulation experiments

Simulation Experiments

  • We want to illustrate:

    • Steady-state properties of Distributed-DCC: queues, rate allocation

    • Distributed-DCC’s fairness properties

    • Performance of the capacity allocation in terms of adaptiveness.

IEEE MMNS 2002


Simulation experiments cont d

Simulation Experiments (cont’d)

IEEE MMNS 2002


Simulation experiments cont d1

Simulation Experiments (cont’d)

  • Propagation delay is 5ms on each link

  • Packet size 1000B

  • Users generate UDP traffic

  • Interior nodes mark when their local queue exceeds 30 packets.

  • User with a budget b maximizes its surplus by sending at a rate b/p.

  • For each contracting period, users’ budgets are randomized with truncated-Normal.

  • Contracting 4s, observation 0.8s, LPS 0.16s.

  • k is 25, i.e. a flow stays in congested states for 25 LPS intervals, or one contract period.

IEEE MMNS 2002


Simulation experiments cont d2

Simulation Experiments (cont’d)

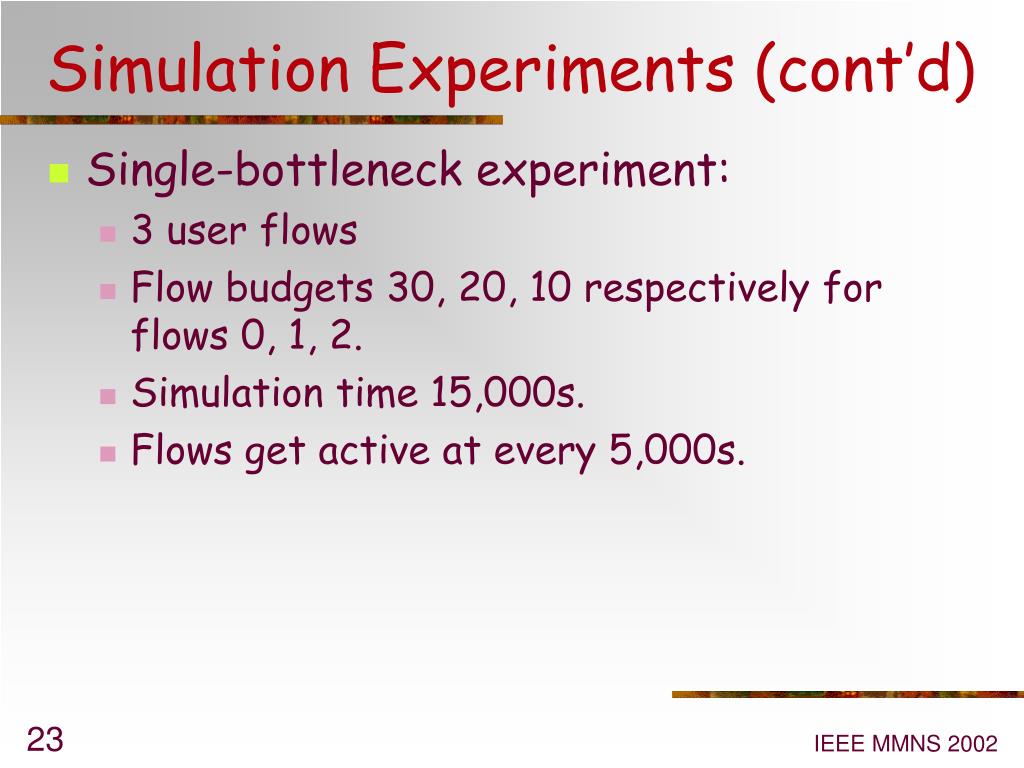

  • Single-bottleneck experiment:

    • 3 user flows

    • Flow budgets 30, 20, 10 respectively for flows 0, 1, 2.

    • Simulation time 15,000s.

    • Flows get active at every 5,000s.

IEEE MMNS 2002


Simulation experiments cont d3

Simulation Experiments (cont’d)

IEEE MMNS 2002


Simulation experiments cont d4

Simulation Experiments (cont’d)

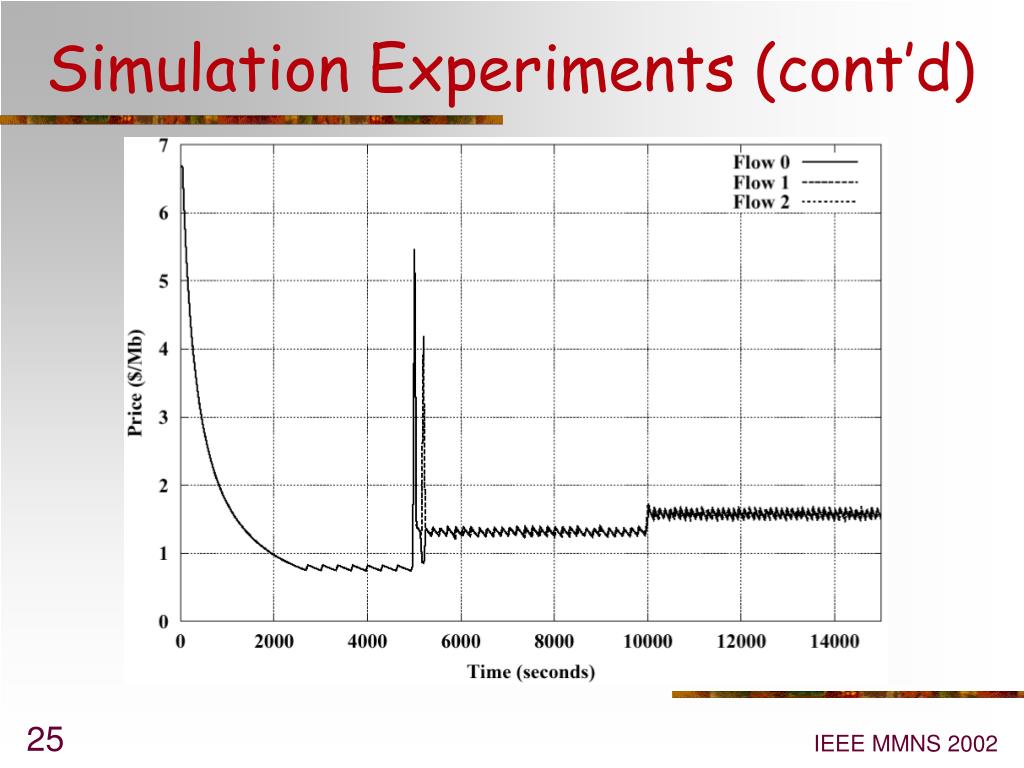

IEEE MMNS 2002


Simulation experiments cont d5

Simulation Experiments (cont’d)

IEEE MMNS 2002


Simulation experiments cont d6

Simulation Experiments (cont’d)

  • Multi-bottleneck experiment 1:

    • 10 user flows with equal budgets of 10 units.

    • Simulation time 10,000s.

    • Flows get active at every 1,000s.

    • All the other parameters are the same as in the PFCC experiment on single-bottleneck topology.

    •  is varied between 0 and 2.5.

IEEE MMNS 2002


Simulation experiments cont d7

Simulation Experiments (cont’d)

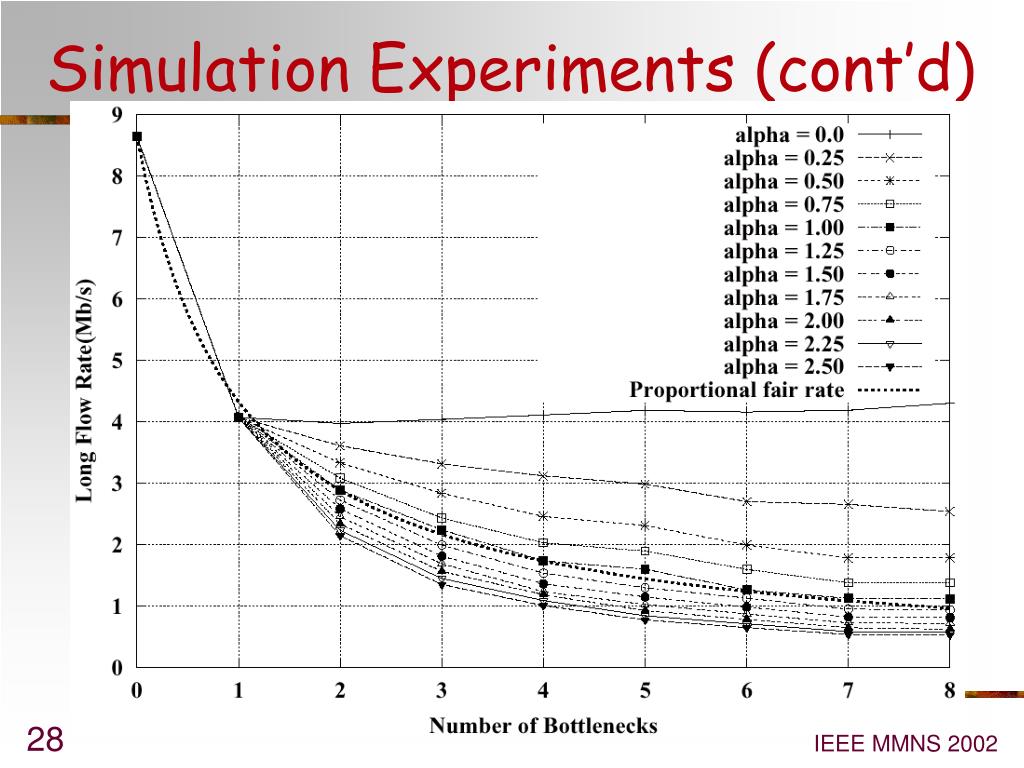

IEEE MMNS 2002


Simulation experiments cont d8

Simulation Experiments (cont’d)

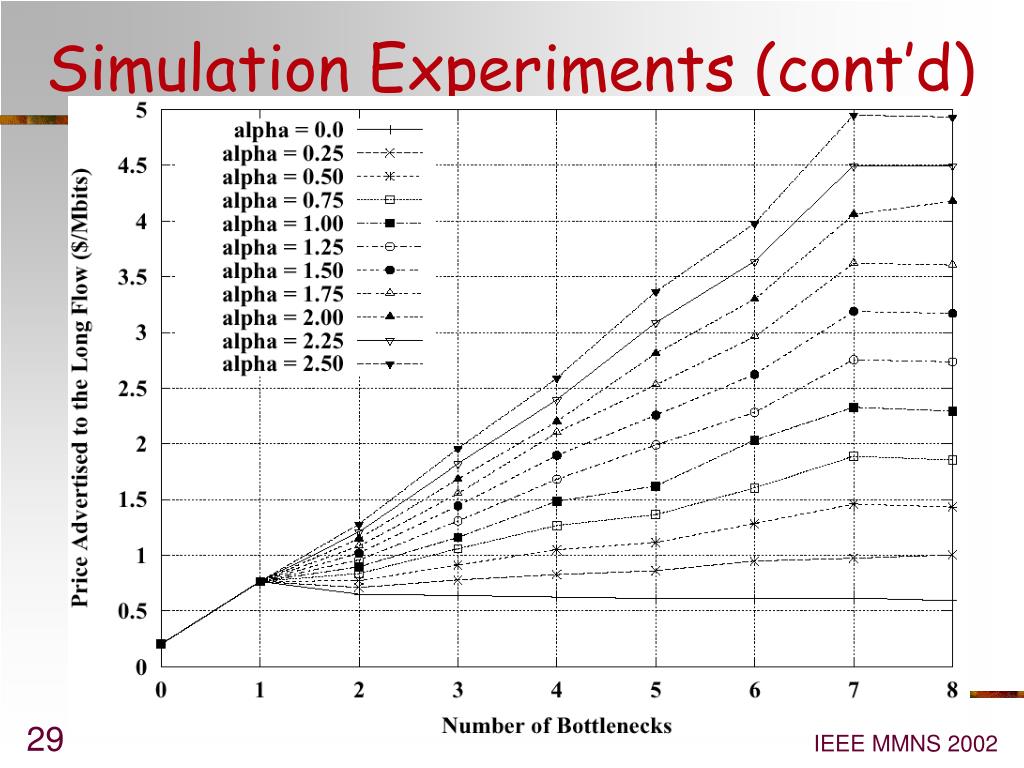

IEEE MMNS 2002


Simulation experiments cont d9

Simulation Experiments (cont’d)

  • Multi-bottleneck experiment 2:

    • 4 user flows

    • Simulation time 30,000s.

    • Increase capacity of node D from 10Mb/s to 15Mb/s.

    • All flows get active at the starts of simulation.

    • Initially all flows have equal budget of 10 units. Flow 1 temporarily increases its to 20 units between times 10,000 and 20,000.

    •  is 0.

IEEE MMNS 2002


Simulation experiments cont d10

Simulation Experiments (cont’d)

IEEE MMNS 2002


Simulation experiments cont d11

Simulation Experiments (cont’d)

IEEE MMNS 2002


Summary

Summary

  • Deployability of congestion pricing is a problem.

  • A new congestion pricing framework, Distributed-DCC:

    • Middle-ground between Smart Market and Expected Capacity.

    • Deployable on a diff-serv domain.

    • A range of fairness capabilities.

IEEE MMNS 2002
