  1. Unconditional One Time Programs and Beyond Vipul Goyal Yuval Ishai Amit Sahai Akshay Wadia UCLA UCLA and Technion UCLA UCLA

  2. Starting point Number of works on crypto w/ tamper proof hardware: Software Protection/Obfuscation: GO’96 Universal Composability: Katz’07, CGS’08, MS’08, DNW’08 One Time Program: GKR’08 Natural and well motivated model: many CPUs already have tamper proof units w/ support for crypto operations (TPM)

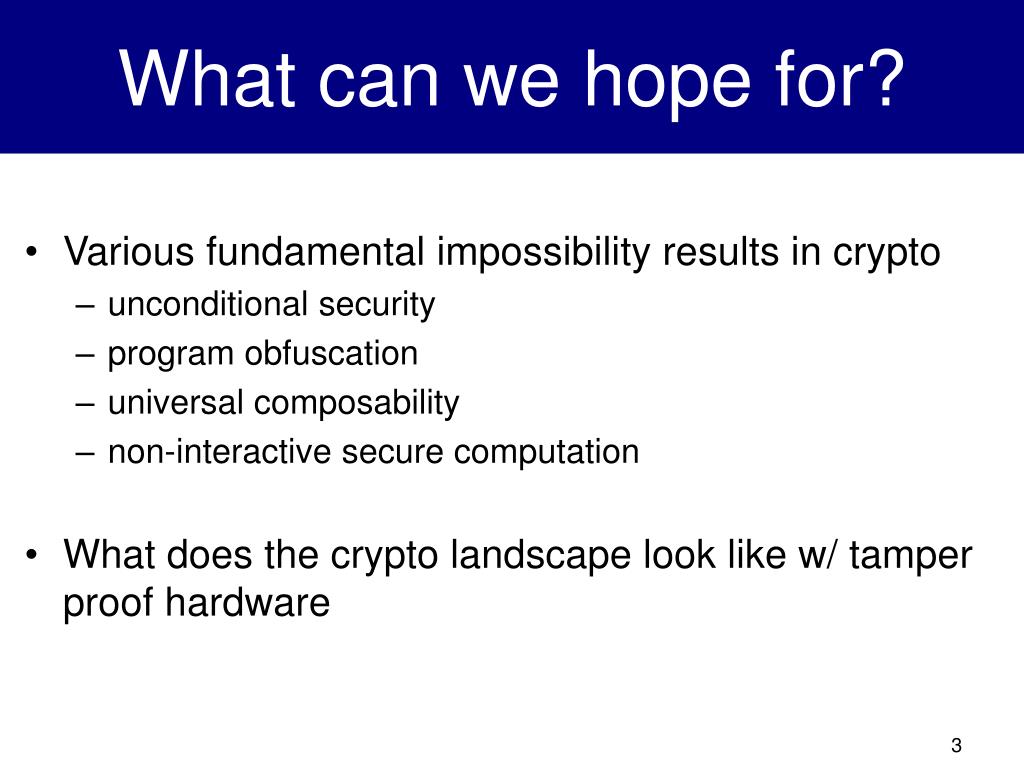

  3. What can we hope for? Various fundamental impossibility results in crypto unconditional security program obfuscation universal composability non-interactive secure computation What does the crypto landscape look like w/ tamper proof hardware

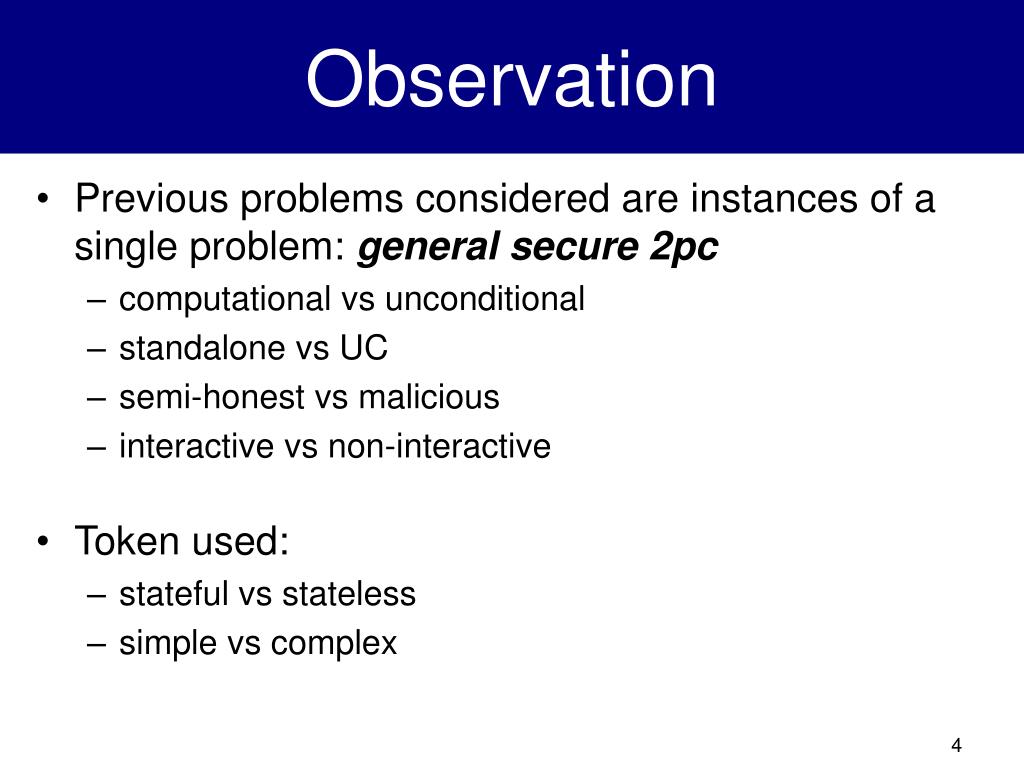

  4. Observation Previous problems considered are instances of a single problem: general secure 2pc computational vs unconditional standalone vs UC semi-honest vs malicious interactive vs non-interactive Token used: stateful vs stateless simple vs complex

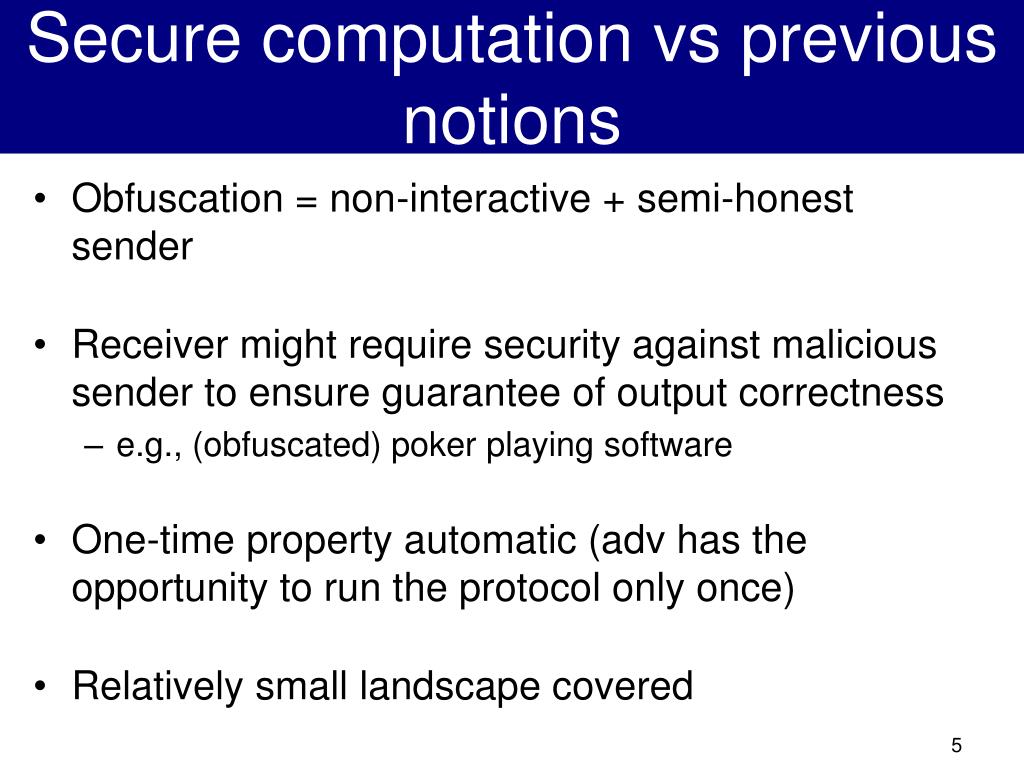

  5. Secure computation vs previous notions Obfuscation = non-interactive + semi-honest sender Receiver might require security against malicious sender to ensure guarantee of output correctness e.g., (obfuscated) poker playing software One-time property automatic (adv has the opportunity to run the protocol only once) Relatively small landscape covered

  6. Statement of our Results Directly study the problem of secure 2pc protocol: unconditional security non-interactive universally composable malicious parties (sender/receiver) Unifies previous directions in the area of crypto w/ tamper proof hardware Improves upon previous work simultaneously in multiple directions

  7. Overview One time programs and GKR’08 construction overview Unconditional one time programs Secure computation: security against malicious sender (and UC) Crypto w/ stateless hardware tokens

  8. One time programs (OTP)[Goldwasser-Kalai-Rothblum’08] Ideal world: f x f(x) Receiver Sender

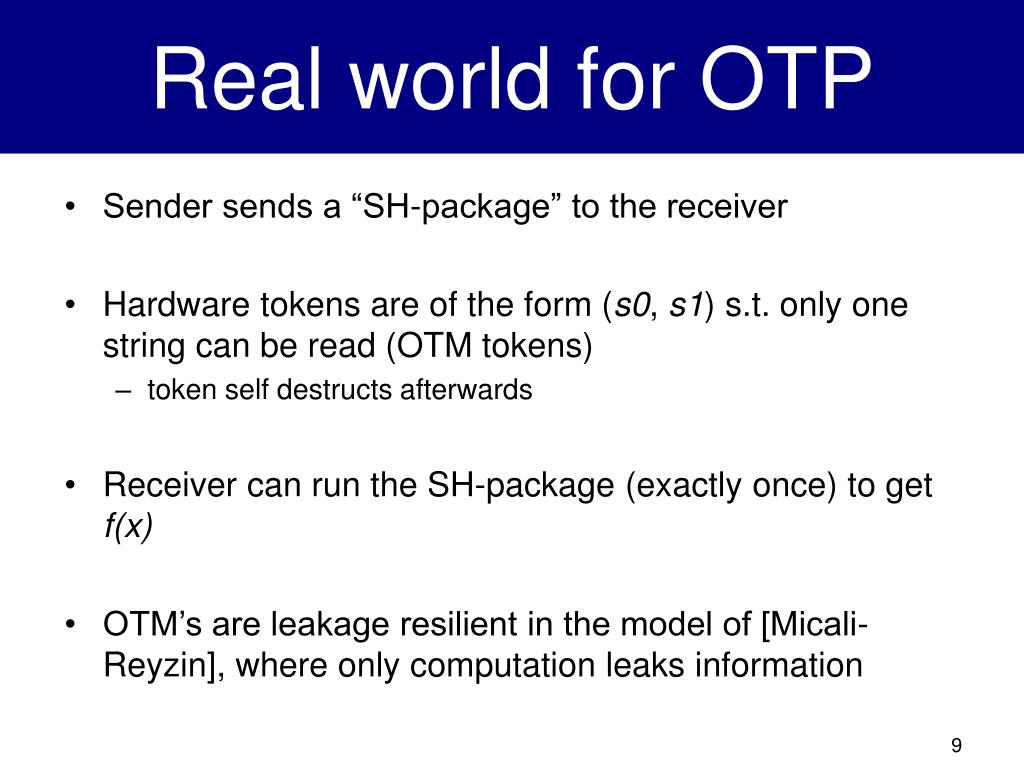

  9. Real world for OTP Sender sends a “SH-package” to the receiver Hardware tokens are of the form (s0, s1) s.t. only one string can be read (OTM tokens) token self destructs afterwards Receiver can run the SH-package (exactly once) to get f(x) OTM’s are leakage resilient in the model of [Micali-Reyzin], where only computation leaks information

  10. OTP construction overview S R f(x) R x G.C. xi . . . Kixi , Ri x f • Sim should be able to decide the output after looking at x • Mask the output s.t. it is fixed only after receiver has queried all tokens • Sim can decide the output after looking the last input bit

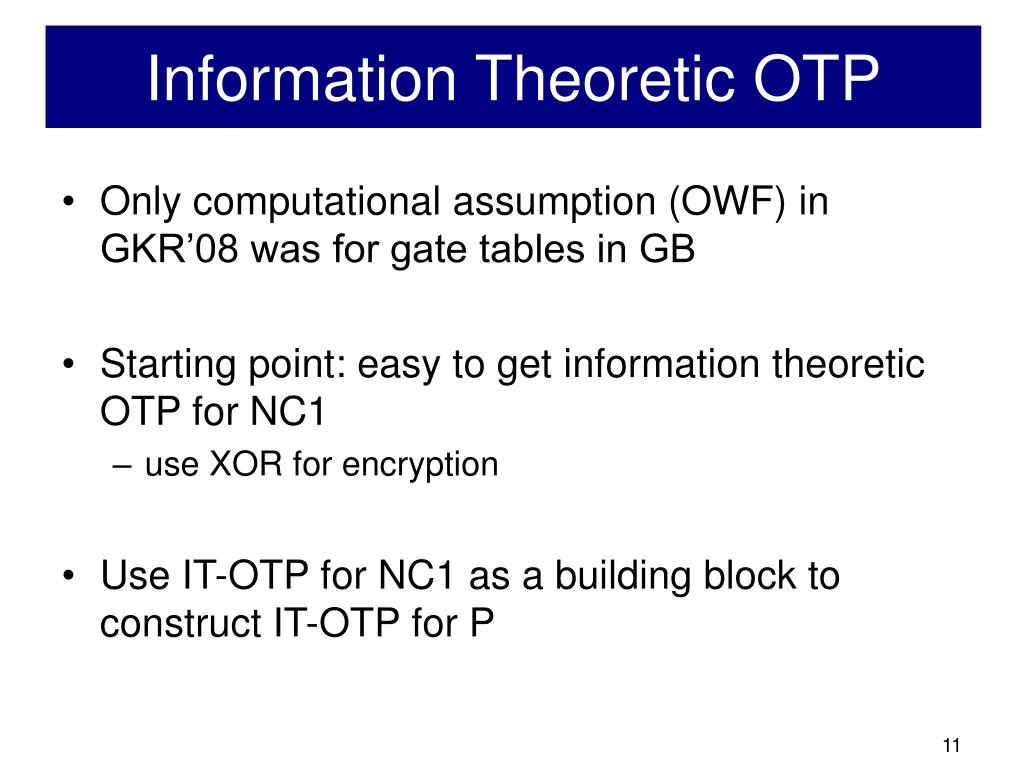

  11. Information Theoretic OTP • Only computational assumption (OWF) in GKR’08 was for gate tables in GB • Starting point: easy to get information theoretic OTP for NC1 • use XOR for encryption • Use IT-OTP for NC1 as a building block to construct IT-OTP for P

  12. Information Theoretic OTP for P • To implement each gate table, use IT-OTP for NC1 (instead of an encryption scheme) Ka Kc Kb Kd Ko Kf Ke IT-OTP for P consists of: • one OTM token for each bit of the input of receiver • one IT-OTP for NC1 for each gate in the circuit

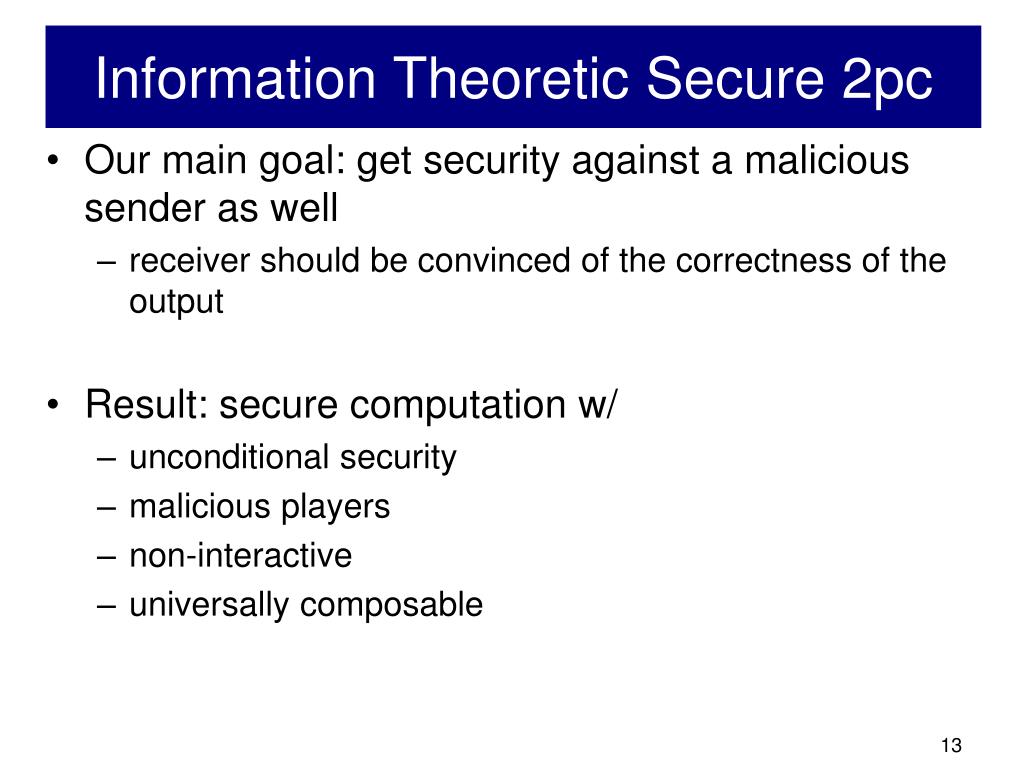

  13. Information Theoretic Secure 2pc • Our main goal: get security against a malicious sender as well • receiver should be convinced of the correctness of the output • Result: secure computation w/ • unconditional security • malicious players • non-interactive • universally composable

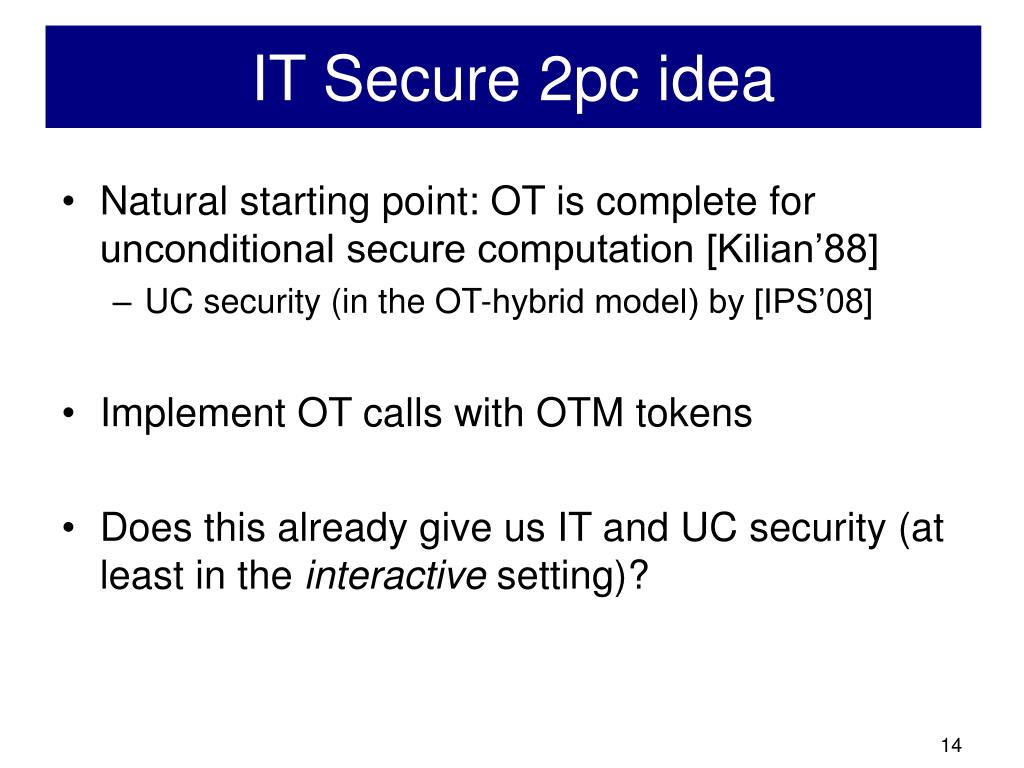

  14. IT Secure 2pc idea • Natural starting point: OT is complete for unconditional secure computation [Kilian’88] • UC security (in the OT-hybrid model) by [IPS’08] • Implement OT calls with OTM tokens • Does this already give us IT and UC security (at least in the interactive setting)?

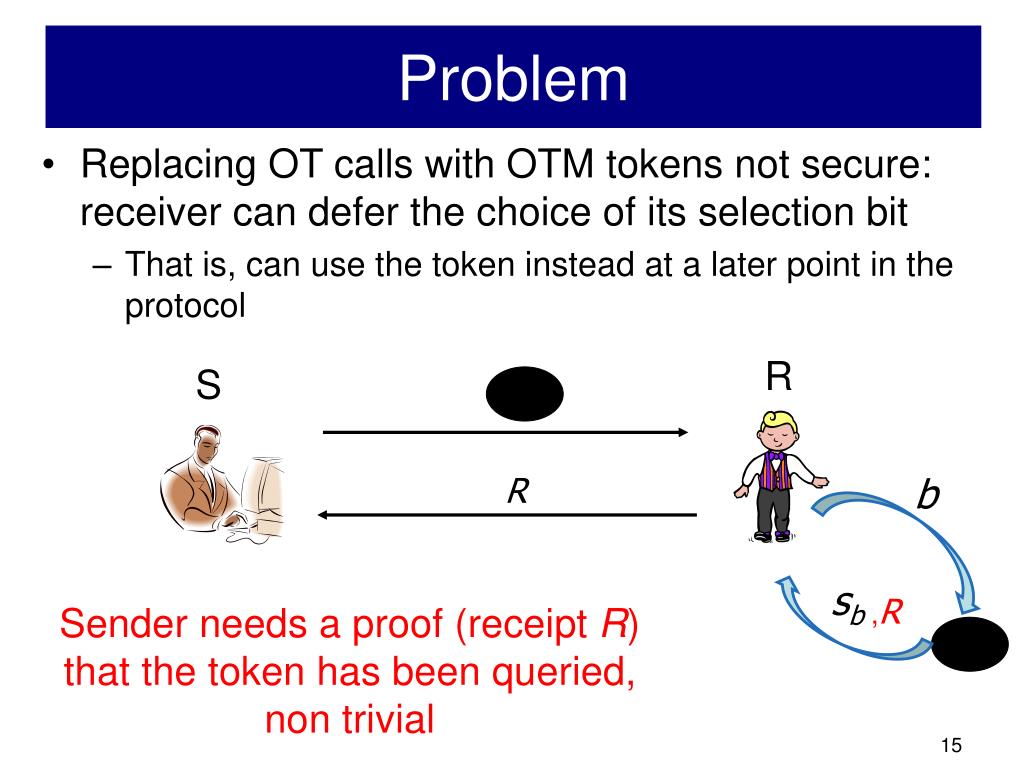

  15. Problem • Replacing OT calls with OTM tokens not secure: receiver can defer the choice of its selection bit • That is, can use the token instead at a later point in the protocol R S R b sb ,R Sender needs a proof (receipt R) that the token has been queried, non trivial

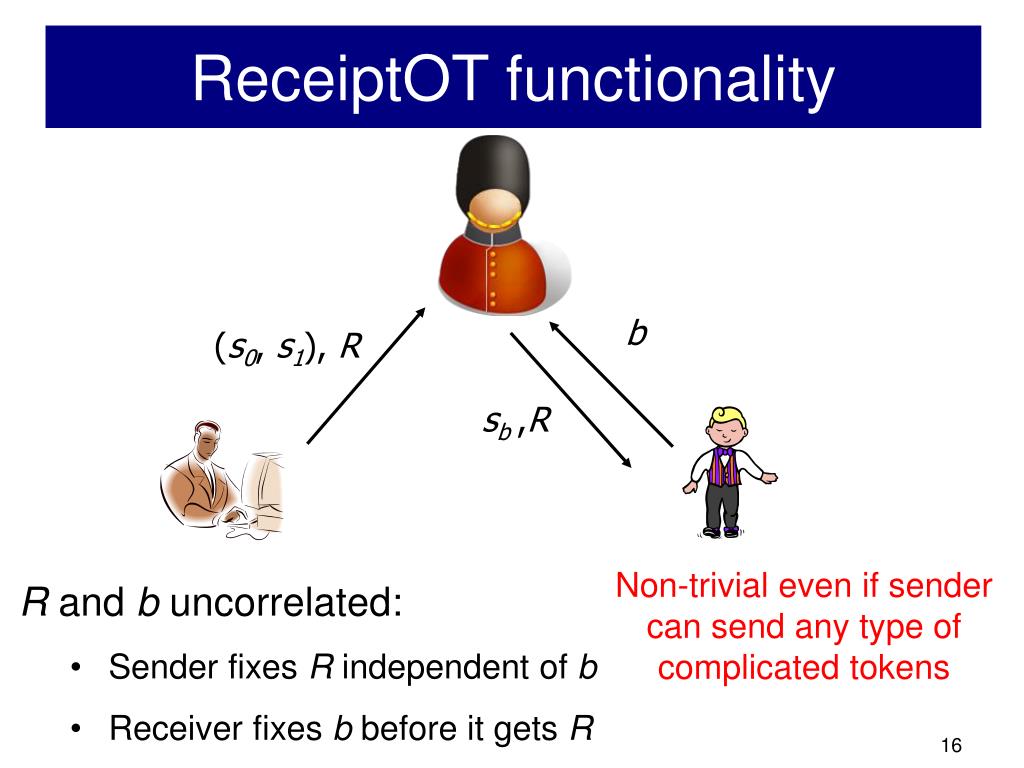

  16. ReceiptOT functionality b (s0, s1), R sb ,R Non-trivial even if sender can send any type of complicated tokens • R and b uncorrelated: • Sender fixes R independent of b • Receiver fixes b before it gets R

  17. Step 1: OTP for ReceiptOT functionality • Assume sender can send complicated tokens • Sender creates 2k tokens: token i contains (qi0, qi1), Ri each in (0,1)k s.t. R = R1 …R2k and (qi0, qi1) distinct • Receiver chooses b1…b2k s.t. b = b1 …b2k • On input bi, (honest) token i returns qibi, Ri . . . 1 2k bi b (s0, s1), R qibi, Ri i end of step 1

  18. Step 2: OTP for ReceiptOT functionality bi . . . 1 2k qibi, Ri i b TA (s0, s1), R (qi0, qi1), Ri R • Receiver security: R can encode b only if ALL 2k tokens bad • that is, each token has two different Ri[0] and Ri[1] • However, R is only k bits, can’t let TA choose correctly from among 22k possibilities R1,…, R2k TA

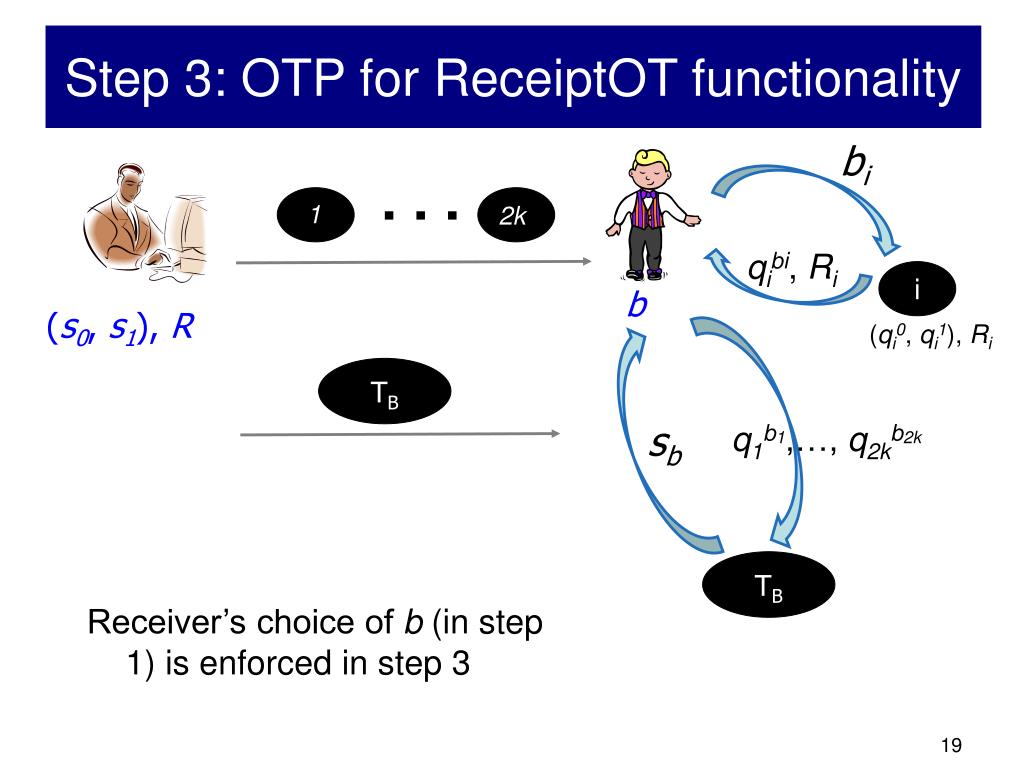

  19. Step 3: OTP for ReceiptOT functionality bi . . . 1 2k qibi, Ri i b (s0, s1), R (qi0, qi1), Ri TB sb q1b1,…, q2kb2k TB • Receiver’s choice of b (in step 1) is enforced in step 3

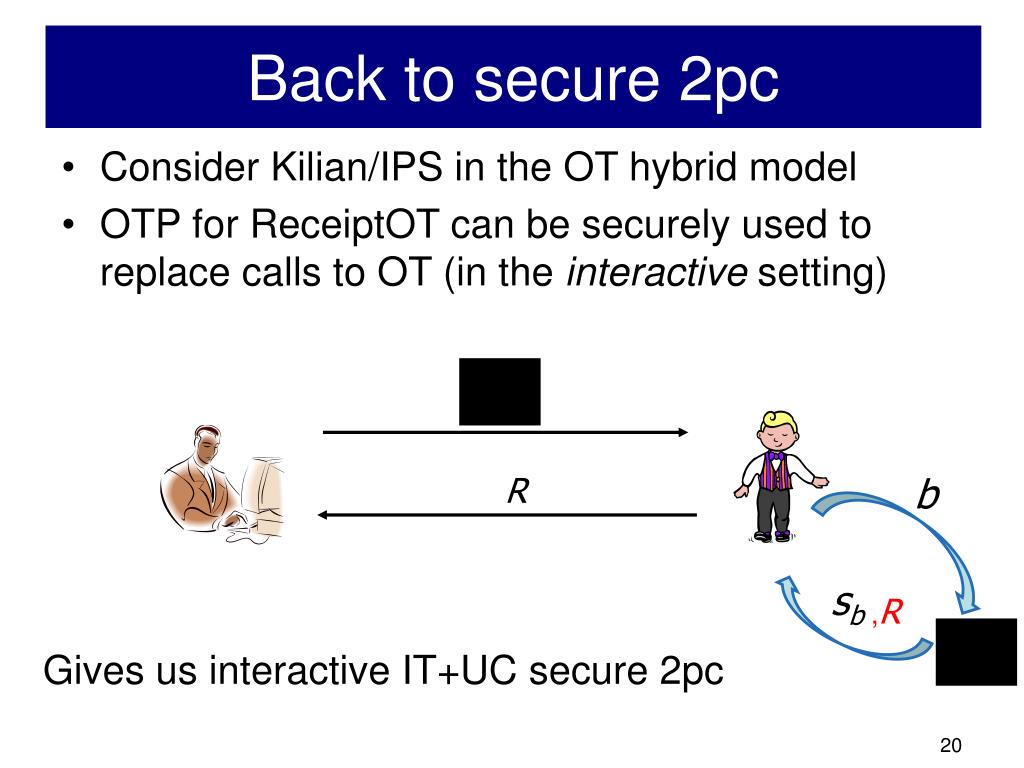

  20. Back to secure 2pc • Consider Kilian/IPS in the OT hybrid model • OTP for ReceiptOT can be securely used to replace calls to OT (in the interactive setting) R b sb ,R Gives us interactive IT+UC secure 2pc

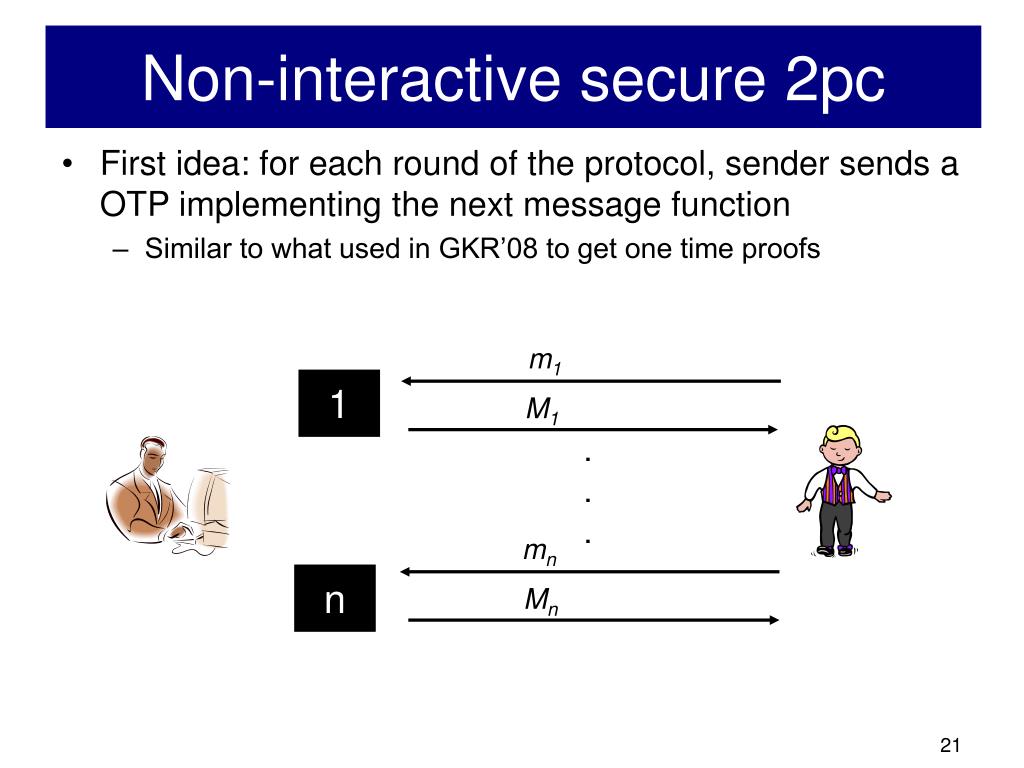

  21. Non-interactive secure 2pc • First idea: for each round of the protocol, sender sends a OTP implementing the next message function • Similar to what used in GKR’08 to get one time proofs m1 1 M1 . . . mn n Mn

  22. Non-interactive secure 2pc • First idea: for each round of the protocol, sender sends a OTP implementing the next message function . . . n 1 mi, E(Si-1) E is authenticated encryption (XOR + one time MAC) Mi, E(Si) i Can’t use Kilian/IPS: OT invocations !

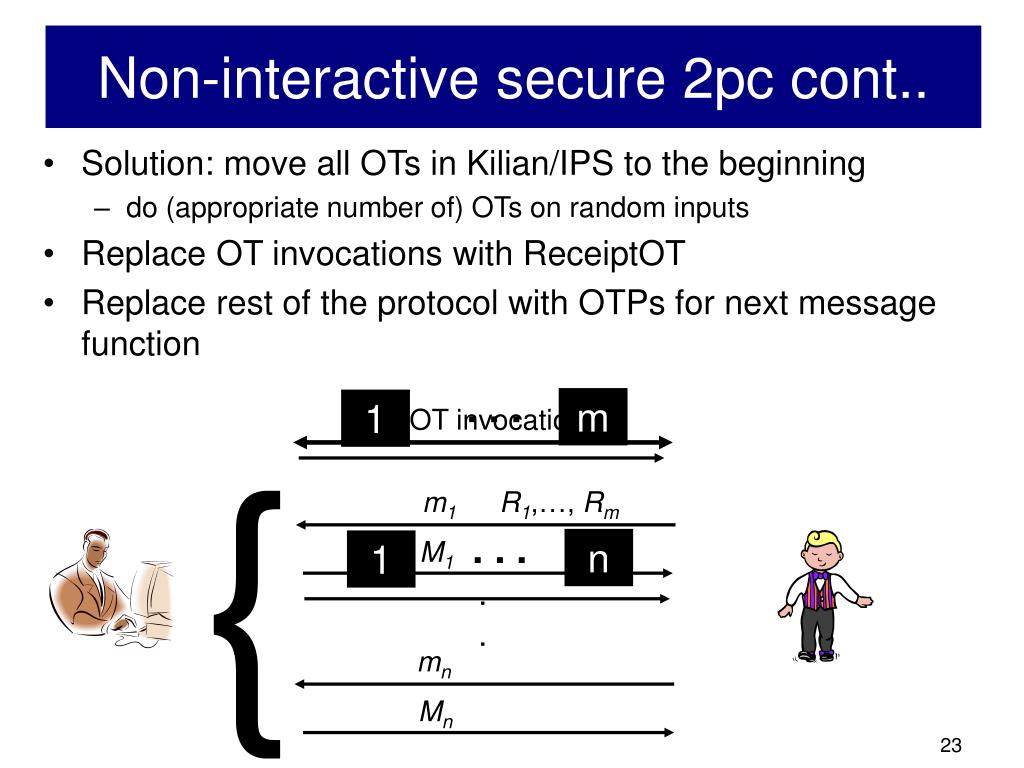

  23. Non-interactive secure 2pc cont.. • Solution: move all OTs in Kilian/IPS to the beginning • do (appropriate number of) OTs on random inputs • Replace OT invocations with ReceiptOT • Replace rest of the protocol with OTPs for next message function . . . m 1 m OT invocations { m1 R1,…, Rm . . . M1 n 1 . . mn Mn

  24. Very rough analysis of non-interactive secure 2pc Sim . . . m 1 • Assume ReceiptOT and NMF OTP secure as per ideal/real world paradigm • Sim runs the straight-line UC simulator SIPS of IPS’08 (in the OT-hybrid model) with OTs moved to the beginning • Each of m OTPs for ReceiptOT help Sim to handle all ideal-OT invocations for SIPS • Each of n NMF OTPs help Sim to extract the next incoming receiver message and get outgoing message from SIPS • Receiver can’t query NMF OTPs out of order (authenticated enc) . . . n 1 Receiver

  25. Conclusion: non-interactive secure 2pc • Both parties need output: • For sender oblivious functionalities: • Get non-interactive 2pc using only tokens of form (b0, b1) - only one bit can be read • ideas based on string OT to bit OT reduction . . .

  26. Work in progress: Crypto based on stateless hardware tokens Obfuscation with stateful hardware: one hardware per obfuscated program (or for a bounded number of programs) Obfuscation with stateless hardware: allows us to realize the vision of a universal hardware: “one hardware, all program” Stateless hardware, given q, simply outputs F(q) regardless of which program is sending the query (and at what point in its execution) y x f(x) g(y) Obf. Program Obf. Program token

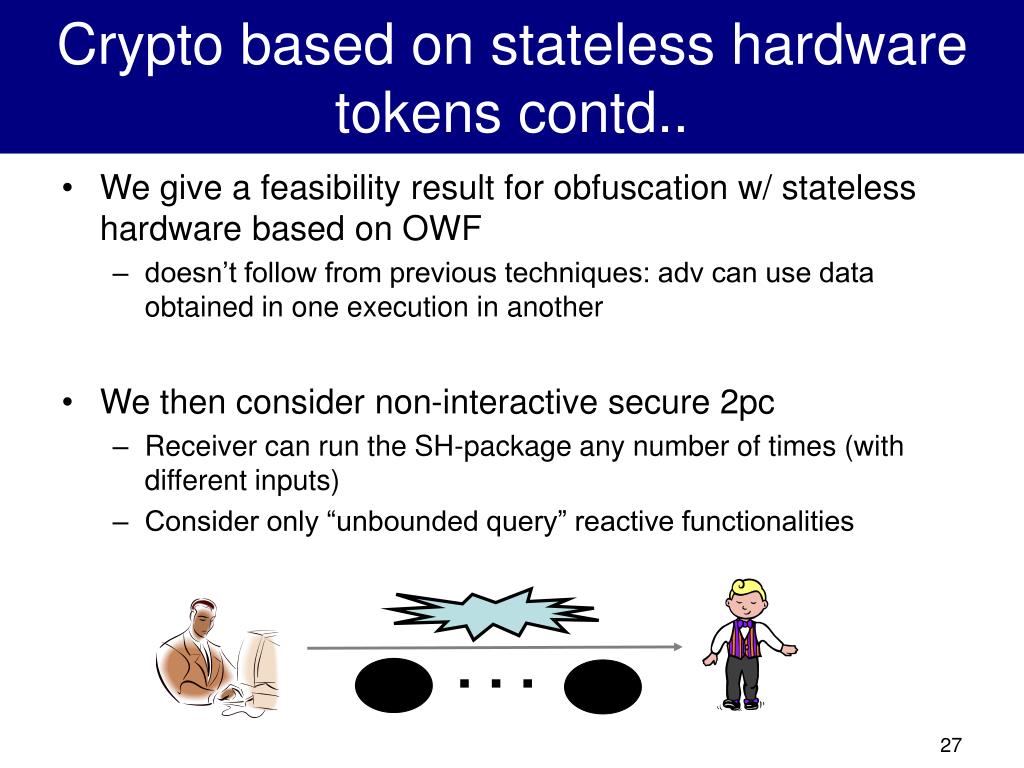

  27. Crypto based on stateless hardware tokens contd.. We give a feasibility result for obfuscation w/ stateless hardware based on OWF doesn’t follow from previous techniques: adv can use data obtained in one execution in another We then consider non-interactive secure 2pc Receiver can run the SH-package any number of times (with different inputs) Consider only “unbounded query” reactive functionalities . . .

  28. Non-interactive 2pc w/ stateless hardware Lets assume OT, i.e., start w/ a protocol in plain model Transform this protocol to non-interactive by giving an obfuscated next message function for each round. Is this secure? Problem: reset attacks . . .

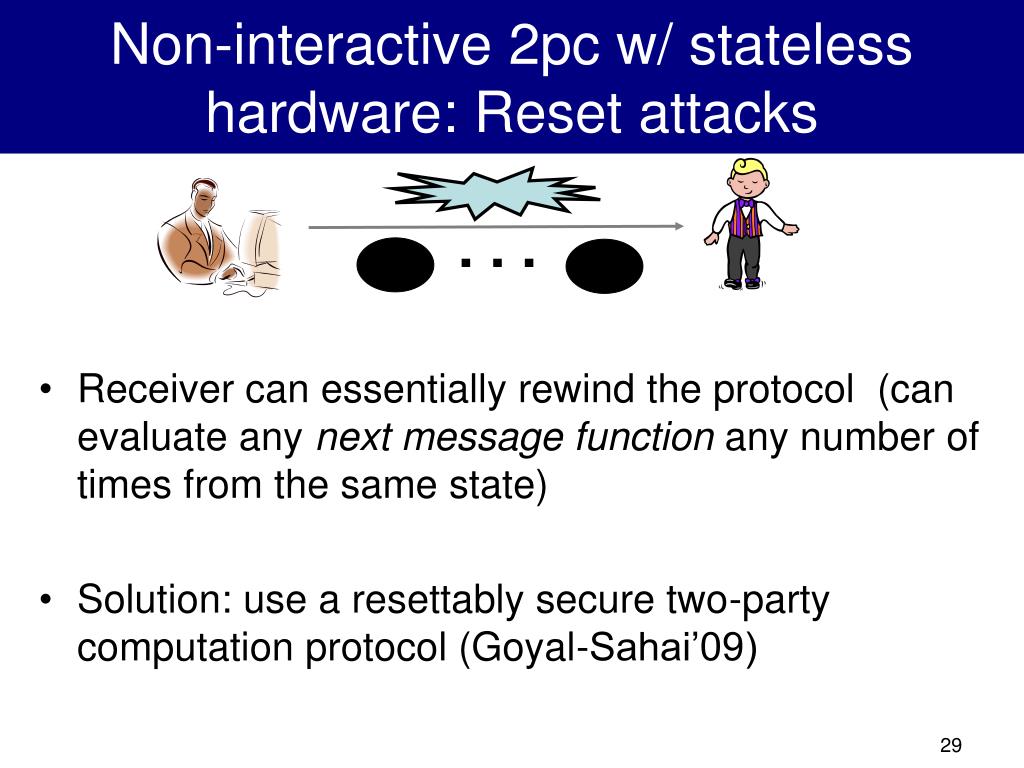

  29. Non-interactive 2pc w/ stateless hardware: Reset attacks Receiver can essentially rewind the protocol (can evaluate any next message function any number of times from the same state) Solution: use a resettably secure two-party computation protocol (Goyal-Sahai’09) . . .

  30. Open problems Efficiency considerations: In particular, hardware utilization: how many hardware tokens (or calls to hardware tokens are needed)? Other impossibility results in crypto which can be bypassed in tamper proof hardware model?

  31. Thank You!
