Former DuPont Barksdale Works Project Update August 3, 2005 DuPont Corporate Remediation Group Great Lakes Visitors Center
Purpose of Presentation • Provide an update on alternative water supply project. • Present a summary of other site work conducted and planned in 2005. Former DuPont Barksdale Works Project Update

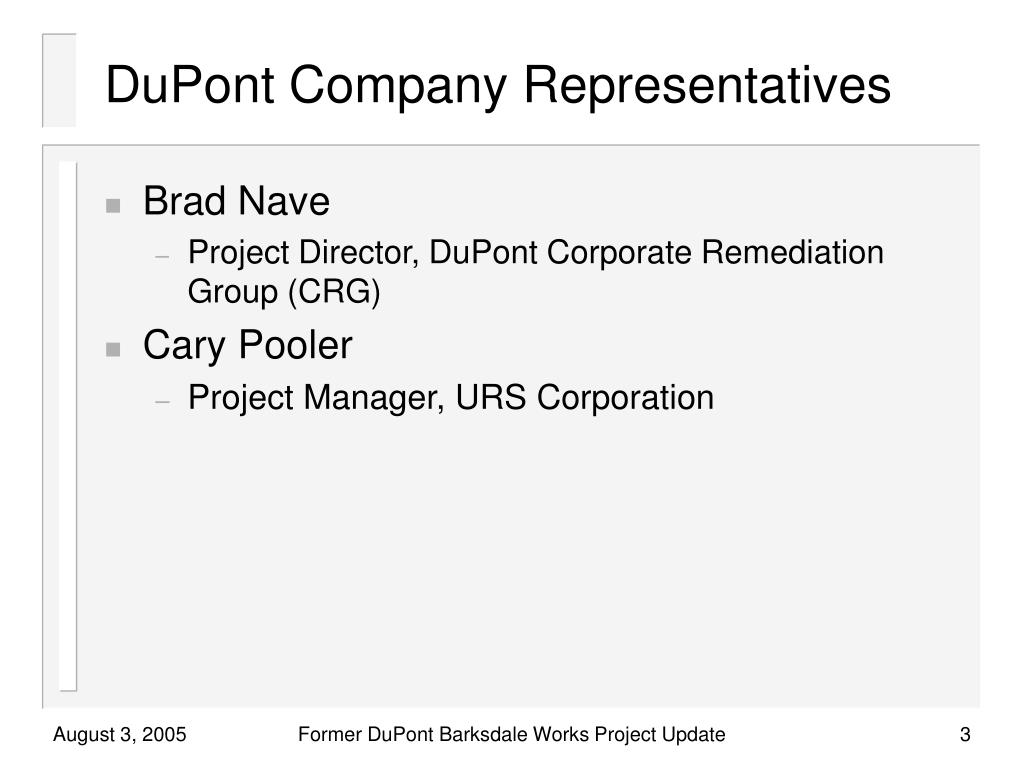

DuPont Company Representatives • Brad Nave • Project Director, DuPont Corporate Remediation Group (CRG) • Cary Pooler • Project Manager, URS Corporation Former DuPont Barksdale Works Project Update
Pipeline Construction UpdateAlternative Water Supply • On June 17, 2005, the construction was completed. • All pipeline mains have been completed (6.25 miles). • Last lateral was connected on June 17, 2005. • Forty-eight properties are anticipated to use water in 2005. • Remaining eight properties may use water at a future date. • Feedback from residents regarding water quality and pressure has been very positive. Former DuPont Barksdale Works Project Update

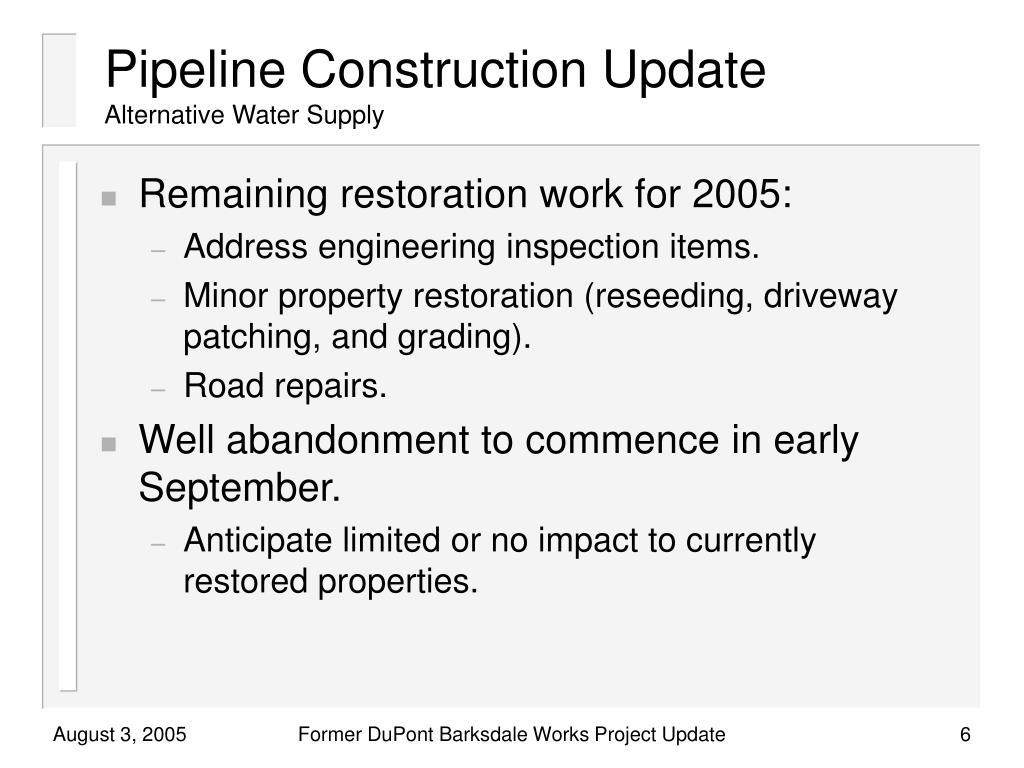

Pipeline Construction UpdateAlternative Water Supply • Remaining restoration work for 2005: • Address engineering inspection items. • Minor property restoration (reseeding, driveway patching, and grading). • Road repairs. • Well abandonment to commence in early September. • Anticipate limited or no impact to currently restored properties. Former DuPont Barksdale Works Project Update

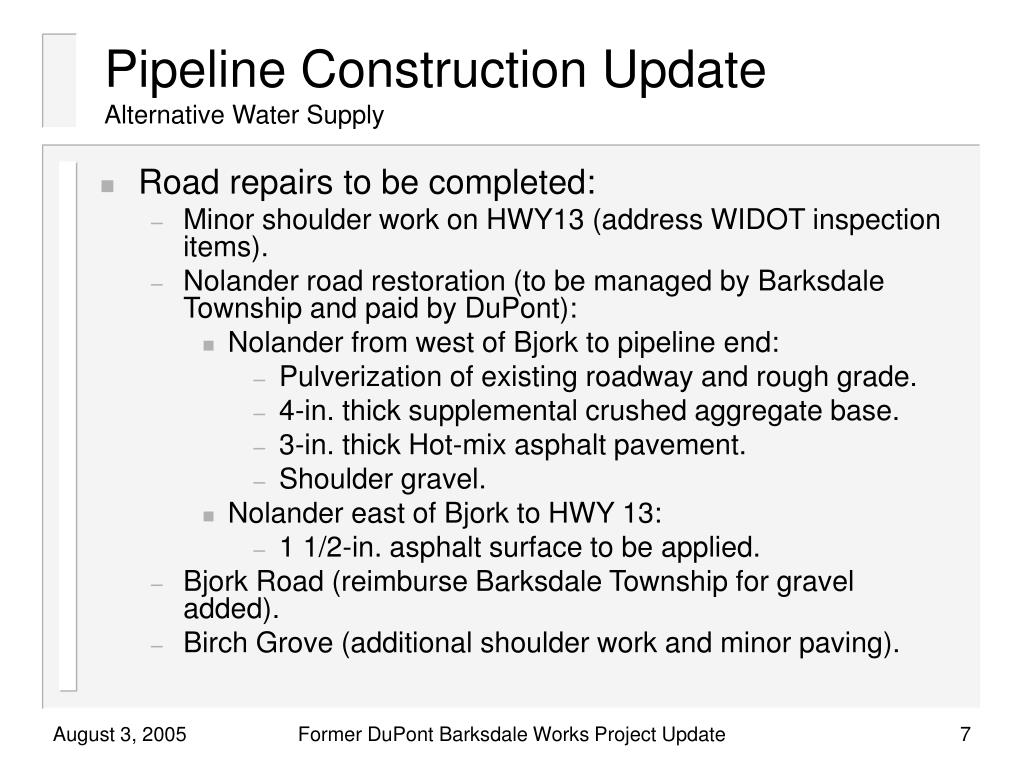

Pipeline Construction UpdateAlternative Water Supply • Road repairs to be completed: • Minor shoulder work on HWY13 (address WIDOT inspection items). • Nolander road restoration (to be managed by Barksdale Township and paid by DuPont): • Nolander from west of Bjork to pipeline end: • Pulverization of existing roadway and rough grade. • 4-in. thick supplemental crushed aggregate base. • 3-in. thick Hot-mix asphalt pavement. • Shoulder gravel. • Nolander east of Bjork to HWY 13: • 1 1/2-in. asphalt surface to be applied. • Bjork Road (reimburse Barksdale Township for gravel added). • Birch Grove (additional shoulder work and minor paving). Former DuPont Barksdale Works Project Update
2005 Residential Monitoring • Working with WDNR to develop a new residential well monitoring program for homes that lie directly south and east of the site that are not connected to municipal water. • Sampling anticipated to begin in late August or September, pending WDNR approval. • Proposed sampling frequency is biennial for a 5 year period. Former DuPont Barksdale Works Project Update

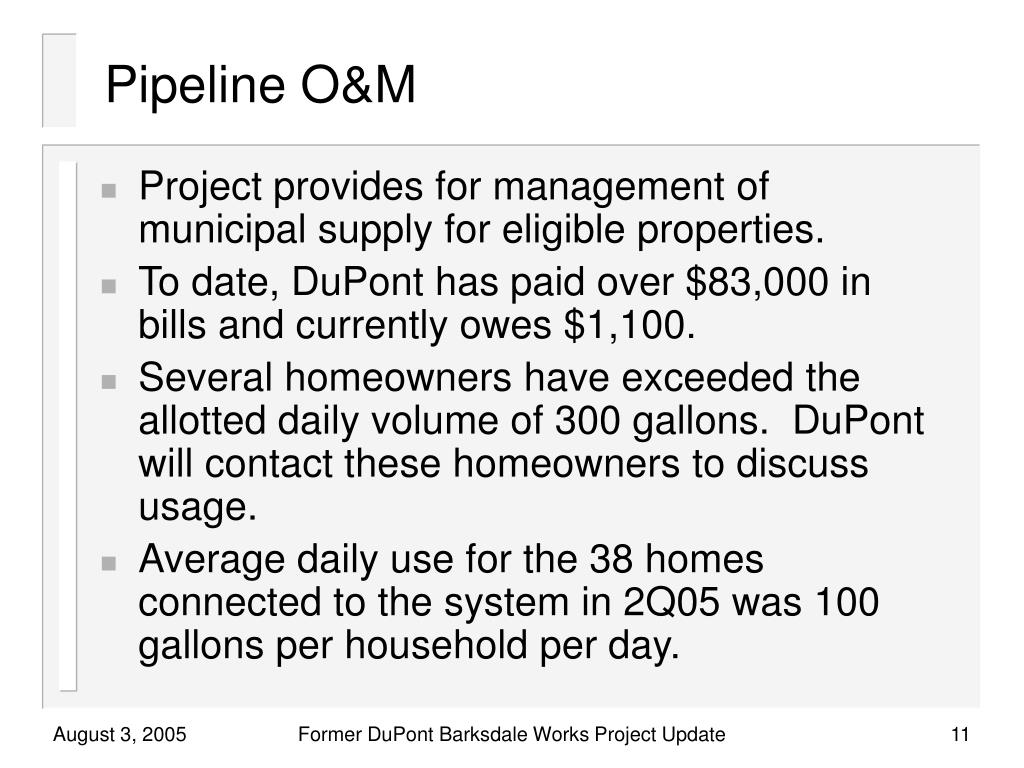

Pipeline O&M • Project provides for management of municipal supply for eligible properties. • To date, DuPont has paid over $83,000 in bills and currently owes $1,100. • Several homeowners have exceeded the allotted daily volume of 300 gallons. DuPont will contact these homeowners to discuss usage. • Average daily use for the 38 homes connected to the system in 2Q05 was 100 gallons per household per day. Former DuPont Barksdale Works Project Update

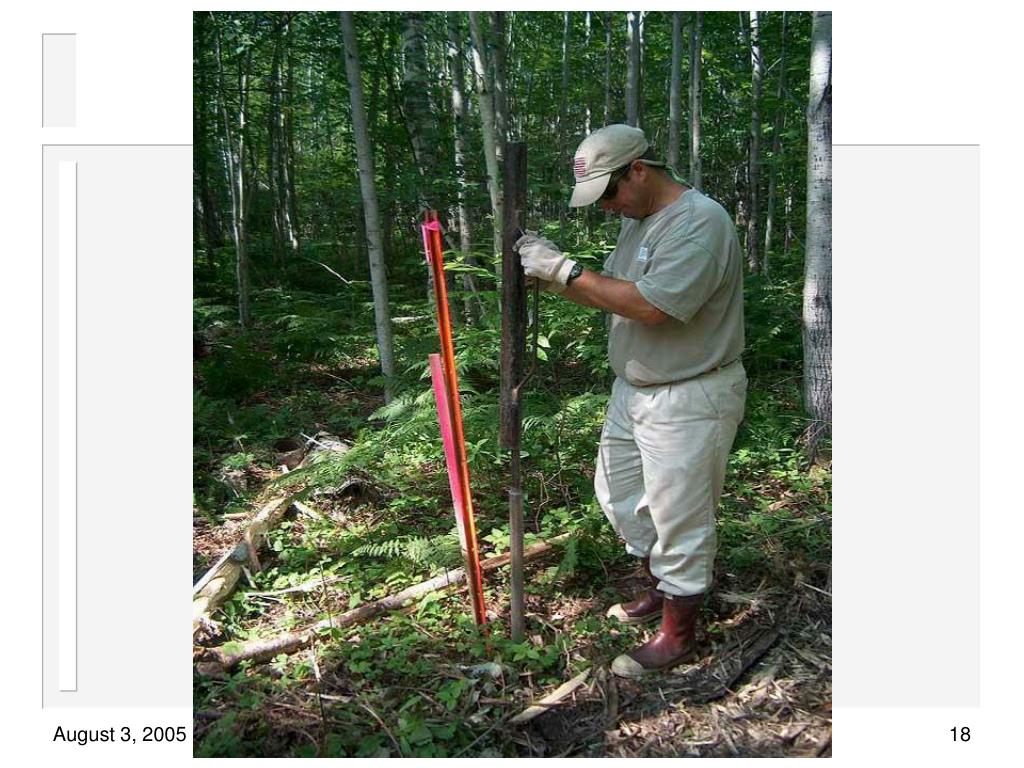

2005 Site Investigation Work • Conducted sediment and surface water sampling in April 2005. September 2005 targeted as transmittal date of the findings. • Preliminary results are consistent with previous sampling. • Field work for the southern area of the site is complete, per WDNR approved work plan: • Samples were collected on a “grid” covering the entire southern area, which was supplemented by biased samples in former product storage areas and rail beds. • Approximately 680 locations were drilled to comprise approximately 410 samples that were submitted for analysis. • Preliminary laboratory results will be reported to DuPont in about 45 days. Former DuPont Barksdale Works Project Update

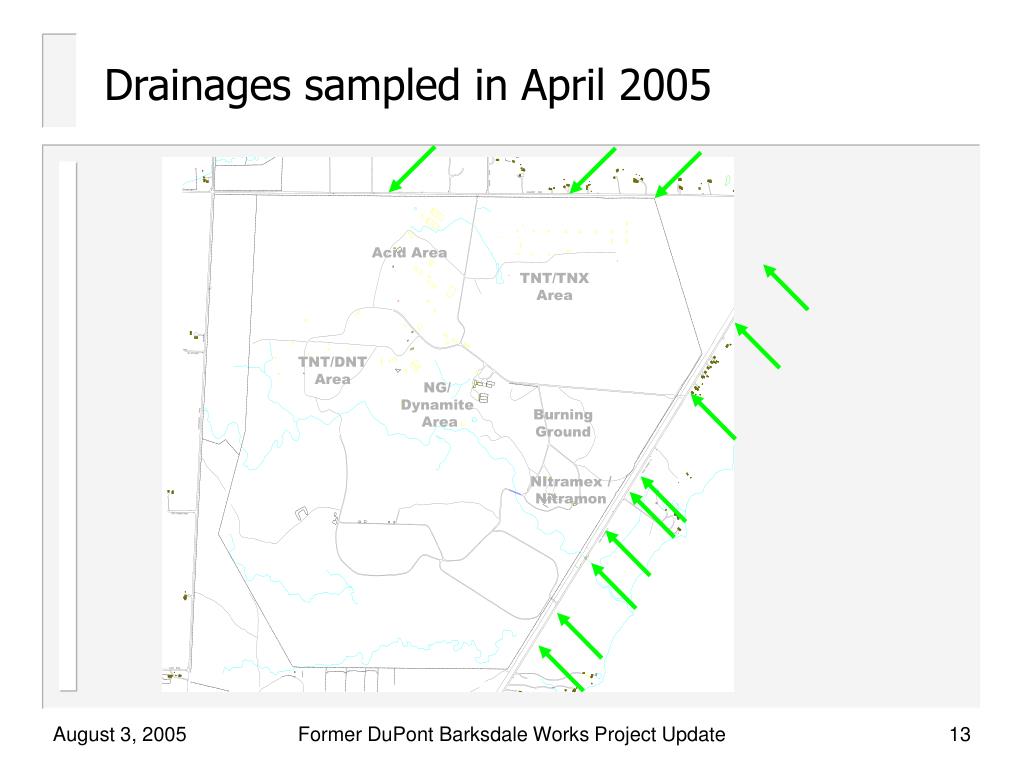

Acid Area TNT/TNX Area TNT/DNT Area NG/Dynamite Area Burning Ground NItramex / Nitramon Drainages sampled in April 2005 Former DuPont Barksdale Works Project Update

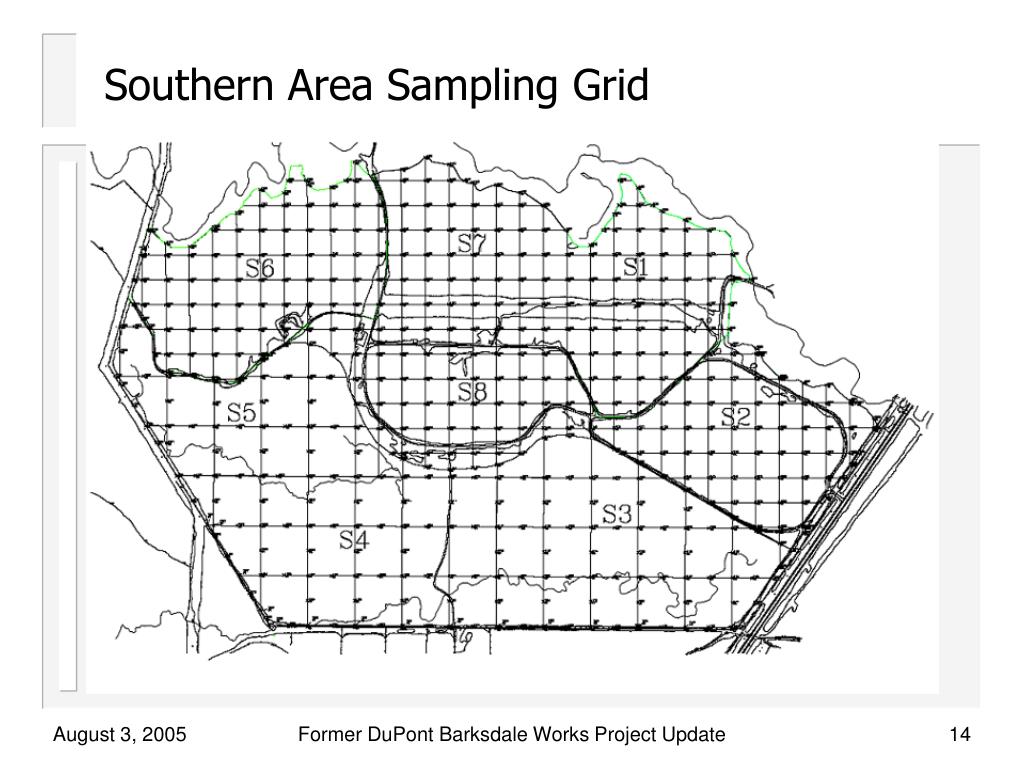

Southern Area Sampling Grid Former DuPont Barksdale Works Project Update

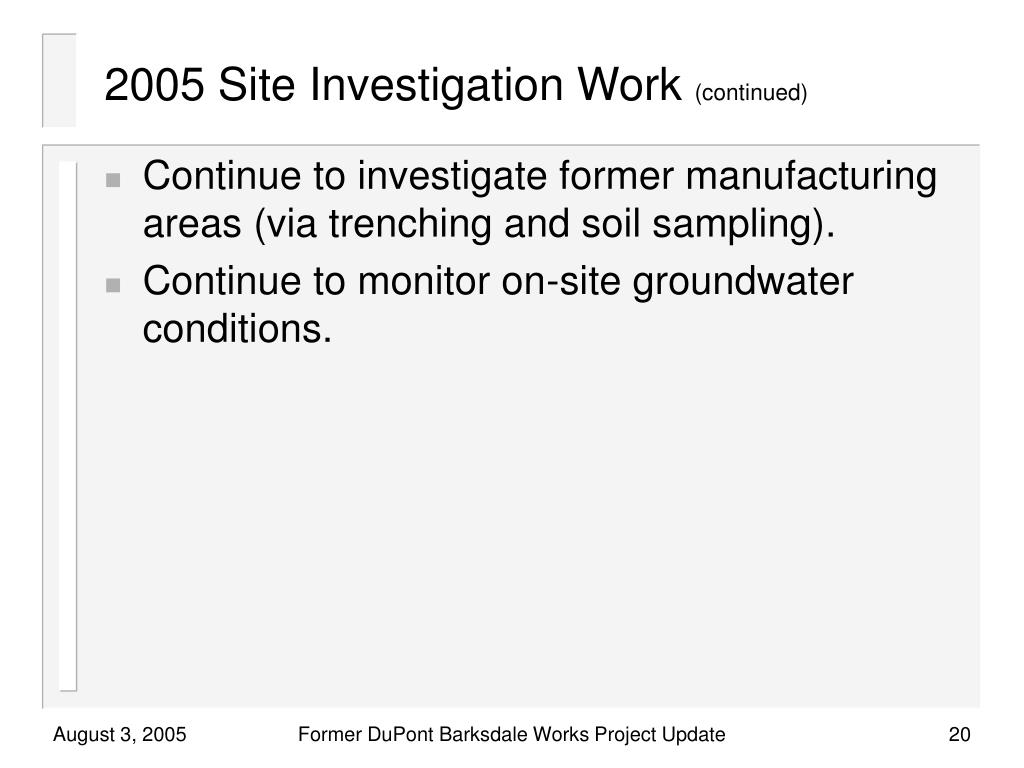

2005 Site Investigation Work (continued) • Continue to investigate former manufacturing areas (via trenching and soil sampling). • Continue to monitor on-site groundwater conditions. Former DuPont Barksdale Works Project Update

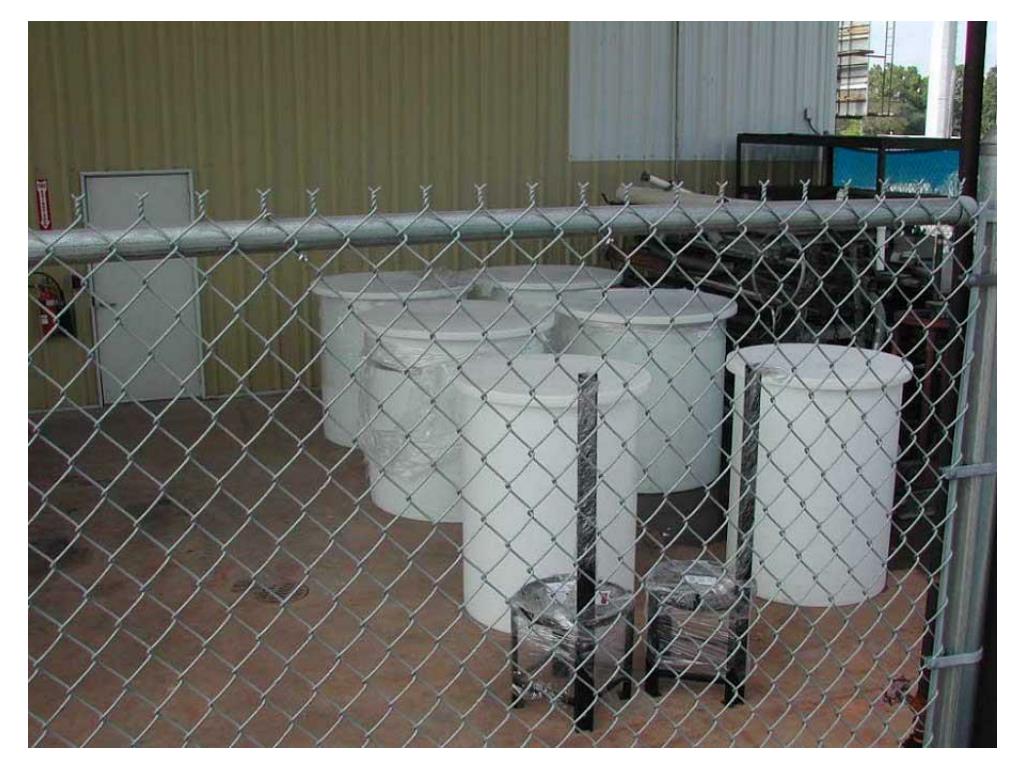

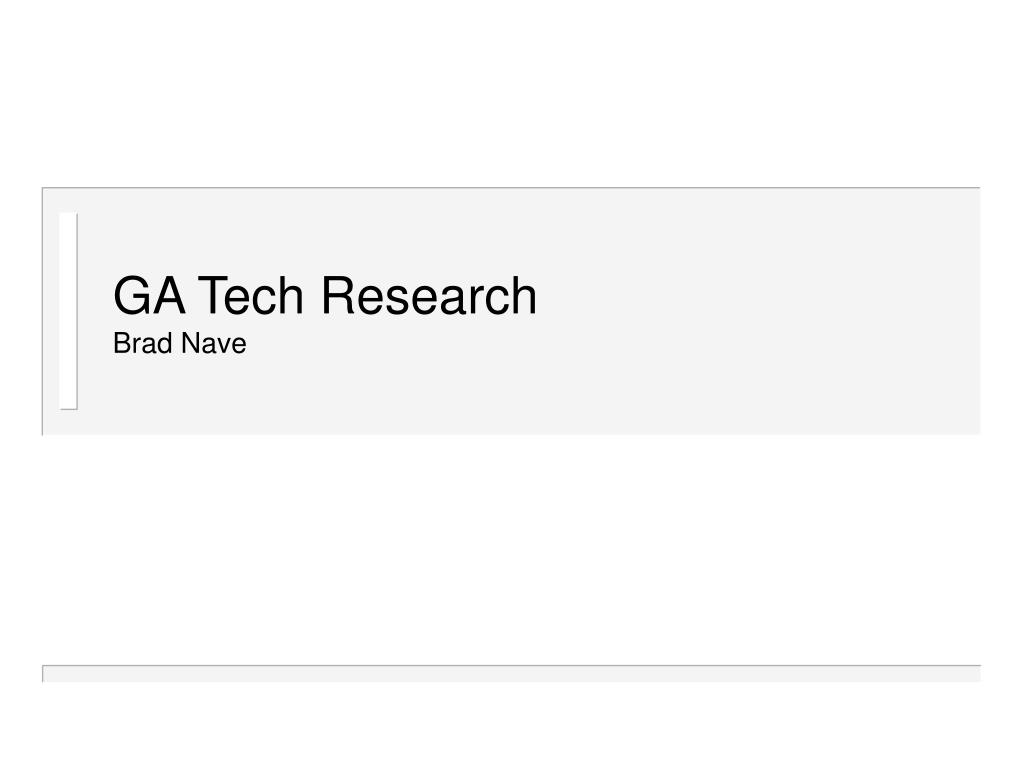

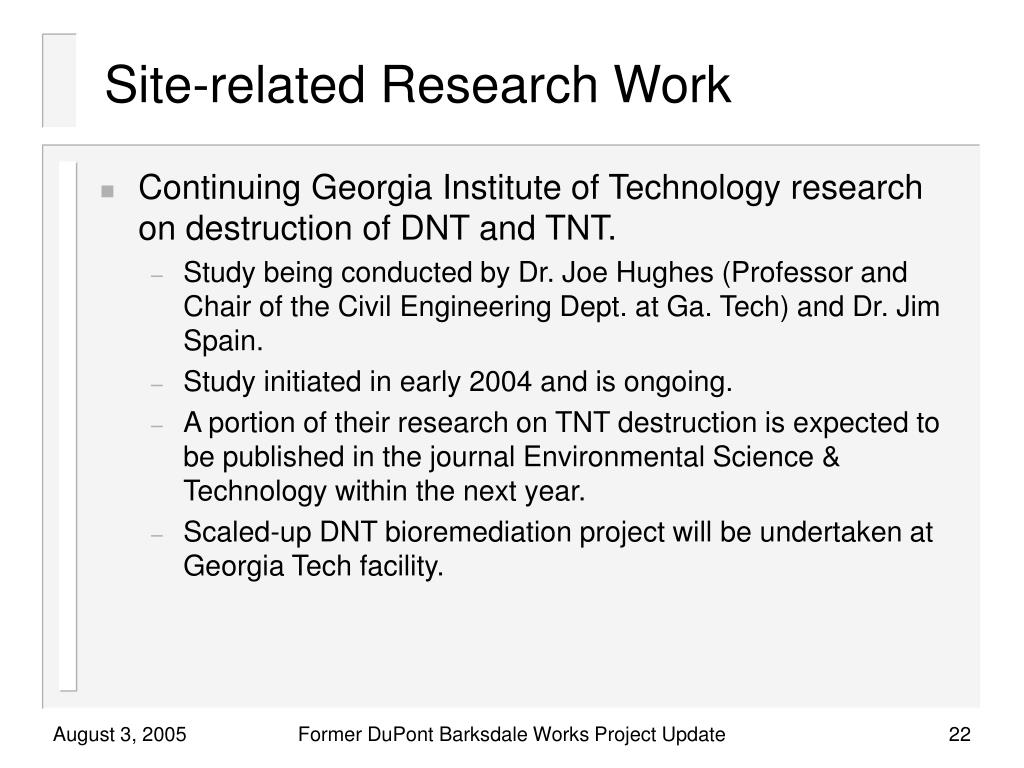

Site-related Research Work • Continuing Georgia Institute of Technology research on destruction of DNT and TNT. • Study being conducted by Dr. Joe Hughes (Professor and Chair of the Civil Engineering Dept. at Ga. Tech) and Dr. Jim Spain. • Study initiated in early 2004 and is ongoing. • A portion of their research on TNT destruction is expected to be published in the journal Environmental Science & Technology within the next year. • Scaled-up DNT bioremediation project will be undertaken at Georgia Tech facility. Former DuPont Barksdale Works Project Update

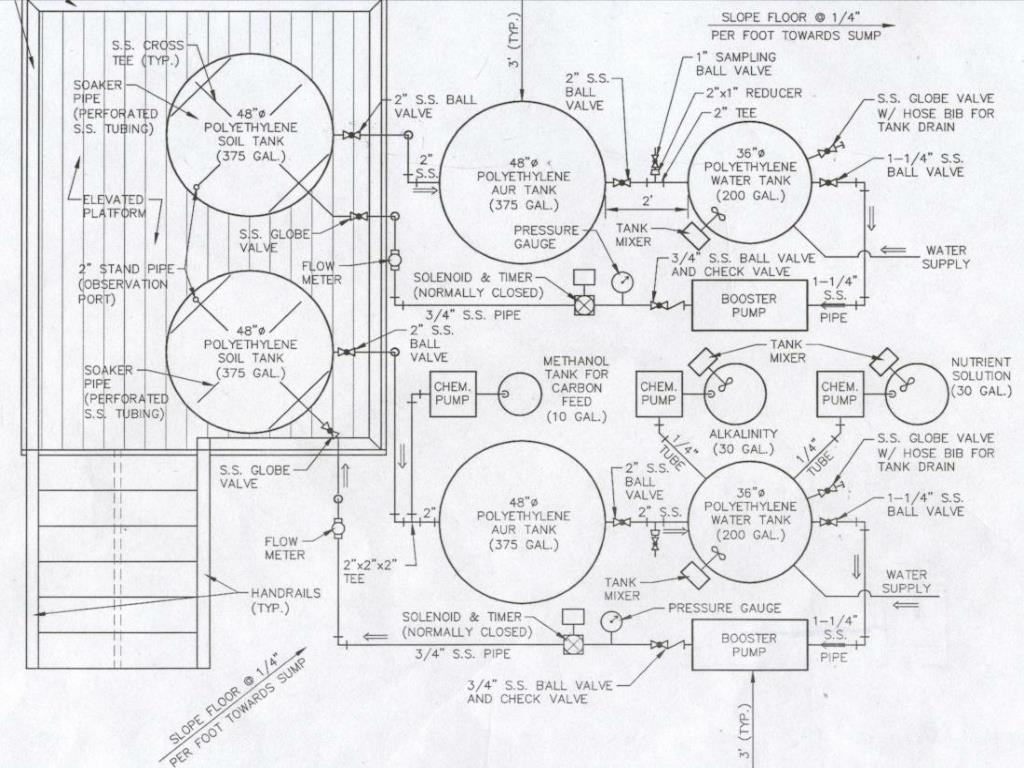

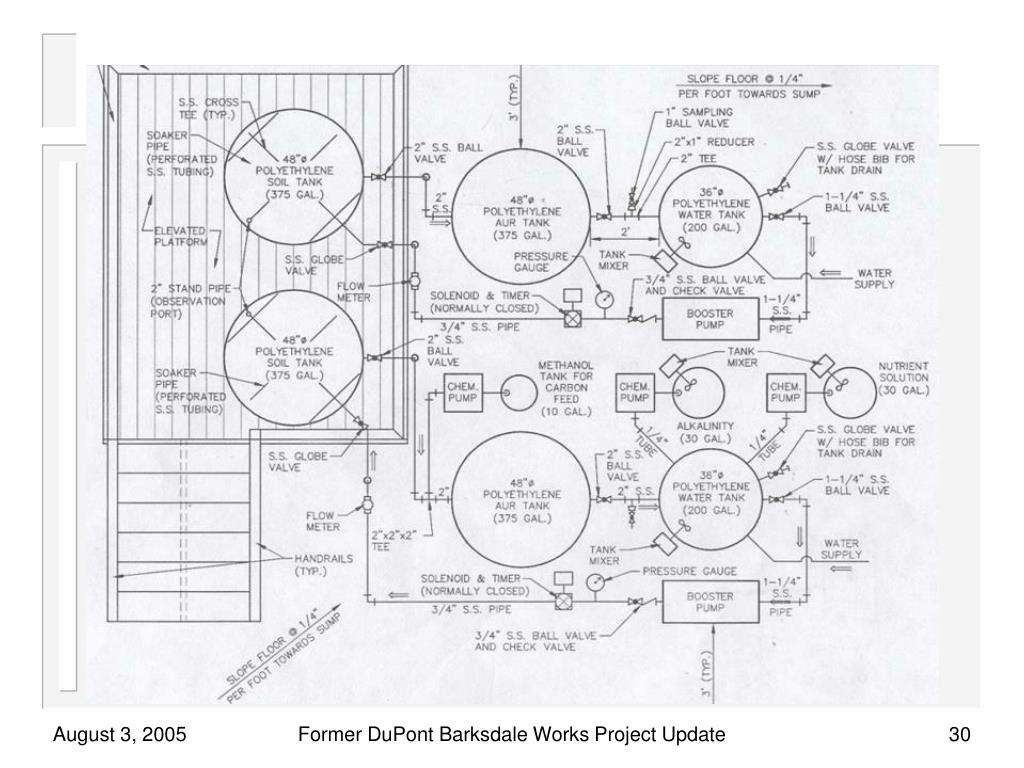

Methanol (wood alcohol) Proposed Barksdale Soil Biodegradation Pilot • Proposed pilot project is a simple set up with low operation and maintenance requirements. DNT Biodegradation Reactor Site Soils Contaminated w/ DNT (source of bacteria and DNT) Water & Nutrients (phosphate, magnesium, calcium, iron) Denitrification Reactor to Remove Nitrite (bacteria from soils) N2 + CO2 + H2O 2 NO2- 1 DNT Buffer (pH control) Methanol + NO2- Former DuPont Barksdale Works Project Update

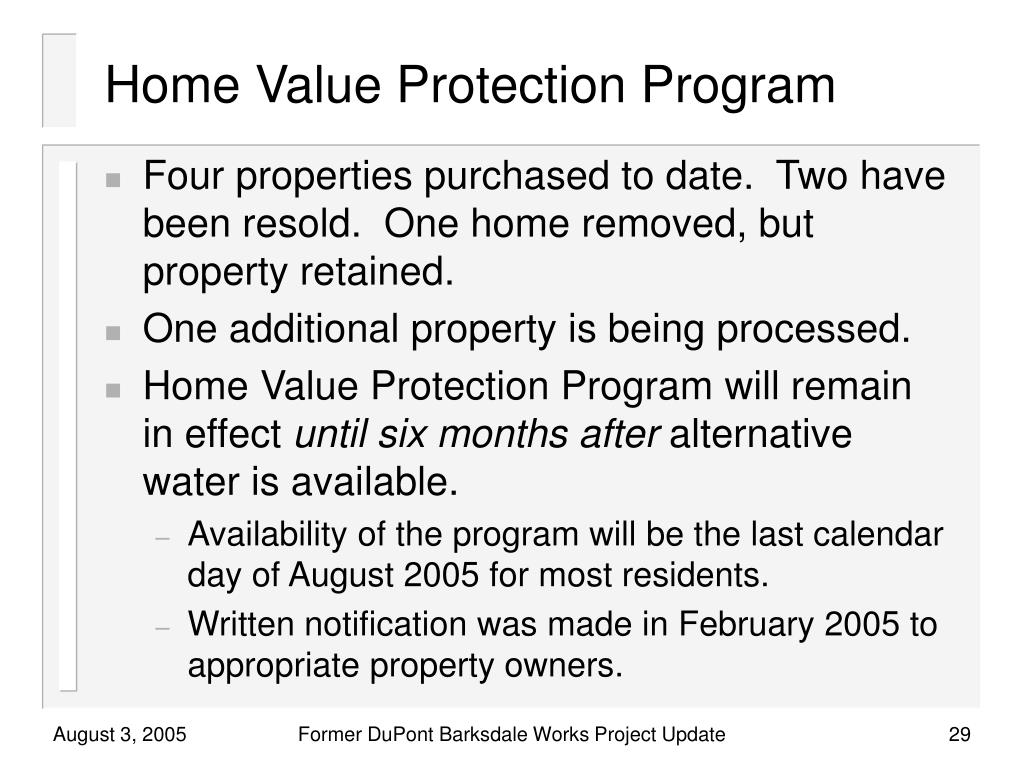

Home Value Protection Program • Four properties purchased to date. Two have been resold. One home removed, but property retained. • One additional property is being processed. • Home Value Protection Program will remain in effect until six months after alternative water is available. • Availability of the program will be the last calendar day of August 2005 for most residents. • Written notification was made in February 2005 to appropriate property owners. Former DuPont Barksdale Works Project Update
Questions or comments? Former DuPont Barksdale Works Project Update
