Warm-Up The diagram at the right is a square with a side length of 3. Identify all the different-size squares, tell how many squares there are of each size, and tell the area of each square. 8-7 Special Right Triangles. 8-7 Special Right Triangles.

Download Presentation

8-7 Special Right Triangles

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


8 7 special right triangles

Warm-UpThe diagram at the right is a squarewith a side length of 3. Identify all thedifferent-size squares, tell how manysquares there are of each size, and tellthe area of each square.


8 7 special right triangles

8-7 Special Right Triangles


8 7 special right triangles1

8-7 Special Right Triangles

  • The lengths of the sides of right triangles with 30° or 45° angles are related in simple ways.


8 7 special right triangles2

8-7 Special Right Triangles

  • The 45°-45°-90° Triangle

    This triangle is an isosceles right triangle.

    Use the Pythagorean Theorem to calculate the length of the hypotenuse.

    a2 + b2 = c2

    x2 + x2 = c2

    2x2 = c2

    xÖ2 = c


8 7 special right triangles3

8-7 Special Right Triangles

  • Isosceles Right Triangle Theorem

    In an isosceles right triangle, if a leg has length x, then the hypotenuse has length xÖ2.


8 7 special right triangles4

8-7 Special Right Triangles

Find the length of XY.

According to the Isosceles Right Triangle Theorem, since a leg is

the hypotenuse is


8 7 special right triangles5

8-7 Special Right Triangles

Find the length of PR.

According to the Isosceles Right Triangle Theorem,


8 7 special right triangles6

8-7 Special Right Triangles

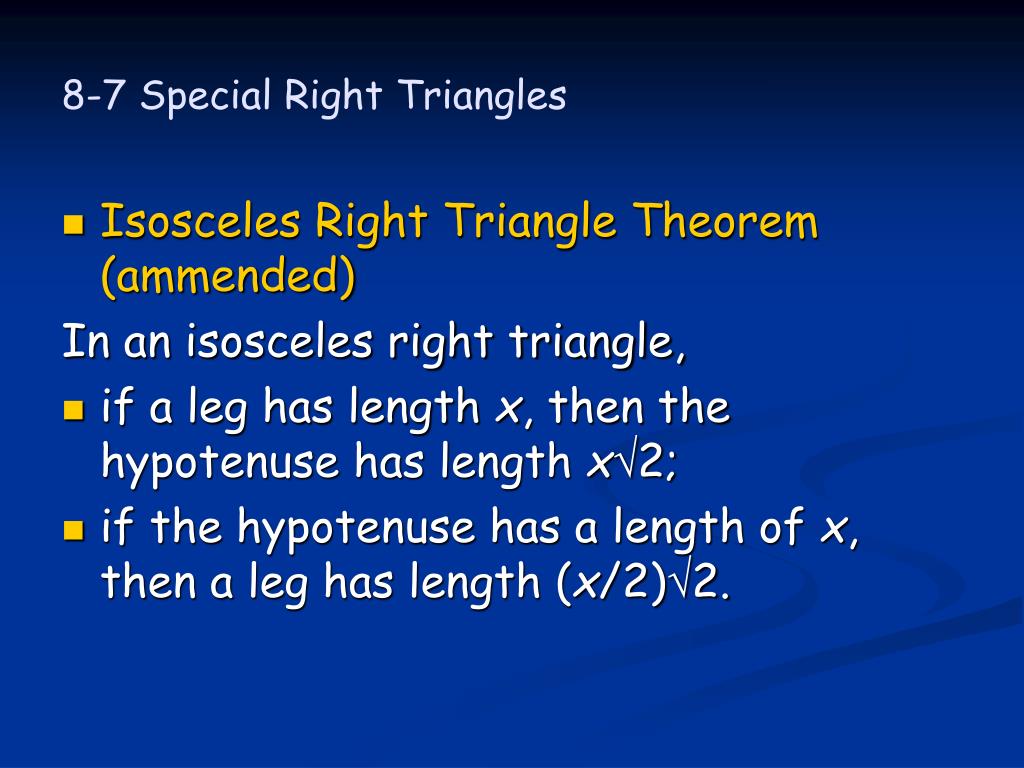

  • Isosceles Right Triangle Theorem (ammended)

    In an isosceles right triangle,

  • if a leg has length x, then the hypotenuse has length xÖ2;

  • if the hypotenuse has a length of x, then a leg has length (x/2)Ö2.


8 7 special right triangles7

8-7 Special Right Triangles

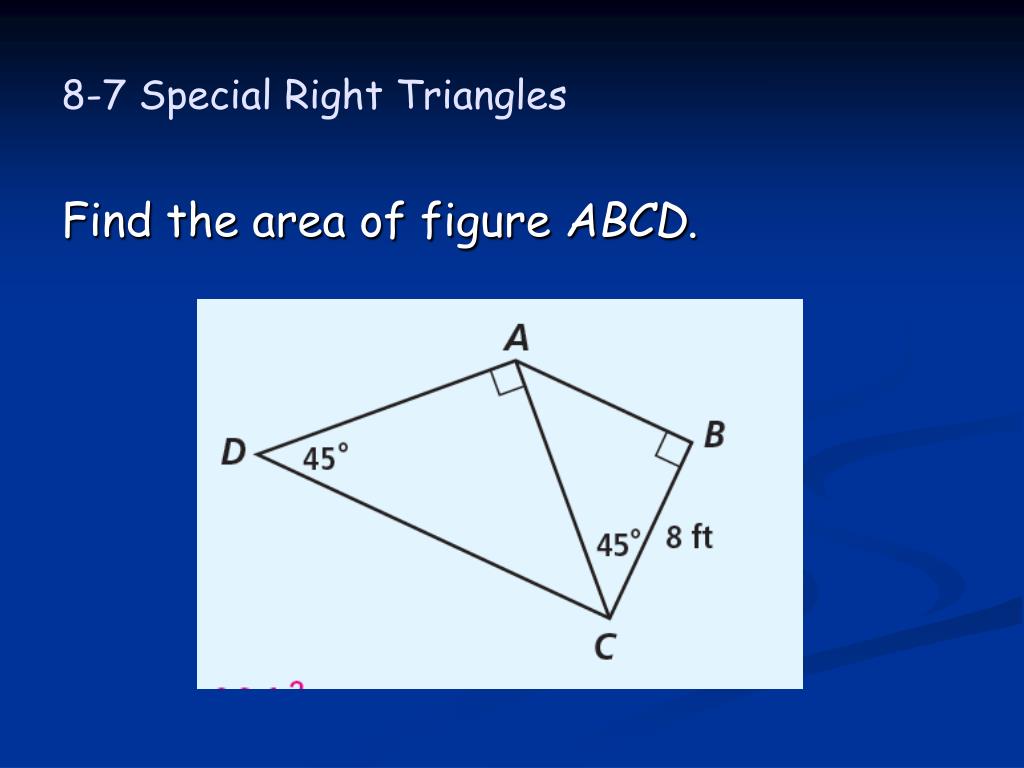

Find the area of figure ABCD.


8 7 special right triangles8

8-7 Special Right Triangles

Find the area of figure ABCD.

  • Find area of DABC.

    ½ 8 * 8 = 32ft2

  • Find length of DC.

    AC = 8Ö2, so

    DC = (8Ö2) Ö2= 8*2=16ft

  • Find area of DACD.

    ½ 16 * 8 = 64ft2

  • Add areas of DABC and DACD.

    32ft2 + 64ft2 = 96ft2


8 7 special right triangles9

8-7 Special Right Triangles

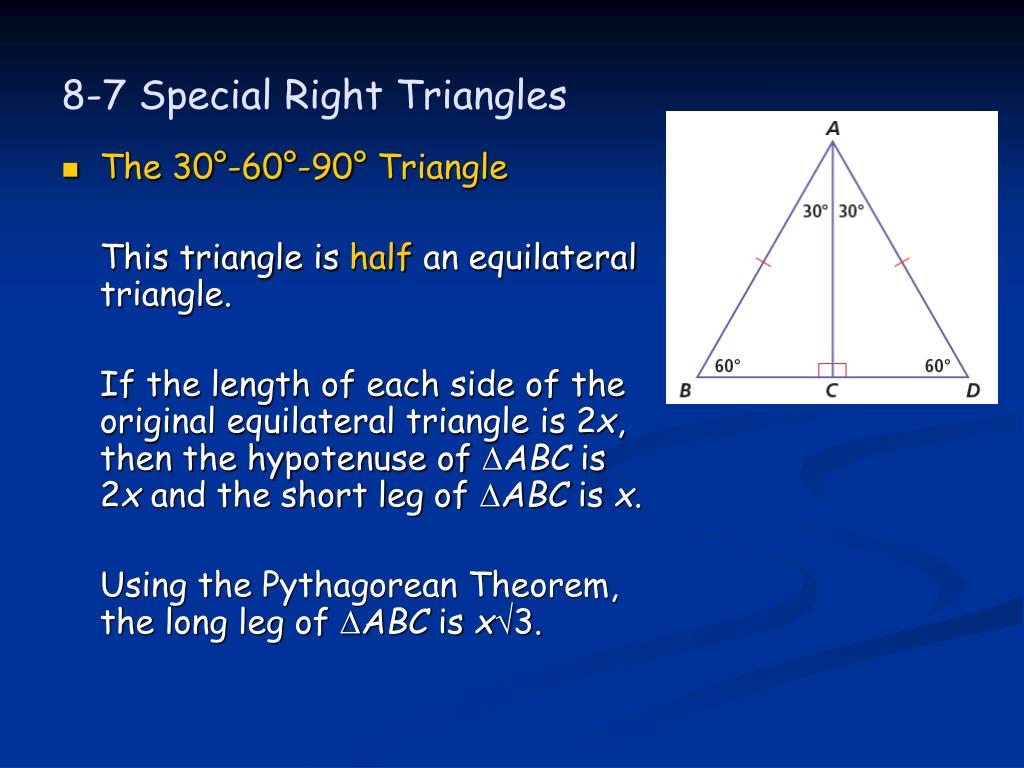

  • The 30°-60°-90° Triangle

    This triangle is half an equilateral triangle.

    If the length of each side of the original equilateral triangle is 2x, then the hypotenuse of DABC is 2x and the short leg of DABC is x.

    Using the Pythagorean Theorem, the long leg of DABC is xÖ3.


8 7 special right triangles10

8-7 Special Right Triangles

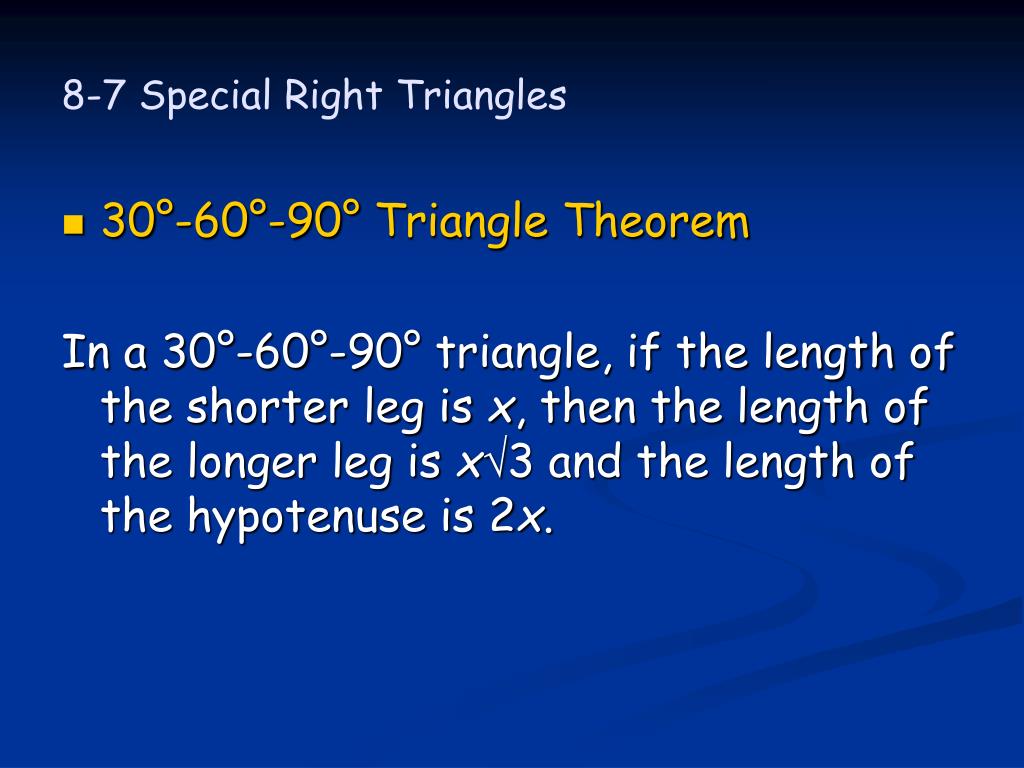

  • 30°-60°-90° Triangle Theorem

    In a 30°-60°-90°triangle, if the length of the shorter leg is x, then the length of the longer leg is xÖ3 and the length of the hypotenuse is 2x.


8 7 special right triangles

4 in

25 ft

6 m

Short LongHypotenuse

Leg leg

4 in Ö3 in8 in

12.5 ft 12.5Ö3 in25 in

2Ö3 m 6 m4Ö3 m

8-7 Special Right TrianglesFind the length of the missing sides in the following 30°-60°-90° Triangles.


8 7 special right triangles11

8-7 Special Right Triangles

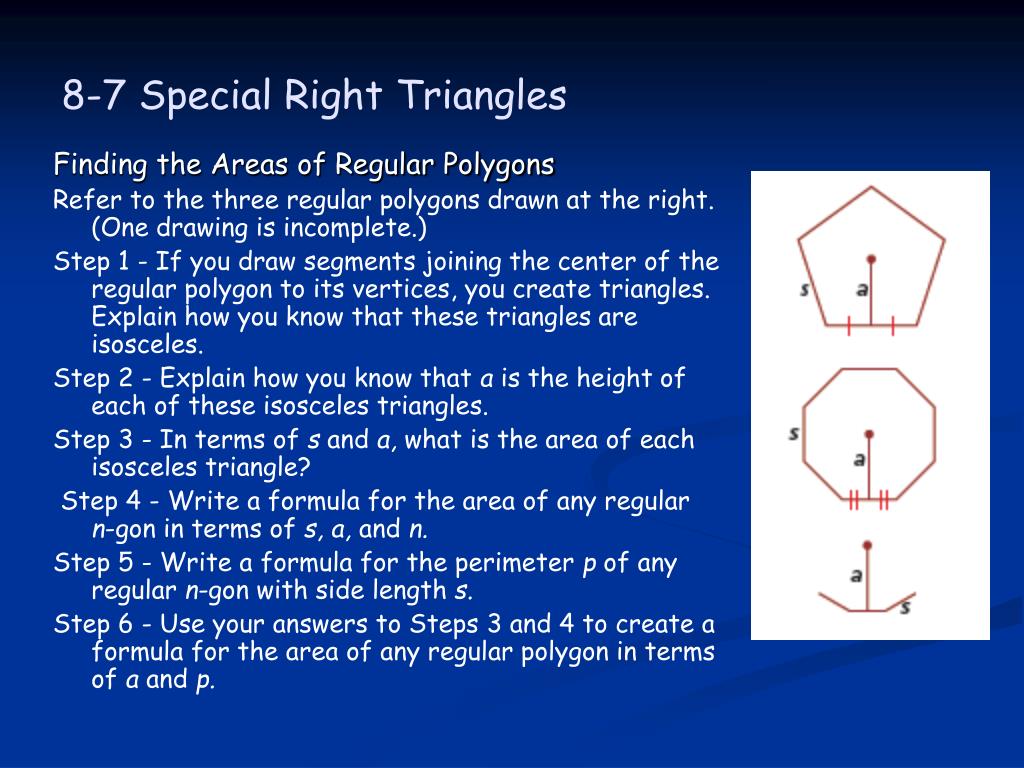

Finding the Areas of Regular Polygons

Refer to the three regular polygons drawn at the right. (One drawing is incomplete.)

Step 1 - If you draw segments joining the center of the regular polygon to its vertices, you create triangles. Explain how you know that these triangles are isosceles.

Step 2 - Explain how you know that a is the height of each of these isosceles triangles.

Step 3 - In terms of s and a, what is the area of each isosceles triangle?

Step 4 - Write a formula for the area of any regular n-gon in terms of s, a, and n.

Step 5 - Write a formula for the perimeter p of any regular n-gon with side length s.

Step 6 - Use your answers to Steps 3 and 4 to create a formula for the area of any regular polygon in terms of a and p.


8 7 special right triangles12

8-7 Special Right Triangles

  • Regular Polygon Area Theorem

    The area of a regular polygon is half the product of the length of the apothem a and its perimeter p.

    A = ½ ap


8 7 special right triangles13

8-7 Special Right Triangles

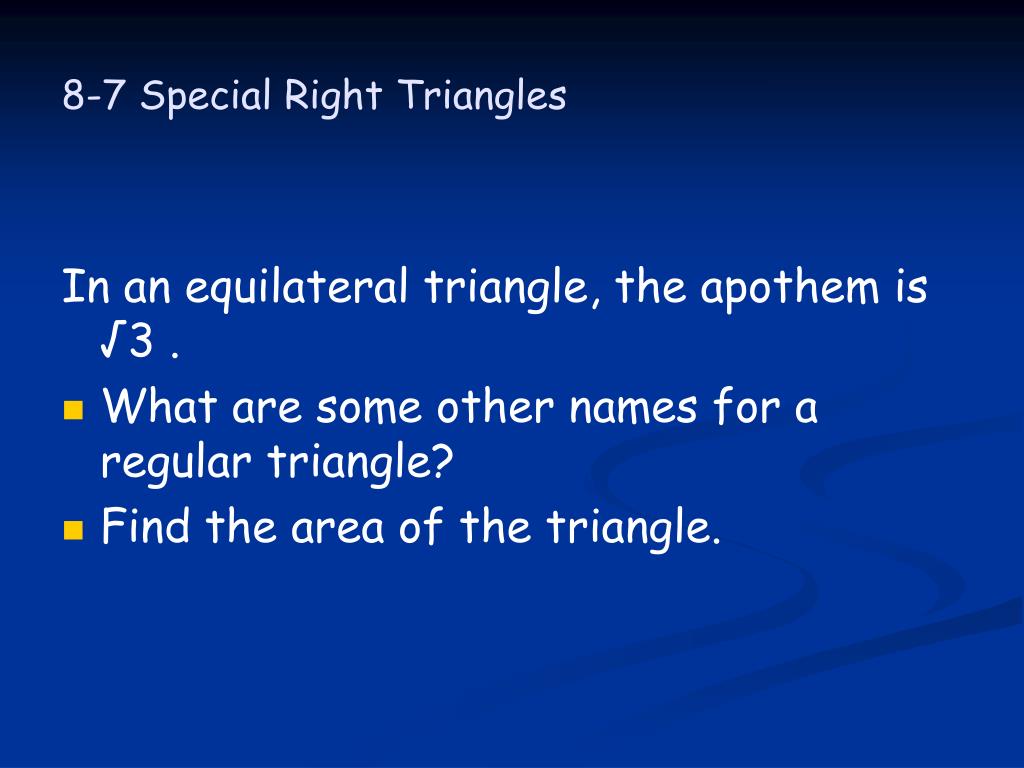

In an equilateral triangle, the apothem is √3 .

  • What are some other names for a regular triangle?

  • Find the area of the triangle.
