  1. User Requirements of ongoing DUP, DUE, and GSE Projects C. Zehner/S. Pinnock EO Applications and Services Development Division

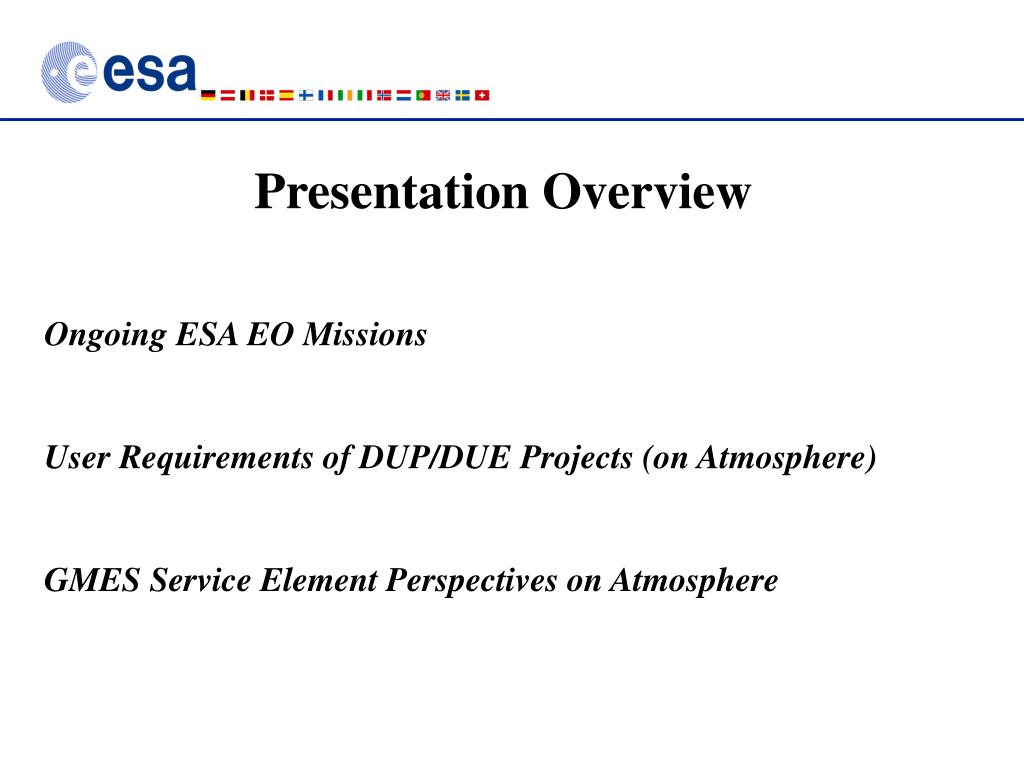

  2. Presentation Overview Ongoing ESA EO Missions User Requirements of DUP/DUE Projects (on Atmosphere) GMES Service Element Perspectives on Atmosphere

  3. The Evolution of ESA EO Missions Earth Explorer 1995 2002 1991 ENVISAT ERS 2 ERS 1 Oceans Sea Ice Cryosphere Land Surface Climatology Earth Watch? Ocean Colour Atmospheric Constituents Global Ozone

  4. Applications & Service Development GMES Service Element Scientific Research AO/Cat I Projects Data User Programme/Element Projects ESA EO Exploitation Sustainable EO Services 10 Projects ongoing 2 new Projects starting now

  5. Working with Users within DUP (B,CH,NL,I) • 2 small projects running in parallel (1 year duration, 100 K€, 2001): • POLPO Demonstration Project : Pollution Hot Spot Monitoring from GOME Applied to the Po-basin • Project Aim: to demonstrate the feasibility to combine ground based measurements with satellite measurements for regional air pollution monitoring (Po-valley emissions, trans-boundary transport) • TEMIS Project Definition: Tropospheric Emission Monitoring Internet Service • Project Aim: find users, collect user requirements, identify few core users, define a service for these users based on existing EO missions

  6. Summer means (June, July, August 2000 and 2001) of tropospheric NO2 columns from GOME – POLPO Output Example

  7. Follow on of the 2 small activities: TEMIS Project: Tropospheric Emission Monitoring Internet Service - http://www.temis.nl/ (1M€, mid 2002-end 2004) Companies involved: consortium of 6 companies (Belgium, Italy, Switzerland, and The Netherlands) lead by KNMI Project Aim: to support air pollution monitoring, UV radiation monitoring Kyoto Protocol monitoring, and aviation control Instruments: GOME, SCIAMACHY, ATSR

  8. RIVM X X X X X X X ECMWF X L’Oreal X X X X X X VAAC/ MéteoFr. X X ARPA X X X X X X X ITC X X X X X X Core Users and their Requirements

  9. Output of TEMIS (on the Web – available to the public – www.temis.nl) NRT Total Ozone (using now SCIAMACHY data) UV information Tropospheric trace gas information (NO2, SO2, BrO, Aerosol – Level 2 data and synoptic maps by using assimilation techniques) in order to support air pollution monitoring

  10. Tropospheric ozone in 2002

  11. Daily UV dose for Europe

  12. User Needs for improved Satellite Measurements on Air Pollution Monitoring Spatial resolution: few km Temporal resolution: at least once a day – preferred hourly Better accuracy of retrieved species in the troposphere (e.g. GOME NO2: 30-70%) Insure data homogeneity and continuation over a long time period

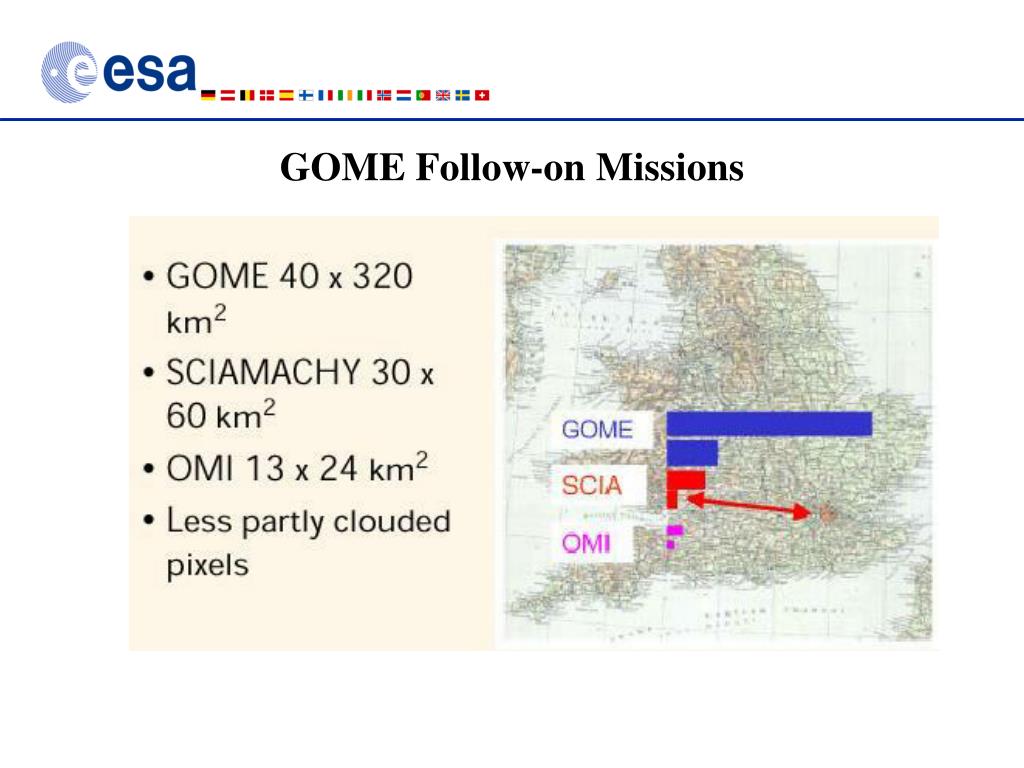

  13. GOME Follow-on Missions

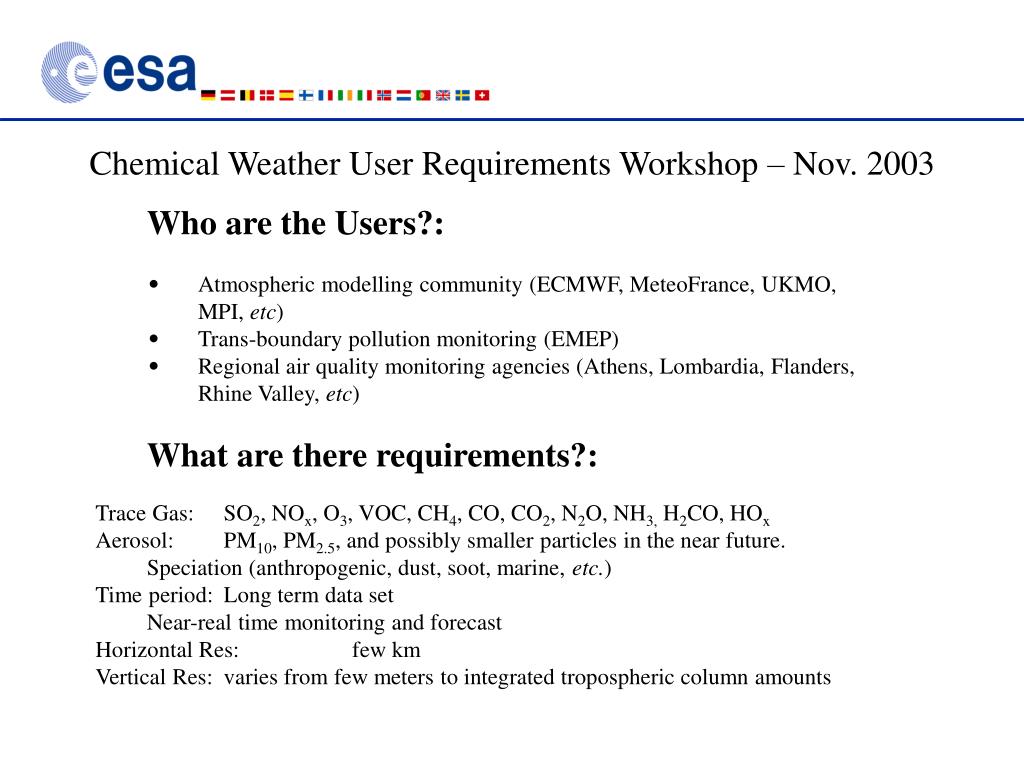

  14. Chemical Weather User Requirements Workshop – Nov. 2003 Who are the Users?: • Atmospheric modelling community (ECMWF, MeteoFrance, UKMO, MPI, etc) • Trans-boundary pollution monitoring (EMEP) • Regional air quality monitoring agencies (Athens, Lombardia, Flanders, Rhine Valley, etc) What are there requirements?: • Trace Gas: SO2, NOx, O3, VOC, CH4, CO, CO2, N2O, NH3, H2CO, HOx • Aerosol: PM10, PM2.5, and possibly smaller particles in the near future. • Speciation (anthropogenic, dust, soot, marine, etc.) • Time period: Long term data set • Near-real time monitoring and forecast • Horizontal Res: few km • Vertical Res: varies from few meters to integrated tropospheric column amounts

  15. GlobAER - Global Aerosol from Earth Observation • Applications • Climate change and atmospheric chemistry • PM emission sources and dynamics • Background for regional air quality monitoring • Atmospheric correction of optical satellite data • Products/Activities • High Resolution (1km) global aerosol data set (target time span: 1995 - 2005) Land and Ocean (Optical depth, Ångstrøm coeff) Size distribution: PM10, PM2.5 , PM1. • Models assimilation and intercomparison exercise • Products tailored for different types of user - e.g. multi-resolution, AOD vs [PM2.5], etc. • Input: ATSR, MERIS, MSG • Invitation to tender: To be issued in mid Feb 2004 (max. 1 M€)

  16. New Providers Industry & Market path GMES Services Earthwatch Research path New Methods Missions User path New Users 2001 2002 2003 2004 2005

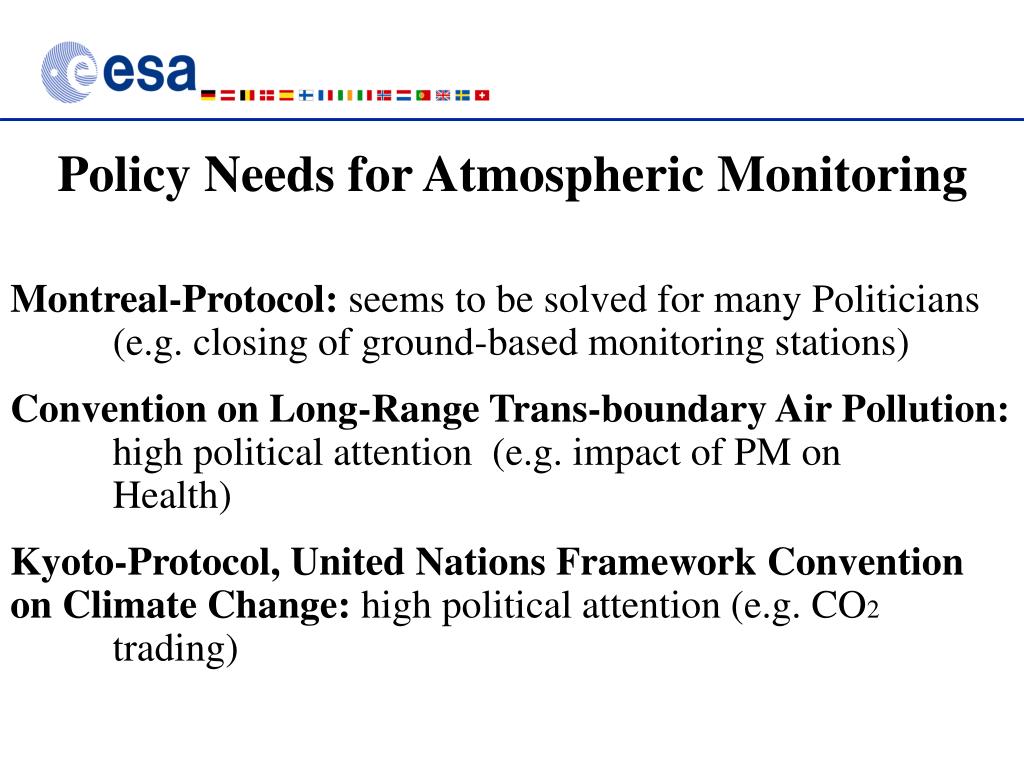

  17. Policy Needs for Atmospheric Monitoring Montreal-Protocol: seems to be solved for many Politicians (e.g. closing of ground-based monitoring stations) Convention on Long-Range Trans-boundary Air Pollution: high political attention (e.g. impact of PM on Health) Kyoto-Protocol, United Nations Framework Convention on Climate Change: high political attention (e.g. CO2 trading)

  18. Users and their Needs ECMWF, Meteo-France, WMO: Ozone Information NILU, DG Environment, ADEME, VITO, ARPA, EPA, INERIS, DEFRA: CLRTAP Monitoring ARPA, Nordrhein-Westfahlen, WHO, ATMO Auvergne, Airmaraix, Air Pays de la Loire, UBA-Austria,UBA-Berlin: AQ Forecast SYKE, RIVM: UV-B Monitoring BVDD: UV-B Forecast

  19. Target Instruments/Key Methods ESA: GOME, ATSR-2, SCIAMACHY, GOMOS, MIPAS, AATSR, MERIS EUMETSAT: GOME2, IASI NASA: TOMS, MODIS, MOPITT, OMI, (TES) NASDA/CNES: POLDER Ground-based Measurements Key Technology to produce secondary products: Assimilation Techniques (Combination of measurements and models) – MOZART, EURAD, TM3, CHIMERE, LOTOS ATSR 2000 etc.

  20. Precursor Services Ozone: ESA TEMIS, EC FP5 GOA/ASSET, FP4 SODA Greenhouse Gases: GMES-GATO, EC FP5 EVERGREEN CLRTAP: EC FP5 GMES-CREATE/DAEDALUS AQ Forecast: ESA AO projects PAGODA1/2, SENECA, EVIVA - National Funding (AFO 2000): INVERT, SACADA, SATEC4D Assimilation, MAPP-MERIS LCC processor UV-B Monitoring: EUMETSAT O3SAF, EU FP5: CANDIDOZ, RETRO, QUOBI, EDUCE, FMI National Funding on OMI, etc. UV-B Forecast: ESA TEMIS, EC STREAMER

  21. Planned PROMOTE Project Start: Feb. 2004 about 30 Institutions involved Duration: 20 months Scale: 1.5 M€ Scope: Demonstration Project for GMES (to define future GMES services – planning up to 2014) Strategy: Integration of ground-based and satellite data • Ozone and UV – full operational Service - 300 K€ each • Air Pollution - demonstration Service – 800 K€ • Greenhouse Gases - Service definition
